812. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U■
Switching the display
Items displayed can be
switched by pressing the
“DISP” switch.
■Average fuel consumption
Displays the average fuel consum
ption since the function was
reset.
• Press and hold the “DISP” switch to reset when the average fuel con- sumption is displayed.
• Use the displayed average fuel consumption as a reference.
■
Current fuel consumption
Displays the current rat e of fuel consumption.
Use the displayed current fuel consumption as a reference.
Driving monitor

822. Instrument cluster
COROLLA_TMMMS_TMMC_U■
Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumpti
on. As
a result, the actual distance that can be driven may differ fro m that dis-
played.
• When only a small amount of fuel is added to the tank, the dis play may
not be updated.
When refueling, turn the engine switch off. If the vehicle is r efueled with-
out turning the engine switch off, the display may not be updat ed.
■
Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
■Elapsed time
Displays the elapsed time sin ce the engine was started.
■Customization
Some settings can be changed . (Customizable features: P. 5 6 4 )
■Eco Driving Indicator Zone Disp lay (vehicles with a continu-
ously variable transmission)
 P. 1 0 0

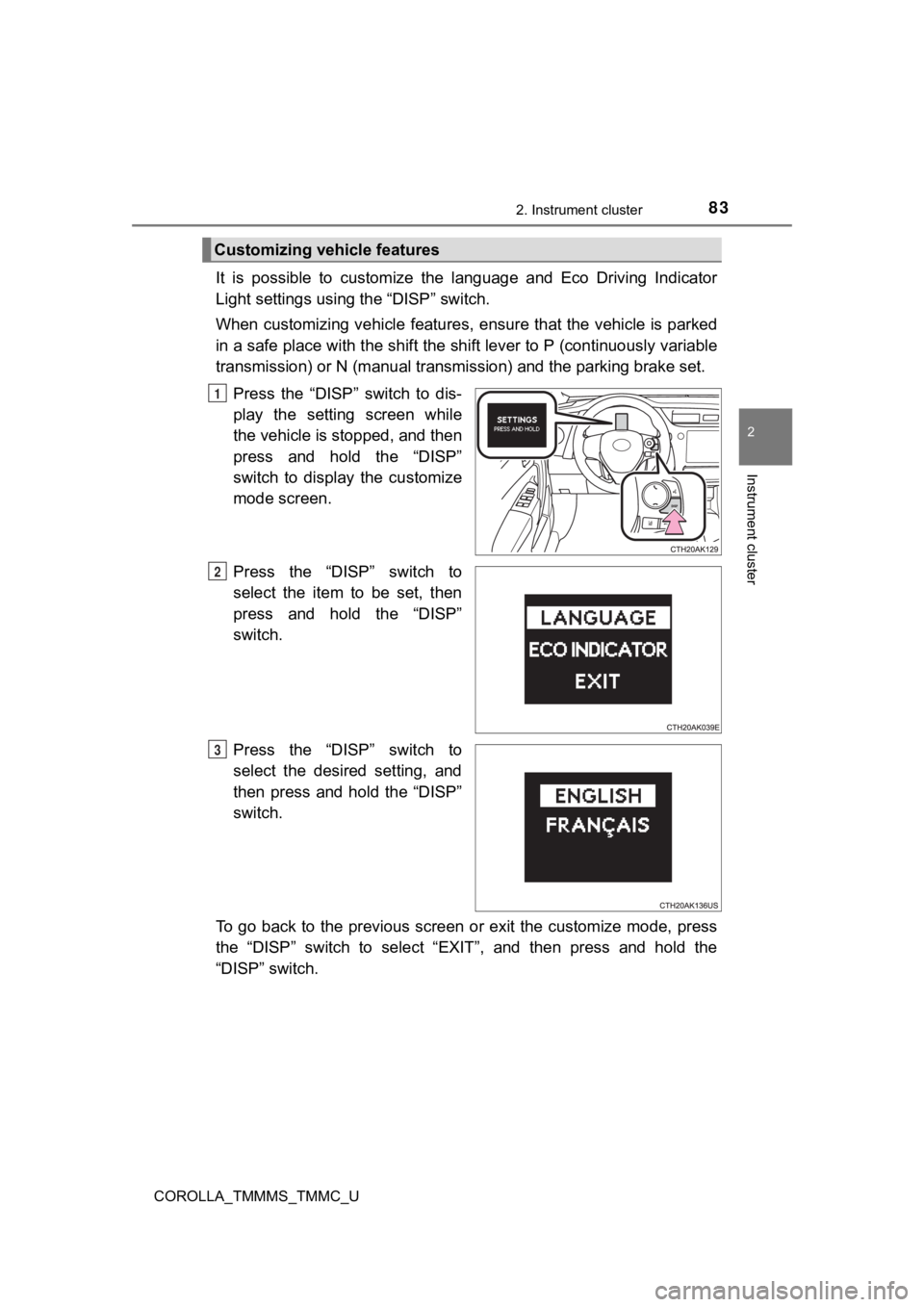

832. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U
It is possible to customize the language and Eco Driving Indicator
Light settings using the “DISP” switch.
When customizing vehicle features, ensure that the vehicle is p arked
in a safe place with the shift the shift lever to P (continuously variable
transmission) or N (manual transmi ssion) and the parking brake set.
Press the “DISP” switch to dis-
play the setting screen while
the vehicle is s topped, and then
press and hold the “DISP”
switch to display the customize
mode screen.
Press the “DISP” switch to
select the item to be set, then
press and hold the “DISP”
switch.
Press the “DISP” switch to
select the desired setting, and
then press and hold the “DISP”
switch.
To go back to the previous scree n or exit the customize mode, press
the “DISP” switch to select “EXIT”, and then press and hold the
“DISP” switch.
Customizing vehicle features
1
2
3

842. Instrument cluster
COROLLA_TMMMS_TMMC_U■
Customization
Some settings can be changed
. (Customizable features: P. 5 6 4 )
■The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
■ When disconnecting and reco nnecting battery terminals
The following information data will be reset:
● Driving range
● Average vehicle speed
● Elapsed time
● Average fuel consumption
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
■ Setting display automatic suspension
In the following situations, the setting display will be suspen ded.
● When a message appears.
● When the vehicle begins to move.

852. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U
WARNING
■The display at low temperatures
Allow the interior of the vehicle to warm up before using the d isplay. At
extremely low temperatures, the display monitor may respond slo wly, and
display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge
are in the red zone. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 531)

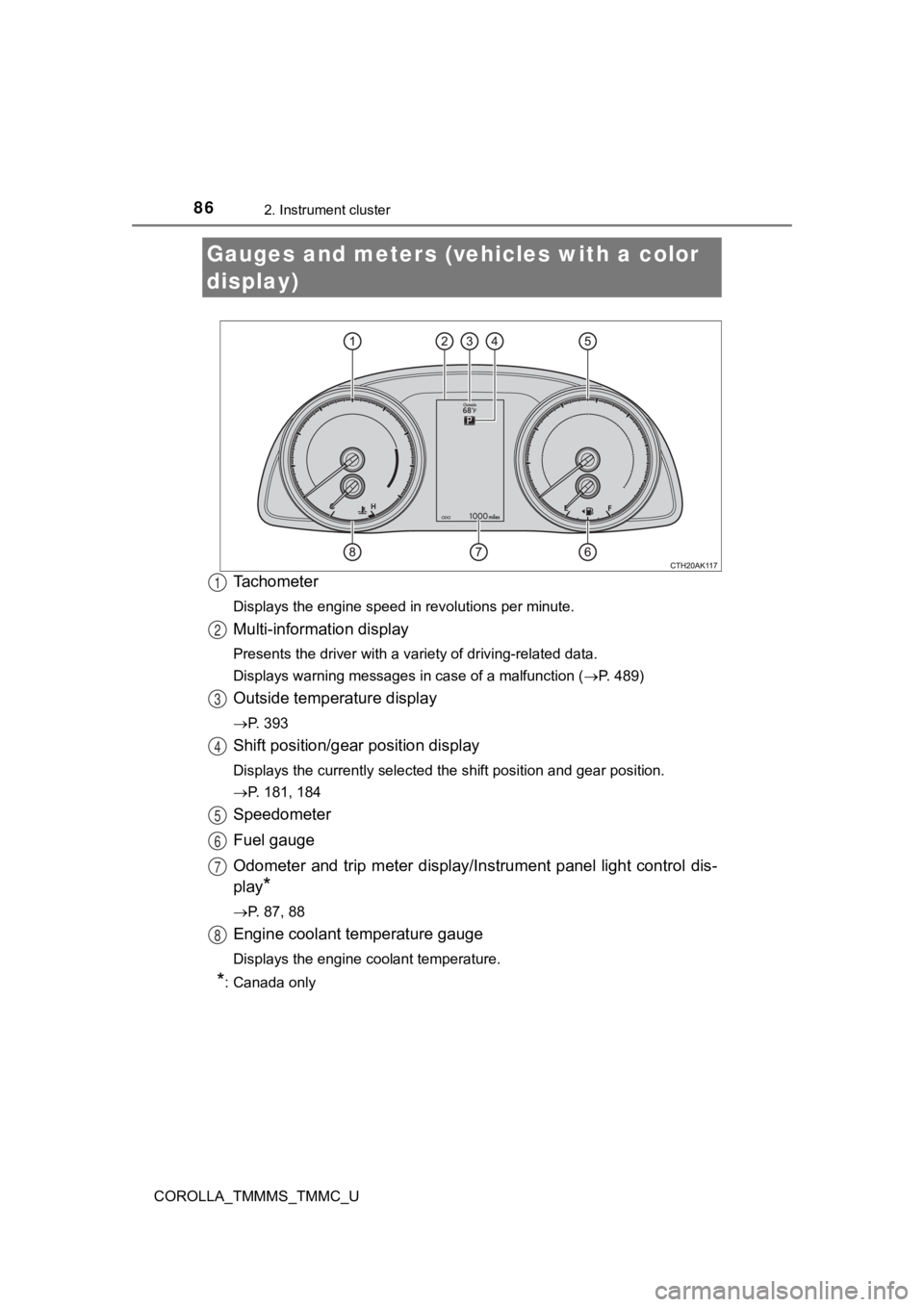

862. Instrument cluster
COROLLA_TMMMS_TMMC_U
Tachometer
Displays the engine speed in revolutions per minute.
Multi-information display
Presents the driver with a variety of driving-related data.
Displays warning messages in case of a malfunction (P. 489)
Outside temperature display
P. 393
Shift position/gear position display
Displays the currently selected the shift position and gear pos ition.
P. 181, 184
Speedometer
Fuel gauge
Odometer and trip meter display/Instrument panel light control dis-
play
*
P. 87, 88
Engine coolant temperature gauge
Displays the engine coolant temperature.
*: Canada only
Gauges and meters (vehicles with a color
display)
1
2
3
4
5
6
7
8

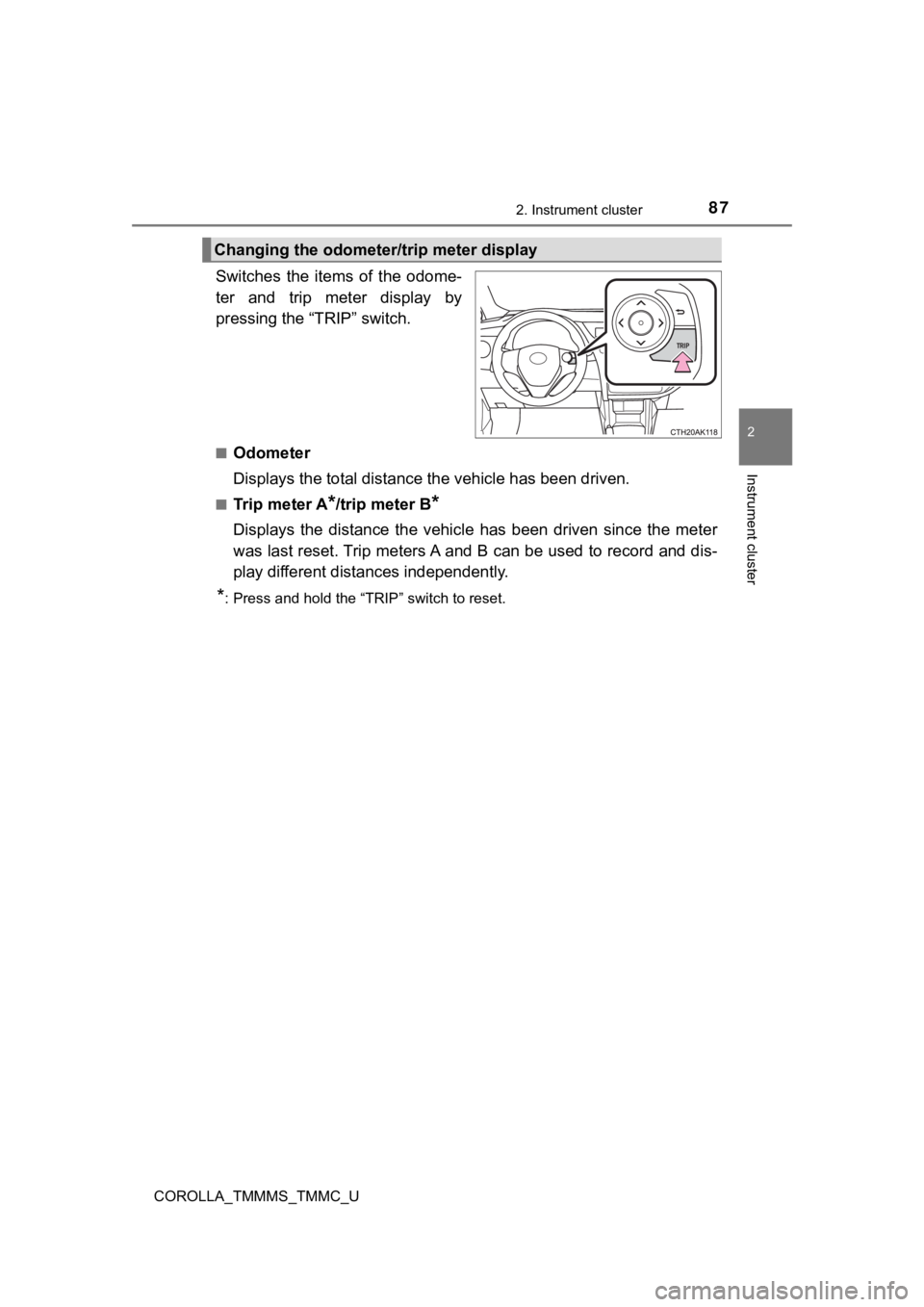

872. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U
Switches the items of the odome-
ter and trip meter display by
pressing the “TRIP” switch.
■Odometer
Displays the total distance the vehicle has been driven.
■Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicl e has been driven since the met er
was last reset. Trip meters A and B can be used to record and d is-
play different distances independently.
*: Press and hold the “TRIP” switch to reset.
Changing the odometer/t rip meter display

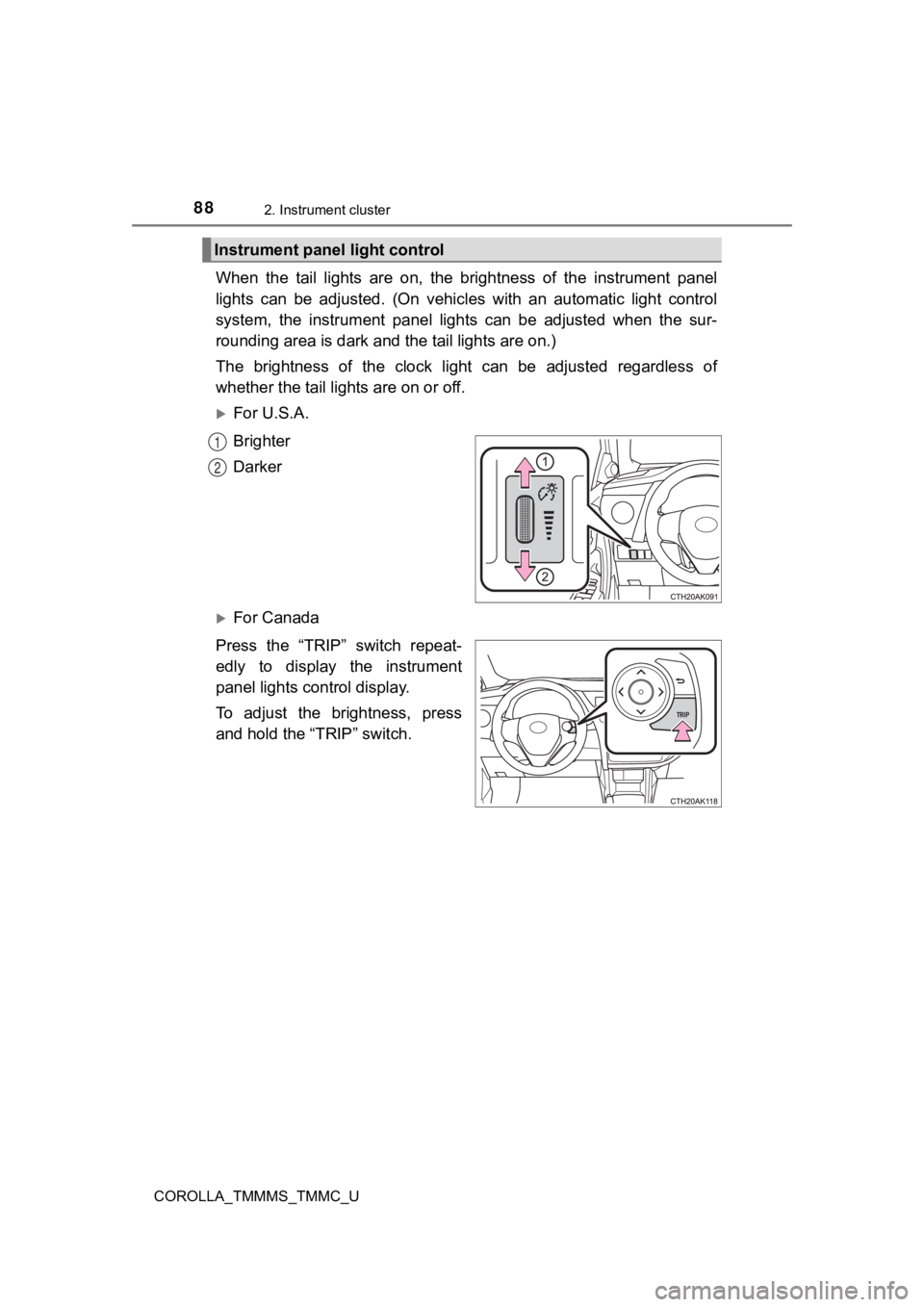

882. Instrument cluster
COROLLA_TMMMS_TMMC_U
When the tail lights are on, the brightness of the instrument panel
lights can be adjusted. (On vehicles with an automatic light co ntrol
system, the instrument panel lights can be adjusted when the su r-
rounding area is dark and the tail lights are on.)
The brightness of the clock ligh t can be adjusted regardless of
whether the tail lights are on or off.
For U.S.A.
Brighter
Darker
For Canada
Press the “TRIP” switch repeat-
edly to display the instrument
panel lights co ntrol display.
To adjust the brightness, press
and hold the “TRIP” switch.
Instrument panel light control
1
2

892. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U
■The meters and display illuminate when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone. In this case, immediately stop the vehicle in a safe place,
and check the engine after it has cooled completely. ( P. 531)

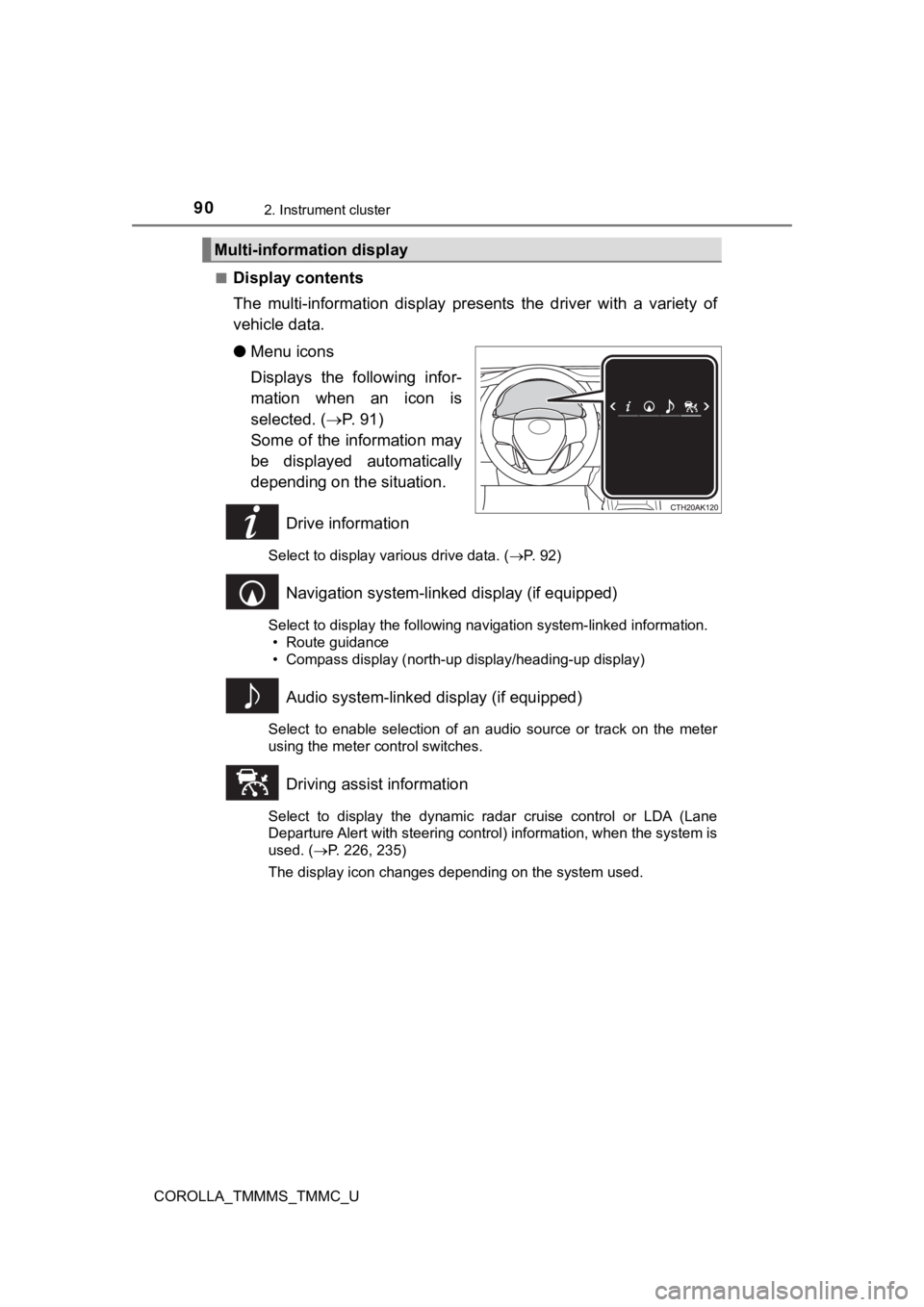

902. Instrument cluster
COROLLA_TMMMS_TMMC_U■
Display contents
The multi-information display pr
esents the driver with a variety of
vehicle data.
● Menu icons
Displays the following infor-
mation when an icon is
selected. ( P. 9 1 )
Some of the information may
be displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 92)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Driving assist information
Select to display the dynamic radar cruise control or LDA (Lane
Departure Alert with steering control) information, when the system is
used. ( P. 226, 235)
The display icon changes depending on the system used.
Multi-information display
