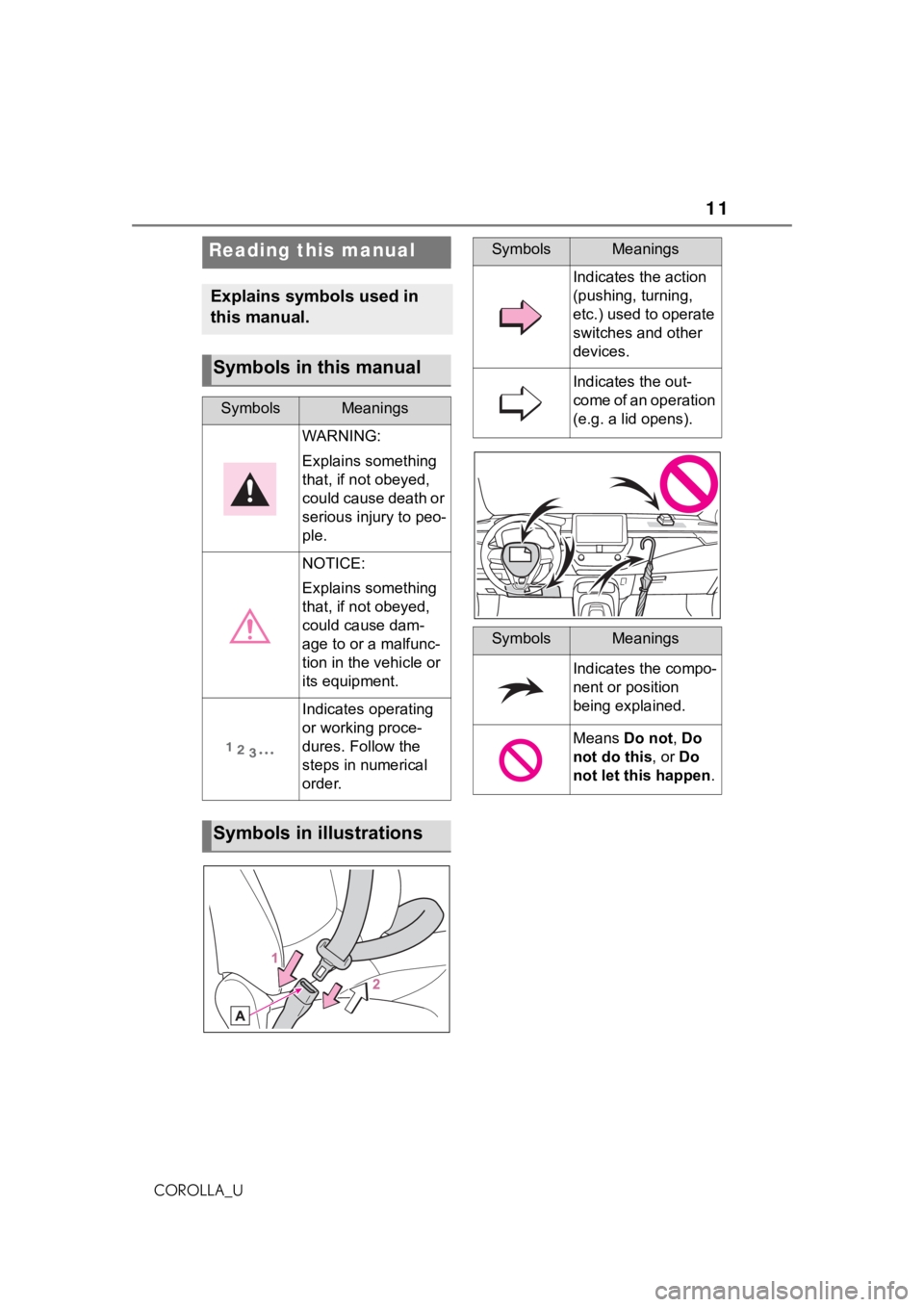

Reading this manual
Explains symbols used in
this manual.
Symbols in this manual
SymbolsMeanings
WARNING:
Explains something
that, if not obeyed,
could cause death or
serious injury to peo-
ple.
NOTICE:
Explains something
that, if not obeyed,
could cause dam-
age to or a malfunc-
tion in the vehicle or
its equipment.
Indicates operating
or working proce-
dures. Follow the
steps in numerical
order.
Symbols in illustrations
SymbolsMeanings
Indicates the action
(pushing, turning,
etc.) used to operate
switches and other
devices.
Indicates the out-
come of an operation
(e.g. a lid opens).
SymbolsMeanings
Indicates the compo-
nent or position
being explained.
Means Do not, Do
not do this , or Do
not let this happen .

12
COROLLA_U
■Searching by name
 Alphabetical index: P.607
■Searching by installation
position
 Pictorial index:  P. 1 3
■Searching by symptom or
sound
 What to do if... (Troubleshoot-
ing):  P. 6 0 4
■Searching by title
 Table of contents: P. 2How to search

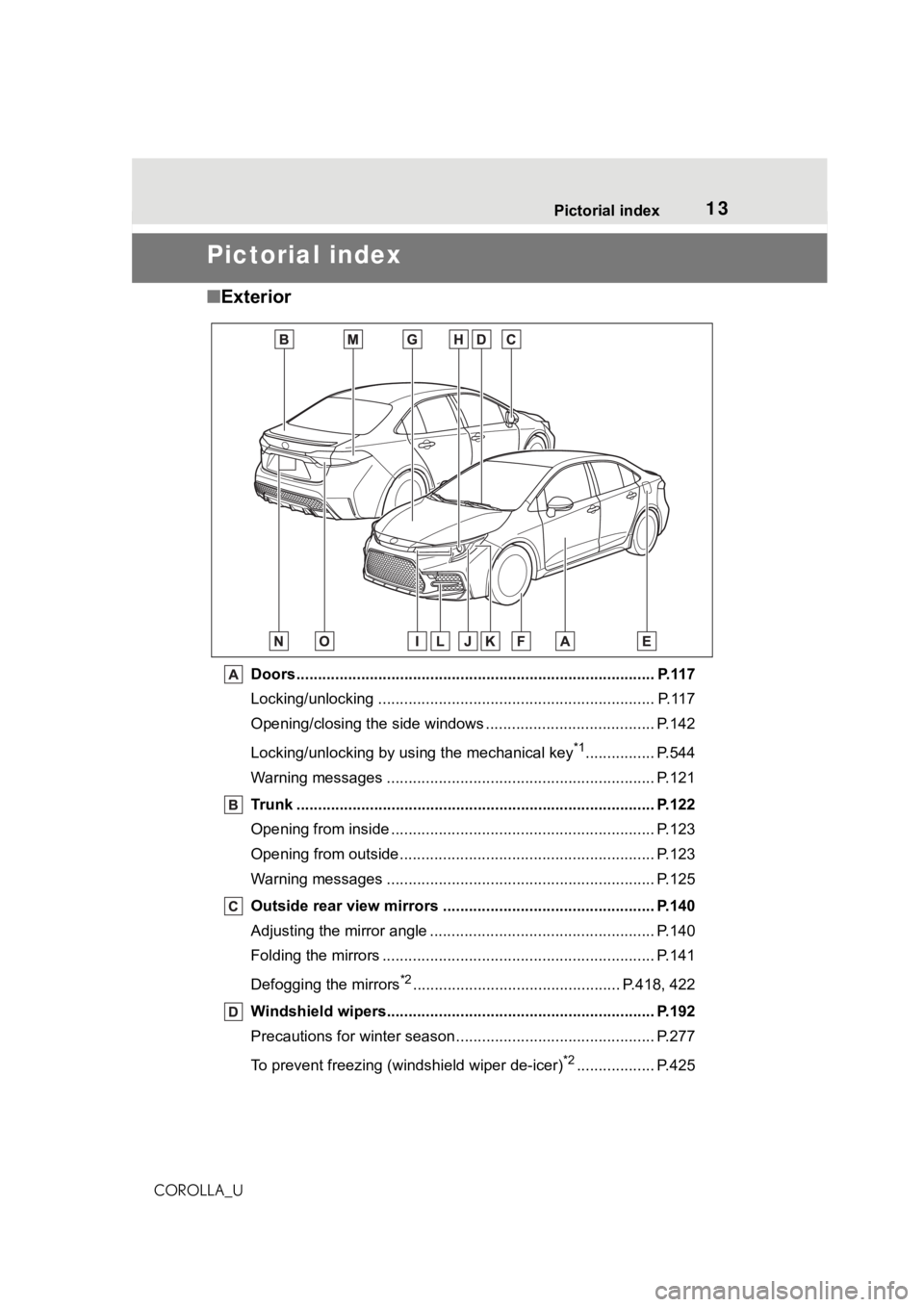

13Pictorial index
COROLLA_U
Pictorial index
■ Exterior
Doors.......................................................... ......................... P.117
Locking/unlocking .............................................. .................. P.117
Opening/closing the side windows ............................... ........ P.142
Locking/unlocking by using the mechanical key
*1................ P.544
Warning messages ............................................... ............... P.121
Trunk ................................................................................... P.122
Opening from inside ............................................ ................. P.123
Opening from outside........................................... ................ P.123
Warning messages ............................................... ............... P.125
Outside rear view mirrors ................................................. P.140
Adjusting the mirror angle ..................................... ............... P.140
Folding the mirrors ............................................ ................... P.141
Defogging the mirrors
*2................................................ P.418, 422
Windshield wipers.............................................. ................ P.192
Precautions for winter seas on.............................................. P.277
To prevent freezing (windshield wiper de-icer)
*2.................. P.425

14Pictorial index
COROLLA_UFuel filler door ...............................................
..................... P.194
Refueling method ............................................... .................. P.195
Fuel type/fuel tan k capacity ................................... .............. P.558
Tires.......................................................... ........................... P.475
Tire size/inflation pressure ................................... ................ P.564
Winter tires/tire chains ....................................... .................. P.277
Checking/rotation/tire pressure warning system
*2............... P.475
Coping with flat tires......................................... ............ P.523, 534
Hood ........................................................... ......................... P.464
Opening ............................................................................... P.464
Engine oil ..................................................... ........................ P.558
Coping with overheating ...................................................... P.550
Headlights/daytime running lights .............................. ..... P.186
Turn signal lights/parking lights .............................. ......... P.186
Parking lights
*2............................................................... .... P.186
Front side marker lights ....................................... ............. P.186
LED accent lights
*2............................................................ P.1 86
Stop lights/tail lights/rear side marker lights/turn signal lig hts
P. 1 8 6
License plate lights........................................... ................. P.186
Tail lights
*2............................................................... ........... P.186
Back-up lights
Shifting the shift position to R .............................. P .169, 172, 176
*1: Vehicles with a smart key system
*2: If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.495, Watts: P.566)

15Pictorial index
COROLLA_U

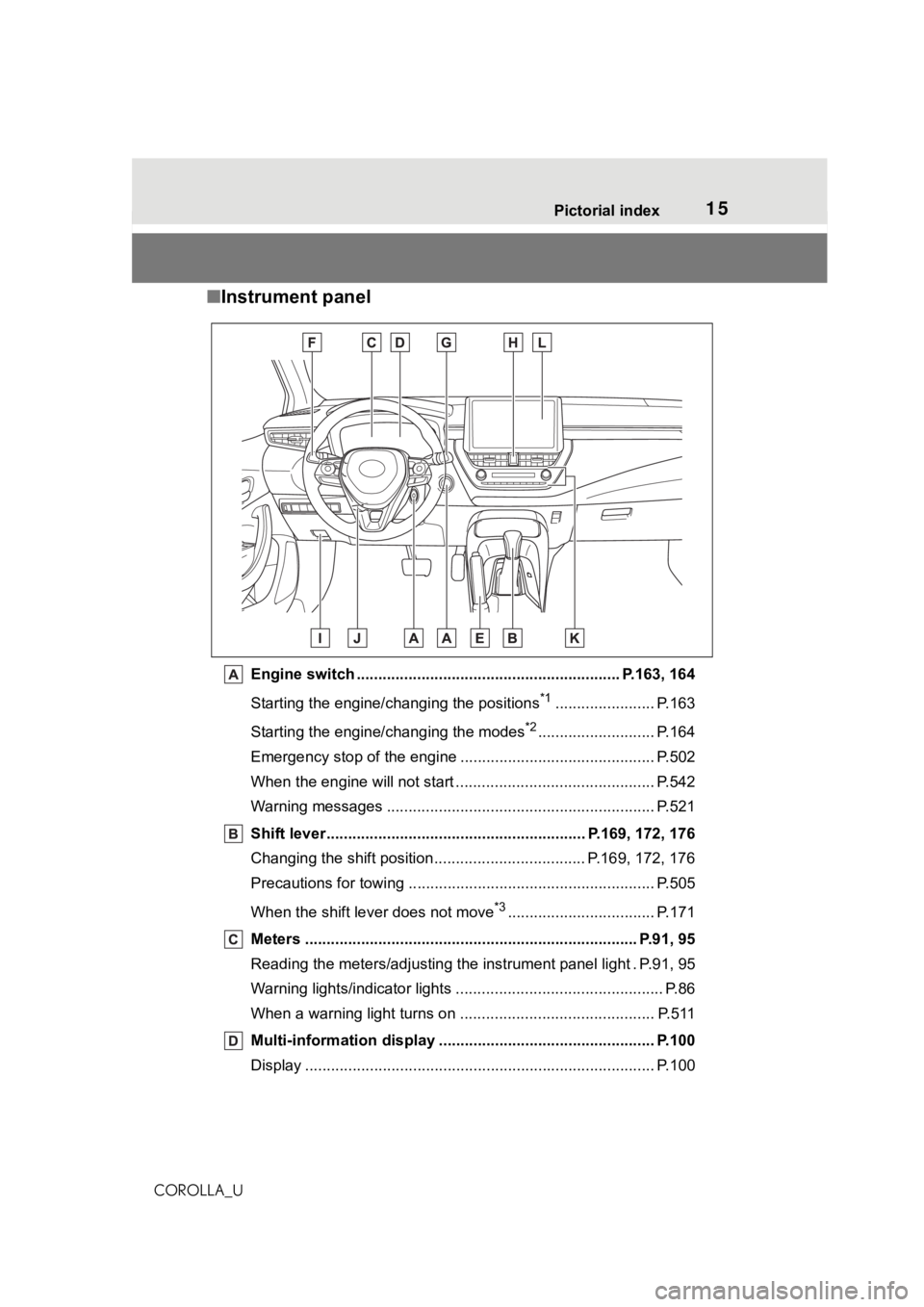

■Instrument panel
Engine switch ............................................................. P.163, 164
Starting the engine/changing the positions
*1....................... P.163
Starting the engine/changing the modes
*2........................... P.164
Emergency stop of the engin e ............................................. P.502
When the engine will not start ................................. ............. P.542
Warning messages ............................................... ............... P.521
Shift lever.................................................... ........ P.169, 172, 176
Changing the shift position................................... P .169, 172, 176
Precautions for towing .. ....................................... ................ P.505
When the shift lever does not move
*3.................................. P.171
Meters ............................................................................. P.91, 95
Reading the meters/adjusting the instrument panel light . P.91, 9 5
Warning lights/indicator lights ................................ ................ P.86
When a warning light turns on ............................................. P.511
Multi-information display . ................................................. P.100
Display ........................................................ ......................... P.100

16Pictorial index
COROLLA_UWhen a warning message is displayed ............................
.... P.521
Parking brake
*4............................................................... .... P.180
Applying/releasing............................................. ................... P.180
Precautions for winter seas on.............................................. P.278
Warning light/message..... ............................................ P.180, 511
Turn signal lever.............................................. ................... P.179
Headlight switch ............................................... ................. P.186
Headlights/parking lights/tail lig hts/side marker lights/daytime run-
ning lights/LED accent lights
*4............................................. P.186
Windshield wiper and washer switch............................... P.192
Usage................................................................................... P.192
Adding washer fluid .............................................................. P.474
Emergency flasher switch ....................................... .......... P.502
Hood lock release lever ........................................ ............. P.464
Tilt and telescopic steering lock release lever ................P. 1 3 8
Air conditioning system ............................. ............... P.416, 421
Usage.......................................................... ................. P.416, 421
Rear window defogger ........................................... ...... P.418, 422
Audio
*4............................................................... ................. P.283
Audio Plus
*4, 5
Premium Audio*4, 5
*1
: Vehicles without a smart key system
*2: Vehicles with a smart key system
*3: Vehicles with a continuous ly variable transmission
*4: If equipped
*5: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”.

17Pictorial index
COROLLA_U

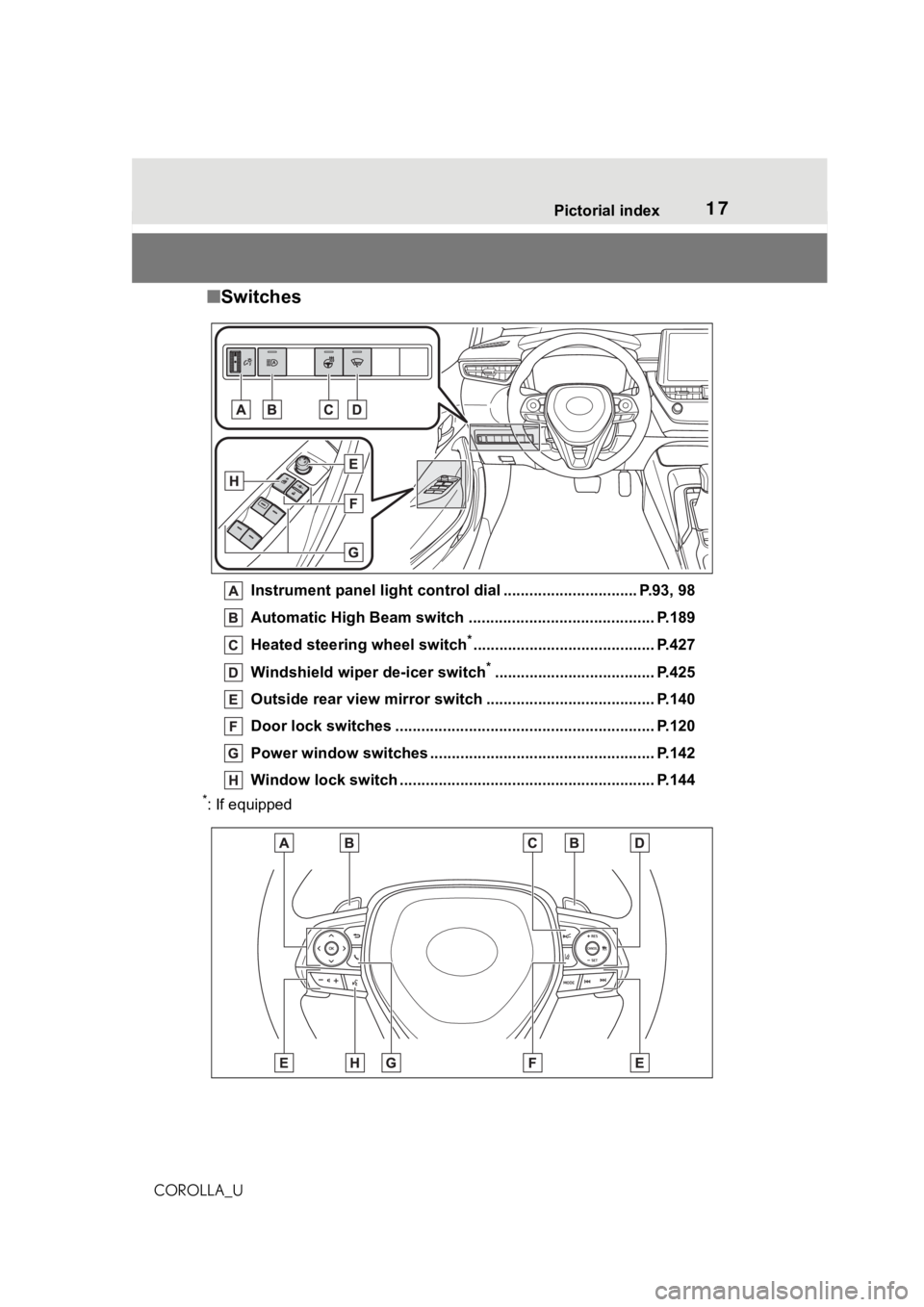

■Switches
Instrument panel light cont rol dial ............................... P.93, 98
Automatic High Beam switch ..................................... ...... P.189
Heated steering wheel switch
*.......................................... P.427
Windshield wiper de-icer switch
*..................................... P.425
Outside rear view mirror s witch ....................................... P.140
Door lock switches ............................................................ P.120
Power window switches ....... ............................................. P.142
Window lock switch ............................................. .............. P.144
*: If equipped

18Pictorial index

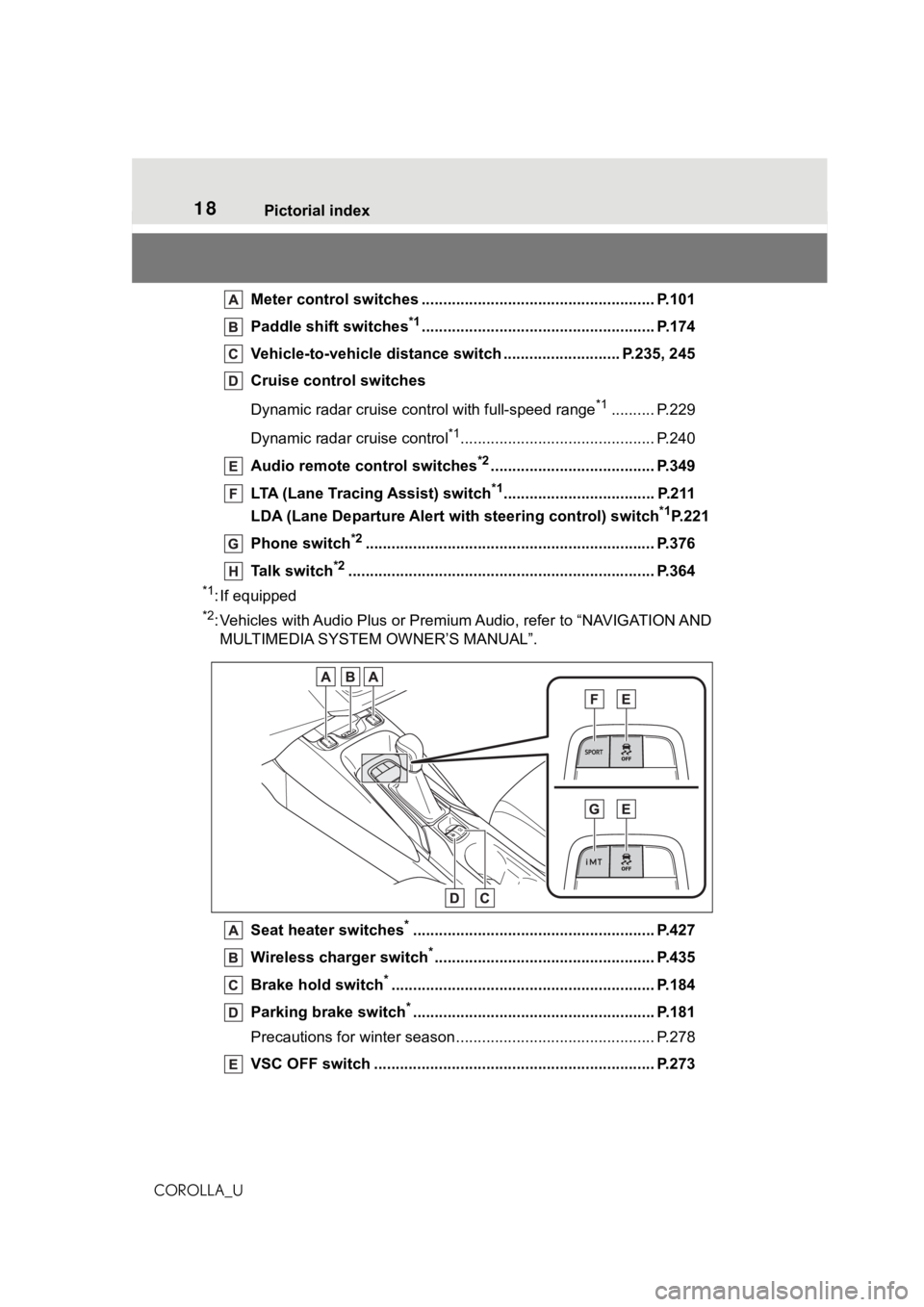

COROLLA_UMeter control switches ..
.................................................... P.101
Paddle shift switches
*1...................................................... P.174
Vehicle-to-vehicle distance switch ........................... P.235, 245
Cruise control switches
Dynamic radar cruise cont rol with full-speed range
*1.......... P.229
Dynamic radar cruise control
*1............................................. P.240
Audio remote control switches
*2...................................... P.349
LTA (Lane Tracing Assist) switch
*1................................... P.211
LDA (Lane Departure Alert wi th steering control) switch
*1P.221
Phone switch
*2............................................................... .... P.376
Talk switch
*2............................................................... ........ P.364
*1: If equipped
*2: Vehicles with Audio Plus or Premium Audio, refer to “NAVIGATIO N AND
MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Seat heater switches
*........................................................ P.427
Wireless cha rger switch
*................................................... P.435
Brake hold switch
*............................................................. P. 184
Parking brake switch
*........................................................ P.181
Precautions for winter seas on.............................................. P.278
VSC OFF switch ................................................. ................ P.273

19Pictorial index
COROLLA_USport mode switch
*............................................................ P.2
71
“iMT” (Intelligent Manu al Transmission) switch
*............ P.178
*: If equipped

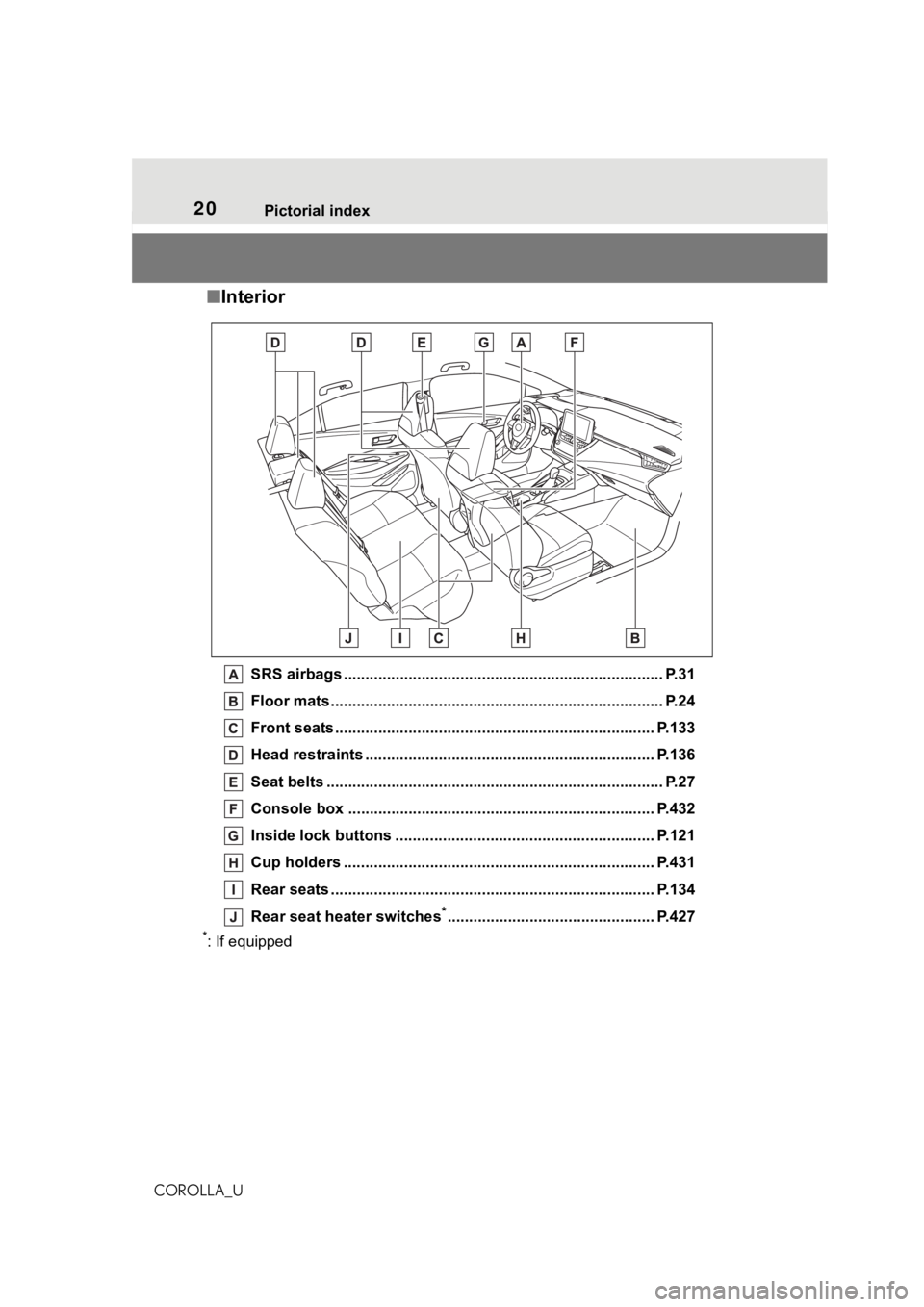

20Pictorial index
COROLLA_U
■Interior
SRS airbags .................................................... ...................... P.31
Floor mats..................................................... ........................ P.24
Front seats .................................................... ...................... P.133
Head restraints ................................................ ................... P.136
Seat belts ..................................................... ......................... P.27
Console box ....................................................................... P.432
Inside lock buttons ............................................ ................ P.121
Cup holders .................................................... .................... P.431
Rear seats ..................................................... ...................... P.134
Rear seat heater switches
*................................................ P.427
*: If equipped
