TOYOTA COROLLA 2022 Owners Manual (in English)

539
9

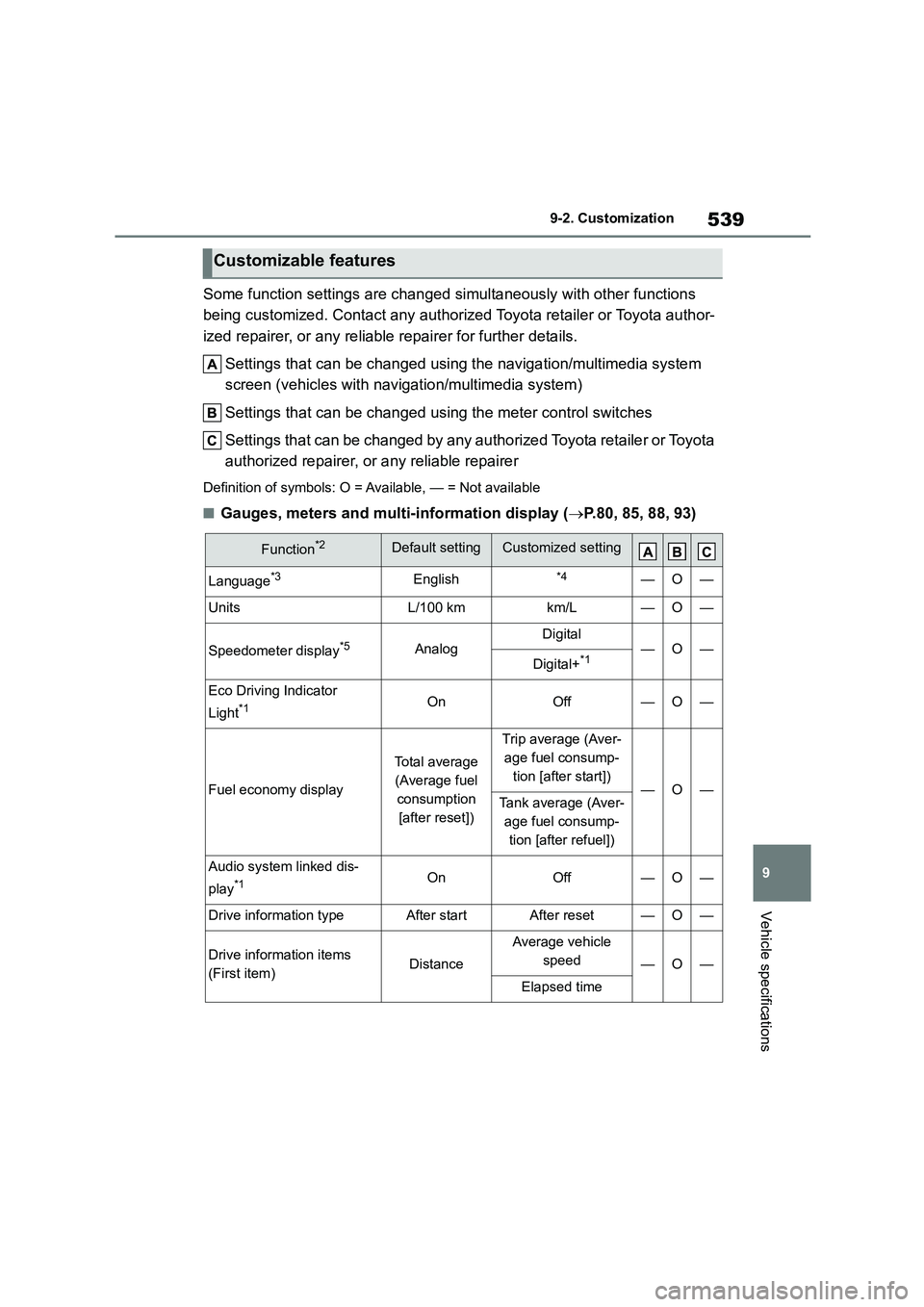

9-2. Customization
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact any authorize d Toyota retailer or Toyota author-
ized repairer, or any reliable repairer for further details.
Settings that can be changed using the navigation/multimedia system
screen (vehicles with navigation/multimedia system)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Gauges, meters and mult i-information display (P.80, 85, 88, 93)
Customizable features
Function*2Default settingCustomized setting
Language*3English*4—O—
UnitsL/100 kmkm/L—O—
Speedometer display*5AnalogDigital—O—Digital+*1
Eco Driving Indicator
Light*1OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
Audio system linked dis-
play*1OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed—O—
Elapsed time

5409-2. Customization
*1: If equipped
*2: For details about each function: P. 9 8
*3: The default setting varies according to country.
*4: Arabic, Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish,
Hebrew, Norwegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Portu-
guese, Romanian, Slovakian, Hungarian, Flemish
*5: 7-inch display

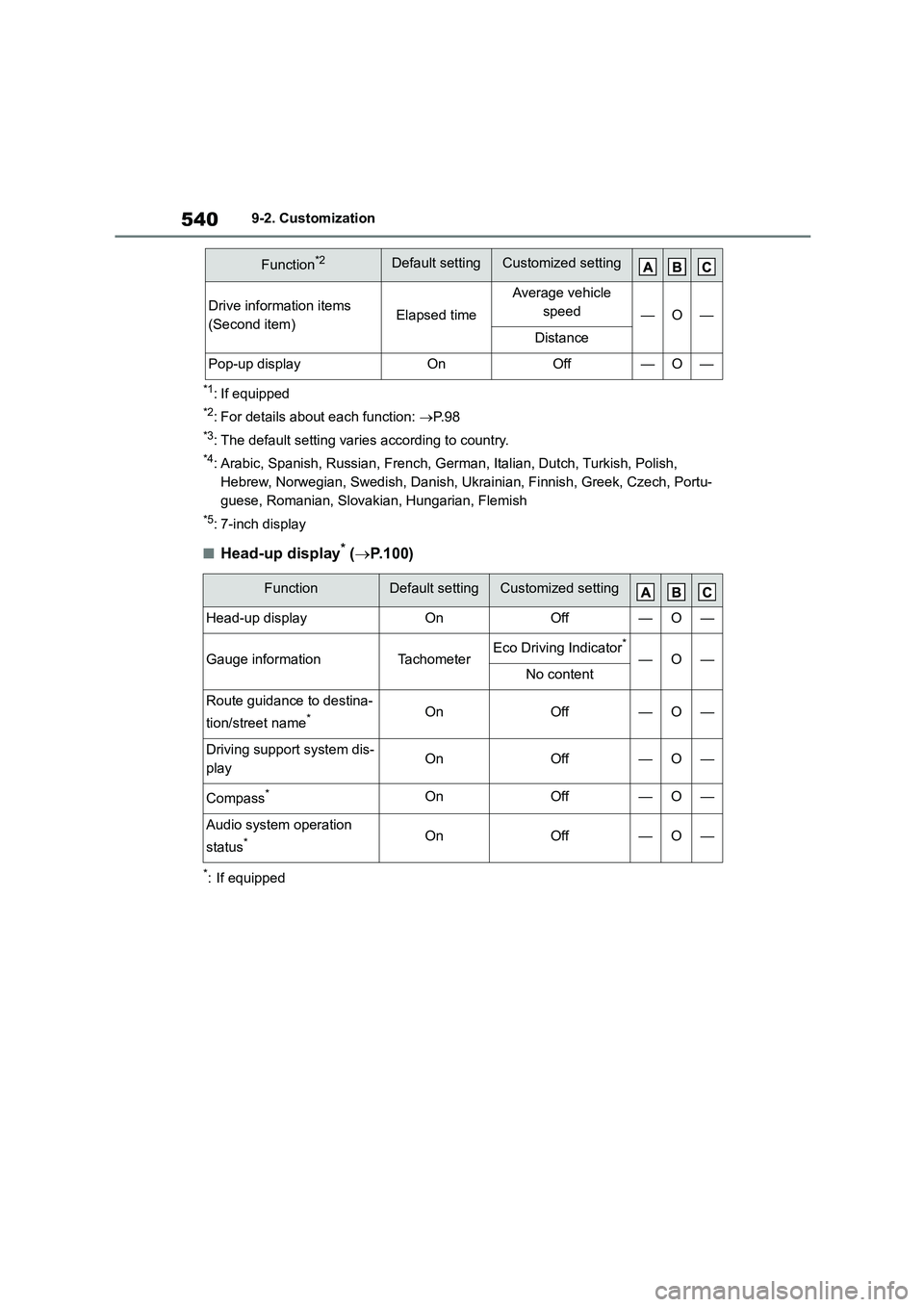

■Head-up display* ( P.100)
*: If equipped
Drive information items
(Second item)Elapsed time
Average vehicle
speed—O—
Distance
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerEco Driving Indicator*
—O—No content
Route guidance to destina-
tion/street name*OnOff—O—
Driving support system dis-
playOnOff—O—
Compass*OnOff—O—
Audio system operation
status*OnOff—O—
Function*2Default settingCustomized setting

541
9
9-2. Customization
Vehicle specifications

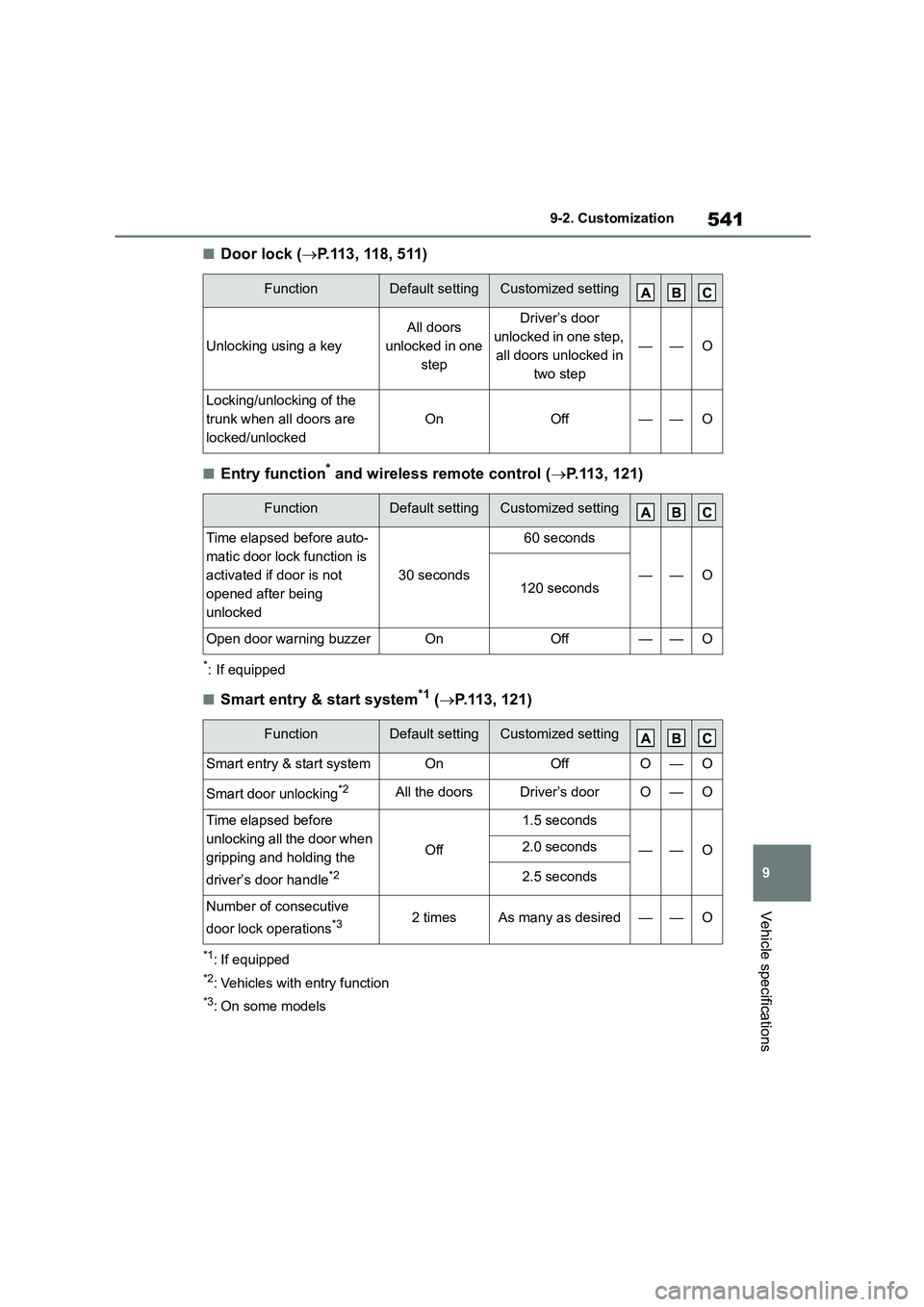

■Door lock ( P.113, 118, 511)
■Entry function* and wireless remote control (P.113, 121)
*: If equipped
■Smart entry & start system*1 (P.113, 121)
*1: If equipped
*2: Vehicles with entry function
*3: On some models
FunctionDefault settingCustomized setting
Unlocking using a key
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
——O
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
FunctionDefault settingCustomized setting
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzerOnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Smart door unlocking*2All the doorsDriver’s doorO—O
Time elapsed before
unlocking all the door when
gripping and holding the
driver’s door handle*2
Off
1.5 seconds
——O2.0 seconds
2.5 seconds
Number of consecutive
door lock operations*32 timesAs many as desired——O

5429-2. Customization

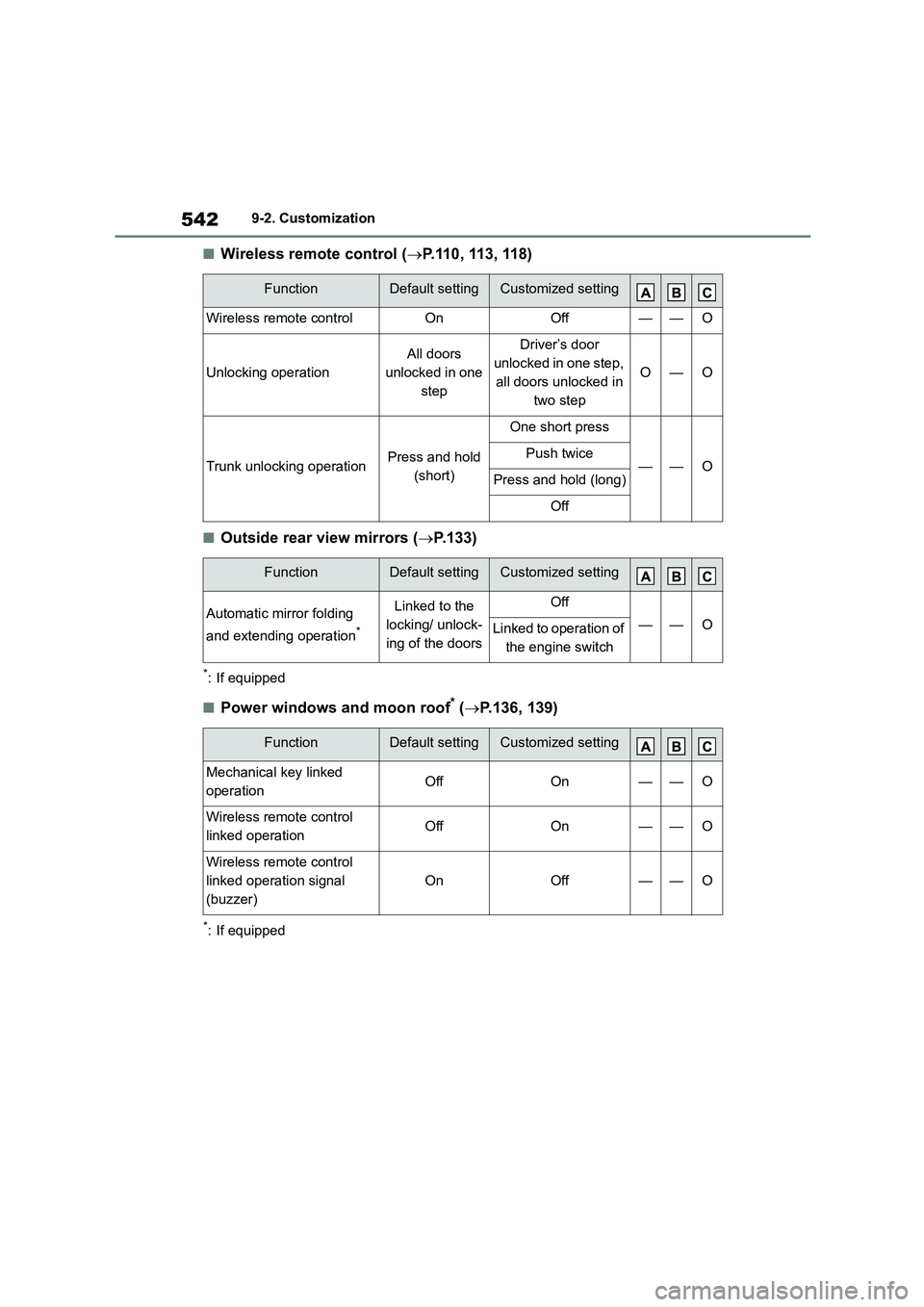

■Wireless remote control (P.110, 113, 118)
■Outside rear view mirrors (P.133)
*: If equipped
■Power windows and moon roof* (P.136, 139)
*: If equipped
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
Unlocking operation
All doors
unlocked in one
step
Driver’s door
unlocked in one step,
all doors unlocked in
two step
O—O
Trunk unlocking operationPress and hold
(short)
One short press
——OPush twice
Press and hold (long)
Off
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O

543
9
9-2. Customization
Vehicle specifications
■Moon roof* ( P.139)
*: If equipped
■Automatic light control system (P.178)
■PCS (Pre-Collision System)*1 (P.202)
*1: If equipped
*2: The system is automatically enabled each time the engine switch is turned to
ON.
■LTA (Lane Tracing Assist)*/LDA (Lane Departure Alert with steering
control)* ( P.209, 219)
FunctionDefault settingCustomized setting
Linked operation of compo-
nents when mechanical
key is used
Slide onlyTilt only——O
Linked operation of compo-
nents when wireless
remote control is used
Slide onlyTilt only——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Extended Headlight Light-
ing (Time elapsed before
headlights automatically
turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionCustomized setting
PCS (Pre-Collision System)*2On, Off—O—
Adjust alert timingEarly, Middle, Late—O—
FunctionCustomized setting
Lane centering function*On, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—

5449-2. Customization
*: If equipped

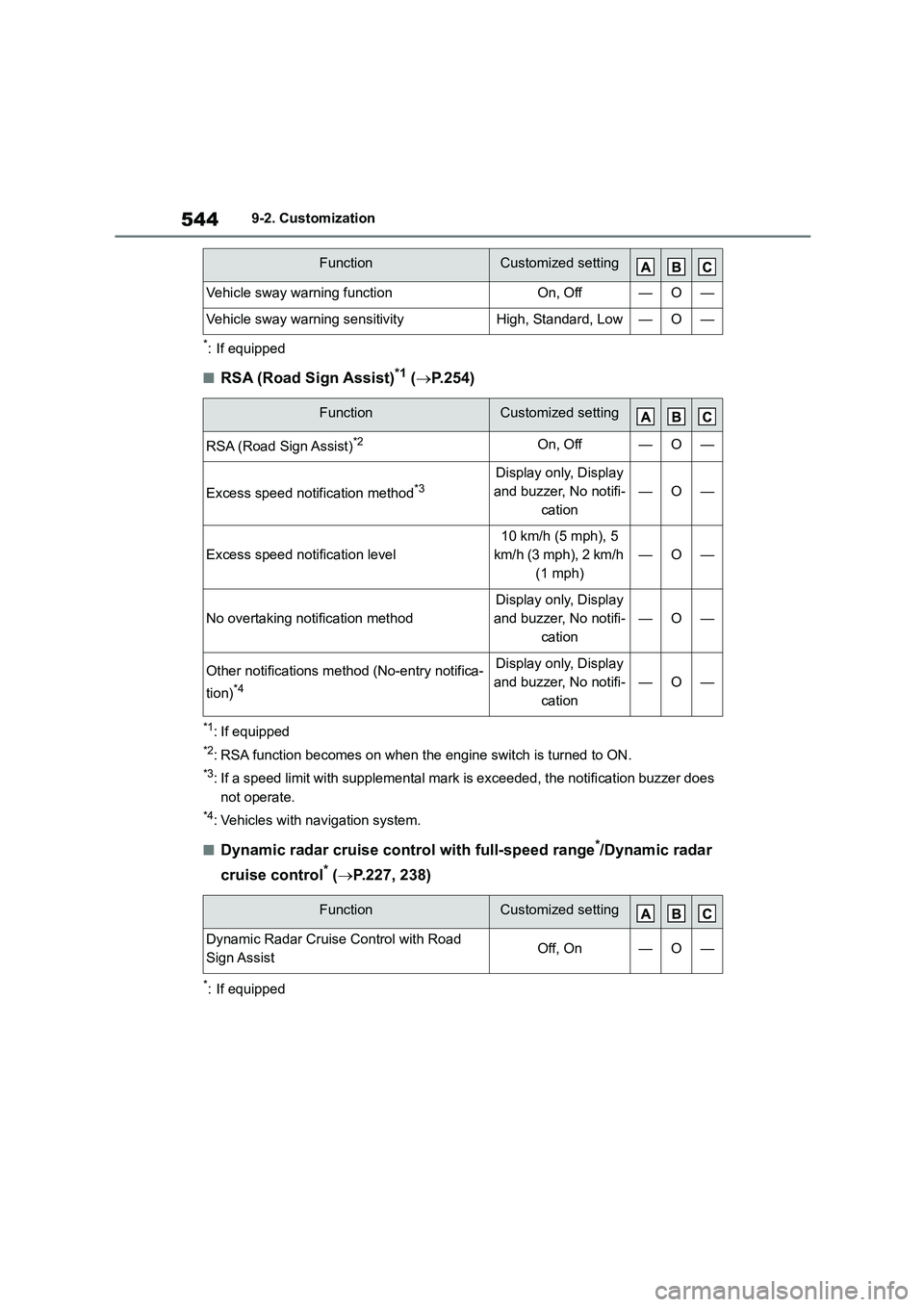

■RSA (Road Sign Assist)*1 (P. 2 5 4 )
*1: If equipped
*2: RSA function becomes on when the engine switch is turned to ON.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system.
■Dynamic radar cruise control with full-speed range*/Dynamic radar
cruise control* ( P.227, 238)
*: If equipped
Vehicle sway warning functionOn, Off—O—
Vehicle sway warning sensitivityHigh, Standard, Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off—O—
Excess speed notification method*3Display only, Display
and buzzer, No notifi-
cation
—O—
Excess speed notification level
10 km/h (5 mph), 5
km/h (3 mph), 2 km/h
(1 mph)
—O—
No overtaking notification method
Display only, Display
and buzzer, No notifi-
cation
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only, Display
and buzzer, No notifi-
cation
—O—
FunctionCustomized setting
Dynamic Radar Cruise Control with Road
Sign AssistOff, On—O—
FunctionCustomized setting

545
9
9-2. Customization
Vehicle specifications
■BSM (Blind Spot Monitor)* ( P.258)
*: If equipped
■Toyota parking assist-sensor* (P.263)
*: If equipped
■RCTA (Rear crossing traffic alert) function* (P.271)
*: If equipped
■PKSB (Parking Support Brake)* (P.276)
*: If equipped
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
RCTA (Rear crossing traffic
alert) functionOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—

5469-2. Customization

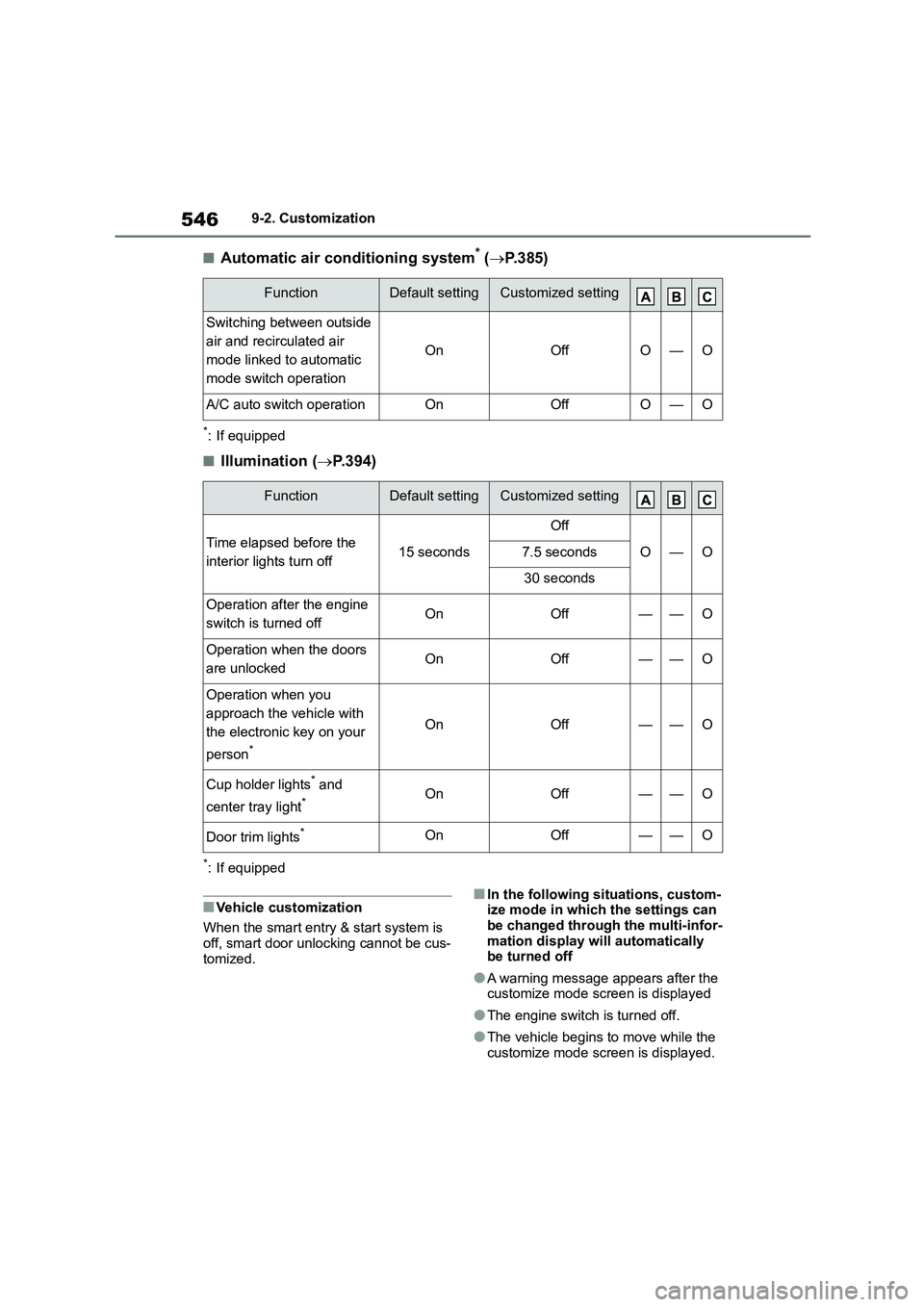

■Automatic air conditioning system* (P. 3 8 5 )
*: If equipped
■Illumination (P.394)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, smart door unlocking cannot be cus- tomized.
■In the following situations, custom-ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically be turned off
●A warning message appears after the customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
A/C auto switch operationOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Cup holder lights* and
center tray light*OnOff——O
Door trim lights*OnOff——O

547
9

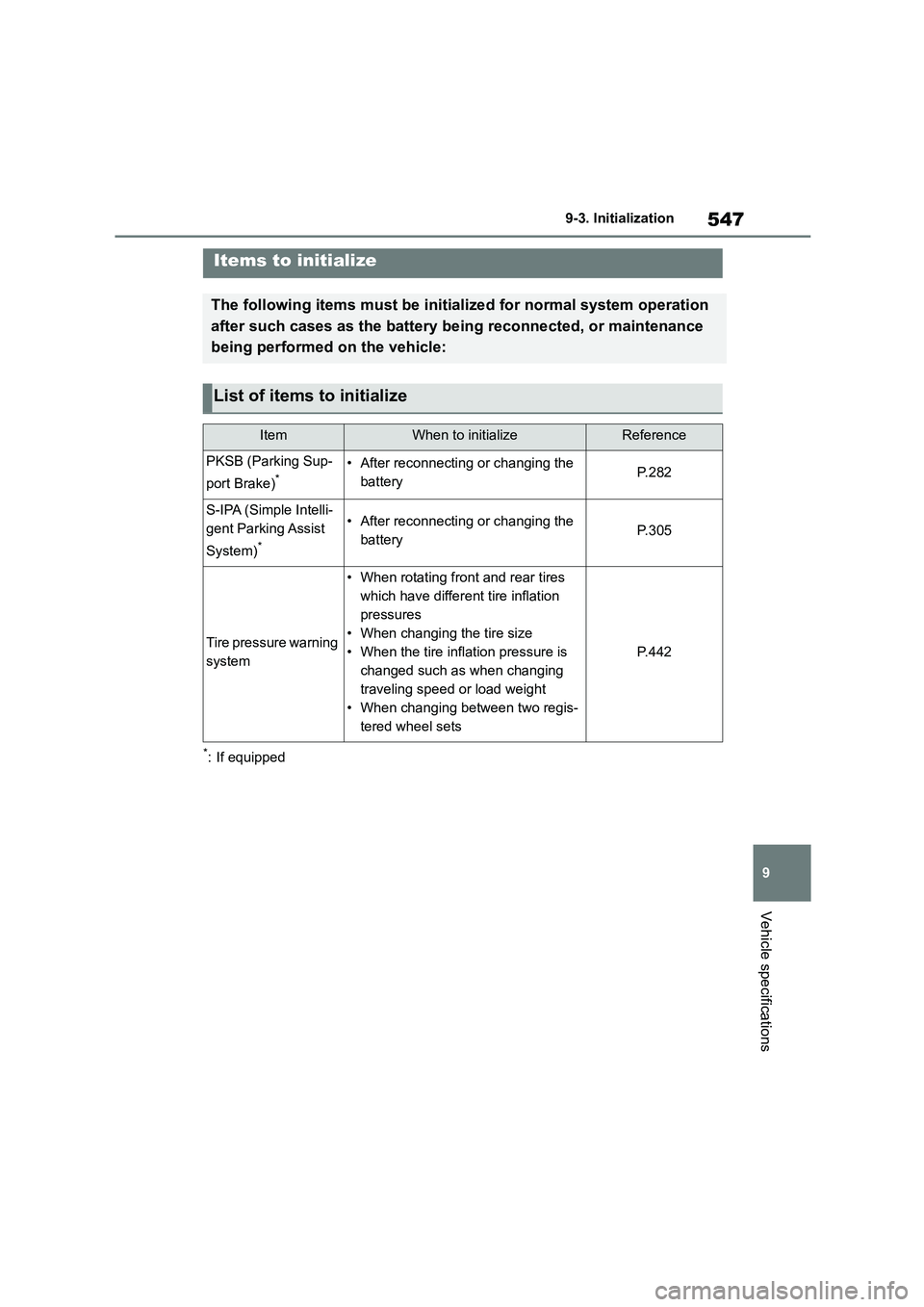

9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system operation
after such cases as the battery being reconnected, or maintenance
being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
PKSB (Parking Sup-
port Brake)*• After reconnecting or changing the
batteryP. 2 8 2
S-IPA (Simple Intelli-
gent Parking Assist
System)*
• After reconnecting or changing the
batteryP. 3 0 5
Tire pressure warning
system
• When rotating front and rear tires
which have different tire inflation
pressures
• When changing the tire size
• When the tire inflation pressure is
changed such as when changing
traveling speed or load weight
• When changing between two regis-
tered wheel sets
P. 4 4 2

5489-3. Initialization
