Navigation system
Navigation system
.3-1. Basic operationNavigation ...................... 72
Map screen operation .... 74
Map screen information . 76
Traffic information .......... 80
3-2. Destination search Destination search opera-tion ............................... 83
Starting route guidance .. 91
3-3. Route guidance Route guidance screen .. 96
Typical voice guidance prompts ..................... 101
Editing route ................ 101
3-4. Setup Navigation settings...... 105
Detailed navigation settings .................................. 110
Traffic settings ............. 113
Use of information accumu- lated by navigation system
.................................. 118
3-5. Tips for the navigation system
GPS (Global Positioning System) ..................... 119
Map database version and covered area ............. 121

723-1. Basic operation
COROLLA_HB_Navi_(U)
3-1.Basic operation
*: Premium Audio only
2D north up, 2D heading up or 3D heading up symbol (P. 7 5 )
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this symbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P. 8 3 )
Select to display the destination screen.
Map options button ( P.76)
Select to display the map options screen.
Route options button ( P.101)
Select to display the route options screen.
Mute button
Select to mute the voice guidance. When set to on, the indicato r
Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.

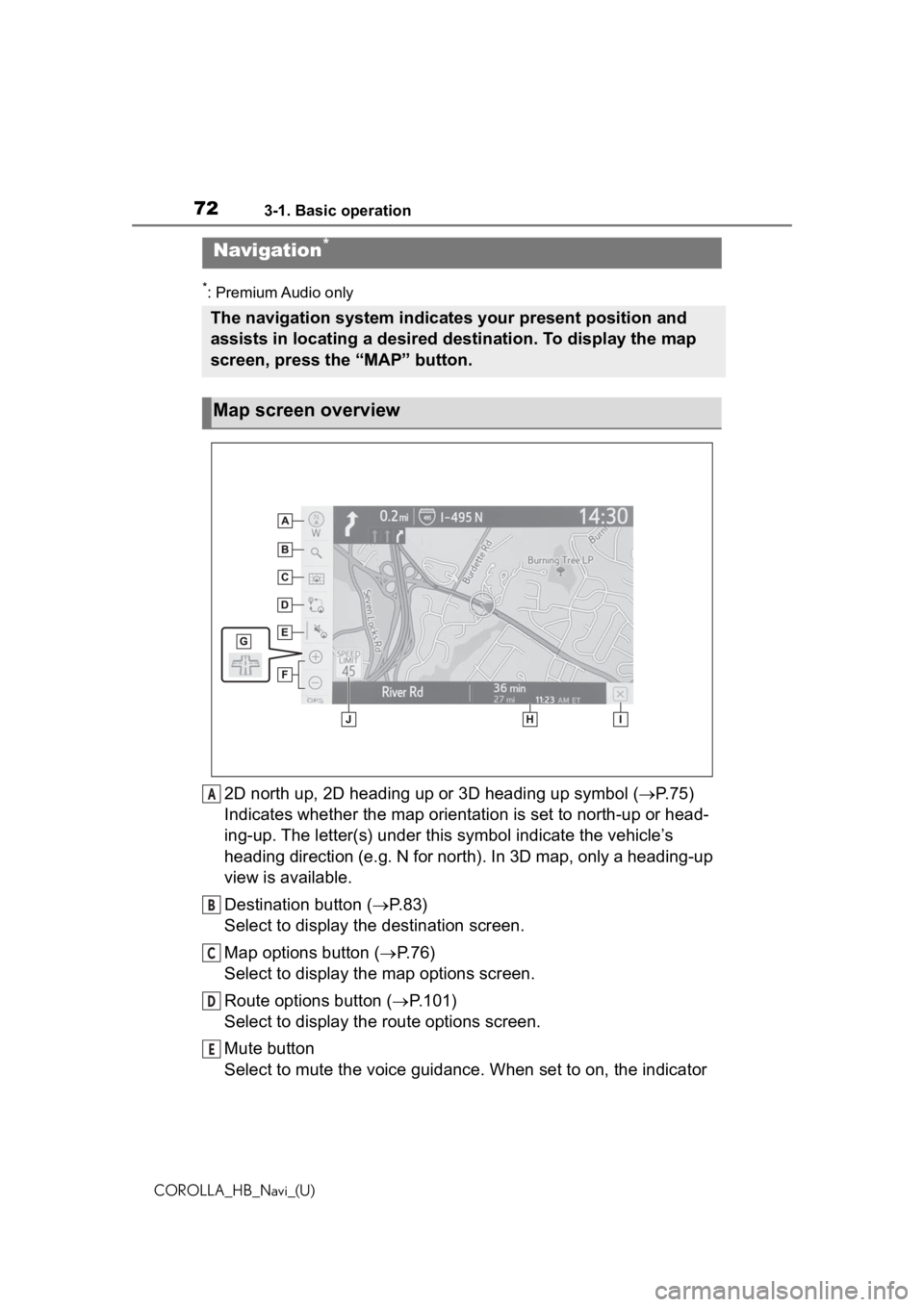

Map screen overview
A
B
C
D
E

733-1. Basic operation
COROLLA_HB_Navi_(U)
3
Navigation system
will illuminate.
Zoom in/out button ( P. 7 4 )
Select to magnify or reduce the map scale. When either button i s
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button ( P. 7 5 )
Select to display the micro city map screen.
Route information bar ( P.96)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to r ight as
the vehicle progresses on the route.
Delete destination button ( P.22)
Select to delete destinations.
Speed limit icon ( P.76)
Indicates the speed limit on the current road. The display of t he
speed limit icon can be set to on/off.
●When the vehicle i s not receiving
GPS signals, such as when driv-
ing in a tunnel, will be
displayed at the bottom left corner
of the screen.
●Press the “MAP” button to display
the address of the current position
on the map screen or repeat voice
guidance.
F
G
H
I
J

743-1. Basic operation
COROLLA_HB_Navi_(U)

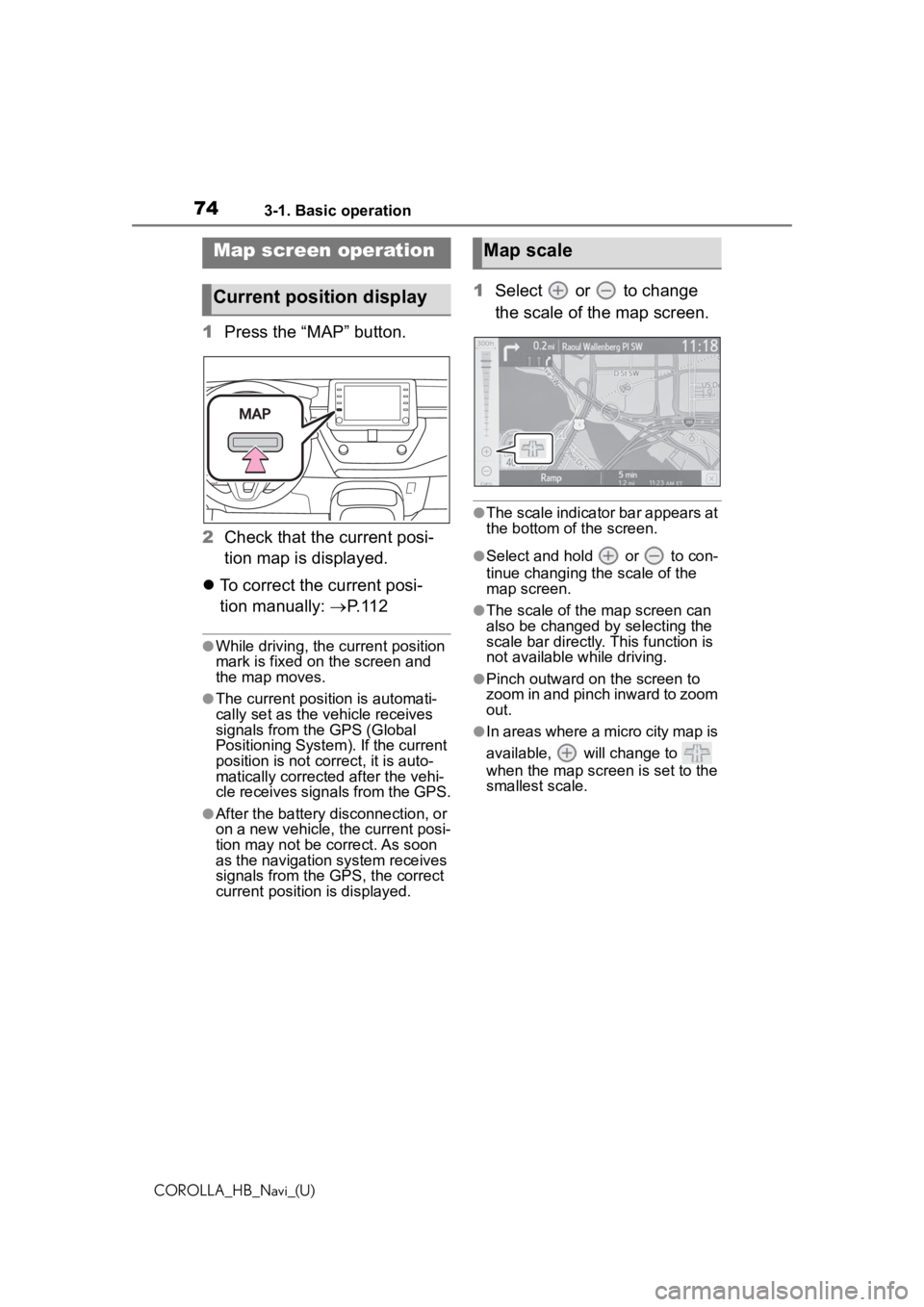

1Press the “MAP” button.
2 Check that the current posi-
tion map is displayed.
 To correct the current posi-
tion manually:  P. 1 1 2
●While driving, the cu rrent position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the battery disconnection, or
on a new vehicle, the current posi-
tion may not be c orrect. As soon
as the navigation system receives
signals from the GPS, the correct
current position is displayed.
1 Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
Map screen operation
Current position display
Map scale

753-1. Basic operation
COROLLA_HB_Navi_(U)
3
Navigation system
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to and can be selected to dis-
play the micro city map.
1 Select on the map
screen.
2 Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the c urrent position
is moved to the are a which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D
north-up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always
up.
: Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
 The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
Micro city map
Orientation of the map

763-1. Basic operation
COROLLA_HB_Navi_(U)
The map can be scrolled to view
locations that are different than
your current position.
1Select the desired point on
the map screen.
 Move the desired point on the
center of the map screen.
Cursor mark
Distance from the current
position to the cursor mark
Select to set as a destination.
( P. 9 1 )
Select to register as a mem-
ory point. To change the icon,
name, etc.: P. 1 0 5
●The map screen can be scrolled
by touching, dragging or flicking it.
( P. 2 7 )
●Press the “MAP” button to return
to the current position.
1 Select on the map
screen. ( P. 7 2 )
2 Select the desired items to
be displayed.
Select to display the desired
map mode. ( P.77)
Select to select or change
POI icons. ( P.78)
Select to display speed limit
icon.
Select to display traffic infor-
mation.
* (  P. 8 0 )
Select to display route trace.
( P.79)
Select to display the map
version and coverage area.
( P.121)
*: This function is not made avail-
Map scroll operation
A
B
C
D
Map screen informa-
tion
Information such as POI
icons, route trace, speed
limit, etc. can be displayed
on the map screen.
Displaying the map
options screen
A
B
C
D
E
F

773-1. Basic operation
COROLLA_HB_Navi_(U)
3
Navigation system
able in some countries or areas.

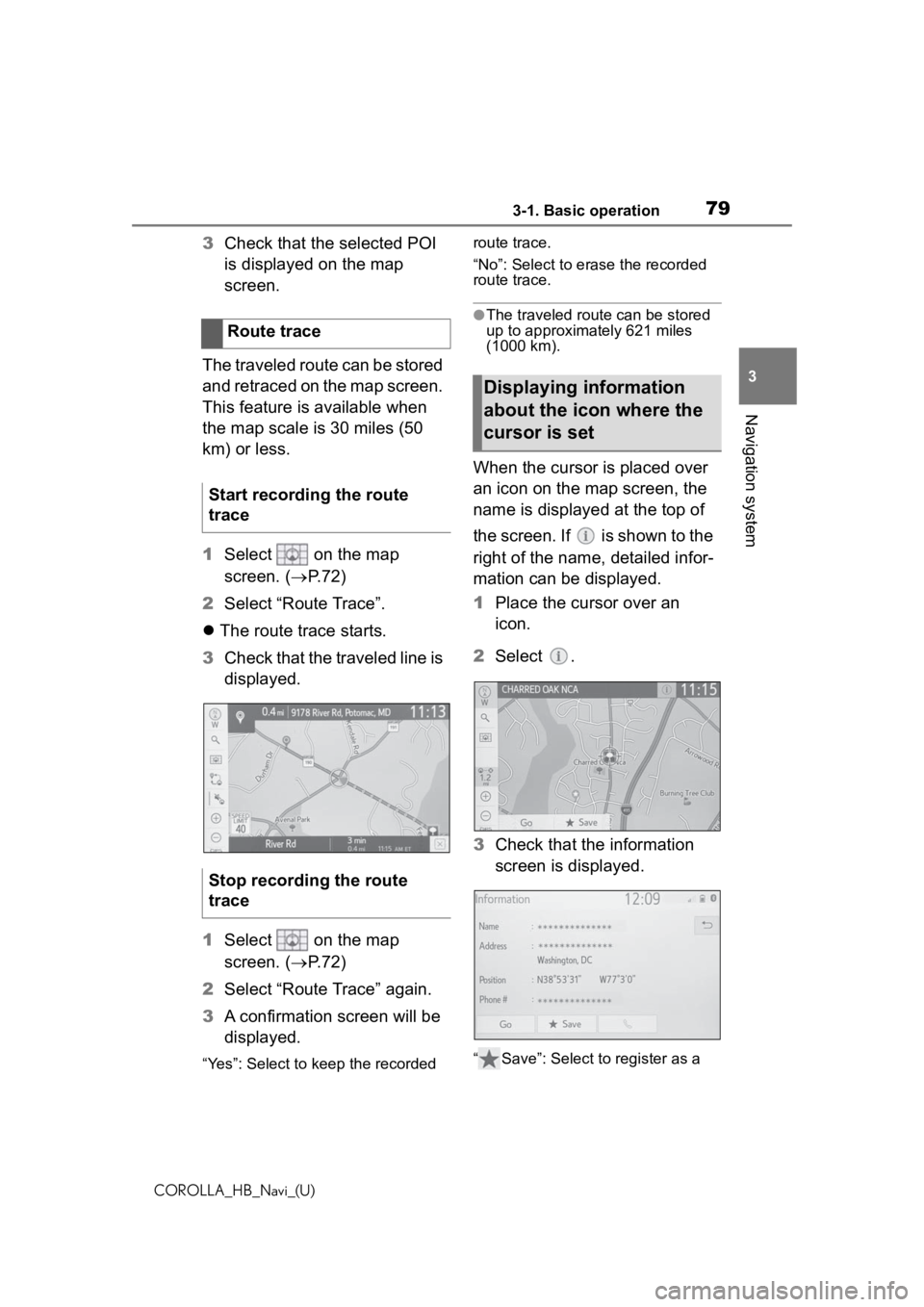

1 Select on the map
screen. ( P.72)

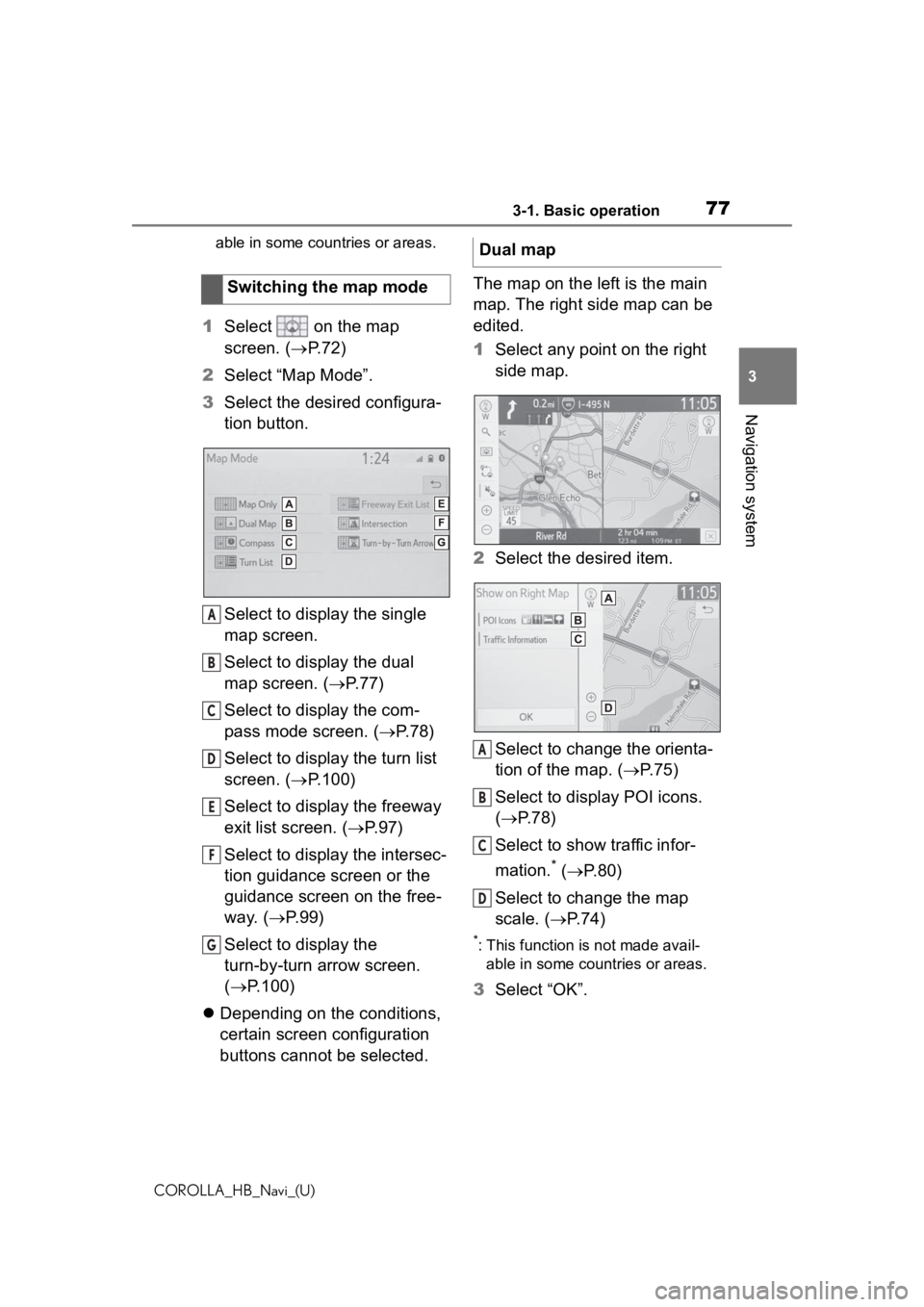

2 Select “Map Mode”.
3 Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. ( P.77)
Select to display the com-
pass mode screen. ( P. 7 8 )
Select to display the turn list
screen. ( P.100)
Select to display the freeway
exit list screen. ( P. 9 7 )
Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. ( P. 9 9 )
Select to display the
turn-by-turn arrow screen.
( P.100)
 Depending on the conditions,
certain screen configuration
buttons cannot be selected. The map on the left is the main
map. The right side map can be
edited.
1
Select any point on the right
side map.
2 Select the desired item.
Select to change the orienta-
tion of the map. ( P. 7 5 )
Select to display POI icons.
( P.78)
Select to show traffic infor-
mation.
* (  P. 8 0 )
Select to change the map
scale. ( P. 7 4 )
*: This function is not made avail-
able in some countries or areas.
3 Select “OK”.
Switching the map mode
A
B
C
D
E
F
G
'XDOPDS
A
B
C
D

783-1. Basic operation
COROLLA_HB_Navi_(U)
Information about the destina-
tion, current position and a com-
pass are displayed on the
screen.
●The destination mark is displayed
in the direction of the destination.
When driving, refer to the longi-
tude and latitude coordinates, and
the compass, to make sure that
the vehicle is headed in the direc-
tion of the destination.
●When the vehicle travels out of
the coverage area, the guidance
screen changes to the whole com-
pass mode screen.
1Select on the map
screen. ( P.72)

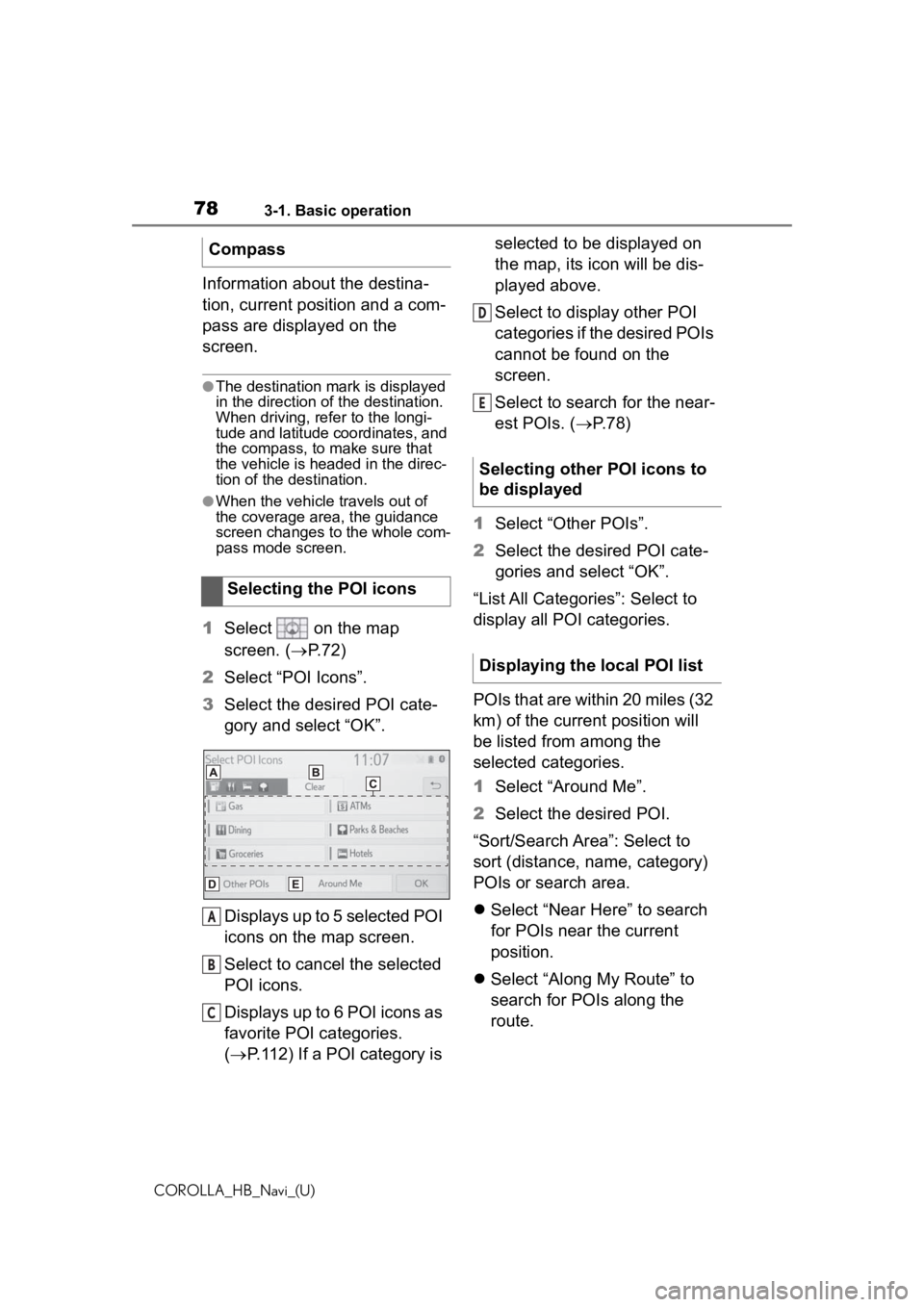

2 Select “POI Icons”.
3 Select the desired POI cate-
gory and select “OK”.
Displays up to 5 selected POI
icons on the map screen.
Select to cancel the selected
POI icons.
Displays up to 6 POI icons as
favorite POI categories.
( P.112) If a POI category is selected to be displayed on
the map, its icon will be dis-
played above.
Select to display other POI
categories if the desired POIs
cannot be found on the
screen.
Select to search for the near-
est POIs. (
P.78)
1 Select “Other POIs”.
2 Select the desired POI cate-
gories and select “OK”.
“List All Categories”: Select to
display all POI categories.
POIs that are within 20 miles (32
km) of the current position will
be listed from among the
selected categories.
1 Select “Around Me”.
2 Select the desired POI.
“Sort/Search Area”: Select to
sort (distance, name, category)
POIs or search area.
 Select “Near Here” to search
for POIs near the current
position.
 Select “Along My Route” to
search for POIs along the
route.
Compass
Selecting the POI icons
A
B
C
6HOHFWLQJRWKHU32,LFRQVWR
EHGLVSOD\HG
'LVSOD\LQJWKHORFDO32,OLVW
D
E

793-1. Basic operation
COROLLA_HB_Navi_(U)
3
Navigation system
3 Check that the selected POI
is displayed on the map
screen.
The traveled route can be stored
and retraced on the map screen.
This feature is available when
the map scale is 30 miles (50
km) or less.
1 Select on the map
screen. ( P.72)
2 Select “Route Trace”.
 The route trace starts.
3 Check that the traveled line is
displayed.
1 Select on the map
screen. ( P.72)
2 Select “Route Trace” again.
3 A confirmation screen will be
displayed.
“Yes”: Select to keep the recorded route trace.
“No”: Select to erase the recorded
route trace.
●The traveled route can be stored
up to approximately 621 miles
(1000 km).
When the cursor is placed over
an icon on the map screen, the
name is displayed at the top of
the screen. If is shown to the
right of the name, detailed infor-
mation can be displayed.
1
Place the cursor over an
icon.
2 Select .
3 Check that the information
screen is displayed.
“ Save”: Select to register as a
Route trace
Start recording the route
trace
Stop recording the route
trace
Displaying information
about the icon where the
cursor is set

803-1. Basic operation
COROLLA_HB_Navi_(U)memory point. To change the icon,
name, etc.:
P. 1 0 5
“Go” / “Enter”: Select to set as a
destination.
: Select to call the registered
number.
“Delete”: Select to delete destina-
tion or memory point.
“Edit”: Select to display the edit
memory point screen.
●Even when traffic information is
not currently being received, traffic
information and will be dis-
played for a while after traffic infor-
mation has been received.
●In some situations, calls to a POI
may automatically change to an
international call or may not be
possible as a domestic call.
*: This function is not made avail-
able in some countries or areas.

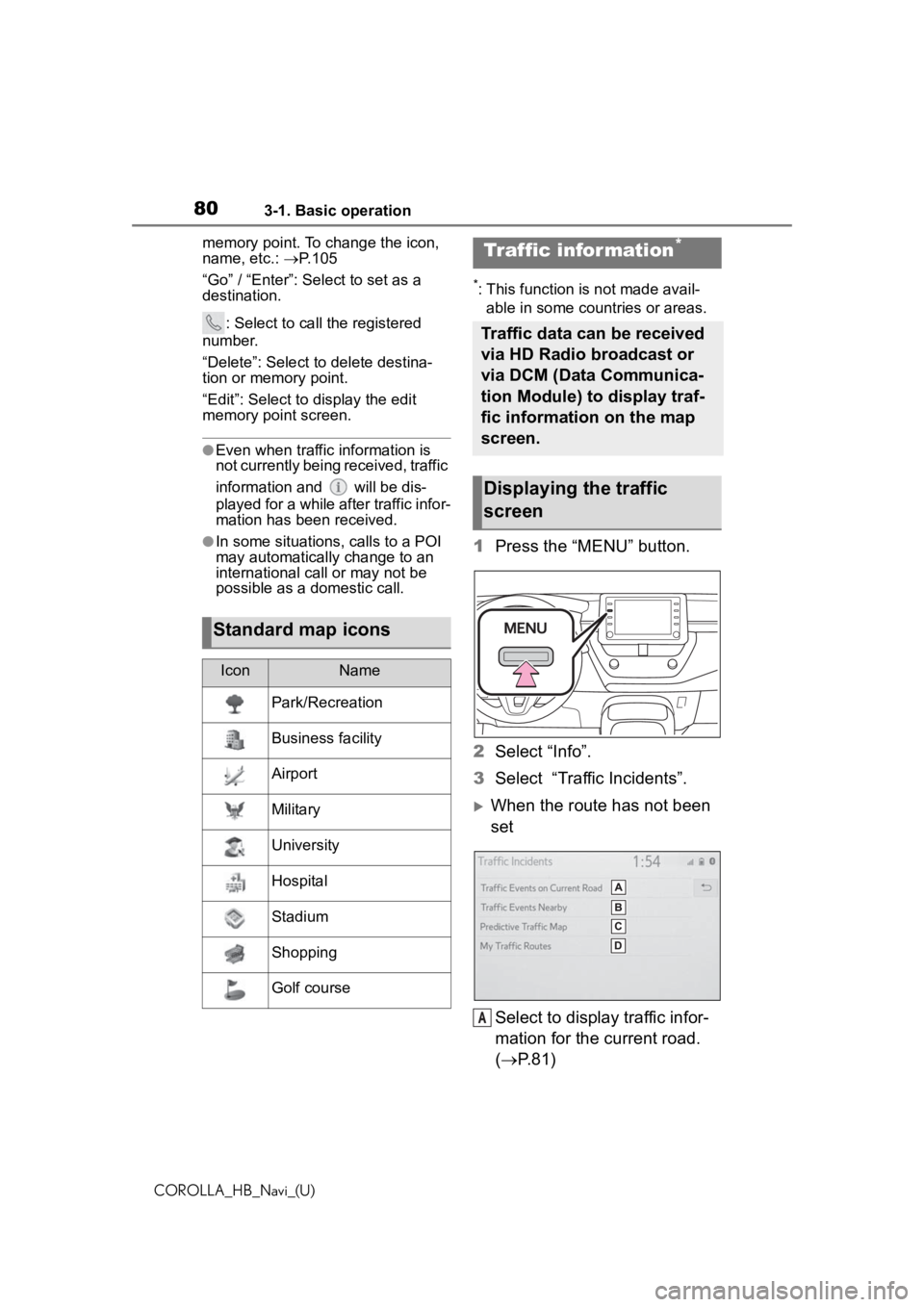

1 Press the “MENU” button.
2 Select “Info”.
3 Select “Traffic Incidents”.
When the route has not been
set
Select to display traffic infor-
mation for the current road.
( P.81)
Standard map icons
IconName
Park/Recreation
Business facility
Airport
Military
University
Hospital
Stadium
Shopping
Golf course
Traffic infor mation*
Traffic data can be received
via HD Radio broadcast or
via DCM (Data Communica-
tion Module) to display traf-
fic information on the map
screen.
Displaying the traffic
screen
A
