INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,26
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
21
Audio 18
Auto lock/unlock
1,212
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear seats-Folding 16
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15 Vehicle Stability Control (VSC)/
TRAC OFF switch
22
USB charge port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect
®43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45
Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC
36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40
Sensors 25
BLUETOOTH® DEVICE
PAIRING SECTION 48-50
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

2
OVERVIEWInstrument panel
Steering wheel controls
Windshield wiper and washer control
Tilt and telescopic steering
lock release lever (below the
steering wheel)
Audio volume control
switches2
Audio control switches2
Meter control switches
Instrument panel
light control dial
“ENGINE START STOP” switch
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switch Paddle shifters
1
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control/Dynamic Radar
Cruise Control vehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control/Dynamic Radar
Cruise Control switch
Headlights/turn signals/fog lights1 control

4
OVERVIEWInstrument cluster
Tachometer
Tachometer Tachometer Speedometer
Speedometer Speedometer Outside temperature
Outside temperature
Outside temperature
Engine coolant temperature gauge
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer and trip meter display
Odometer and trip meter display Shift position
indicator
Shift position indicator
Shift position indicator Fuel gauge
Fuel gauge
Fuel gaugeClock
Clock
Clock
Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID) Odometer and
trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge
4.2-in display
7-in display (Analog speedometer)
7-in display (Digital speedometer)
Service indicators and warning lights

10
FEATURES & OPERATIONSElectric parking brake
Driver sideDriver sideAutomatic mode ONAutomatic mode OFF
Standby indicatorOperated indicatorParking brake light
Continuously variable
transmissionContinuously variable
transmission
Manual transmissionManual transmission
* Available only on vehicles with continuously variable transmissions ** Available only on vehicles with manual transmissions
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch \
until
“EPB Shift Interlock Function Activated”* displays in Multi-Information D\
isplay
(MID) or auto EPB OFF indicator** turns off. While depressing brake, shifting\
into
P position* or when the engine is off** will automatically set the brake \
and turn
the parking brake indicator and parking brake light on. To release brake, d\
epress
brake and shift out of P. The indicator and the light on the switch turn off.\
To turn automatic mode OFF, push and hold parking brake switch until “E\
PB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF indicator\
**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking br\
ake
and turn the parking brake indicator and parking brake light on. To release\
, press
the brake pedal and push switch. The indicator and the light on the switch \
turn off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in D,\
M*/a
forward driving position** or N with the system on and the brake pedal has been\

depressed to stop the vehicle. The system releases the brake when the accelerator\

pedal is depressed with the shift lever in D or M*/a forward driving position\
** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.
Parking
brake lightParking
brake light
Manual mode Brake hold

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE

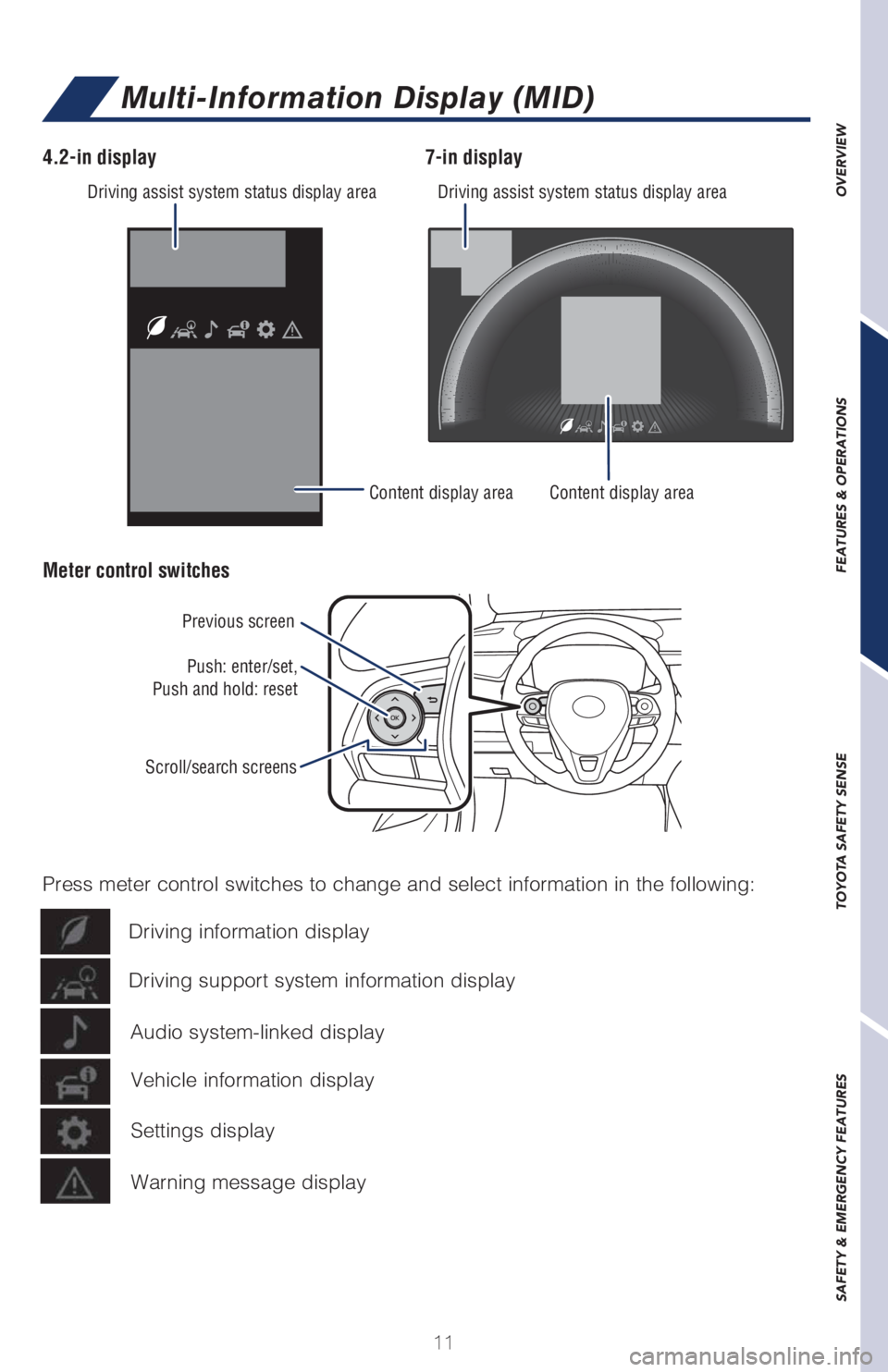

SAFETY & EMERGENCY FEATURESDriving assist system status display areaDriving assist system status display area
Content display areaContent display area
Press meter control switches to change and select information in the followin\
g:
Multi-Information Display (MID)
4.2-in display
Meter control switches 7-in display
Previous screen
Push: enter/set,
Push and hold: reset
Scroll/search screens
Driving support system information display Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

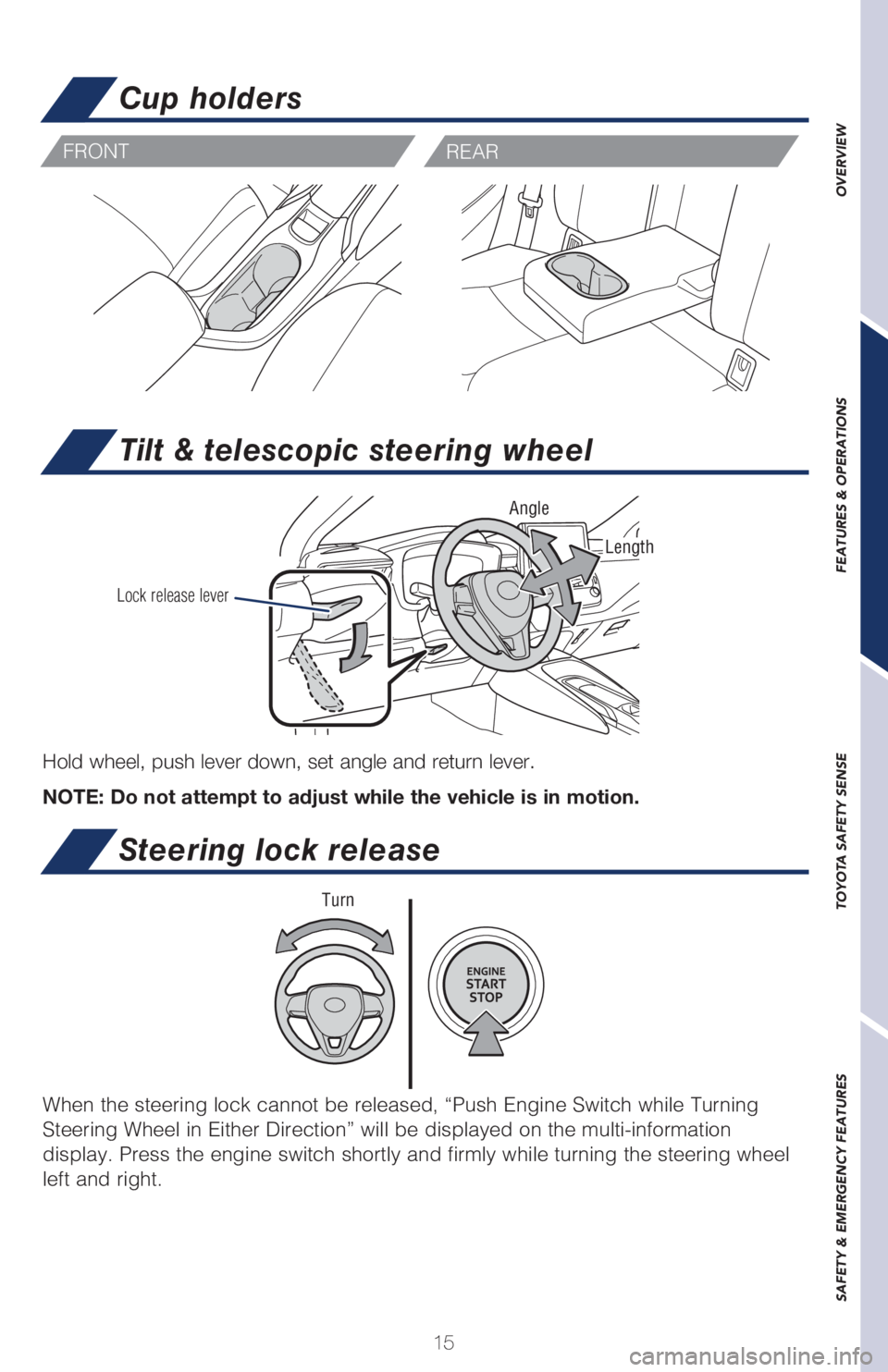

Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and return lever.

NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Steering lock release
When the steering lock cannot be released, “Push Engine Switch while Turn\
ing
Steering Wheel in Either Direction” will be displayed on the multi-informatio\
n
display. Press the engine switch shortly and firmly while turning the steering w\
heel
left and right.
Turn
FRONT
REAR
Cup holders
Angle
Length

18
Audio
FEATURES & OPERATIONS
NOTE: Always use safe driving practices and follow all traffic rules.
Refer to the “Navigation and Multimedia System Owner’s Manual” or vi\
sit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volume Turn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system
Seek station/
track/file
select
Access
HOME screen
Access
MENU screen
Access
apps screen
Access
MAP screen
USB charge port
(Charge-only)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” m\
ode for use.

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

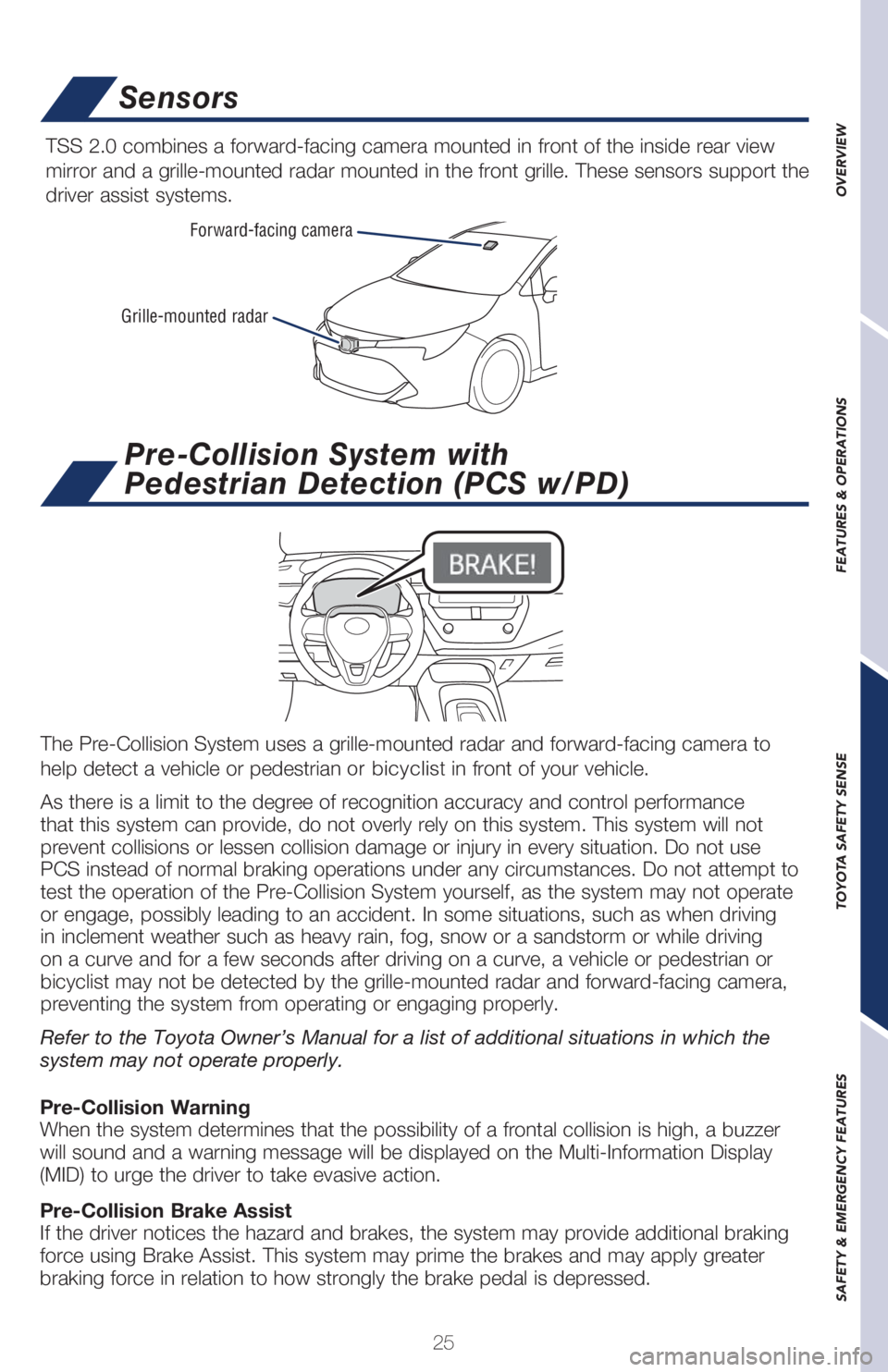

Rear view monitor system
The rear view monitor system displays an image of the view from the bumper \
of
the rear area of the vehicle. The camera for the rear view monitor system i\
s located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display” on the screen. Select “Camera” to adjust the scre\
en contrast and
brightness.
Refer to the Owner’s Manual and the Navigation and Multimedia System Owner\
‘s
Manual for limitations and more details on this system.

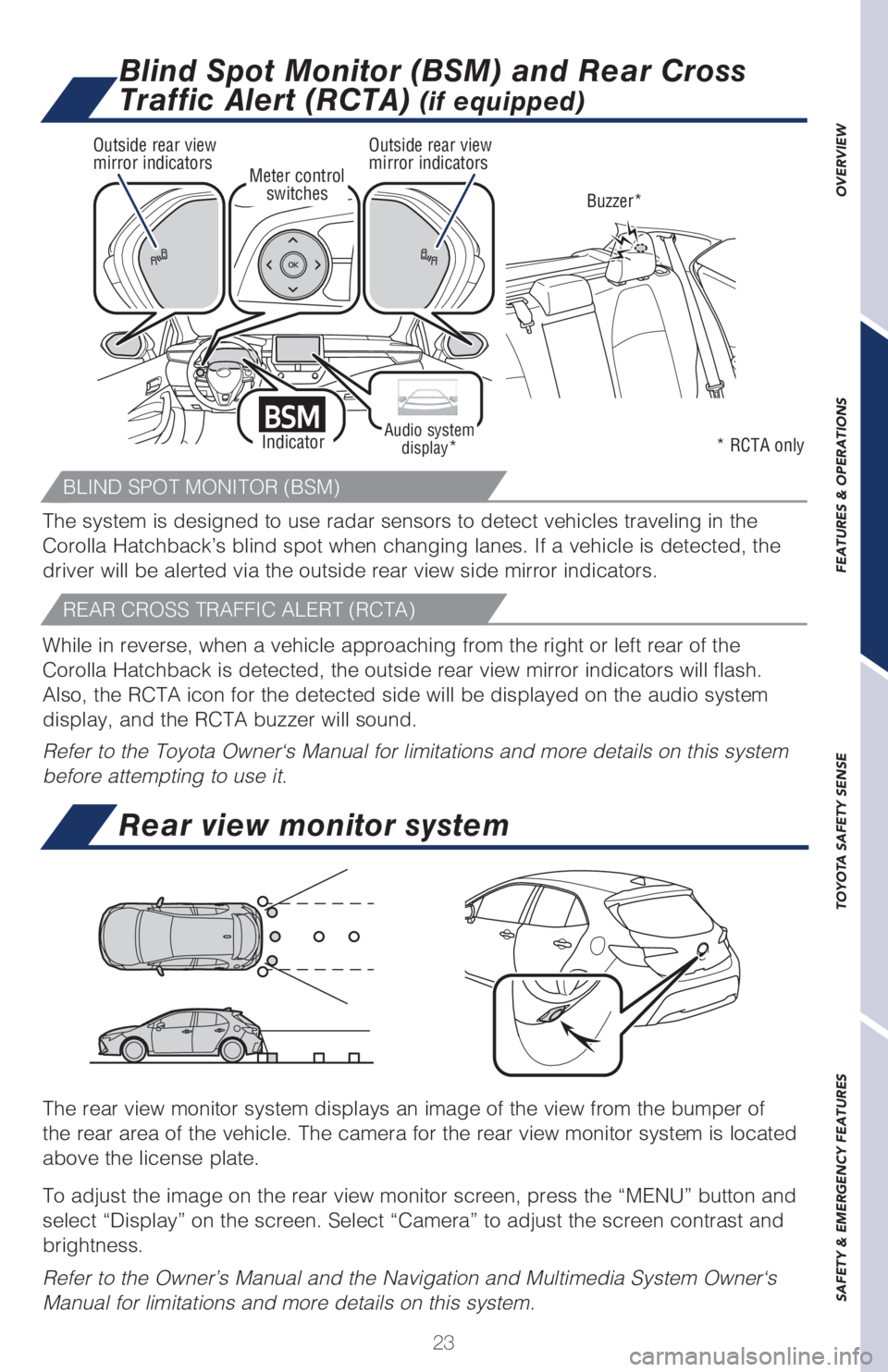

Blind Spot Monitor (BSM) and Rear Cross
Traffic Alert (RCTA)
(if equipped)
Buzzer*
* RCTA only
The system is designed to use radar sensors to detect vehicles traveling in\
the
Corolla Hatchback’s blind spot when changing lanes. If a vehicle is detected\
, the
driver will be alerted via the outside rear view side mirror indicators.
While in reverse, when a vehicle approaching from the right or left rear of t\
he
Corolla Hatchback is detected, the outside rear view mirror indicators will fla\
sh.
Also, the RCTA icon for the detected side will be displayed on the audio syst\
em
display, and the RCTA buzzer will sound.
Refer to the Toyota Owner‘s Manual for limitations and more details on thi\
s system
before attempting to use it.
BLIND SPOT MONITOR (BSM)
REAR CROSS TRAFFIC ALERT (RCTA)
IndicatorAudio system display*
Outside rear view
mirror indicators
Outside rear view
mirror indicators
Meter control
switches

24

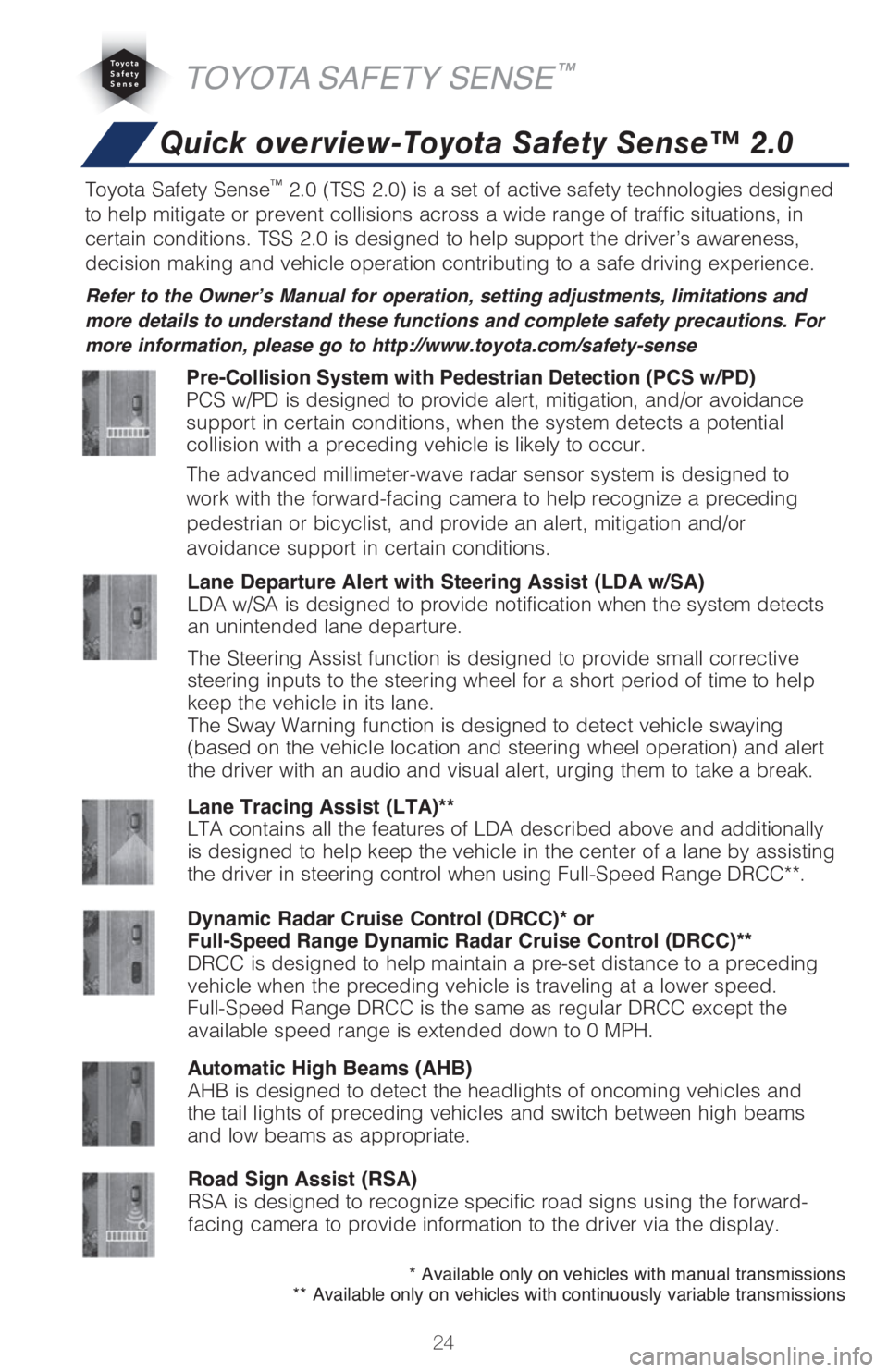

TOYOTA SAFETY SENSE™
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situ\
ations, in
certain conditions. TSS 2.0 is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.\
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Quick overview-Toyota Safety Sense™ 2.0
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help
keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert
the driver with an audio and visual alert, urging them to take a break.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate.
Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward-
facing camera to provide information to the driver via the display.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the forward-facing camera to help recognize a preceding
pedestrian or bicyclist, and provide an alert, mitigation and/or
avoidance support in certain conditions.
Dynamic Radar Cruise Control (DRCC)* or
Full-Speed Range Dynamic Radar Cruise Control (DRCC)**
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.
Full-Speed Range DRCC is the same as regular DRCC except the
available speed range is extended down to 0 MPH.
Lane Tracing Assist (LTA)**
LTA contains all the features of LDA described above and additionally
is designed to help keep the vehicle in the center of a lane by assisting
the driver in steering control when using Full-Speed Range DRCC**.
* Available only on vehicles with manual transmissions

** Available only on vehicles with continuously variable transmissions

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Grille-mounted radar Forward-facing camera
Sensors
TSS 2.0 combines a forward-facing camera mounted in front of the inside rea\
r view
mirror and a grille-mounted radar mounted in the front grille. These sensors s\
upport the
driver assist systems.
The Pre-Collision System uses a grille-mounted radar and forward-facing cam\
era to
help detect a vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control perf\
ormance
that this system can provide, do not overly rely on this system. This system\
will not
prevent collisions or lessen collision damage or injury in every situation. Do \
not use
PCS instead of normal braking operations under any circumstances. Do not at\
tempt to
test the operation of the Pre-Collision System yourself, as the system may n\
ot operate
or engage, possibly leading to an accident. In some situations, such as wh\
en driving
in inclement weather such as heavy rain, fog, snow or a sandstorm or while\
driving
on a curve and for a few seconds after driving on a curve, a vehicle or pe\
destrian or
bicyclist may not be detected by the grille-mounted radar and forward-facing came\
ra,
preventing the system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in \
which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is hi\
gh, a buzzer
will sound and a warning message will be displayed on the Multi-Information \
Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additi\
onal braking
force using Brake Assist. This system may prime the brakes and may apply grea\
ter
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
