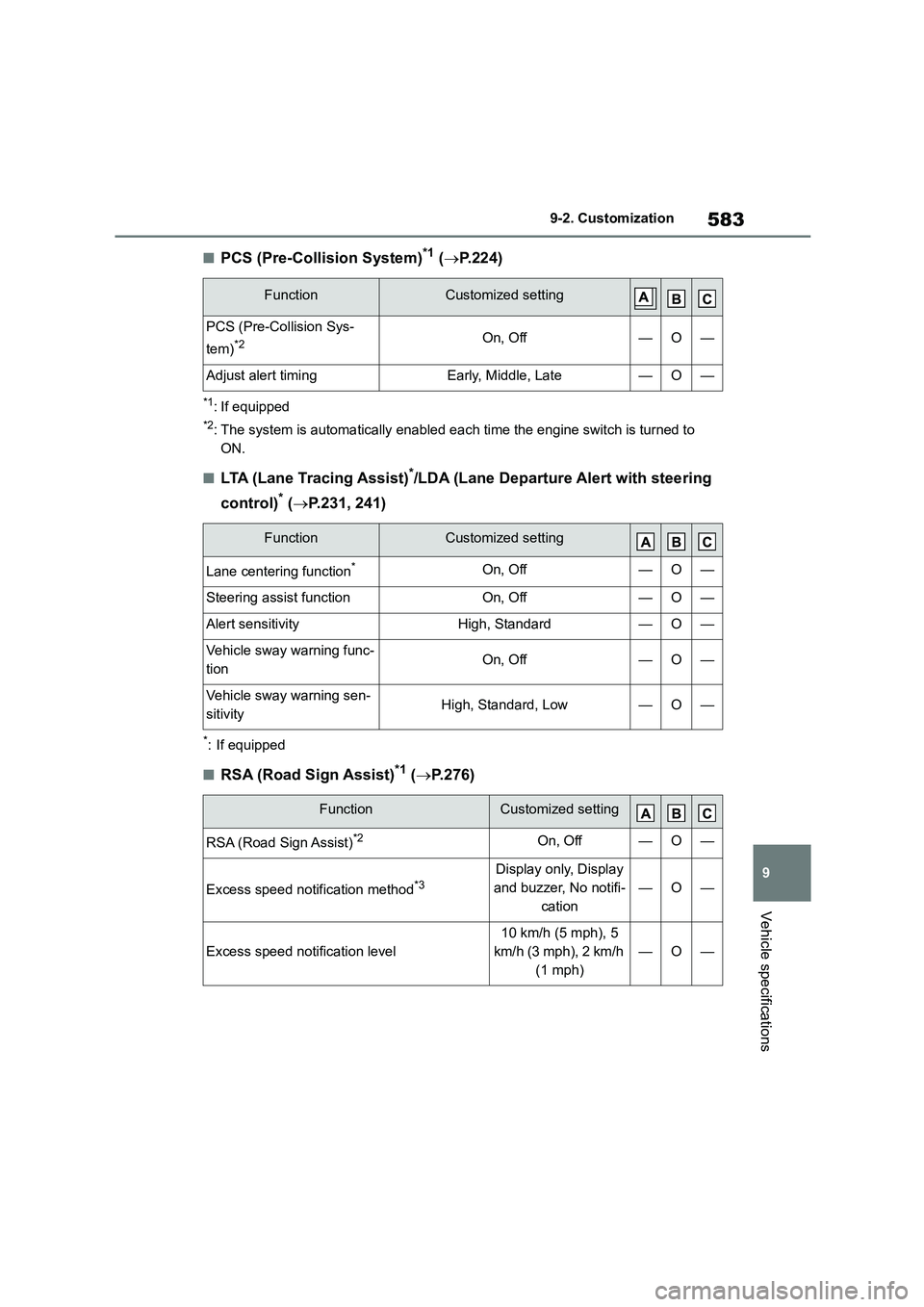

583
9
9-2. Customization
Vehicle specifications
■PCS (Pre-Collision System)*1 ( P.224)
*1: If equipped
*2: The system is automatically enabled each time the engine switch is turned to
ON.
■LTA (Lane Tracing Assist)*/LDA (Lane Departure Alert with steering
control)* ( P.231, 241)
*: If equipped
■RSA (Road Sign Assist)*1 (P. 2 7 6 )
FunctionCustomized setting
PCS (Pre-Collision Sys-
tem)*2On, Off—O—
Adjust alert timingEarly, Middle, Late—O—
FunctionCustomized setting
Lane centering function*On, Off—O—
Steering assist functionOn, Off—O—
Alert sensitivityHigh, Standard—O—
Vehicle sway warning func-
tionOn, Off—O—
Vehicle sway warning sen-
sitivityHigh, Standard, Low—O—
FunctionCustomized setting
RSA (Road Sign Assist)*2On, Off—O—
Excess speed notification method*3Display only, Display
and buzzer, No notifi-
cation
—O—
Excess speed notification level
10 km/h (5 mph), 5
km/h (3 mph), 2 km/h
(1 mph)
—O—

5849-2. Customization
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range*/Dynamic radar
cruise control* ( P.249, 260)
*: If equipped
■Stop & Start system* (P.280)
*: If equipped
■BSM (Blind Spot Monitor)* (P.288)
No overtaking notification method
Display only, Display
and buzzer, No notifi-
cation
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only, Display
and buzzer, No notifi-
cation
—O—
FunctionCustomized setting
Dynamic Radar Cruise Control with Road
Sign AssistOff, On—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
FunctionCustomized setting

5869-2. Customization
■Automatic air conditioning system* (P. 4 2 7 )
*: If equipped
■Illumination (P.436)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus- tomized.
■In the following situations, custom-ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically be turned off
●A warning message appears after the customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
A/C auto switch operationOnOffO—O
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person*
OnOff——O
Cup holder lights* and
center tray light*OnOff——O
Door trim lights*OnOff——O

592What to do if... (Troubleshooting)
Is the parking brake released?
( P.189)
Depending on the situation, other
types of warning buzzer may also
sound. ( P.511, 520)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( P.81)
Do one of the following to deacti-
vate or stop the alarms:
 Unlock the doors using the entry
function (if equipped) or wireless
remote control.
 Starting the engine. (The alarm
will be deactivat ed or stopped
after a few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the multi-infor-
mation display. ( P.520)
When a warning light turns on or
a warning message is displayed,
refer to P.511, 520.
 Vehicles with an emergency tire
puncture repair kit: Stop the vehi-
cle in a safe place and repair the
flat tire temporarily with the
emergency tire puncture repair
kit. ( P. 5 2 2 )
 Vehicles with spare tire: Stop the
vehicle in a safe place and
replace the flat tire with the spare
tire. ( P.539)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( P.563)
An alarm is activated and the
horn sounds (vehicles with
an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart entry
& start system)
A warning light turns on or a
warning message is dis-
played
When a problem has
occurred
If you have a flat tire
The vehicle becomes stuck

593Alphabetical Index
Alphabetical Index
A
A/C
Air conditioning filter................... 489
Automatic air conditioning system
................................................. 427
Front seat concentrated airflow
mode (S-FLOW) ...................... 432
Manual air conditioning system.. 422
ABS (Anti-lock Brake System) .... 357
Warning light .............................. 513
ACA (Active Cornering Assist) .... 357
Active Cornering Assist (ACA).... 357
Adaptive High-beam System ....... 201
Air conditioning filter ................... 489
Air conditioning system
Air conditioning filter................... 489
Automatic air conditioning system
................................................. 427
Front seat concentrated airflow
mode (S-FLOW) ...................... 432
Manual air conditioning system.. 422
Airbag manual on-off system ........ 46
Airbags
Airbag manual on-off system ....... 46
Airbag operating conditions ......... 39
Airbag precautions for your child . 41
Correct driving posture................. 31
Curtain shield airbag operating con-
ditions ........................................ 39
Curtain shield airbag precautions 41
General airbag precautions.......... 41
Locations of airbags ..................... 37
Modification and disposal of airbags
................................................... 44
Side airbag operating conditions.. 39
Side airbag precautions ............... 41
Side and curtain shield airbags oper-
ating conditions .......................... 39
Side and curtain shield airbags pre-
cautions ..................................... 41
SRS airbags ................................. 37
SRS warning light ...................... 512
Alarm
Alarm............................................ 81
Warning buzzer .......................... 511
Antennas (smart entry & start sys-
tem) ..............................................136
Anti-lock Brake System (ABS)..... 357
Warning light ..............................513
Approach warning ................255, 266
Armrest .......................................... 457
Assist grips ...................................457
Audio system
Bluetooth® audio ........................391
CD player ...................................375
iPod ............................................381
MP3/WMA disc ...........................375
Optimal use ................................371
Radio .......................................... 373
Steering wheel audio switch....... 369
USB memory ..............................386
USB port.....................................370
Audio system-linked display .......103
Automatic air conditioning system
..................................................... 427
Automatic headlight leveling system
..................................................... 196
Automatic High Beam ..................199
Automatic light control system ... 195
Average fuel economy ................. 101
Average vehicle speed ................. 103
B
Back door ......................................124
Back-up light
Replacing light bulbs ..................497
Battery
Battery checking......................... 476
If the battery is discharged ......... 556
Preparing and checking before win-
ter ............................................. 363
Warning light ..............................512
Blind Spot Monitor (BSM) ............288
Bluetooth®
Audio system..............................391
Hands-free system (for cellular
phone) ...................................... 406
Bottle holders................................440

594Alphabetical Index
Brake
Brake hold .................................. 192
Emergency brake signal ............ 357
Fluid ........................................... 572
Parking brake ............................. 189
Warning light .............................. 511
Brake assist .................................. 357
Break-in tips.................................. 163
Brightness control
Instrument panel light control . 90, 96
BSM (Blind Spot Monitor) ............ 288
C
Care
Exterior....................................... 460
Interior ........................................ 463
Seat belts ................................... 463
Wheels and wheel ornaments.... 460
Cargo hooks ................................. 442
CD player ....................................... 375
Chains ........................................... 364
Child restraint system
Points to remember...................... 49
Riding with children ...................... 47
Child safety
Airbag precautions ....................... 41
Battery precautions ............ 477, 559
Child restraint syst em .................. 48
Heated steering wheel and seat
heater precautions ................... 434
How your child should wear the seat
belt ............................................. 34
Installing child restraints............... 48
Panoramic moon roof precautions
................................................. 156
Power window lock switch ......... 153
Power window precautions ........ 152
Rear door child-protectors ......... 123
Removed electronic key battery pre-
cautions ................................... 492
Seat belt precautions ................... 48
Child-protectors............................ 123
Cleaning
Exterior....................................... 460
Interior ........................................463
Radar sensor..............................214
Seat belts ...................................463
Wheels and wheel ornaments .... 460
Clock ..............................89, 91, 93, 97
Coat hooks .................................... 457
Condenser .....................................476
Console box .................................. 441
Consumption screen .................... 110
Cooling system .............................475
Engine overheating .................... 560
Cruise control
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range .......................249
Warning message ...................... 273
Cup holders ...................................440
Current fuel consumption ............101
Curtain shield airbags .................... 37
Customizable features ................. 577
D
Daytime running light system ..... 195
Daytime running lights
Replacing light bulbs ..................497
Deck board .................................... 443
Defogger
Outside rear view mirrors ... 424, 429
Rear window ......................424, 429
Windshield.......................... 424, 429
Dimensions ...................................566
Display
Cruise control .............................271
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range .......................249
Head-up display ......................... 106
LDA (Lane Departure Alert with
steering control) .......................245
LTA (Lane-Tracing Assist) .......... 237
Multi-information display .............. 99
RCTA.......................................... 312
Speed limitter .............................273
Toyota parking assist-sensor...... 304

595Alphabetical Index
Warning message ...................... 520
Display change button ............. 90, 96
Distance until next engine oil change
................................................. 90, 96
Do-it-yourself maintenance ......... 466
Door
Double locking system ................. 80
Door lock
Back door ................................... 124
Key ............................................. 120
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 124
Door glasses .............................. 151
Door lock ............................ 119, 124
Open door warning buzzer. 121, 123
Outside rear view mirrors ........... 148
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 80
Drive distance ............................... 103
Drive information .......................... 103
Drive-start control ........................ 163
Driving
Break-in tips ............................... 163
Correct driving posture................. 31
Driving mode select switch ........ 355
Procedures................................. 161
Winter drive tips ......................... 363
Driving information display ......... 100
Driving range ........................ 101, 102
Driving support system information
display ......................................... 103
Dynamic radar cruise control ...... 260
Warning message ...................... 269
Dynamic radar cruise control with
full-speed range ......................... 249
Warning message ...................... 258
E
eCall ................................................. 69
“SOS” button ................................ 69
Eco Driving Indicator............ 102, 109
Eco Driving Indicator Light ..........102
Elapsed time.................................. 103
Electric Power Steer ing (EPS) ..... 357
Warning light ..............................514
Electronic key ............................... 114
Battery-saving function...............137
If the electronic key does not operate
properly .................................... 554
Replacing the battery ................. 490
Electronic roof sunshade
Jam protection function .............. 155
Operation ...................................154
Emergency brake signal .............. 357
Emergency flashers...................... 502
Emergency tire puncture .............522
Emergency, in case of
If a warning buzzer sounds ........ 511
If a warning light turns on ........... 511
If a warning message is displayed
.................................................520
If the battery is discharged ......... 556
If the electronic key does not operate
properly .................................... 554
If the engine will not start ........... 552
If the vehicle is submerged or water
on the road is rising..................504
If you have a flat tire ........... 522, 539
If you lose your keys ..................554
If you think something is wrong .. 509
If your vehicle becomes stuck .... 563
If your vehicle has to be stopped in
an emergency ..........................502
If your vehicle needs to be towed
.................................................505
If your vehicle overheats ............ 560
Engine
ACCESSORY mode .. ................. 181
Compartment .............................472
Engine switch .....................177, 178
Fuel pump shut off system .........510
Hood...........................................470
How to start the engine ...... 177, 178
Identification number ..................568
If the engine will not start ........... 552

597Alphabetical Index
H
Hands-free system (for cellular
phone) ......................................... 406
Head restraints ............................. 144
Headlights
Adaptive High-beam System ..... 201
Automatic High Beam system .... 199
Exteded Headlight Lighting system
................................................. 196
Light switch ................................ 195
Replacing light bulbs .................. 497
Head-up display............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display106
Navigation system-linked display
area ......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Heated steering wheel ................. 434
Heaters
Automatic air conditioning system
................................................. 427
Heated steering wheel ............... 434
Heater system ............................ 422
Manual air conditioning system.. 422
Outside rear view mirrors ... 424, 429
Seat heaters............................... 434
High mounted stoplight
Replacing light bulbs .................. 497
Hill-start assist control................. 357
Hood
Open .......................................... 470
Hooks
Cargo hooks............................... 442
Coat hooks ................................. 457
Grocery bag hooks..................... 442
Retaining hooks (floor mat) .......... 30
Horn ............................................... 146
I
Identification
Engine ........................................568
Vehicle........................................567
Ignition switch (engine switch) . 177,
178
Auto power off function .............. 181
Changing the engine switch modes
.................................................181
If your vehicle has to be stopped in
an emergency ..........................502
Illuminated entry system.............. 437
Indicators......................................... 87
Initialization
Engine oil maintenance data ...... 474
Items to initialize......................... 587
Power windows .......................... 151
Tire pressure warning system .... 483
Inside rear view mirror ................. 147
Intercooler .....................................476
Intercooler coolant
Capacity .....................................570
Checking .................................... 475
Interior lights ................................. 436
Front interior light .......................436
Rear interior light ........................436
Wattage ......................................575
J
Jack
Positioning a floor jack ...............471
Vehicle-equipped jack ................540
Jack handle ...................................540
Jam protection function
Electronic roof sunshade............155
Panoramic moon roof ................. 155
Power back door ........................132
Power windows .......................... 151
K
Keyless entry
Smart entry & start system .........136

599Alphabetical Index
Meters .................................... 89, 93
Multi-information display .............. 99
Settings ...................................... 104
Warning lights ............................ 511
Warning message ...................... 520
Mirrors
Inside rear view mirror ............... 147
Outside rear view mirror defoggers
......................................... 424, 429
Outside rear view mirrors ........... 148
Vanity mirrors ............................. 456
MP3 disc ........................................ 375
Multidrive ...................................... 182
If the shift lever cannot be shifted
from P ...................................... 184
M mode ...................................... 184
Multi-information display
Audio system-linked display....... 103
Clock ...................................... 91, 97
Cruise control ..................... 271, 273
Driving information display ......... 100
Driving support system information
display ..................................... 103
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range ....................... 249
Eco Driving Indicator .................. 102
Fuel economy ............................ 101
LDA (Lane Departure Alert with
steering control) ....................... 245
LTA (Lane-Tracing Assist) .......... 237
Menu icons................................... 99
Meter control switches ............... 100
Navigation system-linked display103
Settings ...................................... 104
Stop & Start system information 105
Tire pressure .............................. 481
Vehicle information display ........ 103
Warning message ...................... 520
N
Navigation system-linked display
............................................. 103, 106
O
Odometer ................................... 90, 96
Odometer and trip meter display
Display change button............ 90, 96
Display items ..........................90, 96
Oil
Engine oil ...................................569
Manual transmission ..................571
Open tray ....................................... 441
Opener
Back door ...........................126, 127
Fuel filler door ....... ..................... 211
Hood...........................................470
Outside rear view mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor)........... 288
Folding ....................................... 149
Outside rear view mirror defoggers
.........................................424, 429
RCTA function ............................ 312
Outside temperature.................89, 93
Overheating ...................................560
P
Panoramic moon roof
Door lock linked panoramic moon
roof operation ...........................155
Jam protection function .............. 155
Operation ...................................154
Parking assist sensors (Toyota park-
ing assist-sensor).......................303
Parking brake
Operation ...................................189
Parking brake engaged warning
buzzer ......................................191
Warning light ..............................517
Warning message ...................... 191
Parking Support Brake function (for
rear-crossing vehicles) .............. 327
Function .....................................327
Parking Support Brake function
(rear-crossing vehicles) .............317

601Alphabetical Index
Head restraints........................... 144
Properly sitting in the seat............ 31
Seat heaters............................... 434
Secondary Collision Brake .......... 357
Sensor
Automatic headlight system ....... 195
Automatic High Beam system .... 199
BSM (Blind Spot Monitor) .......... 288
Inside rear view mirror ............... 148
Kick sensor ................................ 129
LDA (Lane Departure Alert with
steering control) ....................... 241
LTA (Lane Tracing Assist) .......... 231
Parking Support Brake function
(rear-crossing vehicles) ........... 327
Parking Support Brake function
(static objects) ......................... 325
Radar sensor ..................... 213, 300
Rain-sensing windshield wipers . 208
RCTA.......................................... 313
Toyota parking assist-sensor ..... 303
Shift lever
If the shift lever cannot be shifted
from P ...................................... 184
Manual transmission .................. 186
Multidrive.................................... 182
Shift lock system .......................... 184
Side airbags .................................... 37
Side mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor) .......... 288
Folding ....................................... 149
RCTA function ............................ 312
Side turn signal lights
Turn signal lever ........................ 189
Side windows................................ 151
S-IPA (Simple Intelligent Parking
Assist System)
Function ..................................... 329
Smart entry & start system
Antenna location ........................ 136
Entry functions ................... 119, 125
Starting the engine ..................... 178
Snow tires ..................................... 363
Spare tire ....................................... 539
Inflation pressure........................573
Storage location ......................... 540
Spark plug .....................................570
Specifications ............................... 566
Speed limiter ................................. 273
Warning message ...................... 275
Speedometer ............................. 89, 93
Steering lock
Column lock release........... 177, 179
Steering lock system warning mes-
sage .........................................179
Steering wheel
Adjustment ................................. 146
Heated steering wheel ...............434
Meter control switches ...............100
Stop & Start system
System information display ........ 105
Warning light ..............................515
Stop & Start system information dis-
play ..............................................105
Stop lights
Emergency brake signal............. 357
Replacing light bulbs ..................497
Storage features ...........................439
Stuck
If the vehicle becomes stuck ...... 563
Sun visors .....................................456
Sunshade
Panoramic moon roof ................. 154
Switches
Activating the Adaptive High-beam
System .....................................202
Airbag manual on-off switch ......... 46
Audio remote control switches ... 369
Automatic High Beam system ....199
Brake Hold switch ...................... 192
Cruise control switch ..................271
Display change button............ 90, 96
Door lock switches .....................122
Driving mode select switch.........355
Dynamic radar cruise control switch
.................................................261
Dynamic radar cruise control with
full-speed range switch ............249
