1163-1. Key information

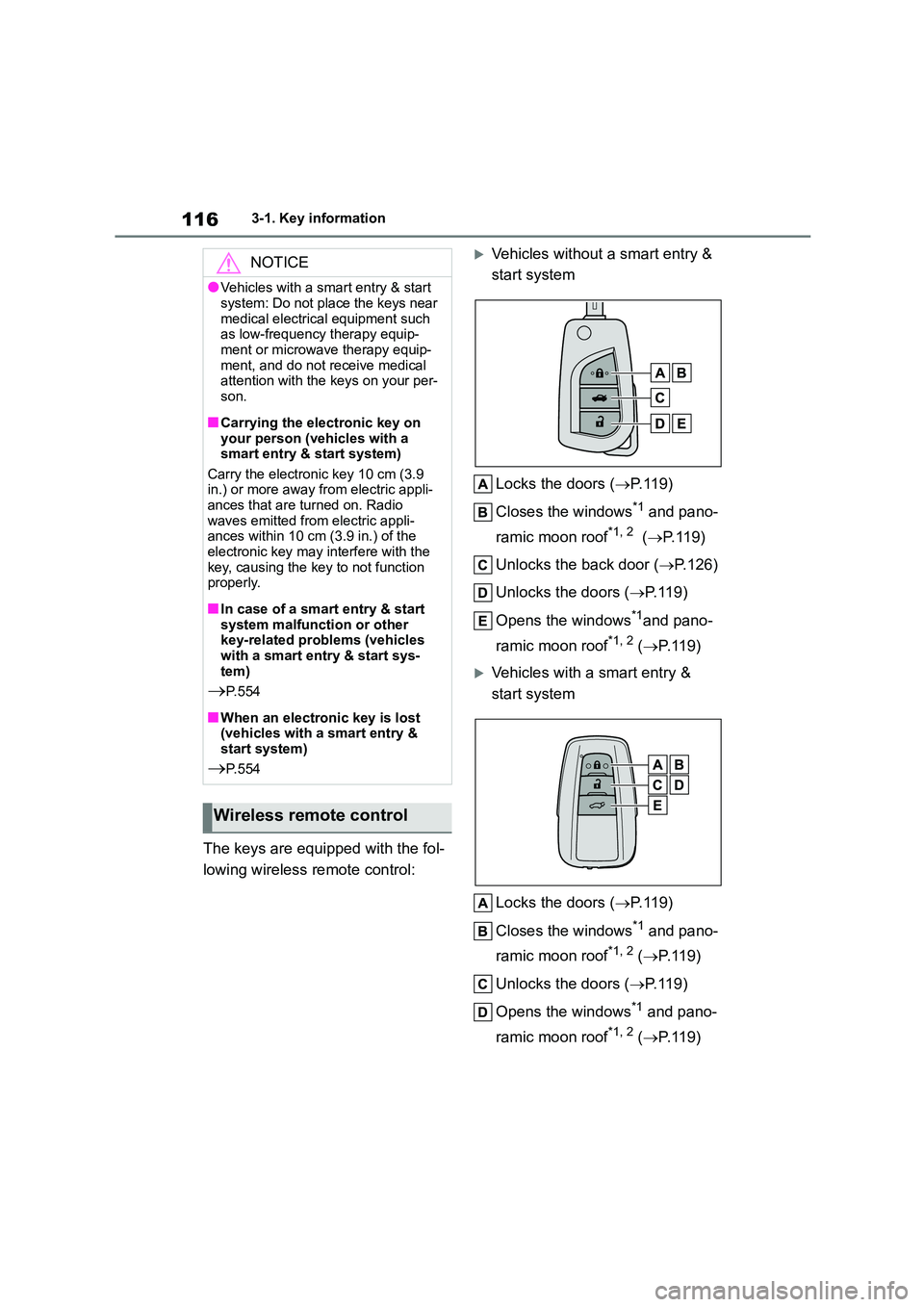

The keys are equipped with the fol-
lowing wireless remote control:
Vehicles without a smart entry &
start system
Locks the doors ( P. 1 1 9 )
Closes the windows*1 and pano-
ramic moon roof*1, 2 ( P. 1 1 9 )
Unlocks the back door ( P.126)
Unlocks the doors ( P. 1 1 9 )
Opens the windows*1and pano-
ramic moon roof*1, 2 ( P. 1 1 9 )
Vehicles with a smart entry &
start system
Locks the doors ( P. 1 1 9 )
Closes the windows*1 and pano-
ramic moon roof*1, 2 ( P. 1 1 9 )
Unlocks the doors ( P. 1 1 9 )
Opens the windows*1 and pano-
ramic moon roof*1, 2 ( P. 1 1 9 )
NOTICE
●Vehicles with a smart entry & start
system: Do not place the keys near
medical electrical equipment such as low-frequency therapy equip-
ment or microwave therapy equip-
ment, and do not receive medical attention with the keys on your per-
son.
■Carrying the electronic key on your person (vehicles with a
smart entry & start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio
waves emitted from electric appli- ances within 10 cm (3.9 in.) of the
electronic key may interfere with the
key, causing the key to not function properly.
■In case of a smart entry & start system malfunction or other
key-related problems (vehicles
with a smart entry & start sys- tem)
P. 5 5 4
■When an electronic key is lost
(vehicles with a smart entry &
start system)
P. 5 5 4
Wireless remote control

1223-2. Opening, closing and locking the doors
■If the battery is discharged (vehi-
cles with a smart entry & start sys- tem)
The doors cannot be locked and
unlocked using the entry function or wireless remote control. Lock or unlock
the doors using the mechanical key.
( P.555)
■Customization
Some functions can be customized.
( P.577)
■Door lock switches (to
lock/unlock)
1 Locks all the doors
2 Unlocks all the doors
■Inside lock buttons
WA R N I N G
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door
opening and an occupant being thrown out of the vehicle, resulting in
death or serious injury.
●Ensure that all doors are properly
closed and locked.
●Do not pull the inside door handle
while driving.
Be especially careful of the front doors, as the doors may be opened
even if the inside lock buttons are in
the locked position.
●Set the rear door child-protector
locks when children are seated in the rear seats.
■When opening or closing a door
Check the surroundings of the vehicle
such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether
a strong wind is blowing. When open-
ing or closing the door, hold the door handle tightly to prepare for any
unpredictable movement.
■When using the wireless remote control or the key and operating
the power windows or panoramic
moon roof (if equipped)
Operate the power windows or pano-
ramic moon roof after checking to
make sure that there is no possibility of any passenger having any of their
body parts caught in the windows or
panoramic moon roof. Also, do not allow children to operate the wireless
remote control or the key. It is possi-
ble for children and other passengers to get caught in the power windows or
panoramic moon roof.
Unlocking and locking the
doors from the inside

151
3
3-5. Opening and closing the windows
Before driving
3-5.Opening and closing the windows

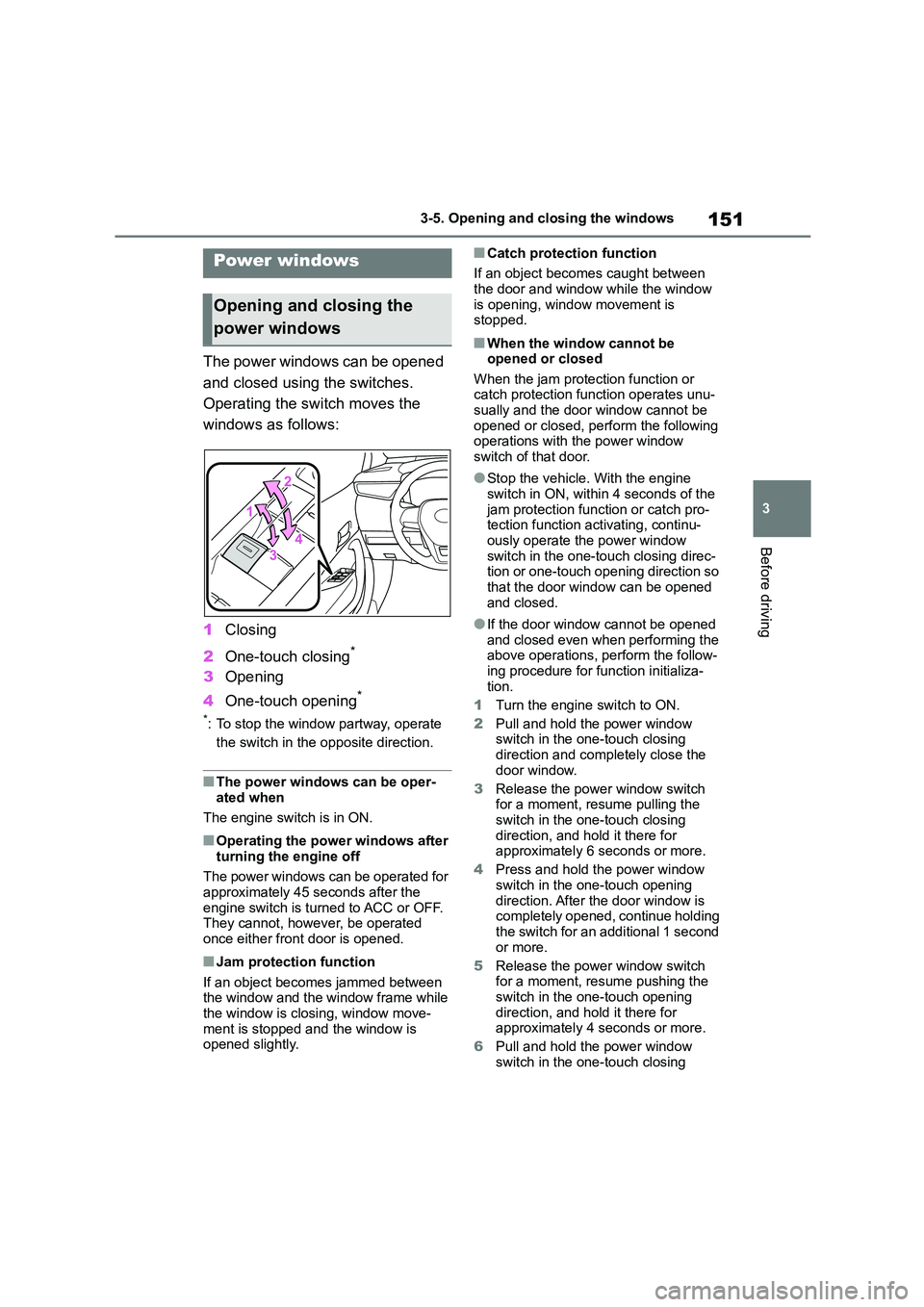

The power windows can be opened
and closed using the switches.
Operating the switch moves the
windows as follows:
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the window partway, operate
the switch in the opposite direction.
■The power windows can be oper-
ated when
The engine switch is in ON.
■Operating the power windows after
turning the engine off
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to ACC or OFF.
They cannot, however, be operated once either front door is opened.
■Jam protection function
If an object becomes jammed between
the window and the window frame while the window is closing, window move-
ment is stopped and the window is
opened slightly.
■Catch protection function
If an object becomes caught between the door and window while the window
is opening, window movement is
stopped.
■When the window cannot be opened or closed
When the jam protection function or
catch protection function operates unu- sually and the door window cannot be
opened or closed, perform the following
operations with the power window switch of that door.
●Stop the vehicle. With the engine switch in ON, within 4 seconds of the
jam protection function or catch pro-
tection function activating, continu- ously operate the power window
switch in the one-touch closing direc-
tion or one-touch opening direction so that the door window can be opened
and closed.
●If the door window cannot be opened
and closed even when performing the
above operations, perform the follow- ing procedure for function initializa-
tion.
1 Turn the engine switch to ON.
2 Pull and hold the power window
switch in the one-touch closing direction and completely close the
door window.
3 Release the power window switch
for a moment, resume pulling the switch in the one-touch closing
direction, and hold it there for
approximately 6 seconds or more.
4 Press and hold the power window switch in the one-touch opening
direction. After the door window is
completely opened, continue holding
the switch for an additional 1 second or more.
5 Release the power window switch
for a moment, resume pushing the
switch in the one-touch opening direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window
switch in the one-touch closing
Power windows
Opening and closing the
power windows

1523-5. Opening and closing the windows
direction again. After the door win-
dow is completely closed, continue holding the switch for a further 1 sec-
ond or more.
If you release the switch while the win- dow is moving, start again from the
beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■Door lock linked window operation
●Vehicles without a smart entry & start
system: The power windows can be
opened and closed using the key.*
( P.120)
Vehicles with a smart entry & start system: The power windows can be
opened and closed using the mechan-
ical key.* ( P.555)
●The power windows can be opened
and closed using the wireless remote
control.* ( P.119)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■Customization
Some functions can be customized.
( P.577)
WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the
power window operations, including
the operation for the passengers. In order to prevent accidental opera-
tion, especially by a child, do not let
a child operate the power windows. It is possible for children and other
passengers to have body parts
caught in the power window. Also, when riding with a child, it is recom-
mended to use the window lock
switch. (P.153)
●Check to make sure that all passen-
gers do not have any part of their body in a position where it could be
caught when a window is being
operated.
●When using the wireless remote
control, key or mechanical key and operating the power windows, oper-
ate the power window after check-
ing to make sure that there is no possibility of any passenger having
any of their body parts caught in the
window. Also do not let a child oper- ate window by the wireless remote
control, key or mech anical key. It is
possible for children and other pas- sengers to get caught in the power
window.
●When exiting the vehicle, turn the
engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental opera- tion, due to mischief, etc., that may
possibly lead to an accident.

153
3
3-5. Opening and closing the windows
Before driving

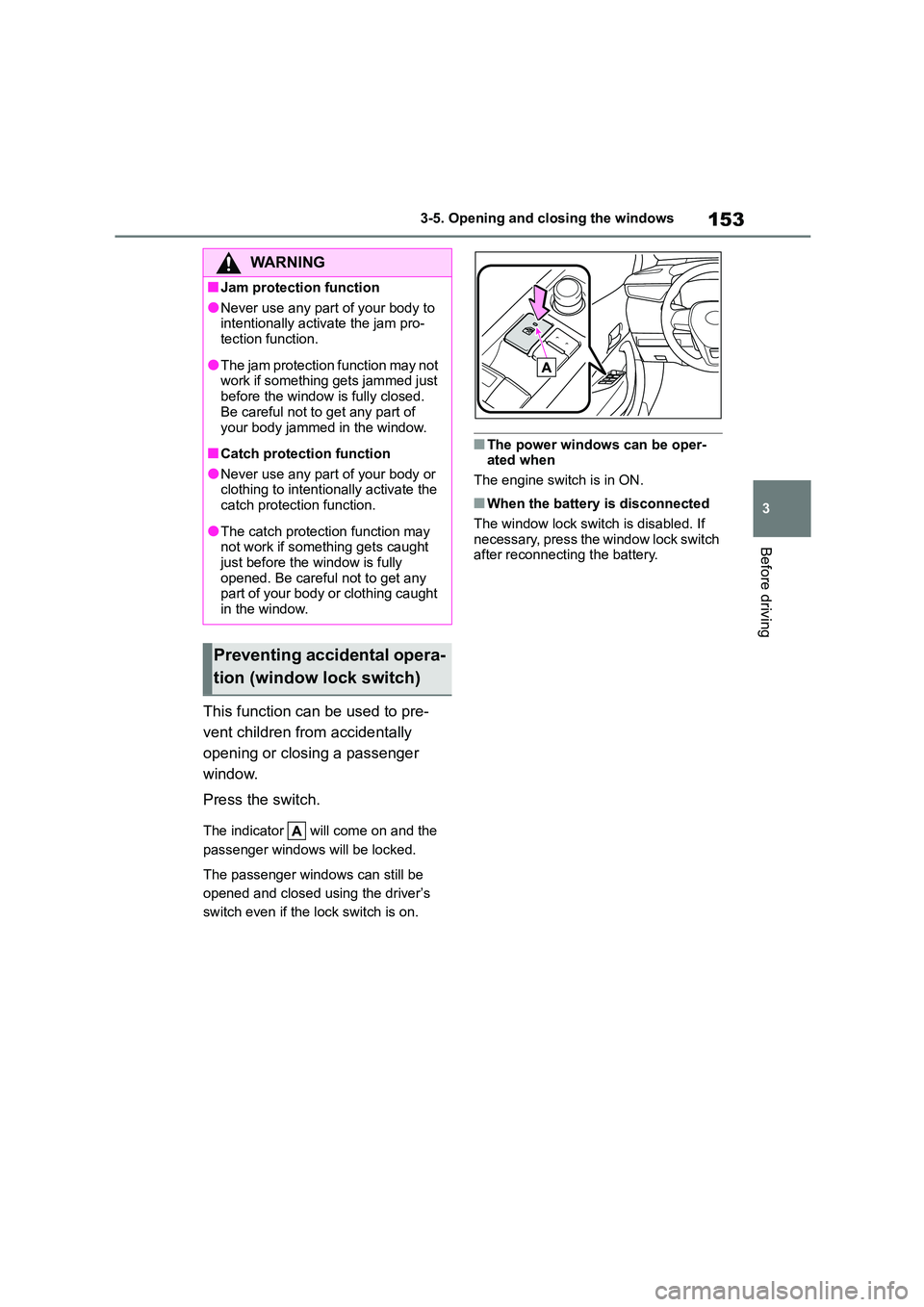

This function can be used to pre-
vent children from accidentally
opening or closing a passenger
window.
Press the switch.
The indicator will come on and the
passenger windows will be locked.
The passenger windows can still be
opened and closed using the driver’s
switch even if the lock switch is on.
■The power windows can be oper- ated when
The engine switch is in ON.
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch
after reconnecting the battery.
WA R N I N G
■Jam protection function
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets jammed just
before the window is fully closed.
Be careful not to get any part of
your body jammed in the window.
■Catch protection function
●Never use any part of your body or clothing to intentionally activate the
catch protection function.
●The catch protection function may
not work if something gets caught
just before the window is fully opened. Be careful not to get any
part of your body or clothing caught
in the window.
Preventing accidental opera-
tion (window lock switch)

1543-5. Opening and closing the windows
*: If equipped

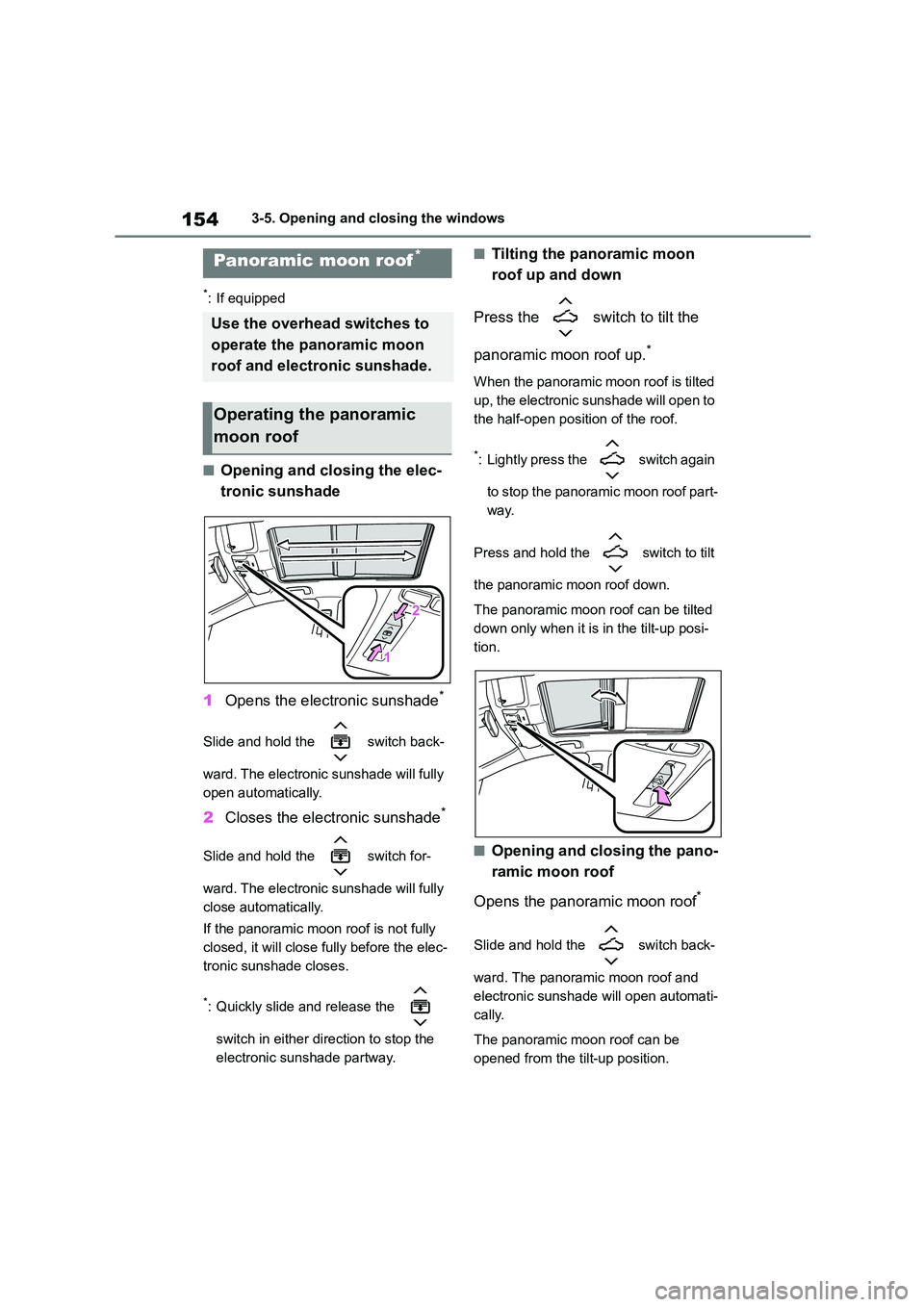

■Opening and closing the elec-
tronic sunshade
1 Opens the electronic sunshade*
Slide and hold the switch back-
ward. The electronic sunshade will fully
open automatically.
2 Closes the electronic sunshade*
Slide and hold the switch for-
ward. The electronic sunshade will fully
close automatically.
If the panoramic moon roof is not fully
closed, it will close fully before the elec-
tronic sunshade closes.
*: Quickly slide and release the
switch in either di rection to stop the
electronic sunshade partway.
■Tilting the panoramic moon
roof up and down
Press the switch to tilt the
panoramic moon roof up.*
When the panoramic moon roof is tilted
up, the electronic sunshade will open to
the half-open position of the roof.
*: Lightly press the switch again
to stop the panoramic moon roof part-
way.
Press and hold the switch to tilt
the panoramic moon roof down.
The panoramic moon roof can be tilted
down only when it is in the tilt-up posi-
tion.
■Opening and closing the pano-
ramic moon roof
Opens the panoramic moon roof*
Slide and hold the switch back-
ward. The panoramic moon roof and
electronic sunshade will open automati-
cally.
The panoramic moon roof can be
opened from the tilt-up position.
Panoramic moon roof*
Use the overhead switches to
operate the panoramic moon
roof and electronic sunshade.
Operating the panoramic
moon roof

155
3
3-5. Opening and closing the windows
Before driving
*: Quickly slide and release the
switch in either di rection to stop the
panoramic moon roof partway.
Closes the panoramic moon roof
The panoramic moon roof will fully
close automatically.
■The panoramic moon roof can be
operated when
The engine switch is in ON.
■Operating the panoramic moon
roof after turning the engine off
The panoramic moon roof and electronic sunshade can be operated for approxi-
mately 45 seconds after the engine
switch is turned to ACC or OFF. It can- not, however, be operated once either
front door is opened.
■Jam protection function
If an object is detected between the pan-
oramic moon roof and the frame in the following situations, travel is stopped
and the panoramic moon roof opens
slightly:
●The panoramic moon roof is closing or
tilting down.
●The electronic sunshade is closing.
■Closing both the panoramic moon
roof and electronic sunshade
Slide the switch forward.
The electronic sunshade will close to the half-open position and pause. The pano-
ramic moon roof will then fully close.
Then the electronic sunshade will fully close.
■Door lock linked panoramic moon
roof operation
●Vehicles without a smart entry & start
system: The panoramic moon roof
can be opened and closed using the
key.* ( P.120) Vehicles with a smart entry & start
system: The panoramic moon roof
can be opened and closed using the
mechanical key.* ( P.555)
●The panoramic moon roof can be
opened and closed using the wireless
remote control.*( P.119)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
■When the panoramic moon roof or
electronic sunshade does not close
normally
Perform the following procedure:
1 Stop the vehicle.
2 Turn the engine switch to ON.
3 Slide and hold the switch or
switch forward. Continue
pressing the switch for approxi- mately 10 seconds after the pan-
oramic moon roof or electronic

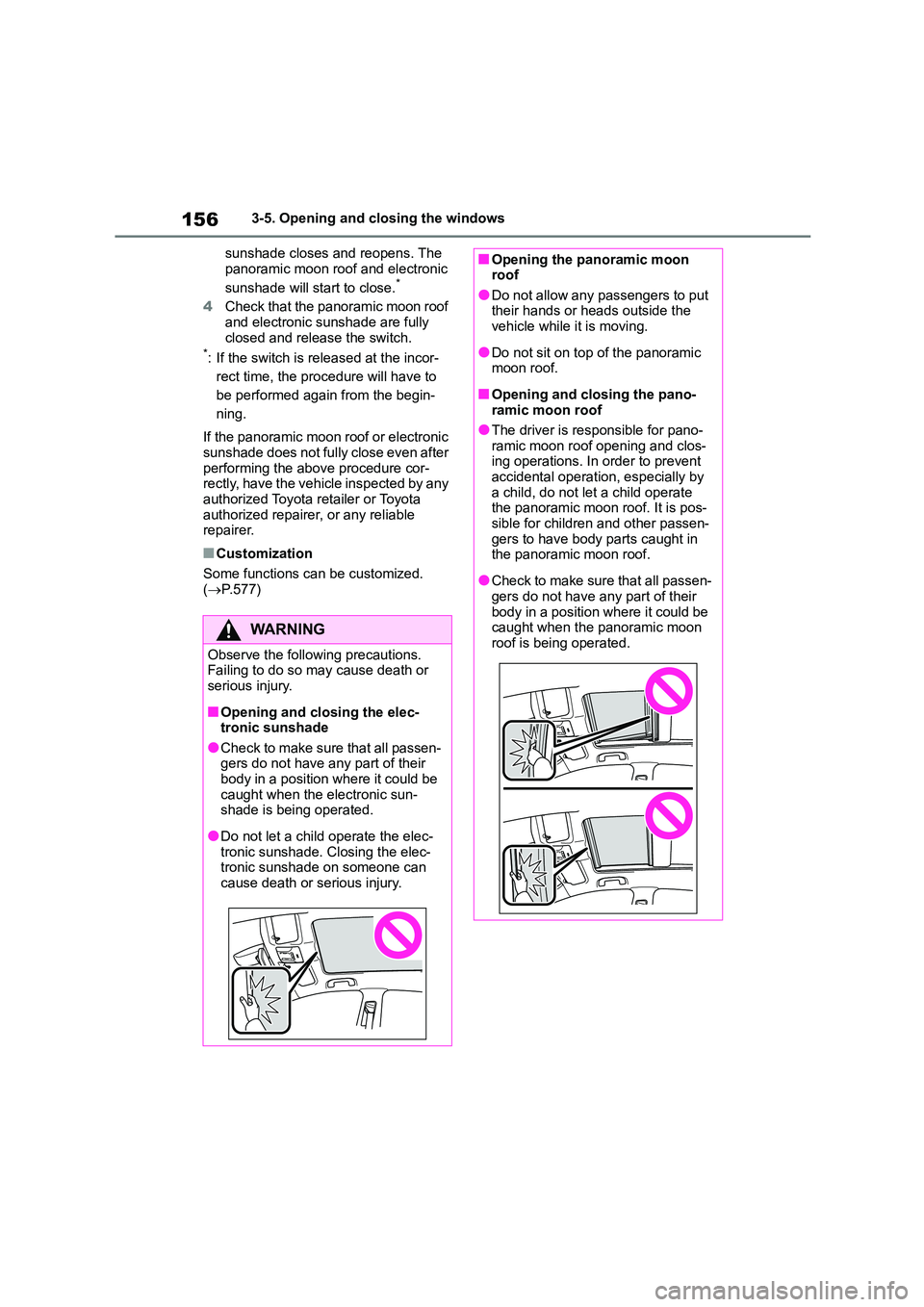

1563-5. Opening and closing the windows
sunshade closes and reopens. The
panoramic moon roof and electronic
sunshade will start to close.*
4 Check that the panoramic moon roof
and electronic sunshade are fully
closed and release the switch.*: If the switch is released at the incor-
rect time, the procedure will have to
be performed again from the begin-
ning.
If the panoramic moon roof or electronic
sunshade does not fully close even after
performing the above procedure cor- rectly, have the vehi cle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
■Customization
Some functions can be customized.
( P.577)
WA R N I N G
Observe the following precautions. Failing to do so may cause death or
serious injury.
■Opening and closing the elec-
tronic sunshade
●Check to make sure that all passen- gers do not have any part of their
body in a position where it could be
caught when the electronic sun- shade is being operated.
●Do not let a child operate the elec-tronic sunshade. Closing the elec-
tronic sunshade on someone can
cause death or serious injury.
■Opening the panoramic moon roof
●Do not allow any passengers to put
their hands or heads outside the vehicle while it is moving.
●Do not sit on top of the panoramic moon roof.
■Opening and closing the pano-ramic moon roof
●The driver is responsible for pano-
ramic moon roof opening and clos- ing operations. In order to prevent
accidental operation, especially by
a child, do not let a child operate the panoramic moon roof. It is pos-
sible for children and other passen-
gers to have body parts caught in the panoramic moon roof.
●Check to make sure that all passen-gers do not have any part of their
body in a position where it could be
caught when the panoramic moon roof is being operated.

157
3
3-5. Opening and closing the windows
Before driving
WA R N I N G
●When using the wireless remote
control, key or mechanical key and
operating the panoramic moon roof, operate the panoramic moon roof
after checking to make sure that
there is no possibility of any pas- senger having any of their body
parts caught in the panoramic moon
roof. Also, do not let a child operate
panoramic moon roof by the wire- less remote control, key or mechan-
ical key. It is possible for children
and other passengers to get caught in the panoramic moon roof.
●When exiting the vehicle, turn the engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental opera- tion, due to mischief, etc., that may
possibly lead to an accident.
■Jam protection function
●Never use any part of your body to
intentionally activate the jam pro- tection function.
●The jam protection function may not work if something gets caught just
before the panoramic moon roof or
electronic sunshade is fully closed. Also, the jam protection function is
not designed to operate while the
switch is being pr essed. Take care so that your fingers, etc. do not get
caught.
■To prevent burns or injuries
Do not touch the area between the
underside of the panoramic moon roof and the electronic sunshade.
Your hand may get caught and you
could injure yourself. Also, if the vehi- cle is left in direct sunlight for a long
time, the underside of the panoramic
moon roof could become very hot and could cause burns.
NOTICE
■To prevent damage to the pano-
ramic moon roof
●Before opening the panoramic moon roof, make sure that there are
no foreign objects, such as stones
or ice, around the opening.
●Do not hit the surface or edge of the
panoramic moon roof with hard
objects.
■After the vehicle has been
washed or rained on
Before opening the panoramic moon
roof, wipe any water off the pano-
ramic moon roof. Otherwise, water may enter the cabin when the pano-
ramic moon roof is opened.

1583-5. Opening and closing the windows
