4306-1. Using the air conditioning system and defogger
Press the rear window and outside
rear view mirror defoggers switch.
The defoggers will automatically turn off
after a while.
When the rear window and outside rear
view mirror defoggers switch is on, the
indicator illuminates on the rear window
and outside rear view mirror defoggers
switch.
■Using the Climate Preference
1 Press the automatic mode
switch.
2 Press the “FAST/ECO” switch.
Each time the “FAST/ECO” switch
is pressed, the fan speed setting
mode toggles as follows.
Normal “ECO”“FAST”Normal
When “ECO” is displayed on the air
conditioning screen, the air condi-
tioning is controlle d with low fuel
consumption prioritized such as
reducing fan speed, etc.
When “FAST” is displayed on the
screen, fan speed will be
increased.
■Fogging up of the windows
●The windows will easily fog up when
the humidity in the vehicle is high.
Turning “A/C” on will dehumidify the air from the outlets and defog the
windshield effectively.
●If you turn “A/C” off, the windows may
fog up more easily.
●The windows may fog up if the recir-
culated air mode is used.
■When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still dr awn into the vehicle
after closing the windows, it is recom-
mended that the air intake mode be set to outside air mode and the fan speed to
any setting except off.
■Outside/recirculated air mode
●Setting to the recirculated air mode
temporarily is recommended in pre-
venting dirty air from entering the vehicle interior and helping to cool the
vehicle when the outside air tempera-
ture is high.
●Outside/recirculated air mode may
automatically switch depending on the temperature setting or the inside tem-
perature.
■Operation of the air conditioning
system in Eco drive mode
●In Eco drive mode, the air conditioning
system is controlled as follows to pri- oritize fuel efficiency:
• Engine speed and compressor opera-
tion controlled to restrict heating/cool- ing capacity
• Fan speed restricted when automatic
mode is selected
●To improve air conditioning perfor-
mance, perform the following opera- tions:
• Adjust the fan speed
• Turn off Eco drive mode ( P.355)
●Even when the drive mode is set to
Eco drive mode, the air conditioning eco mode can be turned off by press-
ing the “FAST/ECO” switch. ( P.430)
■When the outside temperature falls
to nearly 0°C (32°F)
The dehumidification function may not
operate even when “A/C” switch is
pressed.
■Ventilation and air conditioning
odors
●To let fresh air in, set the air condition-
ing system to the outside air mode.
●During use, various odors from inside
and outside the vehicle may enter into and accumulate in the air conditioning
system. This may then cause odor to
be emitted from the vents.

4607-1. Maintenance and care
7-1.Maintenance and care
Working from top to bottom, lib-
erally apply water to the vehicle
body, wheel wells and underside
of the vehicle to remove any dirt
and dust.
 Wash the vehicle body using a
sponge or soft cloth, such as a
chamois.
 For hard-to-remove marks, use
car wash soap and rinse thor-
oughly with water.
 Wipe away any water.
 Wax the vehicle when the water-
proof coating deteriorates.
If water does not bead on a clean sur-
face, apply wax when the vehicle body
is cool.
■Automatic car washes
●Before washing the vehicle:
• Fold the mirrors.
• Turn off the power back door system. (if equipped)
Start washing from the front of the vehi-
cle. Extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle sur-
face, parts (wheel, etc.) and harm
your vehicle’s paint.
●In certain automati c car washes, the
rear spoiler may interfere with
machine operation. This may prevent
the vehicle from being cleaned prop- erly or result in damage to the rear
spoiler.
■High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps
around the doors or perimeter of the
windows, or spray these areas continu- ously.
■When using a car wash (vehicles
with a smart entry & start system)
If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock
repeatedly. In that case, follow the fol- lowing correction procedures to wash
the vehicle:
●Place the key in a position 2 m (6 ft.)
or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that the key is
not stolen.)
●Set the electronic key to battery-sav-
ing mode to disable the smart entry &
start system. ( P.137)
■Wheels and wheel ornaments
●Remove any dirt immediately by using
a neutral detergent.
●Wash detergent off with water immedi-
ately after use.
●To protect the paint from damage,
make sure to observe the following precautions.
• Do not use acidic, alkaline or abrasive
detergent • Do not use hard brushes
• Do not use detergent on the wheels
when they are hot, such as after driv-
ing or parking in hot weather
■Brake pads and calipers
Rust may form if the vehicle is parked
with wet brake pads or disc rotors, caus-
ing them to stick. Before parking the vehicle after it is washed, drive slowly
and apply the brakes several times to
dry the parts.
Cleaning and protecting
the vehicle exterior
Perform cleaning in a manner
appropriate to each compo-
nent and its material.
Cleaning instructions

467
7
7-2. Maintenance
Maintenance and care
request that a record of maintenance
be kept.
■Does your vehicle need repairs?
Be on the alert for changes in perfor- mance and sounds, and visual tip-offs
that indicate service is needed. Some
important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (How-
ever, water dripping from the air con- ditioning system after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monox-
ide leak. Drive with the windows open
and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire
wear
●Vehicle pulls to one side when driven
straight on a level road
●Strange noises related to suspension
movement
●Loss of brake effectiveness, spongy
feeling brake pedal or clutch pedal
(vehicles with a manual transmission),
pedal almost touches the floor, vehicle pulls to one side when braking
●Engine coolant temperature continu-ally higher than normal ( P.89, 93)
If you notice any of these clues, take
your vehicle to any authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer as soon as possi-
ble. Your vehicle may need adjustment or repair.

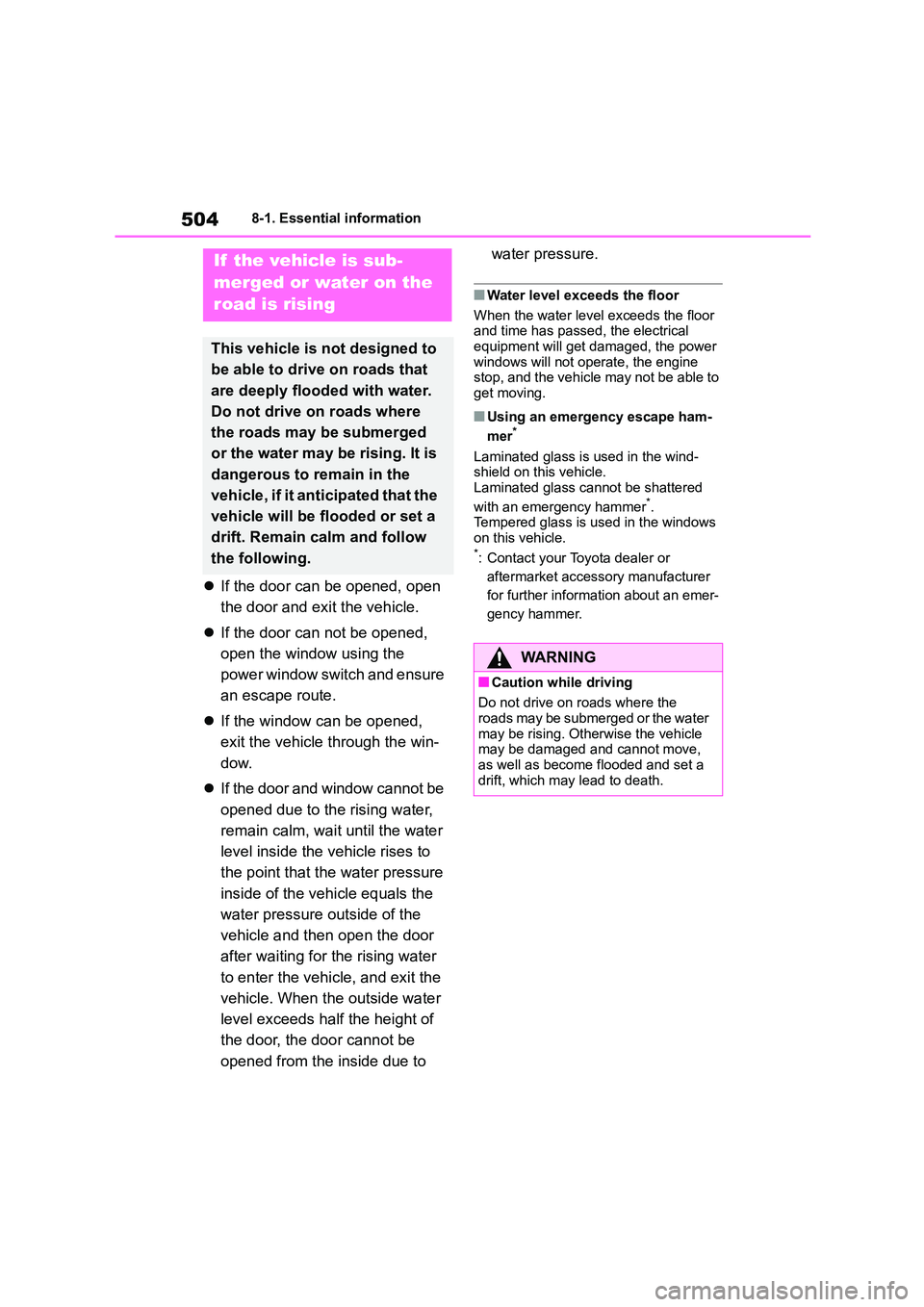

5048-1. Essential information
If the door can be opened, open
the door and exit the vehicle.
 If the door can not be opened,
open the window using the
power window switch and ensure
an escape route.
 If the window can be opened,
exit the vehicle through the win-
dow.
 If the door and window cannot be
opened due to the rising water,
remain calm, wait until the water
level inside the vehicle rises to
the point that the water pressure
inside of the vehicle equals the
water pressure outside of the
vehicle and then open the door
after waiting for the rising water
to enter the vehicle, and exit the
vehicle. When the outside water
level exceeds half the height of
the door, the door cannot be
opened from the inside due to
water pressure.
■Water level exceeds the floor
When the water level exceeds the floor and time has passed, the electrical
equipment will get damaged, the power
windows will not operate, the engine stop, and the vehicle may not be able to
get moving.
■Using an emergency escape ham-
mer*
Laminated glass is used in the wind- shield on this vehicle.
Laminated glass cannot be shattered
with an emergency hammer*. Tempered glass is used in the windows
on this vehicle.*: Contact your Toyota dealer or
aftermarket accessory manufacturer
for further information about an emer-
gency hammer.
If the vehicle is sub-
merged or water on the
road is rising
This vehicle is not designed to
be able to drive on roads that
are deeply flooded with water.
Do not drive on roads where
the roads may be submerged
or the water may be rising. It is
dangerous to remain in the
vehicle, if it anticipated that the
vehicle will be flooded or set a
drift. Remain calm and follow
the following.
WA R N I N G
■Caution while driving
Do not drive on roads where the roads may be submerged or the water
may be rising. Otherwise the vehicle
may be damaged and cannot move, as well as become flooded and set a
drift, which may lead to death.

555
8

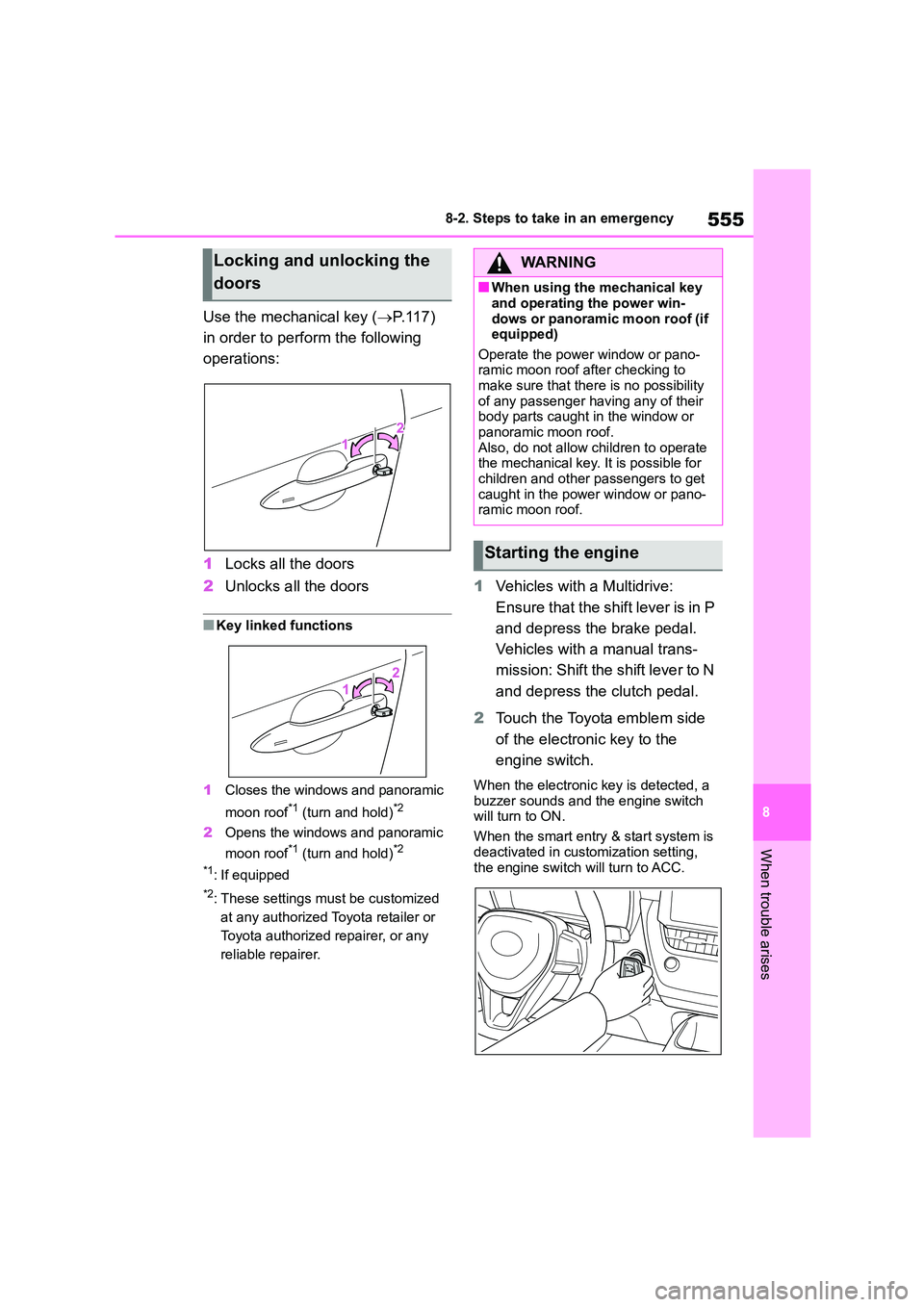

8-2. Steps to take in an emergency
When trouble arises
Use the mechanical key ( P.117)
in order to perform the following
operations:
1 Locks all the doors
2 Unlocks all the doors
■Key linked functions
1 Closes the windows and panoramic
moon roof*1 (turn and hold)*2
2 Opens the windows and panoramic
moon roof*1 (turn and hold)*2
*1: If equipped
*2: These settings must be customized
at any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
1 Vehicles with a Multidrive:
Ensure that the shift lever is in P
and depress the brake pedal.
Vehicles with a manual trans-
mission: Shift the shift lever to N
and depress the clutch pedal.
2 Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to ON.
When the smart entry & start system is
deactivated in customization setting,
the engine switch will turn to ACC.
Locking and unlocking the
doors
WA R N I N G
■When using the mechanical key
and operating the power win-
dows or panoramic moon roof (if equipped)
Operate the power window or pano-
ramic moon roof after checking to make sure that there is no possibility
of any passenger having any of their
body parts caught in the window or
panoramic moon roof. Also, do not allow children to operate
the mechanical key. It is possible for
children and other passengers to get caught in the power window or pano-
ramic moon roof.
Starting the engine

581
9
9-2. Customization
Vehicle specifications
*: If equipped
■Outside rear view mirrors ( P.148)
*: If equipped
■Power windows and panoramic moon roof* (P.151, 154)
*: If equipped
■Automatic light control system (P.195)
Set at the desired posi-
tion(height): Back door
automatic open and stop
position
Initial settings
position
Stop at the desired
position (height)—O—
5 step configuration: Back
door automatic open and
stop position
51 to 5—O—
Operation buzzer volume31—O—2
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation*
Linked to the
locking/ unlock-
ing of the doors
Off
——OLinked to operation of
the engine switch
FunctionDefault settingCustomized setting
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
FunctionDefault settingCustomized setting

591What to do if... (Troubleshooting)
Multidrive: Did you press the
engine switch while firmly
depressing the brake pedal?
( P.178)
 Manual transmission: Did you
press the engine switch while
firmly depressing the clutch
pedal? ( P.178)
 Multidrive: Is the shift lever in P?
( P.178)
 Is the electronic key anywhere
detectable inside the vehicle?
( P.136, 137)
 Is the steering wheel unlocked?
( P.179)
 Is the electronic key battery
weak or depleted?
In this case, the engine can be started
in a temporary way. ( P.555)
Is the battery discharged?
( P.556)
 Is the engine switch in ON?
If you cannot release the shift lever by
depressing the brake pedal with the
engine switch in ON. ( P.184)
Vehicles without a smart entry &
start system: It is locked to pre-
vent theft of the vehicle if the key
is pulled from the engine switch.
( P.177)
 Vehicles with a smart entry &
start system: It is locked auto-
matically to prevent theft of the
vehicle. ( P.179)
 Is the window lock switch
pressed?
The power window except for the one
at the driver’s seat cannot be operated
if the window lock switch is pressed.
( P.153)
The auto power off function will
be operated if the vehicle is left
in ACC or ON (the engine is not
running) for a period of time.
( P.181)
 The seat belt reminder light is
flashing
Are the driver and the passenger wear-
ing the seat belts? ( P.514)
The parking brake indicator is on
The engine does not start
(vehicles with a smart entry
& start system)
The shift lever cannot be
shifted from P even if you
depress the brake pedal
(Multidrive)
The steering wheel cannot
be turned after the engine is
stopped
The windows do not open or
close by operating the
power window switches
The engine switch is turned
off automatica lly (vehicles
with a smart entry & start
system)
A warning buzzer sounds
during driving

597Alphabetical Index
H
Hands-free system (for cellular
phone) ......................................... 406
Head restraints ............................. 144
Headlights
Adaptive High-beam System ..... 201
Automatic High Beam system .... 199
Exteded Headlight Lighting system
................................................. 196
Light switch ................................ 195
Replacing light bulbs .................. 497
Head-up display............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display106
Navigation system-linked display
area ......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Heated steering wheel ................. 434
Heaters
Automatic air conditioning system
................................................. 427
Heated steering wheel ............... 434
Heater system ............................ 422
Manual air conditioning system.. 422
Outside rear view mirrors ... 424, 429
Seat heaters............................... 434
High mounted stoplight
Replacing light bulbs .................. 497
Hill-start assist control................. 357
Hood
Open .......................................... 470
Hooks
Cargo hooks............................... 442
Coat hooks ................................. 457
Grocery bag hooks..................... 442
Retaining hooks (floor mat) .......... 30
Horn ............................................... 146
I
Identification
Engine ........................................568
Vehicle........................................567
Ignition switch (engine switch) . 177,
178
Auto power off function .............. 181
Changing the engine switch modes
.................................................181
If your vehicle has to be stopped in
an emergency ..........................502
Illuminated entry system.............. 437
Indicators......................................... 87
Initialization
Engine oil maintenance data ...... 474
Items to initialize......................... 587
Power windows .......................... 151
Tire pressure warning system .... 483
Inside rear view mirror ................. 147
Intercooler .....................................476
Intercooler coolant
Capacity .....................................570
Checking .................................... 475
Interior lights ................................. 436
Front interior light .......................436
Rear interior light ........................436
Wattage ......................................575
J
Jack
Positioning a floor jack ...............471
Vehicle-equipped jack ................540
Jack handle ...................................540
Jam protection function
Electronic roof sunshade............155
Panoramic moon roof ................. 155
Power back door ........................132
Power windows .......................... 151
K
Keyless entry
Smart entry & start system .........136

600Alphabetical Index
Parking Support Brake function
(static objects) .................... 317, 324
Function ..................................... 324
Partition net .................................. 448
PCS (Pre-Collision System)
Function ..................................... 224
Warning light .............................. 517
Personal lights.............................. 436
Wattage...................................... 575
PKSB (Parking Support Brake) ... 317
Warning message ...................... 322
Power outlet .................................. 451
Power steering (Electric power
steering system)......................... 357
Warning light .............................. 514
Power windows
Door lock linked window operation
................................................. 152
Jam protection function .............. 151
Operation ................................... 151
Window lock switch .................... 153
Pre-Collision System (PCS)
Function ..................................... 224
Warning light .............................. 517
R
Radar cruise control .................... 260
Radar cruise control (dynamic radar
cruise control with full-speed
range) .......................................... 249
Radiator ......................................... 476
Radio ............................................. 373
RCTA
Function ..................................... 312
Warning message ...................... 313
RCTA function............................... 313
Rear Crossing Tr affic Alert (RCTA)
..................................................... 312
Rear fog lights
Replacing light bulbs .................. 497
Switch ........................................ 205
Rear seats ..................................... 142
Head restraints........................... 144
Seat heaters............................... 434
Rear turn signal lights
Replacing light bulbs ..................497
Turn signal lever ......................... 189
Rear view mirror
Inside rear view mirror................147
Outside rear view mirrors ........... 148
Rear window defogger ......... 424, 429
Rear window wiper .......................209
Refueling
Capacity .....................................568
Fuel types...................................568
Opening the fuel tank cap .......... 211
Replacing
Electronic key battery ................. 490
Fuses .........................................494
Light bulbs .................................. 497
Tires ...........................................539
Wireless remote control battery .490
Road Sign Assist ..........................276
RSA (Road Sign Assist) ...............276
S
Seat belt reminder light ................514
Seat belts ......................................... 33
Adjusting the seat belt .................. 35
Child restraint system installation. 48
Cleaning and maintaining the seat
belt ...........................................463
Emergency Locking Retractor ...... 35
How to wear your seat belt........... 34
How your child should wear the seat
belt ............................................. 34
Pregnant women, proper seat belt
use ............................................. 33
Reminder light and buzzer ......... 514
Seat belt pretensioners ................ 35
SRS warning light.......................512
Seat heaters .................................. 434
Seats
Adjustment ................................. 141
Adjustment precautions.............. 141
Child seats/child restraint system
installation .................................. 48
Cleaning .....................................463

601Alphabetical Index
Head restraints........................... 144
Properly sitting in the seat............ 31
Seat heaters............................... 434
Secondary Collision Brake .......... 357
Sensor
Automatic headlight system ....... 195
Automatic High Beam system .... 199
BSM (Blind Spot Monitor) .......... 288
Inside rear view mirror ............... 148
Kick sensor ................................ 129
LDA (Lane Departure Alert with
steering control) ....................... 241
LTA (Lane Tracing Assist) .......... 231
Parking Support Brake function
(rear-crossing vehicles) ........... 327
Parking Support Brake function
(static objects) ......................... 325
Radar sensor ..................... 213, 300
Rain-sensing windshield wipers . 208
RCTA.......................................... 313
Toyota parking assist-sensor ..... 303
Shift lever
If the shift lever cannot be shifted
from P ...................................... 184
Manual transmission .................. 186
Multidrive.................................... 182
Shift lock system .......................... 184
Side airbags .................................... 37
Side mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor) .......... 288
Folding ....................................... 149
RCTA function ............................ 312
Side turn signal lights
Turn signal lever ........................ 189
Side windows................................ 151
S-IPA (Simple Intelligent Parking
Assist System)
Function ..................................... 329
Smart entry & start system
Antenna location ........................ 136
Entry functions ................... 119, 125
Starting the engine ..................... 178
Snow tires ..................................... 363
Spare tire ....................................... 539
Inflation pressure........................573
Storage location ......................... 540
Spark plug .....................................570
Specifications ............................... 566
Speed limiter ................................. 273
Warning message ...................... 275
Speedometer ............................. 89, 93
Steering lock
Column lock release........... 177, 179
Steering lock system warning mes-
sage .........................................179
Steering wheel
Adjustment ................................. 146
Heated steering wheel ...............434
Meter control switches ...............100
Stop & Start system
System information display ........ 105
Warning light ..............................515
Stop & Start system information dis-
play ..............................................105
Stop lights
Emergency brake signal............. 357
Replacing light bulbs ..................497
Storage features ...........................439
Stuck
If the vehicle becomes stuck ...... 563
Sun visors .....................................456
Sunshade
Panoramic moon roof ................. 154
Switches
Activating the Adaptive High-beam
System .....................................202
Airbag manual on-off switch ......... 46
Audio remote control switches ... 369
Automatic High Beam system ....199
Brake Hold switch ...................... 192
Cruise control switch ..................271
Display change button............ 90, 96
Door lock switches .....................122
Driving mode select switch.........355
Dynamic radar cruise control switch
.................................................261
Dynamic radar cruise control with
full-speed range switch ............249
