8-2. Steps to take in an emergency
When trouble arises
hoses and radiator core (radia-
tor) for any leaks.
Radiators
Cooling fans
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” or “F”
and “LOW” or “L” lines on the
reservoir.
 Engine
Reservoir
“FULL” line
“LOW” line
 Intercooler
Reservoir
“F” line
“L” line
5 Add engine coolant if necessary.
Water can be used in an emergency if engine coolant is unavailable.
 Engine
 Intercooler
6 Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans

5628-2. Steps to take in an emergency
operate and to check for coolant
leaks from the radiator or hoses.
The fans operate when the air condi-
tioning system is tu rned on immediately after a cold start. Confirm that the fans
are operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off r epeatedly. (The fans
may not operate in freezing tempera- tures.)
7 If the fans are not operating:
Stop the engine immediately
and contact any authorized
Toyota retailer or Toyota author-
ized repairer, or any reliable
repairer.
If the fans are operating: Have
the vehicle inspected at the
nearest any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
WA R N I N G
■When inspecting under the hood
of your vehicle
Observe the following precautions.
Failure to do so may result in serious
injury such as burns.
●If steam is seen coming from under
the hood, do not open the hood until the steam has subsided. The
engine compartment may be very
hot.
●Keep hands and clothing (espe-
cially a tie, a scarf or a muffler) away from the fans and belts. Fail-
ure to do so may cause the hands
or clothing to be caught, resulting in serious injury.
●Do not loosen the coolant reservoir caps while the engine and radiator
are hot.
High temperature steam or coolant could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine
has cooled down sufficiently. Adding cool coolant to a hot engine too
quickly can cause damage to the
engine.
■To prevent damage to the cooling
system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or
dust etc.).
●Do not use any coolant additive.

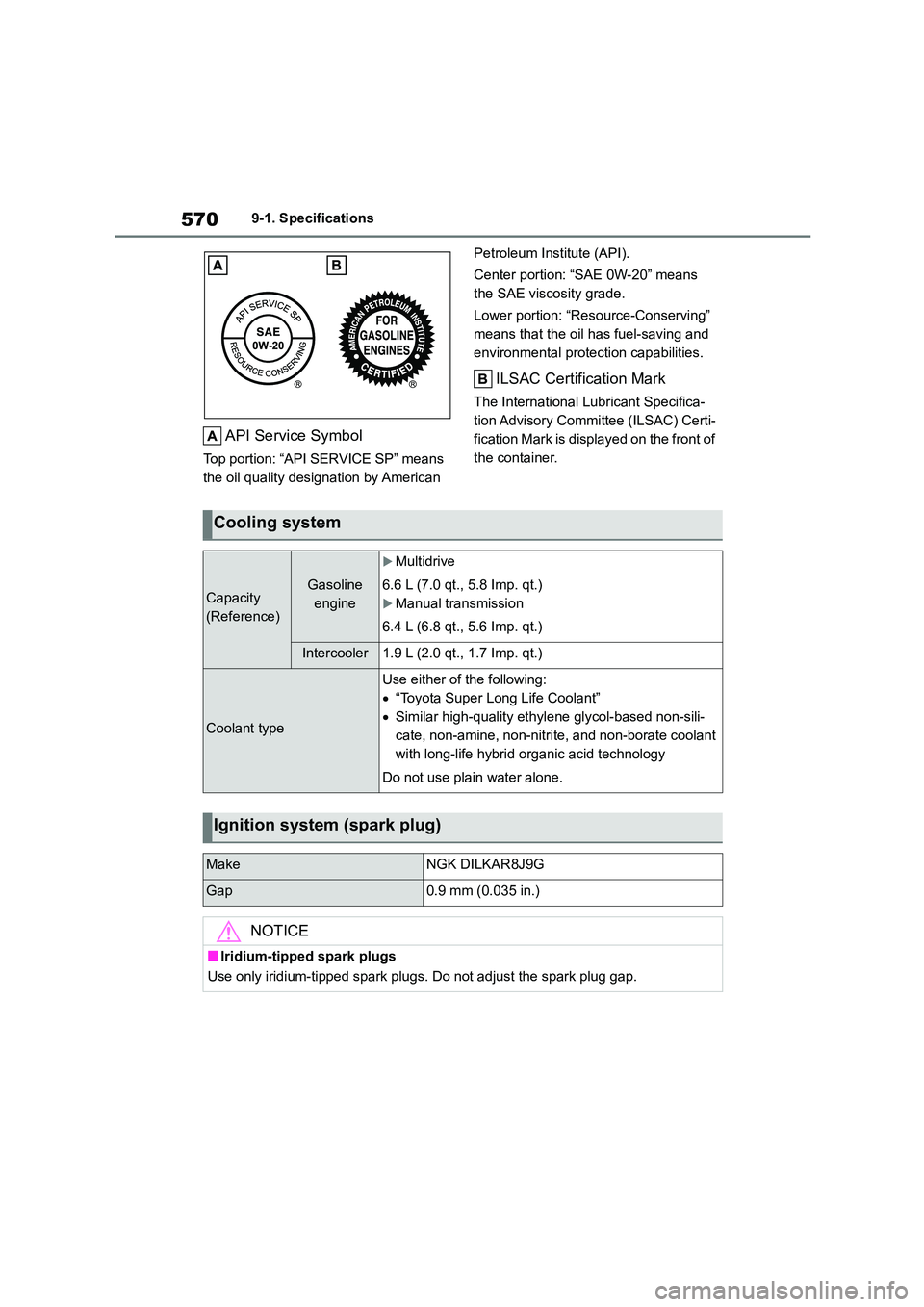

5709-1. Specifications
API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Commi ttee (ILSAC) Certi-
fication Mark is displayed on the front of
the container.
Cooling system
Capacity
(Reference)
Gasoline
engine
Multidrive
6.6 L (7.0 qt., 5.8 Imp. qt.)
Manual transmission
6.4 L (6.8 qt., 5.6 Imp. qt.)
Intercooler1.9 L (2.0 qt., 1.7 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-sili-
cate, non-amine, non-nitrite, and non-borate coolant
with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeNGK DILKAR8J9G
Gap0.9 mm (0.035 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
