navigation TOYOTA COROLLA HATCHBACK 2022 (in English) Owner's Manual

551
8
8-2. Steps to take in an emergency
When trouble arises
WA R N I N G
■When using the full-size spare
tire
●Replace the full-size spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden
engine braking.
■When using the compact spare
tire
●Remember that the compact spare tire provided is specifically
designed for use with your vehicle.
Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden
engine braking.
■When the compact spare tire is
attached
The vehicle speed may not be cor-
rectly detected, an d the following sys-
tems may not operate correctly:
• ABS & Brake assist
• VSC
•TRC
• Automatic High Beam (if equipped)
• AHS (Adaptive High-beam Sys-
tem) (if equipped)
• Cruise control (if equipped)
• Dynamic radar cruise control with full-speed range (if equipped)
• Dynamic radar cruise control (if equipped)
• EPS
• Trailer Sway Control (if equipped)
• PCS (Pre-Collision System) (if
equipped)
• LTA (Lane Tracing Assist) (if
equipped)
• LDA (Lane Departure Alert with
steering control) (if equipped)
• Tire pressure warning system (if
equipped)
• Toyota parking assist-sensor (if
equipped)
• PKSB (Parking Support Brake) (if
equipped)
• BSM (Blind Spot Monitor) (if
equipped)
• Rear view monitor system (if
equipped)
• S-IPA (Simple Intelligent Parking
Assist System) (if equipped)
• Navigation system (if equipped)
■Speed limit when using the com- pact spare tire
Do not drive at speeds in excess of 80
km/h (50 mph) when a compact spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds.
Failure to observe this precaution
may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possi-
bility of personal injury during a colli- sion or sudden braking.

577
9

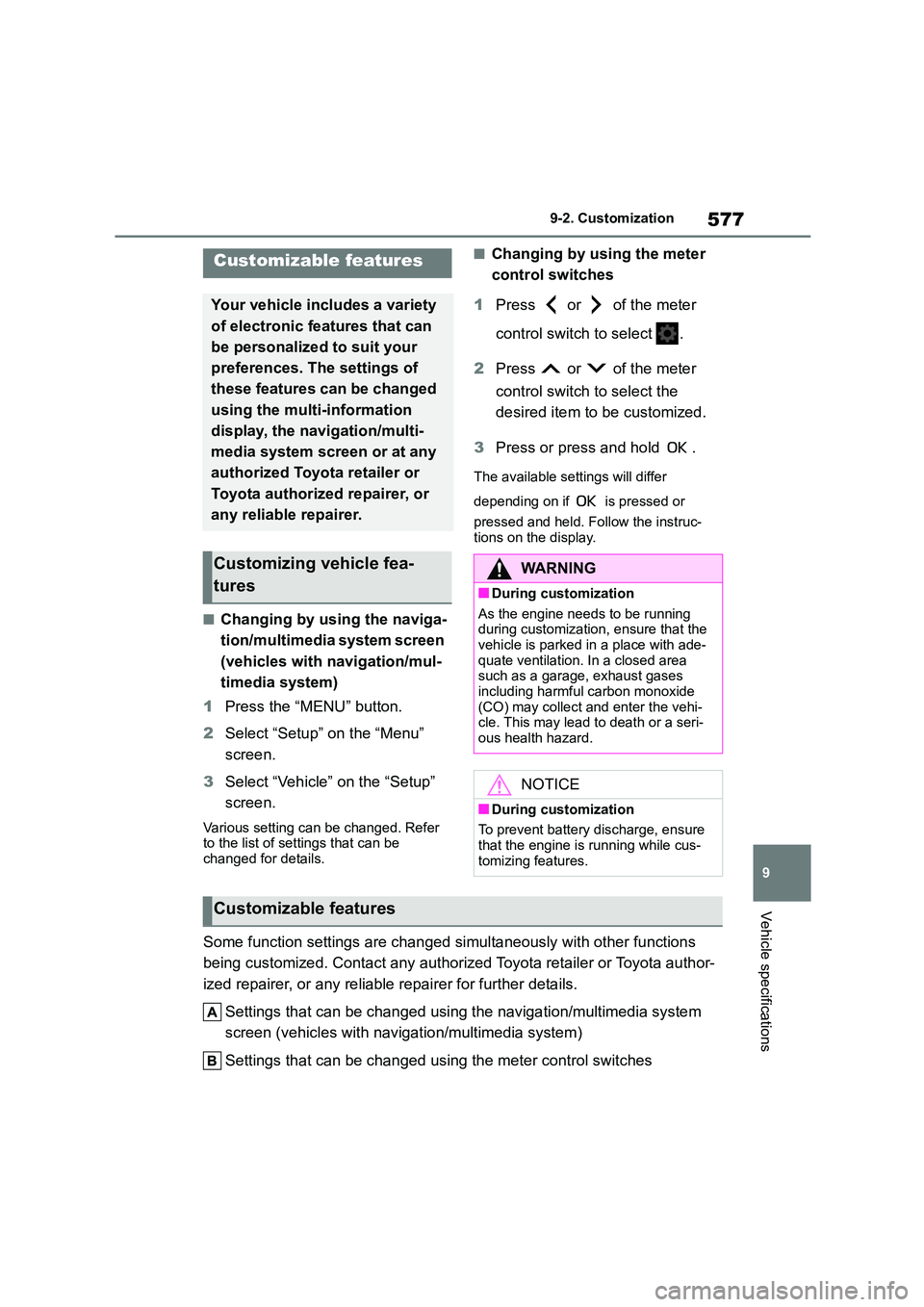

9-2. Customization
Vehicle specifications
9-2.Customization
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with navigation/mul-
timedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press or of the meter
control switch to select .
2 Press or of the meter
control switch to select the
desired item to be customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Some function settings are changed simultaneously with other functions
being customized. Contact any authorize d Toyota retailer or Toyota author-
ized repairer, or any reliable repairer for further details.
Settings that can be changed using the navigation/multimedia system
screen (vehicles with navigation/multimedia system)
Settings that can be changed using the meter control switches
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the navigation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
tures
WA R N I N G
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as a garage, exhaust gases
including harmful carbon monoxide
(CO) may collect and enter the vehi- cle. This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure
that the engine is running while cus-
tomizing features.
Customizable features

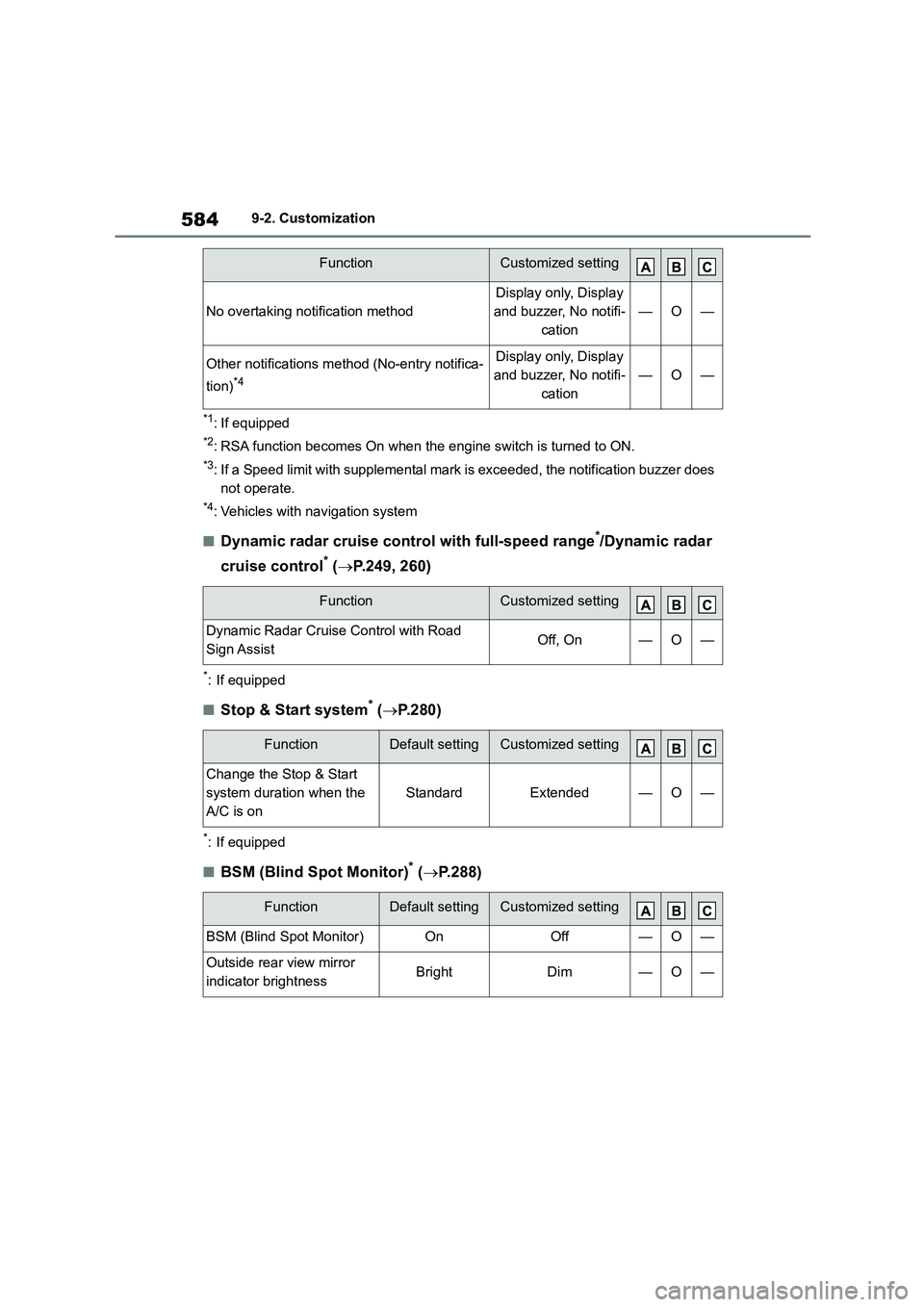

5849-2. Customization
*1: If equipped
*2: RSA function becomes On when the engine switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
■Dynamic radar cruise control with full-speed range*/Dynamic radar
cruise control* ( P.249, 260)
*: If equipped
■Stop & Start system* (P.280)
*: If equipped
■BSM (Blind Spot Monitor)* (P.288)
No overtaking notification method
Display only, Display
and buzzer, No notifi-
cation
—O—
Other notifications method (No-entry notifica-
tion)*4
Display only, Display
and buzzer, No notifi-
cation
—O—
FunctionCustomized setting
Dynamic Radar Cruise Control with Road
Sign AssistOff, On—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
FunctionCustomized setting

597Alphabetical Index
H
Hands-free system (for cellular
phone) ......................................... 406
Head restraints ............................. 144
Headlights
Adaptive High-beam System ..... 201
Automatic High Beam system .... 199
Exteded Headlight Lighting system
................................................. 196
Light switch ................................ 195
Replacing light bulbs .................. 497
Head-up display............................ 106
Driving information display area. 106
Driving support system display area
................................................. 108
Eco Driving Indicator .................. 109
Navigation system-linked display106
Navigation system-linked display
area ......................................... 108
Pop-up display ........................... 108
Settings ...................................... 107
Heated steering wheel ................. 434
Heaters
Automatic air conditioning system
................................................. 427
Heated steering wheel ............... 434
Heater system ............................ 422
Manual air conditioning system.. 422
Outside rear view mirrors ... 424, 429
Seat heaters............................... 434
High mounted stoplight
Replacing light bulbs .................. 497
Hill-start assist control................. 357
Hood
Open .......................................... 470
Hooks
Cargo hooks............................... 442
Coat hooks ................................. 457
Grocery bag hooks..................... 442
Retaining hooks (floor mat) .......... 30
Horn ............................................... 146
I
Identification
Engine ........................................568
Vehicle........................................567
Ignition switch (engine switch) . 177,
178
Auto power off function .............. 181
Changing the engine switch modes
.................................................181
If your vehicle has to be stopped in
an emergency ..........................502
Illuminated entry system.............. 437
Indicators......................................... 87
Initialization
Engine oil maintenance data ...... 474
Items to initialize......................... 587
Power windows .......................... 151
Tire pressure warning system .... 483
Inside rear view mirror ................. 147
Intercooler .....................................476
Intercooler coolant
Capacity .....................................570
Checking .................................... 475
Interior lights ................................. 436
Front interior light .......................436
Rear interior light ........................436
Wattage ......................................575
J
Jack
Positioning a floor jack ...............471
Vehicle-equipped jack ................540
Jack handle ...................................540
Jam protection function
Electronic roof sunshade............155
Panoramic moon roof ................. 155
Power back door ........................132
Power windows .......................... 151
K
Keyless entry
Smart entry & start system .........136

599Alphabetical Index
Meters .................................... 89, 93
Multi-information display .............. 99
Settings ...................................... 104
Warning lights ............................ 511
Warning message ...................... 520
Mirrors
Inside rear view mirror ............... 147
Outside rear view mirror defoggers
......................................... 424, 429
Outside rear view mirrors ........... 148
Vanity mirrors ............................. 456
MP3 disc ........................................ 375
Multidrive ...................................... 182
If the shift lever cannot be shifted
from P ...................................... 184
M mode ...................................... 184
Multi-information display
Audio system-linked display....... 103
Clock ...................................... 91, 97
Cruise control ..................... 271, 273
Driving information display ......... 100
Driving support system information
display ..................................... 103
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range ....................... 249
Eco Driving Indicator .................. 102
Fuel economy ............................ 101
LDA (Lane Departure Alert with
steering control) ....................... 245
LTA (Lane-Tracing Assist) .......... 237
Menu icons................................... 99
Meter control switches ............... 100
Navigation system-linked display103
Settings ...................................... 104
Stop & Start system information 105
Tire pressure .............................. 481
Vehicle information display ........ 103
Warning message ...................... 520
N
Navigation system-linked display
............................................. 103, 106
O
Odometer ................................... 90, 96
Odometer and trip meter display
Display change button............ 90, 96
Display items ..........................90, 96
Oil
Engine oil ...................................569
Manual transmission ..................571
Open tray ....................................... 441
Opener
Back door ...........................126, 127
Fuel filler door ....... ..................... 211
Hood...........................................470
Outside rear view mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor)........... 288
Folding ....................................... 149
Outside rear view mirror defoggers
.........................................424, 429
RCTA function ............................ 312
Outside temperature.................89, 93
Overheating ...................................560
P
Panoramic moon roof
Door lock linked panoramic moon
roof operation ...........................155
Jam protection function .............. 155
Operation ...................................154
Parking assist sensors (Toyota park-
ing assist-sensor).......................303
Parking brake
Operation ...................................189
Parking brake engaged warning
buzzer ......................................191
Warning light ..............................517
Warning message ...................... 191
Parking Support Brake function (for
rear-crossing vehicles) .............. 327
Function .....................................327
Parking Support Brake function
(rear-crossing vehicles) .............317

604Alphabetical Index
Toyota parking assist-sensor OFF
indicator ................................... 516
Warning messages ....................... 520
Washer
Checking .................................... 477
Preparing and checking before win-
ter ............................................ 363
Switch ........................................ 206
Washing and waxing .................... 460
Weight............................................ 566
Wheels ........................................... 487
Replacing ................................... 487
Size ............................................ 573
Window lock switch ..................... 153
Windows
Power windows .......................... 151
Rear window defogger ....... 424, 429
Washer....................................... 206
Windshield wiper de-icer ............. 431
Windshield wipers ........................ 206
Winter driving tips ........................ 363
Wireless charger........................... 452
Wireless remote control
Battery-Saving Function............. 137
Locking/Unlocking ...................... 116
Replacing the battery ................. 490
WMA disc ...................................... 375
For vehicles with naviga-
tion/multimedia system,
refer to “Navigation and mul-
timedia system Owner’s
manual” for information
regarding the equipment
listed below.
· Navigation system
· Audio/visual system
· Rear view monitor system
