14Pictorial index
COROLLA HV_U
Fuel filler door ............................................... ..................... P.180
Refueling method ............................................... .................. P.181
Fuel type/fuel tan k capacity ................................... .............. P.525
Tires.......................................................... ........................... P.441
Tire size/inflation pressure ................................... ................ P.529
Winter tires/tire chains ....................................... .................. P.247
Checking/rotation/tire pressure warning system
*................. P.441
Coping with flat tires......................................... ............ P.490, 501
Hood ........................................................... ......................... P.432
Opening ............................................................................... P.432
Engine oil ..................................................... ........................ P.526
Coping with overheating ...................................................... P.517
Headlights/daytime running lights .............................. ..... P.173
Turn signal lights/parking lights .............................. ......... P.173
Parking lights
*............................................................... ..... P.173
Front side marker lights ....................................... ............. P.173
Stop lights/tail lights/rear side marker lights/turn signal lig hts
P. 1 7 3
License plate lights........................................... ................. P.173
Back-up lights
Shifting the shift position to R ............................... ............... P.164
*: If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.463, Watts: P.530)

1524-1. Before driving
COROLLA HV_U
Cargo capacity depends on the
total weight of the occupants.
(Cargo capacity) = (Total load
capacity) — (Total weight of
occupants)
Steps for Determining Correct
Load Limit —
(1) Locate the statement “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined
weight of the driver and passen-
gers that will be riding in your
vehicle.
(3) Subtract the combined
weight of the driver and passen-
gers from XXX kg or XXX lbs.
(4) The resulting figure equals
the available amount of cargo
and luggage load capacity.
For example, if the “XXX”
amount equals 1400 lbs. and
there will be five 150 lb passen-
gers in your vehicle, the amount
of available cargo and luggage
load capacity is 650 lbs. (1400 −
NOTICE
■If you get a flat tire while driv-
ing
A flat or damaged tire may cause
the following situations. Hold the
steering wheel firmly and gradu-
ally depress the brake pedal to
slow down the vehicle.
●It may be difficult to control your
vehicle.
●The vehicle will make abnormal
sounds or vibrations.
●The vehicle will lean abnor-
mally.
Information on what to do in case
of a flat tire (
P.501)
■When encountering flooded
roads
Do not drive on a road that has
flooded after heavy rain etc.
Doing so may cause the following
serious damage to the vehicle:
●Engine stalling
●Short in electrical components
●Engine damage caused by
water immersion
In the event that you drive on a
flooded road an d the vehicle
becomes flooded or stuck in mud
or sand, be sure to have your Toy-
ota dealer check the following:
●Brake function
●Changes in quantity and quality
of oil and fluid used for the
engine, hybrid transmission,
etc.
●Lubricant condition for the bear-
ings and suspension joints
(where possible), and the func-
tion of all joints , bearings, etc.
Cargo and luggage
Take notice of the following
information about storage
precautions, cargo capacity
and load:
Capacity and distribution

5249-1. Specifications
COROLLA HV_U
9-1.Specifications
*1: Unladen vehicles
*2: For Guam and Saipan
■Vehicle identification num-
ber
The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped under
the right-hand front seat. This number is also stamped on
the top left of the instrument
panel.

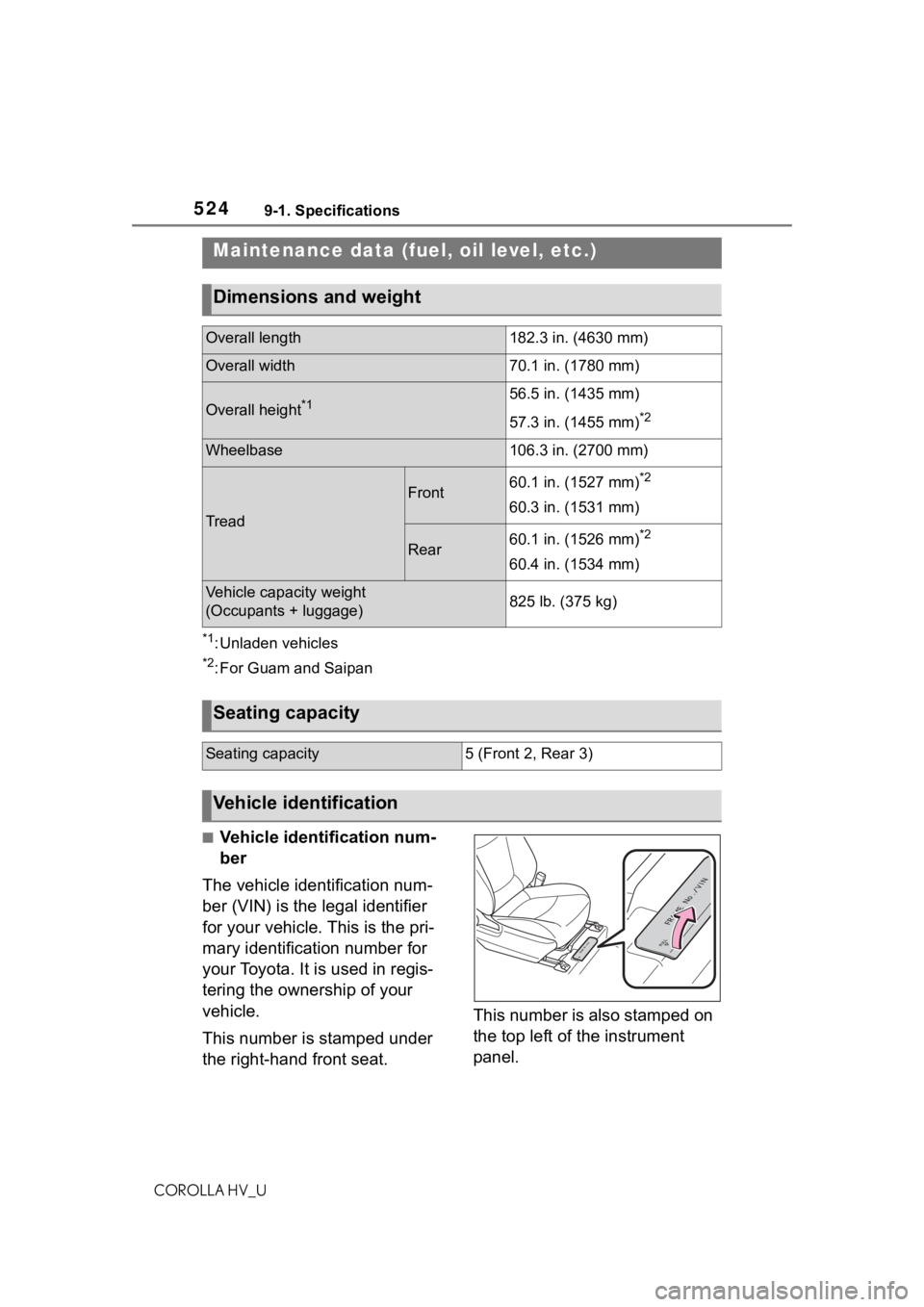

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length182.3 in. (4630 mm)
Overall width70.1 in. (1780 mm)
Overall height*156.5 in. (1435 mm)
57.3 in. (1455 mm)
*2
Wheelbase106.3 in. (2700 mm)
Tread
Front60.1 in. (1527 mm)*2
60.3 in. (1531 mm)
Rear60.1 in. (1526 mm)*2
60.4 in. (1534 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)
Seating capacity
Seating capacity5 (Front 2, Rear 3)
Vehicle identification

5269-1. Specifications
COROLLA HV_U
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer-ence quantity to be used when
changing the engine oil. Warm up
the engine and turn off the hybrid
system, wait more than 5 min-
utes, and check the oil level on
the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to satisfy the following grade and
viscosity.
Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE
0W-16
Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.

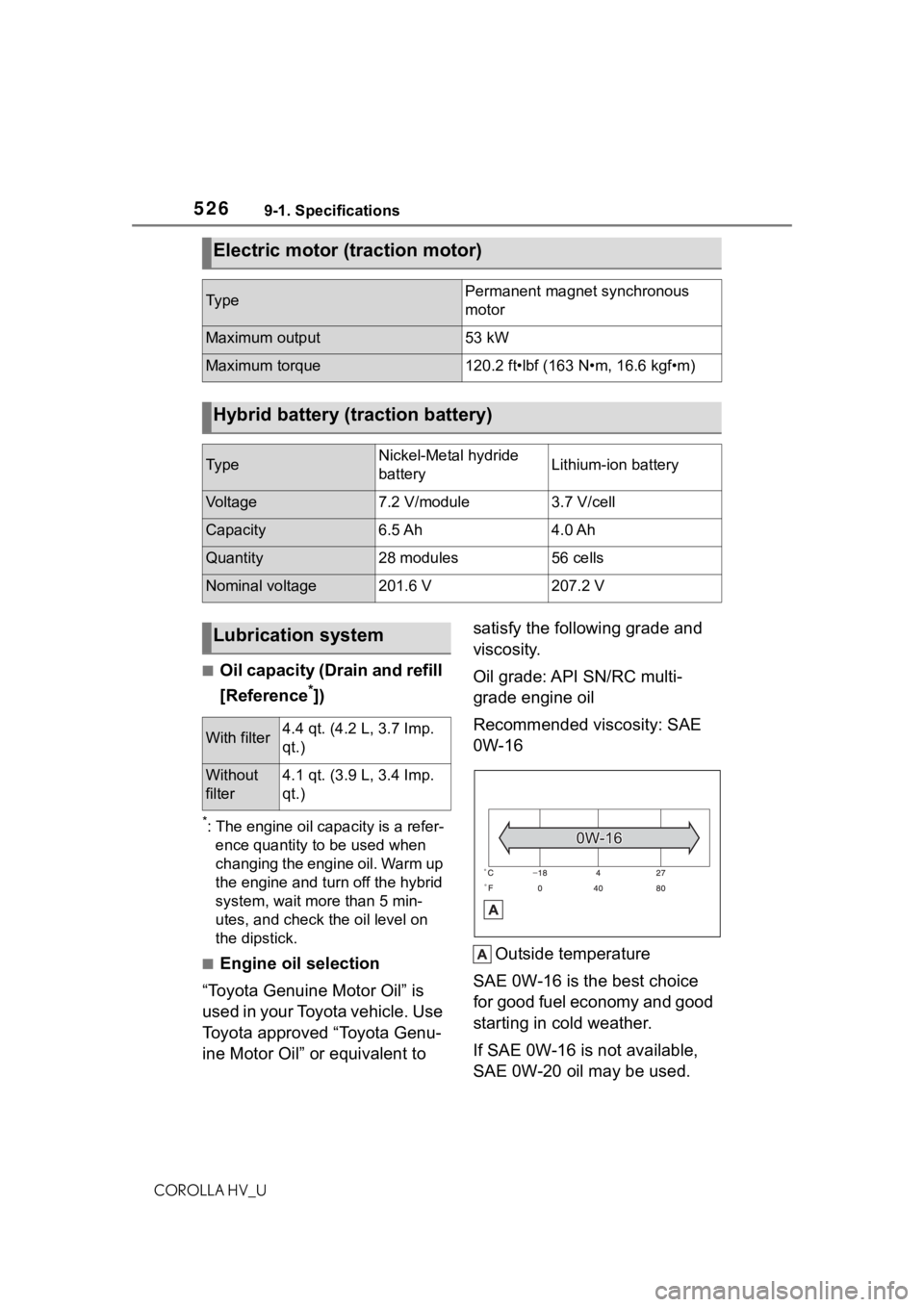

Electric motor (traction motor)
Ty p ePermanent magnet synchronous
motor
Maximum output53 kW
Maximum torque120.2 ft•lbf (163 N•m, 16.6 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride
batteryLithium-ion battery
Vo l t a g e7.2 V/module3.7 V/cell
Capacity6.5 Ah4.0 Ah
Quantity28 modules56 cells
Nominal voltage201.6 V207.2 V
Lubrication system
With filter4.4 qt. (4.2 L, 3.7 Imp.
qt.)
Without
filter4.1 qt. (3.9 L, 3.4 Imp.
qt.)

5279-1. Specifications
COROLLA HV_U
9
Vehicle specifications
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

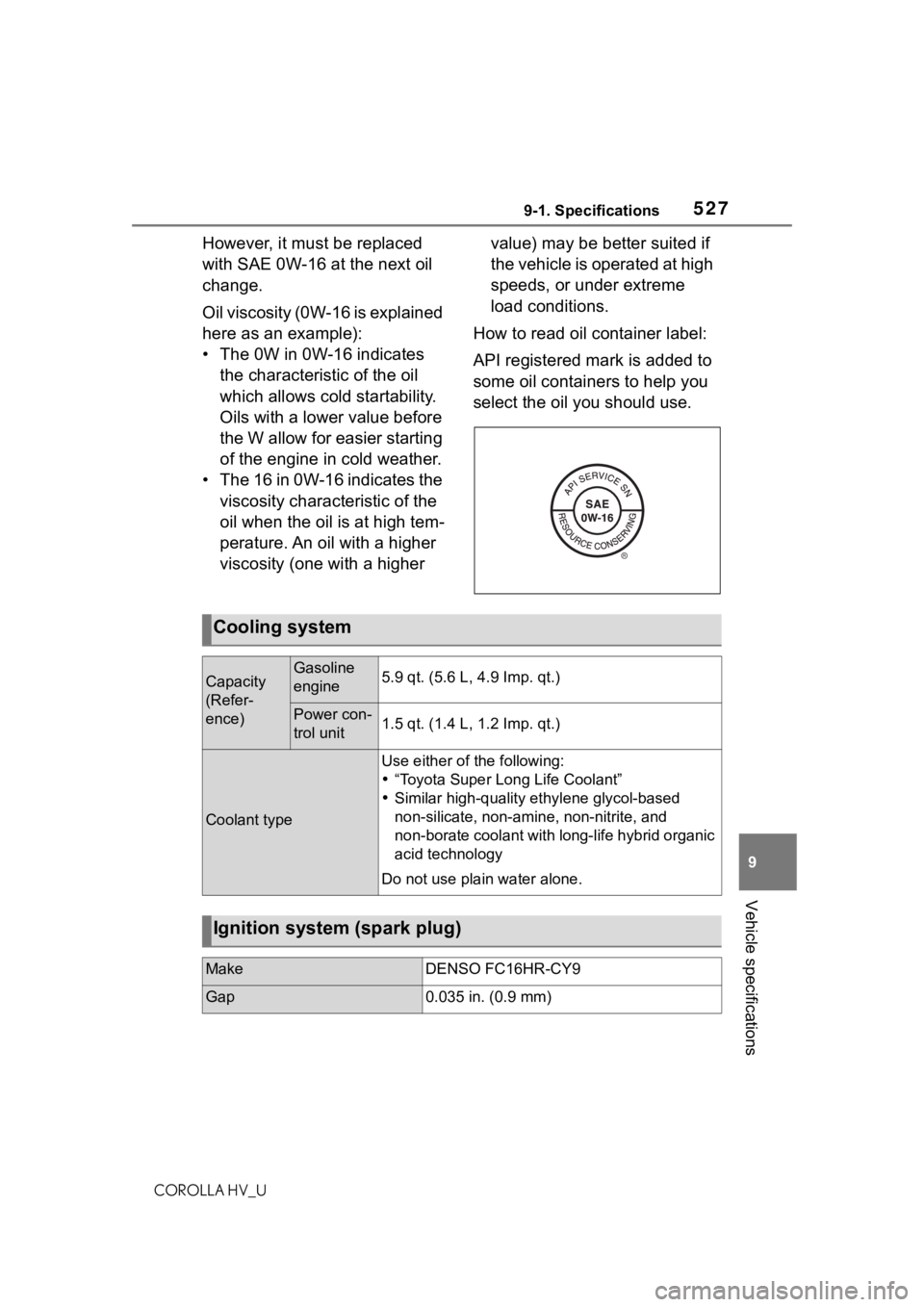

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.
Cooling system
Capacity
(Refer-
ence)Gasoline
engine5.9 qt. (5.6 L, 4.9 Imp. qt.)
Power con-
trol unit1.5 qt. (1.4 L, 1.2 Imp. qt.)
Coolant type
Use either o f the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality et hylene glycol-based
non-silicate, non -amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology
Do not use pla in water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-CY9
Gap0.035 in. (0.9 mm)

5389-1. Specifications
COROLLA HV_U

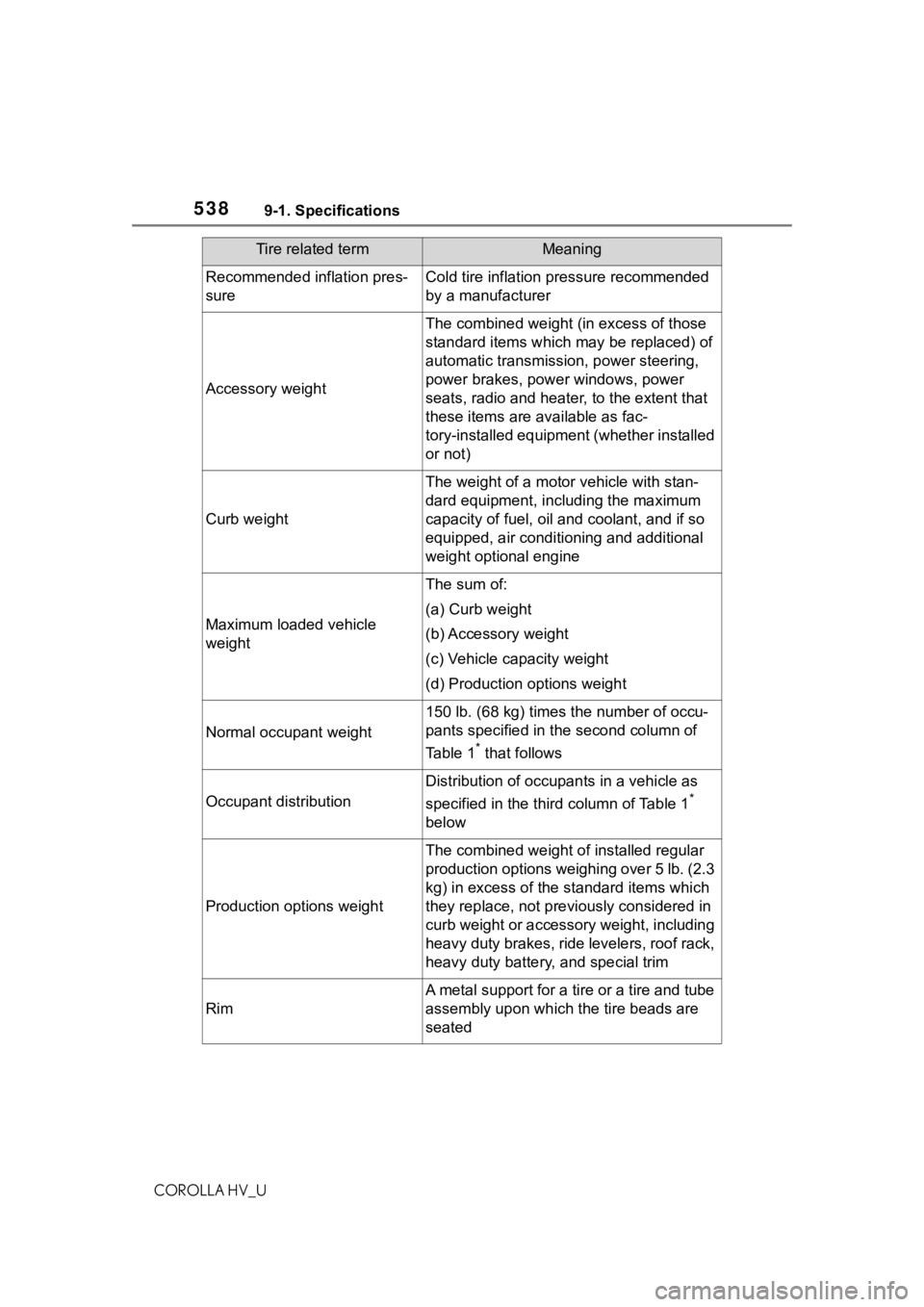

Recommended inflation pres-
sureCold tire inflation pressure recommended
by a manufacturer
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio and heater, to the extent that
these items are available as fac-
tory-installed equipment (whether installed
or not)
Curb weight
The weight of a motor vehicle with stan-
dard equipment, including the maximum
capacity of fuel, oil and coolant, and if so
equipped, air conditioning and additional
weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occu-
pants specified in the second column of
Table 1
* that follows
Occupant distribution
Distribution of occupan ts in a vehicle as
specified in the thi rd column of Table 1
*
below
Production options weight
The combined weight o f installed regular
production options weighing over 5 lb. (2.3
kg) in excess of the s tandard items which
they replace, not previously considered in
curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated
Tire related termMeaning

570Alphabetical Index
COROLLA HV_U
Dynamic radar cruise control with full-speed range ........... 207Warning message ................ 216
E
ECB (Electronically Controlled Brake System) ...................... 240
ECO Accelerator Guidance ... 105
Eco score ................................ 105
EDR (Event data recorder)......... 8
Elapsed time ........................... 107
Electric motor (traction motor)80
Electric Power Steering (EPS) ............................................... 240Warning light ........................ 481
Electronic key ......................... 116 Battery-saving function......... 126
If the electronic key does not operate properly ................. 511
Replacing the battery ........... 459
Electronically Controlled Brake System (ECB) ....................... 240
Emergency flashers ............... 470
Emergency tire puncture repair kit ........................................... 490
Emergency, in case of If a warning buzzer sounds .. 478
If a warning light turns on ..... 478
If a warning message is dis-played................................. 487
If the 12-volt battery is dis- charged .............................. 513
If the electronic key does not operate properly ................. 511
If the fuel filler door cannot be opened ............................... 511
If the hybrid sy stem will not start
........................................... 509
If the vehicle is trapped in rising water .................................. 472
If you have a fla t tire ..... 490, 501
If you lose your keys ............ 510 If you think something is wrong
...........................................476
If your vehicle becomes stuck ...........................................520
If your vehicle has to be stopped in an emergency .................471
If your vehicle needs to be towed ...........................................473
If your vehicle ove rheats ......517
Energy monitor .......................109
Engine ACCESSORY mode . ............160
Compartment........................434
Engine switch .......................157
Hood .....................................432
How to start the hybrid system ...........................................157
Identification number ............525
If the hybrid sys tem will not start
...........................................509
If your vehicle has to be stopped in an emergency .................471
Ignition switch (power switch) ...........................................157
Overheating ..........................517
Power switch ........................157
Tachometer.............................98
Engine coolant Capacity ...............................527
Checking ..............................436
Preparing and checking before winter ..................................247
Engine coolant temperature gauge .......................................98
Engine oil Capacity ...............................526
Checking ..............................434
Preparing and checking before winter ..................................247
Warning light.........................479

580Alphabetical Index
COROLLA HV_U
Seat belt ....................... 481, 482
Warning label ............................ 83
Warning lights ........................ 478 ABS ...................................... 480
Brake hold operated indicator........................................... 484
Brake Override System ........ 480
Brake system ....................... 478
Charging system .................. 479
Drive-Start Control ............... 480
Electric power steering ......... 481
High coolant temperature ..... 478
Hybrid system overheat ....... 479
Low engine oil pressure ....... 479
Low fuel level ....................... 481
LTA indicator ......................... 482
Malfunction indicator lamp ... 479
Parking brake indicator ........ 484
Pre-collision system ............. 483
RCTA OFF indicator ............. 483
Seat belt reminder light 481, 482
Slip indicator......................... 483
SRS ...................................... 480
Tire pressure ........................ 482
Warning messages................. 487
Washer Checking .............................. 440
Preparing and c hecking before
winter.................................. 247
Switch................................... 178
Washing and waxing .............. 420
Weight Cargo capacity ..................... 155
Load limits ............................ 155
Wheels ..................................... 452 Replacing ............................. 452
Size ...................................... 529
Wi-Fi
®...................................... 280
Connecting a device to the in-vehicle access point ....... 280
Operating hints ..................... 283
Wi-Fi
® button (Setup screen) 258 Wi-Fi
® Hotspot ........................280
Window lock switch ...............144
Windows Power windows ....................142
Rear window defogger .........387
Washer .................................178
Windshield wiper de-icer .......390
Windshield wipers ..................178
Winter driving tips ..................247
Wireless charger.....................402
Wireless remote control Battery-Saving Function .......126
Locking/Unlocking ................ 117
Replacing the battery ...........459
For vehicles with Audio Plus, refer to “NAVIGA-
TION AND MULTIMEDIA
SYSTEM OWNER’S MAN-
UAL” for information
regarding the equipment
listed below.
· Audio/visual system
· Rear view monitor system

584
COROLLA HV_U
GAS STATION INFORMATION
Auxiliary catch lever (P.432)
Fuel filler door opener ( P.181)
Fuel filler door ( P.181)
Hood lock release lever ( P.432)
Trunk opener ( P.124)
Tire inflation pressure ( P.529)
Fuel tank capacity
(Reference)11.4 gal. (43.0 L, 9.5 Imp. gal.)
Fuel typeP.525
P.531
Cold tire inflation
pressureP.529
Engine oil capacity
(Drain and refill 
reference)
P.526
Engine oil type“Toyota Genuine Motor Oil” or equivalentP.526
