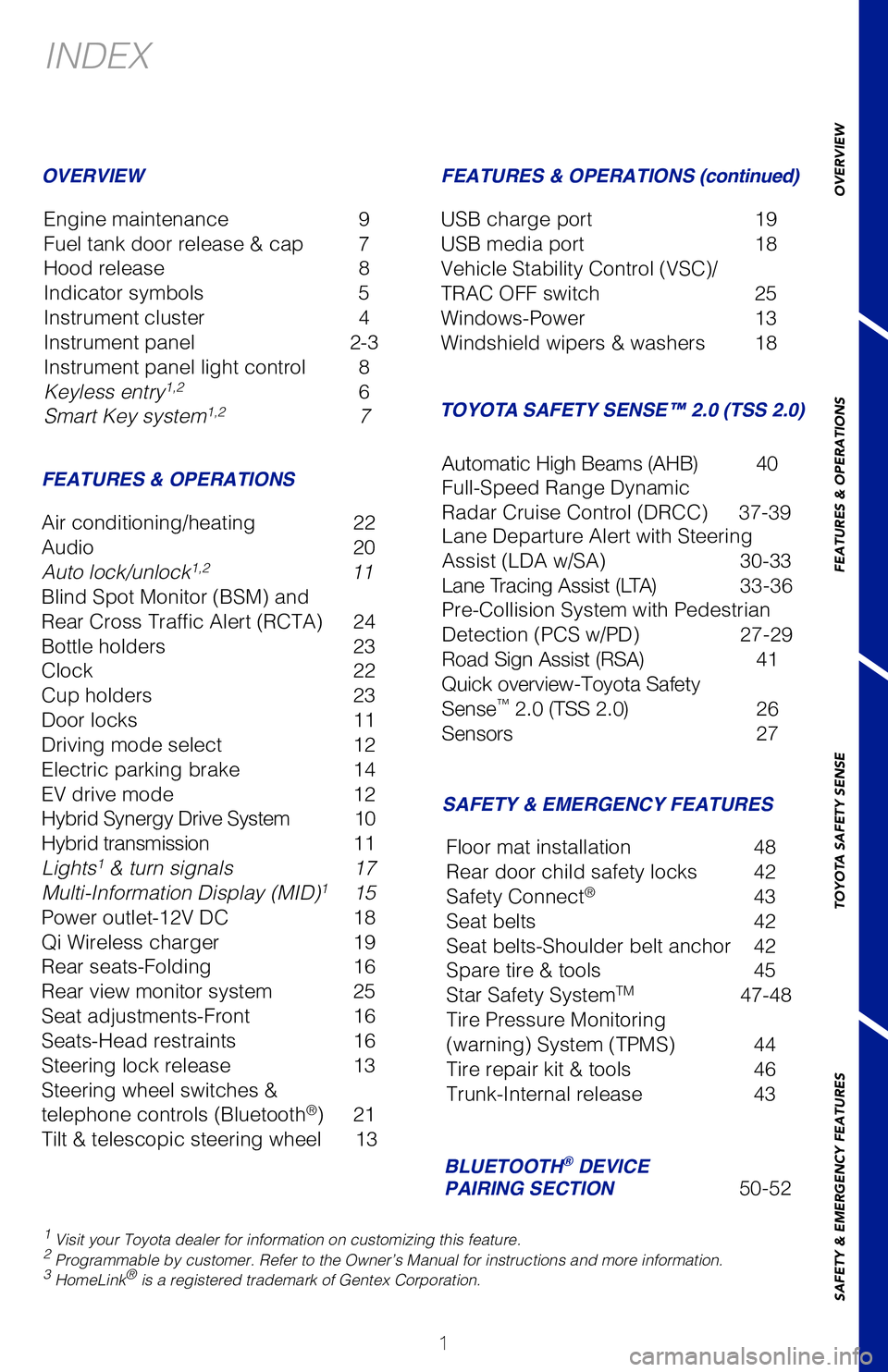

INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 22
Audio 20
Auto lock/unlock
1,2 11
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 24
Bottle holders 23
Clock 22
Cup holders 23
Door locks 11
Driving mode select 12
Electric parking brake 14
EV drive mode 12
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lights
1 & turn signals 17
Multi-Information Display (MID)1 15
Power outlet-12V DC 18
Qi Wireless charger 19
Rear seats-Folding 16
Rear view monitor system 25
Seat adjustments-Front 16
Seats-Head restraints 16
Steering lock release 13
Steering wheel switches &
telephone controls (Bluetooth
®) 21
Tilt & telescopic steering wheel 13

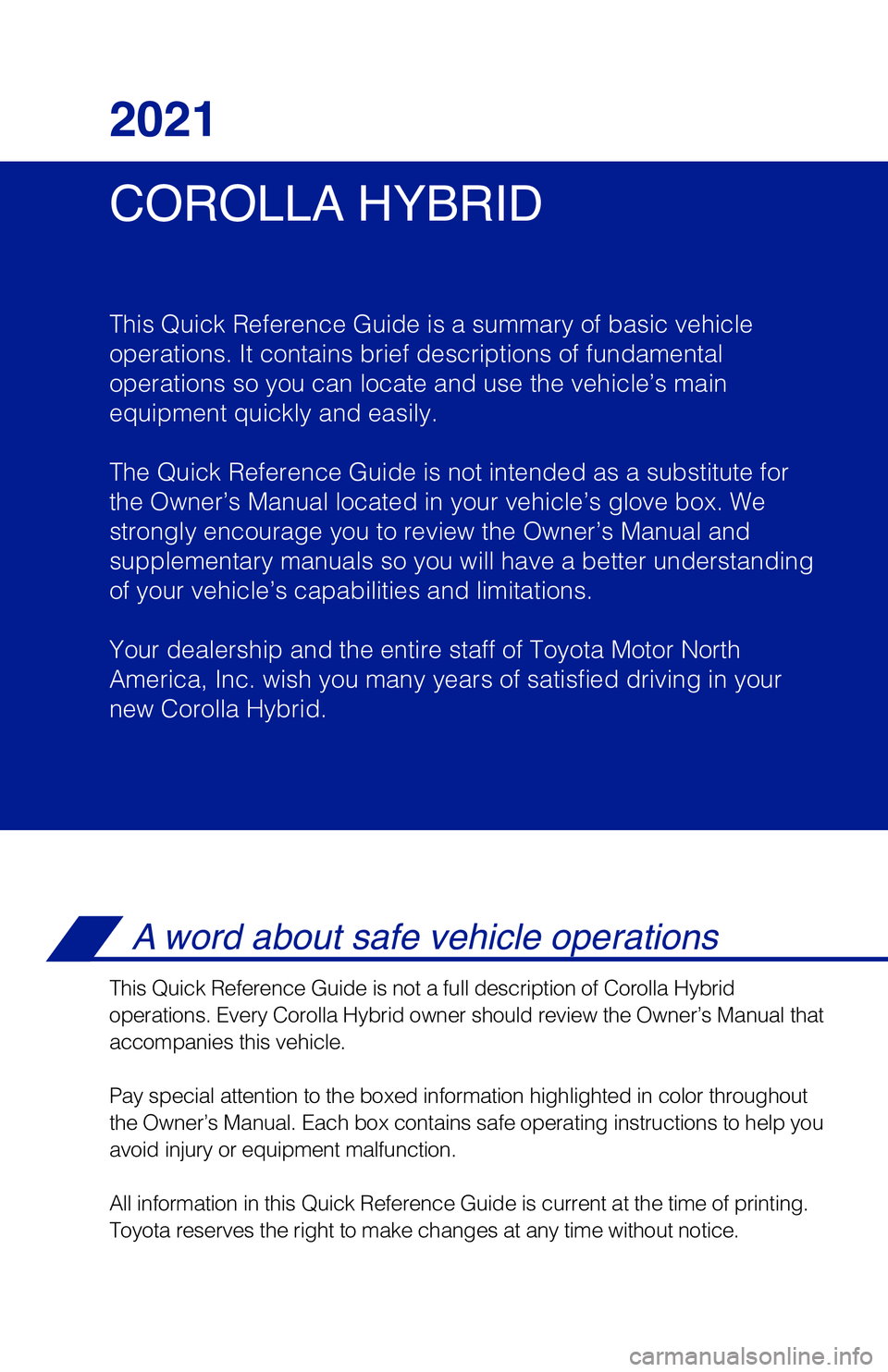

COROLLA HYBRID 2021
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Corolla Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla Hybrid
operations. Every Corolla Hybrid owner should review the Owner’s Manu\
al that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
145651_Corolla_Hybrid_QRG_guts.indd 62433/23/20 4:10 PM
Page 3 of 56
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 22
Audio 20
Auto lock/unlock
1,2 11
Blind Spot Monitor (BSM) and
Rear Cross Traffic Alert (RCTA) 24
Bottle holders 23
Clock 22
Cup holders 23
Door locks 11
Driving mode select 12
Electric parking brake 14
EV drive mode 12
Hybrid Synergy Drive System 10
Hybrid transmission 11
Lights
1 & turn signals 17
Multi-Information Display (MID)1 15
Power outlet-12V DC 18
Qi Wireless charger 19
Rear seats-Folding 16
Rear view monitor system 25
Seat adjustments-Front 16
Seats-Head restraints 16
Steering lock release 13
Steering wheel switches &
telephone controls (Bluetooth
®) 21
Tilt & telescopic steering wheel 13
COROLLA HYBRID 2021
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Corolla Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Corolla Hybrid
operations. Every Corolla Hybrid owner should review the Owner’s Manu\
al that
accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \
help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \
printing.
Toyota reserves the right to make changes at any time without notice.
SAFETY & EMERGENCY FEATURES
FEATURES & OPERATIONS (continued)
BLUETOOTH
® DEVICE
PAIRING SECTION 50-52
Floor mat installation
48
Rear door child safety locks 42
Safety Connect
® 43
Seat belts 42
Seat belts-Shoulder belt anchor 42
Spare tire & tools 45
Star Safety System
TM 47-48
Tire Pressure Monitoring
(warning) System (TPMS) 44
Tire repair kit & tools 46
Trunk-Internal release 43
USB charge port
19
USB media port 18
Vehicle Stability Control (VSC)/
TRAC OFF switch 25
Windows-Power 13
Windshield wipers & washers 18
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
Automatic High Beams (AHB) 40
Full-Speed Range Dynamic
Radar Cruise Control (DRCC) 37-39
Lane Departure Alert with Steering
Assist (LDA w/SA) 30-33
Lane Tracing Assist (LTA) 33-36
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 27-29
Road Sign Assist (RSA) 41
Quick overview-Toyota Safety
Sense
™ 2.0 (TSS 2.0) 26
Sensors 27
145651_Corolla_Hybrid_QRG_guts.indd 13/23/20 4:10 PM
Page 4 of 56
2

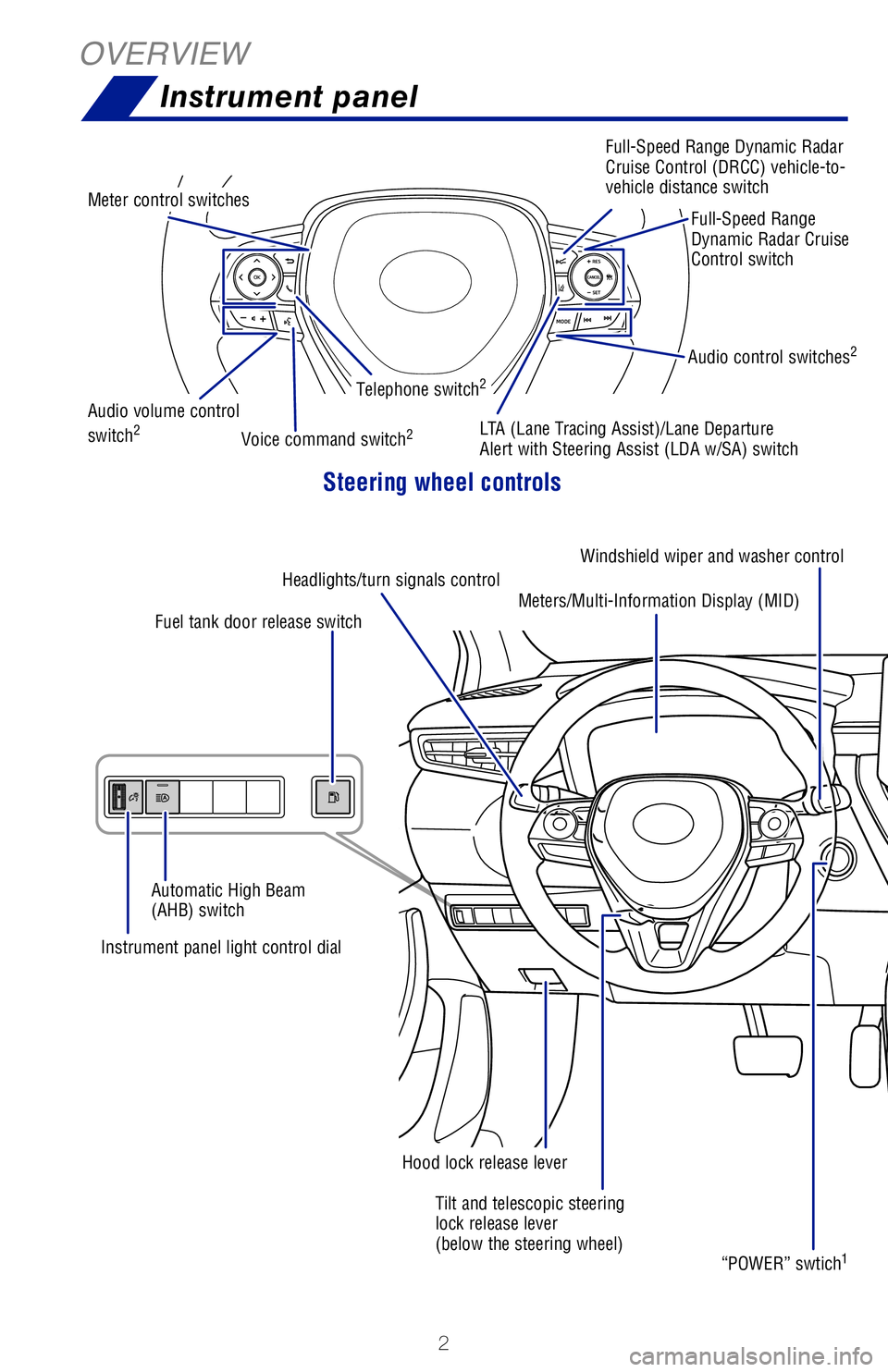

OVERVIEWInstrument panel
Windshield wiper and washer control
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Instrument panel light control dial “POWER” swtich
1
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switch
Headlights/turn signals control
Fuel tank door release switch
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
Steering wheel controls
Audio volume control
switch2
Audio control switches2
Meter control switches
Telephone switch2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) vehicle-to-
vehicle distance switch
LTA (Lane Tracing Assist)/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control switch
145651_Corolla_Hybrid_QRG_guts.indd 23/23/20 4:10 PM
Page 5 of 56
3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Windshield wiper and washer control
Emergency flasher switch
“POWER” swtich1
Meters/Multi-Information Display (MID)
Audio system1,2/
Navigation system1,2
Air conditioning/heating controls
1 If equipped.2 For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.

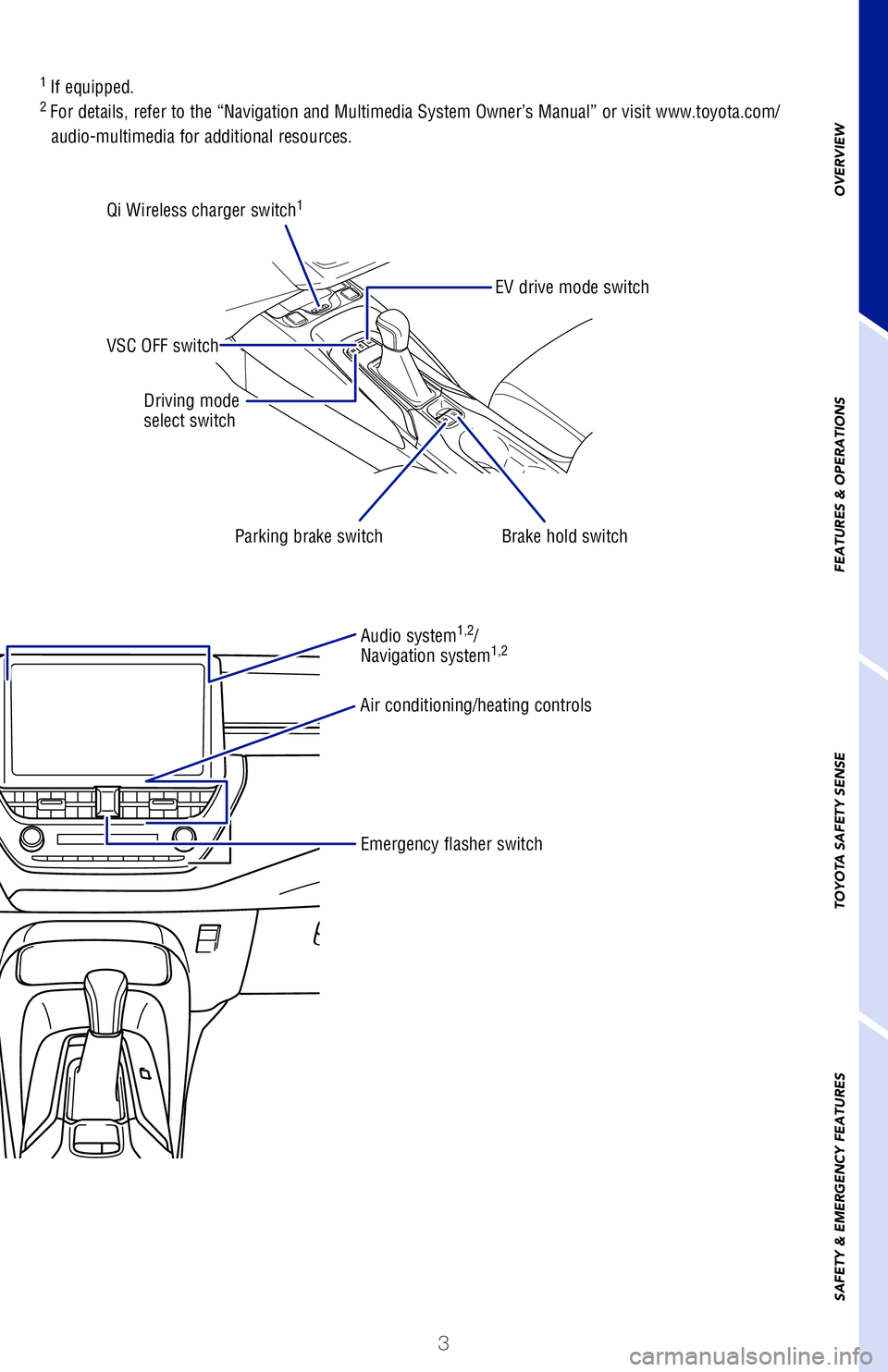

Parking brake switch Brake hold switch
VSC OFF switch
Driving mode
select switch EV drive mode switch
Qi Wireless charger switch
1
Audio control switches2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) vehicle-to-
vehicle distance switch
LTA (Lane Tracing Assist)/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control switch
145651_Corolla_Hybrid_QRG_guts.indd 33/23/20 4:10 PM
Page 6 of 56
4

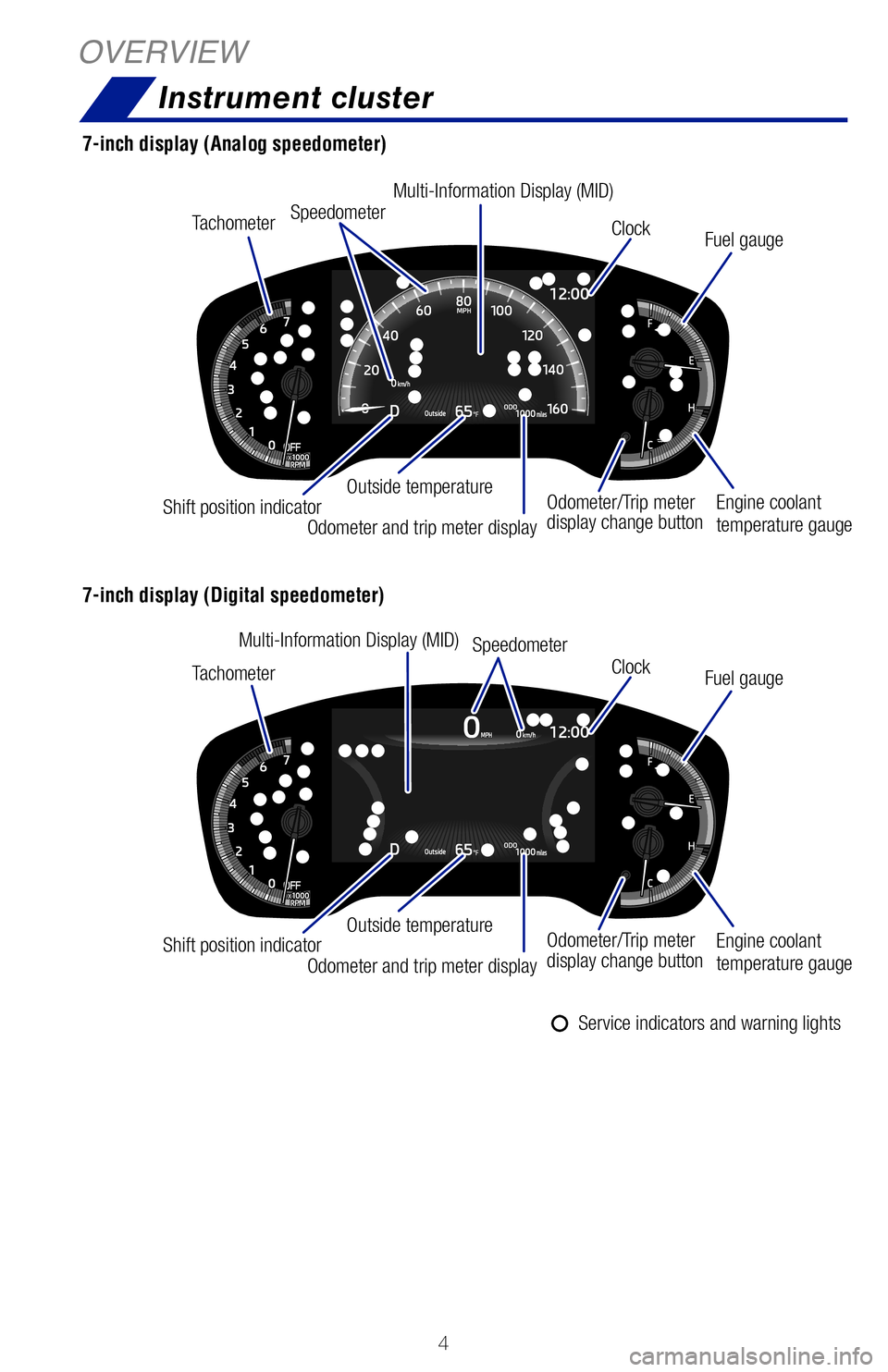

OVERVIEWInstrument cluster
For details, refer to “Warning lights and indicators” Section 2-2, 2021 Owner’s
Manual.
Tachometer
Tachometer Speedometer
Speedometer
Outside temperature
Outside temperature Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer and trip meter display
Odometer and trip meter display
Shift position indicator
Shift position indicator Fuel gauge
Fuel gauge
Clock
Clock
Multi-Information Display (MID)
Multi-Information Display (MID) Engine coolant
temperature gauge
Engine coolant
temperature gauge
7-inch display (Analog speedometer)
7-inch display (Digital speedometer)
1 If the indicator does not turn off within a few seconds of starting the \
Hybrid system, there may be
a malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Service indicators and warning lights
145651_Corolla_Hybrid_QRG_guts.indd 43/23/20 4:10 PM
Page 7 of 56
5
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Security indicator
Smart Key system indicator
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
For details, refer to “Warning lights and indicators” Section 2-2, 2021 Owner’s
Manual.
Airbag SRS warning1
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check Engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Slip indicator1,3
READY indicator
Power mode indicator Lane Tracing Assist (LTA)/
Lane Departure Alert (LDA) indicator
High coolant temperature warning
Hybrid system overheat warning
Automatic High Beam (AHB) indicator
Brake hold operating indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow)1
Charging system warning1
EV drive mode indicator
EV indicator
Eco drive mode indicator
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the engine
switch is in the ”IGNITION ON” mode)
Electric power steering system warning
(red/yellow)1
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
Engine coolant
temperature gauge
Engine coolant
temperature gauge
1
If the indicator does not turn off within a few seconds of starting the \
Hybrid system, there may be
a malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators4
RCTA OFF indicator1,2,4

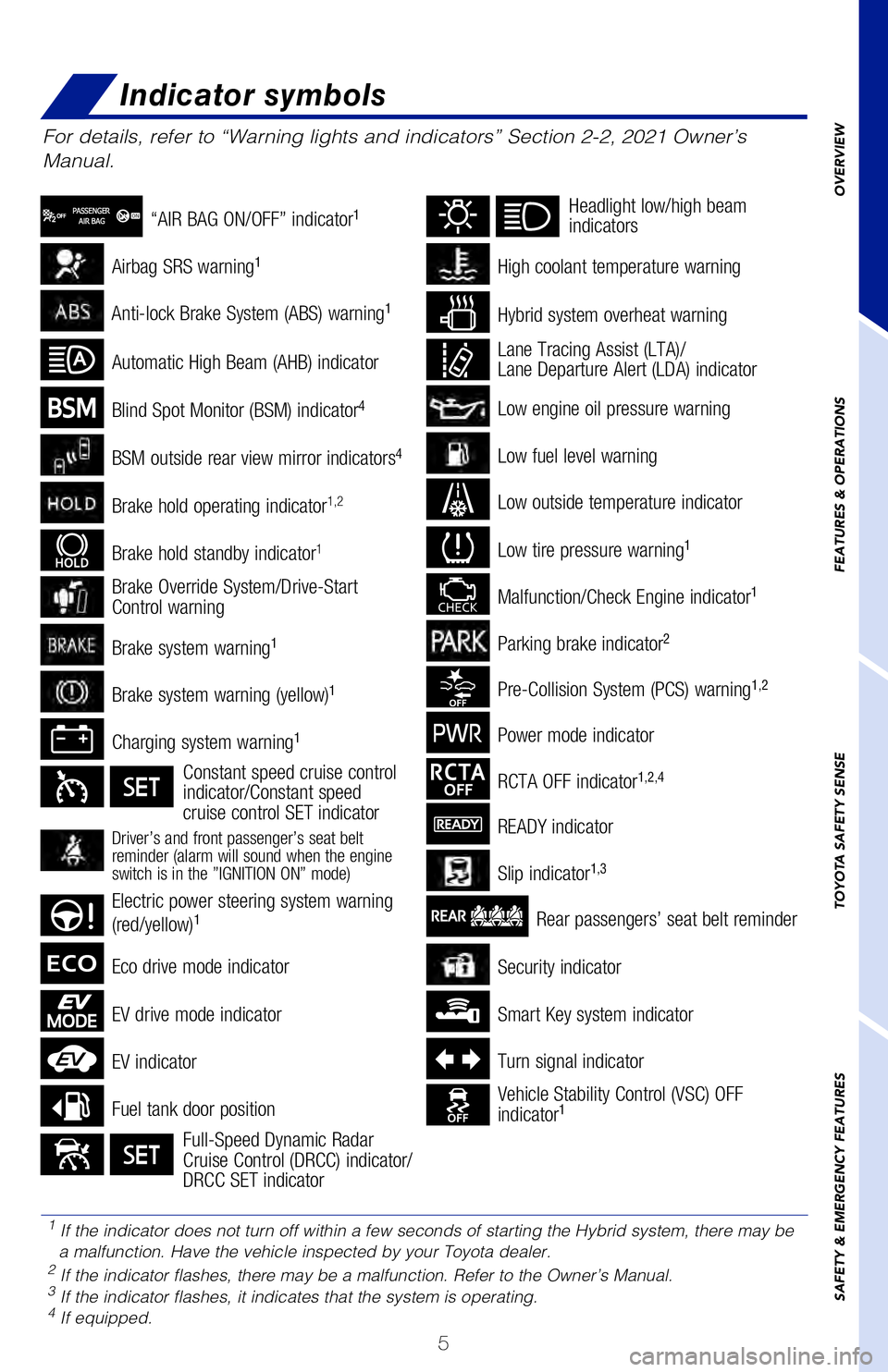

Indicator symbols
Service indicators and warning lights
145651_Corolla_Hybrid_QRG_guts.indd 53/23/20 4:10 PM
Page 8 of 56
6
OVERVIEW

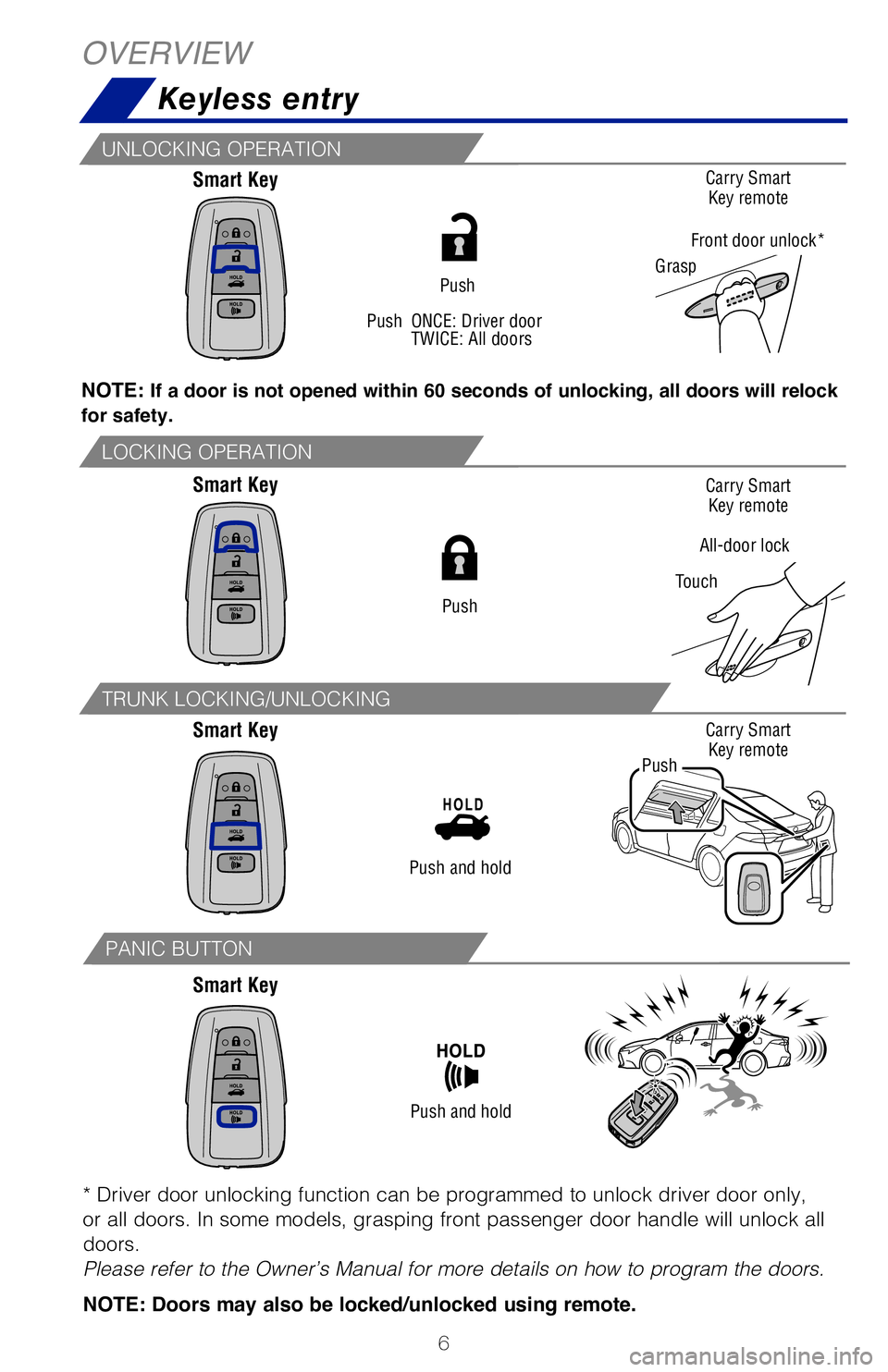

Keyless entry
Smart Key
Smart Key
Smart Key
Smart Key
Push
All-door lock
TouchCarry Smart
Key remote
Carry Smart Key remote
Carry Smart Key remote
Grasp
Front door unlock*
Push
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
Push and hold
PANIC BUTTON
LOCKING OPERATION
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATIONSTART FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
Push ONCE: Driver door
TWICE: All doors
NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Without depressing the brake pedal, pressing the “POWER” switch will chan\
ge the
operation mode in succession from:
Push
* Driver door unlocking function can be programmed to unlock driver door \
only,
or all doors. In some models, grasping front passenger door handle will un\
lock all
doors.
Please refer to the Owner’s Manual for more details on how to program the d\
oors.
NOTE: Doors may also be locked/unlocked using remote.
145651_Corolla_Hybrid_QRG_guts.indd 63/23/20 4:10 PM
Page 9 of 56
7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

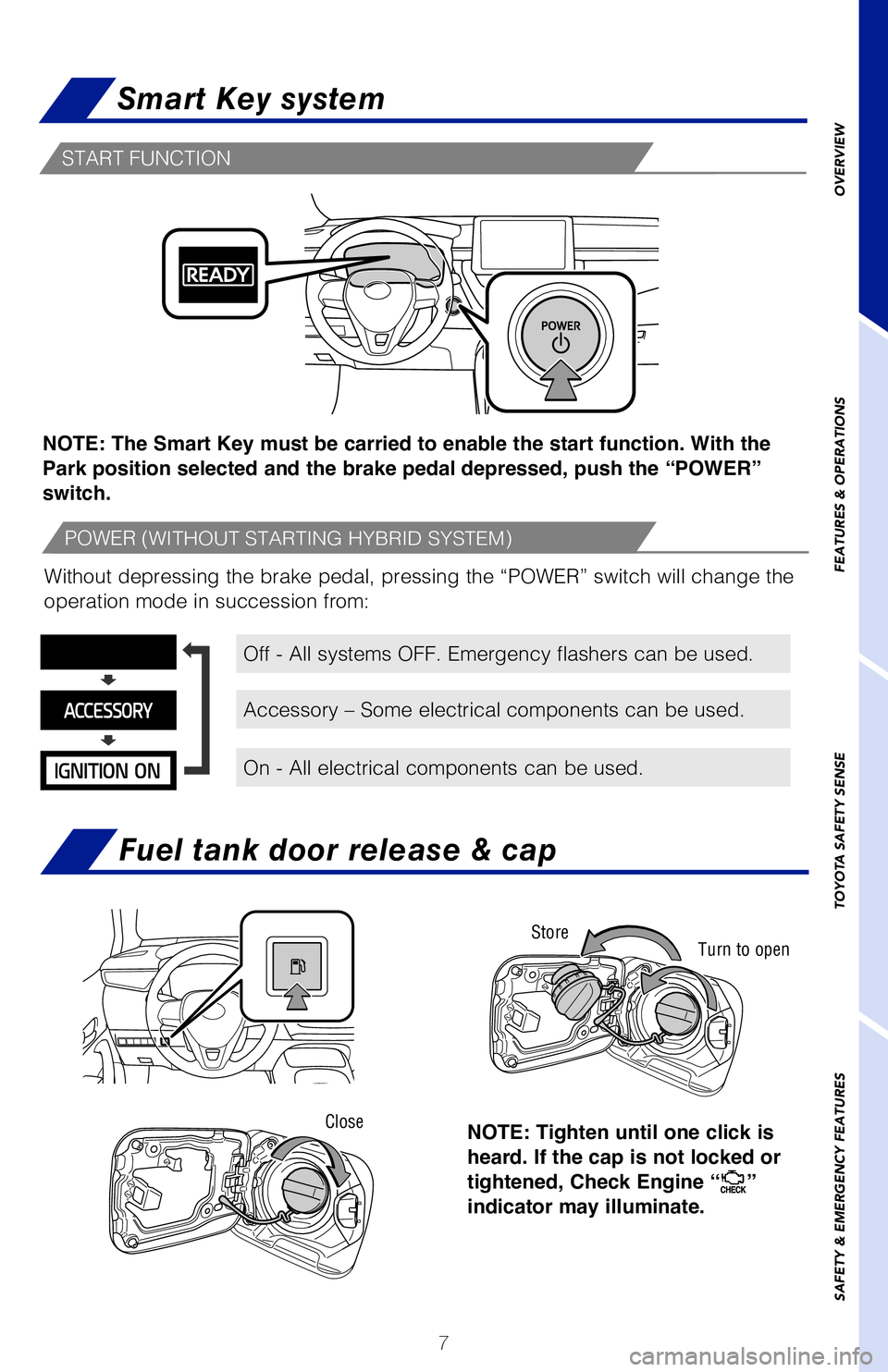

Keyless entrySmart Key system
Front door unlock*
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
START FUNCTION
POWER (WITHOUT STARTING HYBRID SYSTEM)
NOTE: The Smart Key must be carried to enable the start function. With the
Park position selected and the brake pedal depressed, push the “POWER”
switch.
Without depressing the brake pedal, pressing the “POWER” switch wi\
ll change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door\
only,
or all doors. In some models, grasping front passenger door handle will \
unlock all
doors.
Please refer to the Owner’s Manual for more details on how to program\
the doors.
NOTE: Doors may also be locked/unlocked using remote.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “
”
indicator may illuminate.
Fuel tank door release & cap
Turn to openStore
Close
145651_Corolla_Hybrid_QRG_guts.indd 73/23/20 4:10 PM
Page 10 of 56
8
OVERVIEW
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Pull the latch to the
left and raise hoodPull
Insert rod to hold
hood open

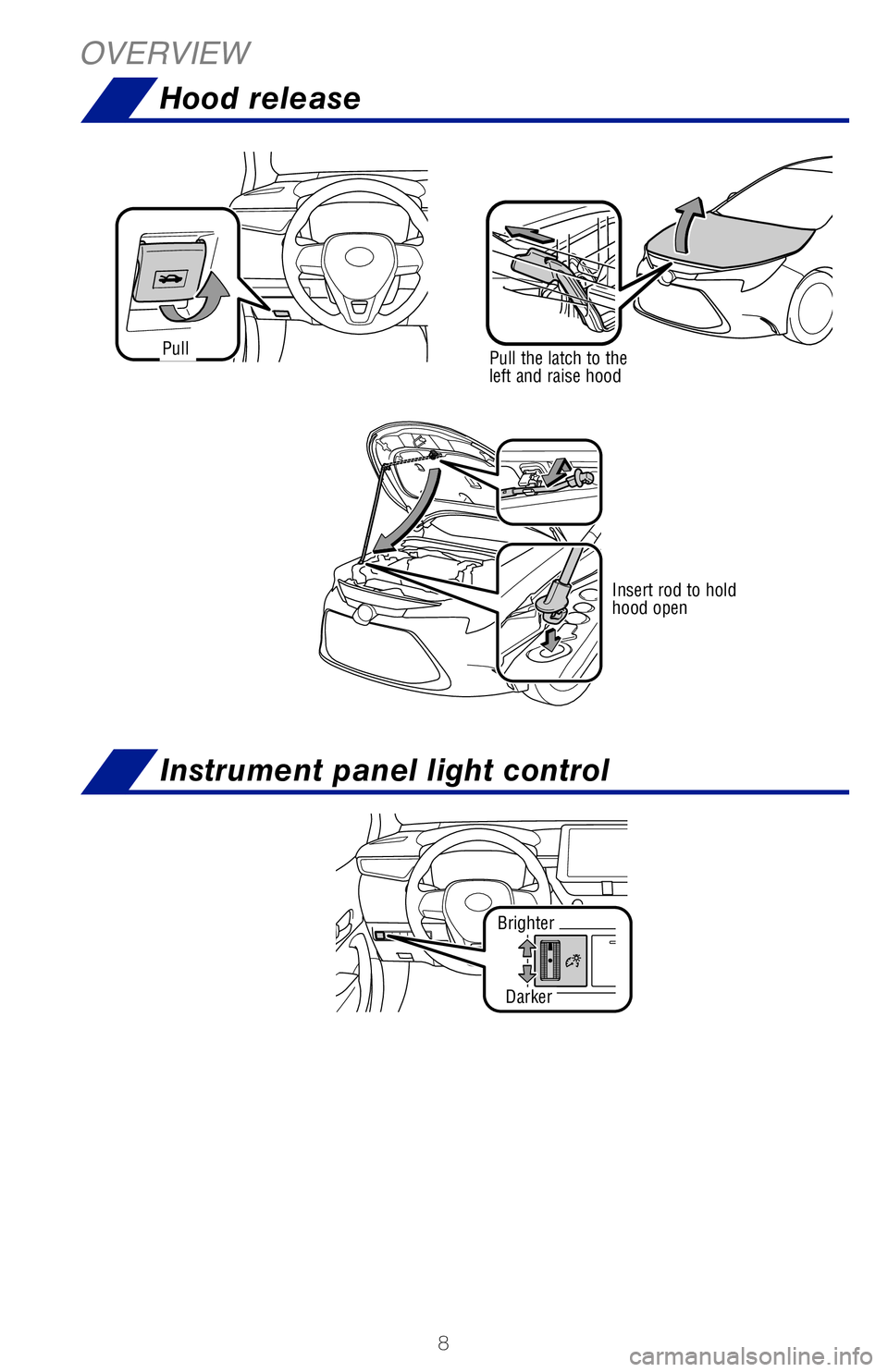

Hood release
Engine coolant reservoir
Instrument panel light control
Brighter
Darker
145651_Corolla_Hybrid_QRG_guts.indd 83/23/20 4:10 PM
