TOYOTA COROLLA iM 2018 Owners Manual (in English)

3518-2. Customization
8
Vehicle specifications
COROLLA iM_U (OM12M42U)■
Wireless remote control (
→P. 84, 88)
■Turn signal lever ( →P. 139)
FunctionDefault settingCustomized set-
ting
Wireless remote controlOnOff—O
Unlocking operation
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors unlocked in one step—O
Operation buzzer volume7Off—O1 to 6
Operation signal (emer-
gency flashers)OnOff—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
Off
—O30 seconds
120 seconds
Open door warning buzzer
(when locking the vehicle)OnOff—O
Alarm (panic mode)OnOff—O
12
FunctionDefault settingCustomized set- ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
3
4 to 7
—O
Off
12

3528-2. Customization
COROLLA iM_U (OM12M42U)■
Automatic light control system (
→P. 141)
■Lights (→ P. 141)
■LDA (Lane Departure Alert)* (→ P. 172)
*: If equipped
■
Automatic air condi tioning system (→P. 196)
■Illumination ( →P. 203)
FunctionDefault settingCustomized set-
ting
Light sensor sensitivity Standard -2 to 2—O
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
—O60 seconds
90 seconds
12
FunctionDefault settingCustomized set-
ting
Daytime running light sys-
tem (except Canada)OnOff—O
12
FunctionDefault settingCustomized set-ting
LDA warning sensitivityHighNormalO—
12
FunctionDefault settingCustomized set-ting
A/C auto switch operationOnOff—O
12
FunctionDefault settingCustomized set-
ting
Time elapsed before the
interior lights turn off15 seconds7.5 seconds—O30 seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
12

3538-2. Customization
8
Vehicle specifications
COROLLA iM_U (OM12M42U)
■Vehicle customization
When the doors remain closed after unlocking the doors and the timer acti-
vated automatic door lock function activates, signals will be generated \
in
accordance with the operation buzzer volume and operational signal (emer-
gency flashers) function settings.
WARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

354
COROLLA iM_U (OM12M42U)
8-3. Items to initialize
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as maintenance being performed on the
vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required (U.S.A.
only)After the maintenance is per-
formedP. 227
Tire pressure warning sys-
tem
• When rotating front and rear tires which have different tire
inflation pressures
• When changing the tire size
• When changing the tire infla- tion pressure by changing
traveling speed or load
weight, etc.
P. 252

355
For owners
COROLLA iM_U (OM12M42U)
9
Reporting safety defects for U.S. owners........................ 356
Seat belt instructions for Canadian owners
(in French) ............................... 357
SRS airbag instructions for Canadian owners
(in French) ............................... 359

356
COROLLA iM_U (OM12M42U)

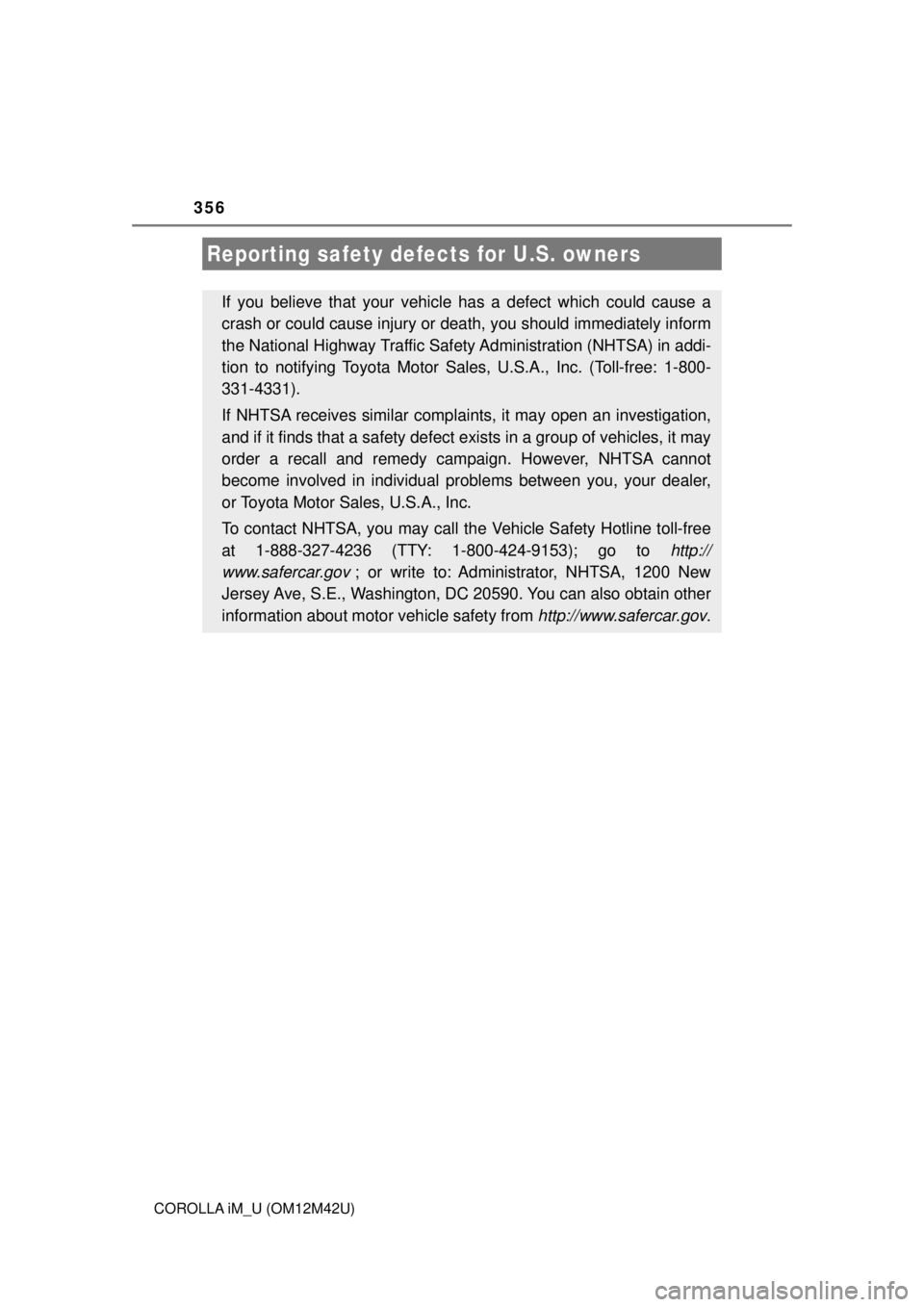

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complain ts, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call t he Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

357
9
For owners
COROLLA iM_U (OM12M42U)
●Déroulez la sangle diagonale
de telle sorte qu'elle passe bien
sur l'épaule, sans pour autant
être en contact avec le cou ou
glisser de l'épaule.
● Placez la sangle abdominale le
plus bas possible sur les
hanches.
● Réglez la position du dossier de sièg e. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
■Ceintures de sécurité
Nettoyez avec un chif fon ou une éponge humidifiés avec de l'eau
savonneuse tiède. Vérifiez régulièrement que les ceintures ne sont
pas usées, effilochées ou en taillées excessivement.
Seat belt instructions for Canadian owners
(in French)
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin

358
COROLLA iM_U (OM12M42U)
AVERTISSEMENT
■Détérioration et usure des ceintures de sécurité
Inspectez le système de ceintures de sécurité régulièrement. Contrô\
lez
l'absence de coupures, d'effilochages et de pièces desserrées. N'utilisez
pas une ceinture de sécurité endommagée avant qu'elle ne soit r\
emplacée.
Une ceinture de sécurité endommagée ne permet pas de protéger un occu-
pant de blessures graves ou mortelles.

359
9
For owners
COROLLA iM_U (OM12M42U)
◆Coussins gonflables frontaux SRS
Coussin gonflable conducteur/coussin gonflable du passager avant
SRS
Participent à la protection de la tête et du thorax du conducteur et
du passager avant contre les chocs contre les éléments de l'habi-
tacle
Coussin gonflable de genoux du conducteur SRS
Participent à la protection du conducteur
Coussin gonflable de coussin de siège SRS
Contribue à retenir le passager avant
SRS airbag instructions for Canadian
owners (in French)
The following is a French explan ation of SRS airbag instructions
extracted from the SRS airbag section in this manual.
See the SRS airbag section for more detailed SRS airbag instruc-
tions in English.
1
2
3

360
COROLLA iM_U (OM12M42U)
◆Coussins gonflables latéraux et rideaux SRS
Coussins gonflables latéraux avant SRS
Participent à la protection du torse des occupants de siège avant
Coussins gonflables rideaux SRS
● Participent principalement à la pr otection de la tête des occu-
pants des sièges latéraux
● Peut contribuer à empêcher les oc cupants d'être éjectés du véhi-
cule en cas de tonneau
Composants du système de coussins gonflables SRS
4
5
