TOYOTA COROLLA iM 2018 Accessories, Audio & Navigation (in English)

Toyota Part Number: PT296-00170
Premium Audio Owner’s Manual
for /AhaAudio/iPod/USB/Bluetooth
Audio /AM/F M/HD Radio™ broadcast/Navigatio n

Introduction
HOW TODETERMINE IF YOU HAVE THE TOYOTA PREMIUM AUDIO
SYSTEM INSTALLED
Toyota premium audio system offers Navigation among its many features. To
confirm your system has navigation capabilities, use the following method:
 Vehicles without smart entry &start system
1 When the ignition is turned to the “ACC”or“ON” position, the initial screen
will bedisp layed and the systemwillbegin operating.
Vehicles with smart entry & startsystem
1 Wh en the ignition isturned to the ACCESSORY orIGNITI ONON mode,
the initial screen willbe displayed and the systemwillbegin
operating.
2 Press the“MEDIA ”button.
 Each time the “ MEDIA” button is pressed the system will switch the screen between
MAP and the last audio mode used.
 One of the followi ng scre enswillbe shown.
Map–Full screenMap –Split view
2

SYMBOLS USED INILLUSTR ATIONS
Safety symbol
Thesymbol ofa c ircle witha slash through itmeans “Donot”, “Donot
do this”, or “Donotletthis happen”.
Arrows indicating operatio ns
Indicates theaction (pushin g, turning, etc.)
used to operate switches and other
devices.
Indicates the outcome of an operation (e.g.
a lid opens).
HOW TOREAD THISMANUAL
No.NameDescription
OperationalOutlinesAnoutlineoftheoperationisexplained.
MainOperationsThestepsofanoperationareexplained.
RelatedOperationsThestepsofanoperationareexplained.
InformationUsefulinformationfortheuserisdescribed.
3

PREMIUM AUDIO SYST EM OWN ER’S MANUAL
This manual explains the operation of the Premium Audio system. Please read
this manual carefully to ensure proper use.
The screen shots in this document and the actual screens of the Premium Audio
system may differ depending on whether the functions and/or a contract existed
and the map data available at the time of producing this document.
Please be aware that the content of th is manual may be different from the
navigation /multimedia system in some cases, such as wh en the sy stem’s
software is up dated.

N AVIG ATION SYSTEM
The Navigation System is o ne of the most technologically advanced vehi cle
ac ces sories ever develo ped. The system receives satellite sig nals from the
Global Positioning System (GPS) operated by the U.S. Department of Defense.
Using these signals and other vehicle sensors, the system indicates your
present position and assists in locating a desired destination.
The navigation system is designed to select efficient routes from your present
sta rting location to your destination. The system is also designed to direct you
to a destination that is unfamiliar to you in an efficient manne r. The system is
devel oped by “Harman International” us ing “HERE” maps. The calculated
routes may not be the sho rtest nor the least traffic congested. Your own
personal local knowledge or “short cut” may at times be faster than the
calculated routes.
The navigation system’s database i nc
ludes Point of Interest (POI) categories to
allow you to easily select destinations such as restaurants, hotels and others . If
a destination is not in the database, you can enter the street address or a
major intersection c lose to it and the sys tem will guide you there.
The system will provide both a visual map and audio instructions. The audio
in structions will announce the distance remaining and the direction to turn in
approaching an
intersection. These voice instructions will help you keep your
eyes on the road and are tim ed to provide enough time to allow you to
maneuver, ch ange lanes or slow down.
Please be aware th at all current vehicle navigation systems have certain
limit atio ns that may affect their ability to perform properly. The accuracy of the
vehi cle’s pos ition depends on the satellite condition, road co nfiguration,
vehicle condi tion or other circumstances. F or more information on the
limitations of the system, refer to page 156.
4

IMPORTANT INFORMATION ABOUT THIS MANUAL
For safety reasons, this manual indicates items requiring particular attention
with the following mar ks.

WARNING

Th
is is a warn ing aga inst anything which may cause i njury to peop le if the wa rning is
ig nored. You are i nformed about what you must or mus t not do in ord er to re duce the risk
of i njury to yourself and ot hers.

NOTICE


Th is is a warn ing agai nst anyt hing which may ca use damage to the veh icle or its
equ ipmen t if the warning is ig nored. You are inf orme d about what yo u must or must not
do in order to avoid or reduce the risk o f damage to your ve hicle and its e quipment.
5

SAFETY INSTRUCTION WARNING


To
use this system in the safest possible
man ner, f ollow all the safety t ips shown
be low.
This system is intended to assist in
reachi ng the desti nation and, if used
prop erly, can do so. The driver is solely
responsible for the s afe oper ation of your
vehicle and the safety of your passe ngers.
Do not use any feature of this system to
the exte nt it beco mes a dist raction and
pr events s afe dr ivi ng. The first prio rity
wh ile driving should al ways be the safe
op erati on of the vehicle. Wh ile drivi ng, be
sur e to obs erve all tr affic r egu lations.
Prior to the ac tual use of this system, learn
how to use it and become thoro ughly
fami liar with it. Read the entire Pr emium
Audio system Owne r’s ma nual to make
sure you understand the syste m. Do not
allow other people to use this sys tem until
they have re ad an d understood the
instructio ns in this manu al.
For your safety, some functions m ay
be come ino perab le when driving.
U nava ila ble screen bu ttons are gray ed
out .

For sa fety, the dri ver should not operate
the navig ation system whi le he/ she is
dr iving. In sufficient att enti on to the road
and traffic may ca use an accident.
Whi le dr iving , be sure to obey the traffic
reg ula tions and mainta in awareness o f
the road cond itio ns . If a traffic si gn on
the road has been chang ed, route
gu ida nce may not have the up dated
in forma tio n such as the directi on of a
one way s tree t.

Wh ile dri ving, listen to the voice
instru ctions as much as possi ble and
gl ance at the scre en briefly and on ly when
it is safe. However, do not totally rely on
vo ice guid ance. Use it just for reference. If
the system can not determin e the current
veh icle positi on correctl y, th ere is a
possi bili ty of inc orrect, late, or missing
voice g uid an ce.
The data in the system may occasionally
be inco mplete. Road cond itions, inclu ding
driv ing restricti ons (no le ft turns, street
closures, et c.) frequently change.
Therefo re, before followi ng any instruction
from the syste m, look to see wh ether the
instruction can be d one safely and legally.
This system cannot warn about such
t hi

ngs as the safety of an area, cond ition of
stre ets, and availabi lity of emergency
services. If unsure a bout the safety of an
area, do not drive into it. Und er no
circumstances is this system a s ubst itute
for the driver’s person al judg ment.
Use this system o nly in lo ca tions whe re it
is le gal to d o so.
6

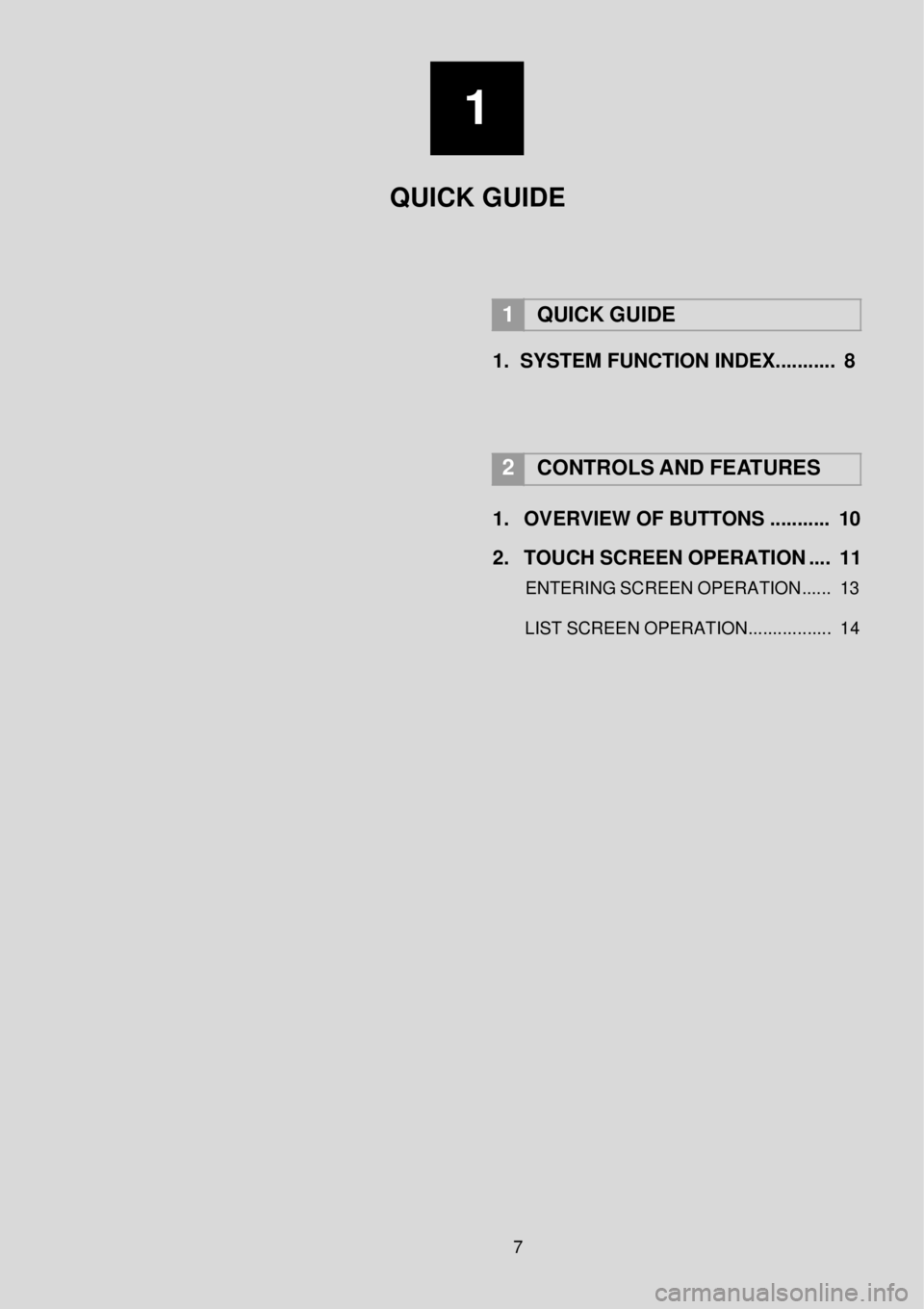

1
