OVERVIEW OF INSTRUMENTS AND CONTROLS5
1. Card holder
2. Air conditioning controls
3. Emergency flasher switch
4. Heater idle up switch
5. Headlight and turn signal switches
6. Wiper and washer switches
7. Engine switch
8. Tilt and telescopic steering lock
release lever9. Cigarette lighter
10. Headlight beam level control dial
11 . A s h t r a y
12. Auxiliary box
13. Cup holder
14. Rear fog light switch
15. DPF (Diesel Particulate Filter) system
manual regeneration switch
(If equipped)
16. Audio system
Dyna100/150_EE

6OVERVIEW OF INSTRUMENTS AND CONTROLS

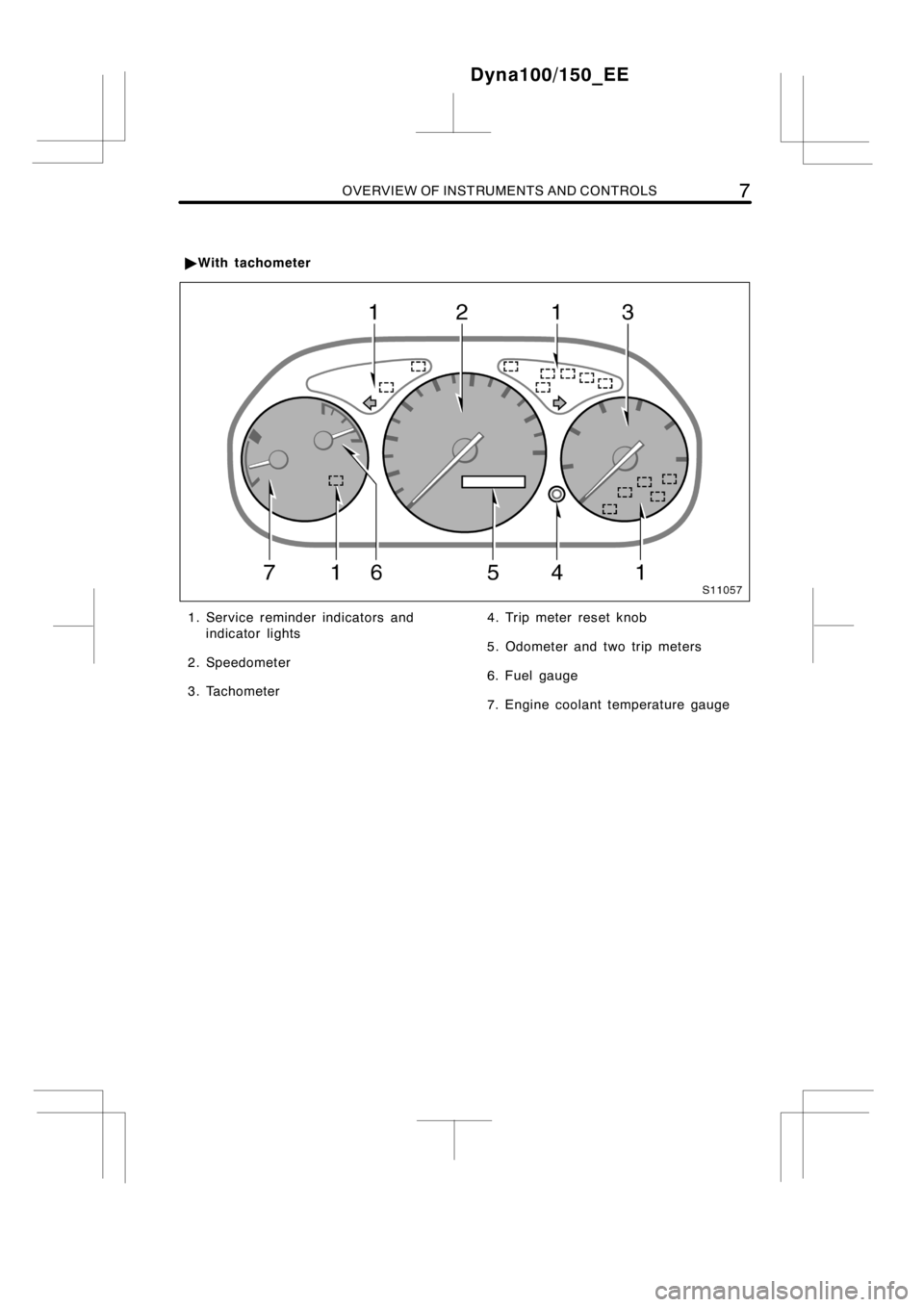

1. Service reminder indicators and
indicator lights
2. Speedometer
3. Trip meter reset knob4. Odometer and two trip meters
5. Fuel gauge
6. Engine coolant temperature gauge
Dyna100/150_EE
Instrument cluster overview
"Without tachometer

OVERVIEW OF INSTRUMENTS AND CONTROLS7
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Tachometer4. Trip meter reset knob
5. Odometer and two trip meters
6. Fuel gauge
7. Engine coolant temperature gauge
Dyna100/150_EE
"With tachometer

8OVERVIEW OF INSTRUMENTS AND CONTROLS
Brake system warning light

Charging system warning light

Low engine oil pressure warning light

Low engine oil level warning light

Malfunction indicator lamp

Low fuel level warning light

Anti−lock brake system warning light

SRS warning light

DPF (Diesel Particulate Filter) system indicator
light

Timing belt replacement warning light

Fuel filter warning light

Engine oil change reminder light

Headlight high beam indicator light
Dyna100/150_EE
Indicator symbols on the instrument panel

OVERVIEW OF INSTRUMENTS AND CONTROLS9
Turn signal indicator lights
Engine preheating indicator light
The indicators marked with
are service reminder indicators. For
details, see “Service reminder indicators and warning buzzer” on
page 73 in Section 1−5.
Dyna100/150_EE

10OVERVIEW OF INSTRUMENTS AND CONTROLS
Dyna100/150_EE

KEYS AND DOORS11
Section 1−2
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
DKeys 12..............................................
DSide doors 13.........................................
DPower windows 14.....................................
DTailgate and side gates 16..............................
DEngine access hole cover 17...........................
DTilt cab 18............................................
DFuel tank cap 21.......................................
Dyna100/150_EE

12KEYS AND DOORS

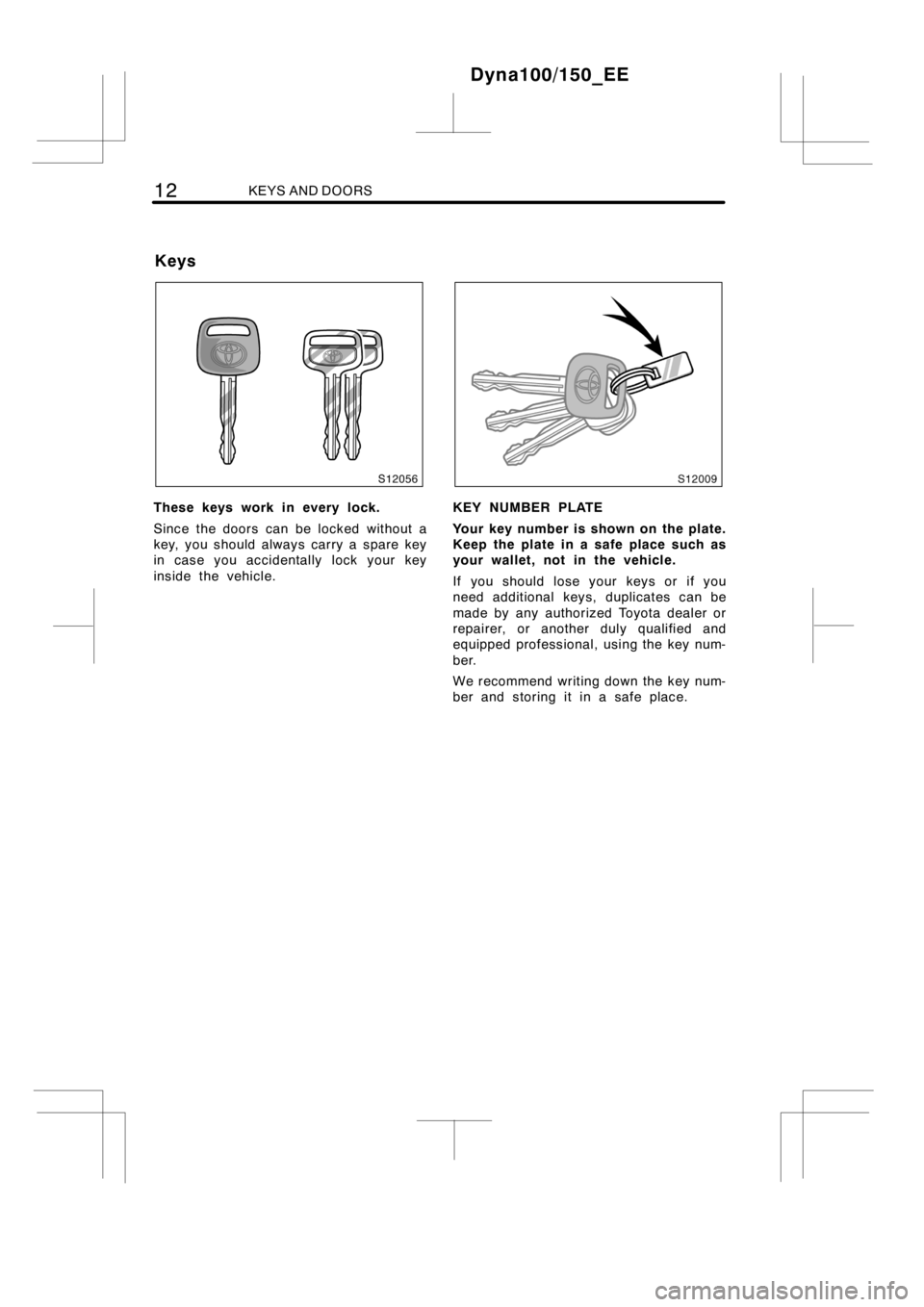

These keys work in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional, using the key num-
ber.
We recommend writing down the key num-
ber and storing it in a safe place.
Dyna100/150_EE
Keys

KEYS AND DOORS13
LOCKING AND UNLOCKING WITH KEY

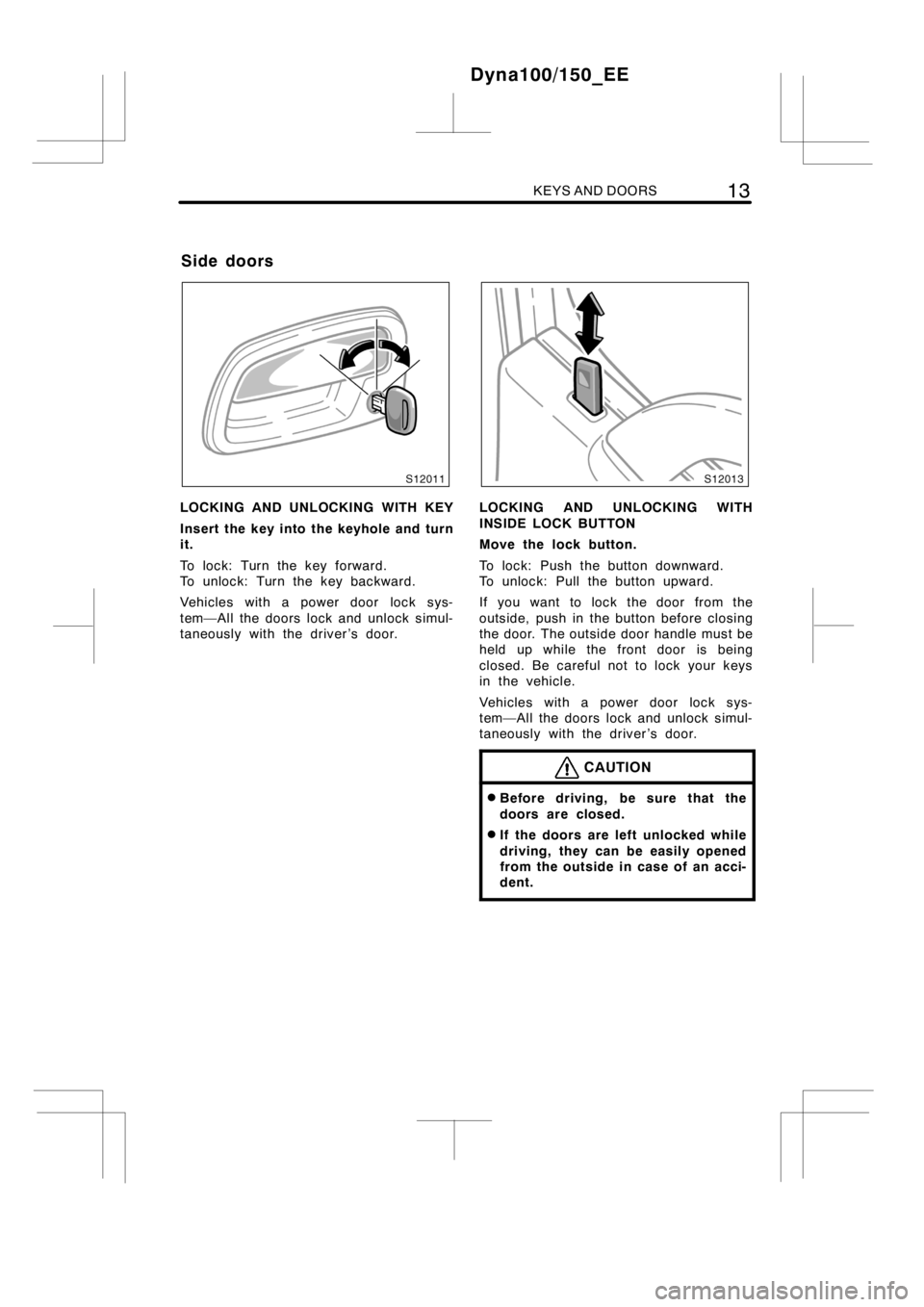

Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with a power door lock sys-
tem—All the doors lock and unlock simul-
taneously with the driver ’s door.LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
If you want to lock the door from the
outside, push in the button before closing
the door. The outside door handle must be
held up while the front door is being
closed. Be careful not to lock your keys
in the vehicle.
Vehicles with a power door lock sys-
tem—All the doors lock and unlock simul-
taneously with the driver ’s door.
CAUTION
DBefore driving, be sure that the
doors are closed.
DIf the doors are left unlocked while
driving, they can be easily opened
from the outside in case of an acci-
dent.
Dyna100/150_EE
Side doors

14KEYS AND DOORS
The windows can be operated with the
switch on each front door.
The power windows work when the engine
switch is in the “ON” position.

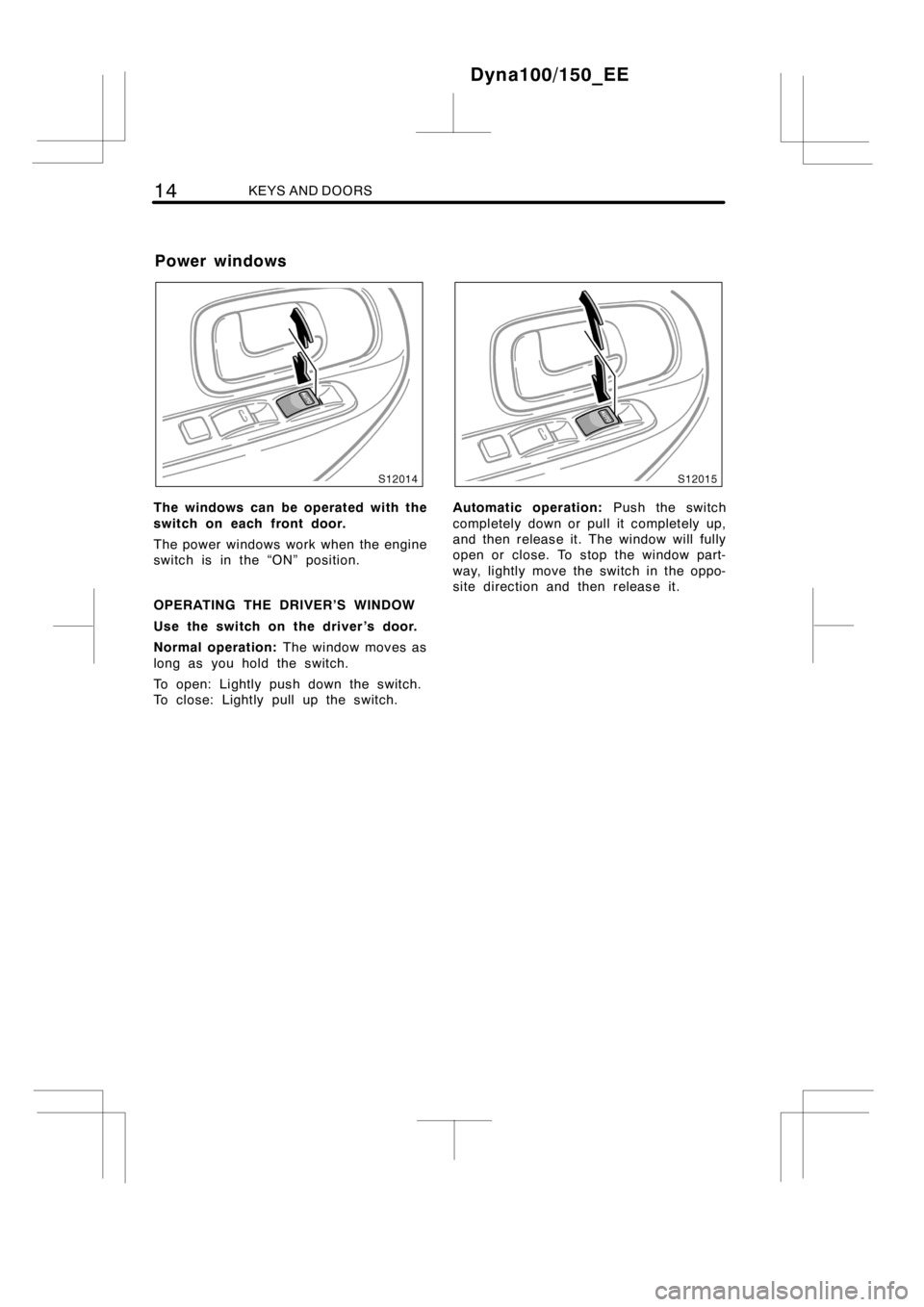

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver ’s door.
Normal operation:The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.Automatic operation:Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Dyna100/150_EE
Power windows
