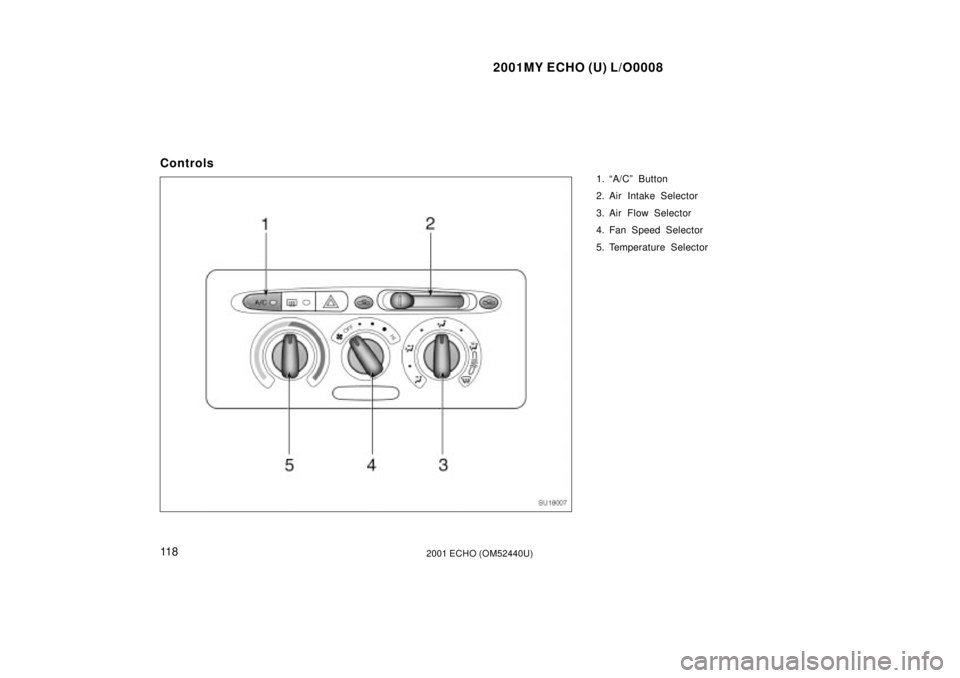

Controls
1. ªA/Cº Button
2. Air Intake Selector
3. Air Flow Selector
4. Fan Speed Selector
5. Temperature Selector
SU18007

2001MY ECHO (U) L/O0008
11 92001 ECHO (OM52440U)
Fan speed selector
Turn the knob to adjust the fan speedÐto
the right to increase, to the left to de-
crease.
Temperature selector
Turn the knob to adjust the temperatureÐ
to the right to warm, to the left to cool.
Air flow selector
Turn the knob to select the vents used for
air flow.1. PanelÐ Air flows mainly from the
instrument panel vents.
2. Bi±levelÐ Air flows from both the floor
vents and the instrument panel vents.
3. FloorÐ Air flows mainly from the floor
vents.
4. Floor/WindshieldÐ Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH. 5. WindshieldÐ
Air flows mainly from the
windshield vents.
Use with the air intake selector posi-
tioned in FRESH.
For details about air flow selector settings,
see the illustration after ªA/Cº button.
Turning the air flow control knob to wind-
shield or floor/windshield position turns on
the defroster±linked air conditioning. This
is to clean up the front view more quickly.
When the ªA/Cº button is not pressed in,
turning the air flow control knob to anoth-
er position turns off the air conditioning.

2001MY ECHO (U) L/O0008
1202001 ECHO (OM52440U)
Air intake selector
Move the lever to select the air source.1. RecirculateÐ Recirculates the air inside
the vehicle.
2. FreshÐ Draws outside air into the sys-
tem. ªA/Cº button
To turn on the air conditioning, press the
ªA/Cº button. The ªA/Cº button indicator
will come on. To turn the air conditioning
off, press the button again.

2001MY ECHO (U) L/O0008
1212001 ECHO (OM52440U)

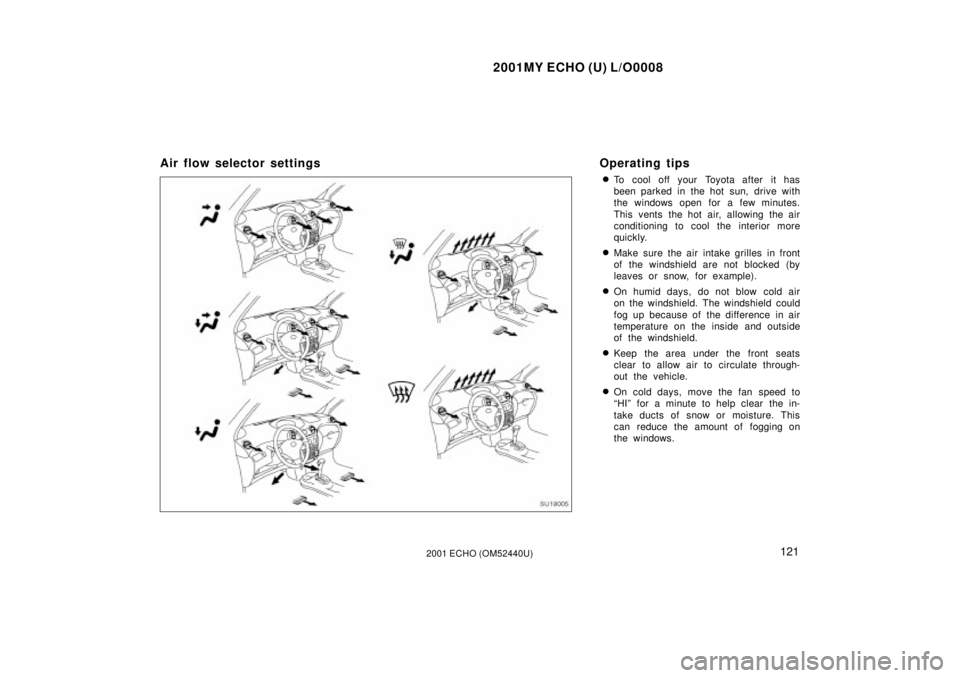

Air flow selector settingsOperating tips

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.

Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).

On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.

Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.

On cold days, move the fan speed to
ªHIº for a minute to help clear the in-
take ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
SU18005

2001MY ECHO (U) L/O0008
1222001 ECHO (OM52440U)

When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except ªOFFº.

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATED, which will close off
the outside passage and prevent out-
side air and dust from entering the
vehicle interior.

When turning the temperature selector
fully to the left±ªMax.coolº position,
cold air comes out from the center
vents in spite of the position of the air
flow selector.Heating
For best results, set controls to:
Fan speedÐ Any setting except ªOFFº
TemperatureÐ Towards red zone
Air intakeÐFRESH (outside air)
Air flowÐFLOOR
Air conditioningÐOFF

For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.

Press the ªA/Cº button on for dehumidi-
fied heating.

Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield. Air conditioning
For best results, set controls to:
Fan speedÐ Any setting except ªOFFº
TemperatureÐ To w a r d s blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐON

For quick cooling, move the air intake
selector to recirculate for a few min-
utes.
Ventilation
For best results, set controls to:
Fan speedÐ Any setting except ªOFFº
TemperatureÐ Towards blue zone
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF

2001MY ECHO (U) L/O0008
1232001 ECHO (OM52440U)
Defogging
The inside of the windshield
For best results, set controls to:Fan speedÐ Any setting except ªOFFº
TemperatureÐ Towards red zone to heat;
blue zone to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster±
linked air conditioning. This is to clean up
the front view more quickly.
When the ªA/Cº button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.

On humid days, do not blow cold air
on the windshieldÐthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse. Defrosting
The outside of the windshield
For best results, set controls to:
Fan speedÐ Any setting except ªOFFº
TemperatureÐ Towards red zone
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Turning the air flow control knob to wind-
shield position turns on the defroster±
linked air conditioning. This is to clean up
the front view more quickly.
When the ªA/Cº button is not pressed in,
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
shield turns off the air conditioning.

To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.
Instrument panel vents
SU18008
ÐCenter vents ÐSide vents
Close Close
Open Open
If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.

2001MY ECHO (U) L/O0008
1242001 ECHO (OM52440U)

2001MY ECHO (U) L/O0008
1252001 ECHO (OM52440U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Glove box 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1± 9

2001MY ECHO (U) L/O0008
1262001 ECHO (OM52440U)
Clock
SY19008a
The digital clock indicates the time.
The key must be in the ªACCº or ªONº
position.
To reset the hour: Push the ªHº button.
To reset the minutes: Push the ªMº button.
If quick adjustment to a full hour is de-
sired, push the ª:00º button.
For example, if the ª:00º button is de-
pressed when the time is between
1:01Ð1:29, the time will change to 1:00. If
the time is between 1:30Ð1:59, the time
will change to 2:00.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
Cigarette lighter and ashtray
SU19002
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
When it becomes heated, it automatical-
ly pops out ready for use.
If the engine is not running, the key must
be in the ªACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
