fuel tank capacity TOYOTA GR86 2022 Owners Manual (in English)

12Pictorial index
Refueling method .............................................................................P.162
Fuel type/fuel tank capacity .............................................................P.370
Tires ................................................................................................P.301
Tire size/inflation pressure ...............................................................P.375
Winter tires/tire chain .......................................................................P.260
Checking/rotation/tire pressure warn ing system ..............................P.301
Coping with flat tires.........................................................................P.345
Hood ................................................................................................P.293
Opening ...........................................................................................P.293
Engine oil .........................................................................................P.370
Coping with overheating ..................................................................P.362
Warning messages ..........................................................................P.344
Headlights/front position lights/daytime running lights/
turn signal lights ....................................................................P.150, 153
Turn signal lights ...........................................................................P.150
Stop lights/tail lights/turn signal lights................................P.150, 153
License plate lights........................................................................P.153
Rear fog light ..................................................................................P.159
Back up light
Shifting the shift lever to R .......................................................P.144, 147
Light bulbs of the exterior lights for driving
(Replacing method: P.321, Watts: P.375)

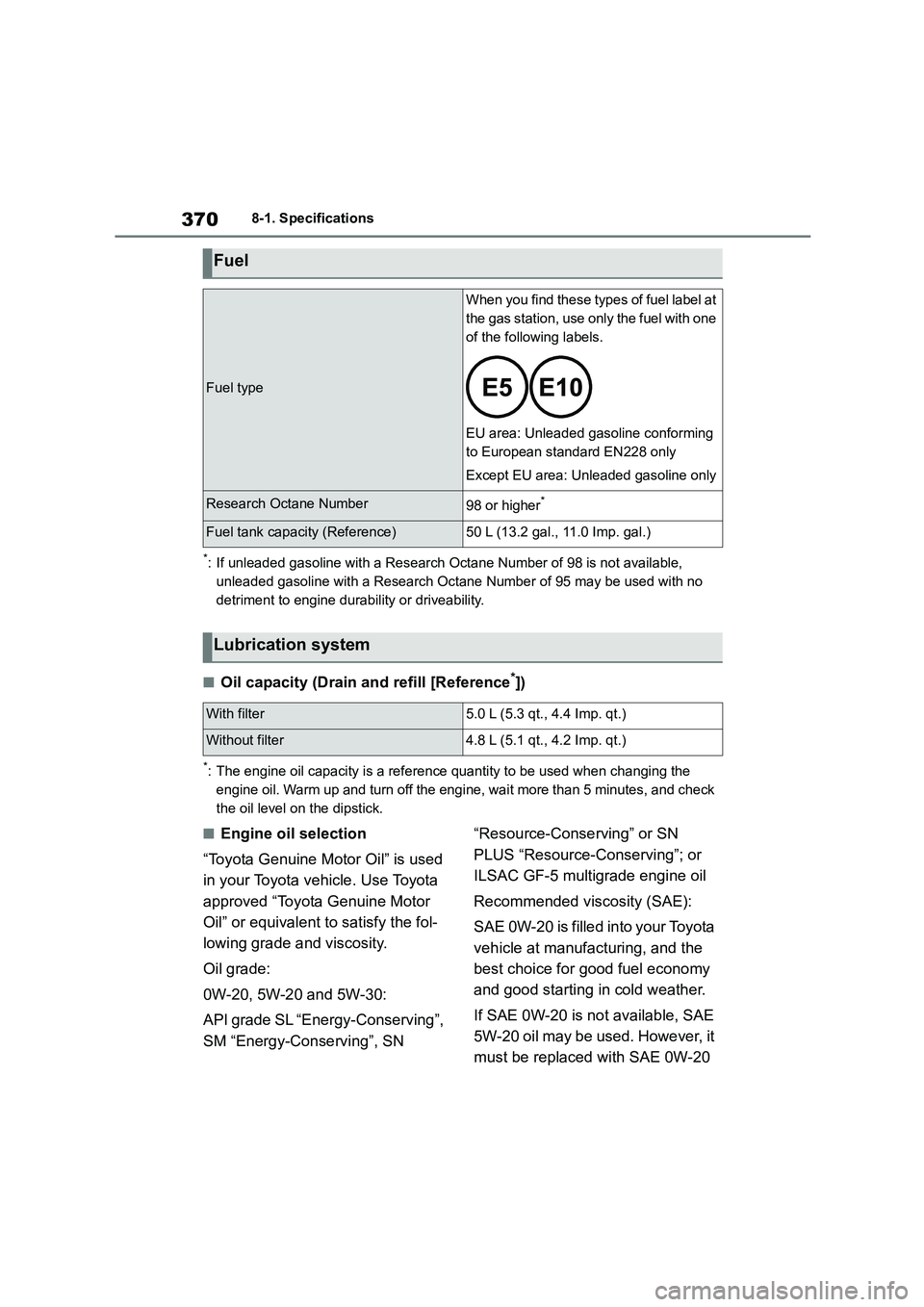

3708-1. Specifications
*: If unleaded gasoline with a Research Octane Number of 98 is not available,
unleaded gasoline with a Research Octane Number of 95 may be used with no
detriment to engine durability or driveability.
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check
the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the fol-
lowing grade and viscosity.
Oil grade:
0W-20, 5W-20 and 5W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN
PLUS “Resource-Conserving”; or
ILSAC GF-5 multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled in to your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area: Unleaded gasoline conforming
to European standard EN228 only
Except EU area: Unleaded gasoline only
Research Octane Number98 or higher*
Fuel tank capacity (Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Lubrication system
With filter5.0 L (5.3 qt., 4.4 Imp. qt.)
Without filter4.8 L (5.1 qt., 4.2 Imp. qt.)

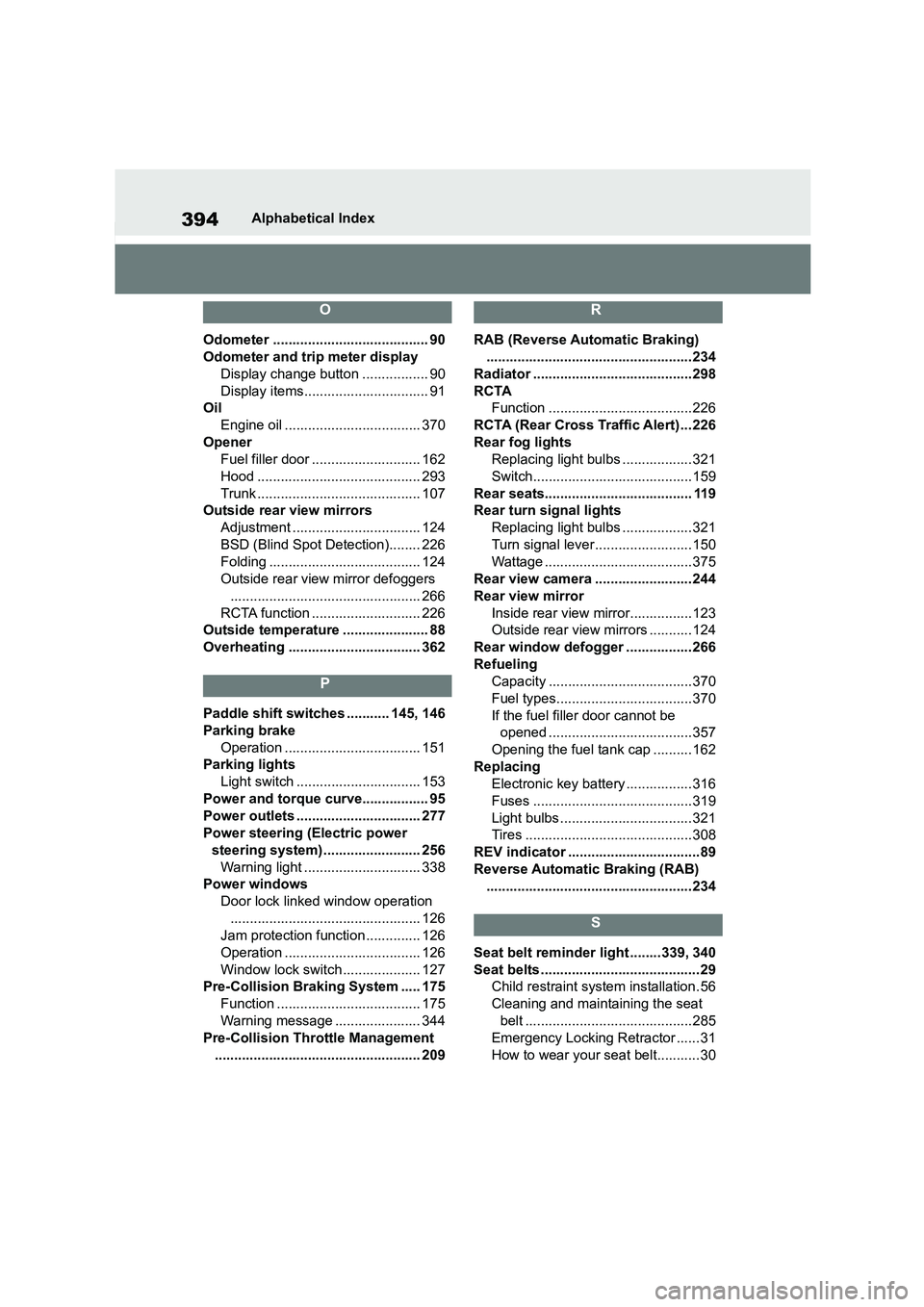

394Alphabetical Index
O
Odometer ........................................ 90
Odometer and trip meter display
Display change button ................. 90
Display items................................ 91
Oil
Engine oil ................................... 370
Opener
Fuel filler door ............................ 162
Hood .......................................... 293
Trunk .......................................... 107
Outside rear view mirrors
Adjustment ................................. 124
BSD (Blind Spot Detection)........ 226
Folding ....................................... 124
Outside rear view mirror defoggers
................................................. 266
RCTA function ............................ 226
Outside temperature ...................... 88
Overheating .................................. 362
P
Paddle shift switches ........... 145, 146
Parking brake
Operation ................................... 151
Parking lights
Light switch ................................ 153
Power and torque curve................. 95
Power outlets ................................ 277
Power steering (Electric power
steering system)......................... 256
Warning light .............................. 338
Power windows
Door lock linked window operation
................................................. 126
Jam protection function .............. 126
Operation ................................... 126
Window lock switch .................... 127
Pre-Collision Braking System ..... 175
Function ..................................... 175
Warning message ...................... 344
Pre-Collision Throttle Management
..................................................... 209
R
RAB (Reverse Automatic Braking)
..................................................... 234
Radiator .........................................298
RCTA
Function .....................................226
RCTA (Rear Cross Traffic Alert)... 226
Rear fog lights
Replacing light bulbs ..................321
Switch.........................................159
Rear seats...................................... 119
Rear turn signal lights
Replacing light bulbs ..................321
Turn signal lever ......................... 150
Wattage ......................................375
Rear view camera ......................... 244
Rear view mirror
Inside rear view mirror................123
Outside rear view mirrors ........... 124
Rear window defogger ................. 266
Refueling
Capacity .....................................370
Fuel types...................................370
If the fuel filler door cannot be
opened ..................................... 357
Opening the fuel tank cap .......... 162
Replacing
Electronic key battery ................. 316
Fuses .........................................319
Light bulbs .................................. 321
Tires ...........................................308
REV indicator .................................. 89
Reverse Automatic Braking (RAB)
..................................................... 234
S
Seat belt reminder light ........339, 340
Seat belts ......................................... 29
Child restraint system installation. 56
Cleaning and maintaining the seat
belt ...........................................285
Emergency Locking Retractor ...... 31
How to wear your seat belt........... 30
