TOYOTA GT86 2016 Owners Manual (in English)

271
3-5. Other interior features
3
Interior features
FT86_EE

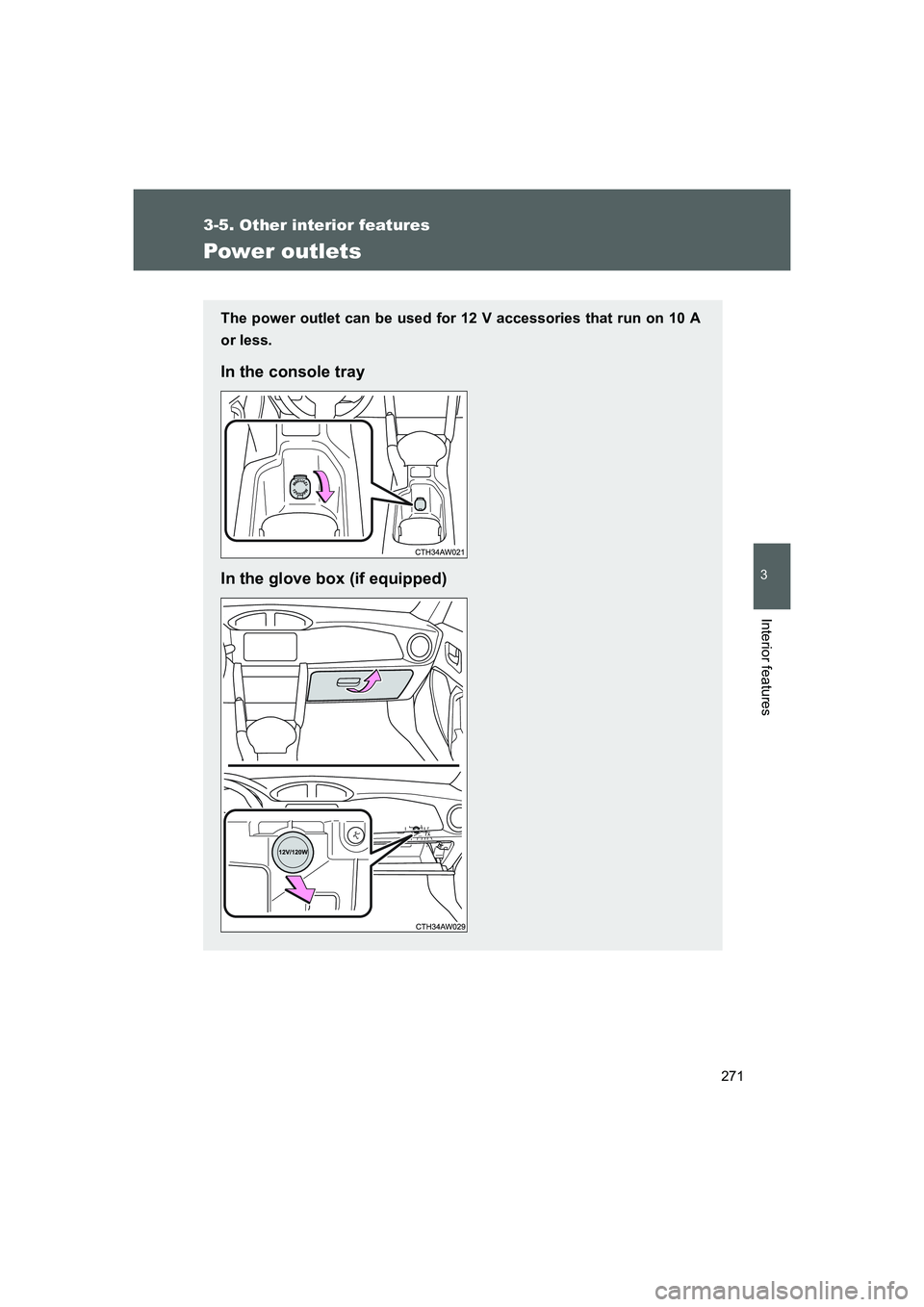

Power outlets
The power outlet can be used for 12 V accessories that run on 10 A
or less.
In the console tray
In the glove box (if equipped)
86_OM_EE_OM18058E.book 271 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

272 3-5. Other interior features
FT86_EE

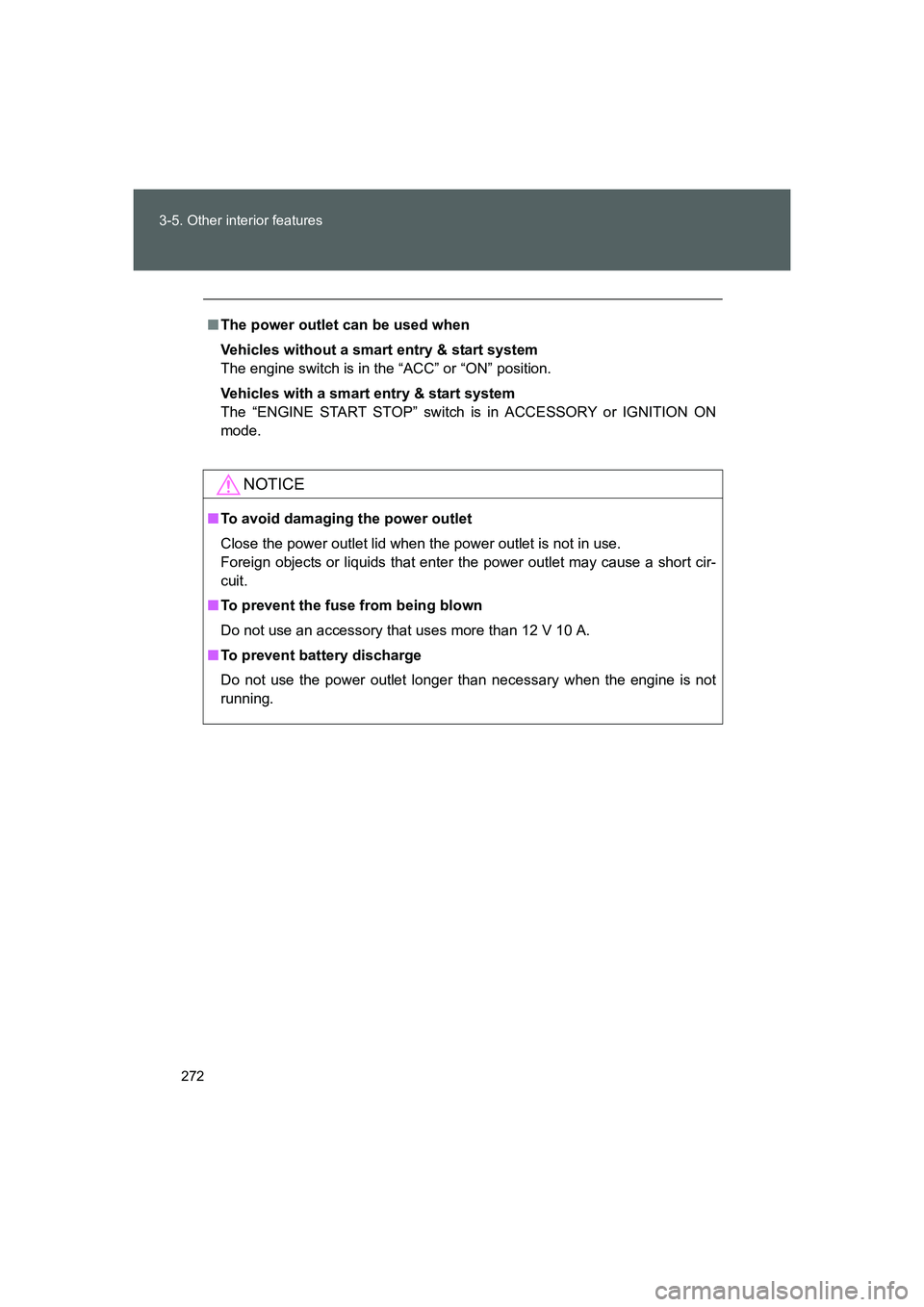

■The power outlet can be used when
Vehicles without a smart entry & start system
The engine switch is in the “ACC” or “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
86_OM_EE_OM18058E.book 272 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

273
3-5. Other interior features
3
Interior features
FT86_EE
Seat heaters∗
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Turn the seat heater off. The indicator light goes off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
●Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
∗: If equipped
Press the switch to warm the
seats.
The indicator light comes on
when a seat heater is turned
on.
Rapid heating
Normal heating
86_OM_EE_OM18058E.book 273 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

274 3-5. Other interior features
FT86_EE

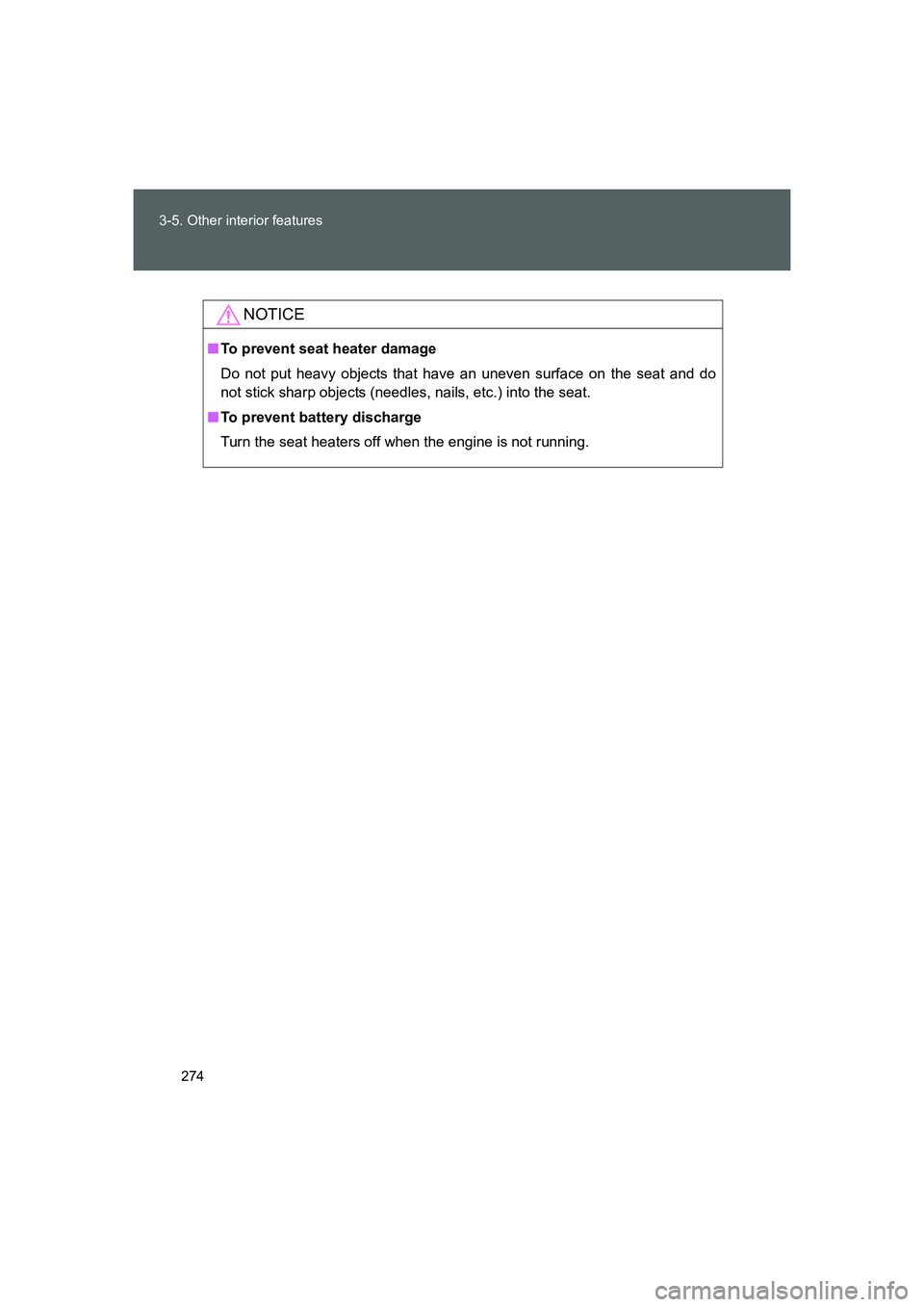

NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the seat heaters off when the engine is not running.
86_OM_EE_OM18058E.book 274 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

275
3-5. Other interior features
3
Interior features
FT86_EE

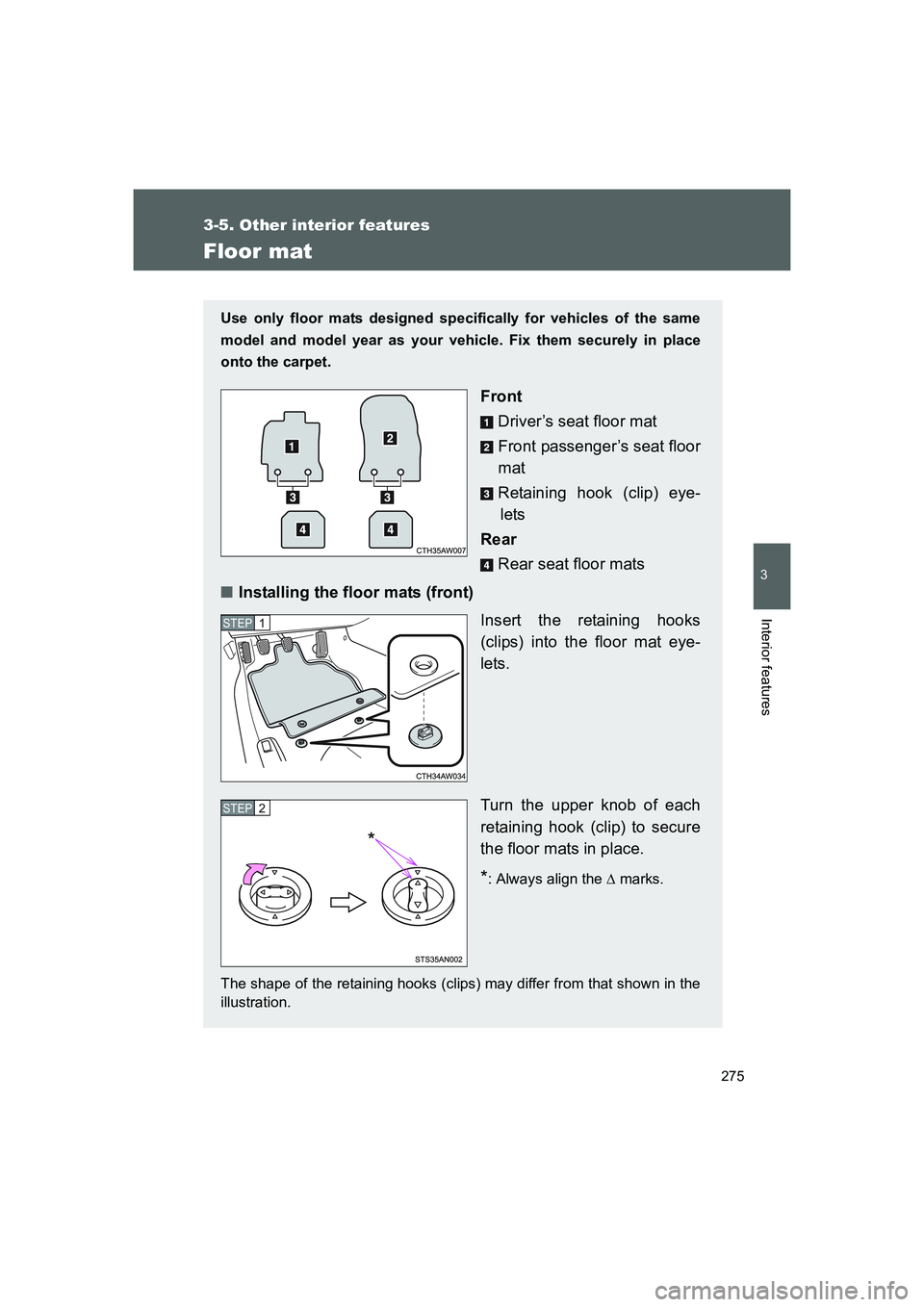

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Front
Driver’s seat floor mat
Front passenger’s seat floor
mat
Retaining hook (clip) eye-
lets
Rear
Rear seat floor mats
■Installing the floor mats (front)
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the ∆ marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP 1
STEP 2
*
86_OM_EE_OM18058E.book 275 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

276 3-5. Other interior features
FT86_EE

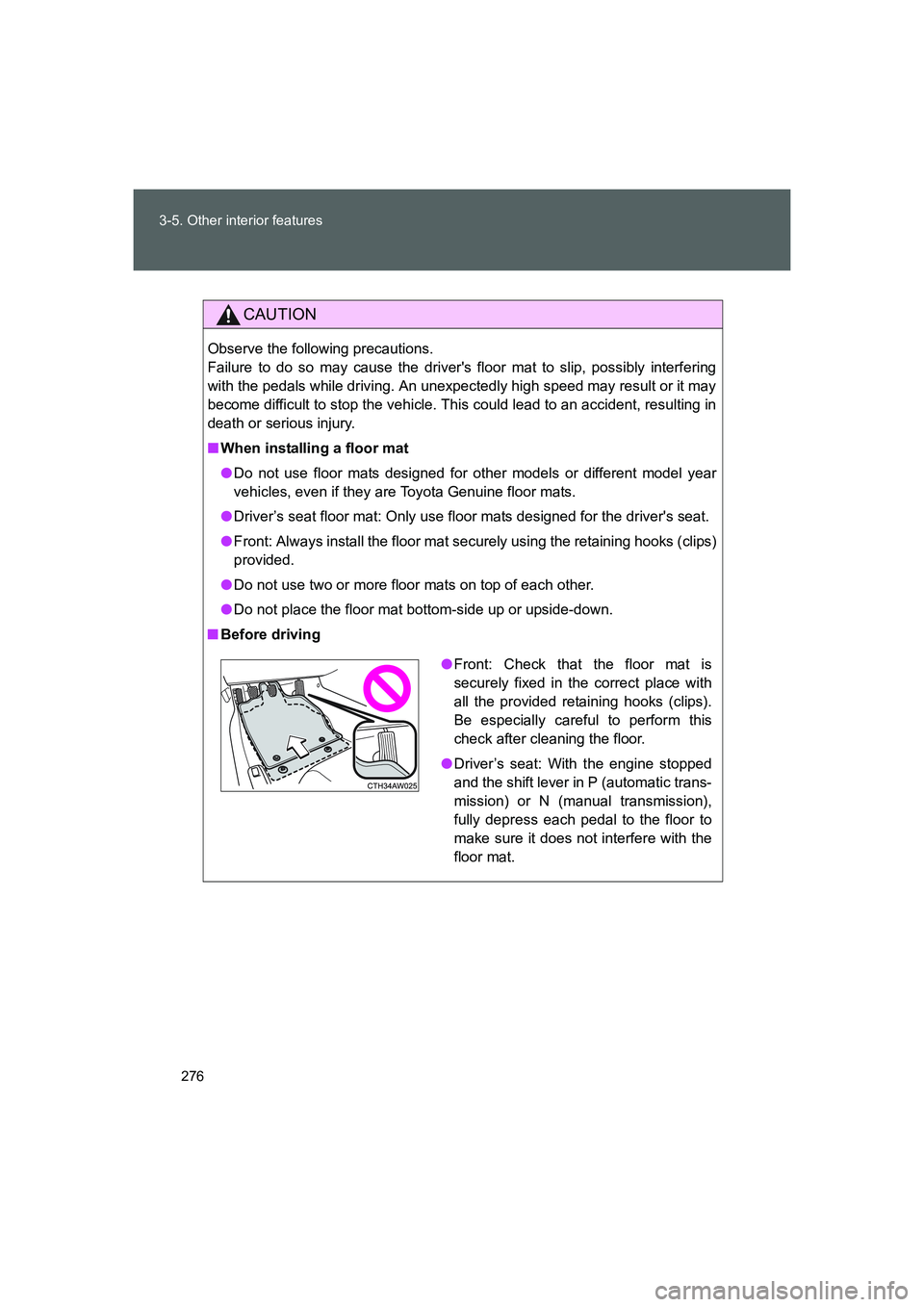

CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
■When installing a floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Driver’s seat floor mat: Only use floor mats designed for the driver's seat.
●Front: Always install the floor mat securely using the retaining hooks (clips)
provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Front: Check that the floor mat is
securely fixed in the correct place with
all the provided retaining hooks (clips).
Be especially careful to perform this
check after cleaning the floor.
●Driver’s seat: With the engine stopped
and the shift lever in P (automatic trans-
mission) or N (manual transmission),
fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.
86_OM_EE_OM18058E.book 276 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

277 3-5. Other interior features
3
Interior features
FT86_EE
NOTICE

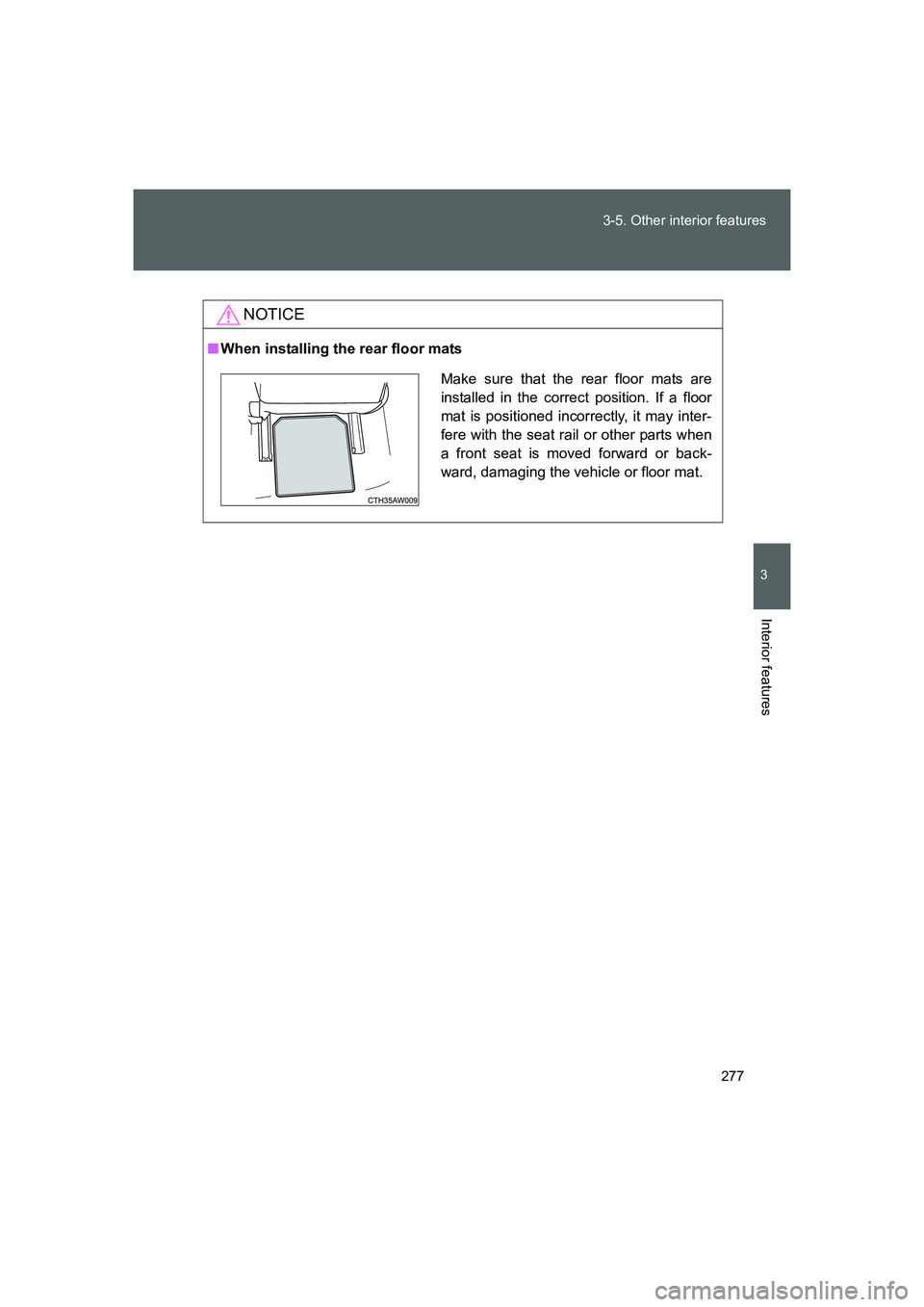

■When installing the rear floor mats
Make sure that the rear floor mats are
installed in the correct position. If a floor
mat is positioned incorrectly, it may inter-
fere with the seat rail or other parts when
a front seat is moved forward or back-
ward, damaging the vehicle or floor mat.
86_OM_EE_OM18058E.book 277 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

278
3-5. Other interior features
FT86_EE
Trunk features (vehicles with an emergency tire puncture repair kit)
■Auxiliary box
Vehicles with a luggage mat:
Lift up the luggage mat.
86_OM_EE_OM18058E.book 278 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

279 3-5. Other interior features
3
Interior features
FT86_EE

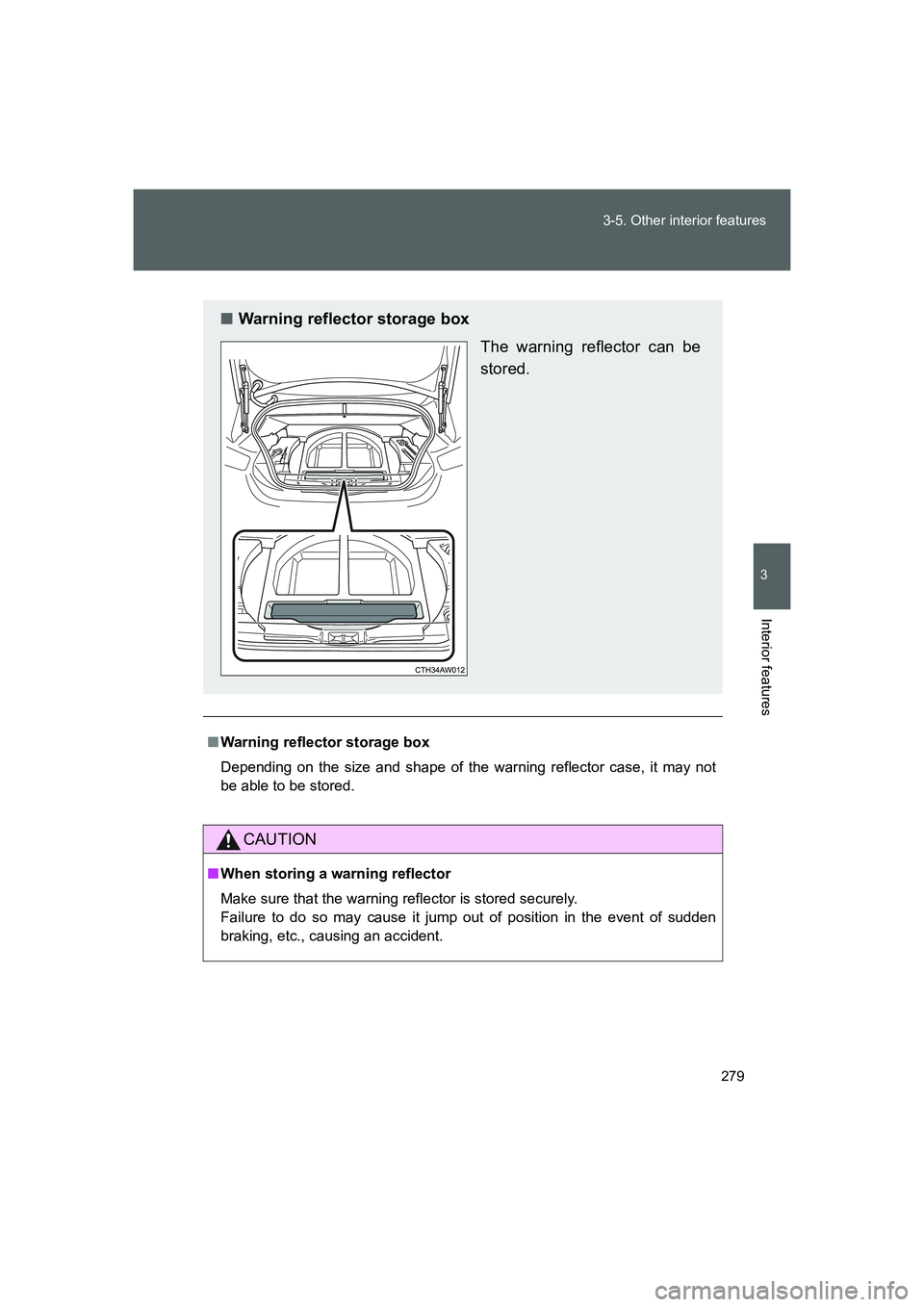

■Warning reflector storage box
Depending on the size and shape of the warning reflector case, it may not
be able to be stored.
CAUTION
■When storing a warning reflector
Make sure that the warning reflector is stored securely.
Failure to do so may cause it jump out of position in the event of sudden
braking, etc., causing an accident.
■Warning reflector storage box
The warning reflector can be
stored.
86_OM_EE_OM18058E.book 279 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

280 3-5. Other interior features
FT86_EE
86_OM_EE_OM18058E.book 280 ページ ２０１５年３月１７日　火曜日　午前１１時３１分
