TOYOTA GT86 2016 Owners Manual (in English)

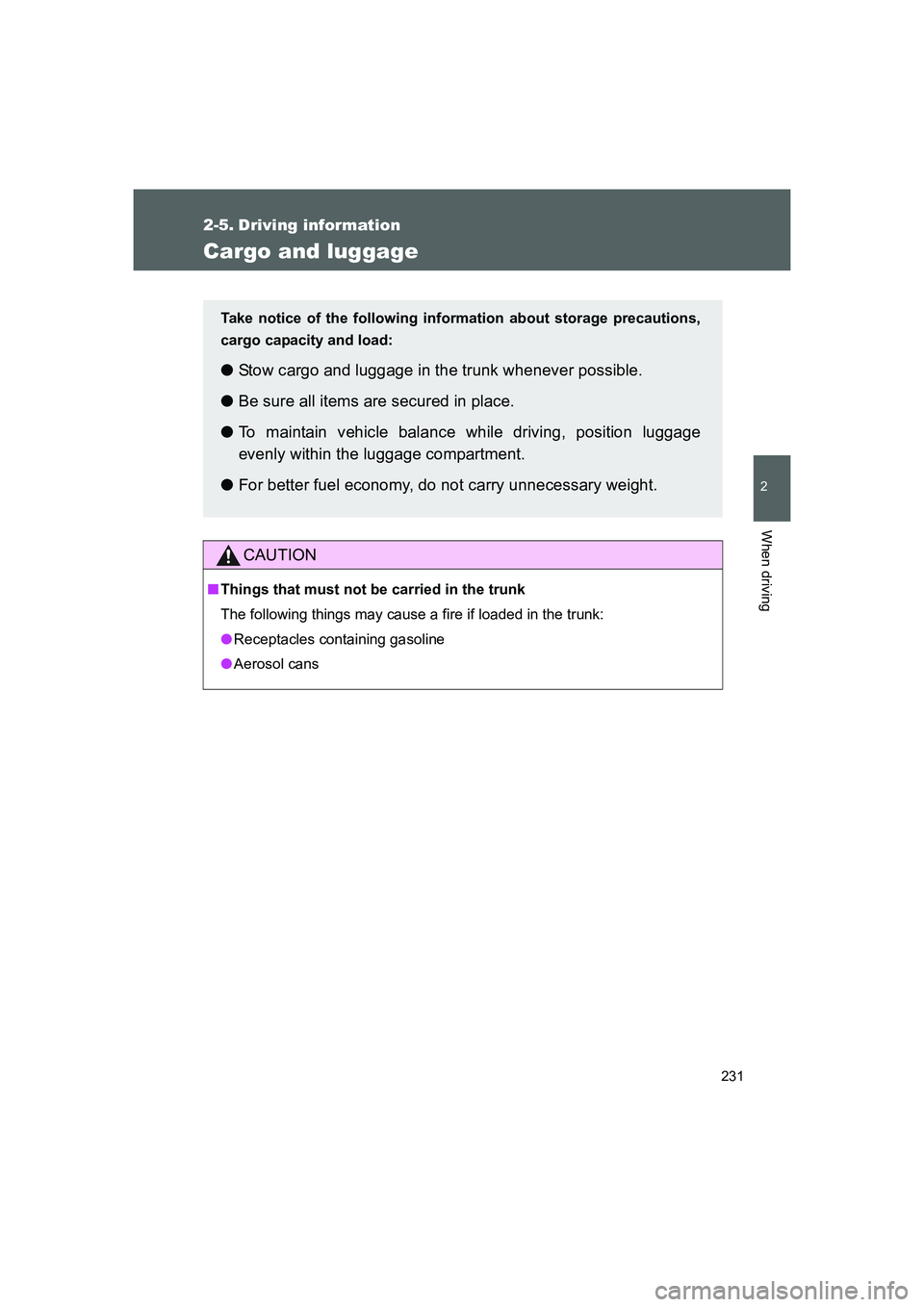

231
2
When driving
FT86_EE
2-5. Driving information
Cargo and luggage
CAUTION
■Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk:
●Receptacles containing gasoline
●Aerosol cans
Take notice of the following information about storage precautions,
cargo capacity and load:
●Stow cargo and luggage in the trunk whenever possible.
●Be sure all items are secured in place.
●To maintain vehicle balance while driving, position luggage
evenly within the luggage compartment.
●For better fuel economy, do not carry unnecessary weight.
86_OM_EE_OM18058E.book 231 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

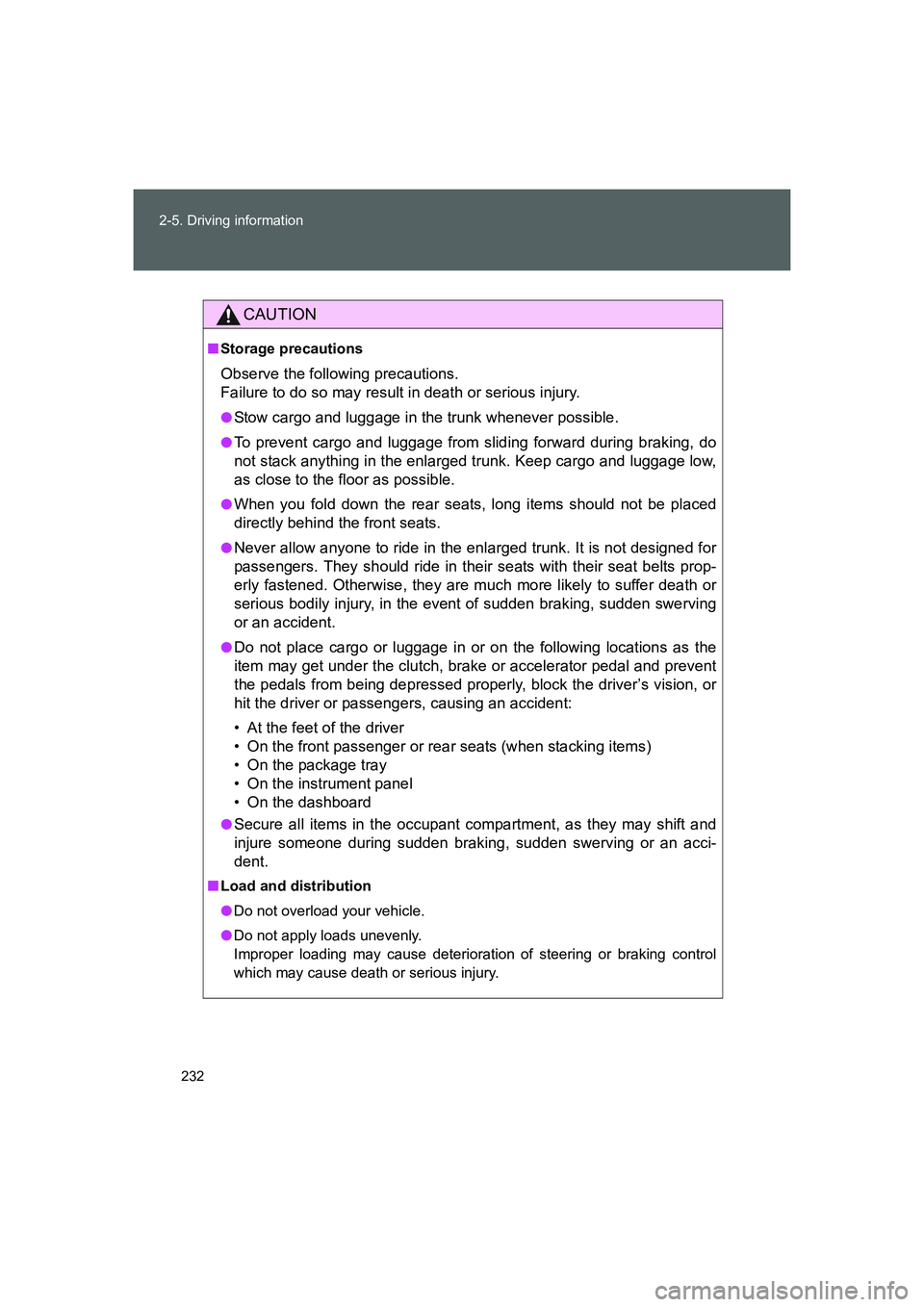

232 2-5. Driving information
FT86_EE
CAUTION
■Storage precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Stow cargo and luggage in the trunk whenever possible.
●To prevent cargo and luggage from sliding forward during braking, do
not stack anything in the enlarged trunk. Keep cargo and luggage low,
as close to the floor as possible.
●When you fold down the rear seats, long items should not be placed
directly behind the front seats.
●Never allow anyone to ride in the enlarged trunk. It is not designed for
passengers. They should ride in their seats with their seat belts prop-
erly fastened. Otherwise, they are much more likely to suffer death or
serious bodily injury, in the event of sudden braking, sudden swerving
or an accident.
●Do not place cargo or luggage in or on the following locations as the
item may get under the clutch, brake or accelerator pedal and prevent
the pedals from being depressed properly, block the driver’s vision, or
hit the driver or passengers, causing an accident:
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the package tray
• On the instrument panel
• On the dashboard
●Secure all items in the occupant compartment, as they may shift and
injure someone during sudden braking, sudden swerving or an acci-
dent.
■Load and distribution
●Do not overload your vehicle.
●Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.
86_OM_EE_OM18058E.book 232 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

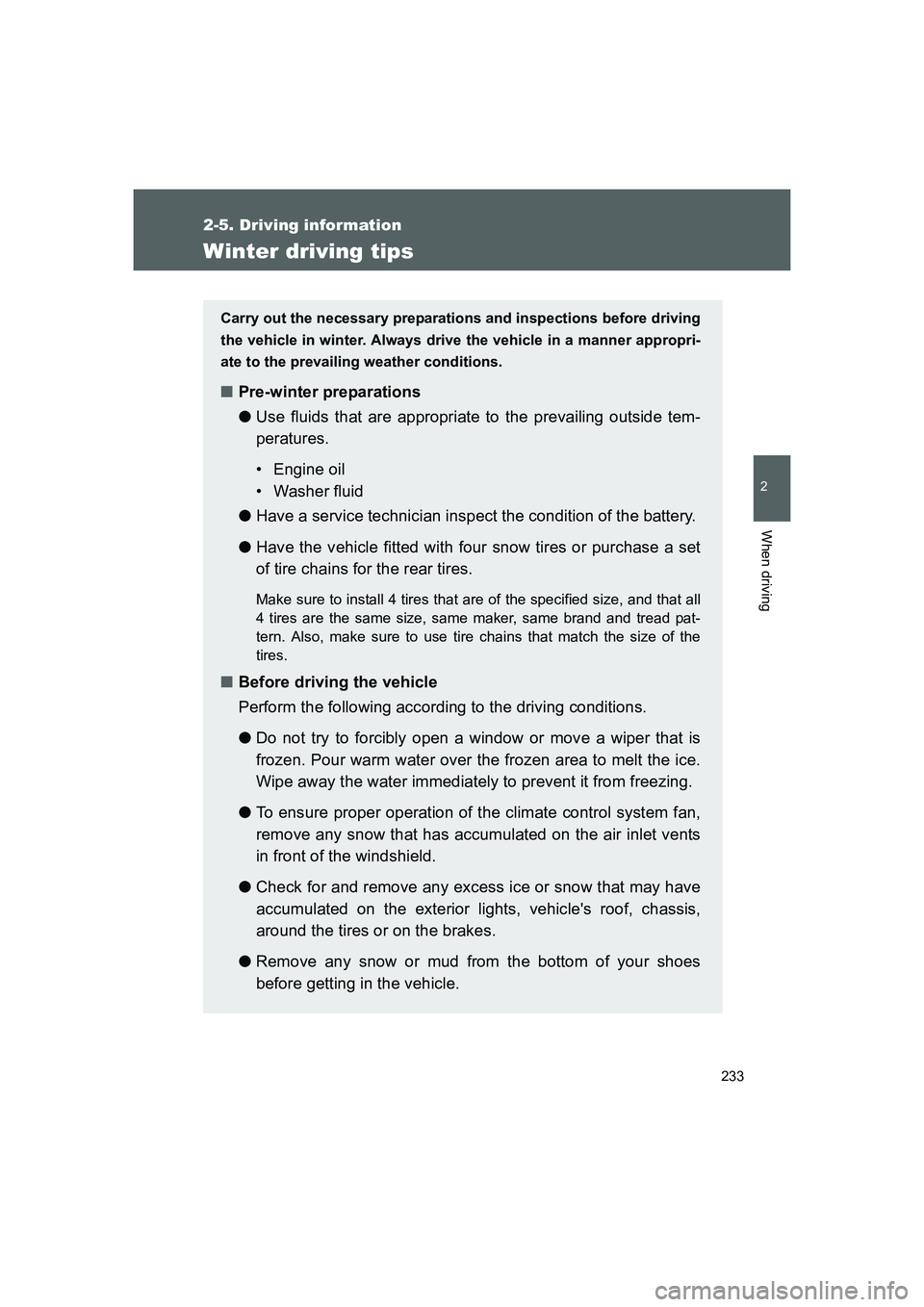

233
2-5. Driving information
2
When driving
FT86_EE
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.
■Pre-winter preparations
●Use fluids that are appropriate to the prevailing outside tem-
peratures.
• Engine oil
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the rear tires.
Make sure to install 4 tires that are of the specified size, and that all
4 tires are the same size, same maker, same brand and tread pat-
tern. Also, make sure to use tire chains that match the size of the
tires.
■Before driving the vehicle
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is
frozen. Pour warm water over the frozen area to melt the ice.
Wipe away the water immediately to prevent it from freezing.
●To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
●Check for and remove any excess ice or snow that may have
accumulated on the exterior lights, vehicle's roof, chassis,
around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes
before getting in the vehicle.
86_OM_EE_OM18058E.book 233 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

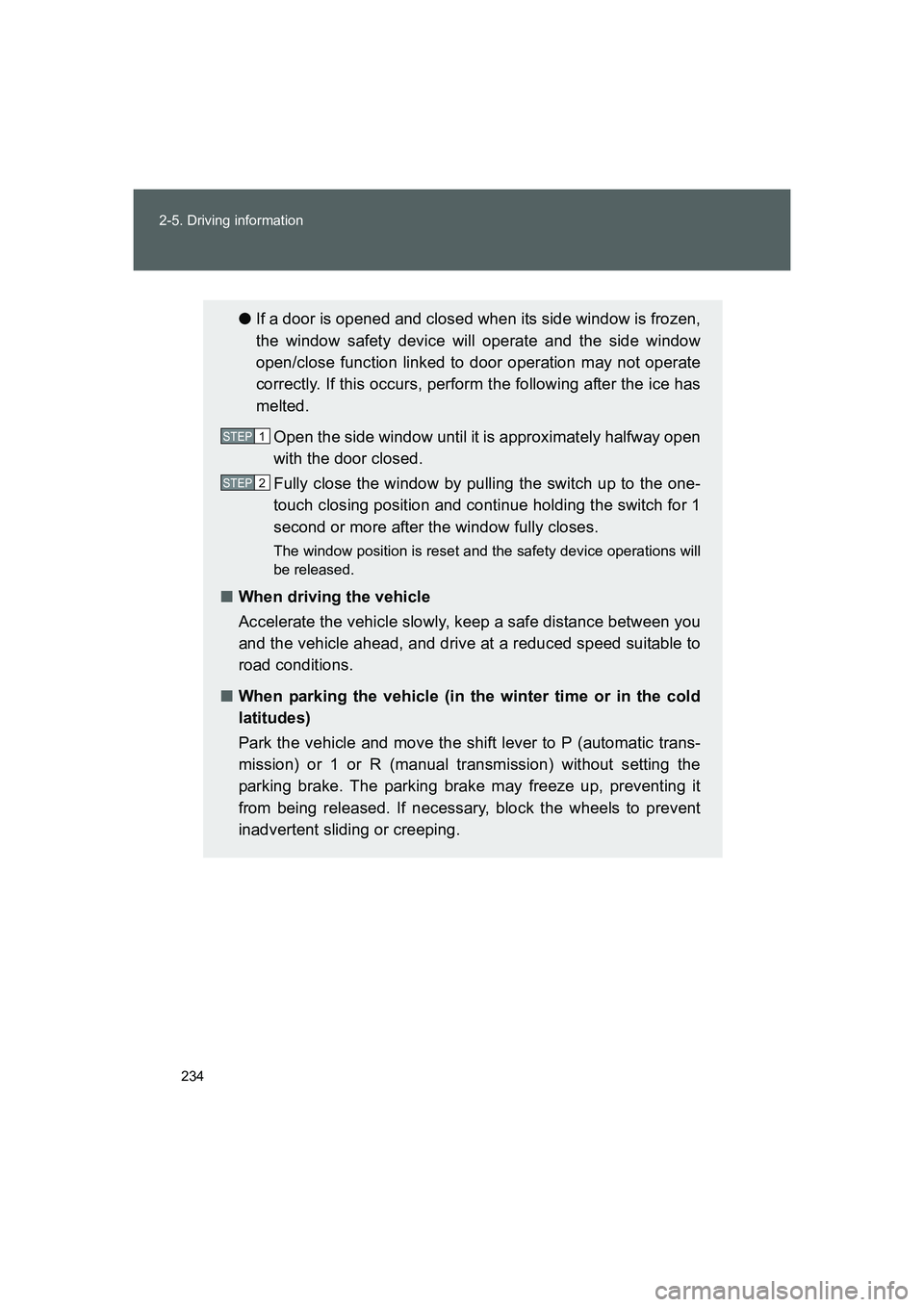

234 2-5. Driving information
FT86_EE
●If a door is opened and closed when its side window is frozen,
the window safety device will operate and the side window
open/close function linked to door operation may not operate
correctly. If this occurs, perform the following after the ice has
melted.
Open the side window until it is approximately halfway open
with the door closed.
Fully close the window by pulling the switch up to the one-
touch closing position and continue holding the switch for 1
second or more after the window fully closes.
The window position is reset and the safety device operations will
be released.
■When driving the vehicle
Accelerate the vehicle slowly, keep a safe distance between you
and the vehicle ahead, and drive at a reduced speed suitable to
road conditions.
■When parking the vehicle (in the winter time or in the cold
latitudes)
Park the vehicle and move the shift lever to P (automatic trans-
mission) or 1 or R (manual transmission) without setting the
parking brake. The parking brake may freeze up, preventing it
from being released. If necessary, block the wheels to prevent
inadvertent sliding or creeping.
STEP 1
STEP 2
86_OM_EE_OM18058E.book 234 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

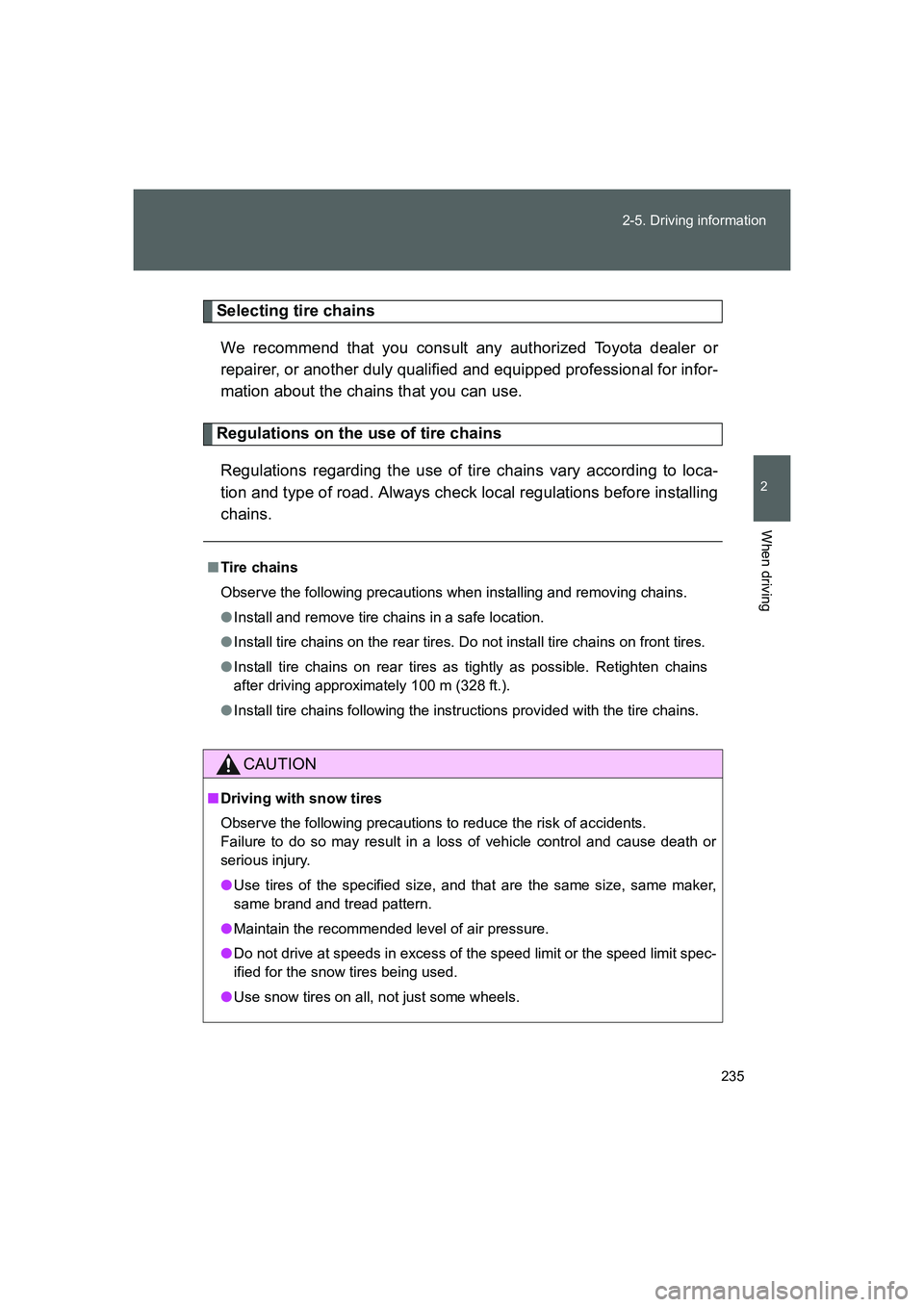

235 2-5. Driving information
2
When driving
FT86_EE
Selecting tire chains
We recommend that you consult any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for infor-
mation about the chains that you can use.
Regulations on the use of tire chains
Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before installing
chains.
■Tire chains
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
●Install tire chains on the rear tires. Do not install tire chains on front tires.
●Install tire chains on rear tires as tightly as possible. Retighten chains
after driving approximately 100 m (328 ft.).
●Install tire chains following the instructions provided with the tire chains.
CAUTION
■Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the specified size, and that are the same size, same maker,
same brand and tread pattern.
●Maintain the recommended level of air pressure.
●Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
●Use snow tires on all, not just some wheels.
86_OM_EE_OM18058E.book 235 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

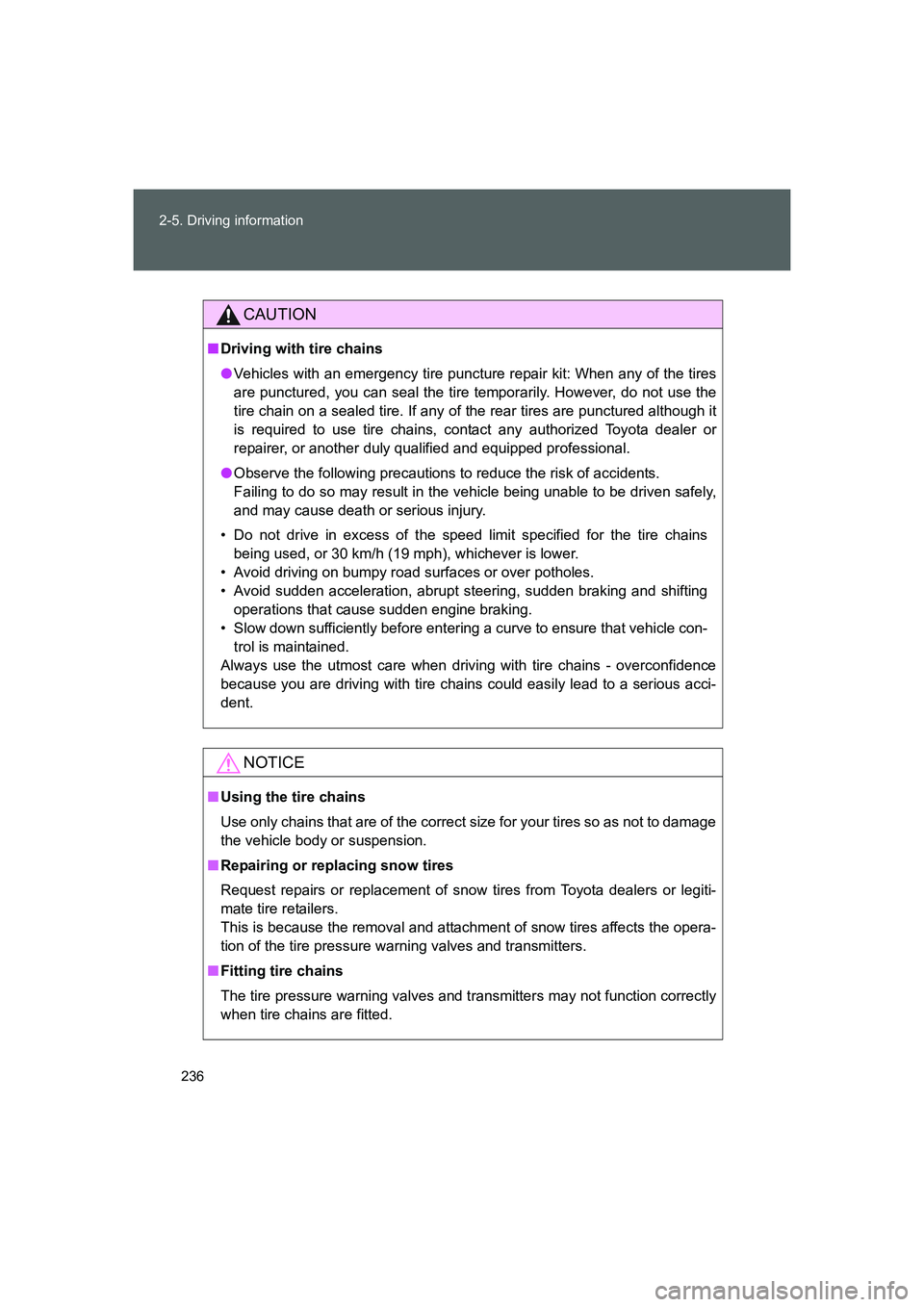

236 2-5. Driving information
FT86_EE
CAUTION
■Driving with tire chains
●Vehicles with an emergency tire puncture repair kit: When any of the tires
are punctured, you can seal the tire temporarily. However, do not use the
tire chain on a sealed tire. If any of the rear tires are punctured although it
is required to use tire chains, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
●Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
• Do not drive in excess of the speed limit specified for the tire chains
being used, or 30 km/h (19 mph), whichever is lower.
• Avoid driving on bumpy road surfaces or over potholes.
• Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
• Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
Always use the utmost care when driving with tire chains - overconfidence
because you are driving with tire chains could easily lead to a serious acci-
dent.
NOTICE
■Using the tire chains
Use only chains that are of the correct size for your tires so as not to damage
the vehicle body or suspension.
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
86_OM_EE_OM18058E.book 236 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

237
2-5. Driving information
2
When driving
FT86_EE

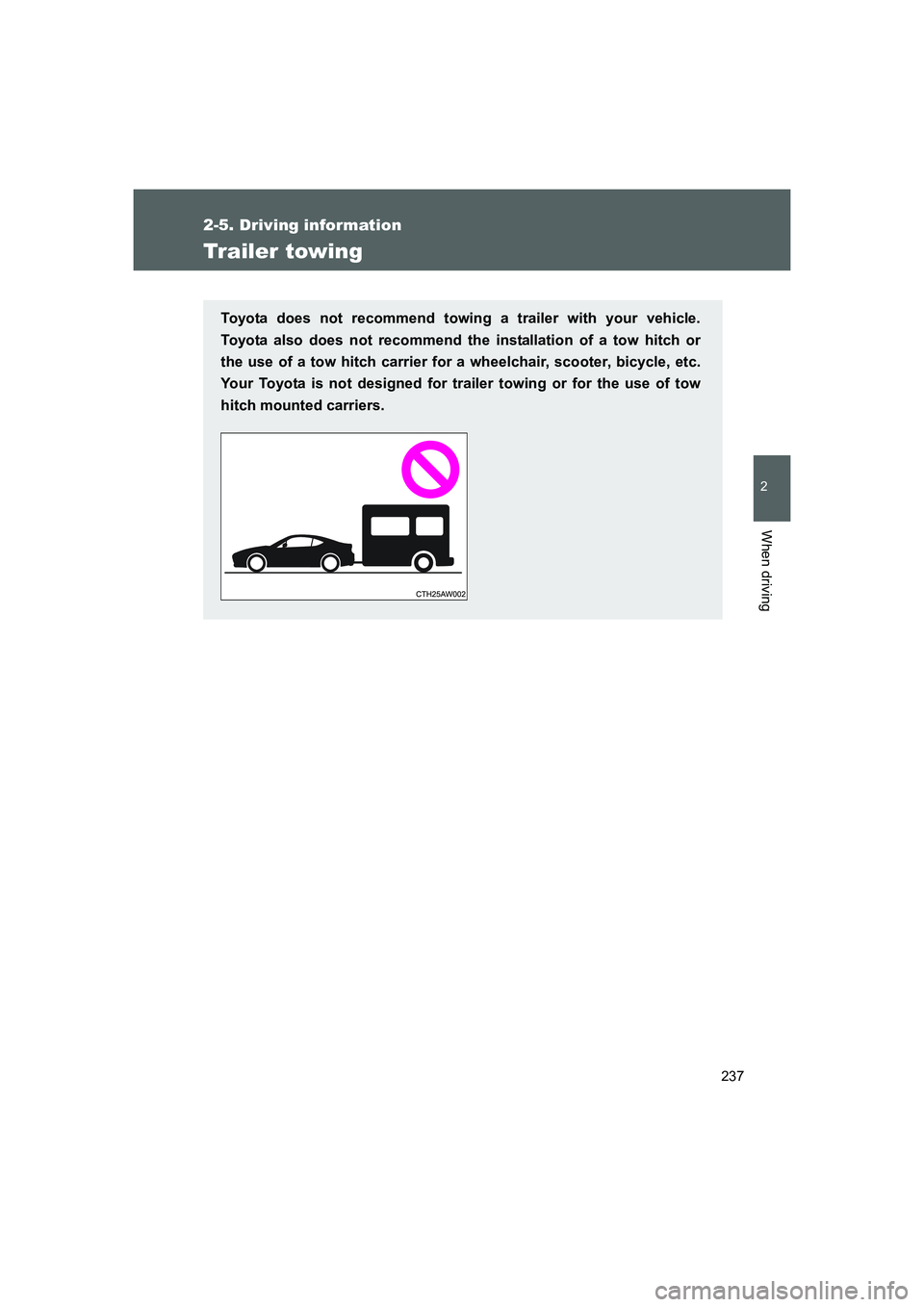

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your Toyota is not designed for trailer towing or for the use of tow
hitch mounted carriers.
86_OM_EE_OM18058E.book 237 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

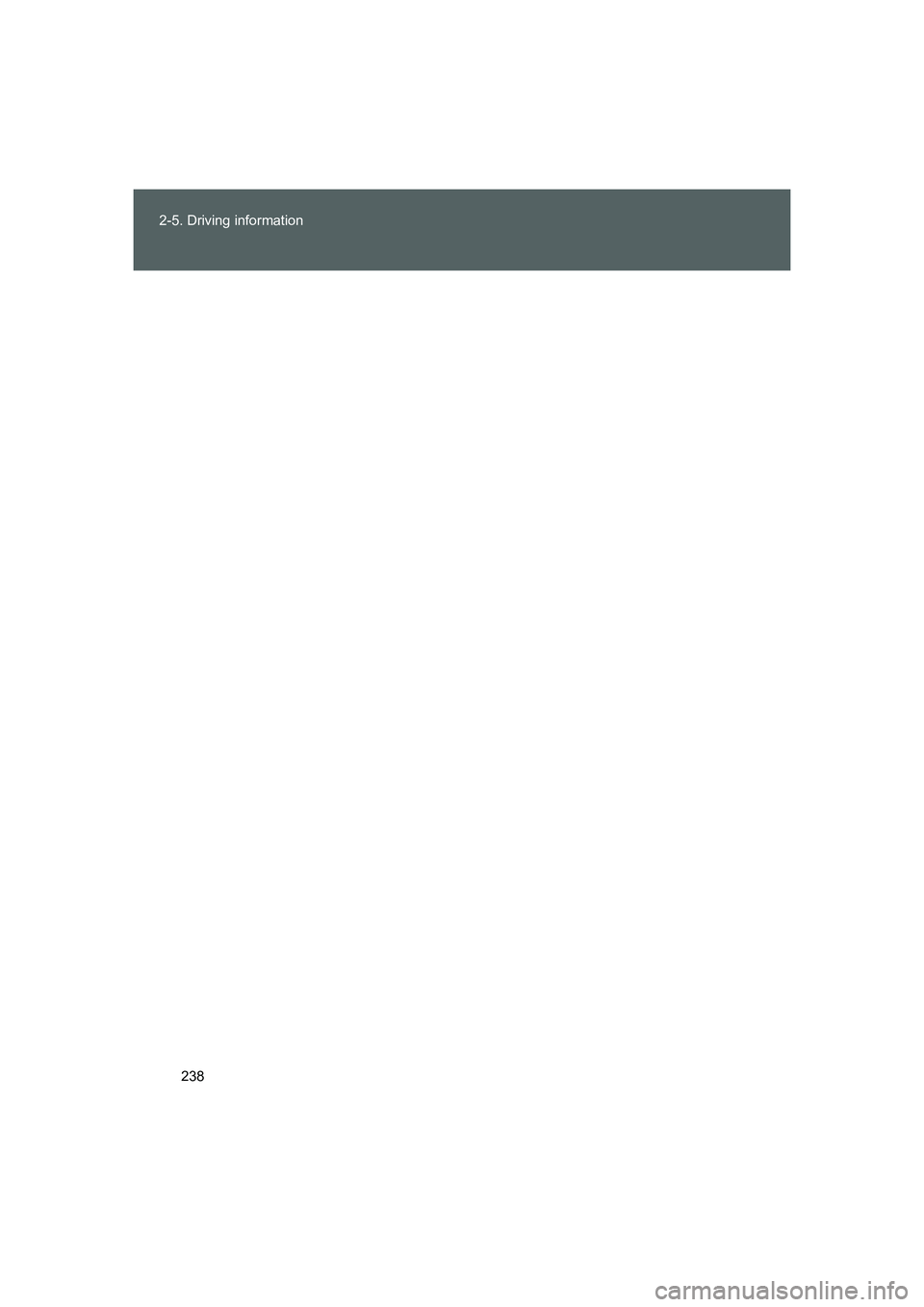

238 2-5. Driving information
FT86_EE
86_OM_EE_OM18058E.book 238 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

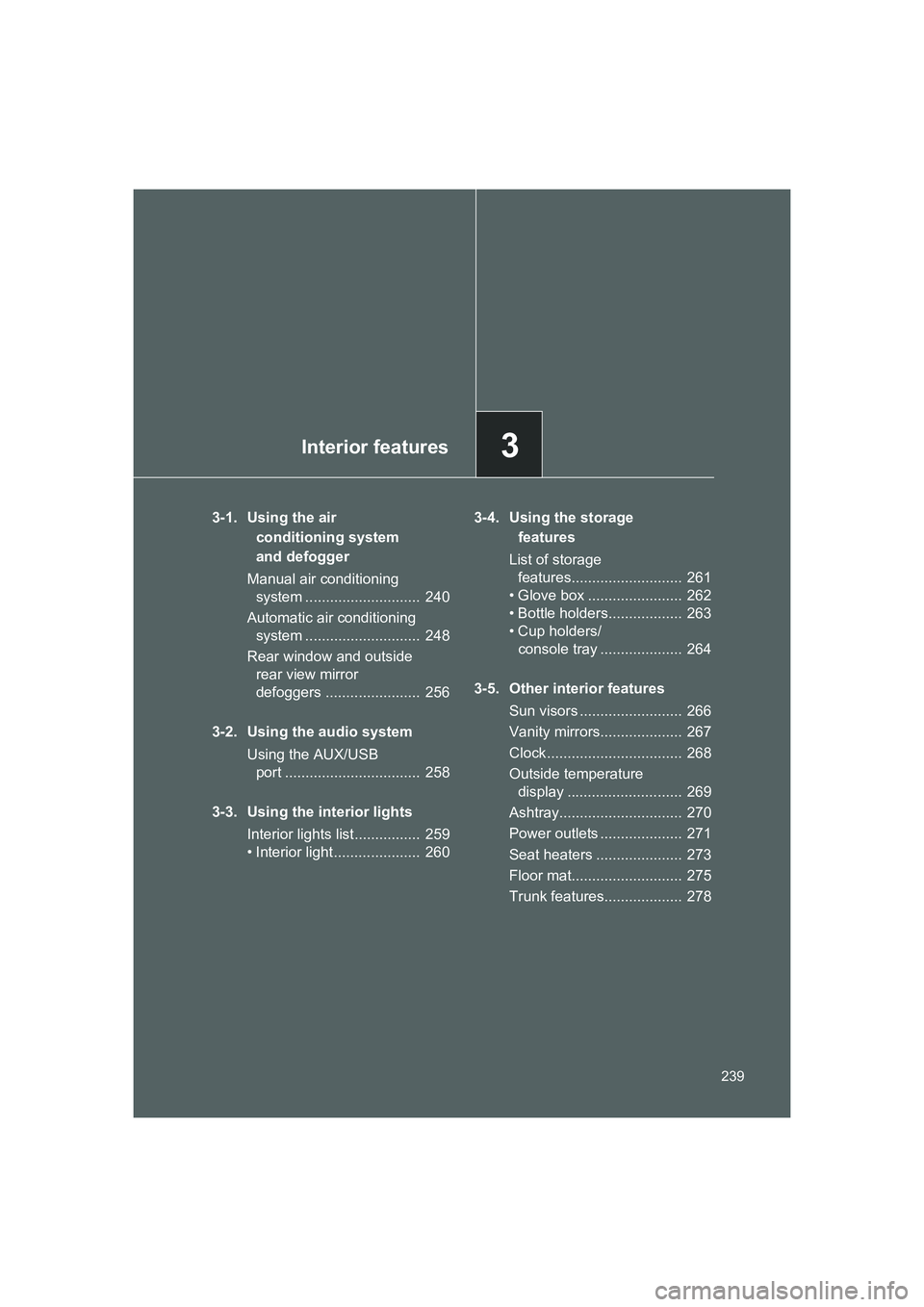

3Interior features
239
FT86_EE
3-1. Using the air
conditioning system
and defogger
Manual air conditioning
system ............................ 240
Automatic air conditioning
system ............................ 248
Rear window and outside
rear view mirror
defoggers ....................... 256
3-2. Using the audio system
Using the AUX/USB
port ................................. 258
3-3. Using the interior lights
Interior lights list................ 259
• Interior light ..................... 2603-4. Using the storage
features
List of storage
features........................... 261
• Glove box ....................... 262
• Bottle holders.................. 263
• Cup holders/
console tray .................... 264
3-5. Other interior features
Sun visors ......................... 266
Vanity mirrors.................... 267
Clock ................................. 268
Outside temperature
display ............................ 269
Ashtray.............................. 270
Power outlets .................... 271
Seat heaters ..................... 273
Floor mat........................... 275
Trunk features................... 278
86_OM_EE_OM18058E.book 239 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

240
FT86_EE
3-1. Using the air conditioning system and defogger
Manual air conditioning system∗
Adjusting the settings
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
Vehicles without the button: Turn the temperature con-
trol dial clockwise to increase the temperature.
∗: If equipped
Fan speed control dial Air outlet selection dial
Air conditioning on/off button
(if equipped)Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
86_OM_EE_OM18058E.book 240 ページ ２０１５年３月１７日　火曜日　午前１１時３１分
