TOYOTA GT86 2016 Owners Manual (in English)

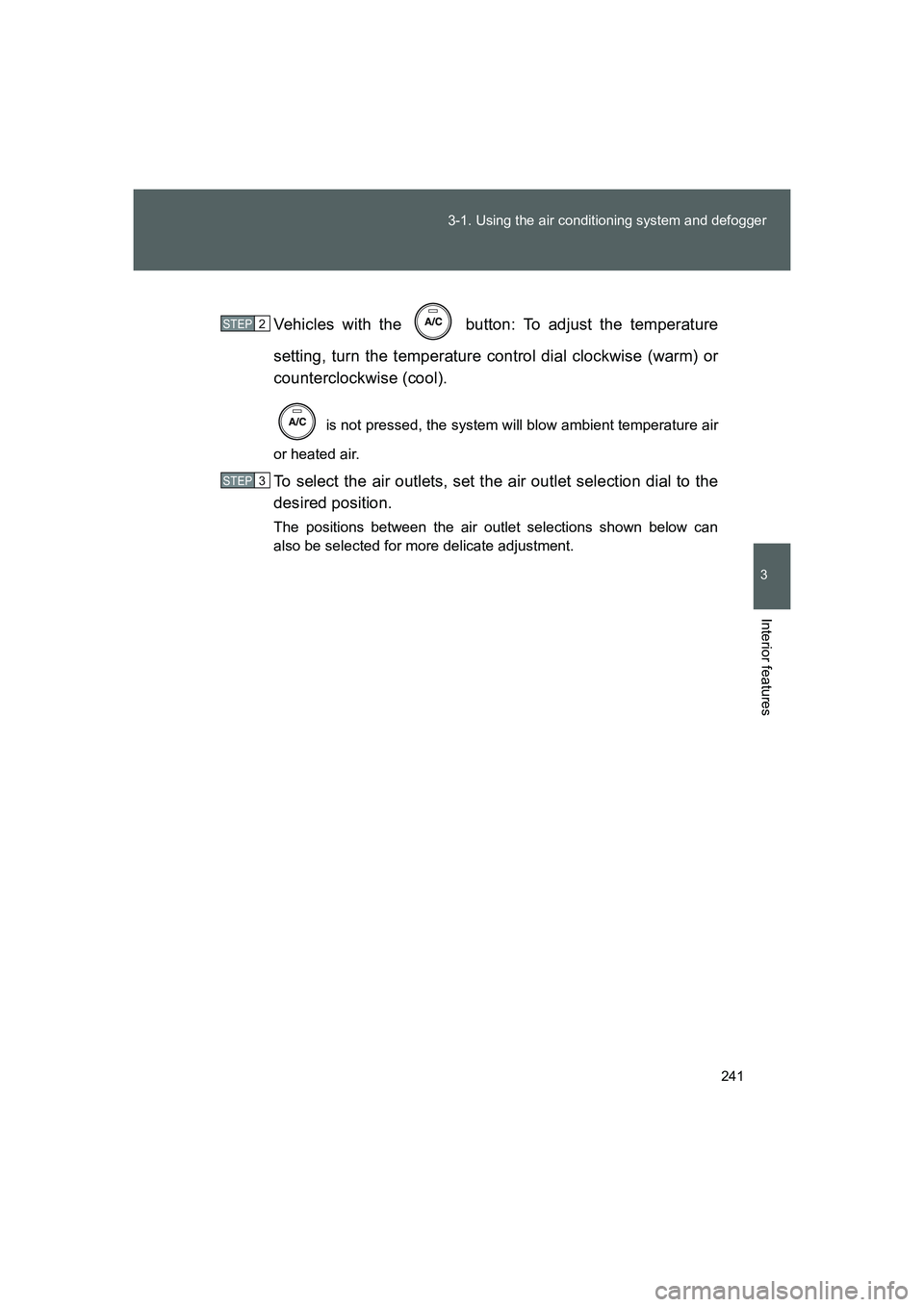

241 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EEVehicles with the button: To adjust the temperature
setting, turn the temperature control dial clockwise (warm) or
counterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
STEP 2
STEP 3
86_OM_EE_OM18058E.book 241 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

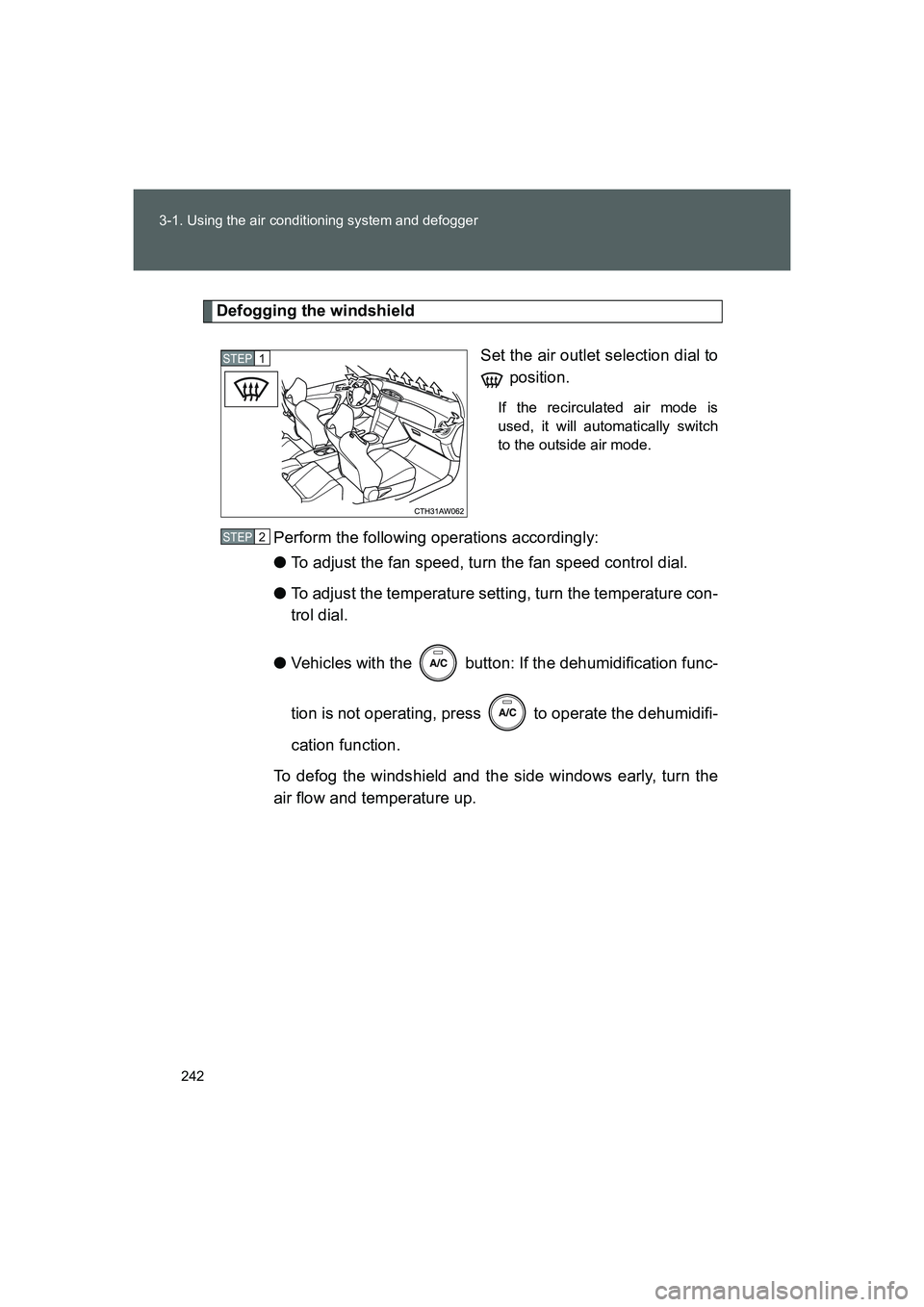

242 3-1. Using the air conditioning system and defogger
FT86_EE
Defogging the windshield
Set the air outlet selection dial to
position.
If the recirculated air mode is
used, it will automatically switch
to the outside air mode.
Perform the following operations accordingly:
●To adjust the fan speed, turn the fan speed control dial.
●To adjust the temperature setting, turn the temperature con-
trol dial.
●Vehicles with the button: If the dehumidification func-
tion is not operating, press to operate the dehumidifi-
cation function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.
STEP 1
STEP 2
86_OM_EE_OM18058E.book 242 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

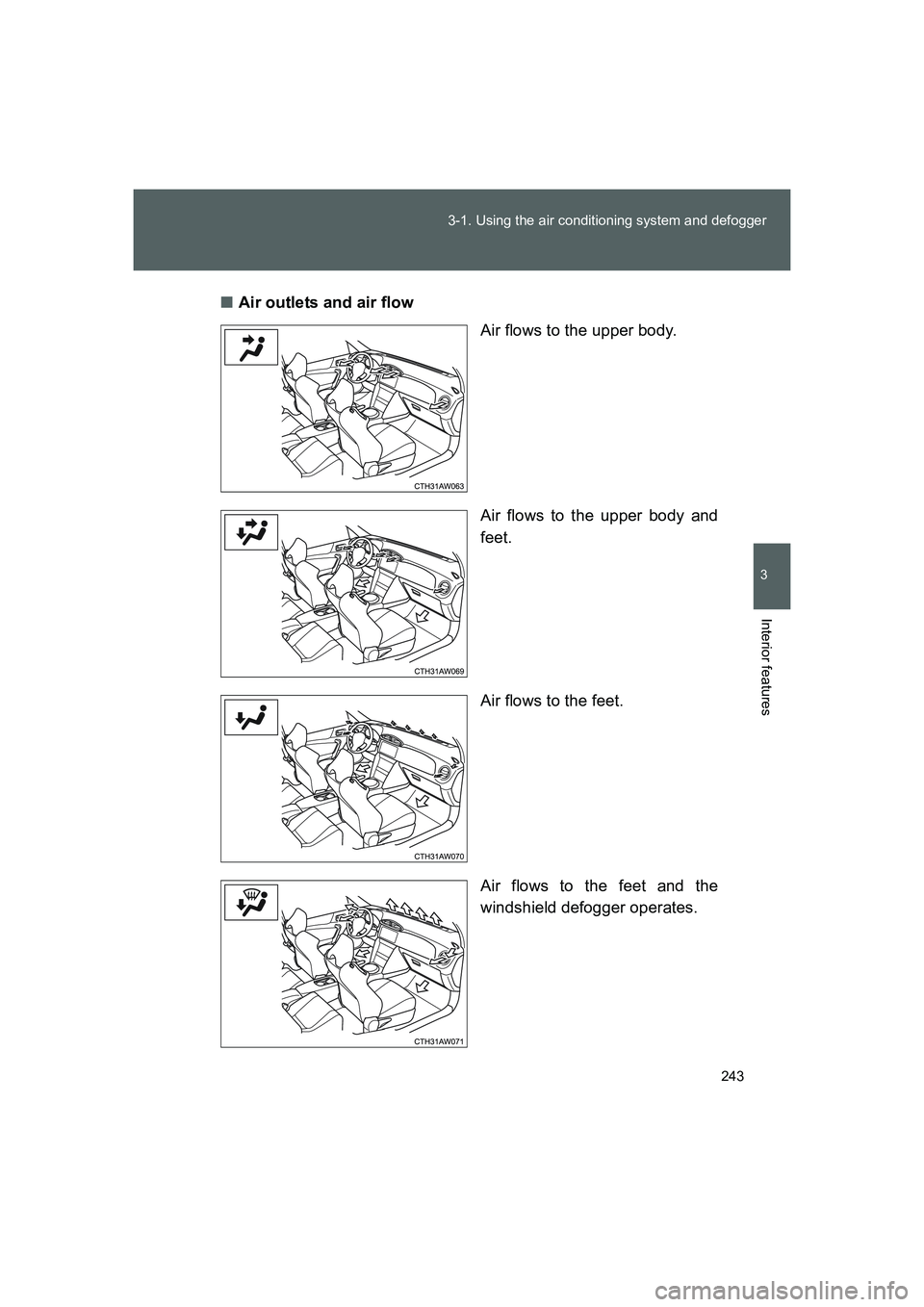

243 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE■Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
86_OM_EE_OM18058E.book 243 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

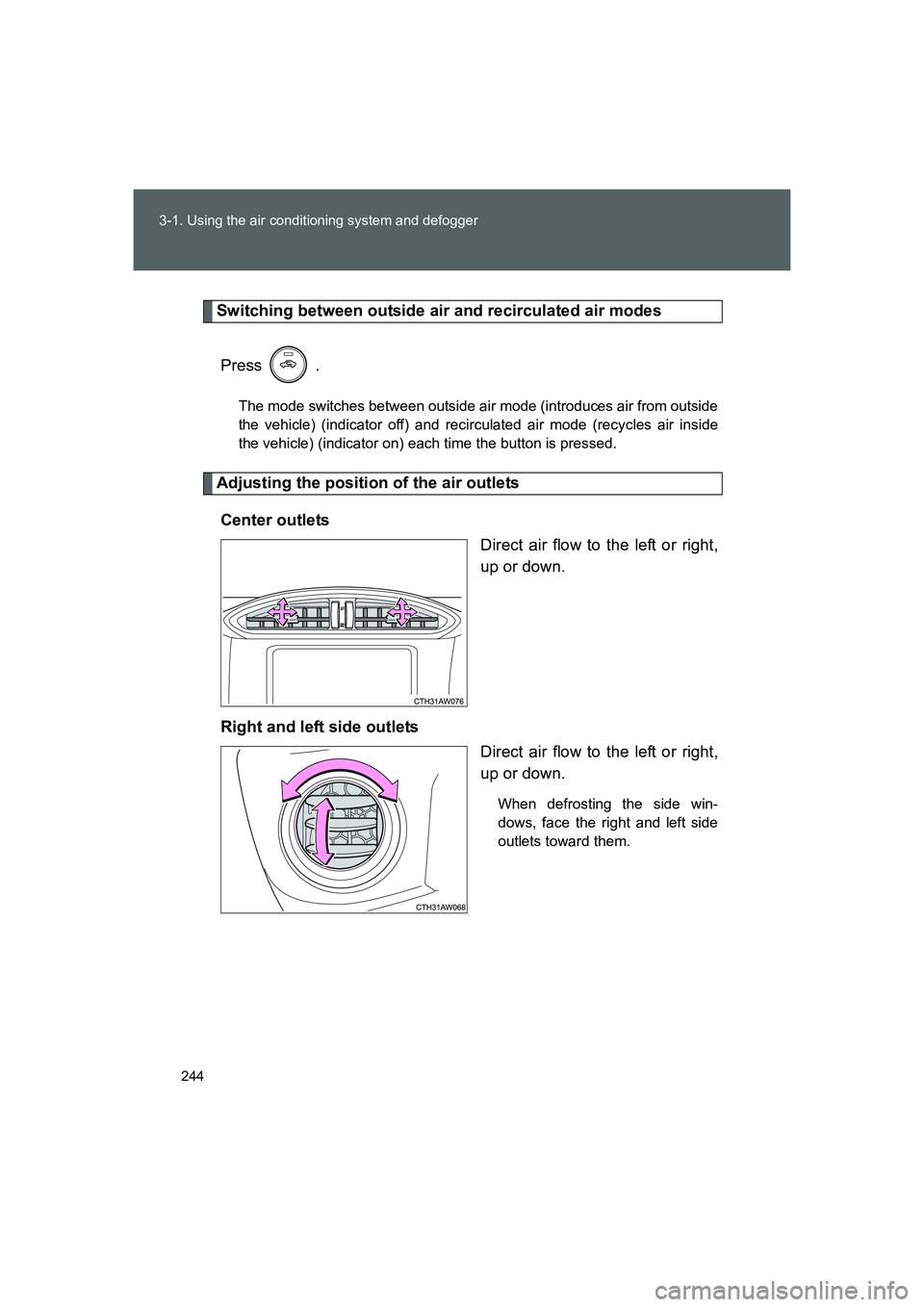

244 3-1. Using the air conditioning system and defogger
FT86_EE
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (introduces air from outside
the vehicle) (indicator off) and recirculated air mode (recycles air inside
the vehicle) (indicator on) each time the button is pressed.
Adjusting the position of the air outlets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets
Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.
86_OM_EE_OM18058E.book 244 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

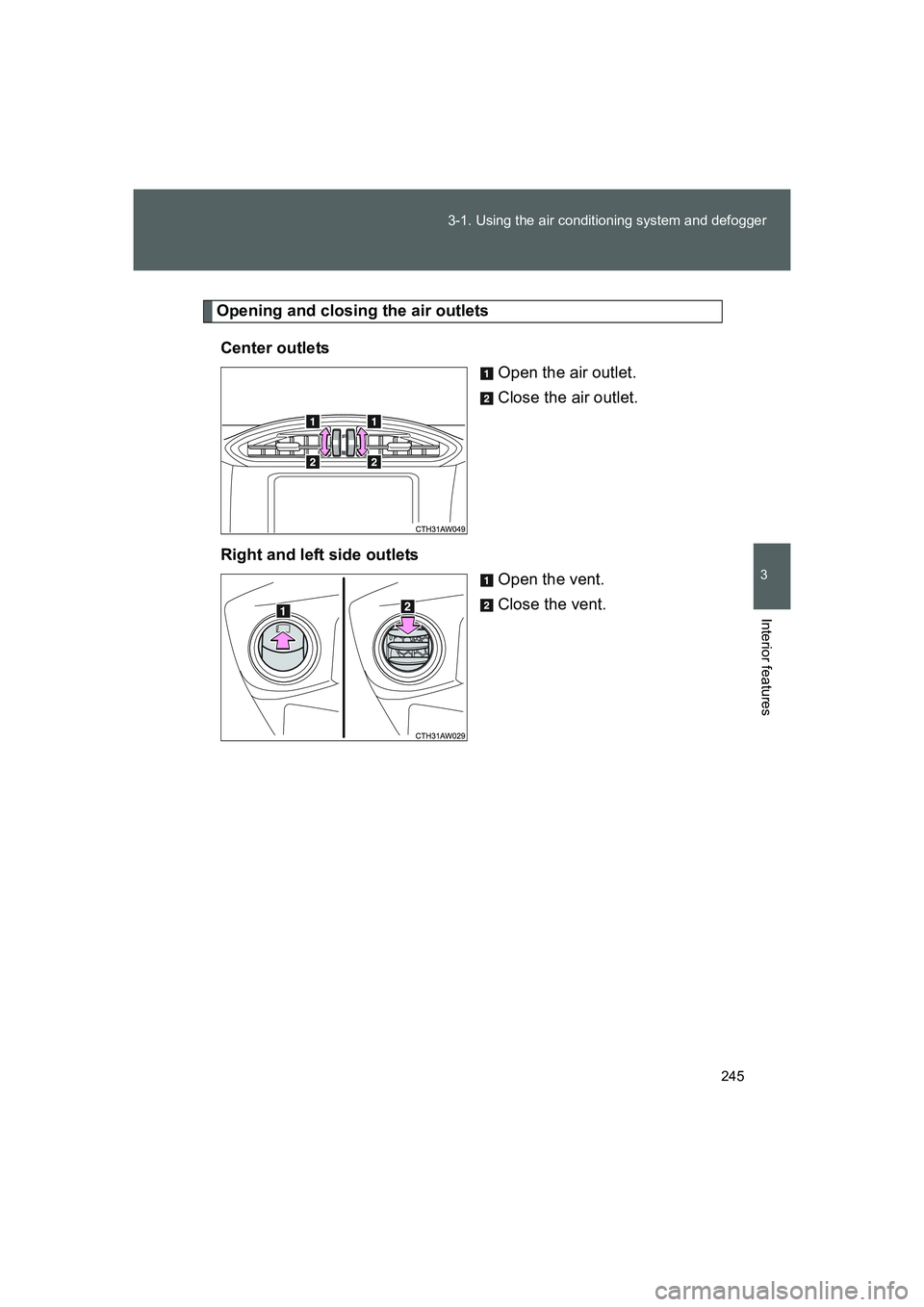

245 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE
Opening and closing the air outlets
Center outlets
Open the air outlet.
Close the air outlet.
Right and left side outlets
Open the vent.
Close the vent.
86_OM_EE_OM18058E.book 245 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

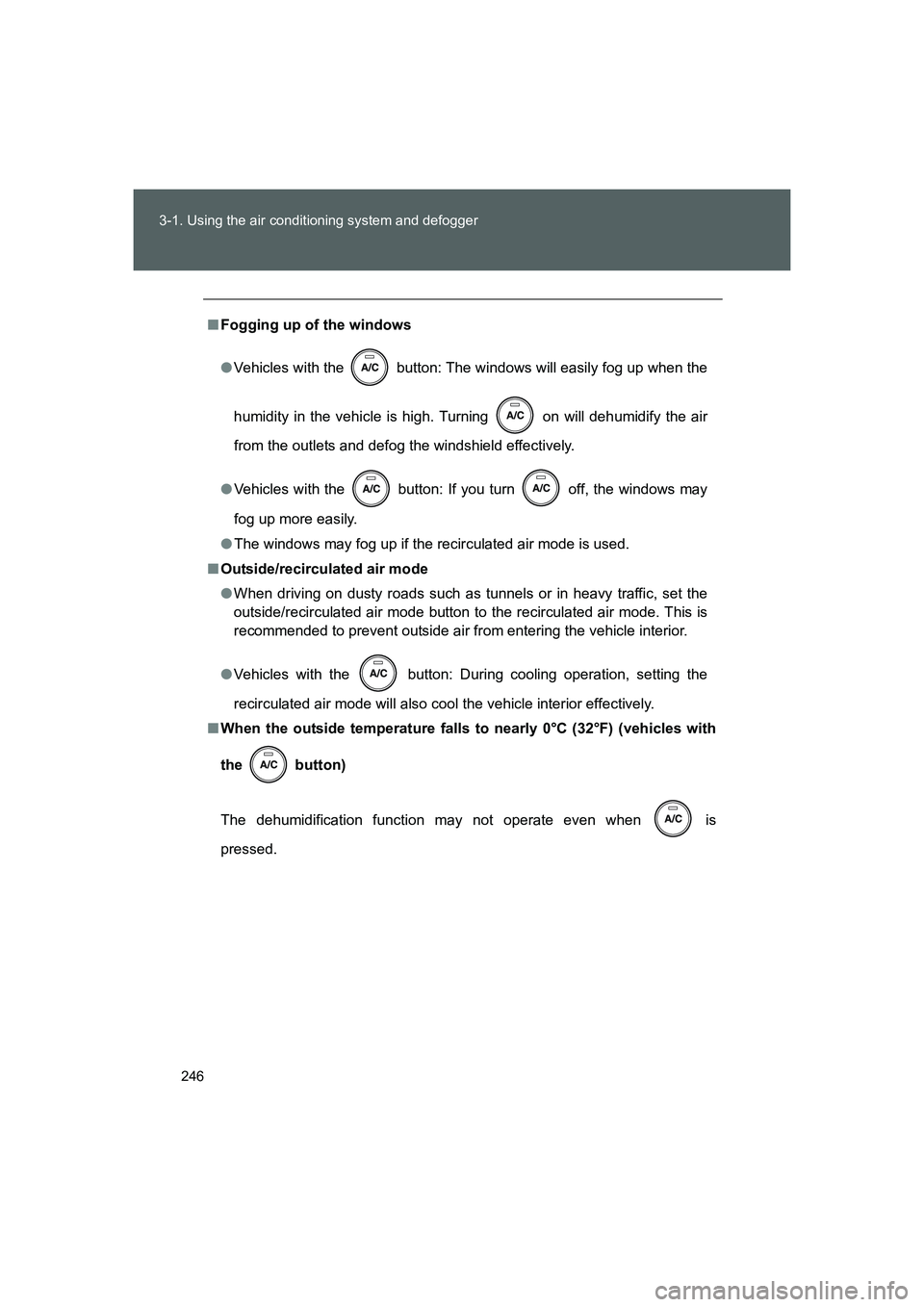

246 3-1. Using the air conditioning system and defogger
FT86_EE
■Fogging up of the windows
●Vehicles with the button: The windows will easily fog up when the
humidity in the vehicle is high. Turning
on will dehumidify the air
from the outlets and defog the windshield effectively.
●Vehicles with the button: If you turn
off, the windows may
fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the
outside/recirculated air mode button to the recirculated air mode. This is
recommended to prevent outside air from entering the vehicle interior.
●Vehicles with the button: During cooling operation, setting the
recirculated air mode will also cool the vehicle interior effectively.
■When the outside temperature falls to nearly 0°C (32°F) (vehicles with
the button)
The dehumidification function may not operate even when is
pressed.
86_OM_EE_OM18058E.book 246 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

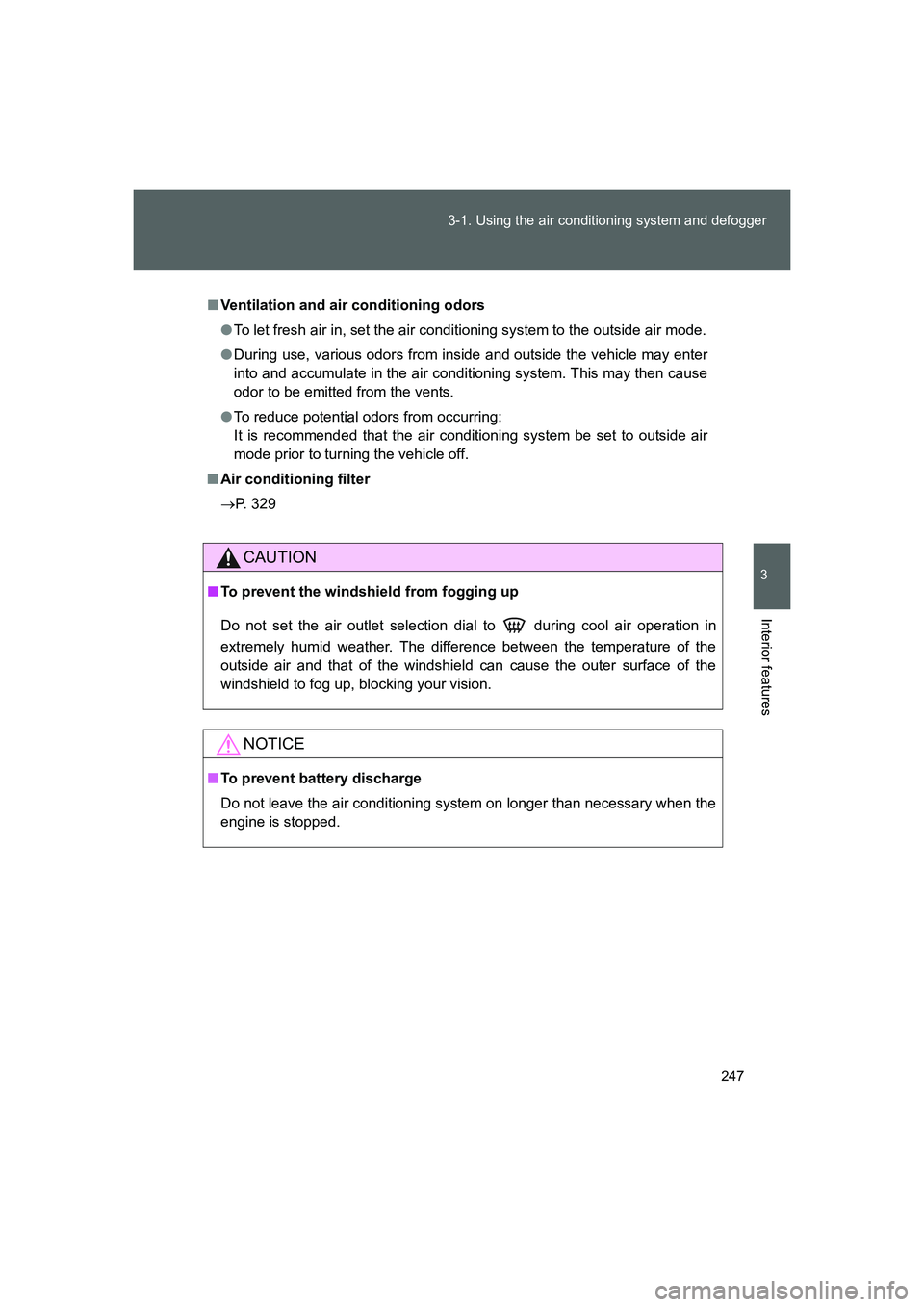

247 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
●To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
■Air conditioning filter
→P. 329
CAUTION
■To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
86_OM_EE_OM18058E.book 247 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

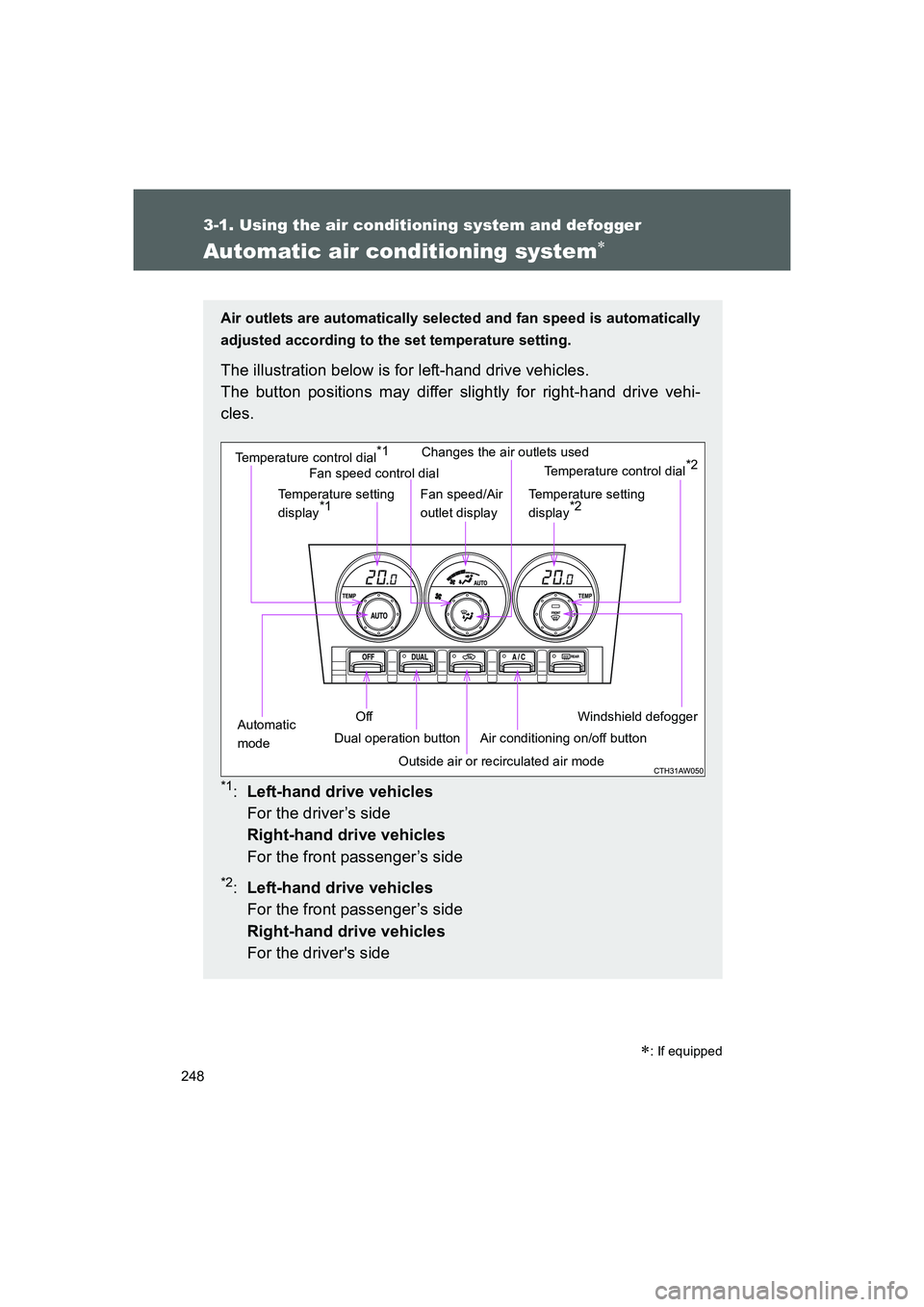

248
3-1. Using the air conditioning system and defogger
FT86_EE
Automatic air conditioning system∗
Air outlets are automatically selected and fan speed is automatically
adjusted according to the set temperature setting.
The illustration below is for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehi-
cles.
*1: Left-hand drive vehicles
For the driver’s side
Right-hand drive vehicles
For the front passenger’s side
*2: Left-hand drive vehicles
For the front passenger’s side
Right-hand drive vehicles
For the driver's side
Windshield defogger Temperature control dial*1
Outside air or recirculated air mode Temperature setting
display*1
Off
Automatic
modeDual operation buttonChanges the air outlets used
Air conditioning on/off buttonTemperature control dial*2
Temperature setting
display*2
Fan speed control dial
Fan speed/Air
outlet display
∗: If equipped
86_OM_EE_OM18058E.book 248 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

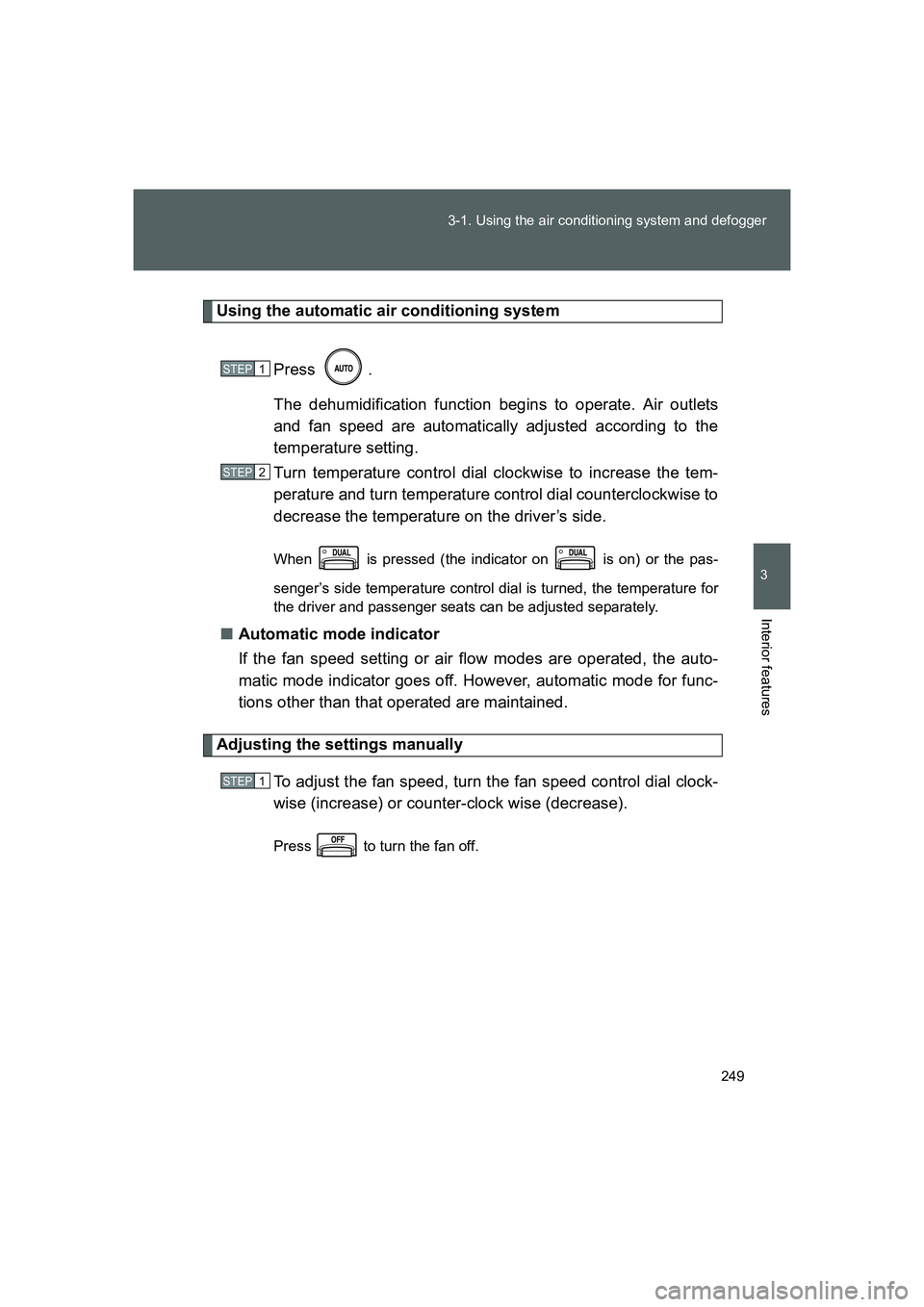

249 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE
Using the automatic air conditioning system
Press .
The dehumidification function begins to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Turn temperature control dial clockwise to increase the tem-
perature and turn temperature control dial counterclockwise to
decrease the temperature on the driver’s side.
When is pressed (the indicator on is on) or the pas-
senger’s side temperature control dial is turned, the temperature for
the driver and passenger seats can be adjusted separately.
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated are maintained.
Adjusting the settings manually
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counter-clock wise (decrease).
Press to turn the fan off.
STEP 1
STEP 2
STEP 1
86_OM_EE_OM18058E.book 249 ページ ２０１５年３月１７日　火曜日　午前１１時３１分

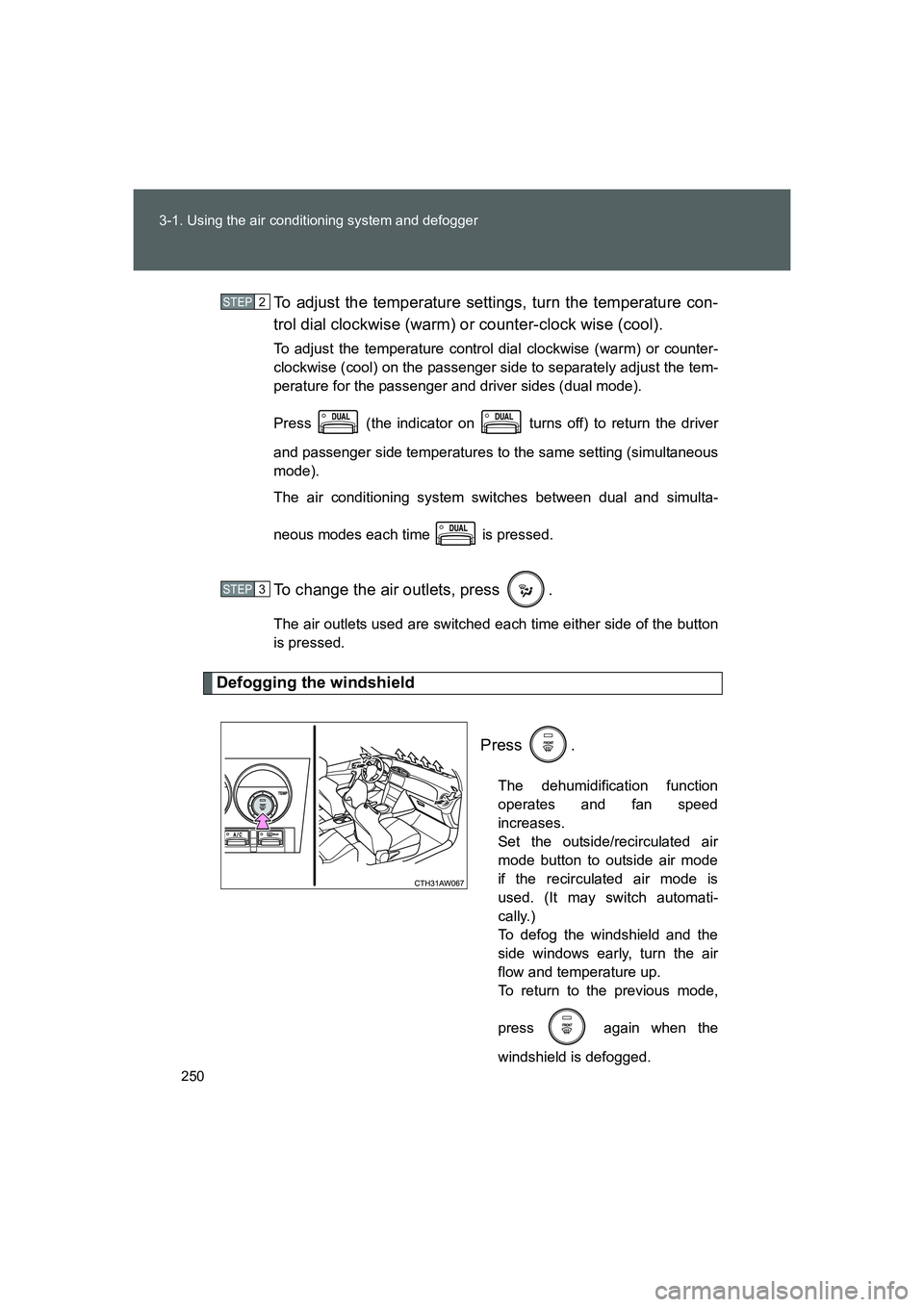

250 3-1. Using the air conditioning system and defogger
FT86_EETo adjust the temperature settings, turn the temperature con-
trol dial clockwise (warm) or counter-clock wise (cool).
To adjust the temperature control dial clockwise (warm) or counter-
clockwise (cool) on the passenger side to separately adjust the tem-
perature for the passenger and driver sides (dual mode).
Press (the indicator on turns off) to return the driver
and passenger side temperatures to the same setting (simultaneous
mode).
The air conditioning system switches between dual and simulta-
neous modes each time is pressed.
To change the air outlets, press .
The air outlets used are switched each time either side of the button
is pressed.
Defogging the windshield
Press .
The dehumidification function
operates and fan speed
increases.
Set the outside/recirculated air
mode button to outside air mode
if the recirculated air mode is
used. (It may switch automati-
cally.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press
again when the
windshield is defogged.
STEP 2
STEP 3
