TOYOTA GT86 2017 Owners Manual (in English)

221
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
●
Reading the display
Record of the maximum G-
forces
• Displayed on the peak-hold display screen only
• To reset the record of maxi- mum G-forces, press and hold
while the peak-hold display
screen is displayed.
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
G-force values that can be dis-
played
Front/Rear: Up to 1.3 G
Left/Right: Up to 2.5 G
G-force ball trace
The maximum number of ball
trace segments for the normal
display screen is 20 and 10 for
the peak-hold display screen.
G-force ball (acceleration G-
forces on the vehicle)

222
2-2. Instrument cluster
86_EE (OM18071E)
Scale of the G-force display
The scale of the record of the
maximum G-forces and G-force
ball trace can be changed
between 1.0 G and 0.5 G by
pressing and holding while
the normal display screen is dis-
played.
Accelerator pedal input
Brake fluid pressure
Steering amount
If the steering wheel is turned
completely to the left or right, the
bottom side of the gauge on the
corresponding side will be illumi-
nated in red.
This display is intended for use as a guideline. Depending on factors such as
the road surface condition, temperature and vehicle speed, the display may
not show the actual condition of the vehicle.
■ Power and torque curve
Power output
Torque
Current engine speed
The vertical bar will slide laterally
according to the current engine
speed.
This chart is intended for reference only and does not show the actual
engine torque or output.

223
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
■
Stopwatch
Measures and displays current lap time and previous lap times
Fastest lap time (top screen)
When the timer is reset, “ − −’− − ”− − ” will be displayed.
Fastest lap time (measurement screen)
Current lap time
Total lap time
Past lap times
Records of the 50 most recent lap times will be displayed.
Meter control switch operation guide
● Changing between the stopwatch screens
To change to the measurement screen: Press .
To change to the top screen: Press .
Top screen Measurement screen

224
2-2. Instrument cluster
86_EE (OM18071E)
●
Operating the measurement screen
: Start/stop measure-ment
: Mark off one lap
: Reset measured lap times
: Scroll through the lap times
● Resetting measured lap times
After stopping the measurement, press .
● To display other content while the stopwatch is operating
If the measurement screen is displayed, press to display the
top screen. Then operate the meter control switches to display
other content. While other items are displayed, the measurement
will continue but the stopwatch cannot be operated.

225
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
Settings display ( )
Use the meter control switches on the steering wheel to change set-
tings. Press or to select .
Operate the switches to select a desired item.
Press / or / to change the setting and then
press to confirm the change.
ItemSettingsDetails
Welcome screen On Select to enable/disable the welcome
screen when the “ENGINE START
STOP” switch is turned to IGNITION
ON mode.
Off
REV. RPM
--00 rpm
(OFF) ~
7400 rpm Select to enable/disable the REV indi-
cator and set the engine speed at
which the REV indicator will be illumi-
nated.
To disable, select “--” for the engine
speed (--00 rpm)
Selectable engine speed range: 2000
to 7400 rpm
Buzzer On Select to enable/disable the sounding
of a buzzer when the REV indicator is
illuminated. This setting can be
changed only when the REV indicator
is enabled.
Off
STEP 1
STEP 2
STEP 3

226
2-2. Instrument cluster
86_EE (OM18071E)
*: If equipped
Language
English
Select to change the language dis-
played.
French
Spanish
German*
Italian*
Russian
Chinese*
Turkish*
Units km, km/h,
km/l
Select to change the units of measure
displayed.
km, km/h,
l/100km
miles,
MPH,
MPG*
Initialization Ye s
Select to reset the meter display set-
tings to the default setting.
No
ItemSettingsDetails

227
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)

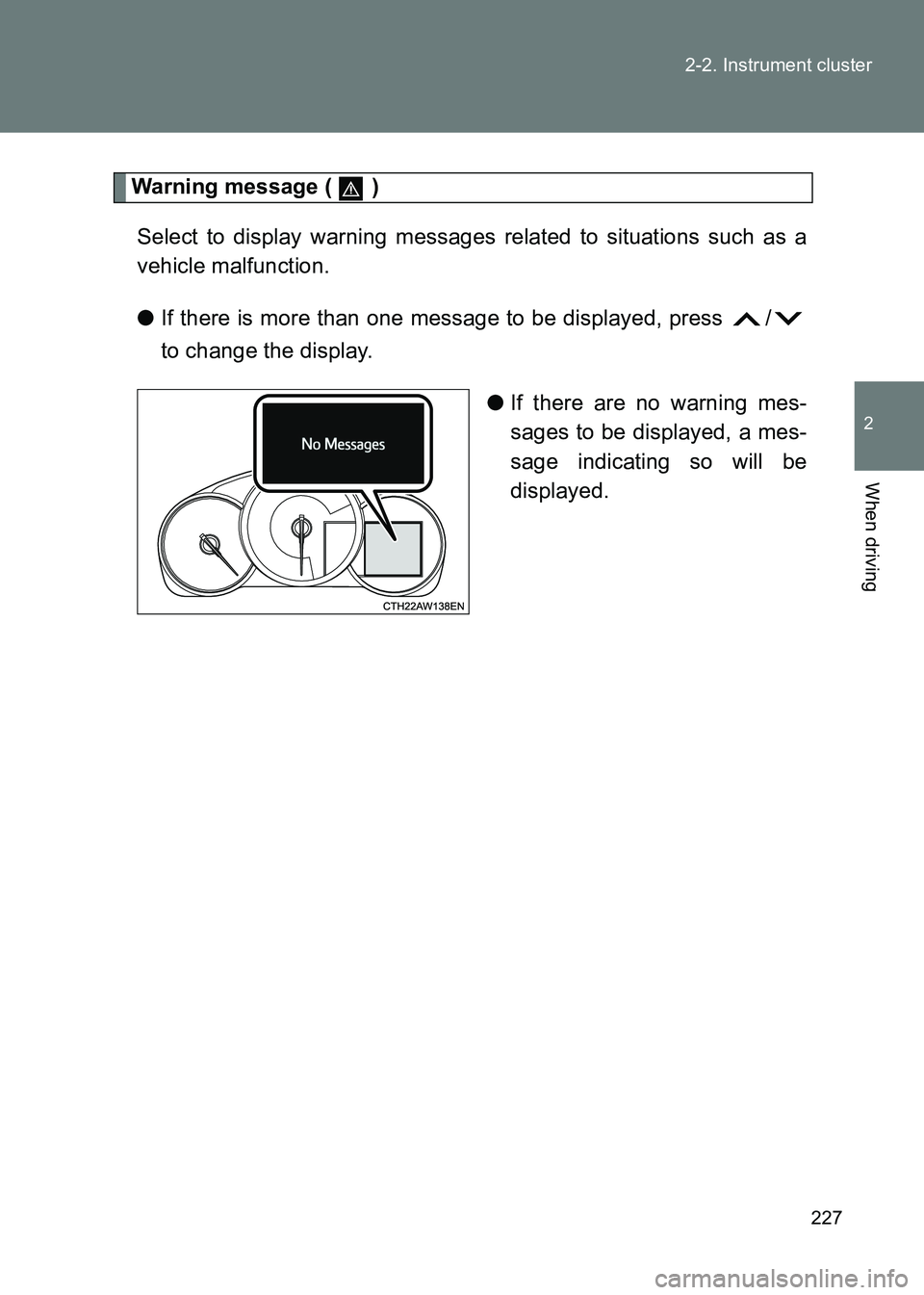

Warning message ( )
Select to display warning messages related to situations such as a
vehicle malfunction.
● If there is more than one message to be displayed, press /
to change the display.
●If there are no warning mes-
sages to be displayed, a mes-
sage indicating so will be
displayed.

228
2-2. Instrument cluster
86_EE (OM18071E)
Odometer/trip meter display area
■ Odometer
Displays the total distance the vehicle has been driven.
■ Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and display
different distances independently.
To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
■ Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to
50°C (122°F). Low outside temperature indicator comes on when the
ambient temperature is 3°C (37°F) or lower.

229
2-2. Instrument cluster
2
When driving
86_EE (OM18071E)
■
G-force display
●Depending on the vehicle usage conditions, the brake fluid pressure dis-
play may not reach its maximum reading even though the brake pedal is
fully depressed.
● If a battery terminal is disconnected and reconnected, the steering
amount display may be disabled temporarily. After driving the vehicle for
a while, the display will be enabled.
■ Suspension of the settings display
●The settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.
● If a warning message is displayed, operation of the settings display will
be suspended.
■ Using the stopwatch
If the engine is stopped while the stopwatch is operating, the stopwatch will
stop and the time up to that point will be recorded.
■ Outside temperature display
●In the following situations, the correct outside temperature may not be
displayed.
• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a
traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.
• When the actual outside temperature is outside of the indicator range.
● If “ − − ” is displayed for approximately 1 minute or more or if the outside
temperature is not displayed, the system may be malfunctioning.Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.

230
2-2. Instrument cluster
86_EE (OM18071E)
■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.
