TOYOTA GT86 2017 Owners Manual (in English)

371
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■
After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( →P. 372)
● If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.

372
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 484)
■ Front bulb locations
Side turn
signal lights

373
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■
Rear bulb locations
Back-up lights License
plate
lights
Rear fog
light

374
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
Replacing light bulbs
■ Side turn signal lights
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clip and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Release the light’s claw.
Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
STEP 1
STEP 2
STEP 3

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
Pull out the lamp and turn the
lens counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 4
STEP 5
STEP 6

376
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
■

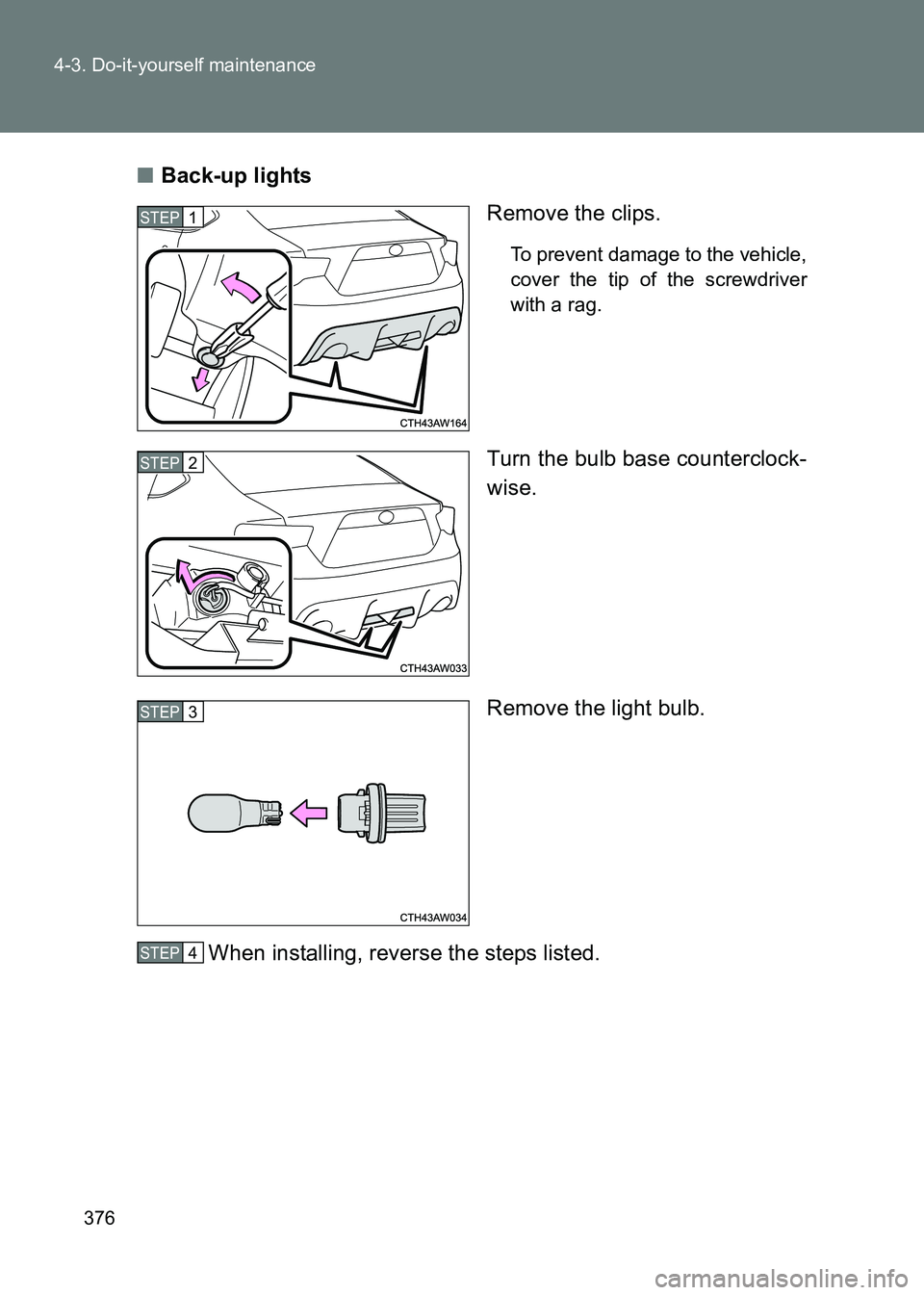

Back-up lights
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

377
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■
Rear fog light
Remove the clips.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

378
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
■
License plate lights
Vehicles with the trunk panel
cover: Remove the trunk panel
cover clips and partly remove the
trunk panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

379
4-3. Do-it-yourself maintenance
4
Maintenance and care
86_EE (OM18071E)
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
●Headlights
● Front position lights/daytime running lights
● Front turn signal lights
● Front fog lights
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● High mounted stoplight
● Door courtesy lights (if equipped)

380
4-3. Do-it-yourself maintenance
86_EE (OM18071E)
■
Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional for more information in
the following situations:
●Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The headlights, front position lights/daytime running lights, front turn signal
lights, front fog lights, stop/tail lights, stop lights, rear turn signal lights and
high mounted stoplight consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to any authoriz ed Toyota dealer or repairer, or another
duly qualified and equipped professional to have the light replaced.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■ Removing and installing the luggage trim cover and trunk panel cover
clip
Removing
Installing
