TOYOTA GT86 2017 Owners Manual (in English)

5
411
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once 
(Flashes)
(Flashes in yellow)
Indicates that the
electronic key is
not present when
attempting to
start the engine. Confirm
the loca-
tion of the
electronic
key.
Once
3 times
(Flashes)
(Flashes in yellow)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the “ENGINE
START STOP”
switch in any
mode other than
off and the elec-
tronic key out-
side of the
detection area. Confirm
the loca-
tion of the
electronic
key.

412
5-2. Steps to take in an emergency
86_EE (OM18071E)
Once3 times(Flashes)
(Flashes in yellow)
(Vehicles with an auto-
matic transmission) The electronic
key was carried
outside the vehi-
cle and the
driver’s door
was opened
and closed
while the shift
position P was
selected with-
out turning off
the “ENGINE
START STOP”
switch. Turn the
“ENGINE
START
STOP”
switch off
or bring
the elec-
tronic key
back into
the vehi-
cle.
Once
3 times(Flashes)
(Flashes in yellow)
(Vehicles with a manual transmission) The electronic
key was carried
outside the vehi-
cle and the
driver’s door
was opened
and closed
while the shift
position N was
selected with-
out turning off
the “ENGINE
START STOP”
switch.Turn the
“ENGINE
START
STOP”
switch off
or bring
the elec-
tronic key
back into
the vehi-
cle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
413
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once
Contin-
uous
(5 sec-
onds)
(Displayed alternately)
(Flashes)
(Flashes in yellow)
An attempt was
made to exit the
vehicle with the
electronic key
and lock the
doors without first
turning the
“ENGINE START
STOP” switch off. Turn the
“ENGINE
START
STOP”
switch off
and lock
the doors
again.
Intermit-
tently (7
seconds)
 (Flashes)
(Flashes in yellow)
An attempt was
made to drive
when the regular
key was not
inside the vehi-
cle. Confirm
that the
electronic
key is
inside the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

414
5-2. Steps to take in an emergency
86_EE (OM18071E)
Contin-
uous
(Flashes)
(Vehicles with an auto- matic transmission) The driver’s door
was opened
while any shift
position other
than P was
selected without
turning off the
“ENGINE START
STOP” switch.
Shift the
shift lever
to P.
Contin-
uous
Contin-
uous
(Displayed alternately)
(Flashes)
(Flashes in yellow)
(Vehicles with an auto-matic transmission) The electronic
key was carried
outside the vehi-
cle and the
driver’s door was
opened and
closed while any
shift position
other than P was
selected without
turning off the
“ENGINE START
STOP” switch.
• Shift the
shift lever
to P.
• Bring the electronic
key back
into the
vehicle.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
415
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)

Contin-
uous
(5 sec-
onds)
(Flashes)
An attempt was
made to lock the
doors using the
smart entry &
start system
while the elec-
tronic key was
still inside the
vehicle. Retrieve
the elec-
tronic key
from the
vehicle
and lock
the doors
again.
Once
Contin-
uous
(5 sec-
onds)
(Flashes) An attempt was
made to lock
either door by
opening a door
and putting the
lock lever into the
lock position,
then closing the
door by pulling on
the outside door
handle with the
electronic key still
inside the vehi-
cle. Retrieve
the elec-
tronic key
from the
vehicle
and lock
the doors
again.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

416
5-2. Steps to take in an emergency
86_EE (OM18071E)
Once

(Flashes)
(Flashes in yellow)
(Vehicles with an auto-
matic transmission) • When the doors
were unlocked
with the mechani-
cal key and then
the “ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the “ENGINE
START STOP”
switch was
pressed two con-
secutive times. Touch the
electronic
key to the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5

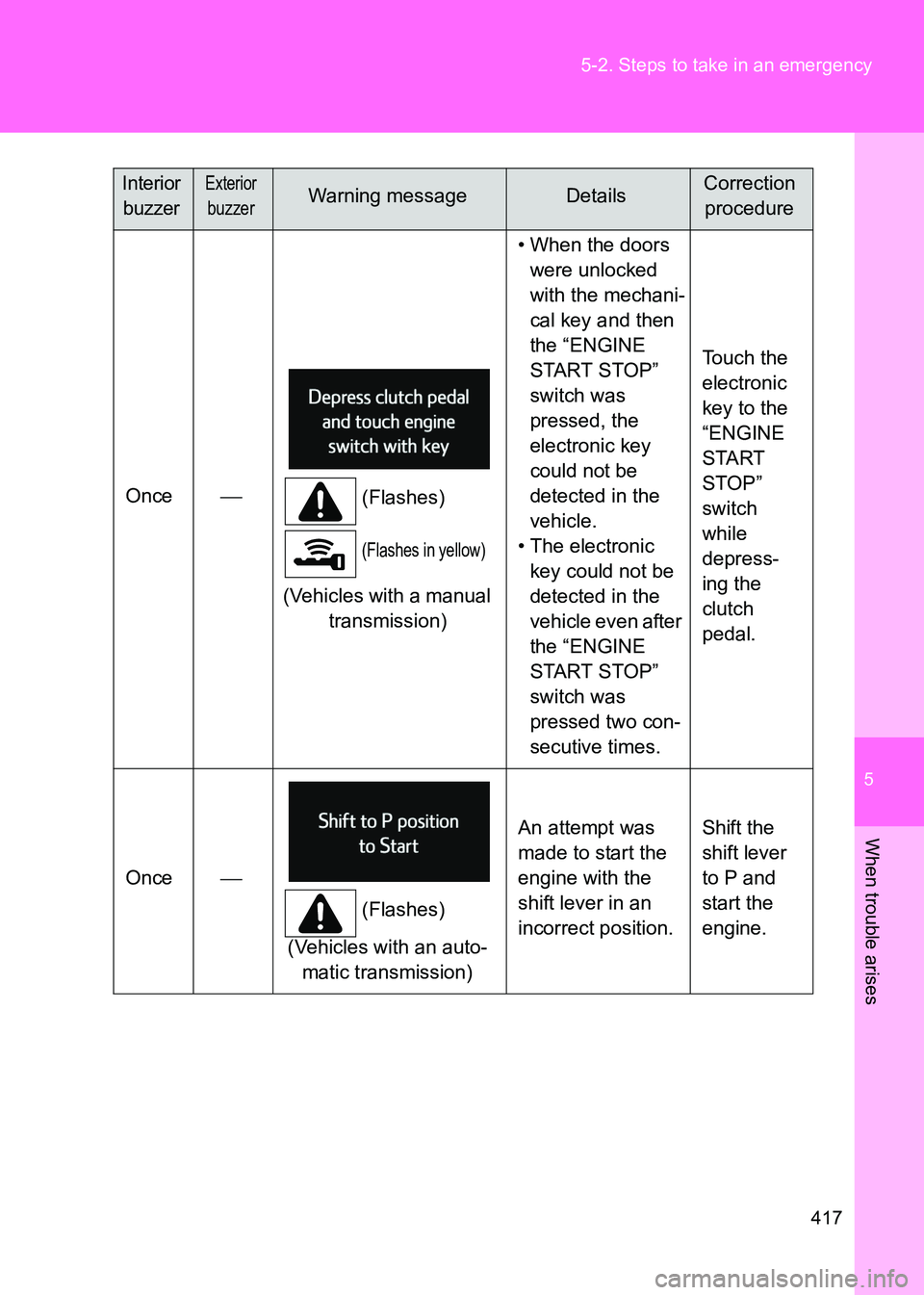

417
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Flashes in yellow)
(Vehicles with a manual
transmission) • When the doors
were unlocked
with the mechani-
cal key and then
the “ENGINE
START STOP”
switch was
pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the “ENGINE
START STOP”
switch was
pressed two con-
secutive times. Touch the
electronic
key to the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) An attempt was
made to start the
engine with the
shift lever in an
incorrect position.
Shift the
shift lever
to P and
start the
engine.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

418
5-2. Steps to take in an emergency
86_EE (OM18071E)

Power was
turned off due to
the automatic
power off func-
tion.Next time
when
starting
the
engine,
increase
the engine
speed
slightly
and main-
tain that
level for
approxi-
mately 5
minutes to
recharge
the bat-
tery.
Once 
(Flashes in yellow)
Indicates that the
electronic key
battery is low. Replace
the bat-
tery.
(
→ P. 360)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
419
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Vehicles with an auto- matic transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started.
Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
( → P. 456), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
brake
pedal
within 10
seconds
of the
buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

420
5-2. Steps to take in an emergency
86_EE (OM18071E)
Once

(Flashes)
(Vehicles with a manual transmission) The driver’s door
was opened and
closed with the
“ENGINE START
STOP” switch
turned off and
then the
“ENGINE START
STOP” switch
was put in
ACCESSORY
mode twice with-
out the engine
being started.
Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the electronic
key was not func-
tioning properly
( → P. 456), the
“ENGINE START
STOP” switch
was touched with
the electronic
key. Press the
“ENGINE
START
STOP”
switch
while
depress-
ing the
clutch
pedal
within 10
seconds
of the
buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure
