5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
Once

(Flashes)
(Flashes quickly in green)

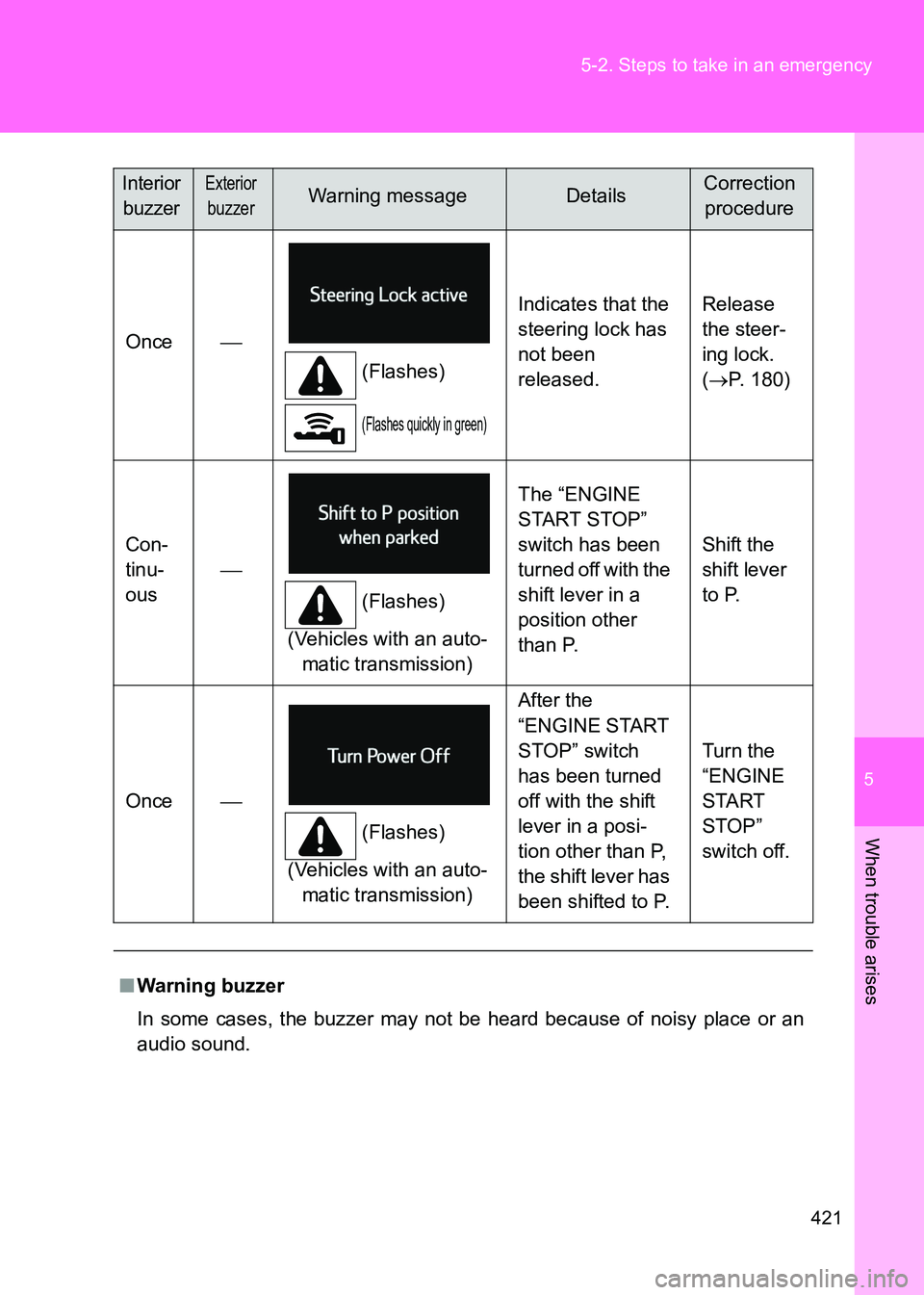

Indicates that the
steering lock has
not been
released. Release
the steer-
ing lock.
(
→ P. 180)
Con-
tinu-
ous 
(Flashes)
(Vehicles with an auto- matic transmission) The “ENGINE
START STOP”
switch has been
turned off with the
shift lever in a
position other
than P.
Shift the
shift lever
to P.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) After the
“ENGINE START
STOP” switch
has been turned
off with the shift
lever in a posi-
tion other than P,
the shift lever has
been shifted to P.
Turn the
“ENGINE
START
STOP”
switch off.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

422
5-2. Steps to take in an emergency
86_EE (OM18071E)

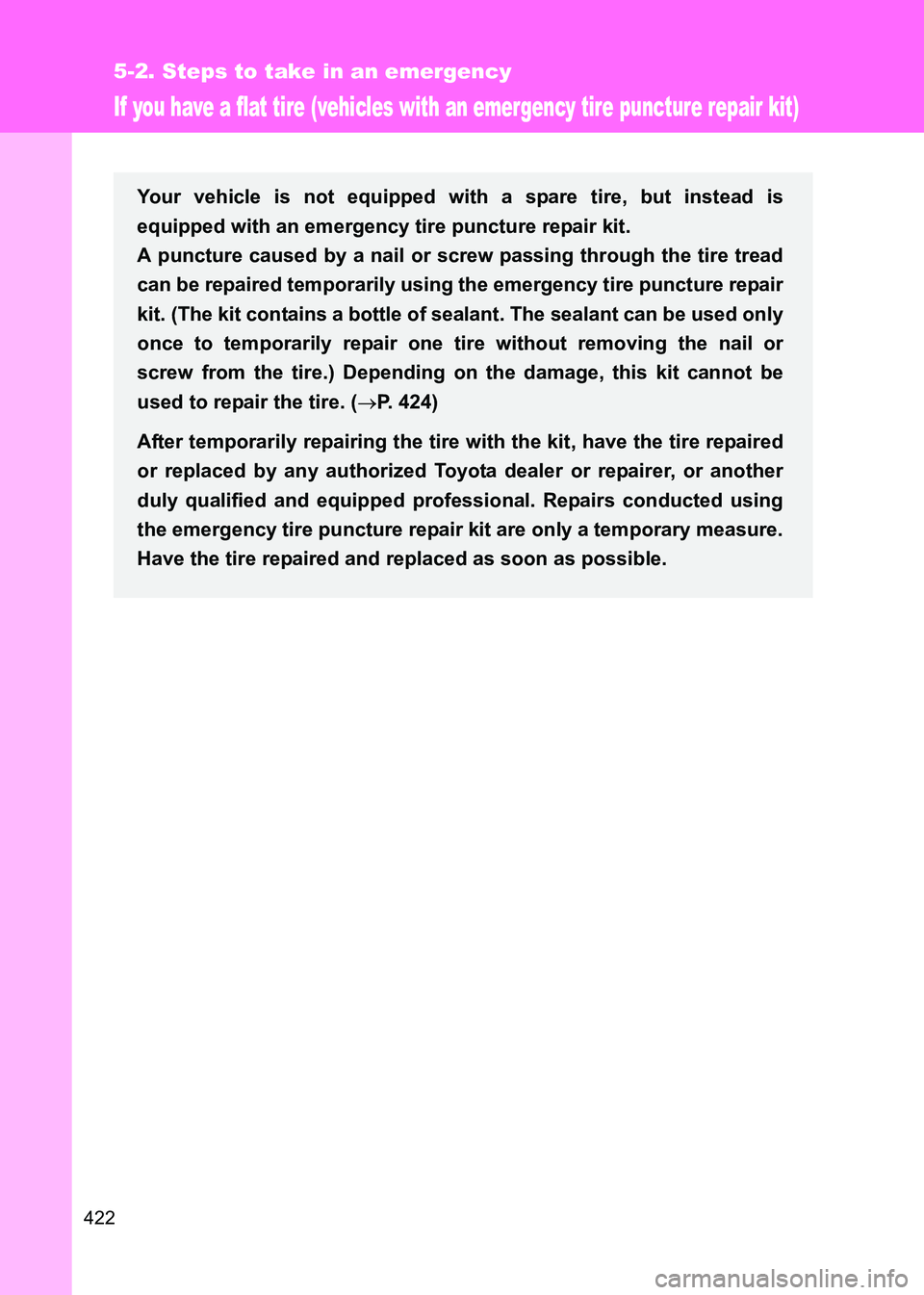

If you have a flat tire (vehicles with an emergency tire puncture repair kit)
Your vehicle is not equipped with a spare tire, but instead is
equipped with an emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread
can be repaired temporarily using the emergency tire puncture repair
kit. (The kit contains a bottle of sealant. The sealant can be used only
once to temporarily repair one tire without removing the nail or
screw from the tire.) Depending on the damage, this kit cannot be
used to repair the tire. ( →P. 424)
After temporarily repairing the tire with the kit, have the tire repaired
or replaced by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional. Repairs conducted using
the emergency tire puncture repair kit are only a temporary measure.
Have the tire repaired and replaced as soon as possible.

5
423
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
■
Before repairing the tire
●Stop the vehicle in a safe place on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P (vehicles with an automatic transmis-
sion) or N (vehicles with a manual transmission).
● Stop the engine.
● Turn on the emergency flashers. ( →P. 384)
● Check the degree of the tire
damage.
• Do not remove the nail or
screw from the tire.
Removing the object may
widen the opening and
prevent emergency repair
with the repair kit.
• To avoid sealant leakage,
move the vehicle until the
area of the puncture, if
known, is positioned at
the top of the tire.

424
5-2. Steps to take in an emergency
86_EE (OM18071E)
■

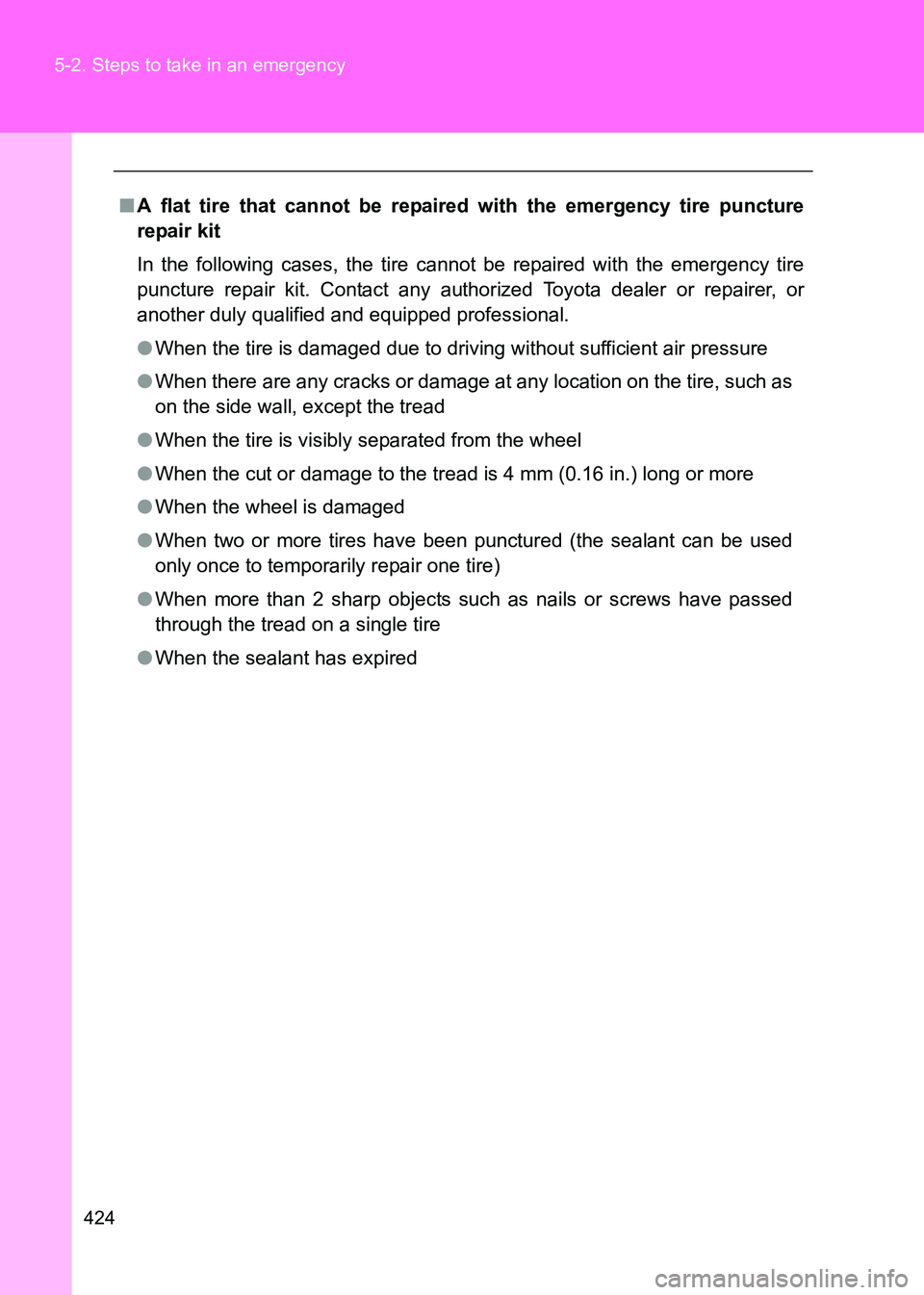

A flat tire that cannot be repaired with the emergency tire puncture
repair kit
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
● When the tire is damaged due to driving without sufficient air pressure
● When there are any cracks or damage at any location on the tire, such as
on the side wall, except the tread
● When the tire is visibly separated from the wheel
● When the cut or damage to the tread is 4 mm (0.16 in.) long or more
● When the wheel is damaged
● When two or more tires have been punctured (the sealant can be used
only once to temporarily repair one tire)
● When more than 2 sharp objects such as nails or screws have passed
through the tread on a single tire
● When the sealant has expired

5
425
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)
■
Location of the emergency tire puncture repair kit, jack and
tools
*: Use of the jack ( →P. 440)
■ Contents
Screwdriver Emergency
tire puncture
repair kit
Jack handle
Towing eyelet
Jack* Wheel nut
wrench
SealantInjection
hose
Va l v e c o r e t o o l
Valve core
(spare) Compressor
Stic kers
Extension hose (for
extracting the sealant)
Quick reference

426
5-2. Steps to take in an emergency
86_EE (OM18071E)

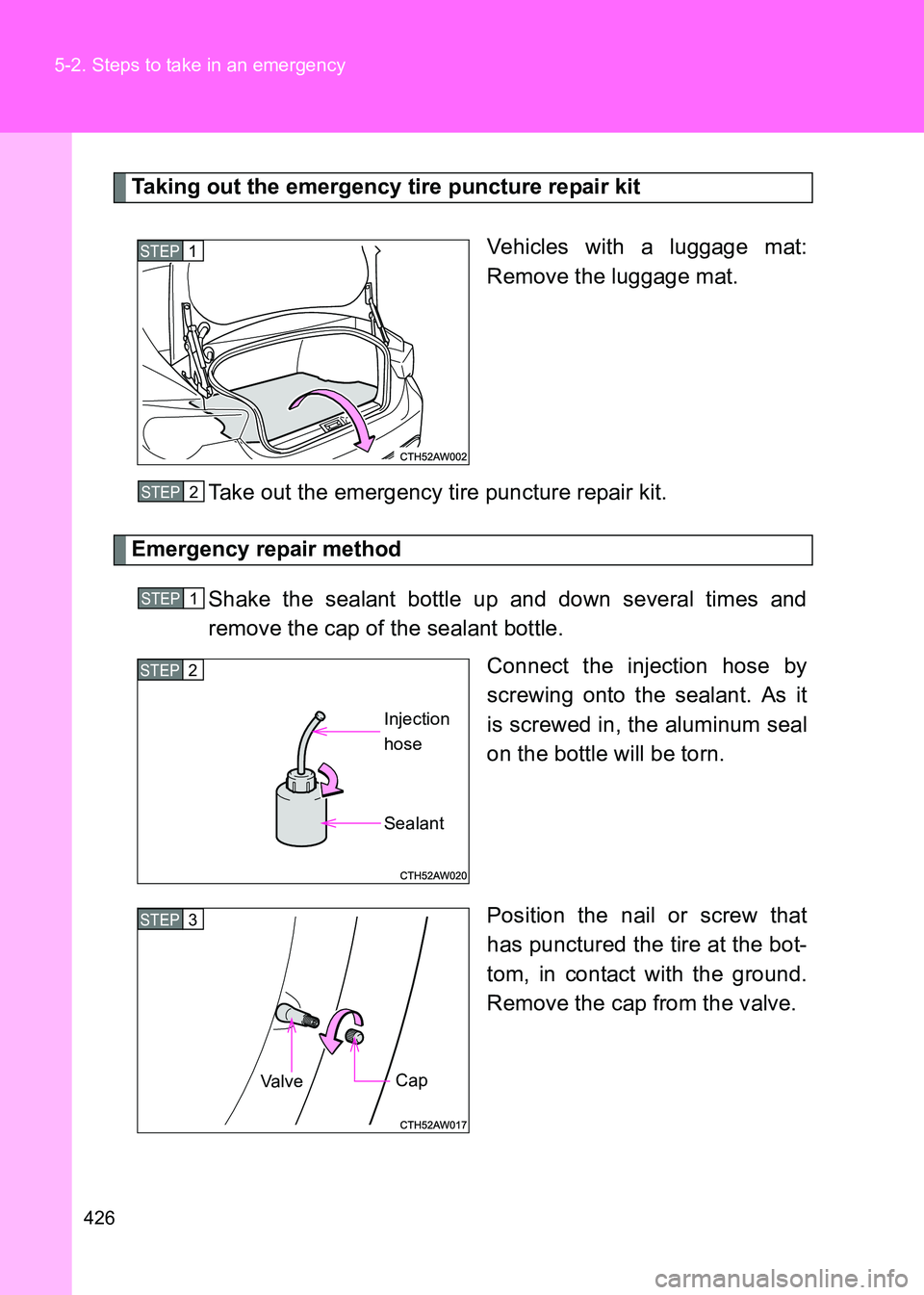

Taking out the emergency tire puncture repair kit
Vehicles with a luggage mat:
Remove the luggage mat.
Take out the emergency tire puncture repair kit.
Emergency repair method Shake the sealant bottle up and down several times and
remove the cap of the sealant bottle. Connect the injection hose by
screwing onto the sealant. As it
is screwed in, the aluminum seal
on the bottle will be torn.
Position the nail or screw that
has punctured the tire at the bot-
tom, in contact with the ground.
Remove the cap from the valve.
STEP 1
STEP 2
STEP 1
STEP 2
Injection
hose
Sealant
STEP 3
Va l v eCap

5
427
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)

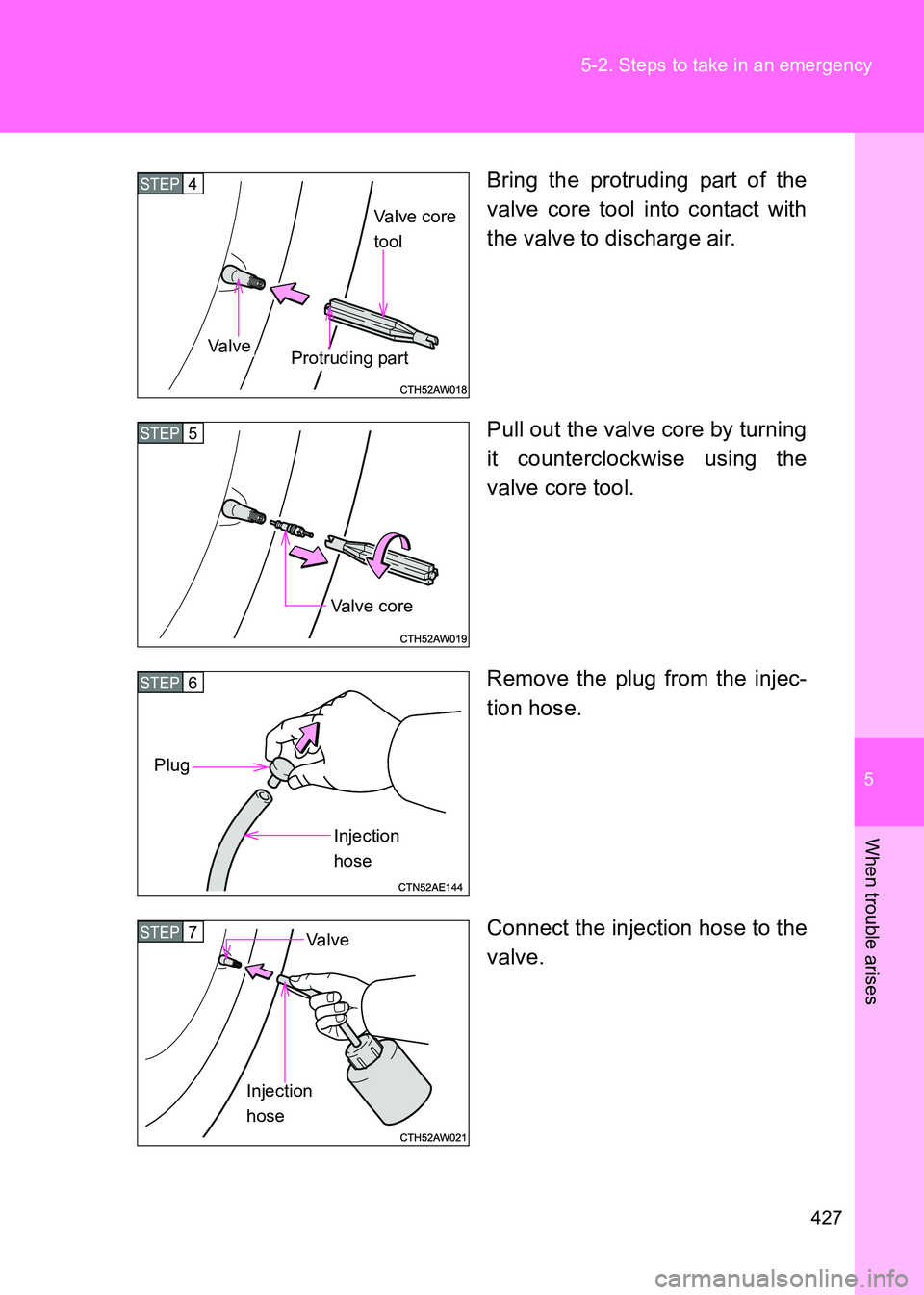

Bring the protruding part of the
valve core tool into contact with
the valve to discharge air.
Pull out the valve core by turning
it counterclockwise using the
valve core tool.
Remove the plug from the injec-
tion hose.
Connect the injection hose to the
valve.
STEP 4
Va l v eProtruding part
Valve core
tool
STEP 5
Va l v e c o r e
STEP 6
Plug
Injection
hose
STEP 7 Va l v e
Injection
hose

428
5-2. Steps to take in an emergency
86_EE (OM18071E)

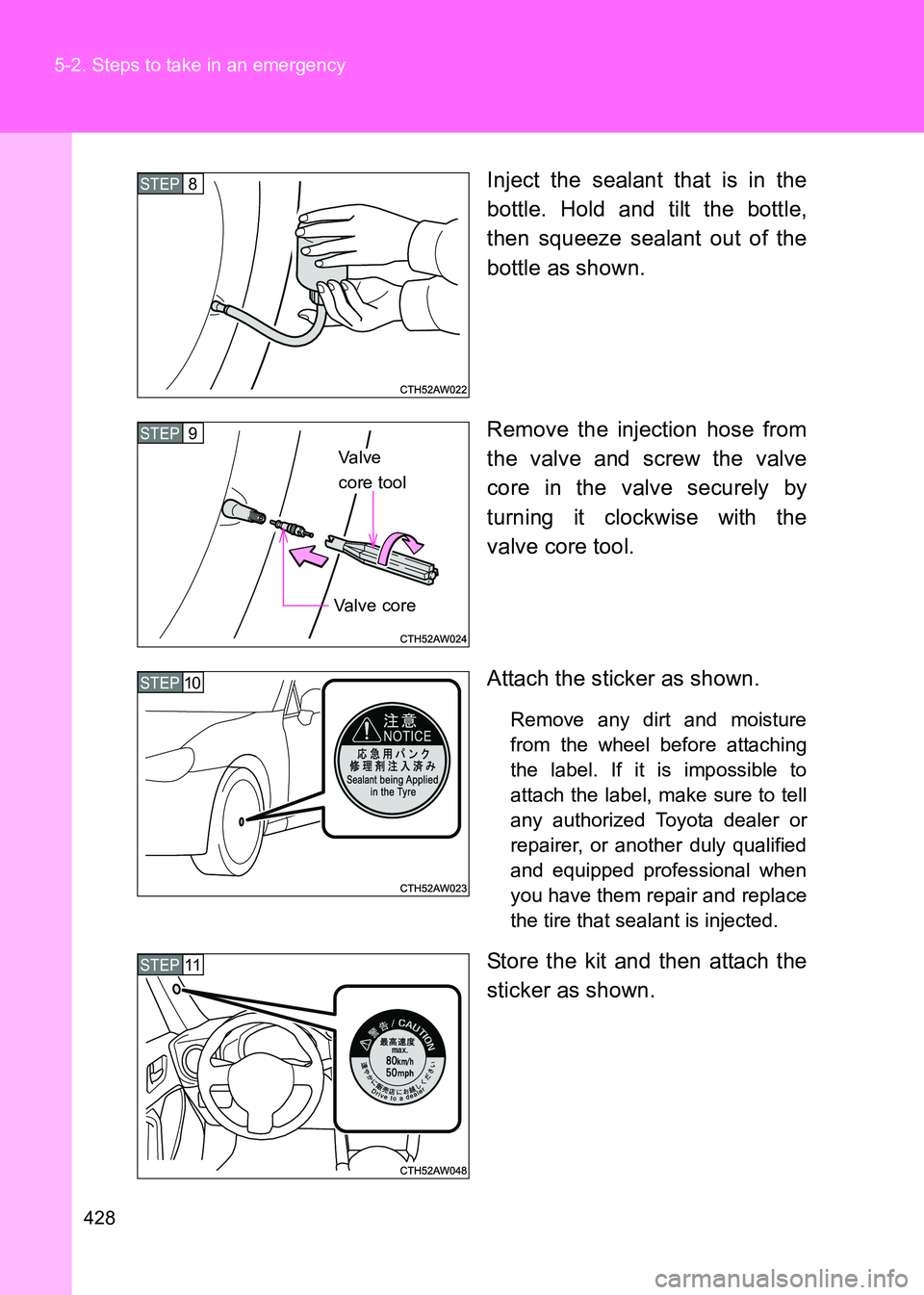

Inject the sealant that is in the
bottle. Hold and tilt the bottle,
then squeeze sealant out of the
bottle as shown.
Remove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core tool.
Attach the sticker as shown.
Remove any dirt and moisture
from the wheel before attaching
the label. If it is impossible to
attach the label, make sure to tell
any authorized Toyota dealer or
repairer, or another duly qualified
and equipped professional when
you have them repair and replace
the tire that sealant is injected.
Store the kit and then attach the
sticker as shown.
STEP 8
STEP 9
Va l v e
core tool
Va l v e c o r e
STEP 10
STEP11

5
429
5-2. Steps to take in an emergency
When trouble arises
86_EE (OM18071E)

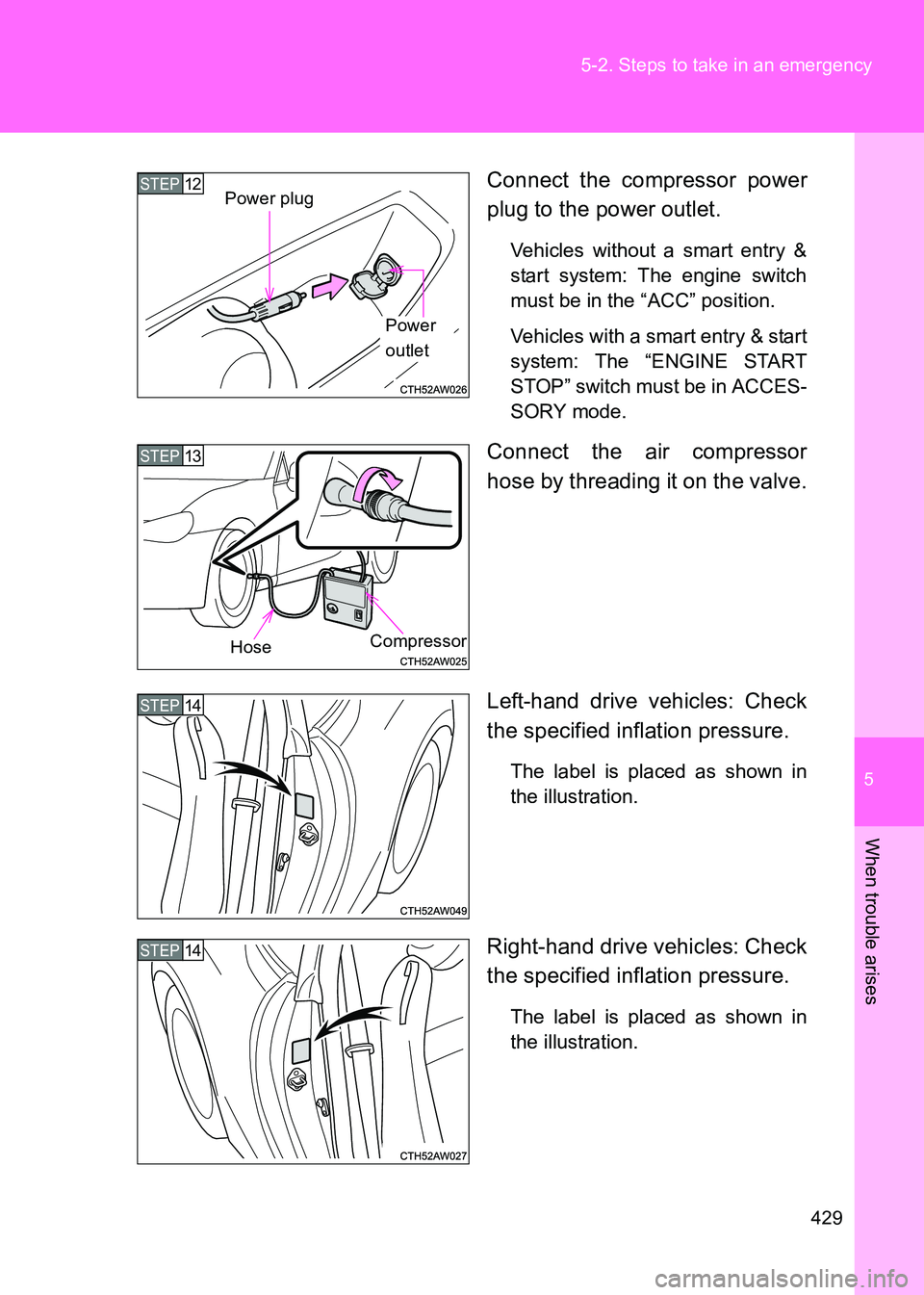

Connect the compressor power
plug to the power outlet.
Vehicles without a smart entry &
start system: The engine switch
must be in the “ACC” position.
Vehicles with a smart entry & start
system: The “ENGINE START
STOP” switch must be in ACCES-
SORY mode.
Connect the air compressor
hose by threading it on the valve.
Left-hand drive vehicles: Check
the specified inflation pressure.
The label is placed as shown in
the illustration.
Right-hand drive vehicles: Check
the specified inflation pressure.
The label is placed as shown in
the illustration.
Power
outlet
STEP12Power plug
STEP13
CompressorHose
STEP14
STEP14

430
5-2. Steps to take in an emergency
86_EE (OM18071E)

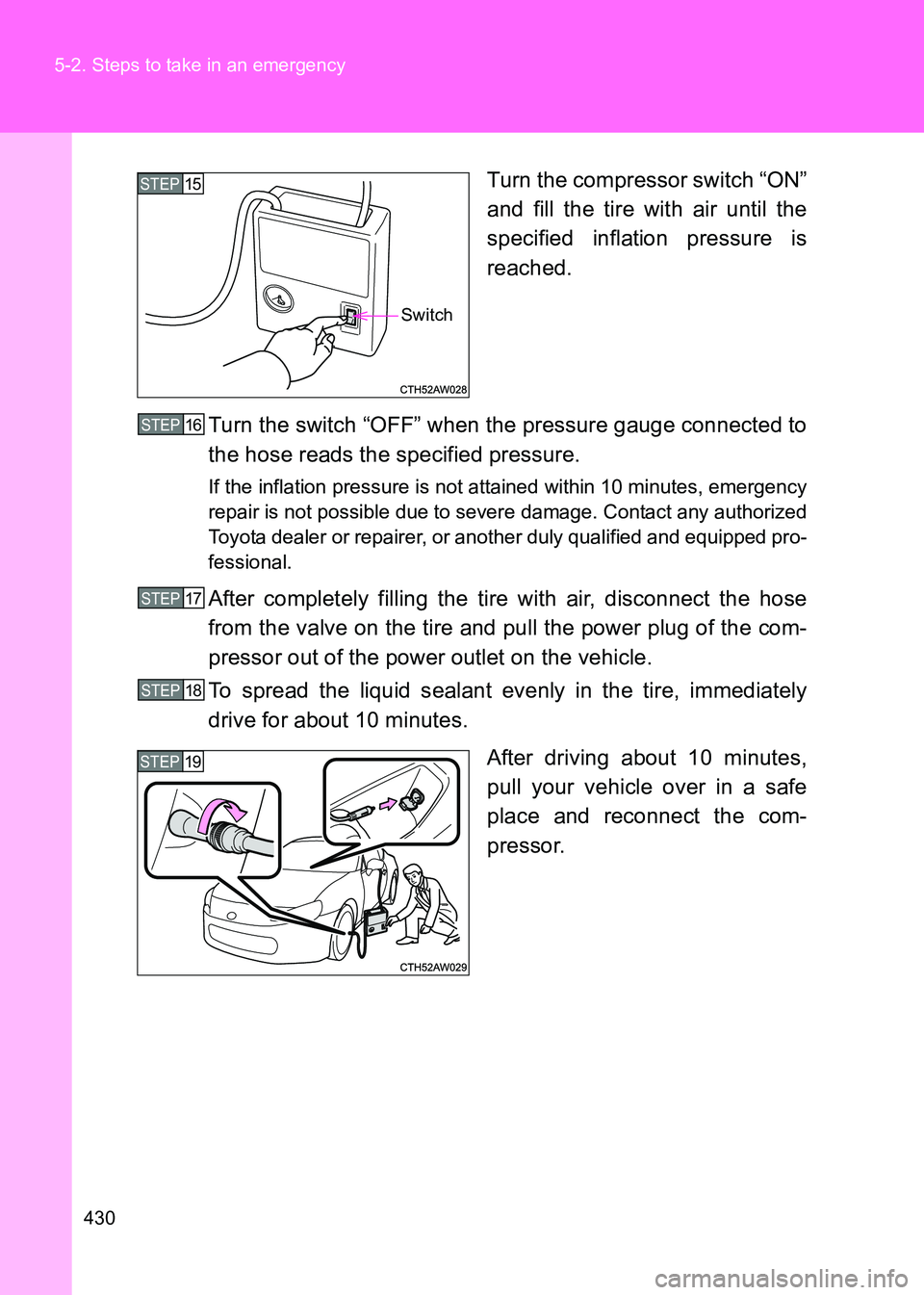

Turn the compressor switch “ON”
and fill the tire with air until the
specified inflation pressure is
reached.
Turn the switch “OFF” when the pressure gauge connected to
the hose reads the specified pressure.
If the inflation pressure is not attained within 10 minutes, emergency
repair is not possible due to severe damage. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
After completely filling the tire with air, disconnect the hose
from the valve on the tire and pull the power plug of the com-
pressor out of the power outlet on the vehicle.
To spread the liquid sealant evenly in the tire, immediately
drive for about 10 minutes. After driving about 10 minutes,
pull your vehicle over in a safe
place and reconnect the com-
pressor.
STEP15
Switch
STEP16
STEP17
STEP18
STEP19
