TOYOTA GT86 2018 (in English) Owner's Manual

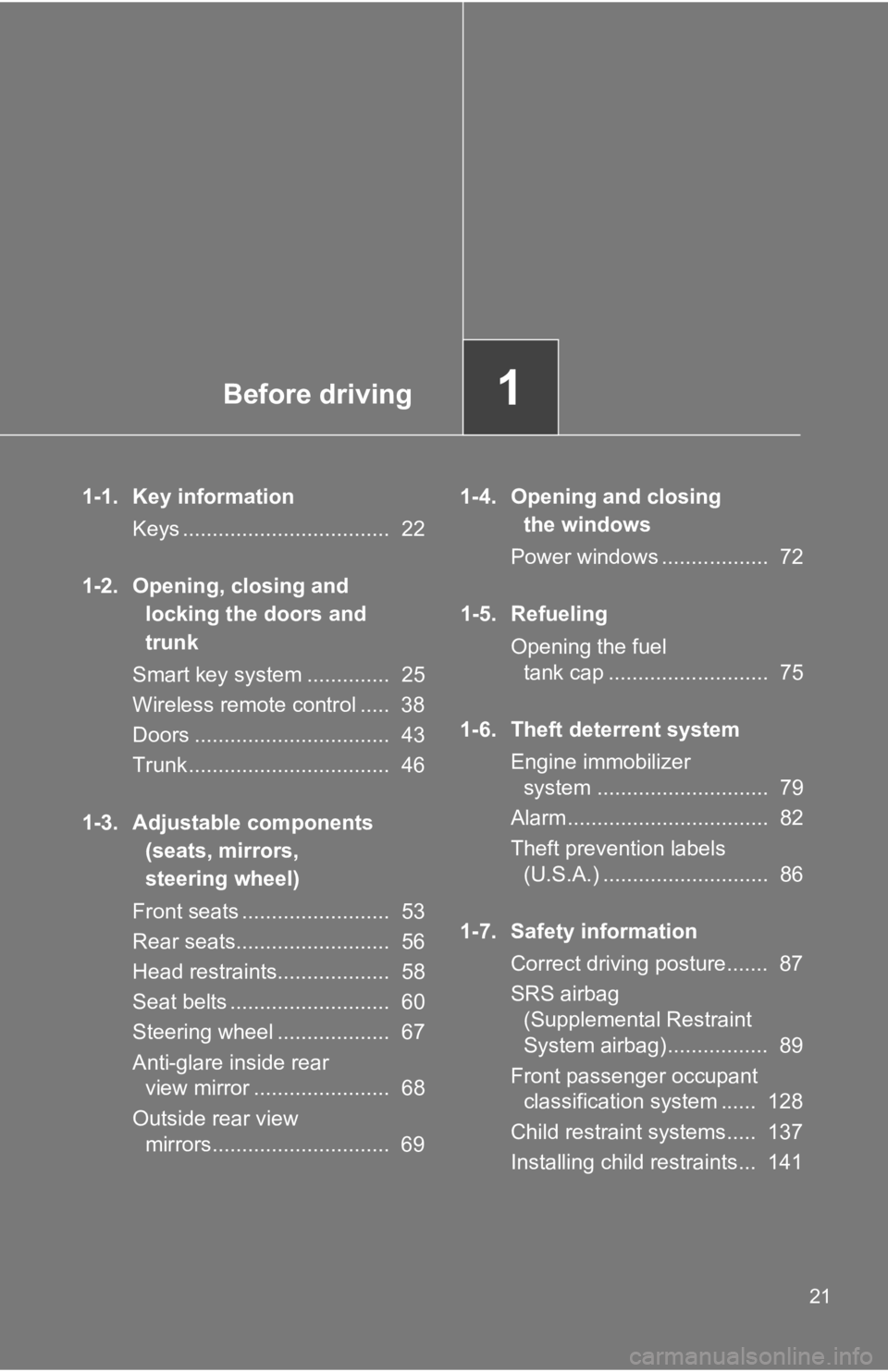

Before driving1
21
1-1. Key informationKeys ................................... 22
1-2. Opening, closing and locking the doors and
trunk
Smart key system .............. 25
Wireless remote control ..... 38
Doors ................................. 43
Trunk .................................. 46
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 53
Rear seats.......................... 56
Head restraints................... 58
Seat belts ........................... 60
Steering wheel ................... 67
Anti-glare inside rear view mirror ....................... 68
Outside rear view mirrors.............................. 69 1-4. Opening and closing
the windows
Power windows .................. 72
1-5. Refueling Opening the fuel tank cap ........................... 75
1-6. Theft deterrent system Engine immobilizer system ............................. 79
Alarm.................................. 82
Theft prevention labels (U.S.A.) ............................ 86
1-7. Safety information Correct driving posture....... 87
SRS airbag (Supplemental Restraint
System airbag)................. 89
Front passenger occupant classification system ...... 128
Child restraint systems..... 137
Installing child restraints... 141

22
1-1. Key information

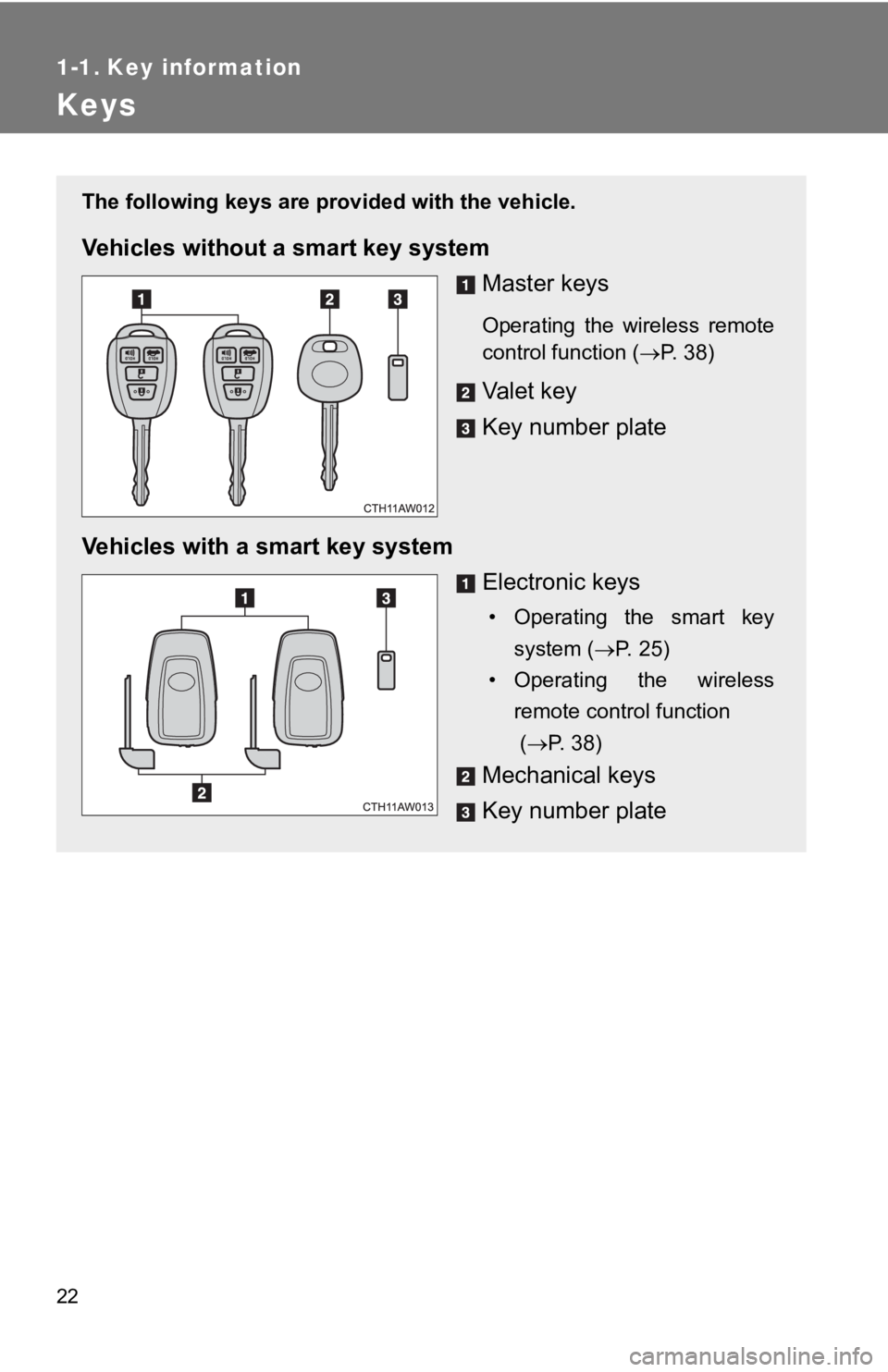

Keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys
Operating the wireless remote
control function (P. 38)
Valet key
Key number plate
Vehicles with a smart key system Electronic keys
• Operating the smart keysystem ( P. 25)
• Operating the wireless
remote control function
(P. 38)
Mechanical keys
Key number plate

23
1-1. Key information
1
Before driving
Using the mechanical key (vehic
les with a smart key system)
To take out the mechanical key,
slide the release lever and take
the key out.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or entry
function does not operate prop-
erly, you will need the mechanical
key. ( P. 440)
■When required to leave the vehicle’s key with a parking attenda nt
Turn the trunk opener main switch off as circumstances demand. ( P. 47)
On vehicles without a smart key system, provide the attendant w ith the valet
key.
On vehicles with a smart key system, remove the mechanical key for your
own use and provide the attendant with the electronic key only.
■ Key number plate
Keep the plate in a safe place, not in the vehicle. In the even t that a key
(without a smart key system) or mechanical key (with a smart ke y system) is
lost, a new key can be made at your Toyota dealer using the key number
plate. ( P. 439)
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button ma y cause the
key to emit radio waves that could interfere with the operation of the aircraft.

24 1-1. Key information
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
● Do not expose the keys to high temperatures for a long period o f time.
● Do not get the keys wet or wash them in an ultrasonic washer et c.
● Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else to the surface of the key.
● Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems, induction cookers,
or medical electrical equipment, such as low-frequency therapy equip-
ment.
■ Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from elec tric appli-
ances that are turned on. Radio waves emitted from electric app liances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, causing
the key to not function properly.
■ In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with yo ur vehicle to
your Toyota dealer.
■ When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases si gnificantly. Visit
your Toyota dealer immediately with all remaining keys that wer e provided
with your vehicle.

25
1
Before driving
1-2. Opening, closing and locking the doors and trunk

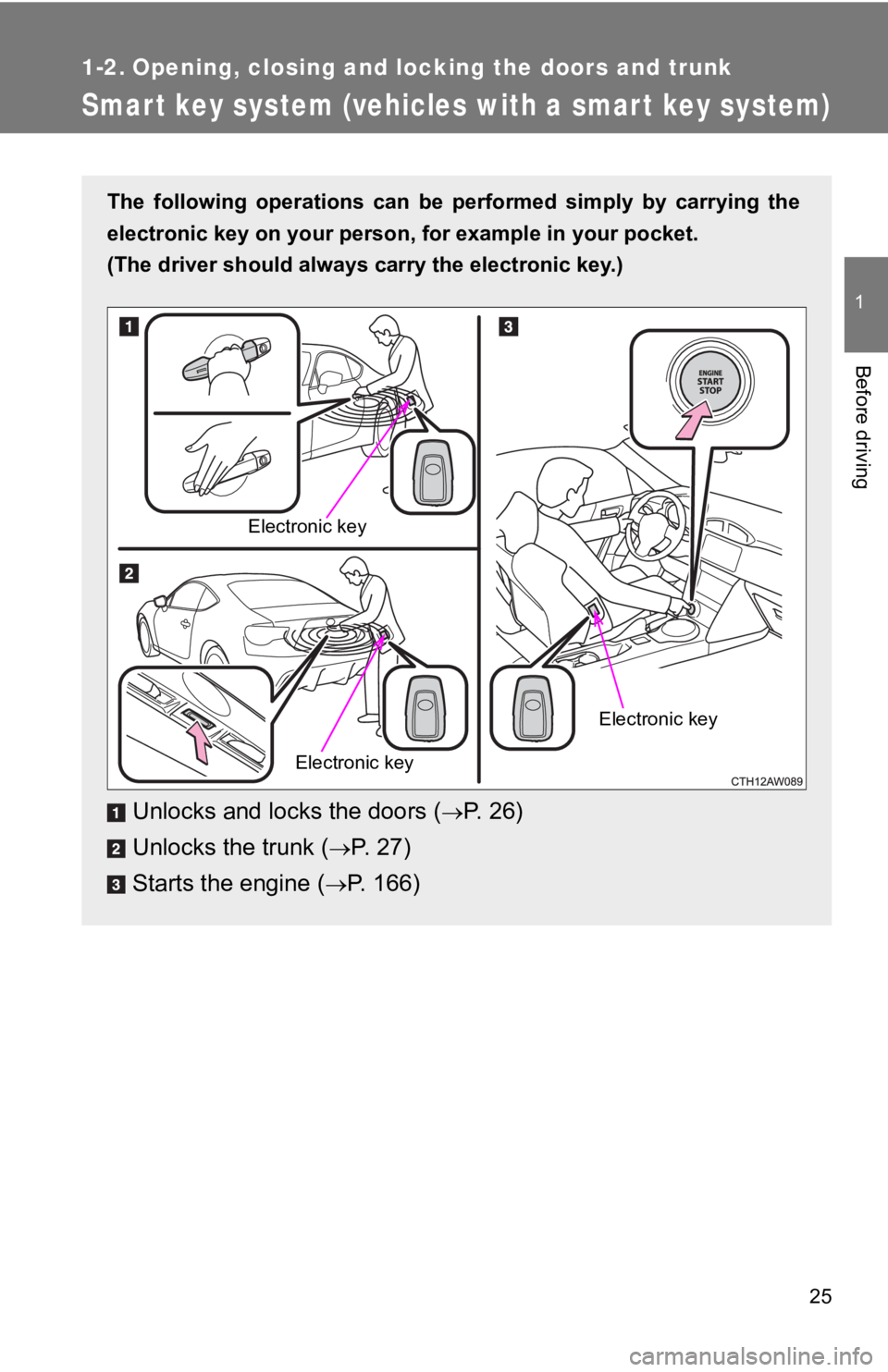

Smar t key system (vehicles with a smart key system)
The following operations can be performed simply by carrying the
electronic key on your person , for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors (P. 26)
Unlocks the trunk (
P. 2 7 )
Starts the engine (
P. 166)
Electronic key
Electronic key
Electronic key

26 1-2. Opening, closing and locking the doors and trunk
Unlocking and locking the doorsGrip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Check that the door is securely
locked.

27
1-2. Opening, closing and locking the doors and trunk
1
Before driving
Unlocking the trunk
Press the button to unlock the
trunk.
Antenna location and effective range■ Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

28 1-2. Opening, closing and locking the doors and trunk
■Effective range (areas within which the electronic key is
detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk
The system can be operated
when the electronic key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk release
button.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

29
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■ When the door cannot be locked by the lock sensor
■ Door lock buzzer
If an attempt to lock the doors is made when a door is not full y closed, a
buzzer sounds continuously. Fully close the door to stop the bu zzer, and lock
the vehicle once more.
■ Alarms and warning indicators
A combination of exterior and interior alarms as well as warnin g messages
shown on the multi-information display are used to prevent thef t of the vehi-
cle and accidents resulting from erroneous operation. Take appr opriate mea-
sures in response to any warning message on the multi-information display.
( P. 409, 413)
The following table describes circumstances and correction proc edures
when only alarms are sounded.
Use your palm to touch the lock sensor.

30 1-2. Opening, closing and locking the doors and trunk
■Security feature
If a door is not opened within approximately 60 seconds after t he vehicle is
unlocked, the security feature automatically locks the vehicle again. (How-
ever, depending on the location of the electronic key, the key may be
detected as being in the vehicle. In this case, the vehicle may be unlocked.)
■ Battery-saving function
The battery-saving function will be activated in order to preve nt the elec-
tronic key battery and the vehicle battery from being discharge d while the
vehicle is not in operation for a long time.
● In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m)
of the outside of the vehicle for 10 minutes or longer.
• The smart key system has not been used for 5 days or longer.
● If the smart key system has not been used for 14 days or longer , the
doors cannot be unlocked at any door except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless
remote control or the mechanical key, to unlock the doors.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for
5 seconds An attempt was made to
lock the vehicle while a
door was open. Close all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously The “ENGINE START
STOP” switch was turned
to ACCESSORY mode
while the driver’s door was
open (or the driver’s door
was opened while the
“ENGINE START STOP”
switch was in ACCES-
SORY mode). Turn the “ENGINE
START STOP” switch
off and close the
driver’s door.
