TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
35
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

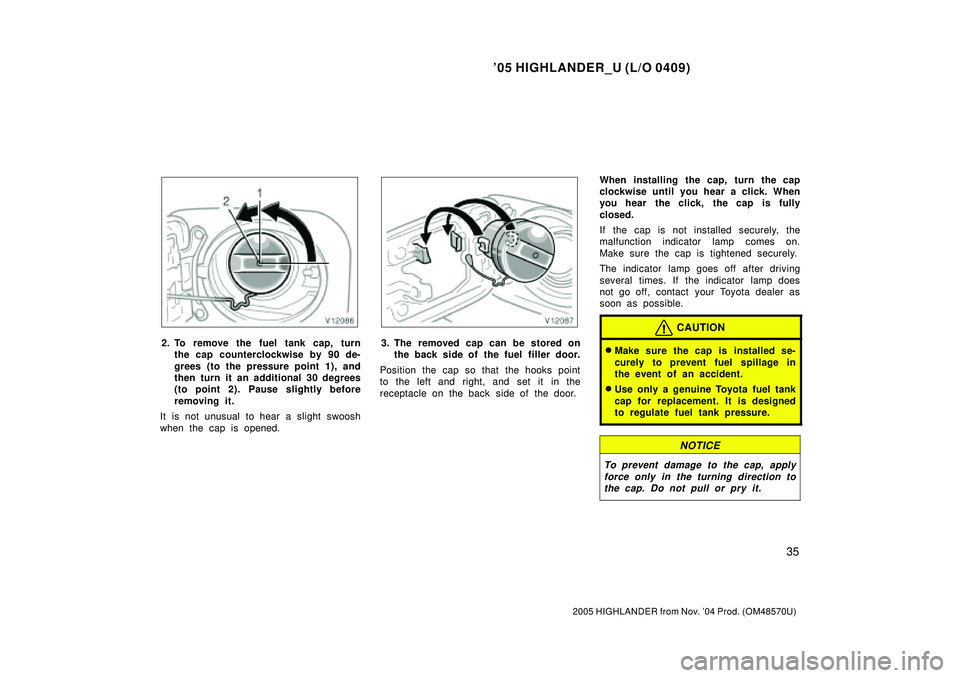

2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it

Page 152 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
36
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

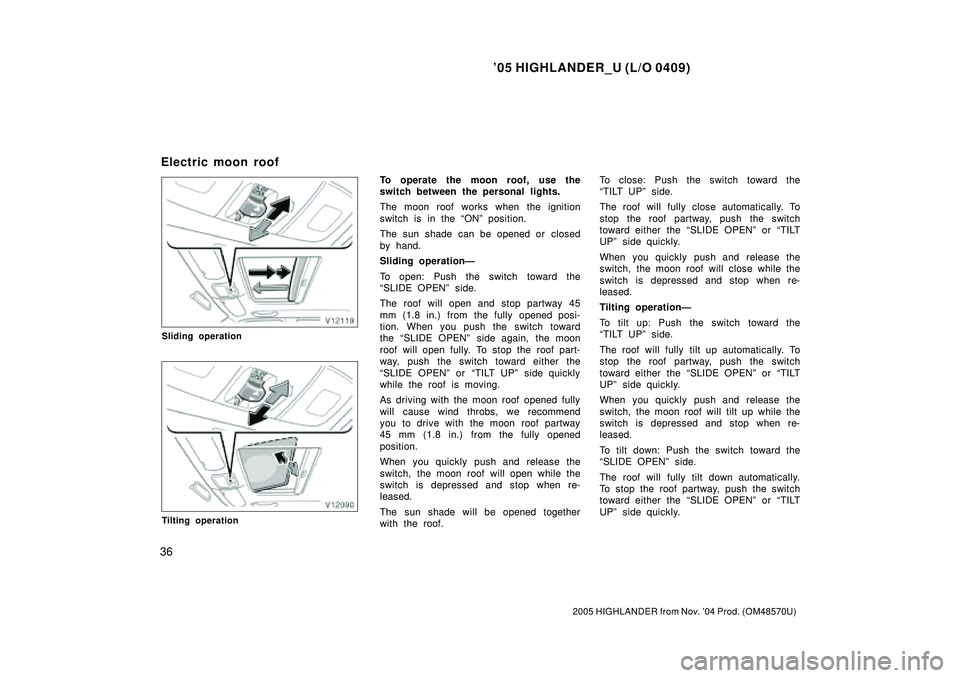

Sliding operation
Tilting operation
To operate the moon roof, use the
switch between the personal lights.
The moon roof wo

Page 153 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
37
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

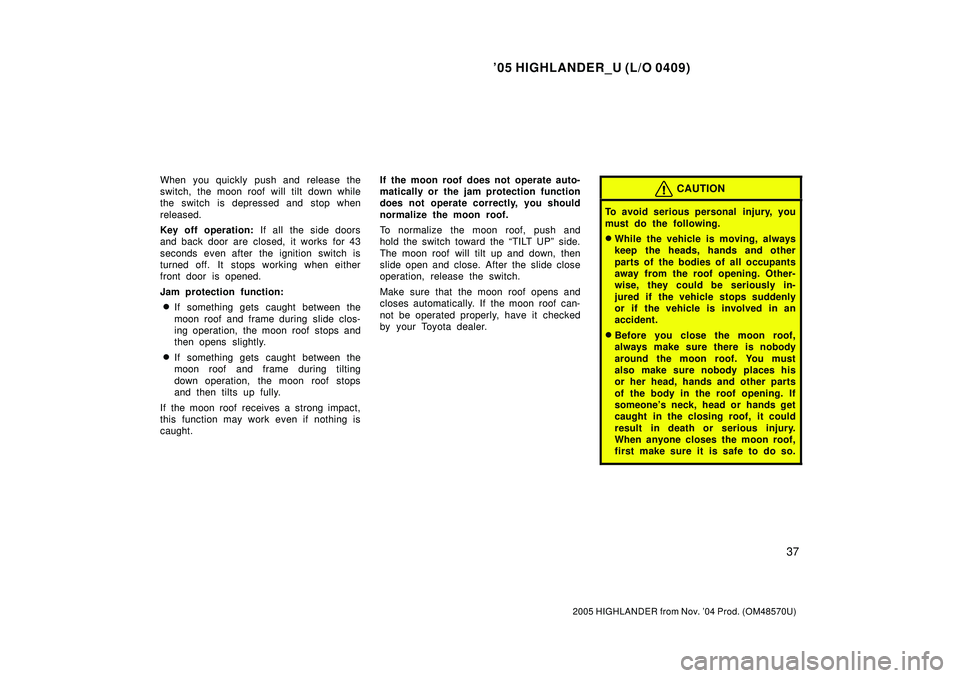

When you quickly push and release the
switch, the moon roof will tilt down while
the switch is depressed and stop when
rel

Page 154 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
38
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

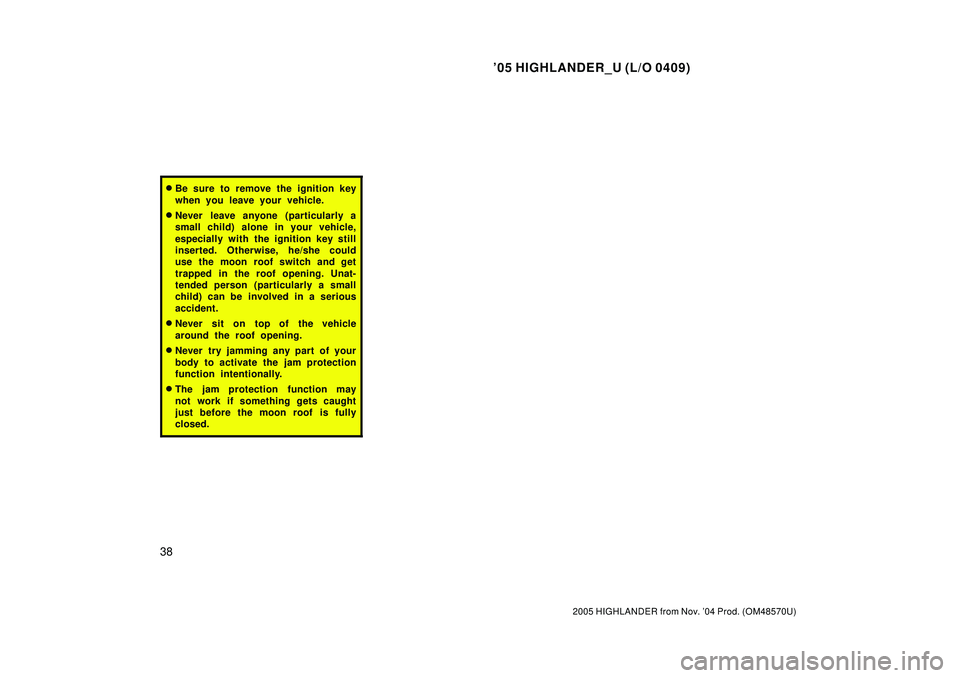

Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in

Page 155 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 2005 HIGHLANDER (EWD592U)
66

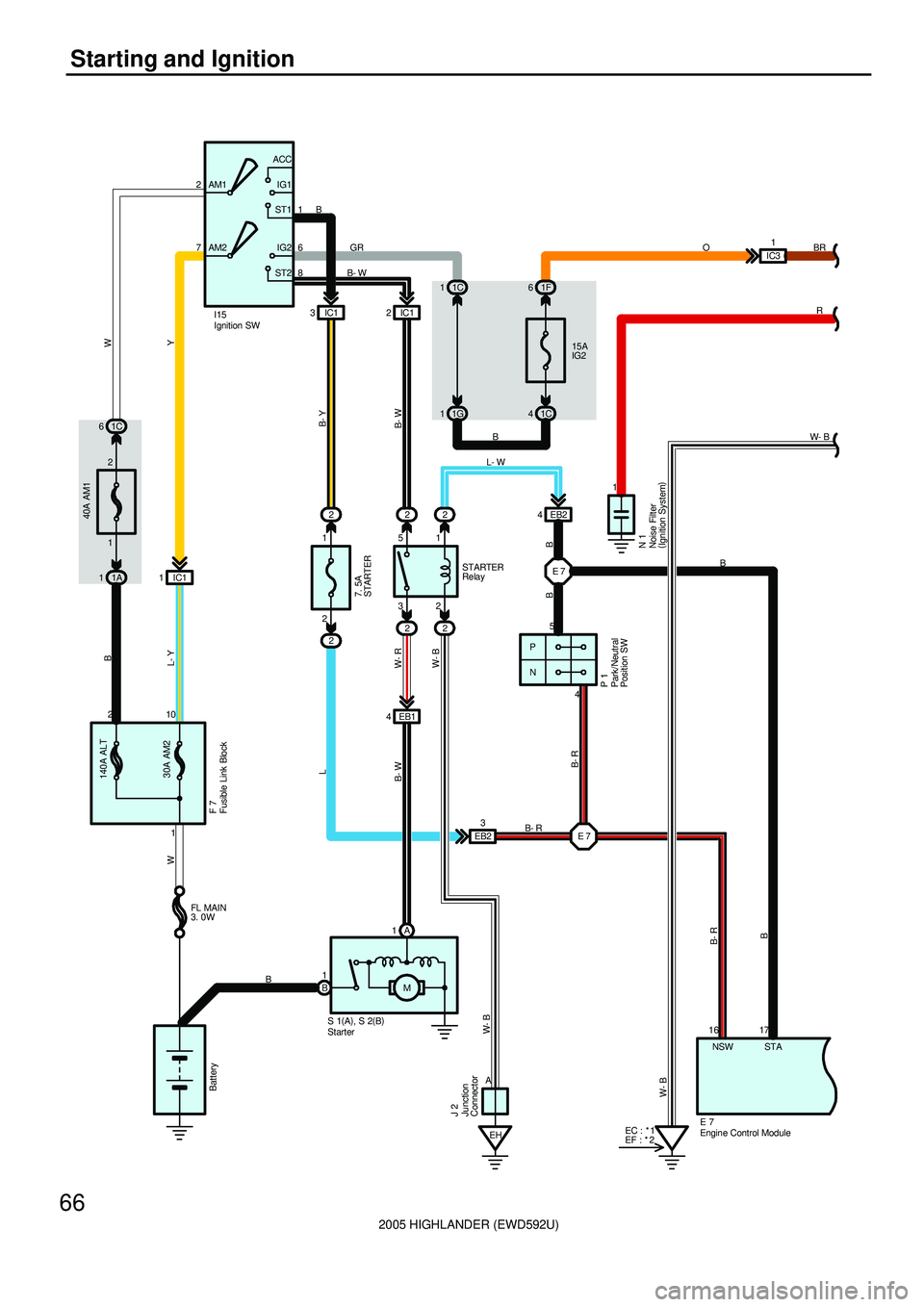

Starting and Ignition
M1
Battery
A 1
B1
W
BR
R
W- B
B 76
8 AM2 IG2
ST2
I15
IC1 1
30A AM2
10
1
F 7Y L- Y
EB1 4IC1 2
22 22
7. 5A
STARTER
2 2
EB23 B- W
STARTER
Relay
2
P
N
4

Page 156 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 2005 HIGHLANDER (EWD592U)
67

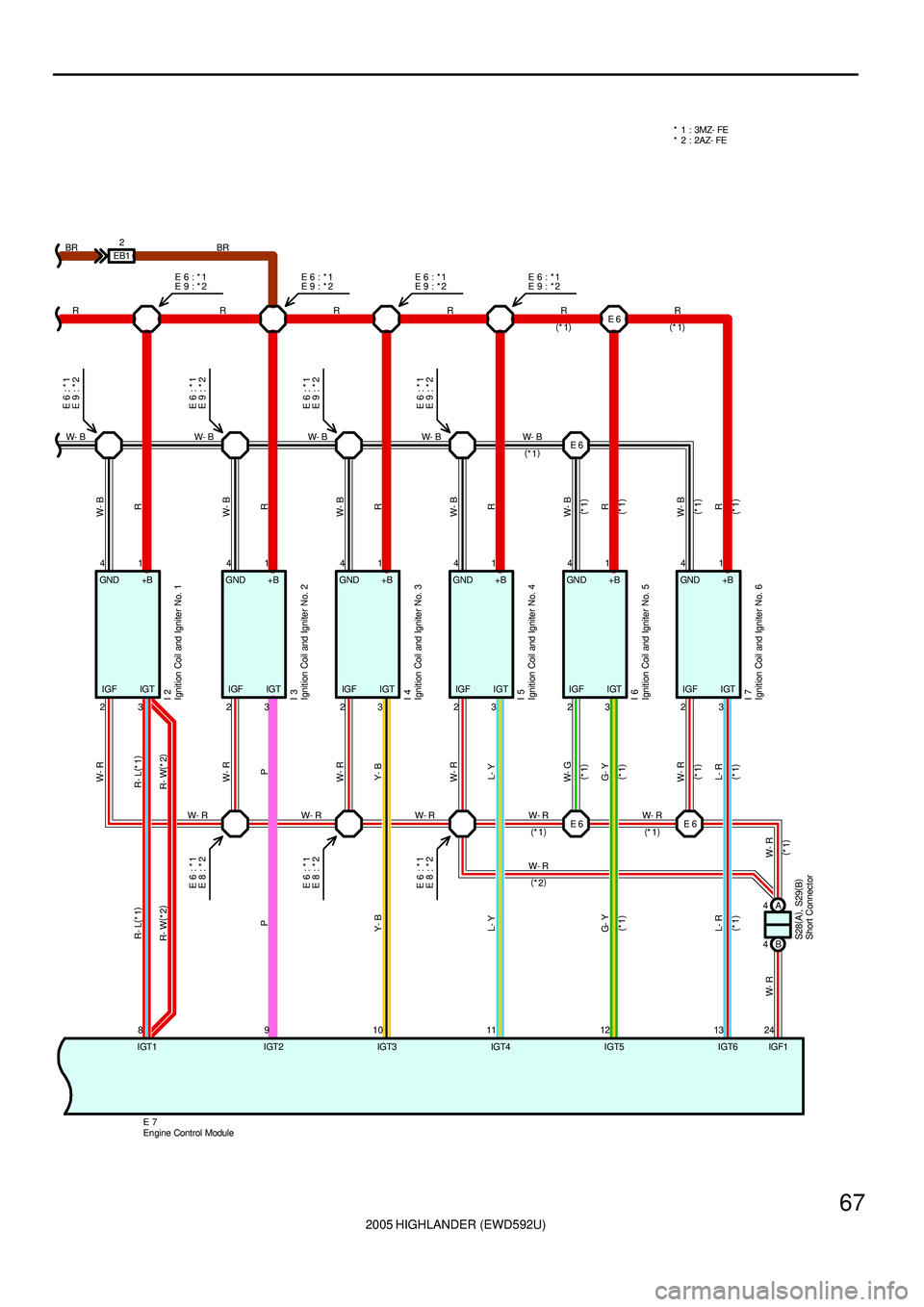

E 6
E 6
E 6 E 6 BR
R RRRRR
W- B W- B W- B W- B W- B
W- R W- R W- R W- R W- R
I GT1 I GT2 IGT3 IGT4 I GT5 I GT6 IGF1
R- L(
*1)
P
Y- B
L- Y
G- Y
L- R
W- RW- R
R- L(
*1)
W- R

Page 157 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 2005 HIGHLANDER (EWD592U)
68
Starting and Ignition

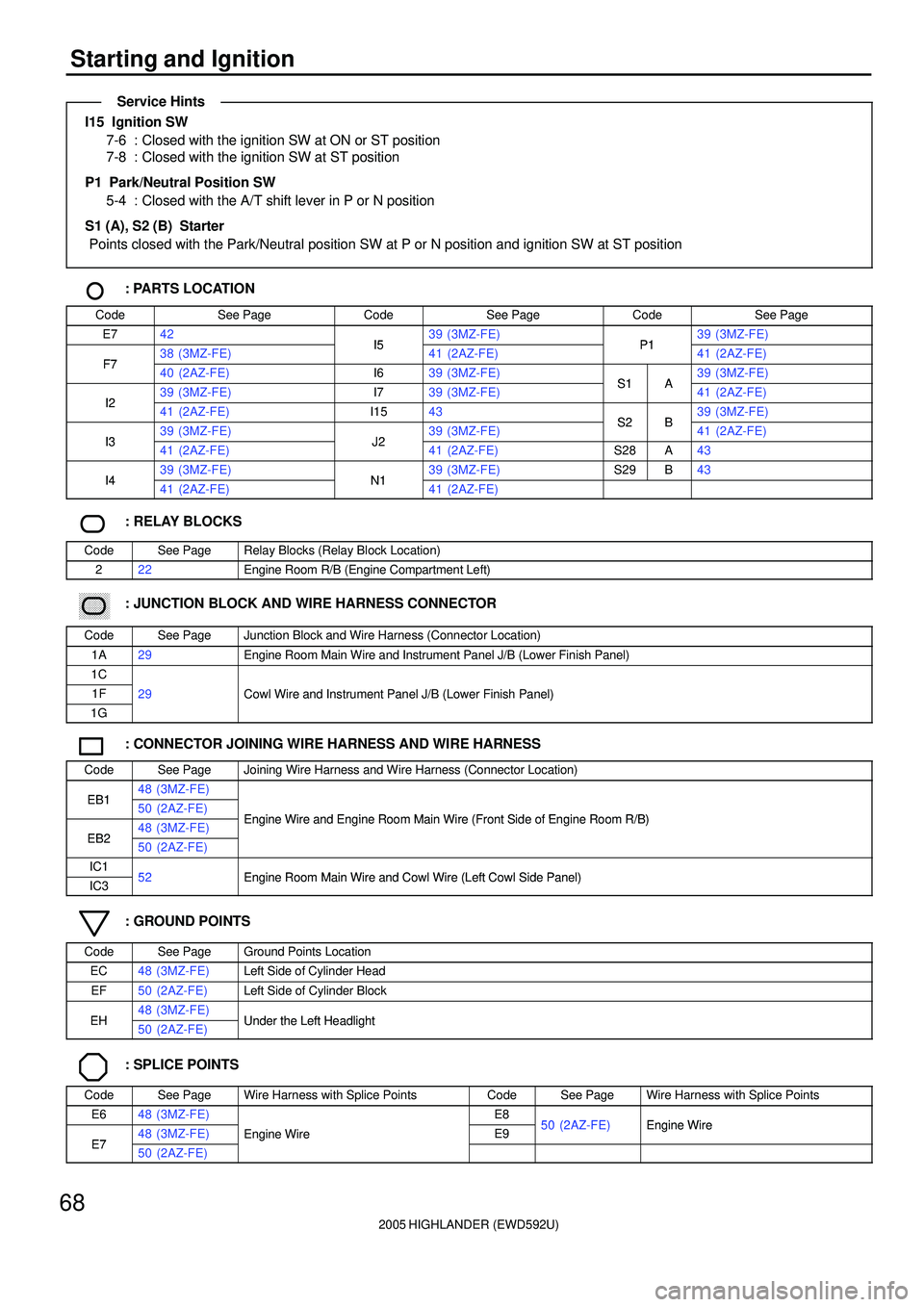

I15  Ignition SW
7-6 : Closed with the ignition SW at ON or ST position
7-8 : Closed with the ignition SW at ST position
P1
 Park/Neutral Position S

Page 158 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 2005 HIGHLANDER (EWD592U)
69

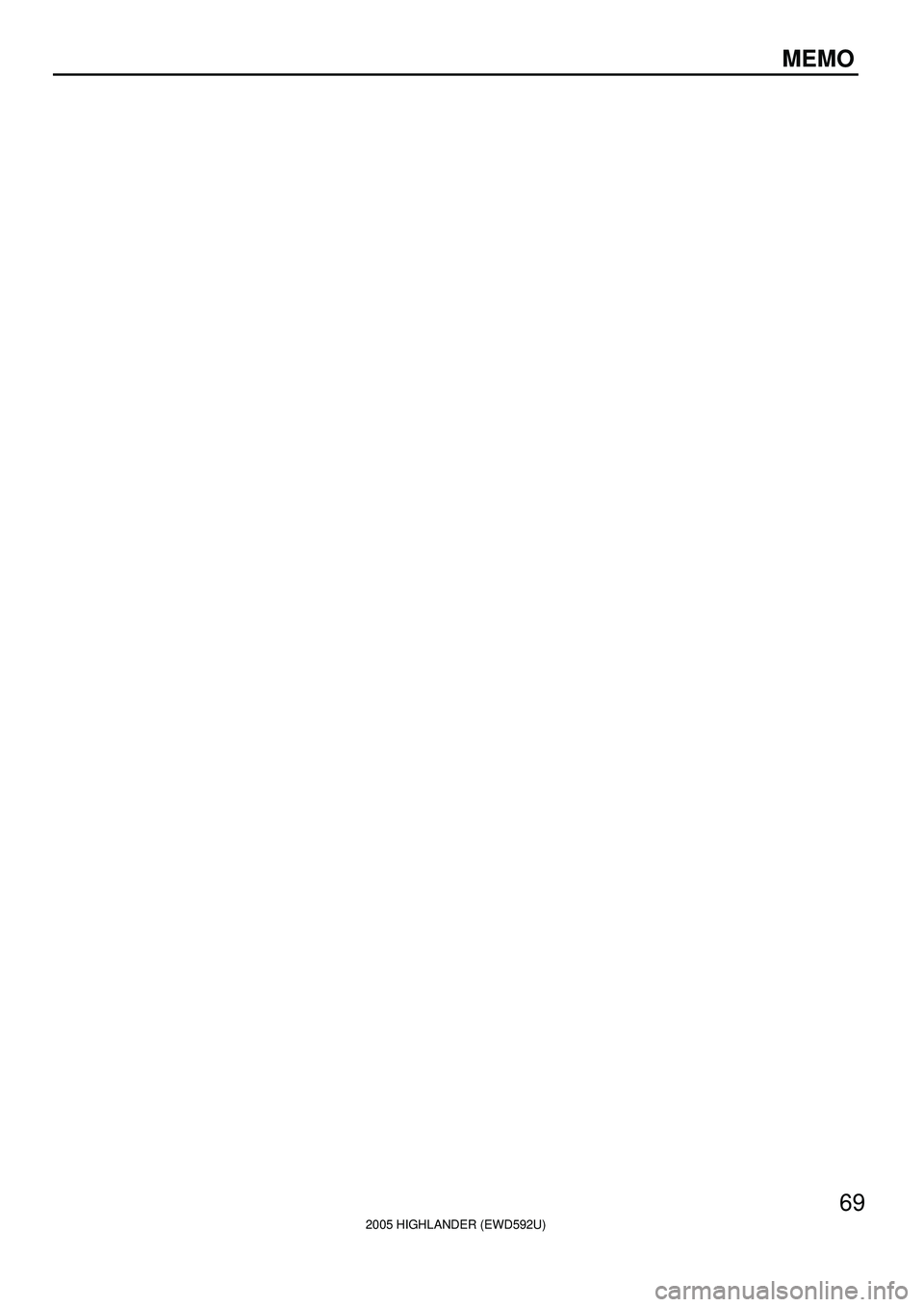

MEMO

Page 159 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
39
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

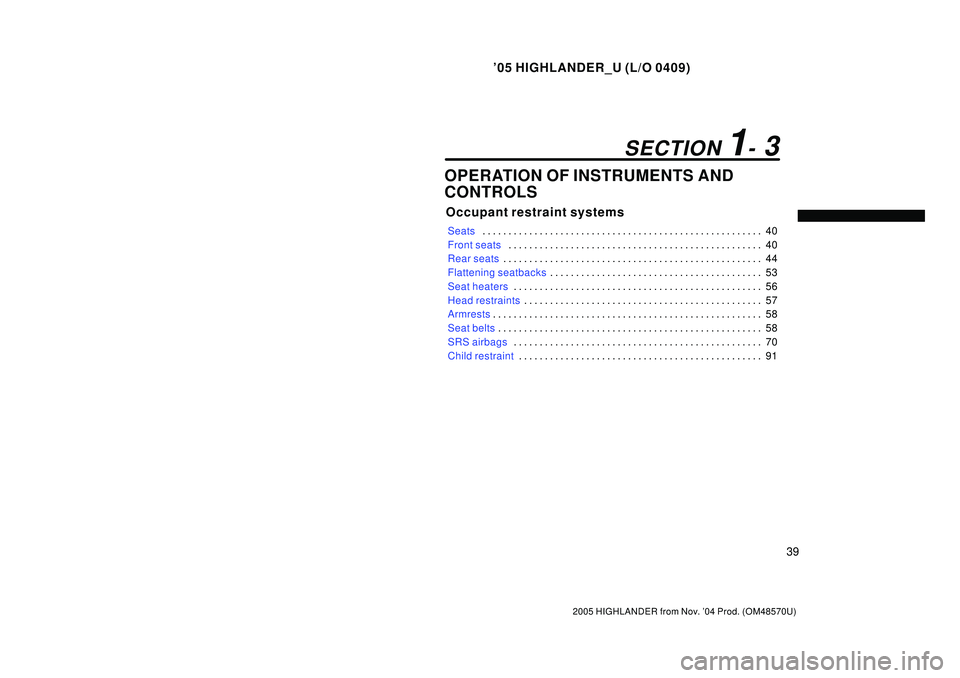

OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats40 . . . . . . . . . . . . . . . . . . . . . . . . .

Page 160 of 2572

TOYOTA HIGHLANDER 2001  Service Repair Manual 05 HIGHLANDER_U (L/O 0409)
40
2005 HIGHLANDER from Nov. 04 Prod. (OM48570U)

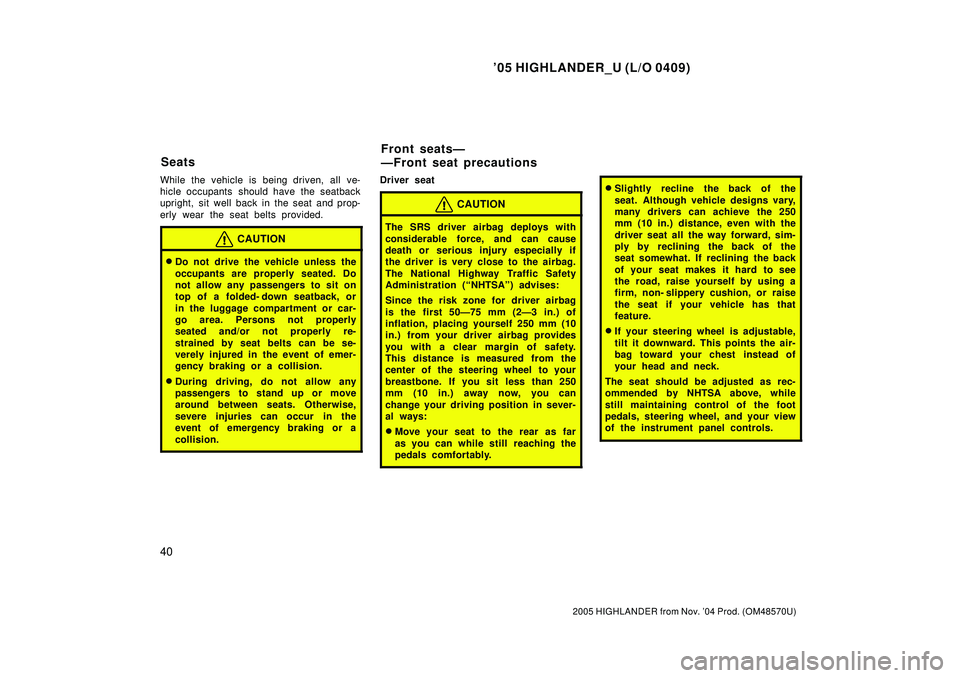

While the vehicle is being driven, all ve-
hicle occupants  should have the seatback
upright, sit well back in the seat an
