Page 111 of 2572
'05 HIGHLANDER_U (L/O 0409)
415
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
REPORTING SAFETY DEFECTS FOR U.S.
OWNERS
Reporting safety defects for U.S. owners
Reporting safety defects for U.S. owners416 . . . . . . . . . . . . . . . . . . . . . .
SECTION 9
Page 112 of 2572

'05 HIGHLANDER_U (L/O 0409)
416
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

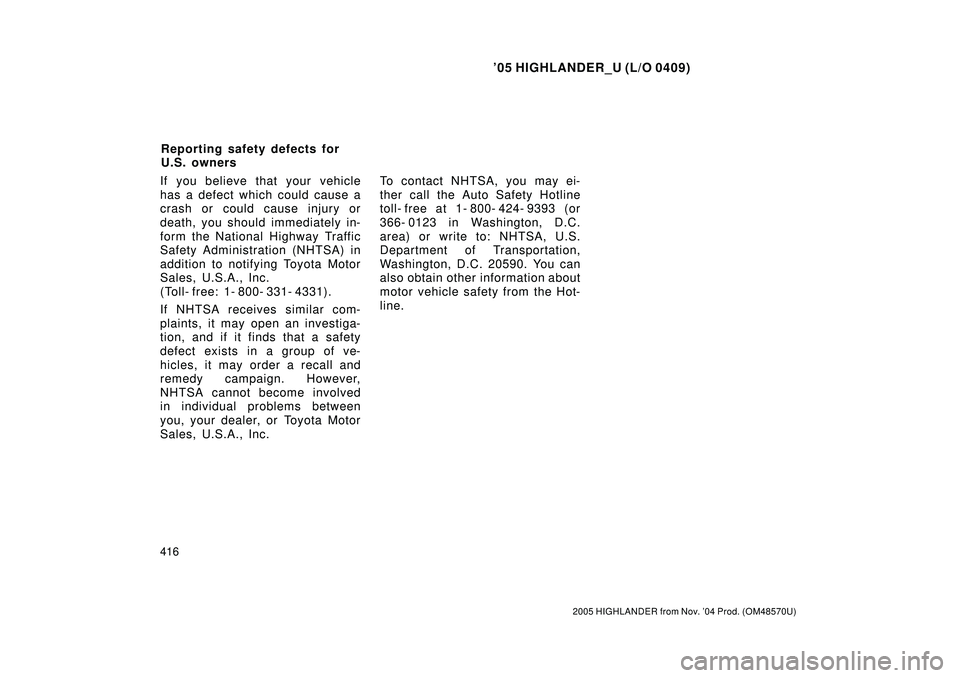

If you believe that your vehicle
has a defect which could cause a
crash or could cause injury or
death, you should immediately in-
form the National Highway Traffic
Safety Administration (NHTSA) in
addition to notifying Toyota Motor
Sales, U.S.A., Inc.
(Toll- free: 1- 800- 331- 4331).
If NHTSA receives similar com-
plaints, it may open an investiga-
tion, and if it finds that a safety
defect exists in a group of ve-
hicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Toyota Motor
Sales, U.S.A., Inc.To contact NHTSA, you may ei-
ther call the Auto Safety Hotline
toll- free at 1- 800- 424- 9393 (or
366- 0123 in Washington, D.C.
area) or write to: NHTSA, U.S.
Department of Transportation,
Washington, D.C. 20590. You can
also obtain other information about
motor vehicle safety from the Hot-
line. Reporting safety defects for
U.S. owners
Page 113 of 2572
'05 HIGHLANDER_U (L/O 0409)
1
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel11 . . . . . . . . . . . . . . . . . . . . . .
SECTION 1- 1
Page 114 of 2572
'05 HIGHLANDER_U (L/O 0409)
2
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Input terminal adapter
14. Power outlets
15. Cup holder
16. Container
17. Front ashtray
18. Audio remote control switches
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch

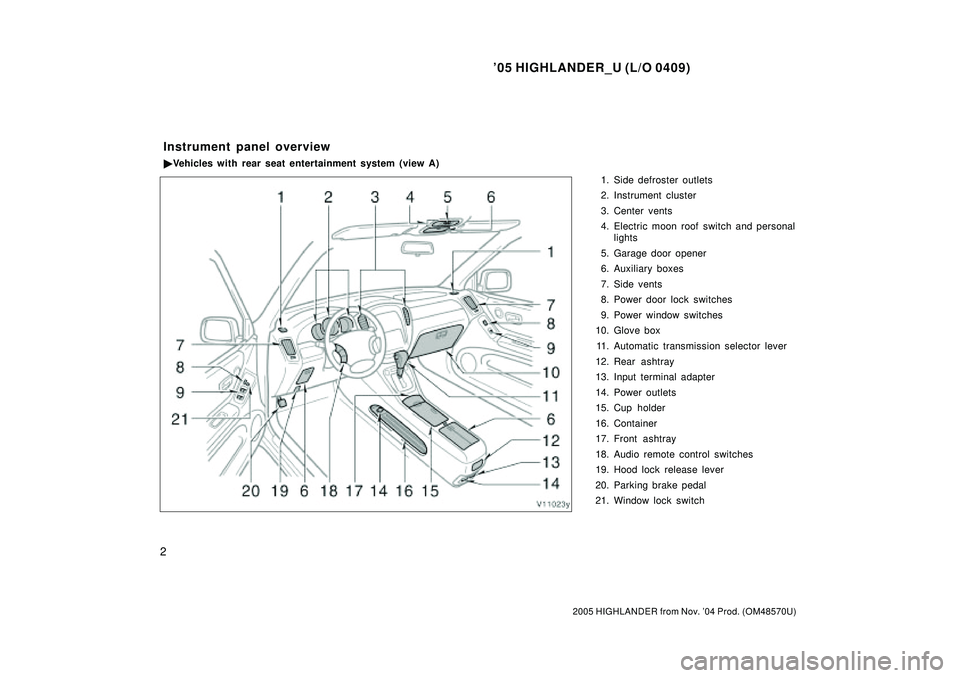

Instrument panel overview
Vehicles with rear seat entertainment system (view A)
Page 115 of 2572
'05 HIGHLANDER_U (L/O 0409)
3
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

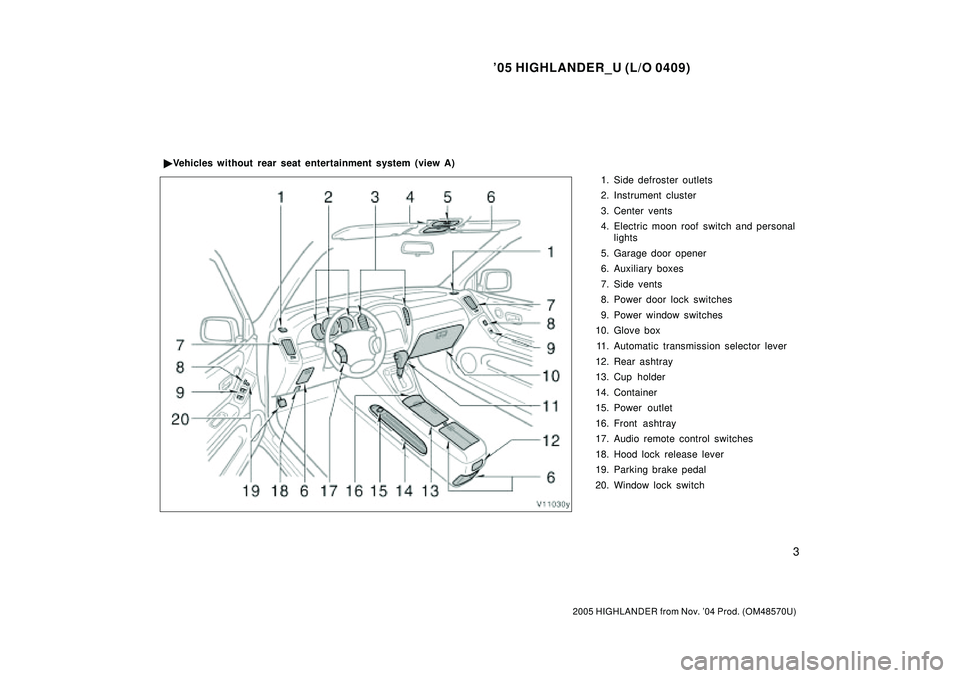

1. Side defroster outlets
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and personal
lights
5. Garage door opener
6. Auxiliary boxes
7. Side vents
8. Power door lock switches
9. Power window switches
10. Glove box
11. Automatic transmission selector lever
12. Rear ashtray
13. Cup holder
14. Container
15. Power outlet
16. Front ashtray
17. Audio remote control switches
18. Hood lock release lever
19. Parking brake pedal
20. Window lock switch Vehicles without rear seat entertainment system (view A)
Page 116 of 2572
'05 HIGHLANDER_U (L/O 0409)
4
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

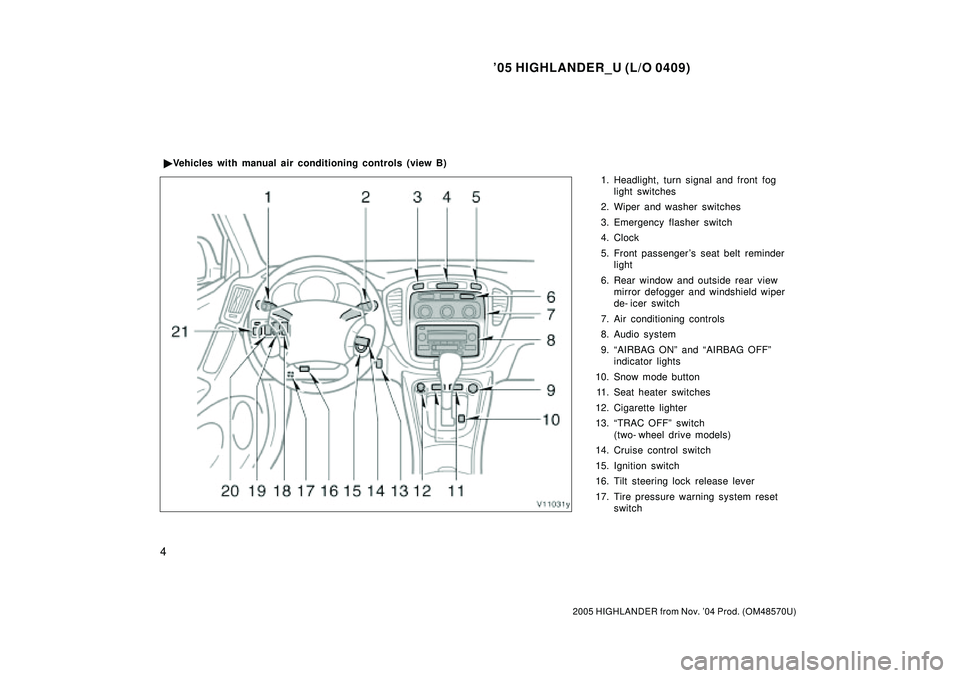

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger 's seat belt reminder
light
6. Rear window and outside rear view
mirror defogger and windshield wiper
de- icer switch
7. Air conditioning controls
8. Audio system
9. AIRBAG ONº and AIRBAG OFFº
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. TRAC OFFº switch
(two- wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset
switch Vehicles with manual air conditioning controls (view B)
Page 117 of 2572
'05 HIGHLANDER_U (L/O 0409)
5
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 118 of 2572
'05 HIGHLANDER_U (L/O 0409)
6
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

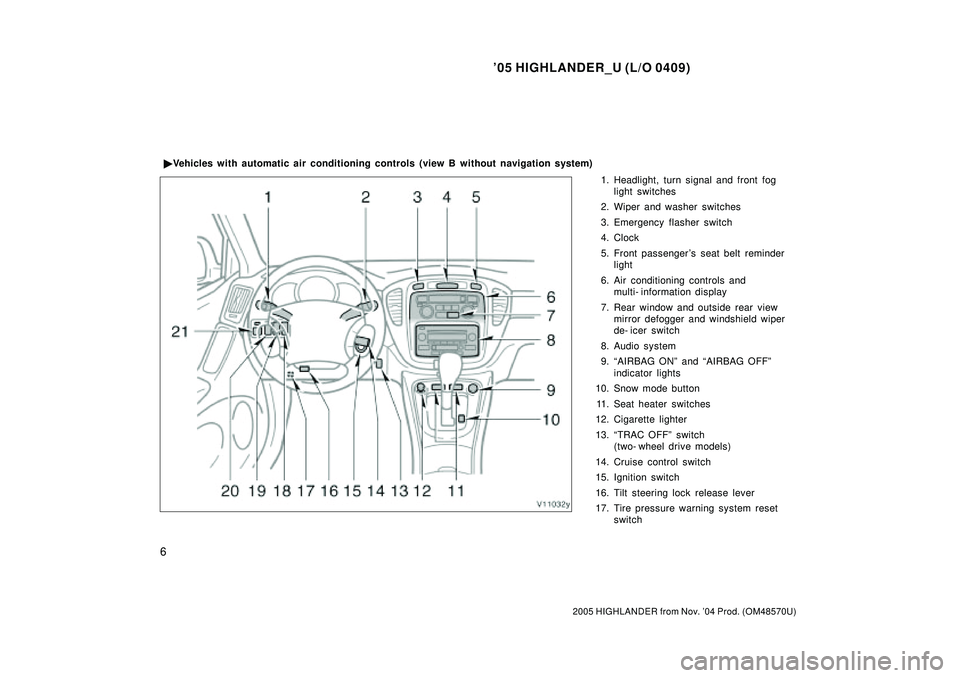

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
5. Front passenger 's seat belt reminder
light
6. Air conditioning controls and
multi- information display
7. Rear window and outside rear view
mirror defogger and windshield wiper
de- icer switch
8. Audio system
9. AIRBAG ONº and AIRBAG OFFº
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. TRAC OFFº switch
(two- wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever
17. Tire pressure warning system reset
switch Vehicles with automatic air conditioning controls (view B without navigation system)
Page 119 of 2572
'05 HIGHLANDER_U (L/O 0409)
7
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
18. Power outlet (115 VAC) main switch
19. Rear heater main switch
20. Theft deterrent system/engine
immobilizer system indicator light
21. Power rear view mirror control switches
Page 120 of 2572
'05 HIGHLANDER_U (L/O 0409)
8
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

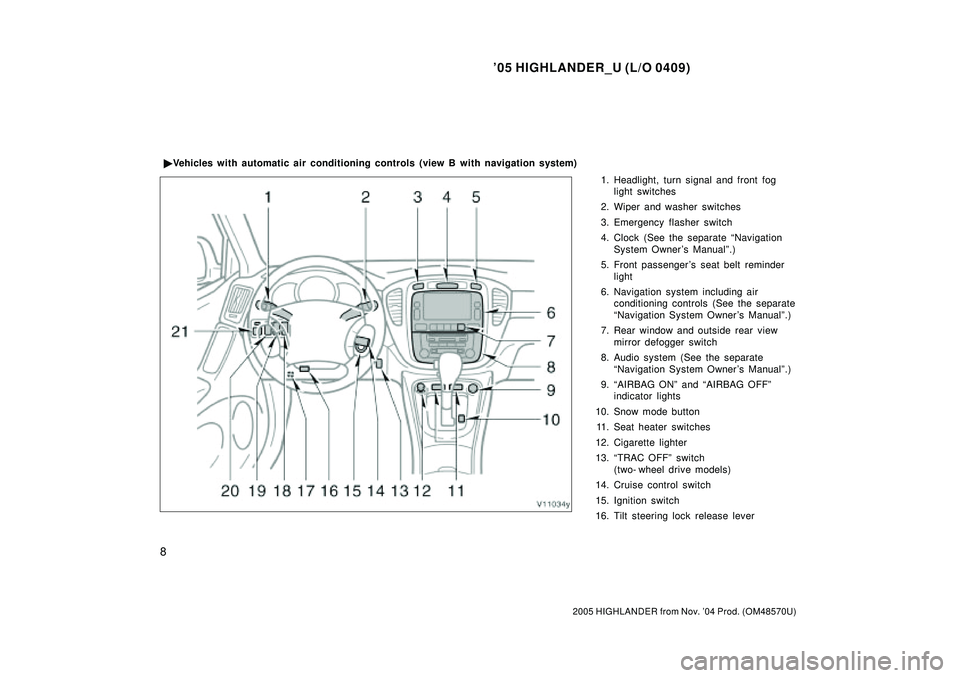

1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock (See the separate Navigation
System Owner 's Manualº.)
5. Front passenger 's seat belt reminder
light
6. Navigation system including air
conditioning controls (See the separate
Navigation System Owner 's Manualº.)
7. Rear window and outside rear view
mirror defogger switch
8. Audio system (See the separate
Navigation System Owner 's Manualº.)
9. AIRBAG ONº and AIRBAG OFFº
indicator lights
10. Snow mode button
11. Seat heater switches
12. Cigarette lighter
13. TRAC OFFº switch
(two- wheel drive models)
14. Cruise control switch
15. Ignition switch
16. Tilt steering lock release lever Vehicles with automatic air conditioning controls (view B with navigation system)
