TOYOTA HIGHLANDER 2001 Service Repair Manual

- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-3
193 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)TOYOTA/LEXUS nameDefinition
Output speed sensorOutput shaft speed sensor
Input speed sensor, Input turbine speed sensor ºAº, Speed
sensor (NT), Turbine speed sensorInput turbine speed sensor
PNP switch, NSWPark/neutral position switch
Pressure control solenoidTransmission pressure control solenoid
Shift solenoidTransmission shift solenoid valve
Transmission control switch, Shift lock control unitShift lock control module
Engine immobilizer system, Immobilizer systemVehicle anti-theft system

2005 HIGHLANDER (EWD592U)
48

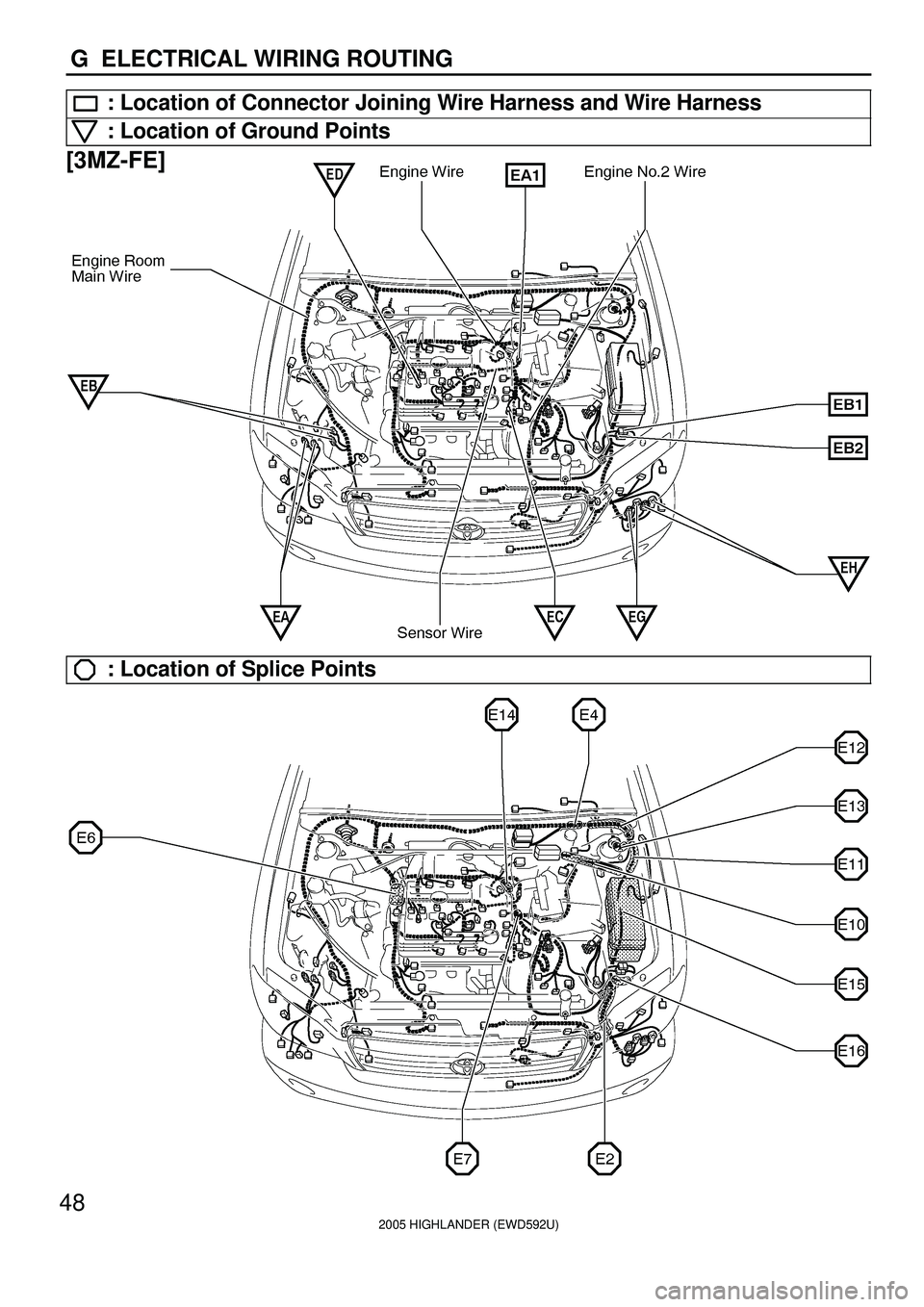

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points
[3MZ-FE]
: Location of Splice Points

2005 HIGHLANDER (EWD592U)
49
G
Connector Joining Wire Harness and Wire Harness
12
3421
43123
4561 2 3
4 5 612345
6789101 2 3 4 5
6 7 8 9 10
EA1GrayEB1GrayEB2Black
CodeJoining Wire Harness and Wire Harness (Connector Location)
EA1Engine Wire and Sensor Wire (Right Side of Cylinder Head)
EB1Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)EB2Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)

2005 HIGHLANDER (EWD592U)
50

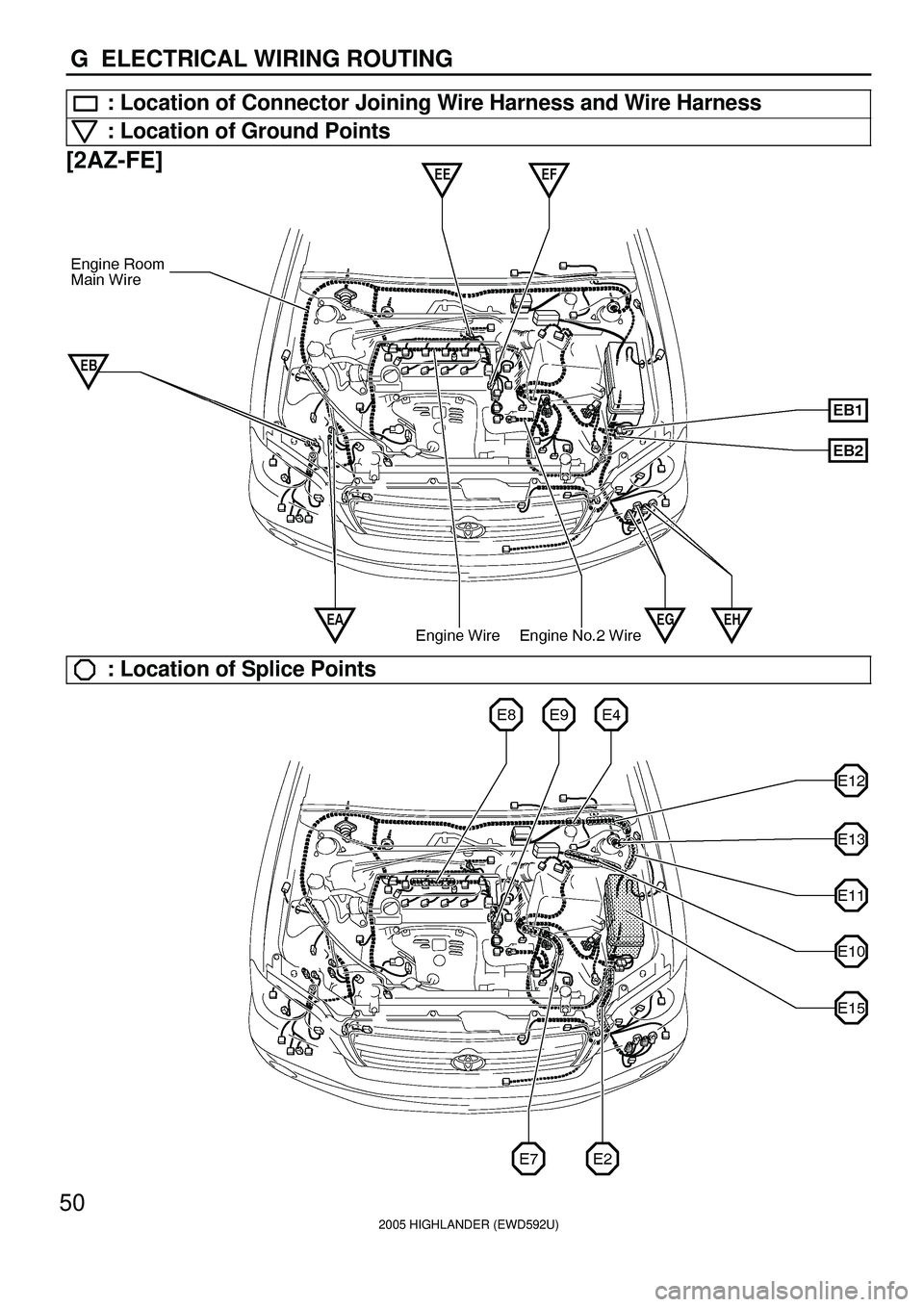

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points
[2AZ-FE]
: Location of Splice Points

2005 HIGHLANDER (EWD592U)
51

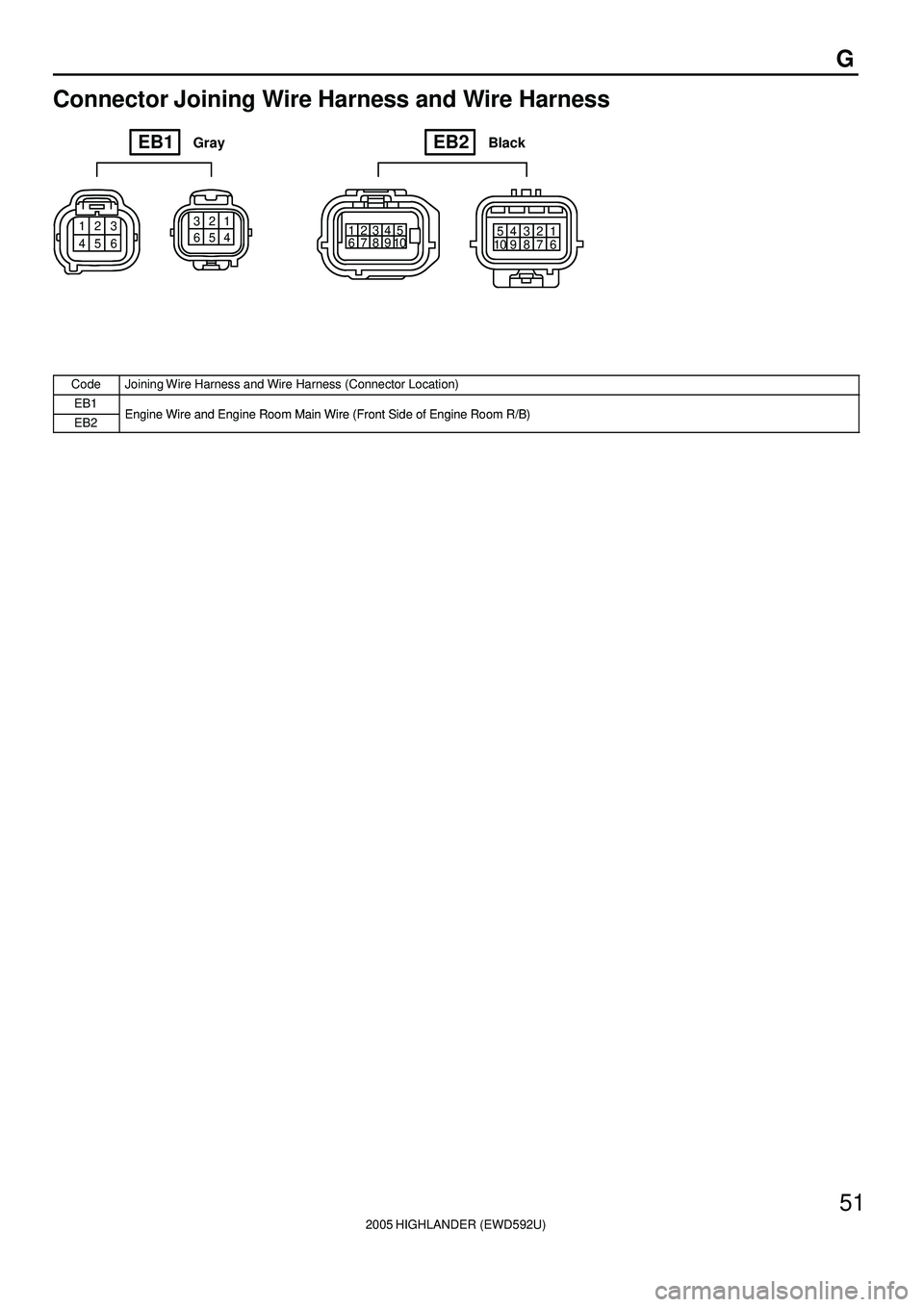

G
Connector Joining Wire Harness and Wire Harness
123
4561 2 3
4 5 612345
6789101 2 3 4 5
6 7 8 9 10
EB1GrayEB2Black
CodeJoining Wire Harness and Wire Harness (Connector Location)
EB1Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)EB2Engine Wire and Engine Room Main Wire (Front Side of Engine Room R/B)

2005 HIGHLANDER (EWD592U)
52

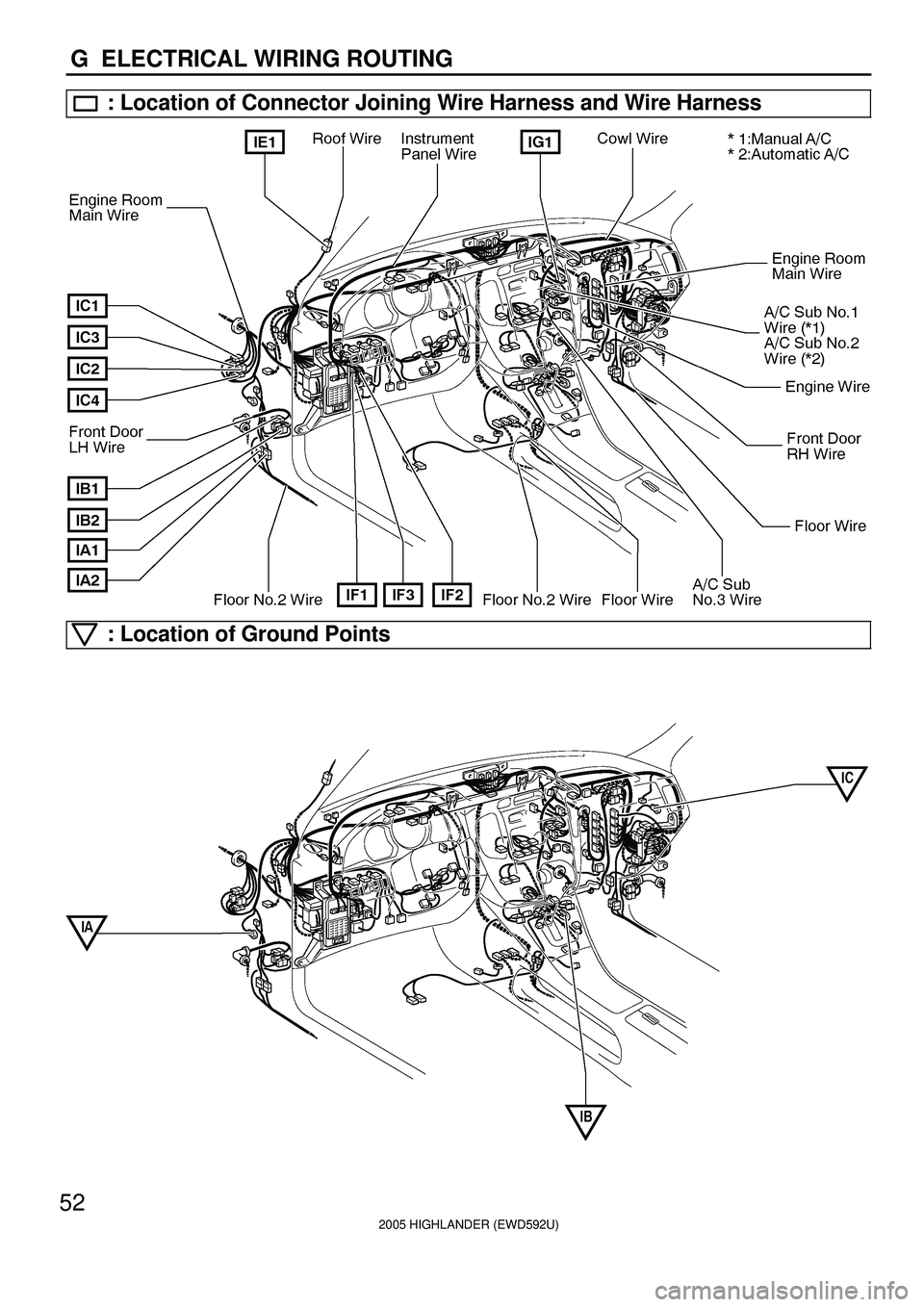

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points

2005 HIGHLANDER (EWD592U)
53

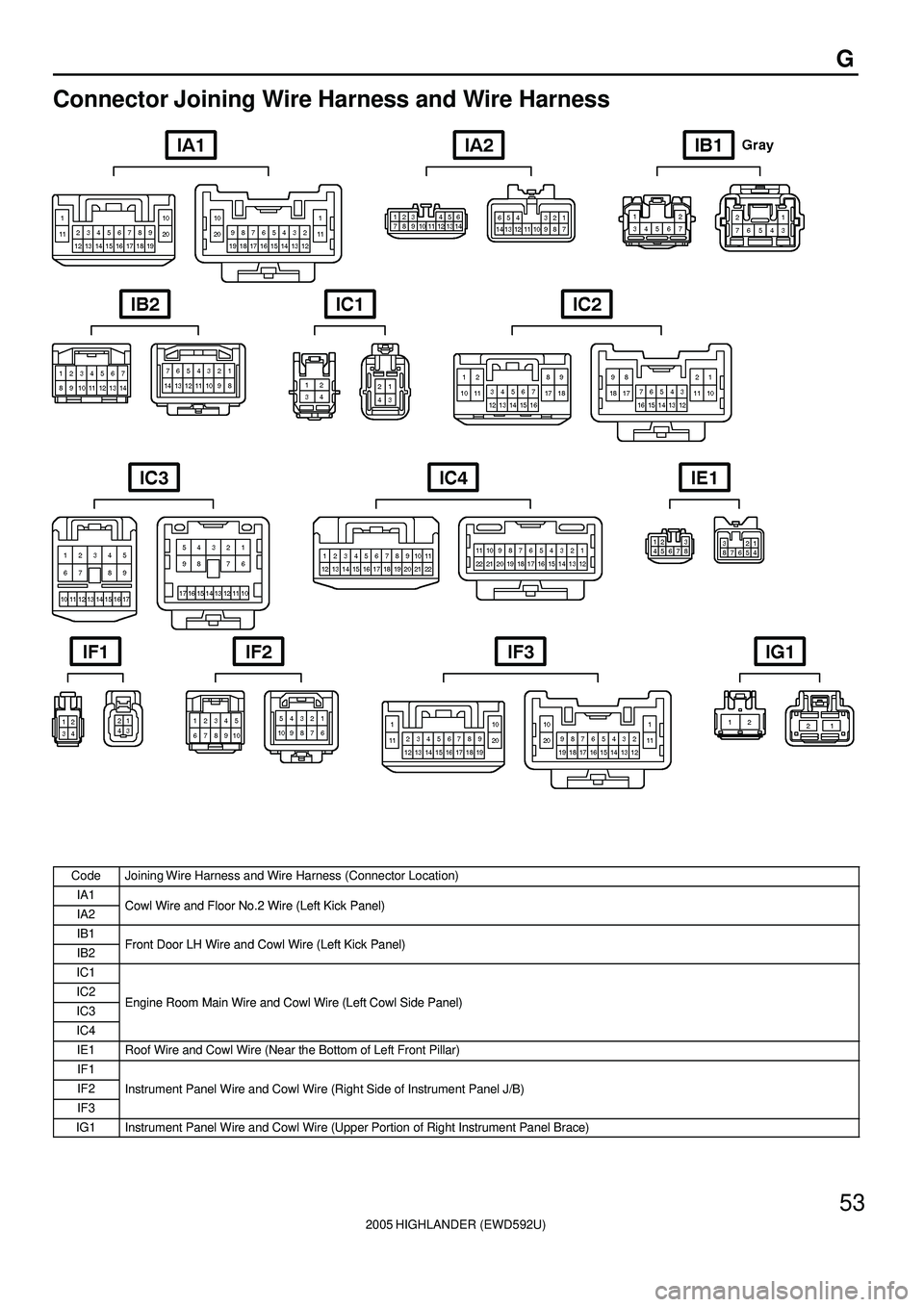

G
Connector Joining Wire Harness and Wire Harness
CodeJoining Wire Harness and Wire Harness (Connector Location)
IA1Cowl Wire and Floor No 2 Wire (Left Kick Panel)IA2Cowl Wire and Floor No.2 Wire (Left Kick Panel)
IB1Front Door LH Wire and Cowl Wire (Left Kick Panel)IB2Front Door LH Wire and Cowl Wire (Left Kick Panel)
IC1
IC2Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)IC3Engine Room Main Wire and Cowl Wire (Left Cowl Side Panel)
IC4
IE1Roof Wire and Cowl Wire (Near the Bottom of Left Front Pillar)
IF1
IF2Instrument Panel Wire and Cowl Wire (Right Side of Instrument Panel J/B)
IF3
(g )
IG1Instrument Panel Wire and Cowl Wire (Upper Portion of Right Instrument Panel Brace)

2005 HIGHLANDER (EWD592U)
54

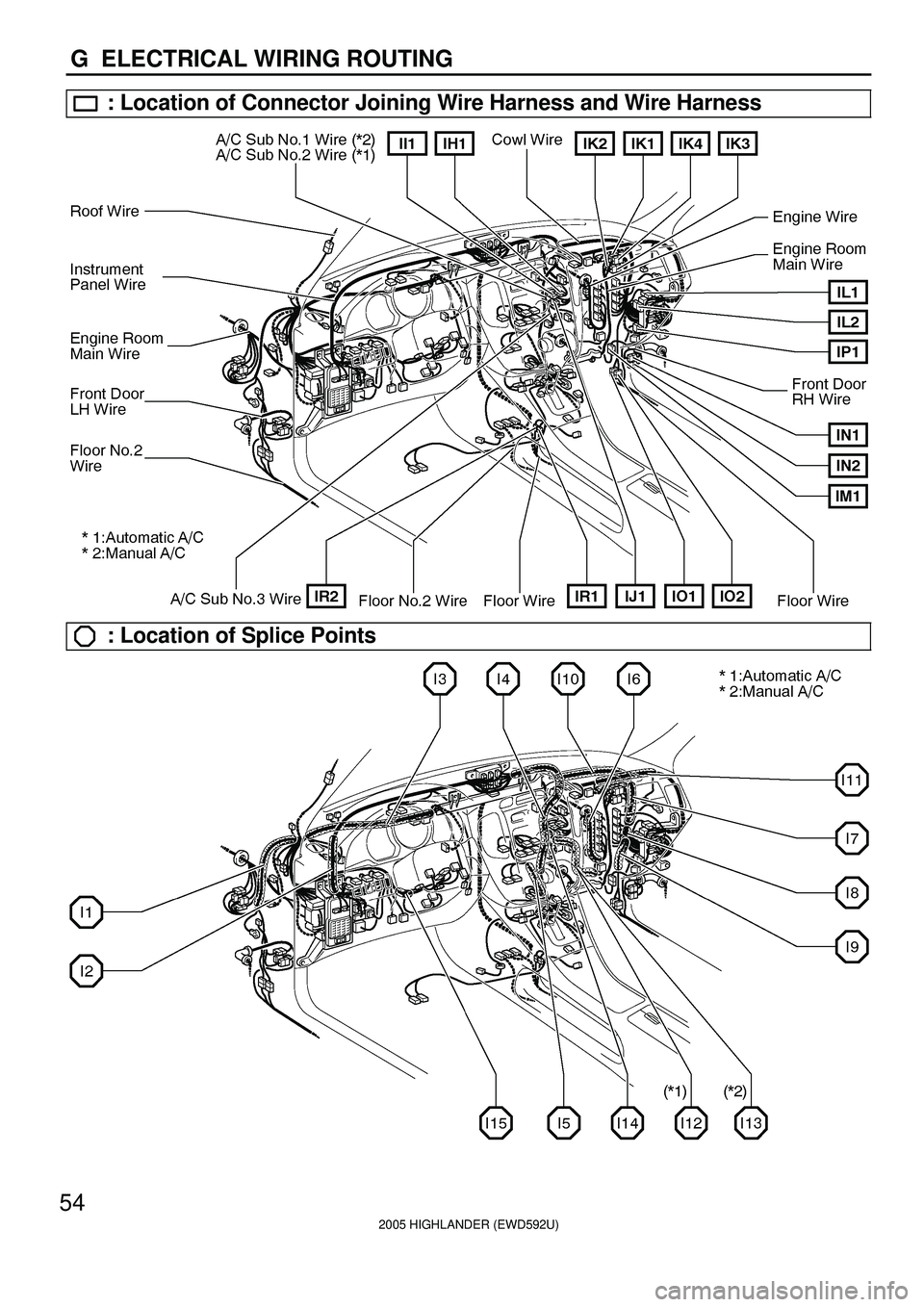

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Splice Points

2005 HIGHLANDER (EWD592U)
55

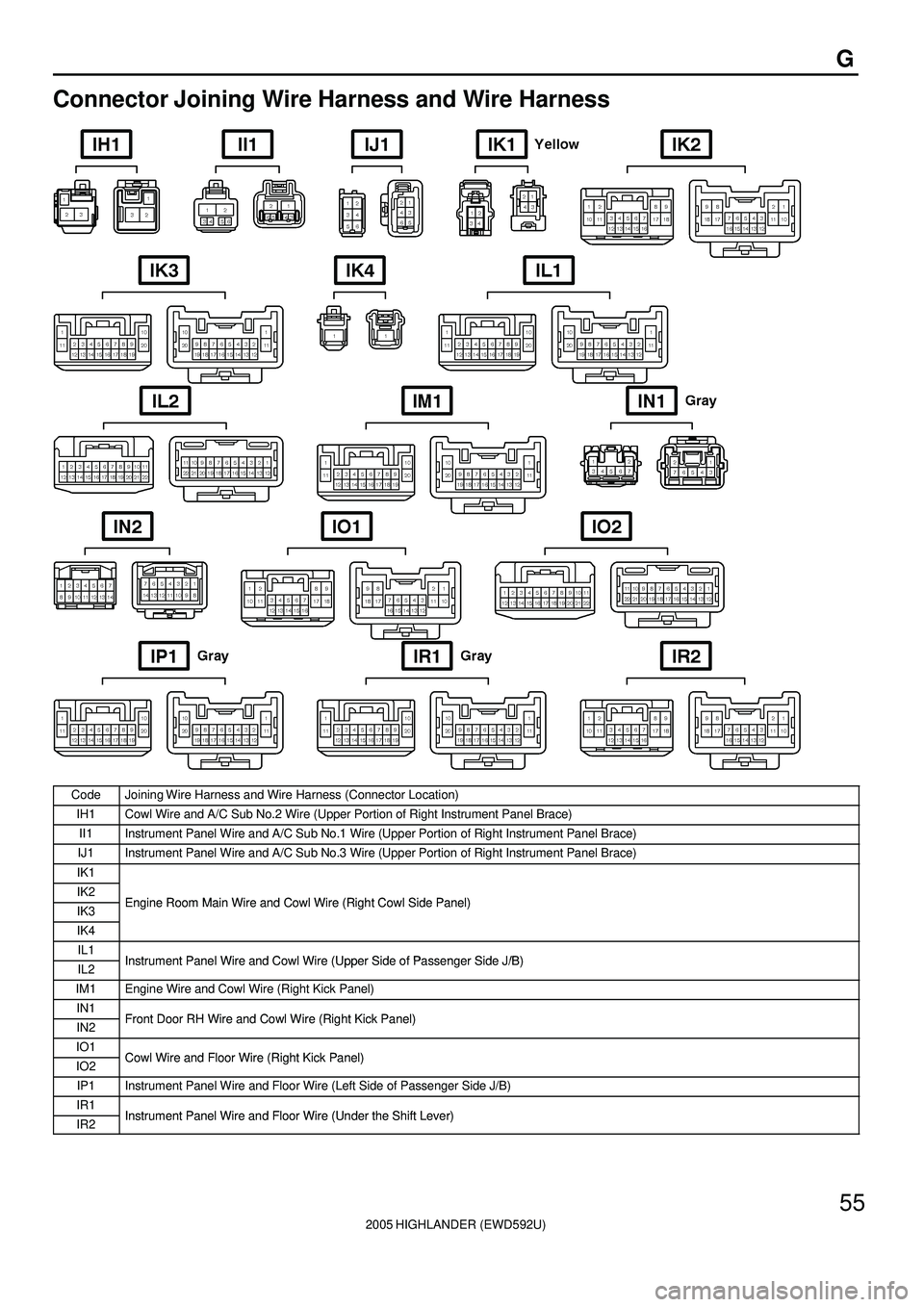

G
Connector Joining Wire Harness and Wire Harness
CodeJoining Wire Harness and Wire Harness (Connector Location)
IH1Cowl Wire and A/C Sub No.2 Wire (Upper Portion of Right Instrument Panel Brace)
II1Instrument Panel Wire and A/C Sub No.1 Wire (Upper Portion of Right Instrument Panel Brace)
IJ1Instrument Panel Wire and A/C Sub No.3 Wire (Upper Portion of Right Instrument Panel Brace)
IK1
IK2Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)IK3Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)
IK4
IL1Instrument Panel Wire and Cowl Wire (Upper Side of Passenger Side J/B)IL2Instrument Panel Wire and Cowl Wire (Upper Side of Passenger Side J/B)
IM1Engine Wire and Cowl Wire (Right Kick Panel)
IN1Front Door RH Wire and Cowl Wire (Right Kick Panel)IN2Front Door RH Wire and Cowl Wire (Right Kick Panel)
IO1Cowl Wire and Floor Wire (Right Kick Panel)IO2Cowl Wire and Floor Wire (Right Kick Panel)
IP1Instrument Panel Wire and Floor Wire (Left Side of Passenger Side J/B)
IR1Instrument Panel Wire and Floor Wire (Under the Shift Lever)IR2Instrument Panel Wire and Floor Wire (Under the Shift Lever)

2005 HIGHLANDER (EWD592U)
56

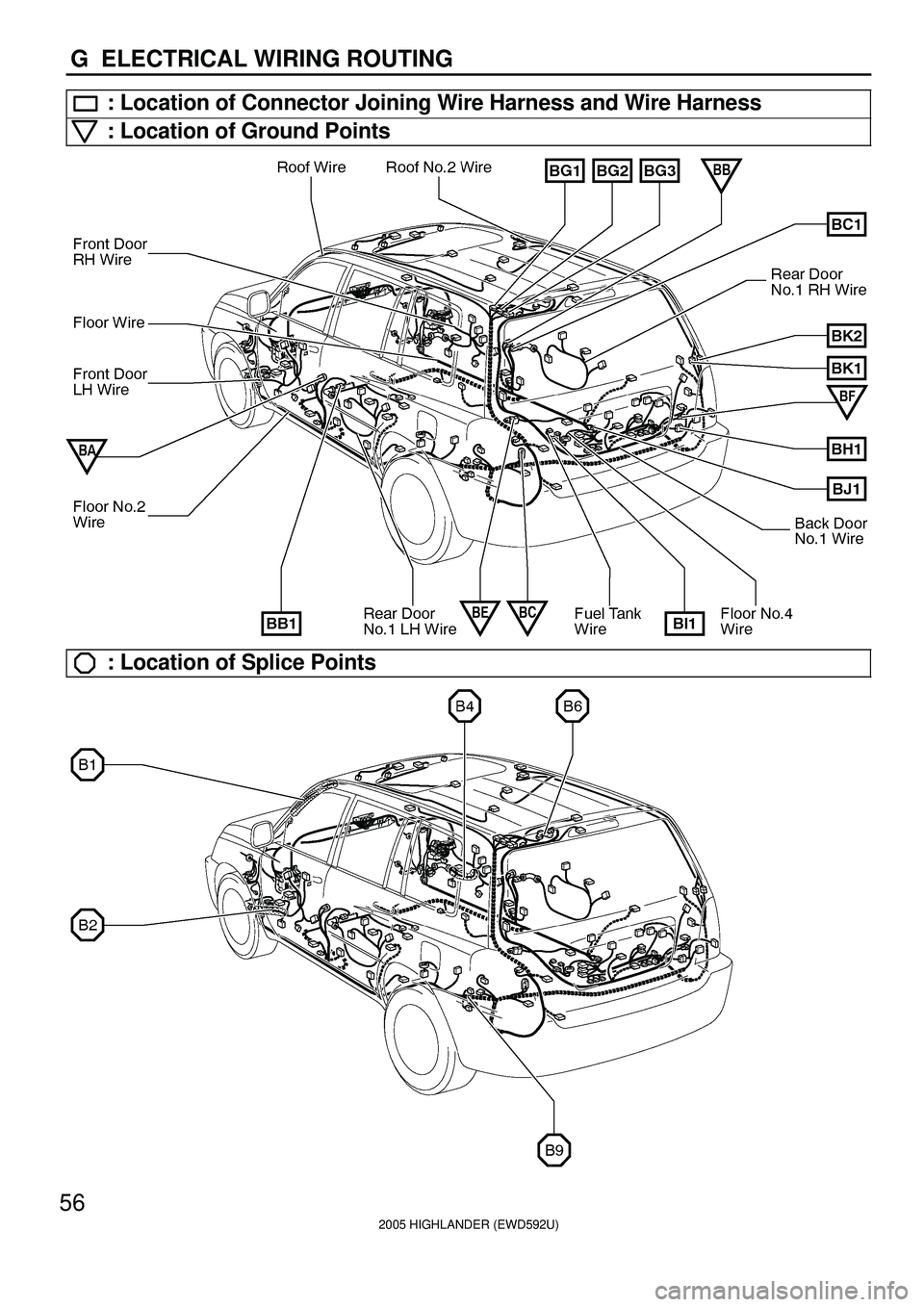

G ELECTRICAL WIRING ROUTING
: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points
: Location of Splice Points
