TOYOTA HIGHLANDER 2001 Service Repair Manual

2005 HIGHLANDER (EWD592U)
22

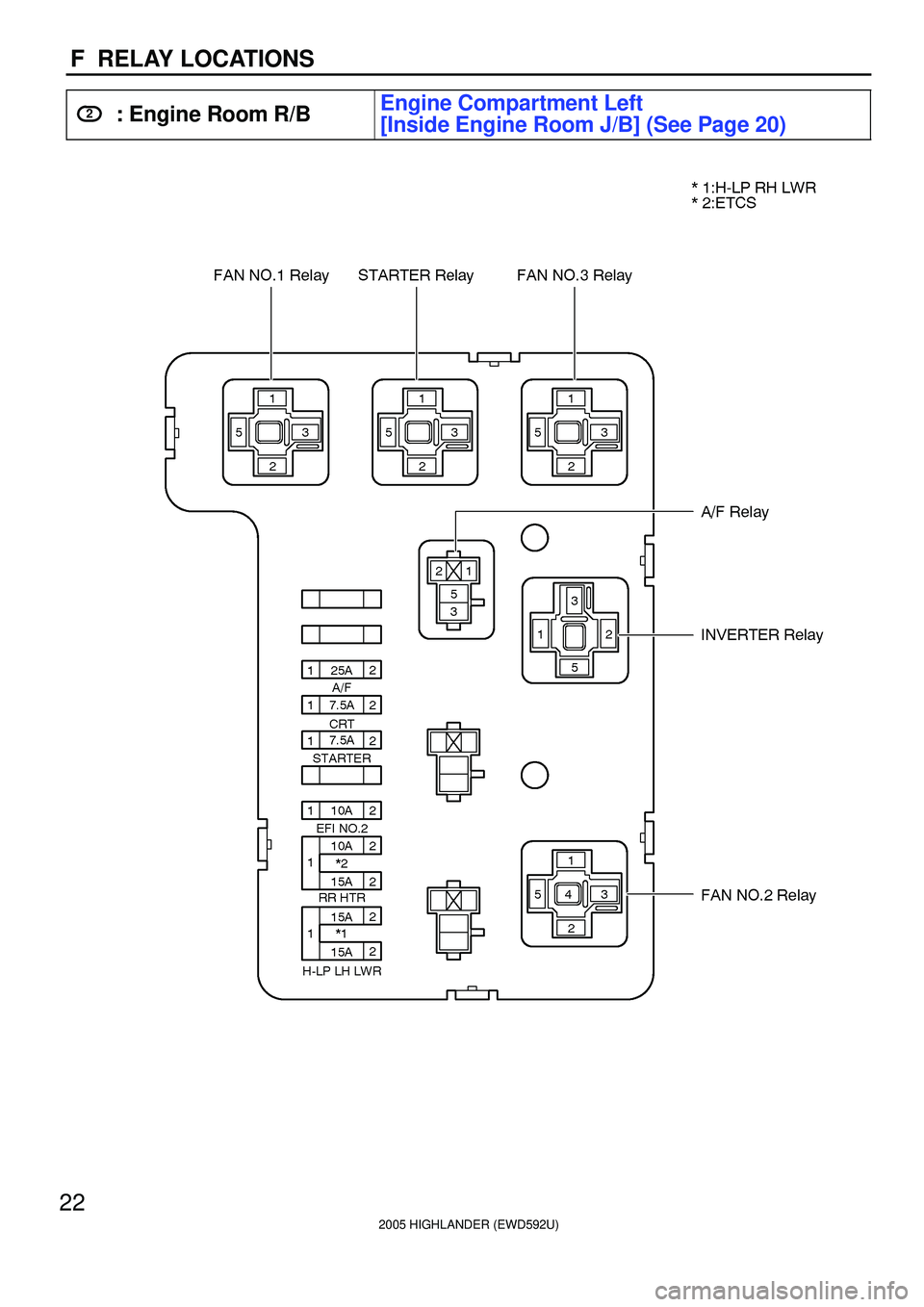

F RELAY LOCATIONS
2: Engine Room R/BEngine Compartment Left
[Inside Engine Room J/B] (See Page 20)

2005 HIGHLANDER (EWD592U)
23
F

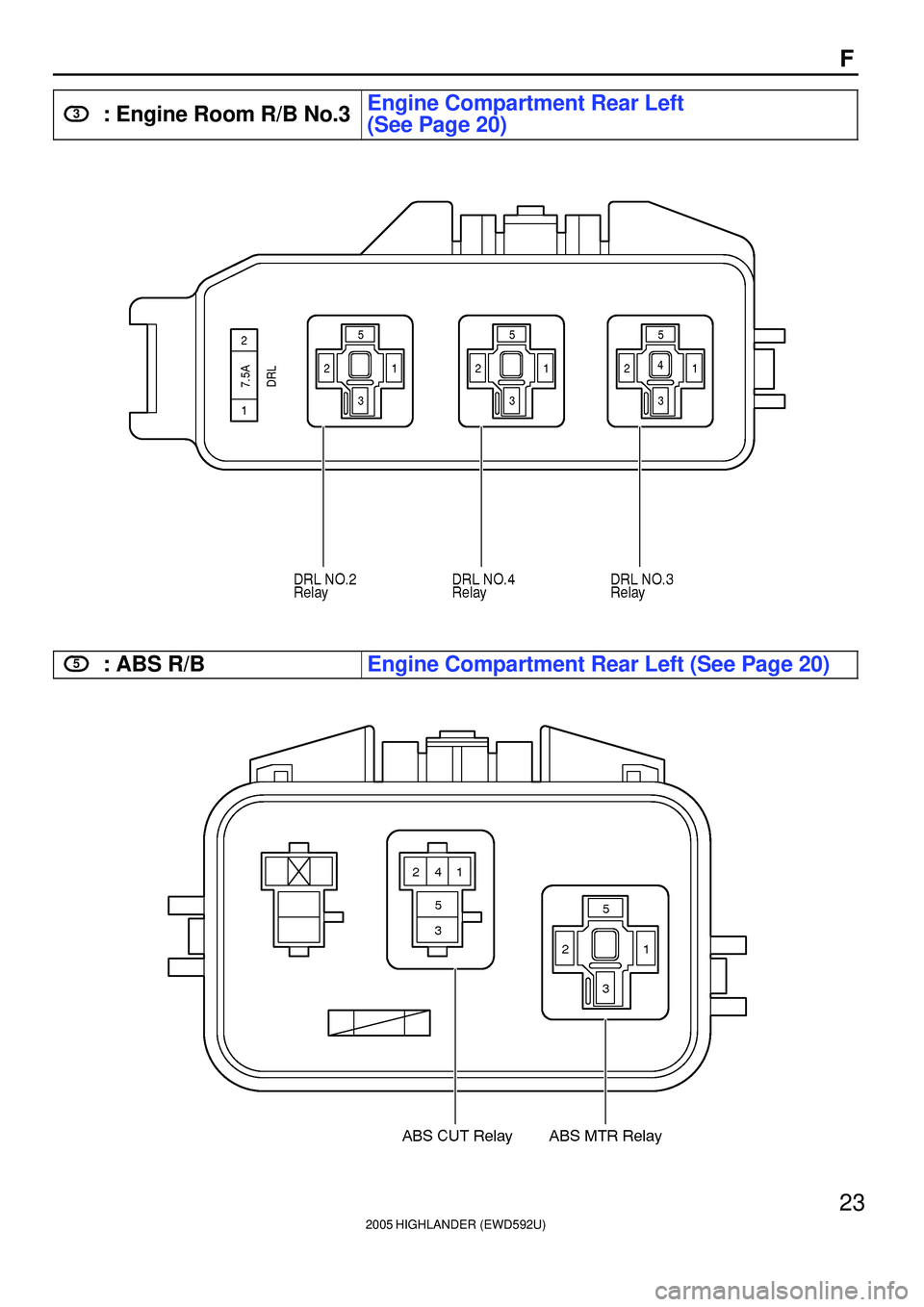

3: Engine Room R/B No.3Engine Compartment Rear Left
(See Page 20)
5: ABS R/BEngine Compartment Rear Left (See Page 20)

2005 HIGHLANDER (EWD592U)
24

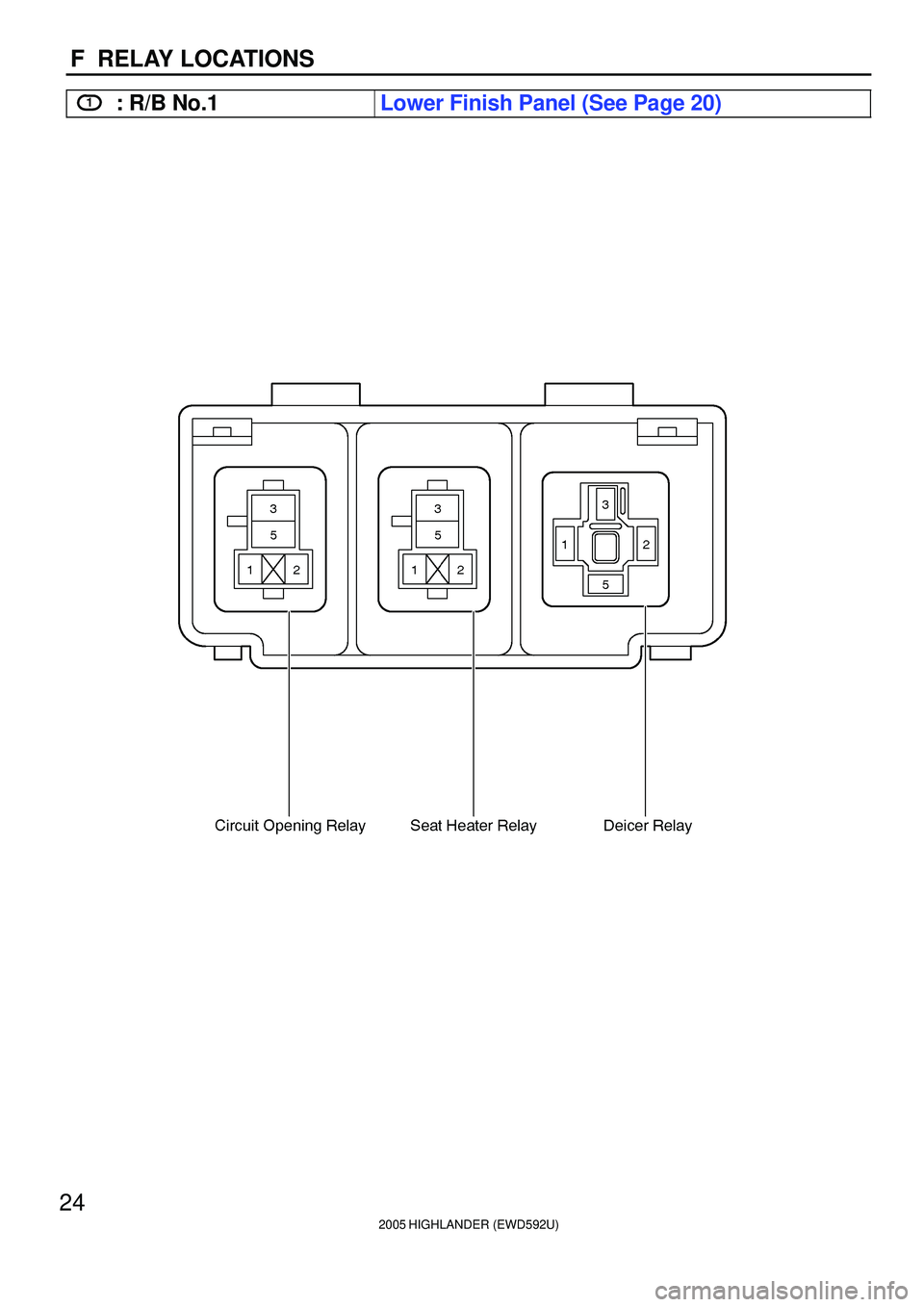

F RELAY LOCATIONS
1: R/B No.1Lower Finish Panel (See Page 20)

2005 HIGHLANDER (EWD592U)
25
F

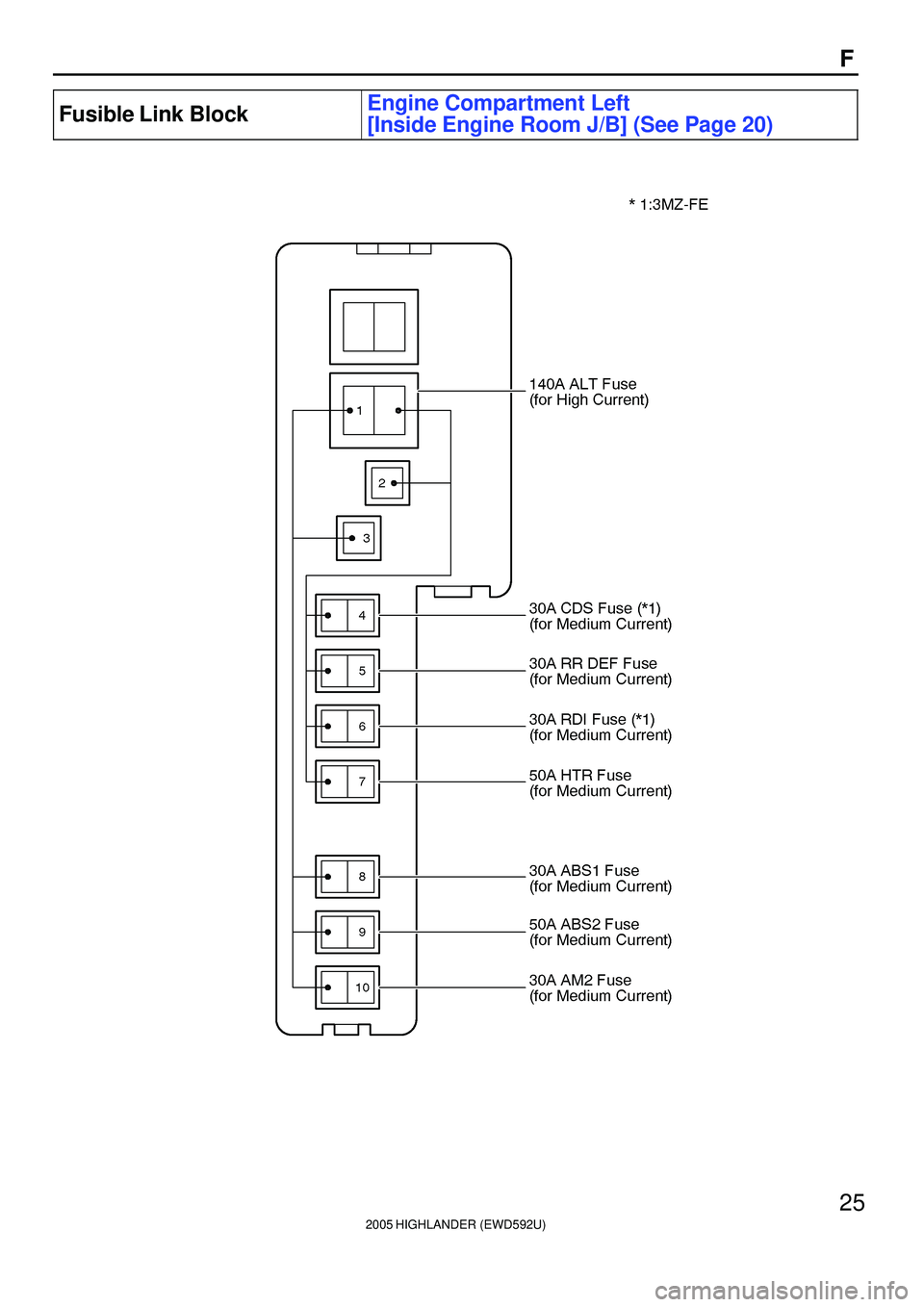

Fusible Link BlockEngine Compartment Left
[Inside Engine Room J/B] (See Page 20)

2005 HIGHLANDER (EWD592U)
26

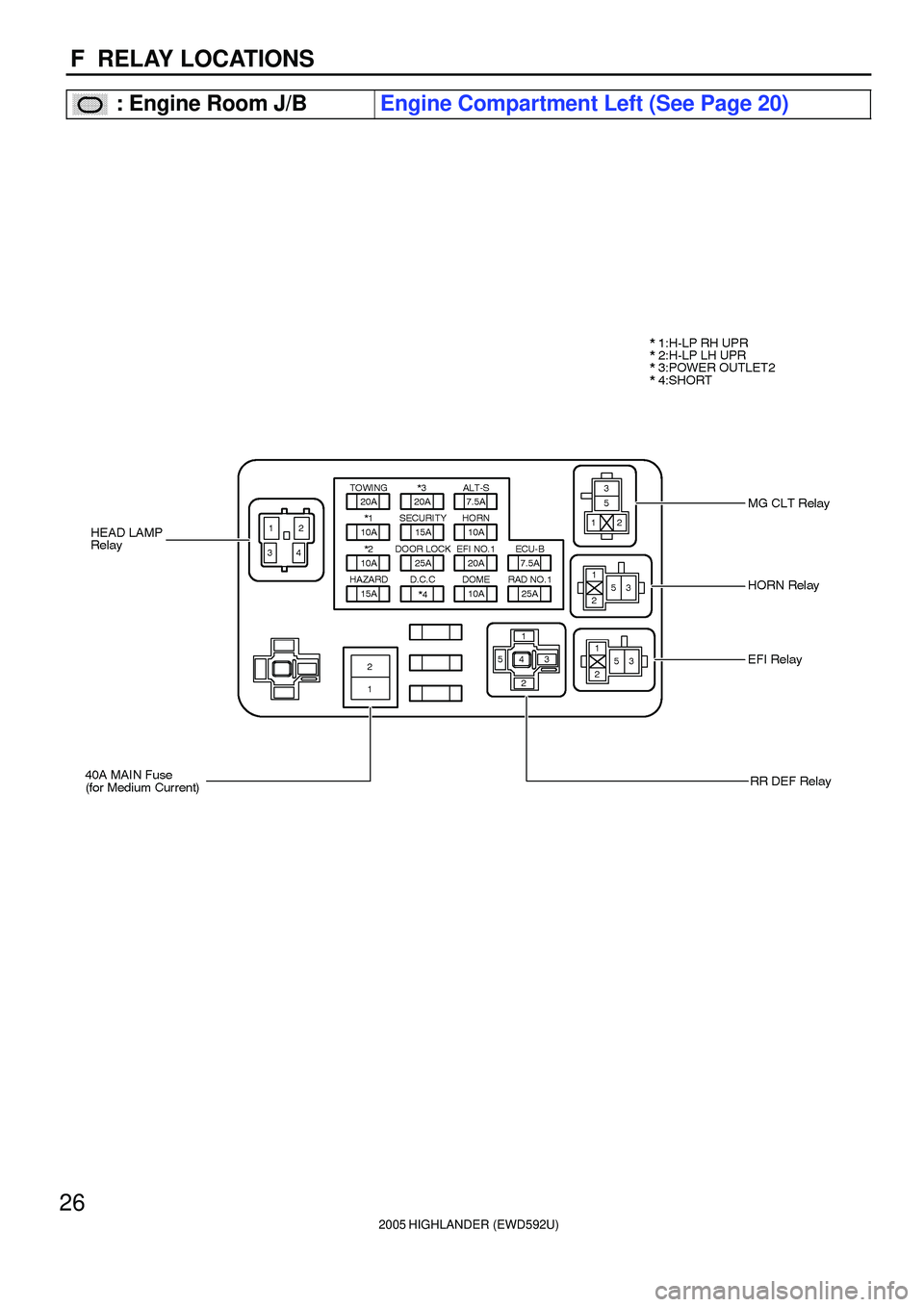

F RELAY LOCATIONS
: Engine Room J/BEngine Compartment Left (See Page 20)

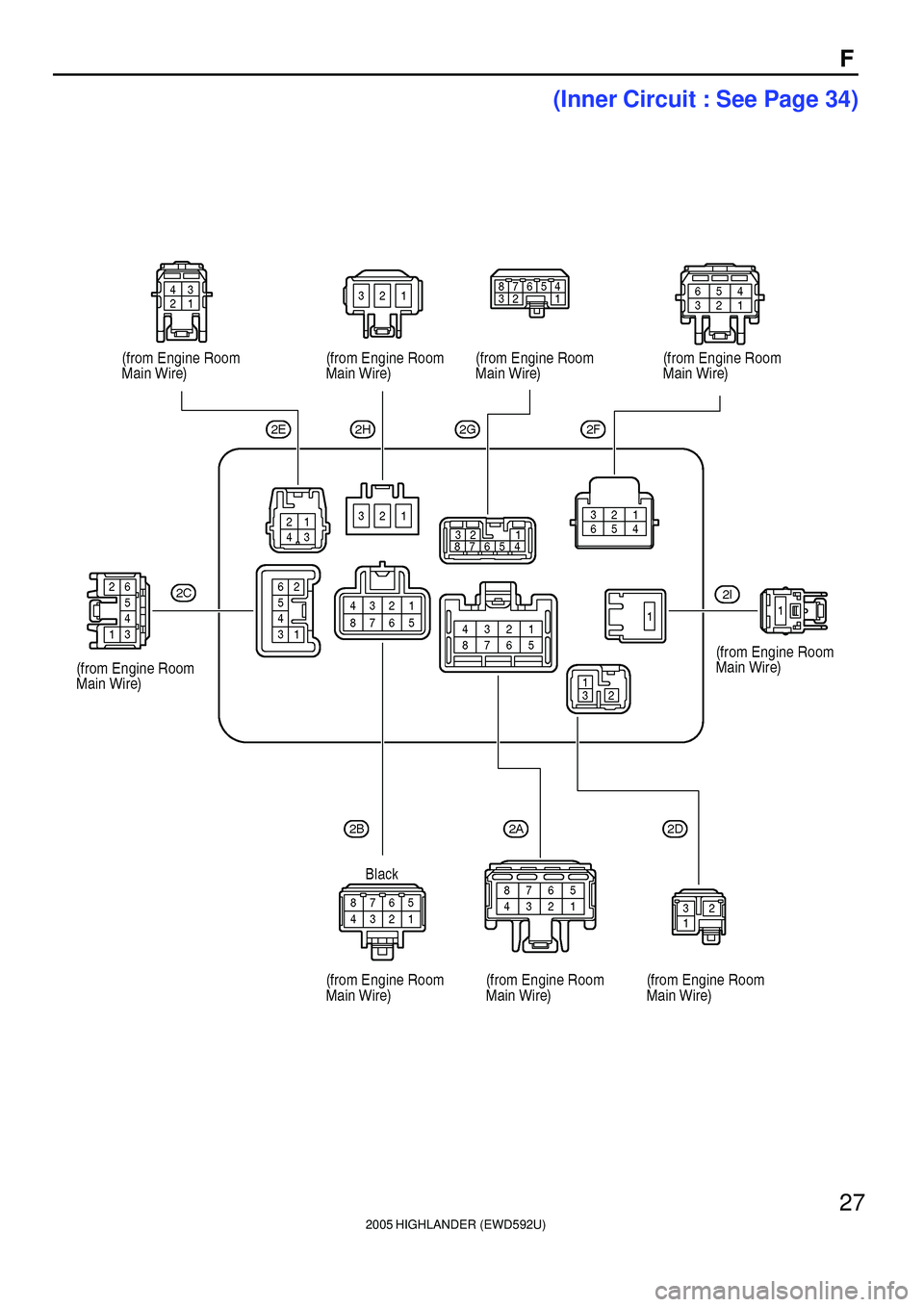

2005 HIGHLANDER (EWD592U)
27
F
(Inner Circuit : See Page 34)

2005 HIGHLANDER (EWD592U)
28

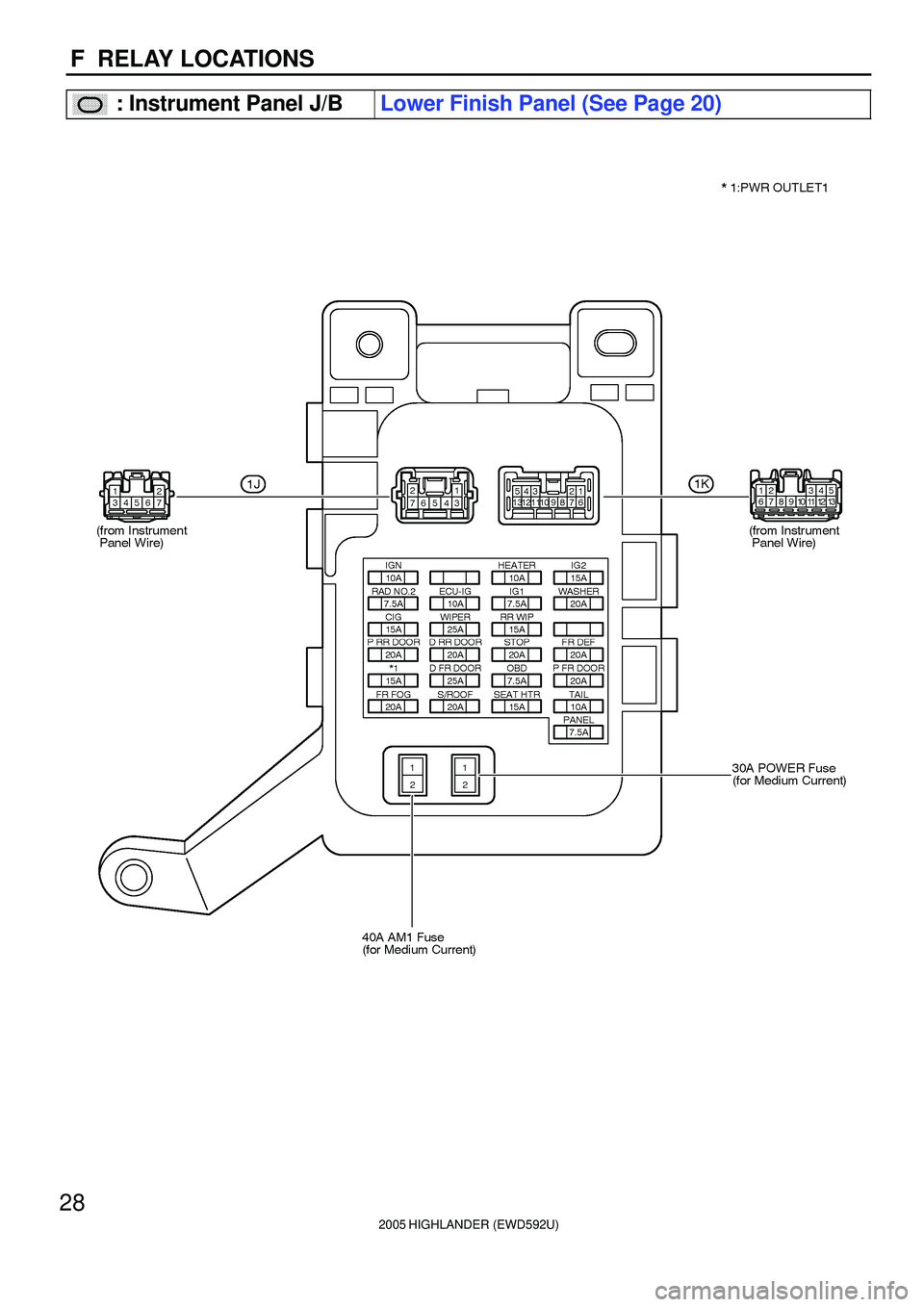

F RELAY LOCATIONS
: Instrument Panel J/BLower Finish Panel (See Page 20)

2005 HIGHLANDER (EWD592U)

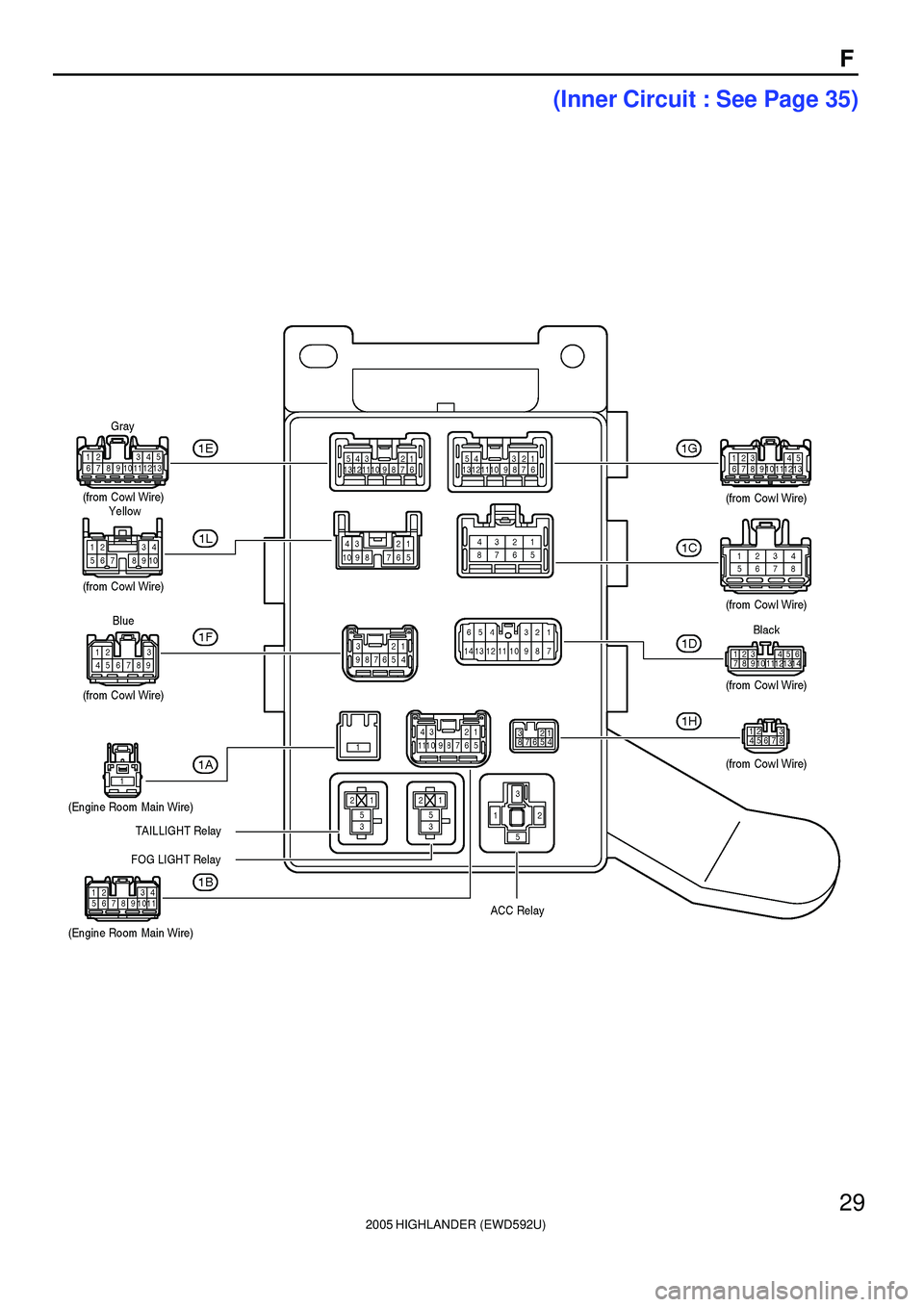

29
F
(Inner Circuit : See Page 35)

2005 HIGHLANDER (EWD592U)
30

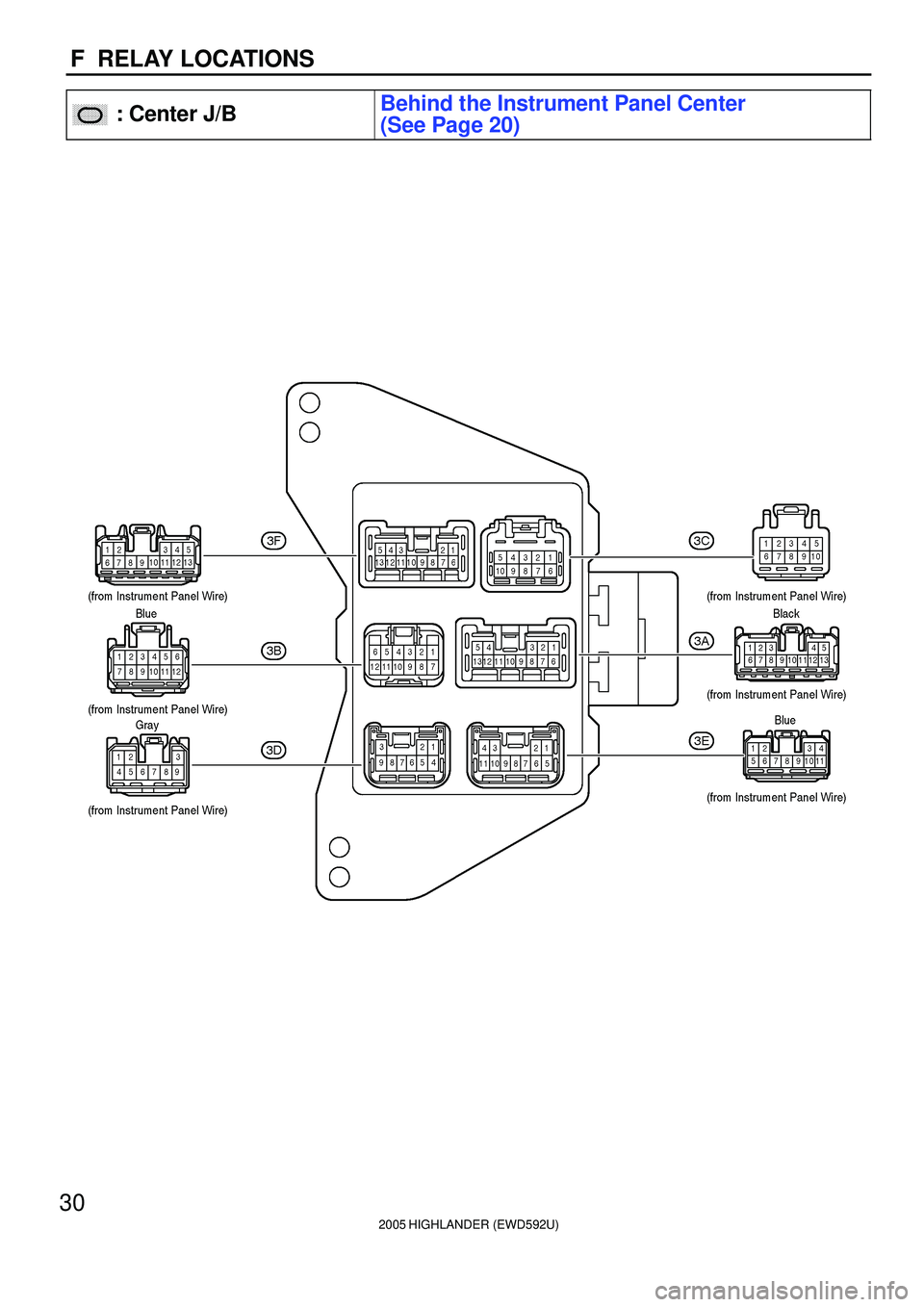

F RELAY LOCATIONS
: Center J/BBehind the Instrument Panel Center
(See Page 20)

2005 HIGHLANDER (EWD592U)

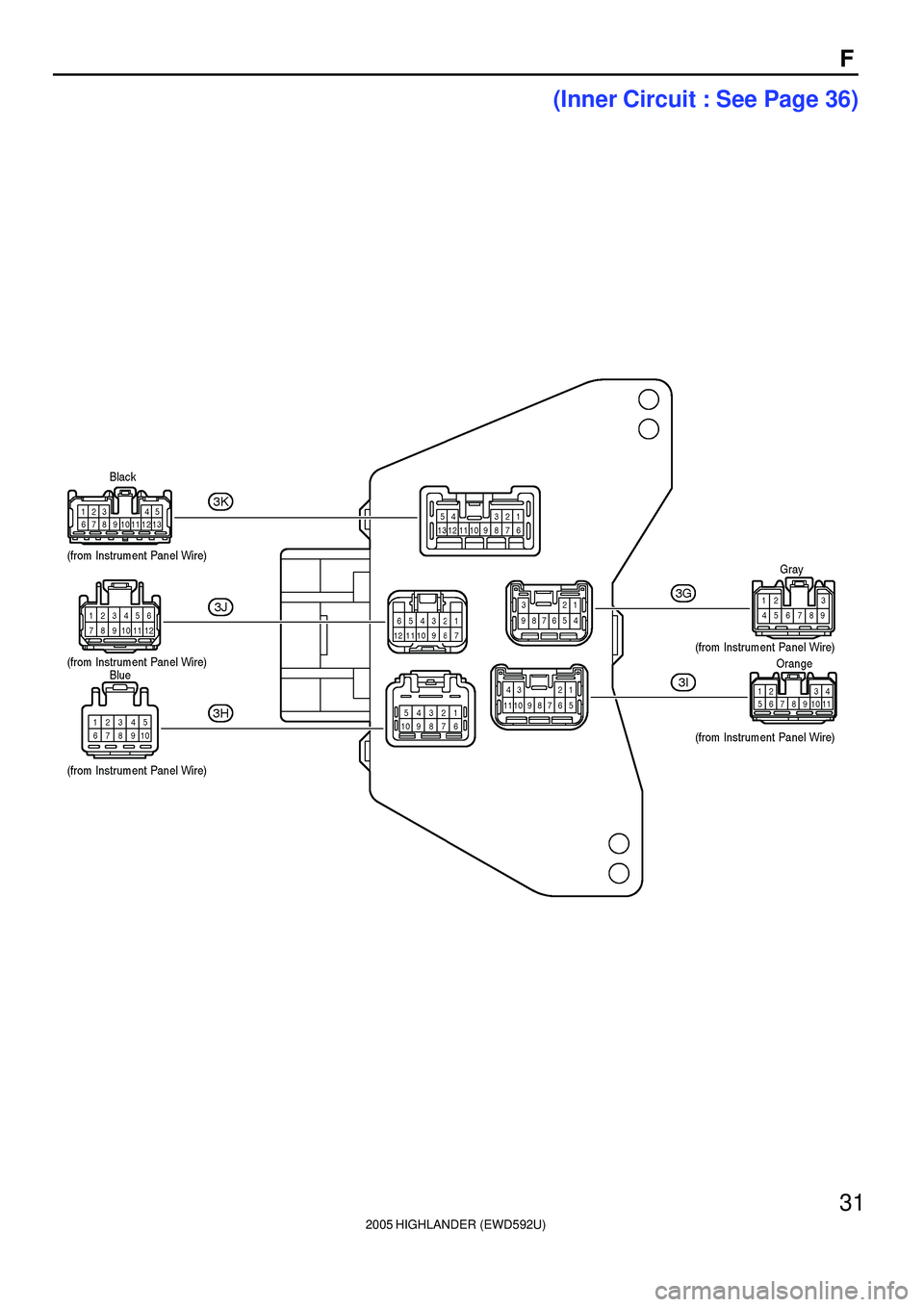

31
F
(Inner Circuit : See Page 36)
