TOYOTA HIGHLANDER 2001 Service Repair Manual

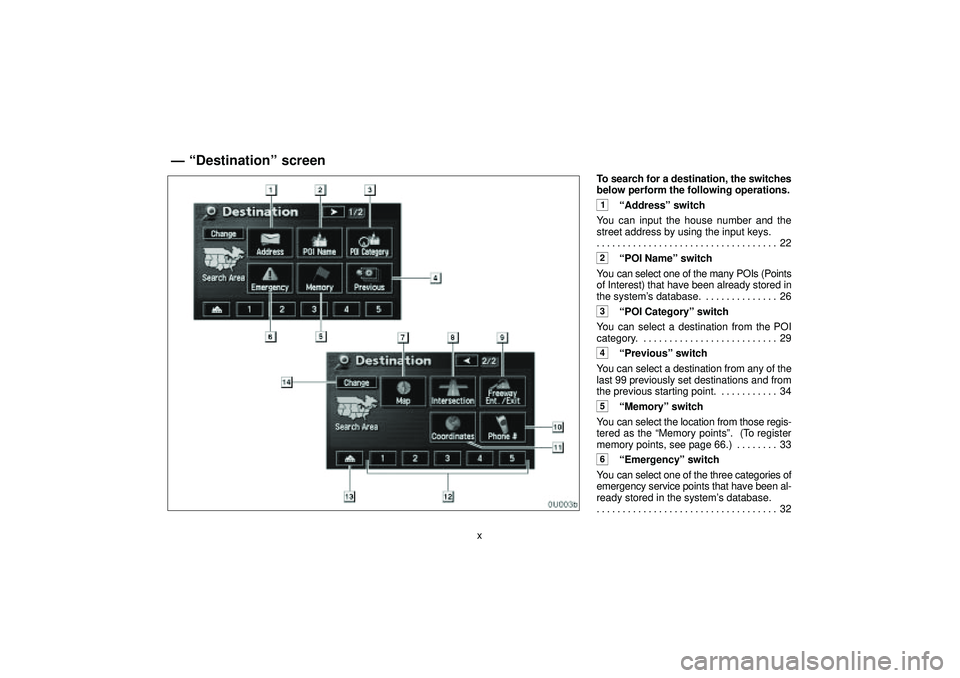

xTo search for a destination, the switches
below perform the following operations.
1Addressº switch
You can input the house number and the
street address by using the input keys.
22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2POI Nameº switch
You can select one of the many POIs (Points
of Interest) that have been already stored in
the system's database. 26. . . . . . . . . . . . . .
3POI Categoryº switch
You can select a destination from the POI
category. 29. . . . . . . . . . . . . . . . . . . . . . . . . .
4Previousº switch
You can select a destination from any of the
last 99 previously set destinations and from
the previous starting point. 34. . . . . . . . . . .
5Memoryº switch
You can select the location from those regis-
tered as the Memory pointsº. (To register
memory points, see page 66.) 33. . . . . . . .
6Emergencyº switch
You can select one of the three categories of
emergency service points that have been al-
ready stored in the system's database.
32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ð Destinationº screen

xi

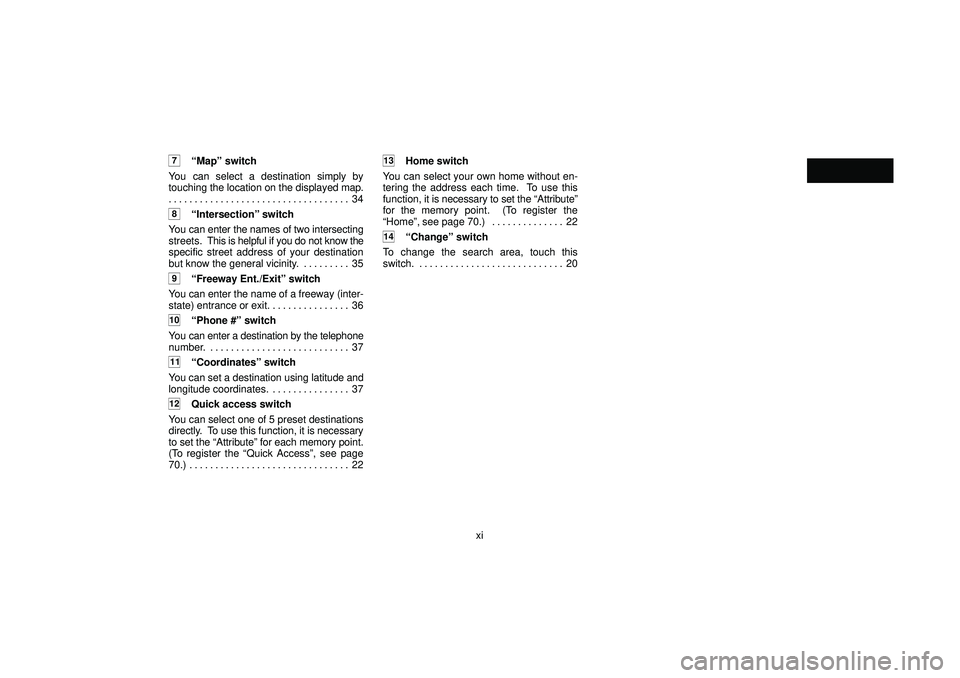

7Mapº switch
You can select a destination simply by
touching the location on the displayed map.
34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8Intersectionº switch
You can enter the names of two intersecting
streets. This is helpful if you do not know the
specific street address of your destination
but know the general vicinity. 35. . . . . . . . .
9Freeway Ent./Exitº switch
You can enter the name of a freeway (inter-
state) entrance or exit. 36. . . . . . . . . . . . . . .
10Phone #º switch
You can enter a destination by the telephone
number. 37. . . . . . . . . . . . . . . . . . . . . . . . . . .
11Coordinatesº switch
You can set a destination using latitude and
longitude coordinates. 37. . . . . . . . . . . . . . .
12Quick access switch
You can select one of 5 preset destinations
directly. To use this function, it is necessary
to set the Attributeº for each memory point.
(To register the Quick Accessº, see page
70.) 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Home switch
You can select your own home without en-
tering the address each time. To use this
function, it is necessary to set the Attributeº
for the memory point. (To register the
Homeº, see page 70.) 22. . . . . . . . . . . . . .
14Changeº switch
To change the search area, touch this
switch. 20. . . . . . . . . . . . . . . . . . . . . . . . . . . .

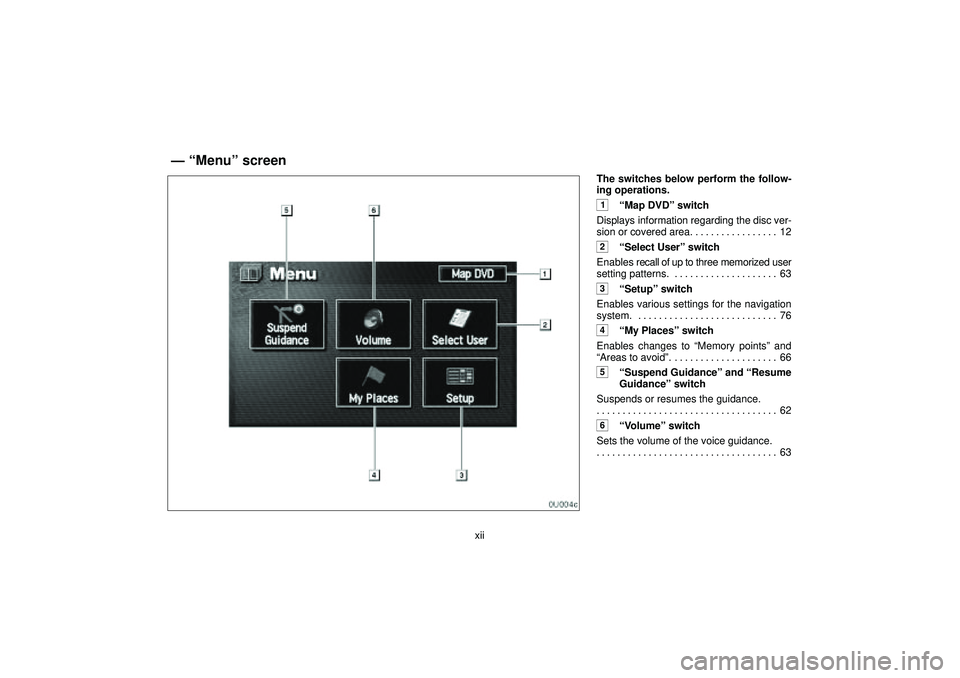

xiiThe switches below perform the follow-
ing operations.
1Map DVDº switch
Displays information regarding the disc ver-
sion or covered area. 12. . . . . . . . . . . . . . . .
2Select Userº switch
Enables recall of up to three memorized user
setting patterns. 63. . . . . . . . . . . . . . . . . . . .
3Setupº switch
Enables various settings for the navigation
system. 76. . . . . . . . . . . . . . . . . . . . . . . . . . .
4My Placesº switch
Enables changes to Memory pointsº and
Areas to avoidº. 66. . . . . . . . . . . . . . . . . . . .
5Suspend Guidanceº and Resume
Guidanceº switch
Suspends or resumes the guidance.
62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6Volumeº switch
Sets the volume of the voice guidance.
63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ð Menuº screen

5004Z-02
F16015
Steering Wheel
Masking Tape
Steering Column
Upper Cover
F16016
Steering Wheel
Masking
Tape Steering Column
Upper Cover
Marked Line
F16017
Steering Wheel Steering Column
Upper Cover
Marked Line
50-4
- STEERING COLUMNSTEERING SYSTEM
3265 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
REPAIR

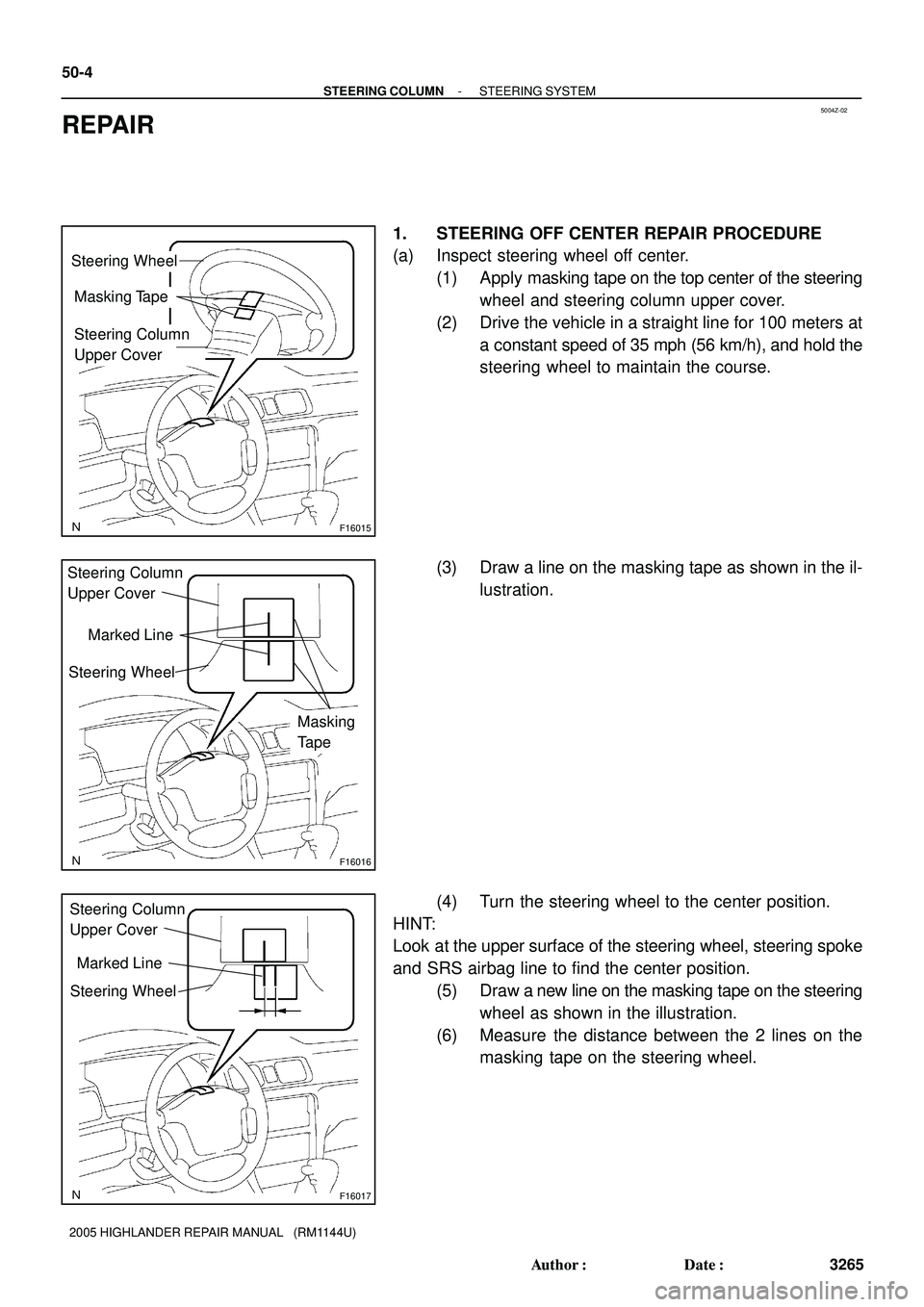

1. STEERING OFF CENTER REPAIR PROCEDURE
(a) Inspect steering wheel off center.
(1) Apply masking tape on the top center of the steering
wheel and steering column upper cover.
(2) Drive the vehicle in a straight line for 100 meters at
a constant speed of 35 mph (56 km/h), and hold the
steering wheel to maintain the course.
(3) Draw a line on the masking tape as shown in the il-
lustration.
(4) Turn the steering wheel to the center position.
HINT:
Look at the upper surface of the steering wheel, steering spoke
and SRS airbag line to find the center position.
(5) Draw a new line on the masking tape on the steering
wheel as shown in the illustration.
(6) Measure the distance between the 2 lines on the
masking tape on the steering wheel.

R00429
Marked Line
F16018
- STEERING COLUMNSTEERING SYSTEM
50-5
3266 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

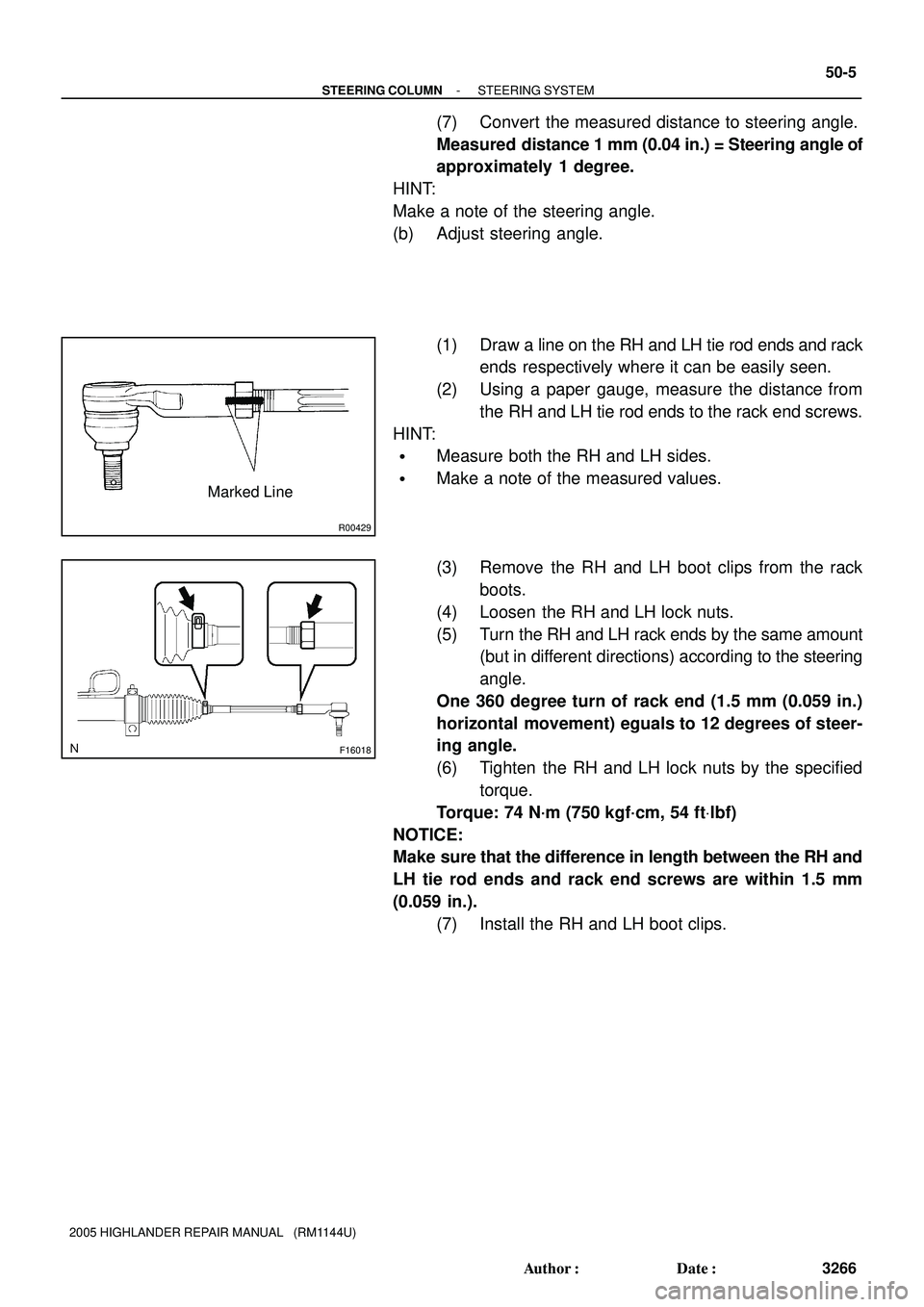

(7) Convert the measured distance to steering angle.
Measured distance 1 mm (0.04 in.) = Steering angle of
approximately 1 degree.
HINT:
Make a note of the steering angle.
(b) Adjust steering angle.
(1) Draw a line on the RH and LH tie rod ends and rack
ends respectively where it can be easily seen.
(2) Using a paper gauge, measure the distance from
the RH and LH tie rod ends to the rack end screws.
HINT:

Measure both the RH and LH sides.

Make a note of the measured values.
(3) Remove the RH and LH boot clips from the rack
boots.
(4) Loosen the RH and LH lock nuts.
(5) Turn the RH and LH rack ends by the same amount
(but in different directions) according to the steering
angle.
One 360 degree turn of rack end (1.5 mm (0.059 in.)
horizontal movement) eguals to 12 degrees of steer-
ing angle.
(6) Tighten the RH and LH lock nuts by the specified
torque.
Torque: 74 N´m (750 kgf´cm, 54 ftVlbf)
NOTICE:
Make sure that the difference in length between the RH and
LH tie rod ends and rack end screws are within 1.5 mm
(0.059 in.).
(7) Install the RH and LH boot clips.

BODY PANEL REPLACEMENT
F16743
F16743A

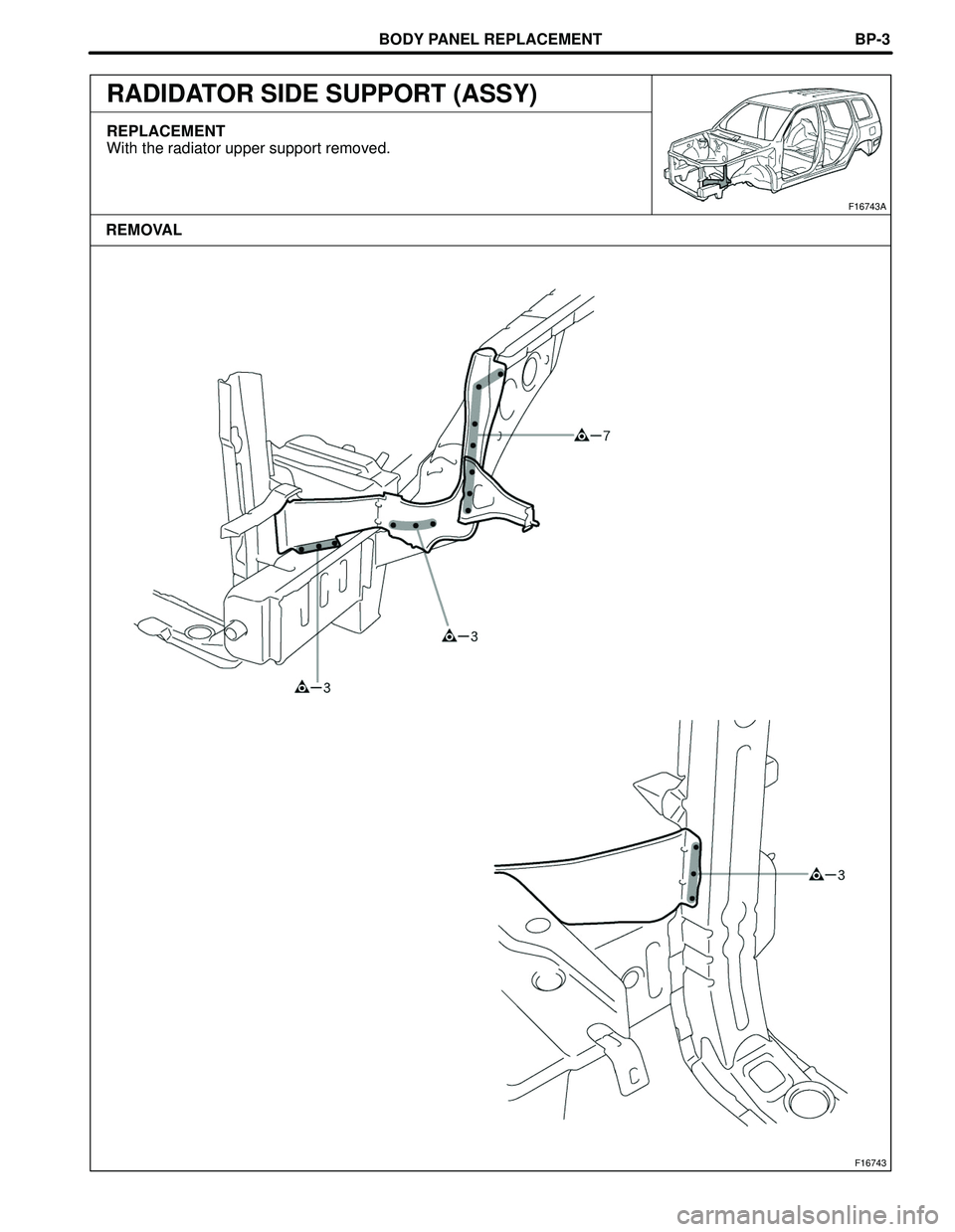

REMOVALBP-3
RADIDATOR SIDE SUPPORT (ASSY)
REPLACEMENT
With the radiator upper support removed.

BODY PANEL REPLACEMENT
F16744
POINT
1 Inspect the fitting of the front fender and hood, etc., before welding, since this affects the appearance of the
finish.
PART NAME
[A] Radiator Support To Front Fender Bracket BP-4

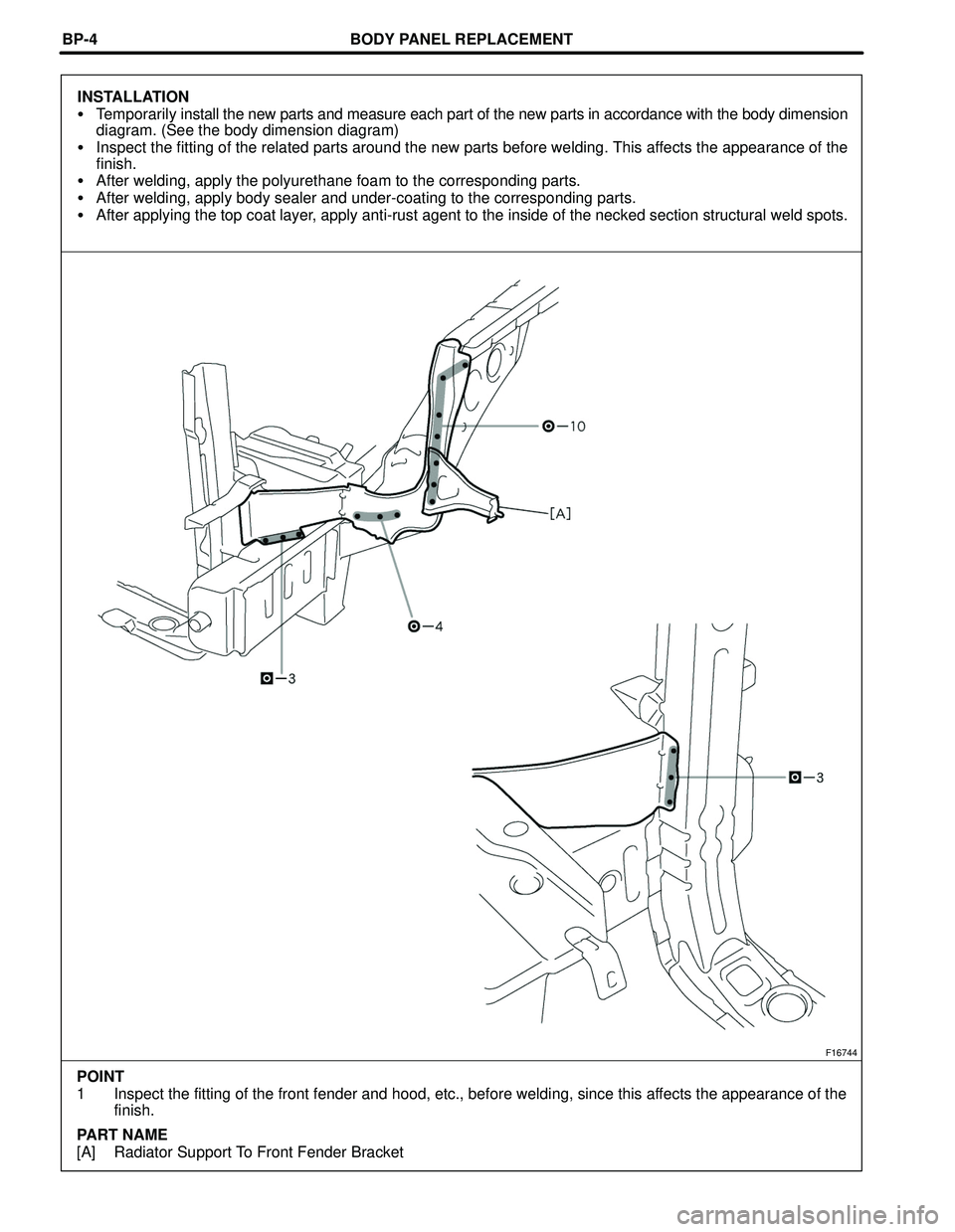

INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
diagram. (See the body dimension diagram)

Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.

After welding, apply the polyurethane foam to the corresponding parts.

After welding, apply body sealer and under-coating to the corresponding parts.

After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.

BODY PANEL REPLACEMENT
F16747
F16747A

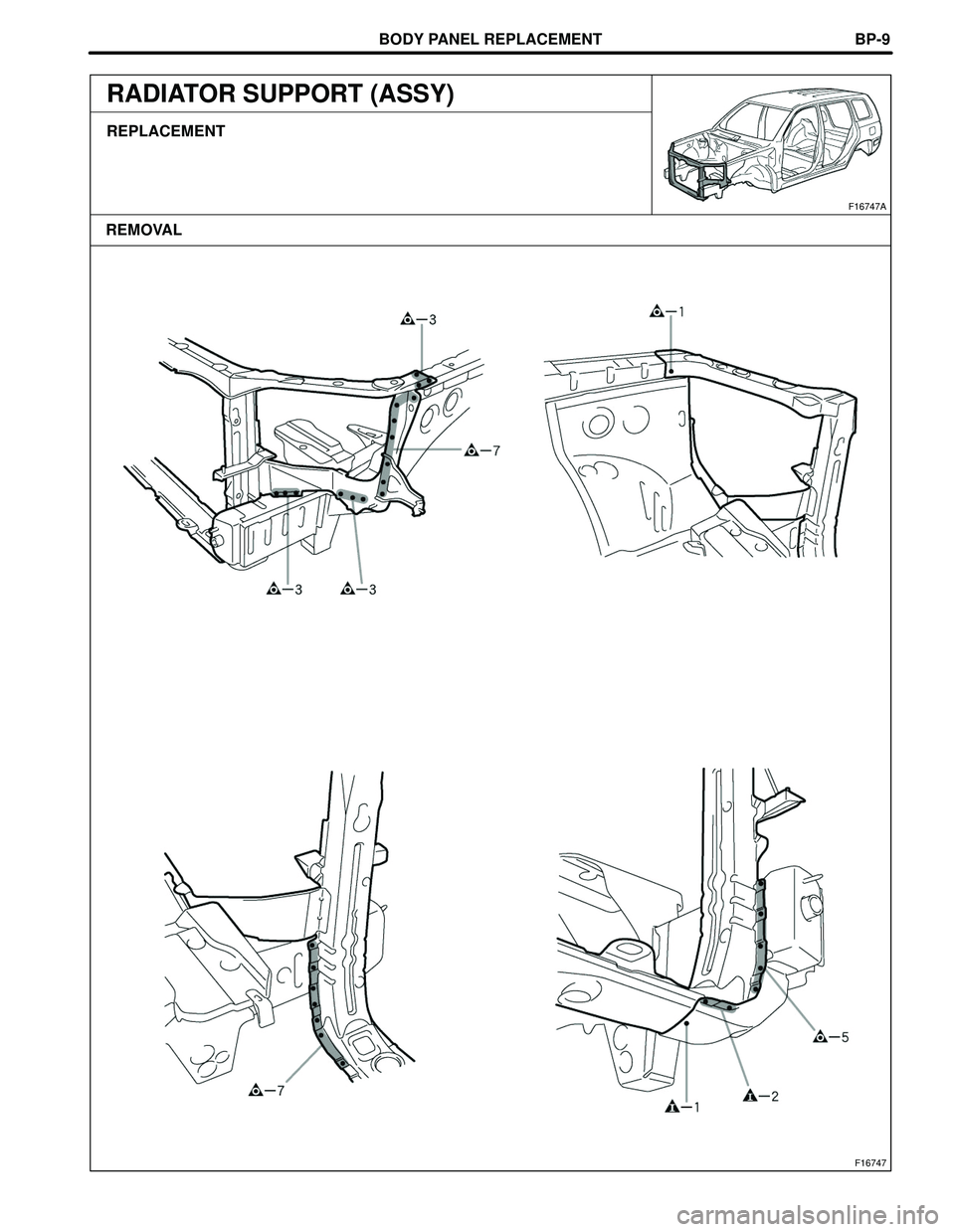

REMOVALBP-9
RADIATOR SUPPORT (ASSY)
REPLACEMENT

BODY PANEL REPLACEMENT
F16748
POINT
1 Inspect the fitting of the headlight, front fender and hood, etc., before welding, since this affects the appear-
ance of the finish. BP-10
INSTALLATION

Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension
diagram. (See the body dimension diagram)

Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the
finish.

After welding, apply the polyurethane foam to the corresponding parts.

After welding, apply body sealer and under-coating to the corresponding parts.

After applying the top coat layer, apply anti-rust agent to the inside of the necked section structural weld spots.

BODY PANEL REPLACEMENT
F16741
F16741A

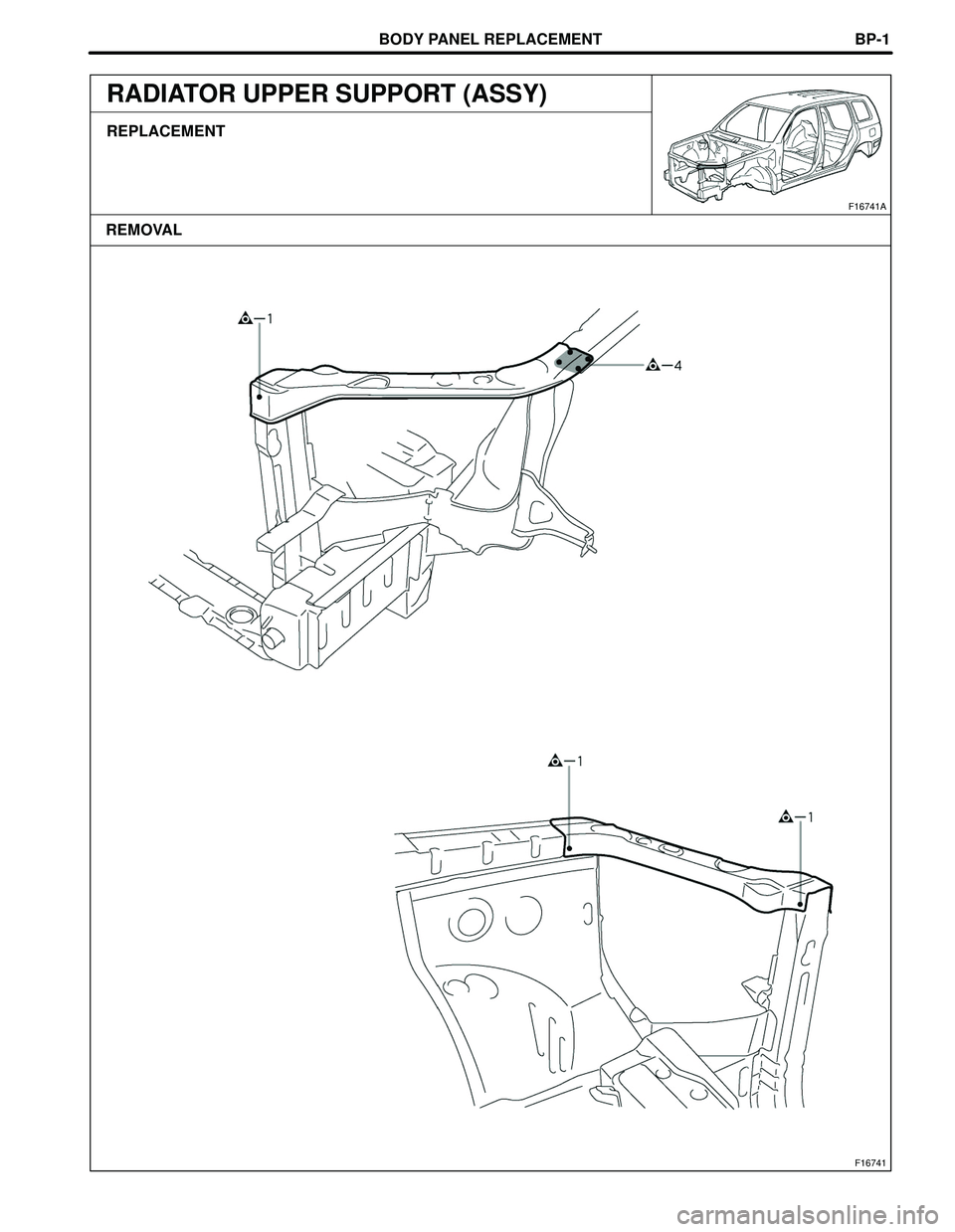

REMOVALBP-1
RADIATOR UPPER SUPPORT (ASSY)
REPLACEMENT
