TOYOTA HIGHLANDER 2001 Service Repair Manual

Maintenance Log: SUVs and Trucks
5Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 37
f or add itional information.
6See p age 37 for details.

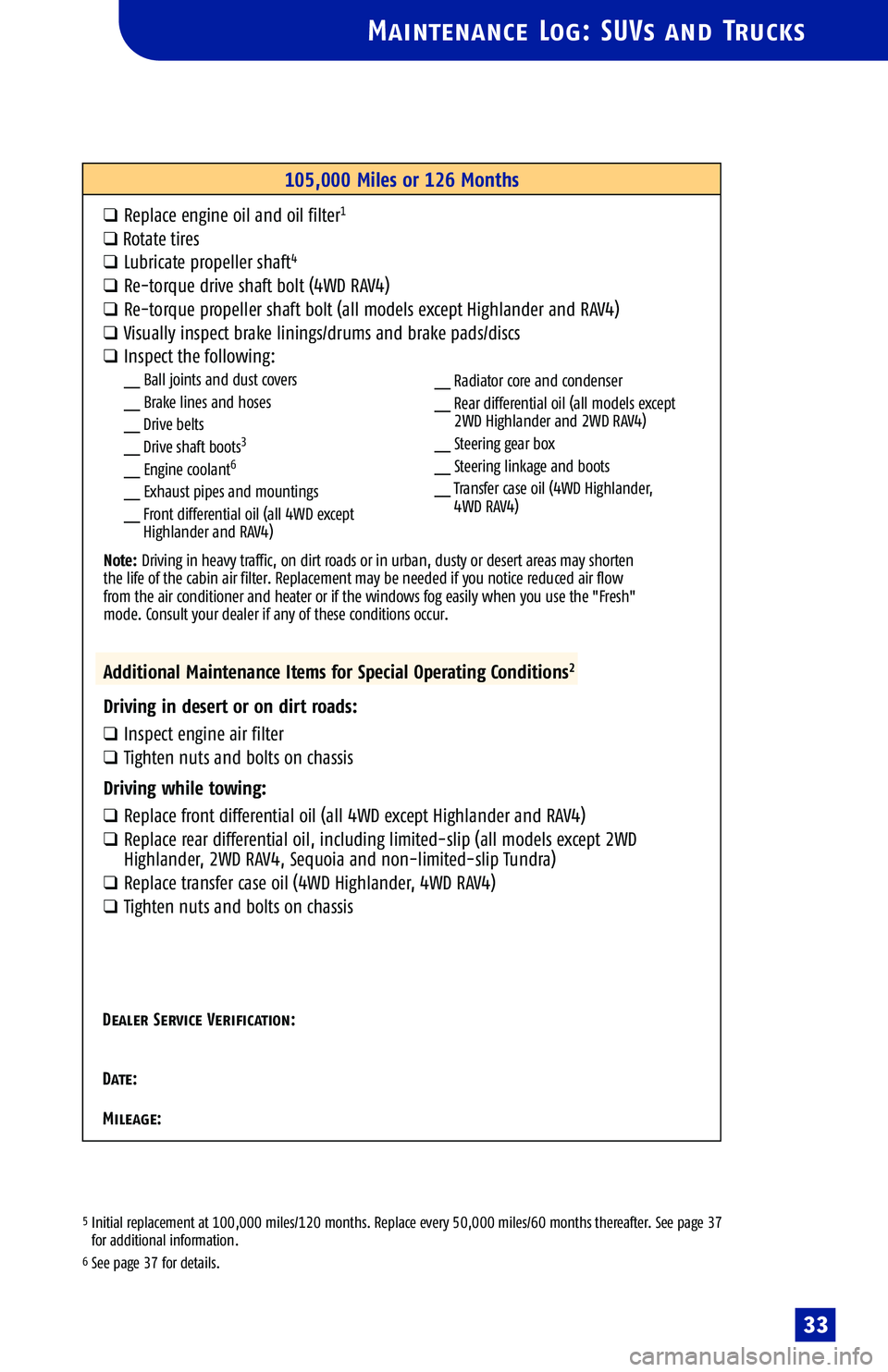

105,000 Miles or 126 Months
qReplace engine oil and oil filter1
qRotate tires
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qVisually inspect brake linings/drums and brake pads/discs
qIn spect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
3
__ Engine coolant6
__ Exhaust pipes and mountings
__ Front differential oil (all 4WD except
Highlander and RAV4)
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
t h e lif e of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heater or if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions2
Dr iv ing in desert or on dirt roads:
qInspect engine air filter
qTighten nuts and bolts on chassis
Dr iv ing while towing:
qReplace front differential oil (all 4WD except Highlander and RAV4)
qR epl ace rear differential oil, including limitedslip (all models except 2WD
Hi gh lander, 2WD RAV4, Sequoia and nonlimitedslip Tundra)
qReplace transfer case oil (4WD Highlander, 4WD RAV4)
qTighten nuts and bolts on chassis
Dealer Service Verification:
D ate:
Mileage:
33
__ Radiator core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil (4WD Highlander, 4WD RAV4)

Maintenance Log: SUVs and Trucks
1 Reset the oil replacement reminder (“MAINT REQD”) light after replacing engine oil, if vehicle is equipped with this light.2 Per for m t hese service items only if you drive primarily under the conditions indicated.3Applies to Highlander, Land Cruiser, RAV4, 4WD Sequoia, 4WD Tacoma, 4WD Tundra and 4WD 4Runner.4Applies t o Land Cruiser, 4WD Sequoia, 4WD Tundra and 4WD 4Runner.5Applies to Land Cruiser, 4WD Tacoma, Tacoma PreRunner and Tundra.

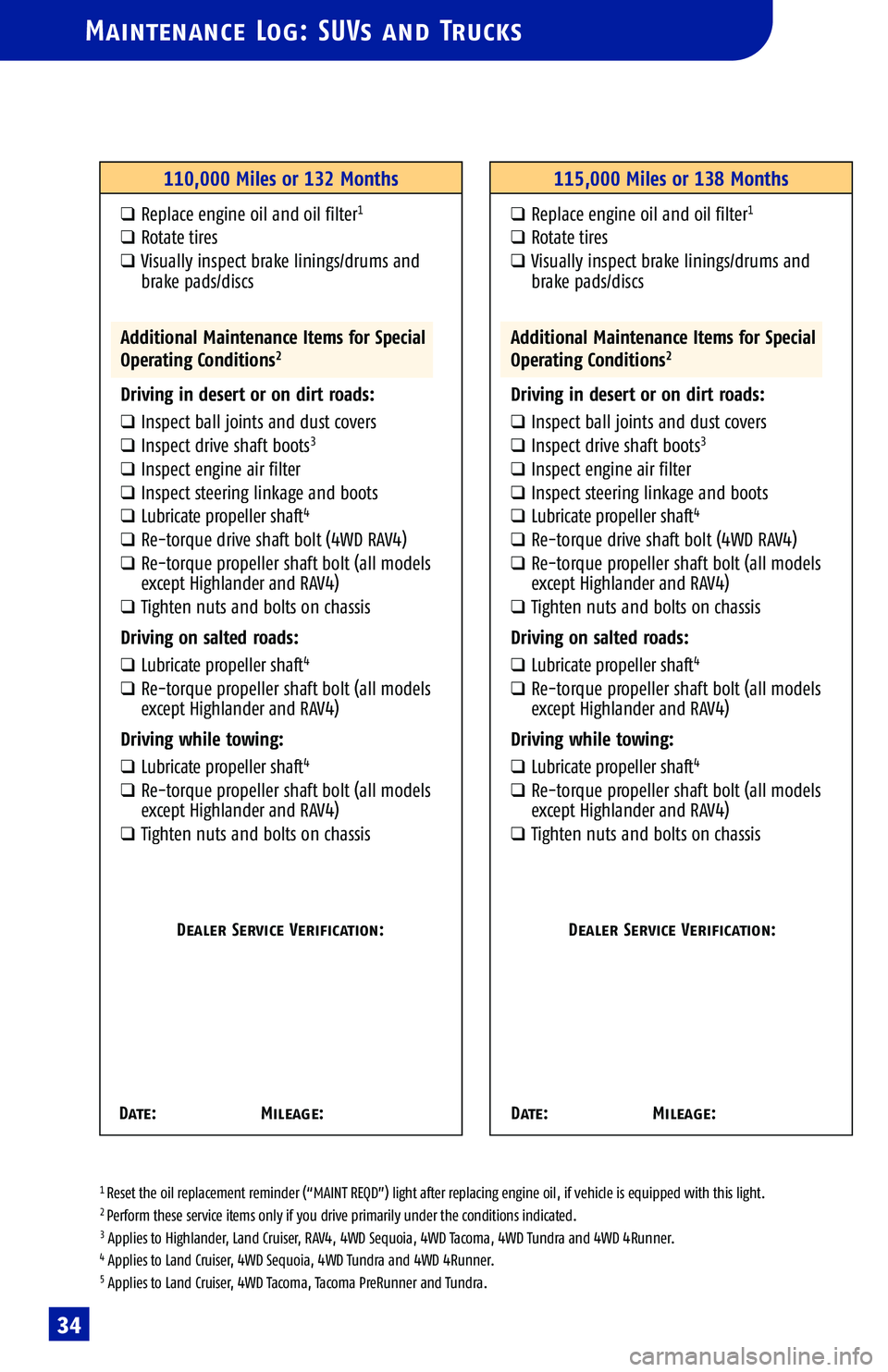

110,000 Miles or 132 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving in desert or on dirt roads:
qInspect ball joints and dust covers
qInspect drive shaft boots3
qInspect engine air filter
qInspect steering linkage and boots
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models
except Highlander and RAV4)
qTighten nuts and bolts on chassis
Driving on salted roads:
qLu br icat e pr opeller shaft4
qR etorque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
qLubricate propeller shaft4
qRetorque propeller shaft bolt (all models
except Highlander and RAV4)
qTi gh ten nuts and bolts on chassis
115,000 Miles or 138 Months
qReplace engine oil and oil filter1
qRotate tires
qVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving in desert or on dirt roads:
qInspect ball joints and dust covers
qInspect drive shaft boots3
qInspect engine air filter
qInspect steering linkage and boots
qLubricate propeller shaft4
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models
except Highlander and RAV4)
qTighten nuts and bolts on chassis
Driving on salted roads:
qLu br icat e pr opeller shaft4
qR etorque propeller shaft bolt (all models
except Highlander and RAV4)
Driving while towing:
qLubricate propeller shaft4
qRetorque propeller shaft bolt (all models
except Highlander and RAV4)
qTi gh ten nuts and bolts on chassis
Dea ler Ser vice Verification:
Date: Mileage:
Dea
ler Ser vice Verification:
Date: Mileage:
34

Maintenance Log: SUVs and Trucks
6Required under the terms of the Emission Control Warranty.7 Inspect thickness measurement and disc runout.8 Applies to Land Cruiser, Sequoia, Tundra and 4Runner with 2UZFE. Required only for vehicles in California,
Massachusetts and New York.
9See page 37 for details.

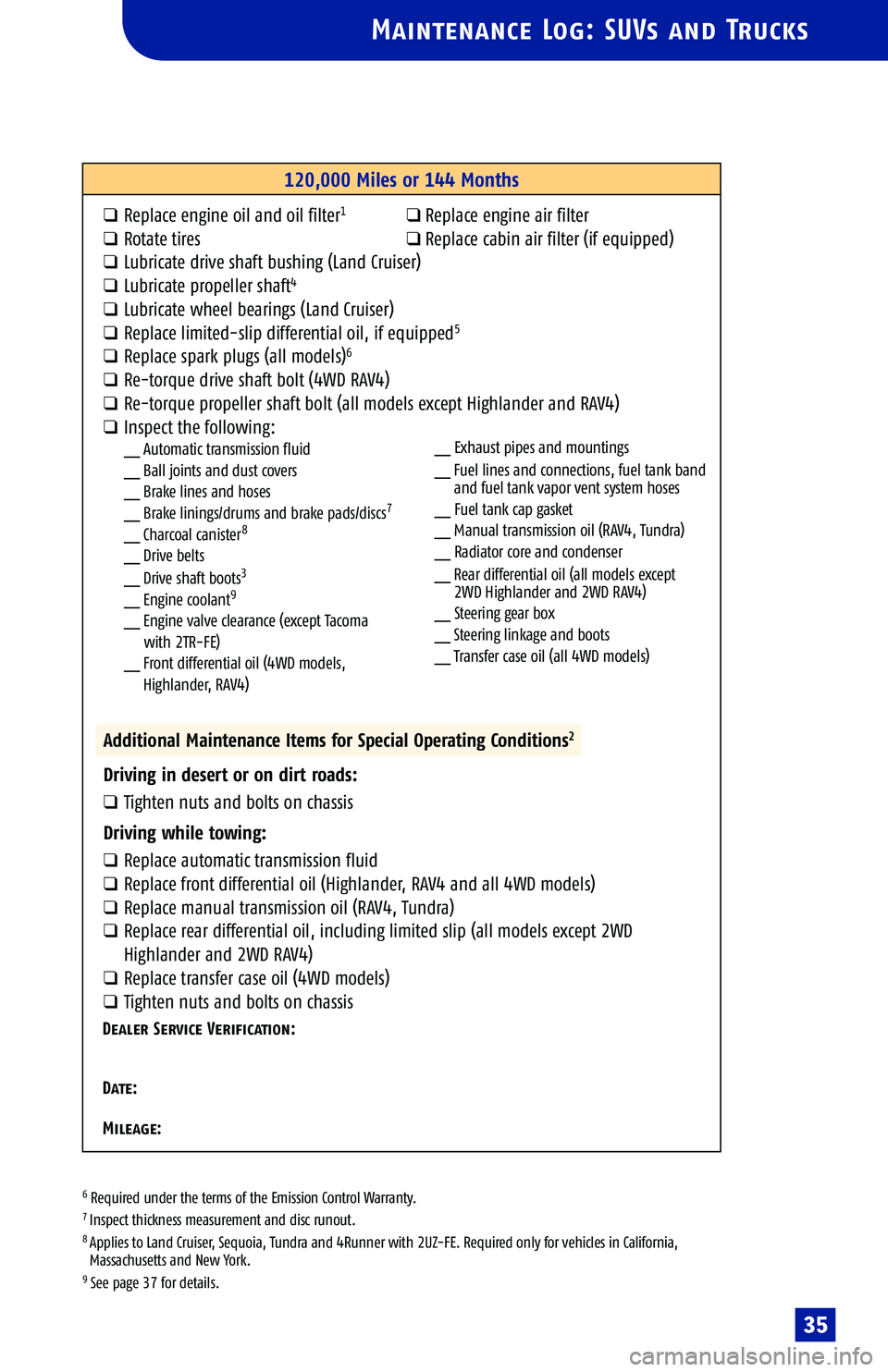

120,000 Miles or 144 Months
qReplace engine oil and oil filter1qReplace engine air filter
qRotate tiresqReplace cabin air filter (if equipped)
qLubricate drive shaft bushing (Land Cruiser)
qLubricate propeller shaft4
qLubricate wheel bearings (Land Cruiser)
qReplace limitedslip differential oil, if equipped5
qReplace spark plugs (all models)6
qRetorque drive shaft bolt (4WD RAV4)
qRetorque propeller shaft bolt (all models except Highlander and RAV4)
qInspect the following:__ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
7
__ Charcoal canister8
__ Drive belts
__ Drive shaft boots3
__ Engine coolant9
__ E ngine valve clearance (except Tacoma
with 2TRFE)
__ Front differential oil (4WD models, Highlander, RAV4)
Additional Maintenance Items for Special Operating Conditions2
Driv ing in desert or on dirt roads:
qTi gh ten n uts and bolts on c hassis
Driving while towing:
qReplace automatic transmission fluid
qRepl ac e f ront differential oil (Highlander, RAV4 and all 4WD models)
qReplace manual transmission oil (RAV4, Tundra)
qR eplace rear differential oil, including limited slip (all models except 2WD
Hi gh land erand 2WD RAV4)
qReplace transfer case oil (4WD models)
qTighten nuts and bolts on chassis
Dealer Service Verification:
Dat e :
M ileage:
35
__ Exhaust pipes and mountings
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Manual transmission oil (RAV4, Tundra)
__ R adiat or core and condenser
__ Rear differential oil (all models except
2WD Highlander and 2WD RAV4)
__ St eerin g gear box
__ Steering linkage and boots
__ Transfer case oil (all 4WD models)

Explanation of Maintenance Items
36

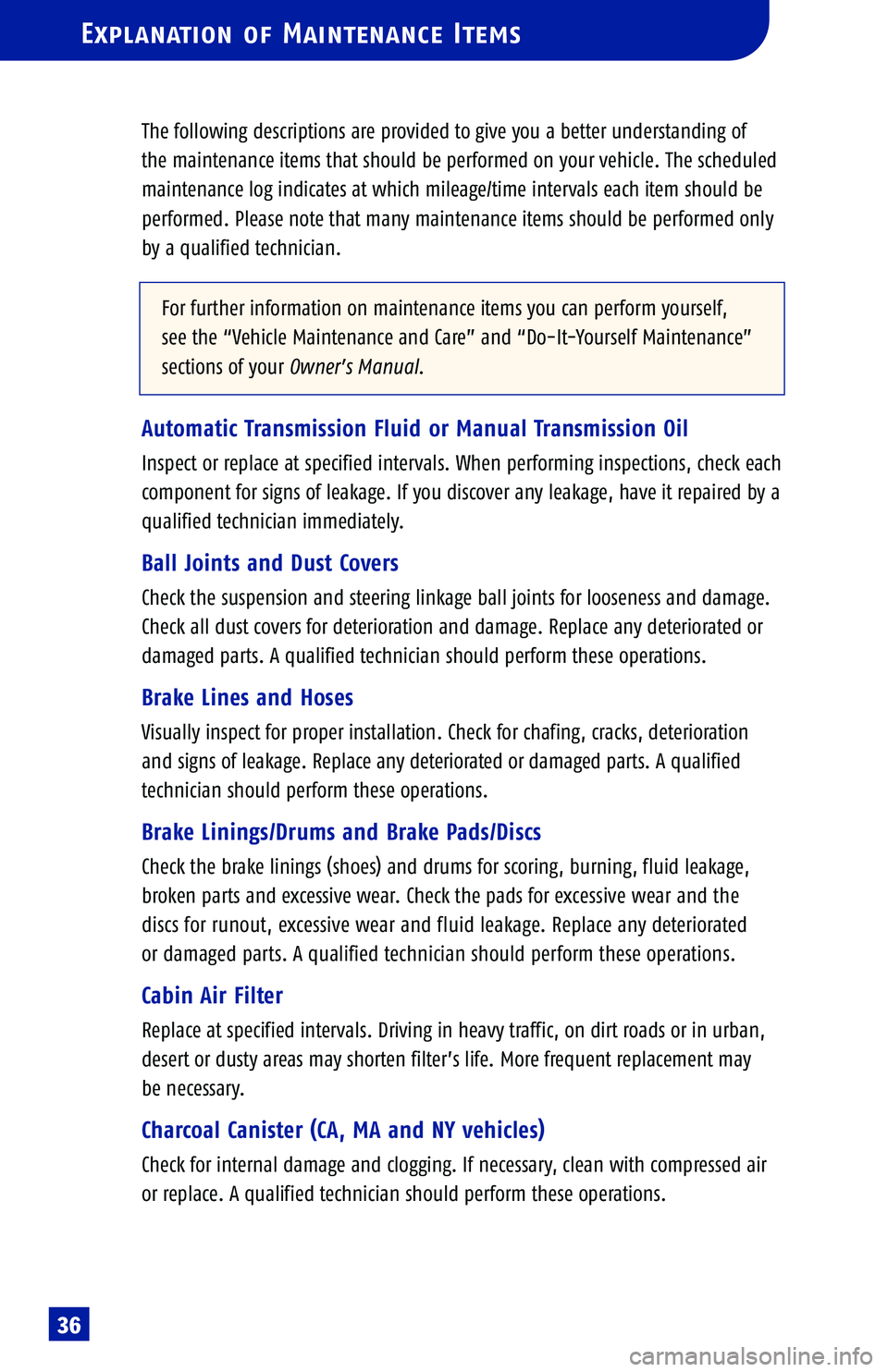

The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “DoItYourself Maintenance”
sections of your
Owner’s Manual.
Automatic Transmission Fluid or Manual Transmission Oil
Inspect or replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and steering linkage ball joints for looseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated ordamaged parts. Aqualified technician should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Check for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check the pads for excessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated ordamaged parts. A qualified technician should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s life. More frequent replacement may
be necessary.
Charcoal Canister (CA, MA and NY vehicles)
Check for internal damage and clogging. If necessary, clean with compressed air
or replace. A qualified technician should perform these operations.

Explanation of Maintenance Items
37

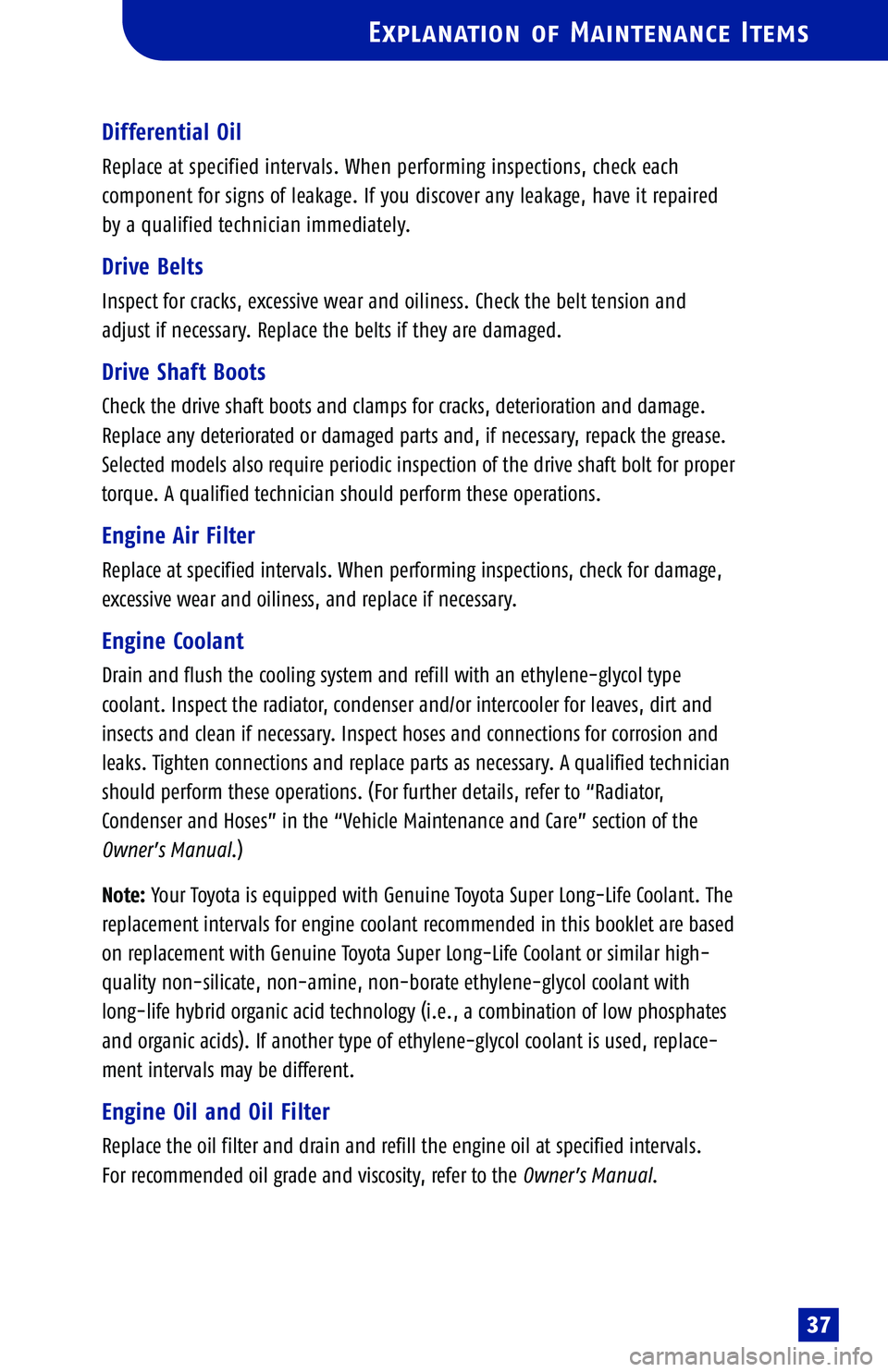

Differential Oil
Replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for cracks, deterioration and damage.
Replace any deteriorated or damaged parts and, if necessary, repack the grease.
Selected models also require periodic inspection of the drive shaft bolt for proper
torque. A qualified technician should perform these operations.
Engine Air Filter
Replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cooling system and refill with an ethyleneglycol type
coolant. Inspect the radiator, condenser and/or intercooler for leaves, dirt and
insects and clean if necessary. Inspect hoses and connections for corrosion and
leaks. Tighten connections and replace parts as necessary. A qualified technician
should perform these operations. (For further details, refer to “Radiator,
Condenser and Hoses” in the “Vehicle Maintenance and Care” section of the
Owner’s Manual.)
Note:YourToyota is equipped with Genuine Toyota Super LongLife Coolant. The
replacementintervals for engine coolant recommended in this booklet are based
on replacement with Genuine Toyota Super LongLife Coolant or similar high
quality nonsilicate, nonamine, nonborate ethyleneglycol coolant with
longlife hybrid organic acid technology (i.e., a combination of low phosphates
and organic acids). If another type of ethyleneglycol coolant is used, replacementintervals may be different.
Engine Oil and Oil Filter
Replace the oil filter and drain and refill the engine oil at specified intervals.
For recommended oil grade and viscosity, refer to the
Owner’s Manual.

Explanation of Maintenance Items
38

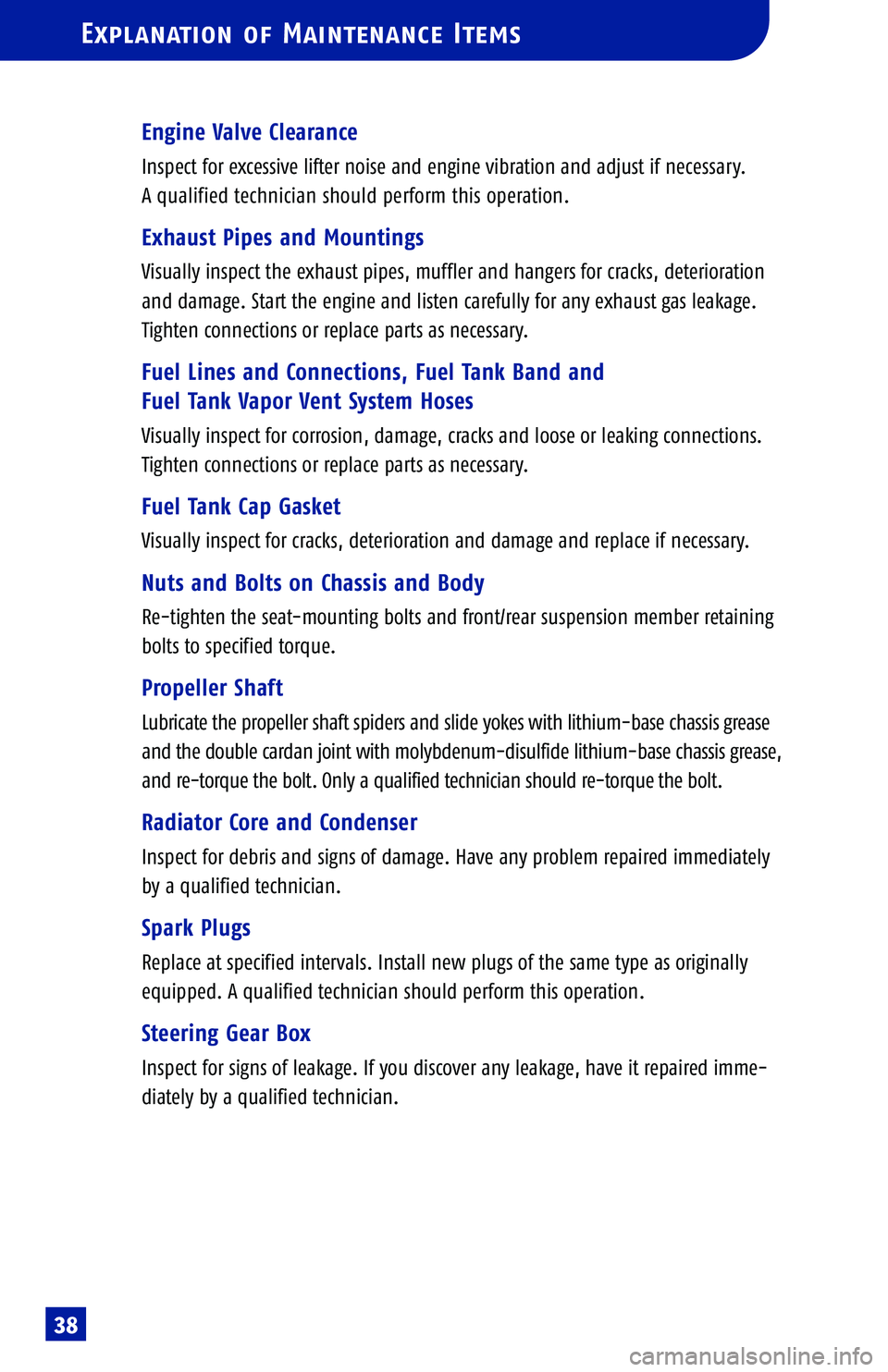

Engine Valve Clearance
Inspect for excessive lifter noise and engine vibration and adjust if necessary.
A qualified technician should perform this operation.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration
and damage. Start the engine and listen carefully for any exhaust gas leakage.
Tighten connections or replace parts as necessary.
Fuel Lines and Connections, Fuel Tank Band and
Fuel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cracks and loose or leaking connections.
Tighten connections or replace parts as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration and damage and replace if necessary.
Nuts and Bolts on Chassis and Body
Retighten the seatmounting bolts and front/rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Lubricate the propeller shaft spiders and slide yokes with lithiumbase chassis grease
and the double cardan joint with molybdenumdisulfide lithiumbase chassis grease,
and retorque the bolt. Only a qualified technician should retorque the bolt.
Radiator Core and Condenser
Inspect for debris and signs of damage. Have any problem repaired immediately
by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new plugs of the same type as originally
equipped. A qualified technician should perform this operation.
Steering Gear Box
Inspect for signs of leakage. If you discover any leakage, have it repaired imme
diately by a qualified technician.

Explanation of Maintenance Items
39

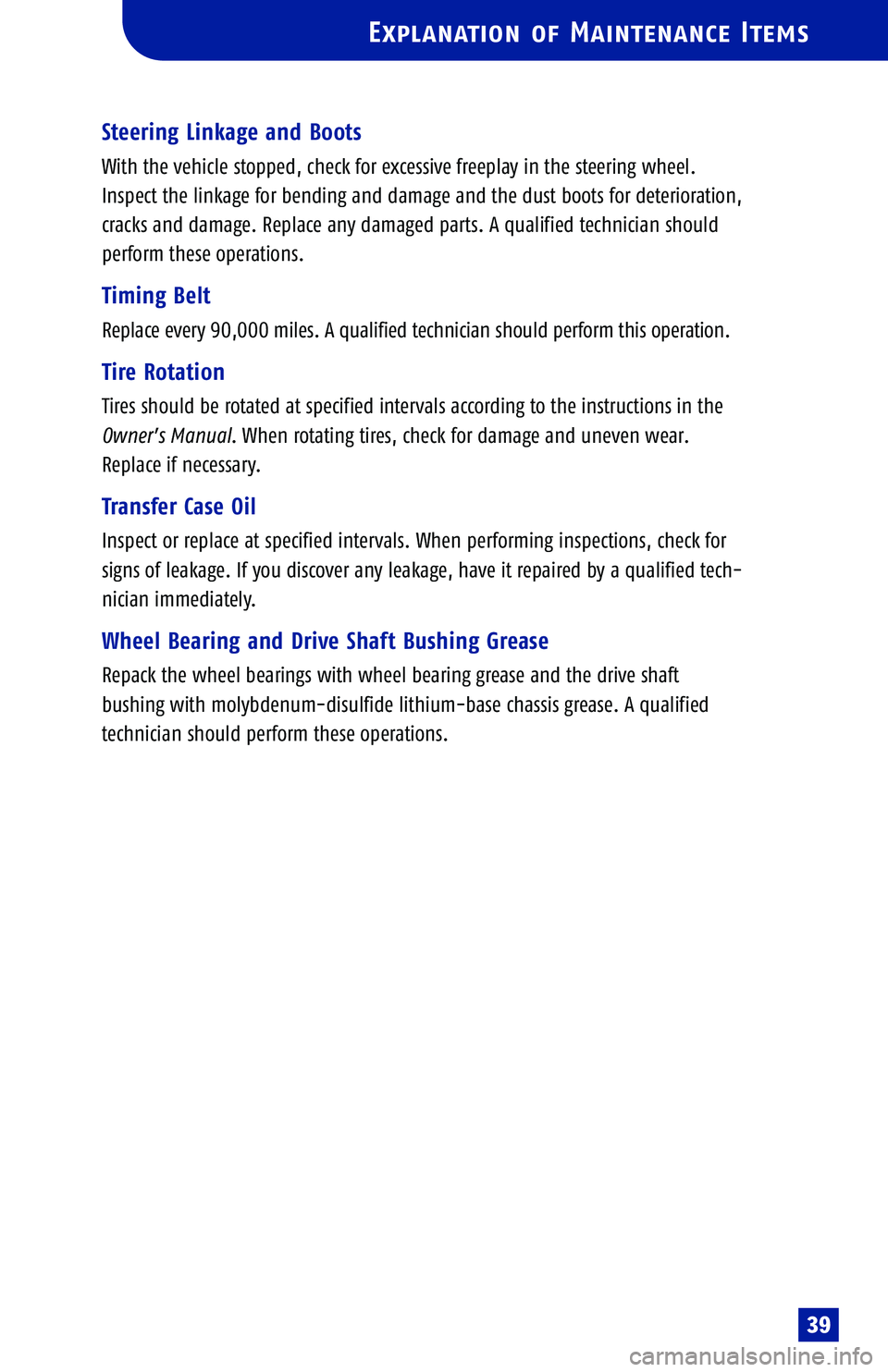

Steering Linkage and Boots
With the vehicle stopped, check for excessive freeplay in the steering wheel.
Inspect the linkage for bending and damage and the dust boots for deterioration,
cracks and damage. Replace any damaged parts. A qualified technician should
perform these operations.
Timing Belt
Replace every 90,000 miles. A qualified technician should perform this operation.
Tire Rotation
Tires should be rotated at specified intervals according to the instructions in the
Owner’s Manual. When rotating tires, check for damage and uneven wear.
Replace if necessary.
Transfer Case Oil
Inspect or replace at specified intervals. When performing inspections, check for
signs of leakage. If you discover any leakage, have it repaired by a qualified tech
nician immediately.
Wheel Bearing and Drive Shaft Bushing Grease
Repack the wheel bearings with wheel bearing grease and the drive shaft
bushing with molybdenumdisulfide lithiumbase chassis grease. A qualified
technician should perform these operations.

Notes
40

Notes
41

Notes
42
