'05 HIGHLANDER_U (L/O 0409)
269
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Compass sensor
The compass sensor is in the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth's magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the COMPº switch
until the zone number appears on the dis-
play. Then push the COMPº switch, refer-
ring to the following map to select the
number of the zone where the vehicle is.

'05 HIGHLANDER_U (L/O 0409)
270

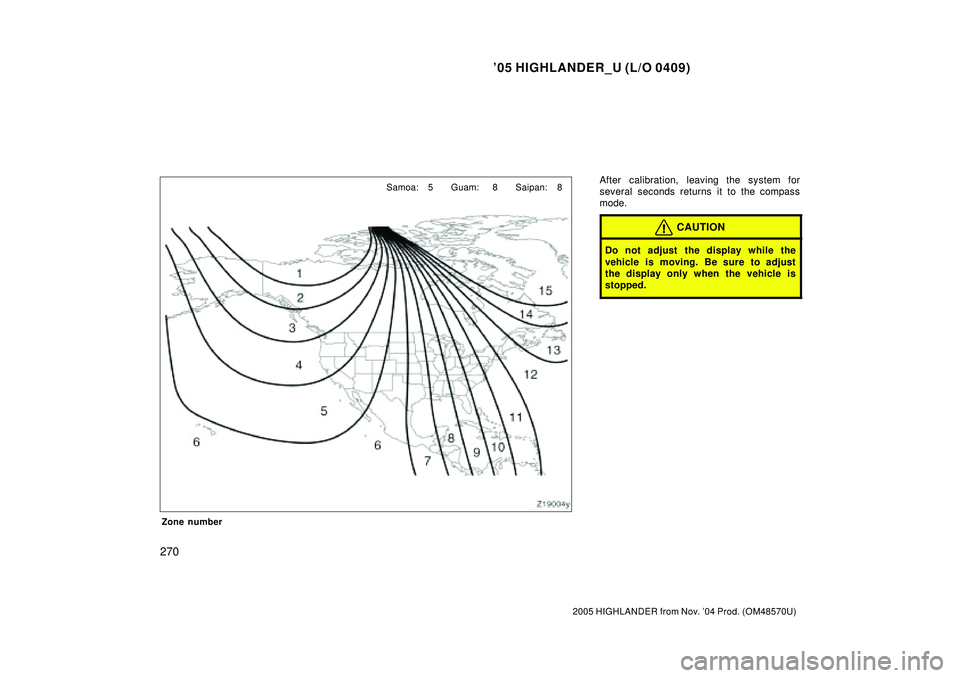

2005 HIGHLANDER from Nov. '04 Prod. (OM48570U) Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

'05 HIGHLANDER_U (L/O 0409)
271
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

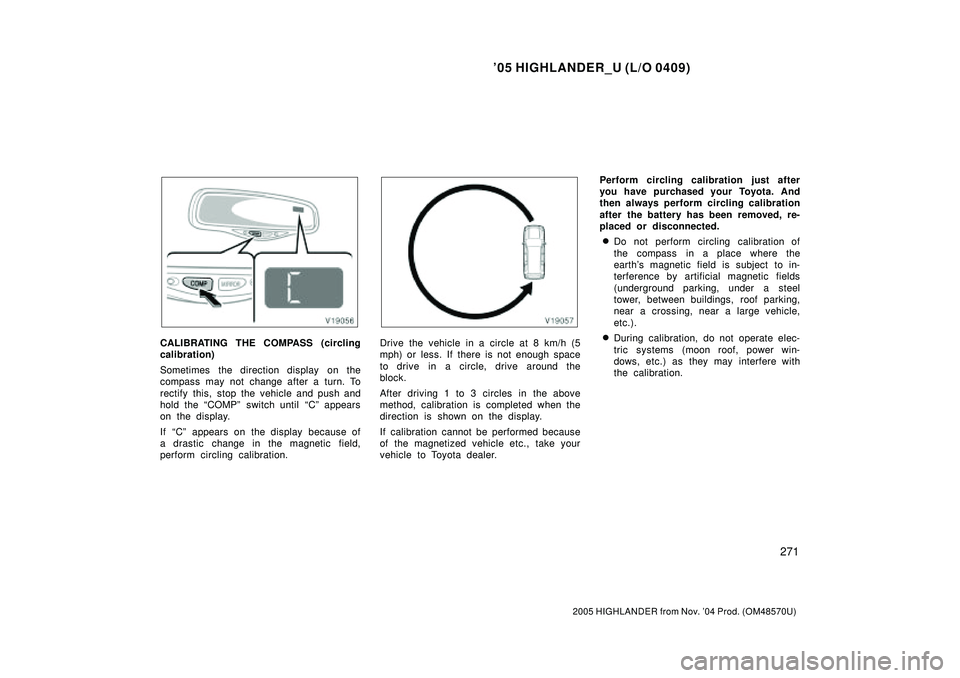

CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the COMPº switch until Cº appears
on the display.
If Cº appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

'05 HIGHLANDER_U (L/O 0409)
272
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

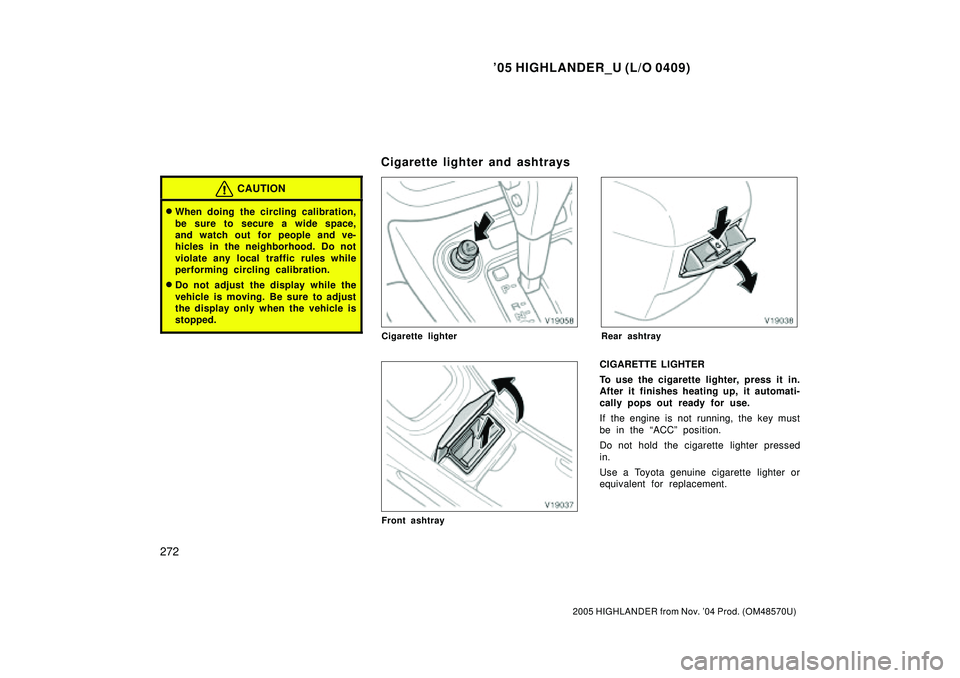

Cigarette lighter
Front ashtray
Rear ashtray
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the ACCº position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
Cigarette lighter and ashtrays

'05 HIGHLANDER_U (L/O 0409)
273
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

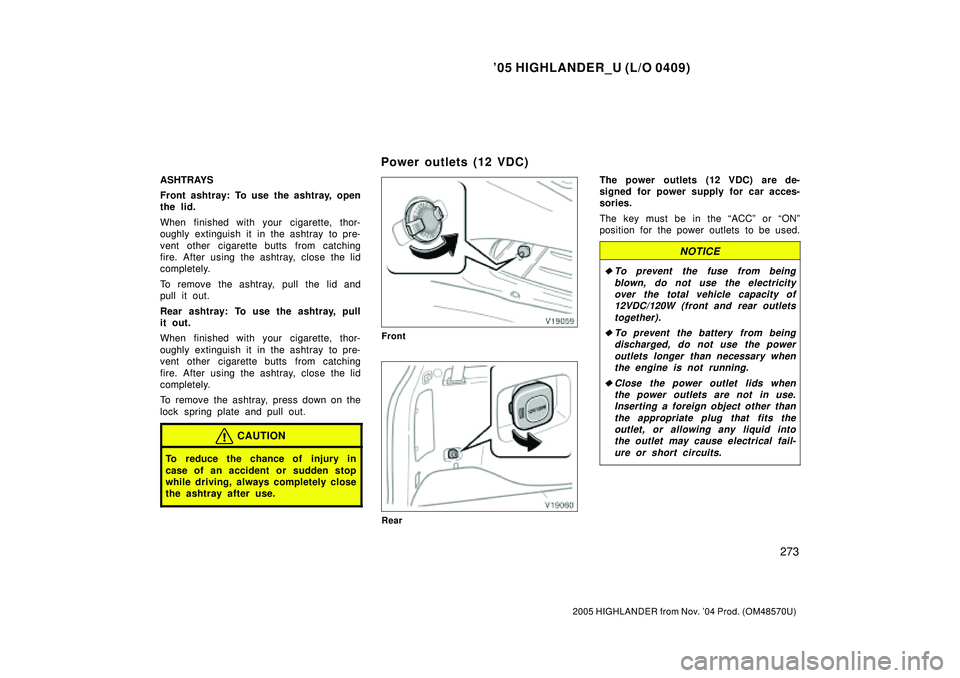

ASHTRAYS
Front ashtray: To use the ashtray, open
the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull the lid and
pull it out.
Rear ashtray: To use the ashtray, pull
it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Front
Rear
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
The key must be in the ACCº or ONº
position for the power outlets to be used.
NOTICE

To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12VDC/120W (front and rear outlets
together).

To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.

Close the power outlet lids when
the power outlets are not in use.
Inserting a foreign object other than
the appropriate plug that fits the
outlet, or allowing any liquid into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets (12 VDC)

'05 HIGHLANDER_U (L/O 0409)
274
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

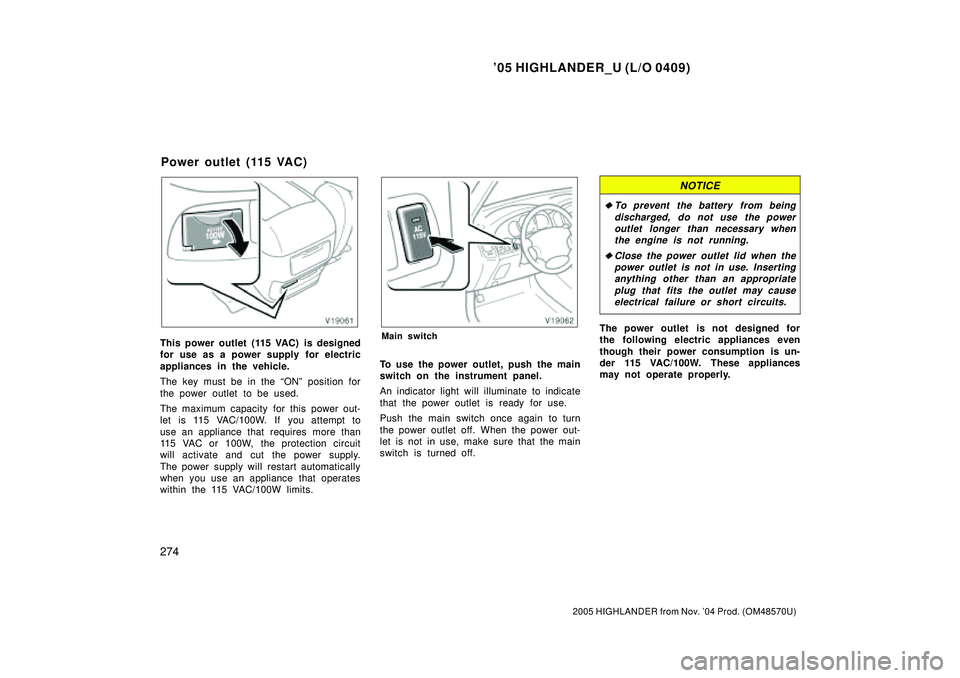

This power outlet (115 VAC) is designed
for use as a power supply for electric
appliances in the vehicle.
The key must be in the ONº position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
NOTICE

To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.

Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet may cause
electrical failure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Power outlet (115 VAC)

'05 HIGHLANDER_U (L/O 0409)
275
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Appliances with high initial peak watt-
age: cathode- ray tube type televisions,
compressor- driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer-
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
globe box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
The garage door opener (
Universal Transceiver) is manufactured
under license from HomeLink and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
Glove box Garage door opener

'05 HIGHLANDER_U (L/O 0409)
276
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
(a) Programming the HomeLink
The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
hand- held transmitter prior to program-
ming.
The battery side of the hand- held trans-
mitter must be pointed away from the
HomeLink
 during the programming pro-
cess.
For Canadian users, follow the procedure
in Programming an entrance gate/pro-
gramming all devices in the Canadian
marketº.
1. Decide which of 3 HomeLink
 buttons
you want to program.
2. Place your hand- held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.3. Simultaneously press and hold the
hand- held garage transmitter button
along with the selected HomeLink
 but-
ton.
4. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
5. Test the operation of the HomeLink
 by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
Rolling Codeº type. Press and hold the
programmed HomeLink
 button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the Rolling Codeº type, proceed to the
heading Programming a rolling code sys-
temº.
6. Repeat steps 2 through 5 for each re-
maining HomeLink
 button to program
another device.Programming a rolling code system
If your device is Rolling Codeº
equipped, it is necessary to follow
steps 1 through 4 under the heading
Programming the HomeLink
º before
proceeding with the steps listed below.
1. Locate the trainingº button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner 's
guide supplied by the garage door
opener manufacturer for the location of
this trainingº button.
2. Press the trainingº button on the ceil-
ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below.
3. Press and release the vehicle's pro-
grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.

'05 HIGHLANDER_U (L/O 0409)
277
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re-
maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market
1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand- held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
3. Press and hold the selected
HomeLink
 button.
4. Continuously press and release (cycle)
the hand- held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.6. Test the operation of the HomeLink
 by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re-
maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink

buttons cannot be
erased, however, to reprogram a single
button, follow the procedure Programming
the HomeLink
º.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.(c) Erasing the entire HomeLink

memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.

'05 HIGHLANDER_U (L/O 0409)
278
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.
This device complies with Part 15 of the
FCC Rules and with RSS- 210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user's authority to operate the
device.To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop,
always keep the auxiliary box
closed while driving.
Type AÐIt is designed for holding
a light objects, do not place any
heavy objects in it. Heavy objects
may cause the holder to open and
contents to fly out resulting in inju-
ries.
NOTICE
Type AÐDuring hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Auxiliary boxes
