TOYOTA HIGHLANDER 2001 Service Repair Manual

'05 HIGHLANDER_U (L/O 0409)
399
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Type A fuses can be pulled out by using
the pull- out tool. The location of the pull-
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the FR DEFº
or CIGº fuse, which may be dispensable
for normal driving, and use it if its amper-
age rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
You should normalize the moon roof if it
does not operate automatically or the jam
protection function does not operate cor-
rectly after replacing blown fuses. To
normalize the moon roof, see Electric
moon roofº on page 36 in Section 1- 2.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
Adding washer fluid

'05 HIGHLANDER_U (L/O 0409)
400
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle's paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Replacing light bulbsÐ

'05 HIGHLANDER_U (L/O 0409)
401
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Front turn signals/
parking and front
side marker lights
Ð21/5C
Rear side marker
lights1685E
Rear turn signal
lightsÐ21D
Stop/tail lights744321/5E
Back- up lights744021E
High mounted stop
light92116E
License plate
lightsÐ5E
Interior lightsÐ8F
Personal lightsÐ5E
Vanity lightsÐ2F
Door courtesy
lightsÐ5E
Glove box light#741.2E
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
1. Open the hood. Turn the bulb base
counterclockwise to the front of the
vehicle as shown.
ÐHeadlights

'05 HIGHLANDER_U (L/O 0409)
402
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
2. Pull the bulb out of the bulb base
and install a new bulb.
If the connector is tight, wiggle it.3. Insert the bulb base into the mount-
ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.If any of the following lights burns out,
contact your Toyota dealer.

Front fog lights

Front turn signals/parking and front
side marker lights

Rear side marker lights
NOTICE
Do not try to replace any of the light
bulbs mentioned above by yourself.
You may damage the vehicle.
ÐFront fog, front turn signal/
parking and front side marker,
and rear side marker lights

'05 HIGHLANDER_U (L/O 0409)
403
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

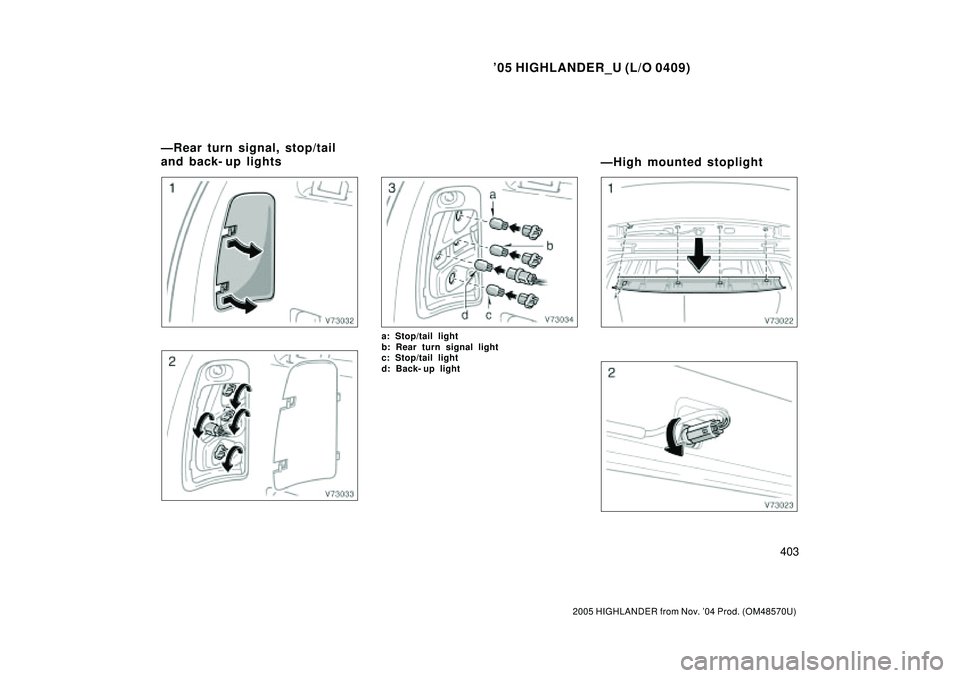

a: Stop/tail light
b: Rear turn signal light
c: Stop/tail light
d: Back- up light
ÐRear turn signal, stop/tail
and back- up lights
ÐHigh mounted stoplight

'05 HIGHLANDER_U (L/O 0409)
404
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

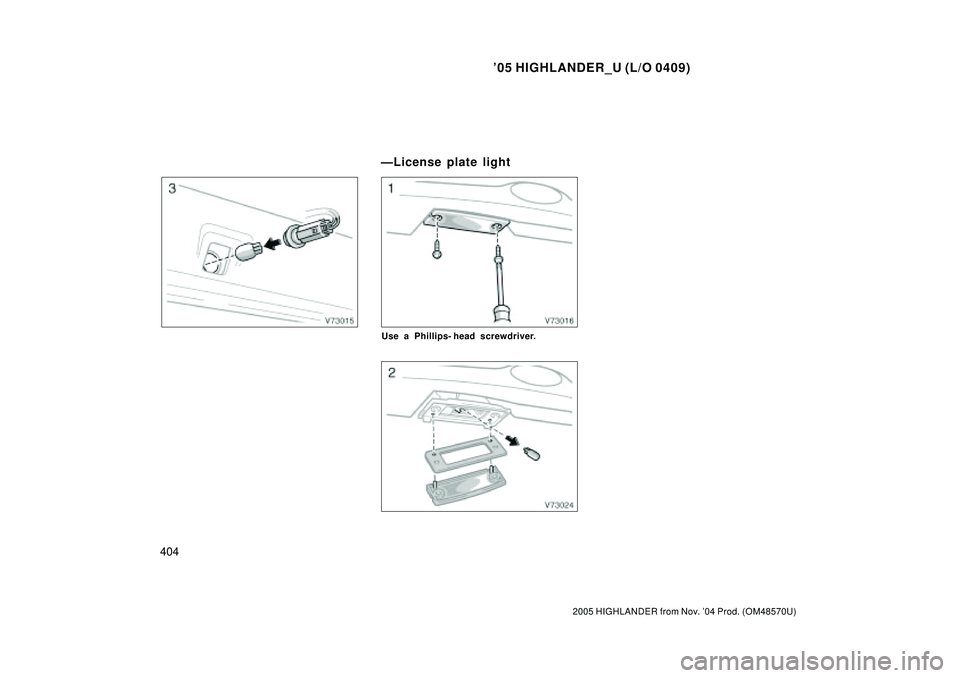

Use a Phillips- head screwdriver.
ÐLicense plate light

'05 HIGHLANDER_U (L/O 0409)
265
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi- information display266 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock267 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compass268 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays272 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets273 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet274 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box275 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener275 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes278 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Container280 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders281 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottle holders283 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie- down hooks283 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover284 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier286 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat288 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For information about the clock of a vehicle equipped with
Navigation system, please refer to the separate Navigation
System Owner's Manualº.
SECTION 1- 10

'05 HIGHLANDER_U (L/O 0409)
266
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Air conditioning system onÐ
Air conditioning system offÐ
The multi- information display indicates
the following information.
1. Outside temperature
2. Average vehicle speed
3. Average fuel consumption
4. Instantaneous fuel consumption
5. Driving time
6. Air conditioning system onÐThe air
conditioned temperature is displayed.
Air conditioning system offÐThe air
conditioned temperature is not dis-
played.
Every time you push the INFOº button,
the display toggles through this informa-
tion.
The displayed values in the multi- informa-
tion display indicate general driving condi-
tions. Accuracy varies with driving habits
and road conditions.
You can adjust the air conditioned temper-
ature while the multi- information is operat-
ing. 5 seconds has been passed after ad-
justing the temperature or pushing the
INFOº button, the display will be back to
the multi- information display.1. Outside temperature
(OUTSIDE TEMPº)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
-22F (- 30C) up to 122F (50C).
If an abnormality exists in the connection
of the outside air temperature sensor,
- -Fº (- -Cº) will appear on the display.
If - -Fº (- -Cº) appears on the display,
contact your Toyota dealer.
There may be a case that - -Fº (- -Cº)
appears momentarily when the ignition is
quickly turned to ONº. It is normal if it
goes out soon.
2. Average vehicle speed
(AVG MPHº or AVG km/hº)
Average vehicle speed is calculated and
displayed based on total driving dis-
tance and total driving time with the
engine running.
The displayed value is updated every 10
seconds.
To reset the calculation, push the INFOº
button for more than 1 second.
Multi- information display

'05 HIGHLANDER_U (L/O 0409)
267
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
3. Average fuel consumption
(AVG MPGº or AVG L/100 kmº)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 10
seconds.
4. Instantaneous fuel consumption
(MPGº or L/100 kmº)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 1 sec-
onds with the engine running.
The displayed value is updated every 2
seconds.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off.5. Driving time (E/Tº)
The elapsed time after the engine starts
is displayed.
When the engine is started, driving time
is counted from 0:00. Up to 11:59 (11
hours, 59 minutes) can be displayed.
When the driving time exceeds 11:59, the
counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.
To reset the hour: Push the Hº button.
To reset the minutes: Push the Mº button.
The key must be in the ACCº or ONº
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).
Clock

'05 HIGHLANDER_U (L/O 0409)
268
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

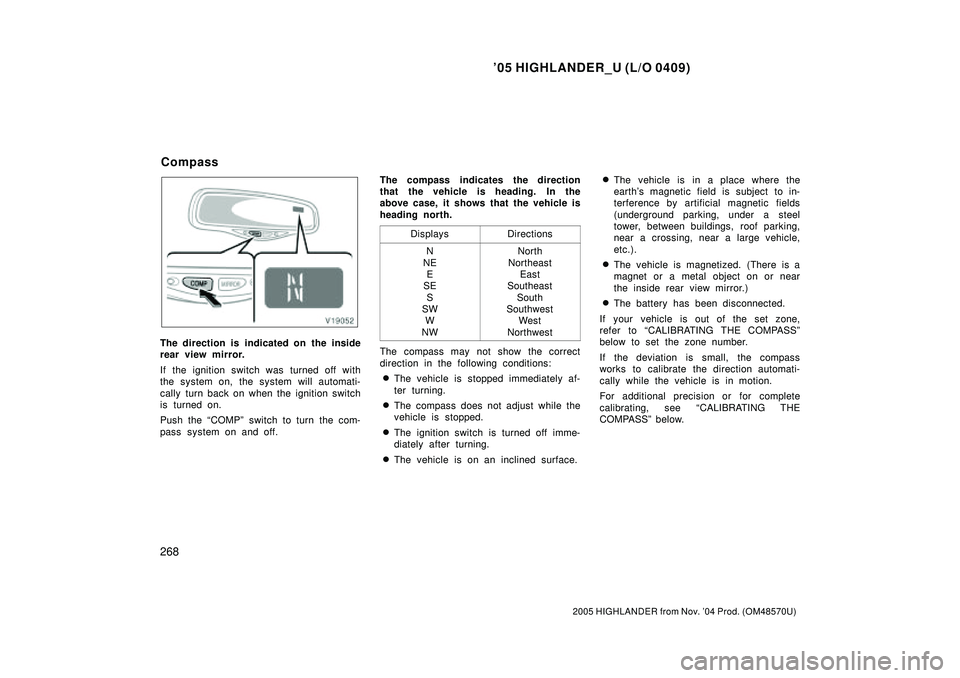

The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the COMPº switch to turn the com-
pass system on and off.The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.
Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The battery has been disconnected.
If your vehicle is out of the set zone,
refer to CALIBRATING THE COMPASSº
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see CALIBRATING THE
COMPASSº below.
Compass
