TOYOTA HIGHLANDER 2001 Service Repair Manual

2005 HIGHLANDER (EWD592U)
312
Rear Heater
15A
RR HTR
210A
HEATER
2 1
1G 81K13
IK2 2
IA2 11
BH1 9IO118
IR113
B- R O L L
Y Y
B
B Y Y
BL PW
J 5
R25
R26 A A
51
32
3 46
BB BF W- B W- B
W- B
W- BW- B
A
A
AA
R24
IR1 17
GR BR
8 6 5 M
1 2
3IND RLY
E
HI COM DUMMY E
OFF
LO
HI 4
W- B
W- B A
R27
J19
From Power Source System (
See Page 62)
Junction
Connector
Junction
ConnectorRear Heater
Main SW
Rear Heater Blower
Motor
Rear Heater Blower SW
Rear Heater
Relay

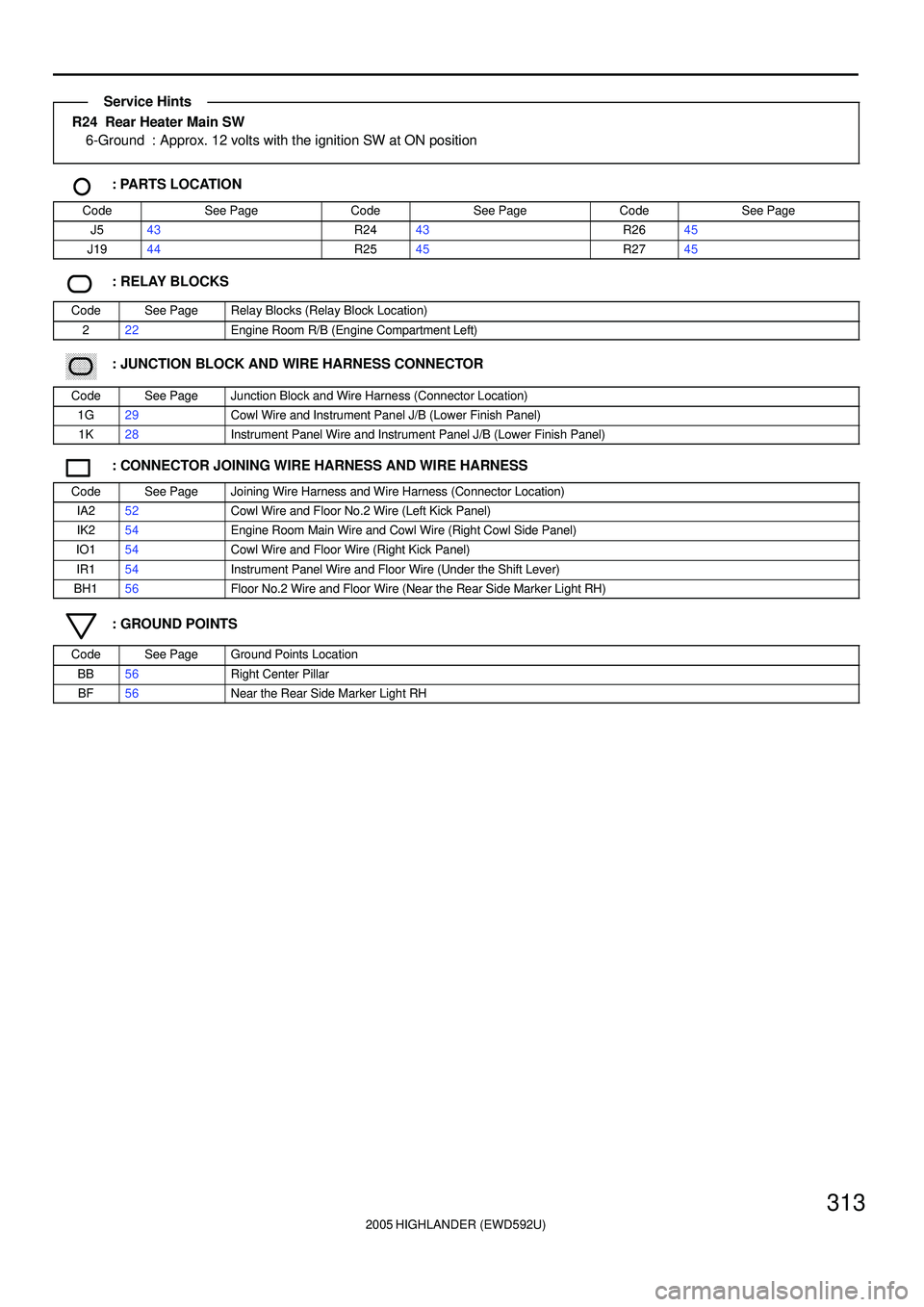

2005 HIGHLANDER (EWD592U)
313
R24 Rear Heater Main SW
6-Ground : Approx. 12 volts with the ignition SW at ON position
: PARTS LOCATION
CodeSee PageCodeSee PageCodeSee Page
J543R2443R2645
J1944R2545R2745
: RELAY BLOCKS
CodeSee PageRelay Blocks (Relay Block Location)
222Engine Room R/B (Engine Compartment Left)
: JUNCTION BLOCK AND WIRE HARNESS CONNECTOR
CodeSee PageJunction Block and Wire Harness (Connector Location)
1G29Cowl Wire and Instrument Panel J/B (Lower Finish Panel)
1K28Instrument Panel Wire and Instrument Panel J/B (Lower Finish Panel)
: CONNECTOR JOINING WIRE HARNESS AND WIRE HARNESS
CodeSee PageJoining Wire Harness and Wire Harness (Connector Location)
IA252Cowl Wire and Floor No.2 Wire (Left Kick Panel)
IK254Engine Room Main Wire and Cowl Wire (Right Cowl Side Panel)
IO154Cowl Wire and Floor Wire (Right Kick Panel)
IR154Instrument Panel Wire and Floor Wire (Under the Shift Lever)
BH156Floor No.2 Wire and Floor Wire (Near the Rear Side Marker Light RH)
: GROUND POINTS
CodeSee PageGround Points Location
BB56Right Center Pillar
BF56Near the Rear Side Marker Light RH
Service Hints

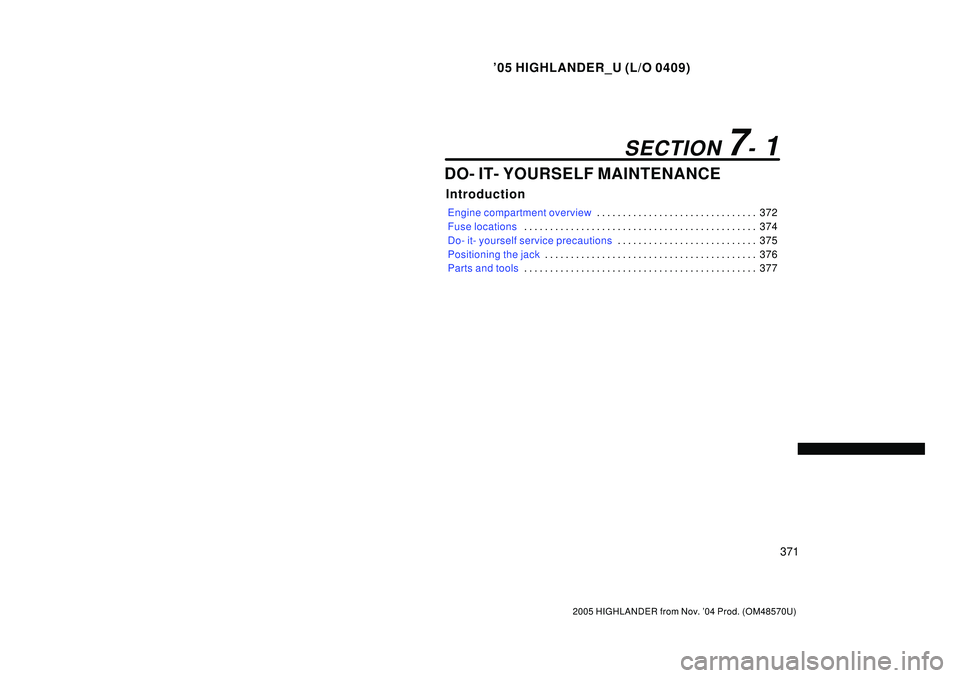

'05 HIGHLANDER_U (L/O 0409)
371
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
DO- IT- YOURSELF MAINTENANCE
Introduction
Engine compartment overview372 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations374 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Do- it- yourself service precautions375 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack376 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools377 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7- 1

'05 HIGHLANDER_U (L/O 0409)
372
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Engine oil filler cap
4. Engine oil level dipstick
5. Fuse blocks
6. Brake fluid reservoir
7. Battery
8. Radiator
9. Condenser
10. Electric cooling fans
11. Windshield and rear window washer
fluid tank
Engine compartment overview

2AZ- FE engine

'05 HIGHLANDER_U (L/O 0409)
373
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Engine oil level dipstick
4. Engine oil filler cap
5. Fuse blocks
6. Brake fluid reservoir
7. Battery
8. Radiator
9. Condenser
10. Electric cooling fans
11. Windshield and rear window washer
fluid tank
3MZ- FE engine

'05 HIGHLANDER_U (L/O 0409)
374
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Spare fuses
With daytime running light system
Fuse locations

'05 HIGHLANDER_U (L/O 0409)
375
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do- it- yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do-
it- yourself maintenance, see Parts and
toolsº on page 377 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartmentÐthe engine, radiator,
exhaust manifold, power steering
fluid reservoir and spark plug
boots, etc.Ðwill be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Do- it- yourself service
precautions

'05 HIGHLANDER_U (L/O 0409)
376
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
NOTICE

Remember that battery and ignition
cable carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.

Add only Toyota Super Long Life
Coolantº or similar high quality eth-
ylene glycol based non- silicate,
non- amine, non- nitrite, and non- bo-
rate coolant with long- life hybrid
organic acid technology to fill the
radiator. Toyota Super Long Life
Coolantº is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).

If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.

Do not allow dirt or anything else
to fall through the spark plug holes.

Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.

Do not reuse iridium- tipped spark
plugs by cleaning or regapping.

Do not overfill automatic transmis-
sion fluid and power steering fluid,
or the transmission and power
steering could be damaged.

Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.

Be careful not to scratch the glass
surface with the wiper frame.

When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Front
Rear (two- wheel drive models)
Positioning the jack

'05 HIGHLANDER_U (L/O 0409)
377
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Rear (four- wheel drive models)
When jacking up your vehicle with the
jack, position the jack correctly as
shown in the illustrations.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start or run the engine while
your vehicle is supported by the
jack.
Stop the vehicle on a level firm
ground, firmly set the parking brake
and put the transmission in Pº.
Block the wheels on the opposite
side of the jack up point if neces-
sary.
Make sure to set the jack properly
in the jack point. Raising the ve-
hicle with jack improperly posi-
tioned will damage the vehicle or
may allow the vehicle to fall off the
jack and cause personal injury.
Never get under the vehicle when
the vehicle is supported by the jack
alone; use vehicle support stands.
Do not raise the vehicle with some-
one in the vehicle.
When raising the vehicle, do not
place any objects on top of or un-
derneath the jack.
NOTICE
Make sure to place the jack correctly,
or your vehicle may be damaged.
Here is a list of parts and tools you will
need to perform do- it- yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
Toyota Genuine Motor Oilº or equiva-
lent
See page 380 in Section 7- 2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
Toyota Super Long Life Coolantº or
similar high quality ethylene glycol
based non- silicate, non- amine, non- ni-
trite, and non- borate coolant with long-
life hybrid organic acid technology.
Toyota Super Long Life Coolantº is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada).
Parts and tools

'05 HIGHLANDER_U (L/O 0409)
378
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRONII or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench
(for terminal clamp bolts)CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze
(for winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
Replacing light bulbsº on page 400 in
Section 7- 3.)
Tools:
Screwdriver
