TOYOTA HIGHLANDER 2008 XU40 / 2.G Owners Manual

380
3-7. Other interior features
Armrests
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.

381
3-7. Other interior features
3
Interior features
Floor mat
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering wi\
th the
movement of the pedals during driving, resulting in an accident.
●Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the driver's floor mat
using the hooks provided.

382
3-7. Other interior features

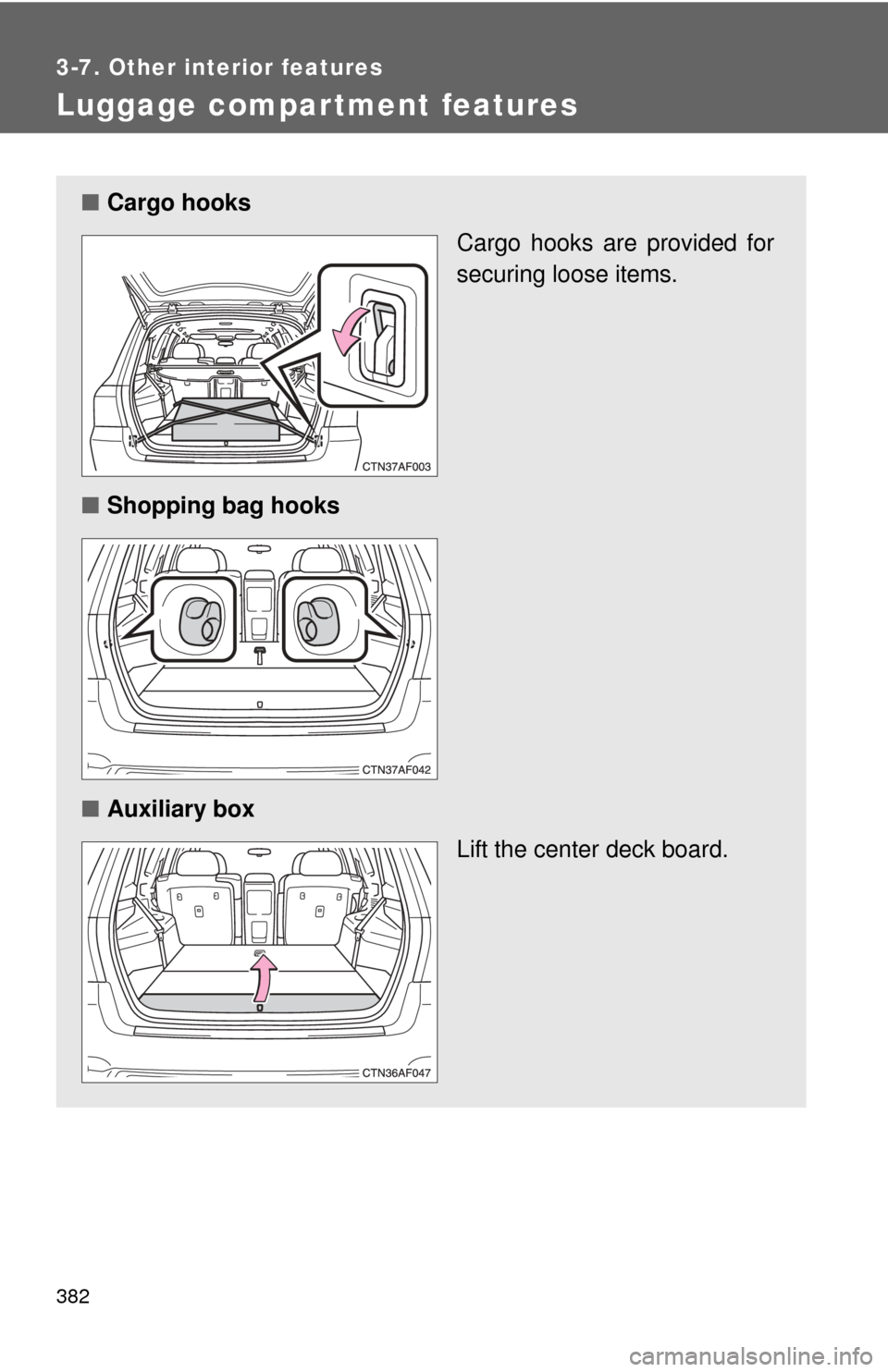

Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ Auxiliary box
Lift the center deck board.

383
3-7. Other interior features
3
Interior features
■

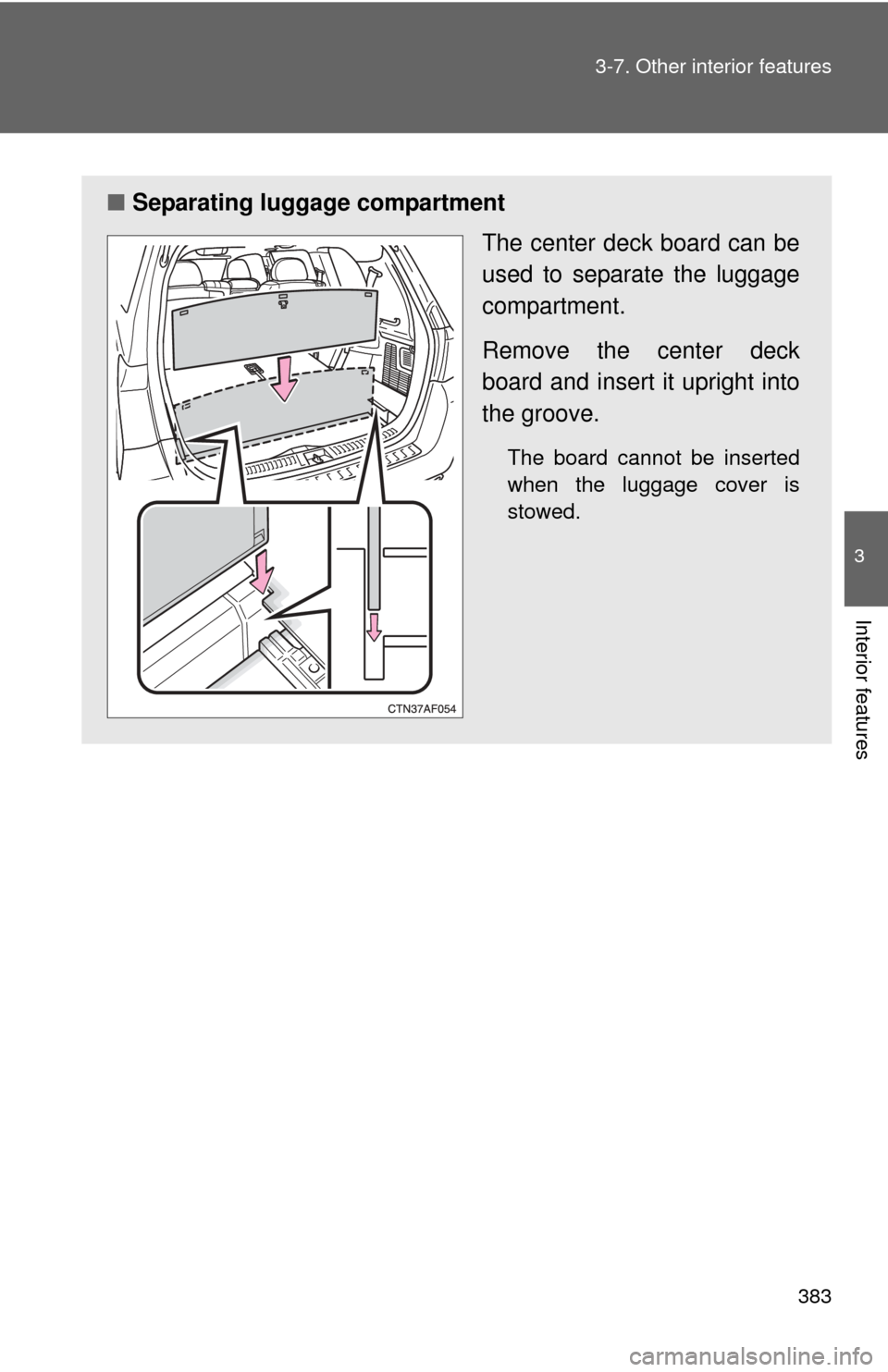

Separating luggage compartment
The center deck board can be
used to separate the luggage
compartment.
Remove the center deck
board and insert it upright into
the groove.
The board cannot be inserted
when the luggage cover is
stowed.

384 3-7. Other interior features
■When taking out luggage through the glass hatch (vehicles with glass hatch)
■Luggage cover (vehicles with luggage cover)
Hang the hooks on the hook
brackets on the second seat
seatback.
Vehicles with the third seat:
When using the luggage cover,
the third seat must be fold
down. ( P. 82)
Pull out the luggage cover and
engage both ends to secure it.
STEP1
STEP2
Pull the luggage cover to disengage both
ends.
Engage both ends of the luggage cover
with the grooves shown in the illustration
and stand the cover upright.STEP1
STEP2

385
3-7. Other interior features
3
Interior features
■
Removing the luggage cover ( vehicles with luggage cover)
The luggage cover can be removed by following the procedure below.
■ Luggage storage box (vehicles without third seat)
Detach the hooks.
Push in the left side of the luggage
cover while keeping hold of the right
side. Then raise the right side and pull
the luggage cover out.
Lift the deck board.
Secure the board using the hook.STEP1
STEP2

386 3-7. Other interior features
■Stowing the luggage cover ( vehicles with luggage cover)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
■ Caution while driving
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
Remove the side deck boards and open
the center deck board.
Fold the flaps on top of the luggage cover
with the hooks rolled inside.
Place the left end of the luggage cover in
the recess on the left-hand side and then
lower the right end into the recess on the
right-hand side.STEP1
STEP2
STEP3

387
3-7. Other interior features
3
Interior features
NOTICE
■
Shopping bag hook weight capacity
Do not hang any object heavier than 4 lb. (2 kg) on shopping bag hooks.
■ While driving
Do not drive with the luggage cover standing upright in the grooves as the
luggage cover may fall down.
■ Before inserting the center deck boa rd into the luggage compartment
Make sure the luggage cover is not stowed.
■ Closing the back door (veh icles without third seat)
Do not close the back door with the hook attached, or the hook may be dam-
aged.

388
3-7. Other interior features
Garage door opener (if equipped)
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, and
security systems, and other devices.
STEP1

389
3-7. Other interior features
3
Interior features
Press and hold down one of the
buttons on the HomeLink and
the button on the transmitter.
When the indicator light on the
HomeLink
 changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
Test the operation of the
HomeLink
 by pressing the
newly programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate,
see if your garage transmitter is
of the Rolling Code type. Press
and hold the programmed
HomeLink
 button. The garage
door has the rolling code feature
if the indicator light (on the
HomeLink
) flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the Rolling
Code type, proceed to the head-
ing “Programming a rolling code
system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4
