TOYOTA HIGHLANDER 2008 XU40 / 2.G Owners Manual

370 3-6. Using the storage features
Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

371
3
Interior features
3-7. Other interior features

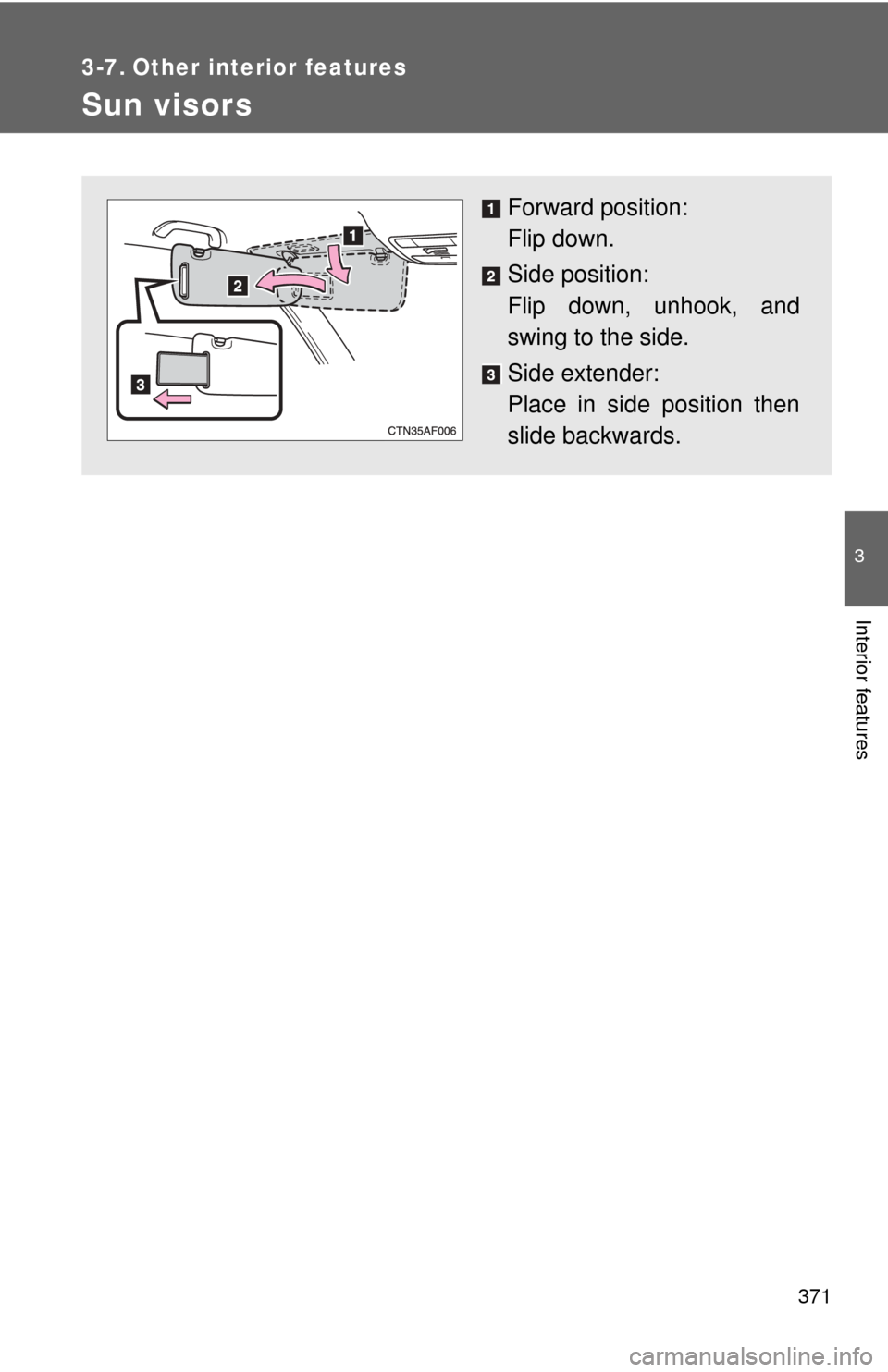

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
Side extender:
Place in side position then
slide backwards.

372
3-7. Other interior features

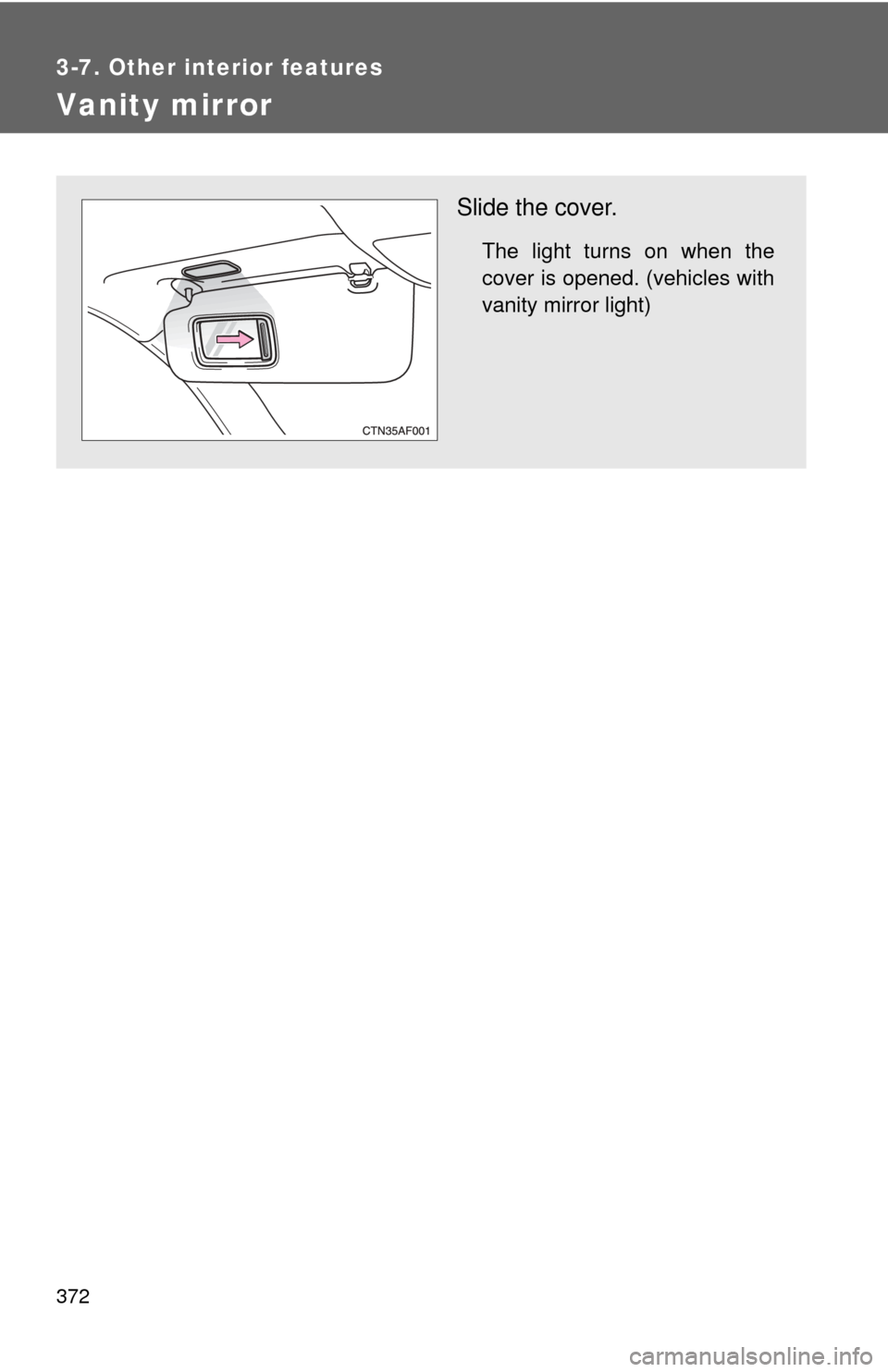

Vanity mirror
Slide the cover.
The light turns on when the
cover is opened. (vehicles with
vanity mirror light)

373
3-7. Other interior features
3
Interior features
Clock (vehicles without multi-infor mation display)
■The clock is displayed when
The “ENGINE START STOP” switch or the engine switch is in ACC or ON.
Adjusts the hours.
Adjusts the minutes.

374
3-7. Other interior features

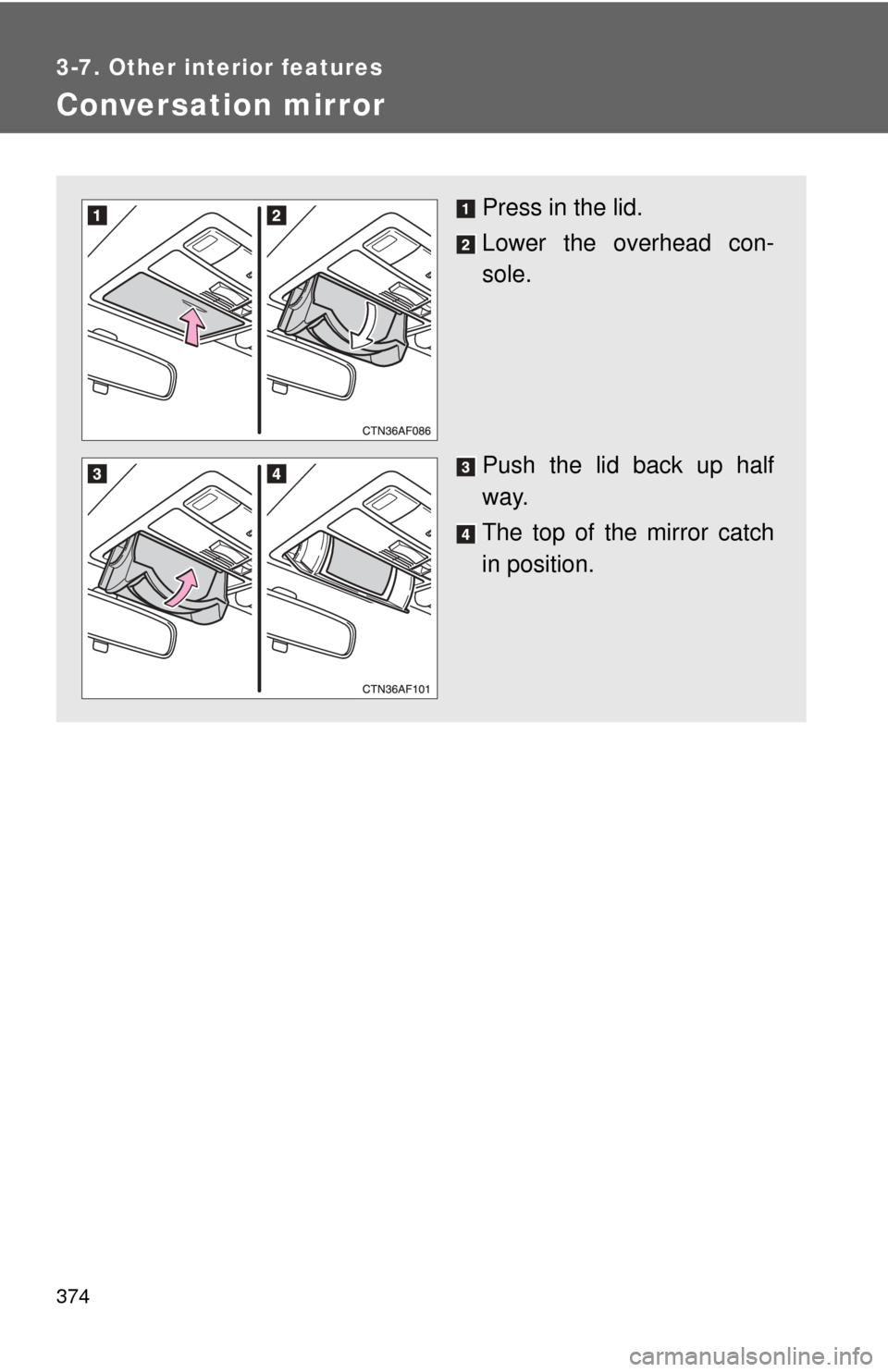

Conversation mirror
Press in the lid.
Lower the overhead con-
sole.
Push the lid back up half
way.
The top of the mirror catch
in position.

375
3-7. Other interior features
3
Interior features

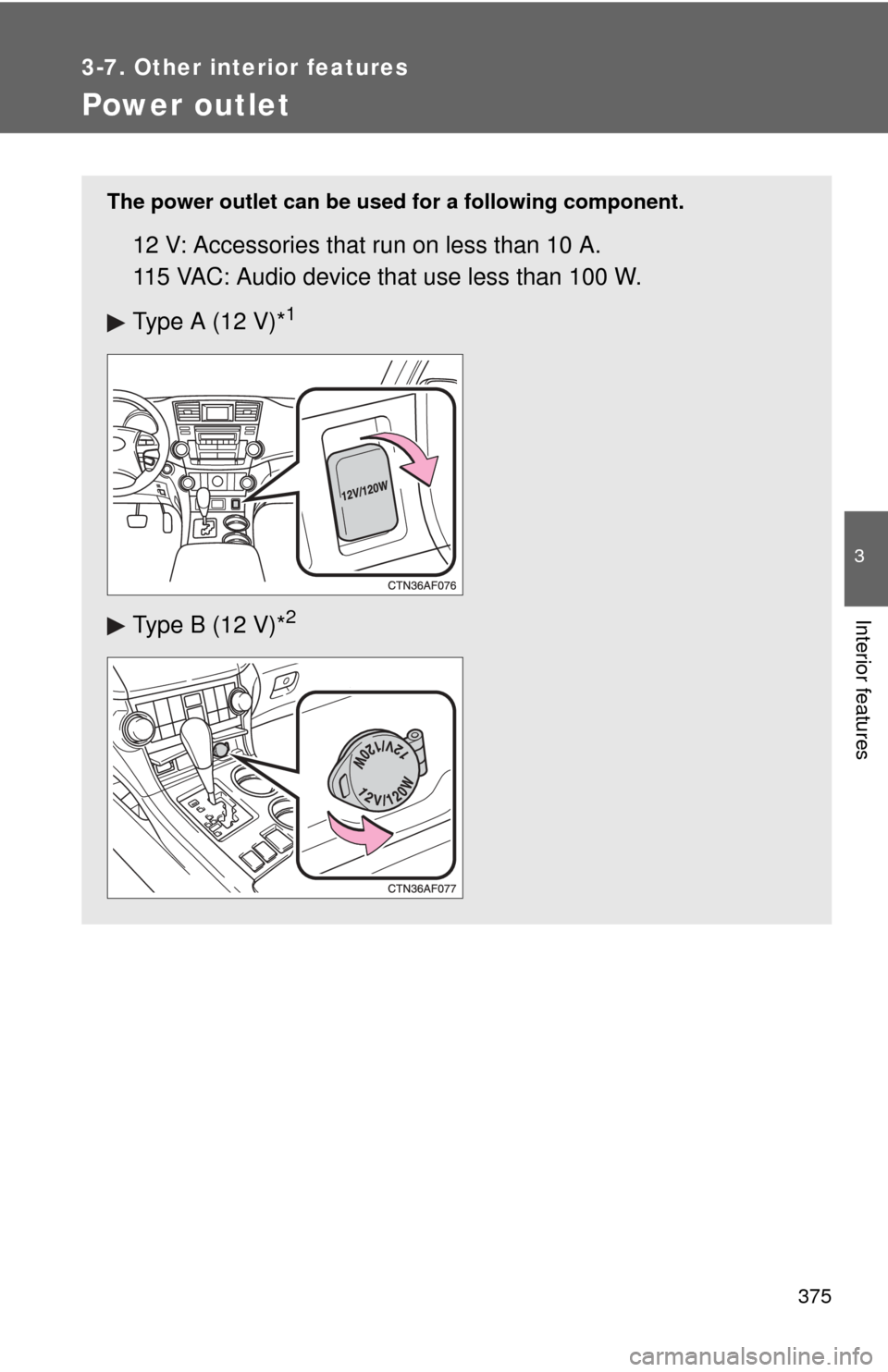

Power outlet
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115 VAC: Audio device that use less than 100 W.
Type A (12 V)*
1
Type B (12 V)*2

376 3-7. Other interior features
Type C (12 V)
Type D (115 VAC)*
3
Main switch
To use the power outlet,
turn on the main switch.
Power outlet socket
Type E (12 V)
*1: Vehicles with seat heater
*2: Vehicles without seat heater
*3: Vehicles with rear entertainment system

377
3-7. Other interior features
3
Interior features
■
The power outlet can be used when
12V
The “ENGINE START STOP” switch or the engine switch is in ACC or
ON.
115 VAC
The “ENGINE START STOP” switch or the engine switch is in the ON.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V
Do not use an accessory that uses more than 12 V 10 A.
115 VAC
Do not use a 115 VAC appliance that requires more than 100 W.
If a 115 VAC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■ Appliances that may not operate properly (115 VAC)
The following 115 VAC appliances may not operate properly even if their
power consumption is under 100 W.
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

378
3-7. Other interior features
Seat heaters (if equipped)
■The seat heaters can be used when
The “ENGINE START STOP” switch or the engine switch is in the ON.
■ When not in use
Turn the knob fully counterclockwise. The indicator light turns off.
Press the knob into the recessed position.
Pops the knob out
ON
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.Front passenger's seat
Driver's seat

379
3-7. Other interior features
3
Interior features
CAUTION
■
Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.
