TOYOTA HIGHLANDER 2009 XU40 / 2.G Owners Manual

371
3-4. Using the hand
s-free phone system (for cellular phone)
3
Interior features
Listing the registered data
Selecting “List names” by using a voice command begins reading the
list of the registered data.
When listing is complete, the system returns to “Phonebook”.
Pressing while a data is being read aloud selects the data, and
the following function will be available.
• Dialing: “Dial”
• Changing a registered name: “Change Name”
• Deleting an entry: “Delete Entry”
• Setting speed dial: “Set Speed Dial (Speed Dial)”
■Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.

372
3-5. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illust ration automatically turn on/off
according to the presence of the el ectronic key (vehicles with smart
key system), whether the doors are locked/unlocked, whether the
doors or glass hatch (if equipped) are opened/closed, and the
“ENGINE START STOP” switch mode or the engine switch position.
Outer foot lights (vehicles with smart key system)
Personal/interior lights ( →P. 373)
Engine switch light (vehicle s without smart key system)
Front door courtesy light
Personal/interior light or interior light ( →P. 373, 374)
Interior light ( →P. 374)

373
3-5. Using the interior lights
3
Interior features
Personal/interior light main switch
“OFF”
The personal/interior lights and
interior light can be individually
turned on or off.
Door position
The personal/interior lights and
interior light come on when a door
or the glass hatch (if equipped) is
opened. They turn off when the
doors and glass hatch are closed.
On
The personal/interior lights and
interior light cannot be individually
turned off.
Personal/interior lightsFront On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
Personal/interior light main switch and personal/interior lights

374 3-5. Using the interior lights
Center (if equipped)On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
Interior light
Off
On
The illuminated entry system is
activated even if the light is
turned off when the personal/inte-
rior light main switch is in door
position.
RearCenter (if equipped)
■To prevent the battery discharge
If the lights remain on when the door is not fully closed and the personal/inte-
rior light main switch is in door position, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features →P. 582)
Personal/interior lights and interior light

375
3
Interior features

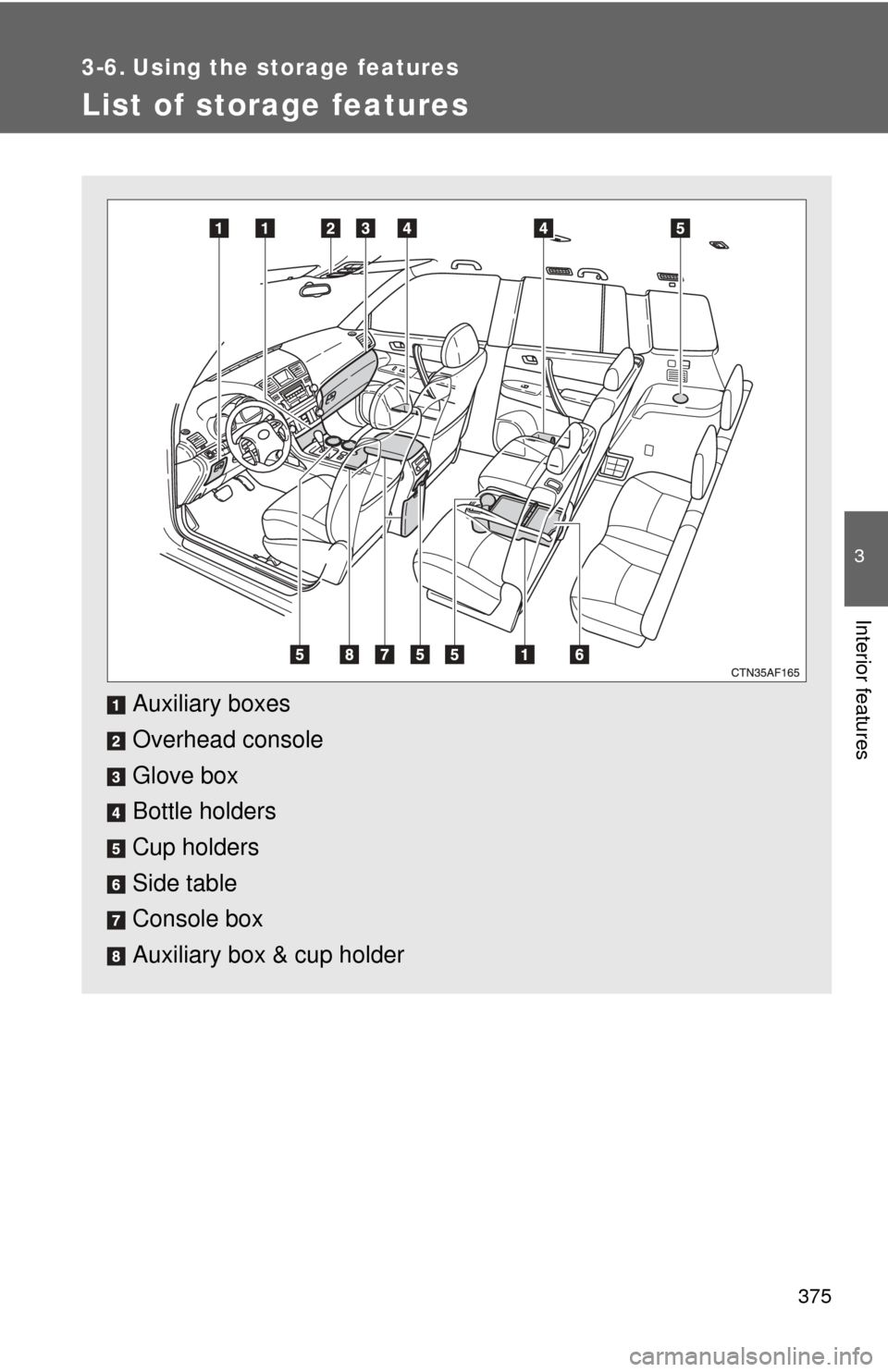

3-6. Using the storage features
List of storage features
Auxiliary boxes
Overhead console
Glove box
Bottle holders
Cup holders
Side table
Console box
Auxiliary box & cup holder

376 3-6. Using the storage features
Glove boxUnlock with the master key
(vehicles without smart key
system) or mechanical key
(vehicles with smart key sys-
tem)
Lock with the master key
(vehicles without smart key
system) or mechanical key
(vehicles with smart key sys-
tem)
Open (pull lever)
■ Power back door main switch (vehicles with power back door)
The power back door main switch is located in the glove box. (→P. 73)
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box

377
3-6. Using the
storage features
3
Interior features
Console box
Upper Pull up the knob to release the
lock. Lift the lid.
Lower Push down the lever.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Console box

378 3-6. Using the storage features
Overhead consoleThe overhead console is useful for temporarily storing sunglasses
and similar small items.
Press in the lid.
CAUTION
■Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses
may warp or become cracked.
■ Caution while driving
Do not leave the overhead console open while driving.
Items stored in it may fall out and cause injury.
■ Size of stored items
Do not put large items in the overhead console.
The overhead console may not be able to be shut from the conversation mir-
ror state.
■ Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Overhead console

379
3-6. Using the
storage features
3
Interior features
Cup holders
Front (type A) Removing the adapters changes
the size. (→P. 381)
Front (type B) Lift the lid.
Console box Pull out the cup holder.
Cup holders

380 3-6. Using the storage features
Side tableInstall the side table before using
the cup holder. (→P. 386)
Removing the adapters changes
the size. ( →P. 381)
Rear (vehicles without third seat)
Rear (vehicles with third seat) Removing the adapters changes
the size. (→P. 381)
Cup holders
