TOYOTA HIGHLANDER 2009 XU40 / 2.G Owners Manual

381
3-6. Using the
storage features
3
Interior features
■Adjusting size of the cu p holder (front [type A], front [type B], side
table, rear [vehicles with third seats])
Front (type A)
Front (type B)
Side table
Rear (vehicles with third seat)
Remove the adapter.
Remove the separator.
Remove the adapter.
Remove the adapter.
Cup holders

382 3-6. Using the storage features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Front (type B) and console box cup holders: Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders

383
3-6. Using the
storage features
3
Interior features
Bottle holders
Front
Rear
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■When stowing a bottle
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders. The contents may spill.
Bottle holders

384 3-6. Using the storage features
Auxiliary boxesType A Pull up the lever.
Type B Lift the lid.
Remove the separator to use the
box. (→P. 381)
Type C (if equipped)
Lift the lid.
Auxiliary boxes

385
3-6. Using the
storage features
3
Interior features
Type D
Lift the lid.
■Auxiliary box (type D)
Install the side table. ( →P. 386)
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes

386 3-6. Using the storage features
Side table■ Installing the side table
Take out the side table from the
console box.
Remove the second center seat. ( →P. 87)
Engage the front pins of the
side table with the hooks.
Push down on the side table to
engage the rear pin locks.
■ Removing the side table
Take out the second center seat
from the console box.
STEP1
STEP2
STEP3
STEP1
Side table

387
3-6. Using the
storage features
3
Interior features
Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

388
3-7. Other interior features

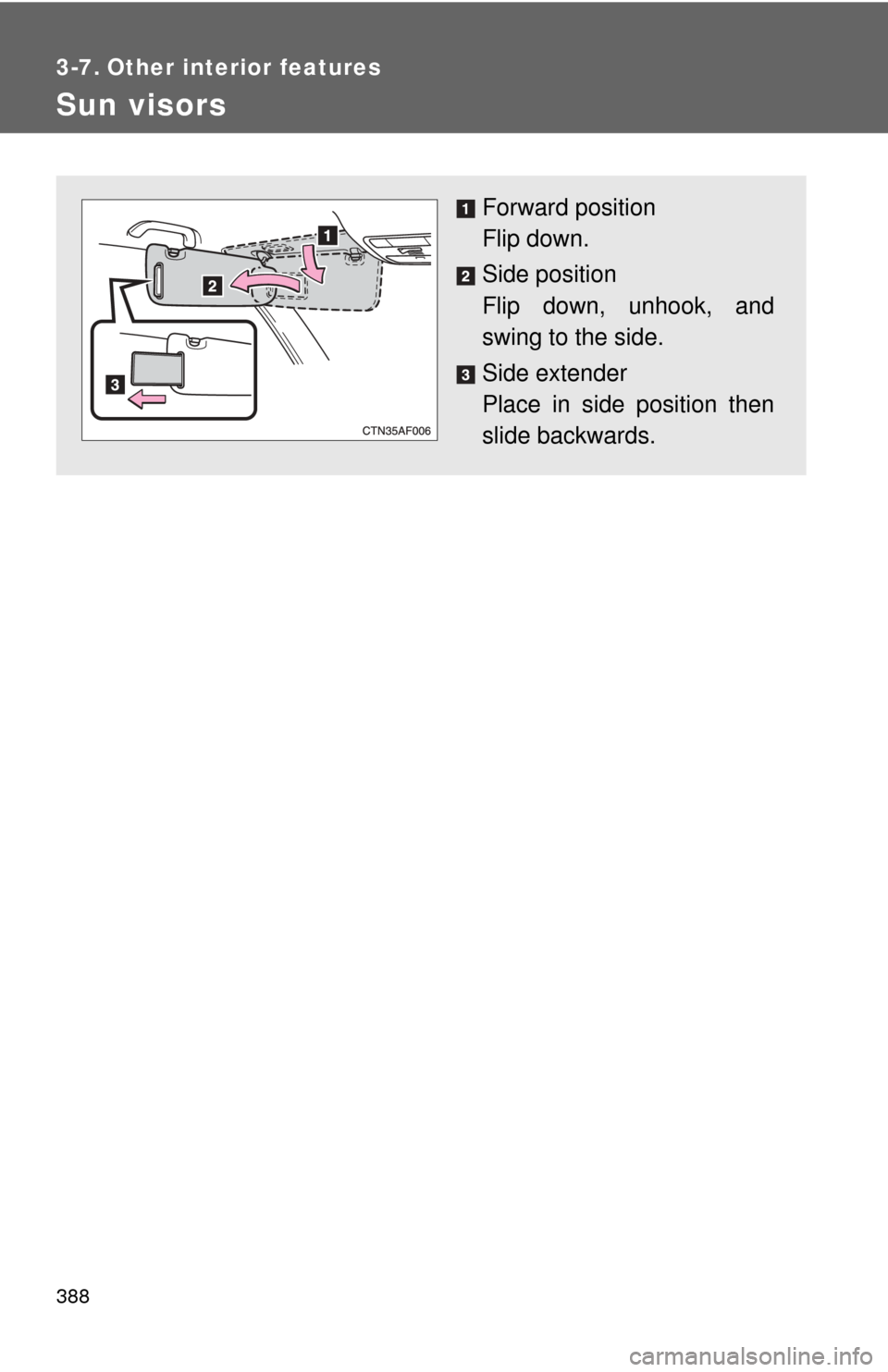

Sun visors
Forward position
Flip down.
Side position
Flip down, unhook, and
swing to the side.
Side extender
Place in side position then
slide backwards.

389
3-7. Other interior features
3
Interior features

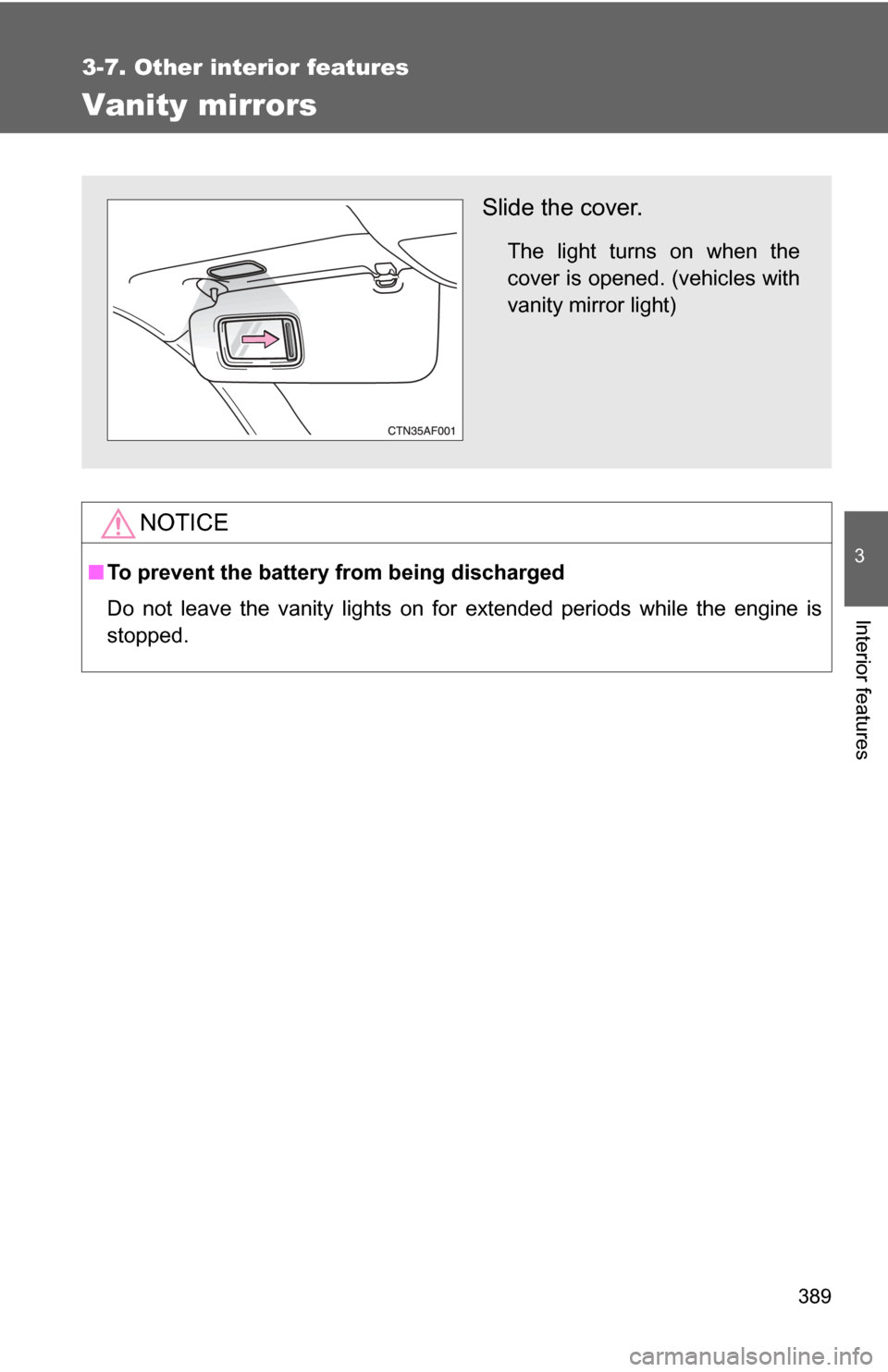

Vanity mirrors
NOTICE
■To prevent the battery from being discharged
Do not leave the vanity lights on for extended periods while the engine is
stopped.
Slide the cover.
The light turns on when the
cover is opened. (vehicles with
vanity mirror light)

390
3-7. Other interior features

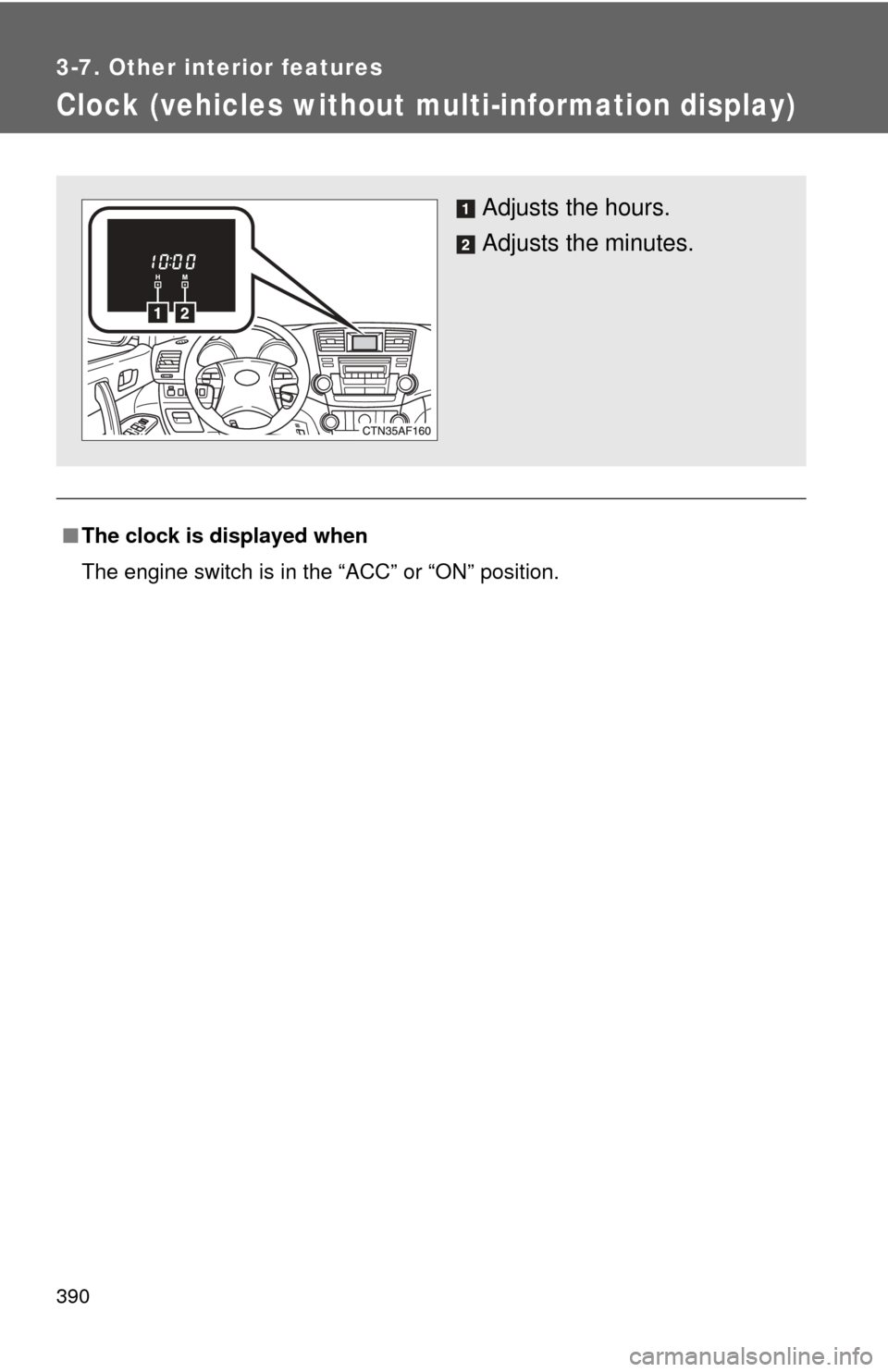

Clock (vehicles without multi-information display)
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hours.
Adjusts the minutes.
