TOYOTA HIGHLANDER 2011 XU40 / 2.G Navigation Manual

REAR VIEW MONITOR SYSTEM
251
NOTICE
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
As the camera has a water proof
construction, do not detach, disas-
semble or modify it. This may
cause incorrect operation.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
Do not expose the camera to
strong impact as this may cause a
malfunction.
Do not strongly rub the camera
lens. If the camera lens is
scratched, it can not transmit a
clear image.
Do not allow organic solvent, car
wax, window cleaner or glass coat
to adhere to the camera. If this hap-
pens, wipe it off as soon as pos-
sible.
When washing the vehicle, do not
apply intensive bursts of water to
the camera or camera area. Doing
so may result in the camera mal-
functioning.
When replacing the tires, please
consult your Toyota dealer If you
replace the tires, the area dis-
played on the screen may change.
INFORMATION
If the camera lens becomes dirty, it
cannot transmit a clear image. If wa-
ter droplets, snow, or mud adhere to
the lens, rinse with water and wipe
with a soft cloth. If the lens is ex-
tremely dirty, wash it with a mild
cleanser and rinse.

REAR VIEW MONITOR SYSTEM
252

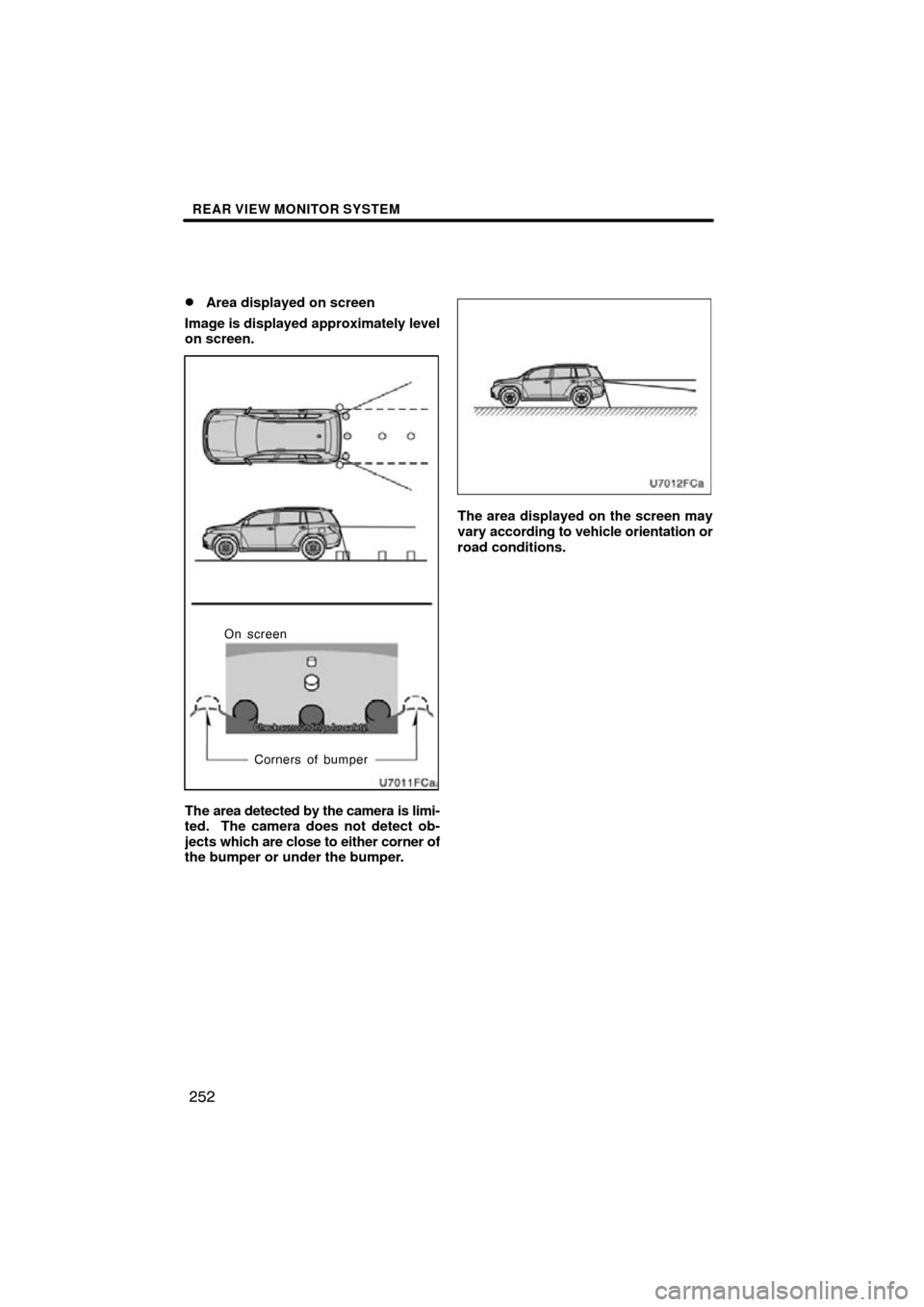

Area displayed on screen
Image is displayed approximately level
on screen.
On screen
Corners of bumper
The area detected by the camera is limi-
ted. The camera does not detect ob-
jects which are close to either corner of
the bumper or under the bumper.
The area displayed on the screen may
vary according to vehicle orientation or
road conditions.

REAR VIEW MONITOR SYSTEM
253

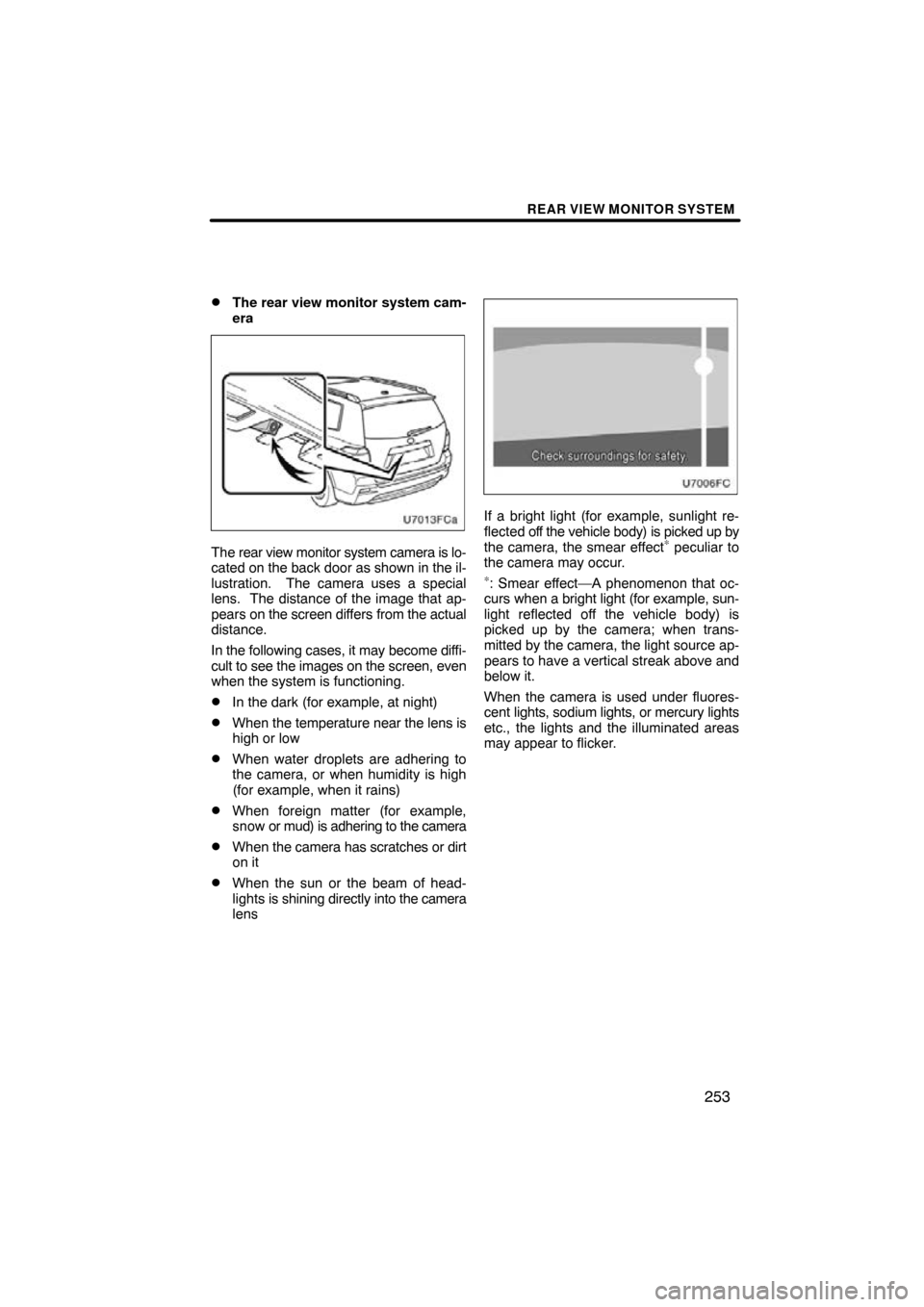

The rear view monitor system cam-
era
The rear view monitor system camera is lo-
cated on the back door
as shown in the il-
lustration. The camera uses a special
lens. The distance of the image that ap-
pears on the screen dif fers from the actual
distance.
In the following cases, it may become diffi-
cult to see the images on the screen, even
when the system is functioning.
In the dark (for example, at night)
When the temperature near the lens is
high or low
When water droplets are adhering to
the camera, or when humidity is high
(for example, when it rains)
When foreign matter (for example,
snow or mud) is adhering to the camera
When the camera has scratches or dirt
on it
When the sun or the beam of head-
lights is shining directly into the camera
lens
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up by
the camera, the smear effect
∗ peculiar to
the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source ap-
pears to have a vertical streak above and
below it.
When the camera is used under fluores-
cent lights, sodium lights, or mercury lights
etc., the lights and the illuminated areas
may appear to flicker.

REAR VIEW MONITOR SYSTEM
254

SECTION 8
SETUP
255
SETUP
General settings 256 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
(Used for language selection and the on/off settings of
operation sounds and automatic screen change.)
 Clock settings 261 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Used for changing time zones and the on/off settings of
daylight saving time.)
 Voice settings 263 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
(Voice guidance can be set.)
 Navigation settings 265 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(“Home” and “Preset Destinations” can be set and edited.)
 Detailed navigation settings 265 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Average cruising speed, displayed screen contents,
and POI icon categories can be set.)
 Telephone settings 274 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(Bluetooth  phones can be registered.)
 Audio settings 313
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
(Settings are available for portable audio devices and
Bluetooth  audio devices players.)
 Vehicle settings 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
(Vehicle information can be set.)

SETUP
256

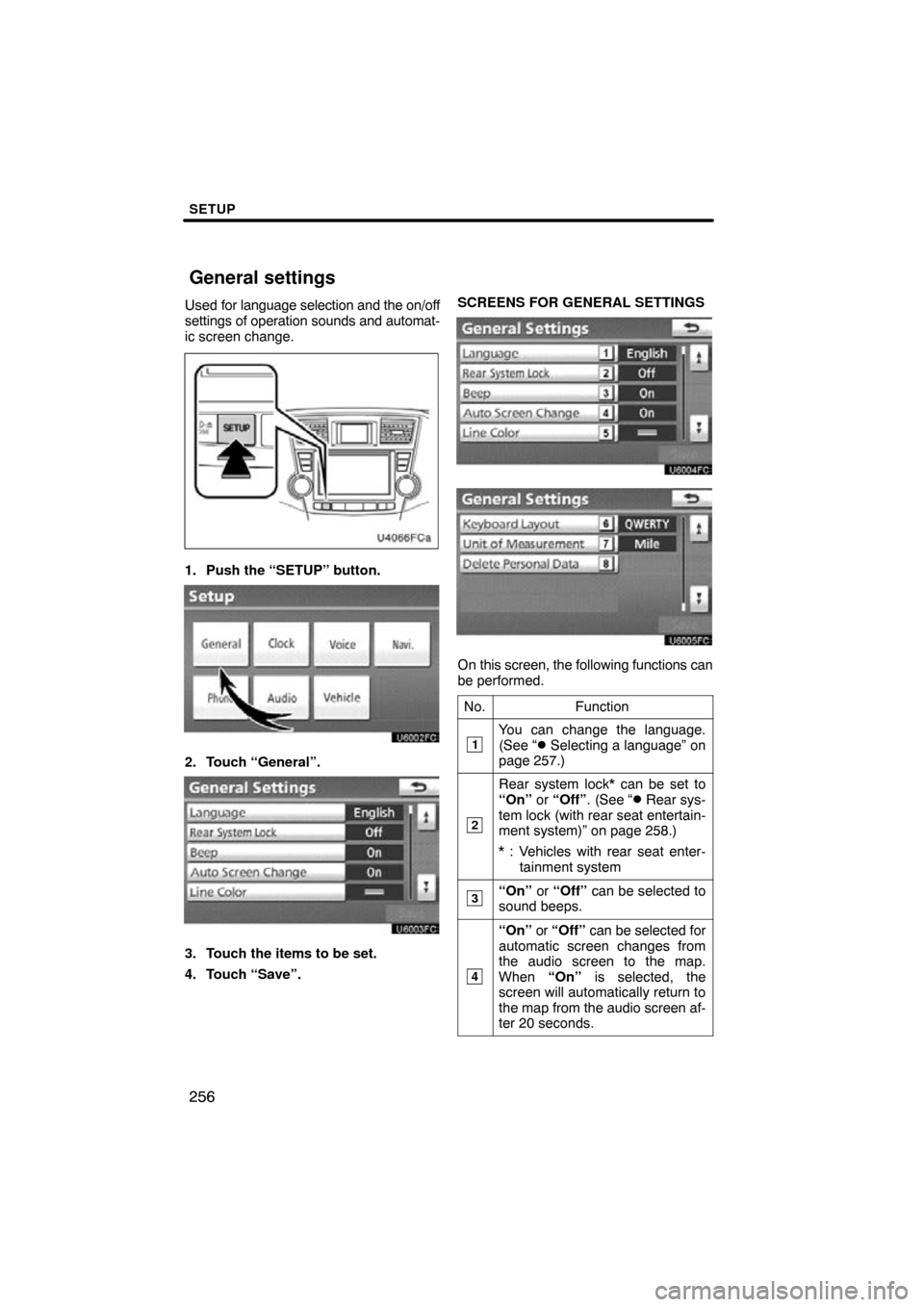

Used for language selection and the on/off
settings of operation sounds and automat-
ic screen change.
1. Push the “SETUP” button.
2. Touch “General”.
3. Touch the items to be set.
4. Touch “Save”. SCREENS FOR GENERAL SETTINGS
On this screen, the following functions can
be performed.
No.
Function
1You can change the language.
(See “ Selecting a language” on
page 257.)
2
Rear system lock* can be set to
“On” or “Off” . (See “ Rear sys-
tem lock (with rear seat entertain-
ment system)” on page 258.)
* : Vehicles with rear seat enter- tainment system
3“On” or “Off” can be selected to
sound beeps.
4
“On” or “Off” can be selected for
automatic screen changes from
the audio screen to the map.
When “On” is selected, the
screen will automatically return to
the map from the audio screen af-
ter 20 seconds.
General settings

SETUP
257
No.Function
5Line color can be changed. (See
“ Selecting the line color” on page
258.)
6Keyboard layout can be changed.
(See “ Selecting a keyboard lay-
out” on page 259.)
7Distance unit can be changed.
(See “ Unit of measurement” on
page 259.)
8The personal data can be deleted.
(See “ Delete personal data” on
page 260.)

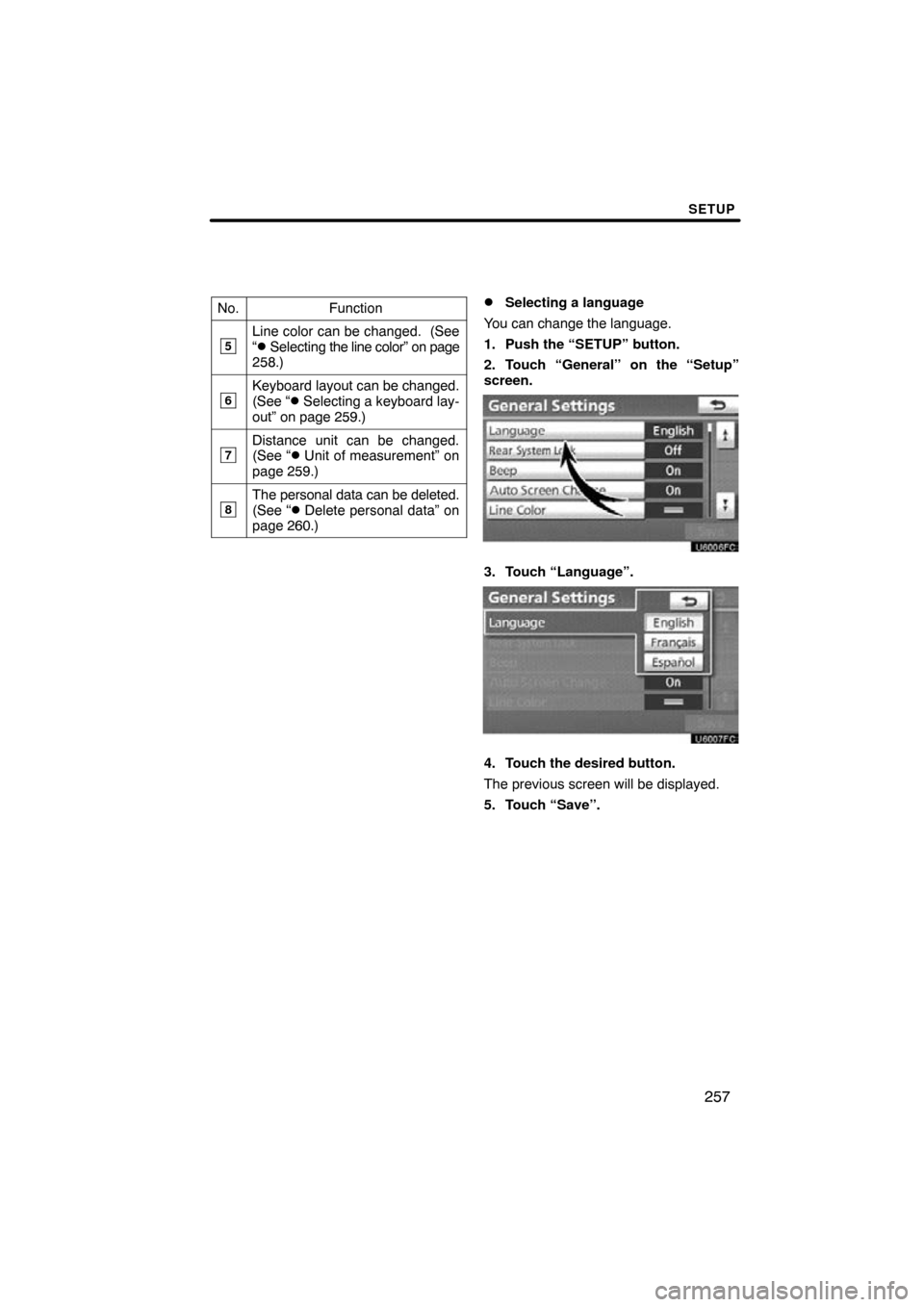

Selecting a language
You can change the language.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Language”.
4. Touch the desired button.
The previous screen will be displayed.
5. Touch “Save”.

SETUP
258

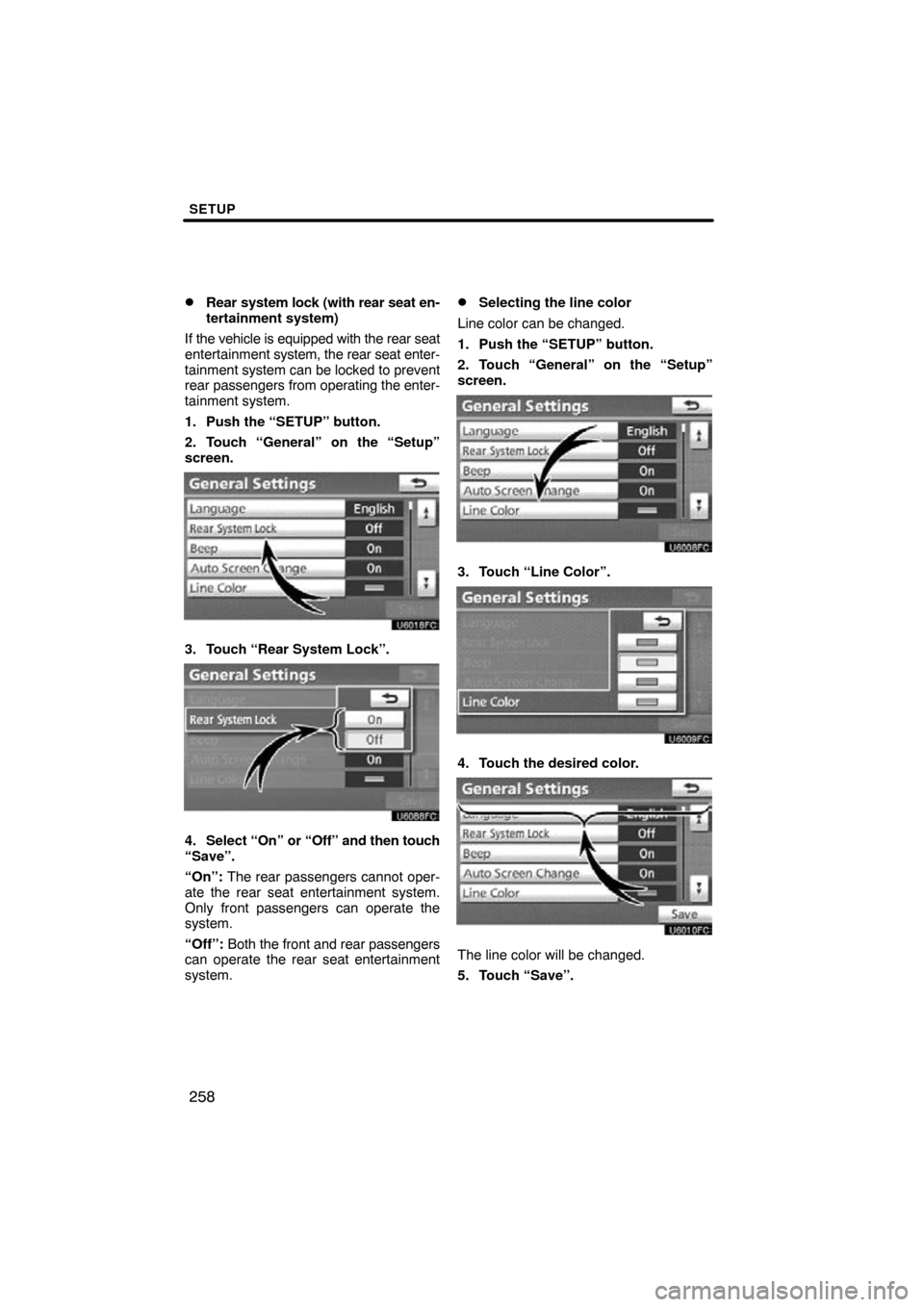

Rear
system lock (with rear seat en-
tertainment system)
If the vehicle is equipped with the rear seat
entertainment system, the rear seat enter-
tainment system can be locked to prevent
rear passengers from operating the enter-
tainment system.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Rear System Lock”.
4. Select “On” or “Off” and then touch
“Save”.
“On”: The rear passengers cannot oper-
ate the rear seat entertainment system.
Only front passengers can operate the
system.
“Off”: Both the front and rear passengers
can operate the rear seat entertainment
system.
Selecting the line color
Line color can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Line Color”.
4. Touch the desired color.
The line color will be changed.
5. Touch “Save”.

SETUP
259

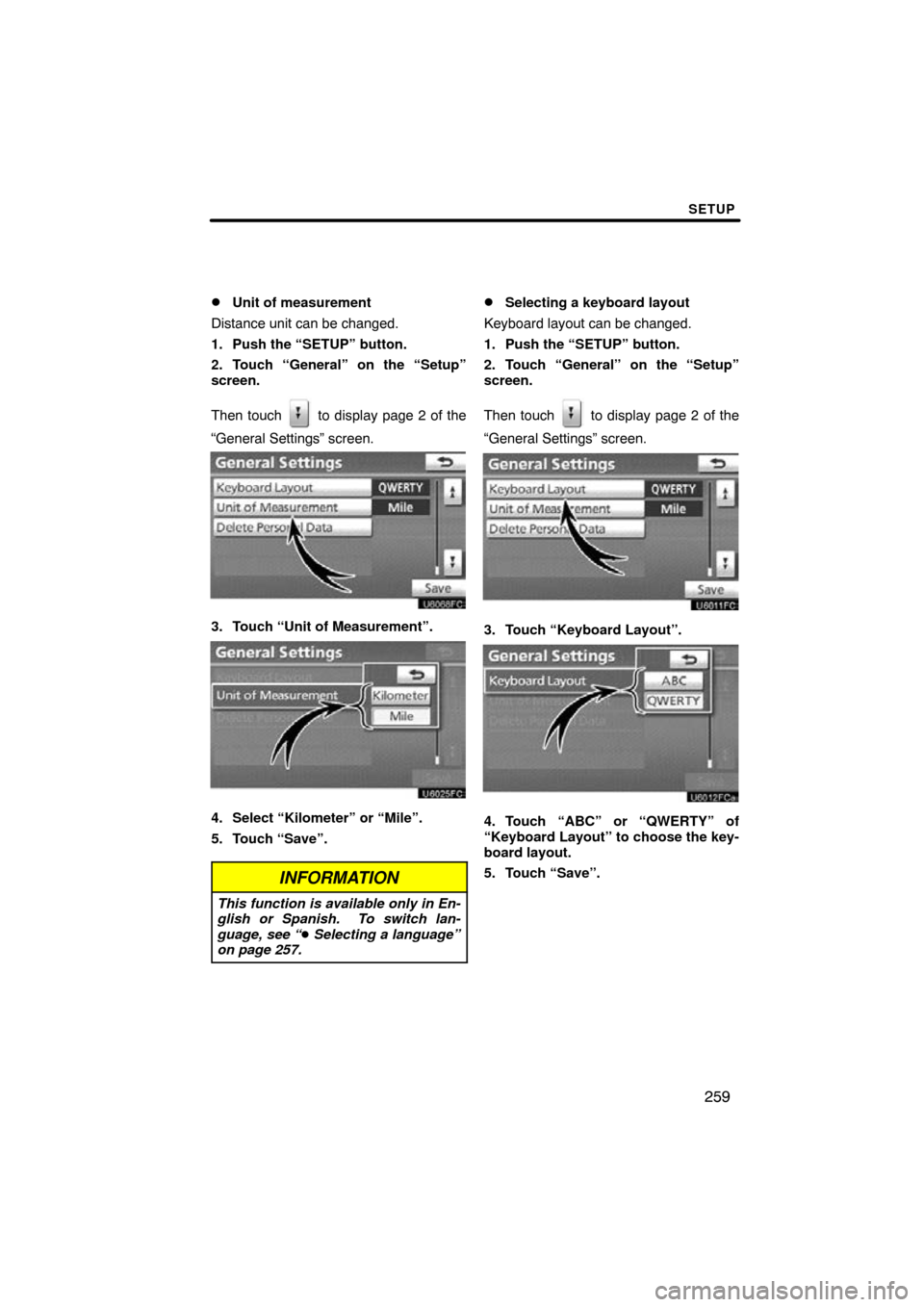

Unit of measurement
Distance unit can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Unit of Measurement”.
4. Select “Kilometer” or “Mile”.
5. Touch “Save”.
INFORMATION
This function is available only in En-
glish or Spanish. To switch lan-
guage, see “ Selecting a language”
on page 257.
Selecting a keyboard layout
Keyboard layout can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
Then touch
to display page 2 of the
“General Settings” screen.
3. Touch “Keyboard Layout”.
4. Touch “ABC” or “QWERTY” of
“Keyboard Layout” to choose the key-
board layout.
5. Touch “Save”.

SETUP
260
LAYOUT TYPE
“ABC” type
“QWERTY” type
Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” set-
ting
Address book
Areas to avoid
Previous points
Route trace
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth  phone data
Phone volume setting
Details phone setting
This function is available only when the ve-
hicle is not moving.
