TOYOTA HIGHLANDER 2011 XU40 / 2.G Navigation Manual

SETUP
271

Screen layout function (“
Off”
function)
Each touch screen button and current
street name on the map screen can be dis-
played or hidden.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
Then touch
to display page 2 of the
“Detailed Navi. Settings” screen.
4. Touch ““ Off” Function”.
5. Touch the button to be turned off.
The button becomes dimmed.
To set the default, touch “Default”.
6. Touch “Save”.
Current position/tire change cal-
ibration
The current vehicle position mark can be
adjusted manually. Miscalculation of the
distance caused by tire replacement can
also be adjusted.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
Then touch
to display page 2 of the
“Detailed Navi. Settings” screen.
4. Touch “Calibration”.
5. Touch the desired button.
INFORMATION
For additional information on the ac-
curacy of a current vehicle position,
see “Limitations of the navigation
system” on page 328.

SETUP
272
POSITION/DIRECTION CALIBRATION
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
1. Touch “Position / Direction”.
2. Touch the 8 directional touch
screen button to move the cursor to
the desired point on the map.
3. Touch “OK”.
4. Touch either the or to ad-
just the direction of the current vehicle
position mark.
5. Touch “OK”.
The map will be displayed.

SETUP
273
TIRE CHANGE CALIBRATION
The tire change calibration function will be
used when replacing the tires. This func-
tion will adjust the miscalculation caused
by the circumference difference between
the old and new tires. If this procedure is
not performed when the tires are replaced,
the current vehicle position mark may be
incorrectly displayed.
To perform a distance calibration pro-
cedure, touch “Tire Change” on the
“Calibration” screen.
The message appears and the quick dis-
tance calibration is automatically started.
A few seconds later, a map will be dis-
played.
Popup information
When the “Pop−up information” is turned
on, the pop−up information will be dis-
played.
1. Push the “SETUP” button.
2. Touch “Navi.” on the “Setup”
screen.
3. Touch “Detailed Navi. Settings” on
the “Navigation Settings” screen.
Then touch
to display page 2 of the
“Detailed Navi. Settings” screen.
4. Touch “Popup Information”.
5. Touch “On” or “Off”.
6. Touch “Save”.

SETUP
274
When the “Pop−up Information” is turned
off, the following messages will not be dis-
played.
This message appears when the system is
in the POI mode and the map scale is over
0.5 miles (1 km).
The message appears when the map is
switched to the twin map screen mode. “Telephone settings” can be changed
on the “Phone settings” screen.
1. Push the “SETUP” button.
2. Touch “Phone”.
Please refer to the following pages for
each setting.
Telephone settings —

SETUP
275

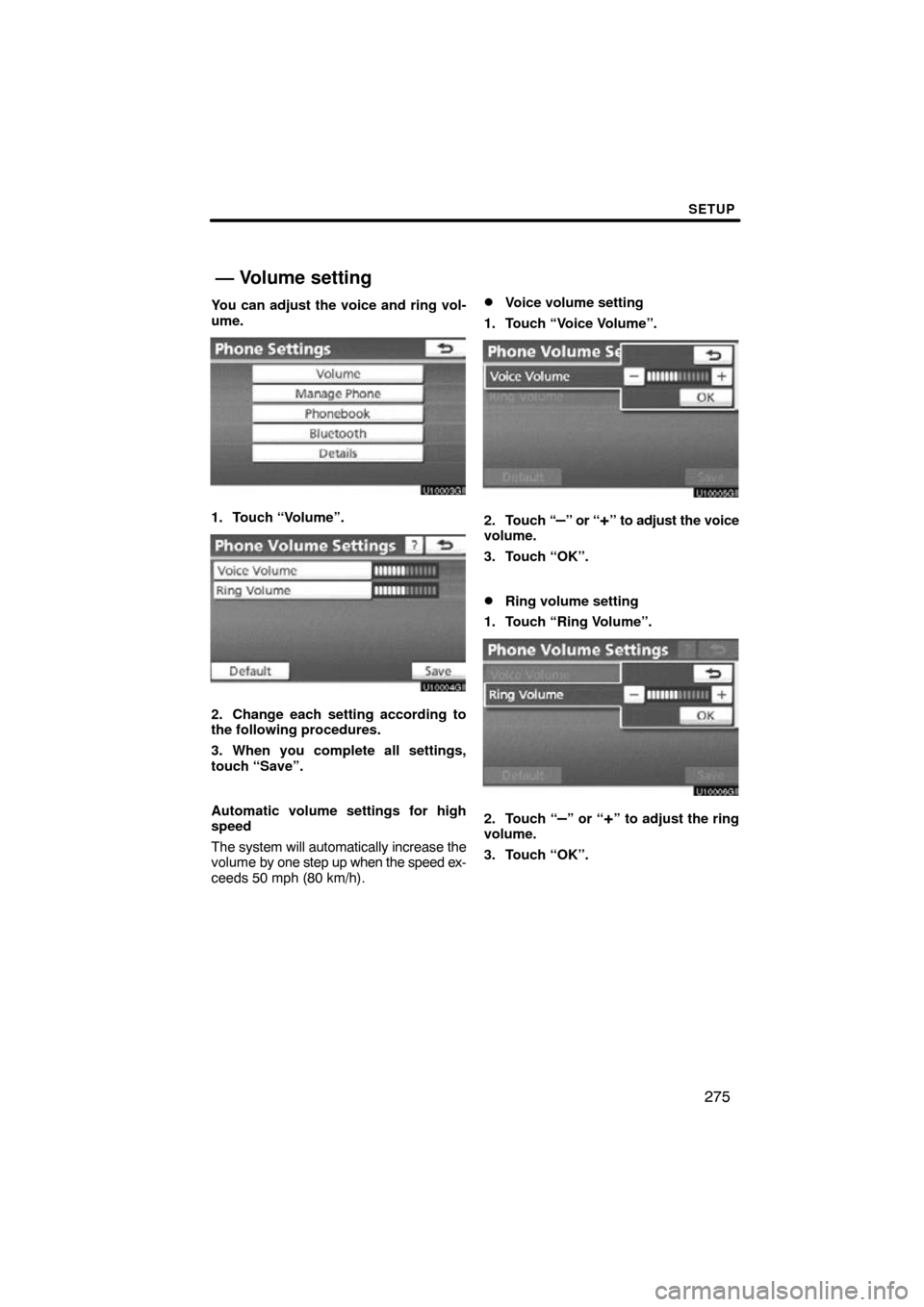

You can adjust the voice and ring vol-
ume.
1. Touch “Volume”.
2. Change each setting according to
the following procedures.
3. When you complete all settings,
touch “Save”.
Automatic volume settings for high
speed
The system will automatically increase the
volume by one step up when the speed ex-
ceeds 50 mph (80 km/h).
Voice volume setting
1. Touch “Voice Volume”.
2. Touch “–” or “+” to adjust the voice
volume.
3. Touch “OK”.
Ring volume setting
1. Touch “Ring Volume”.
2. Touch “–” or “+” to adjust the ring
volume.
3. Touch “OK”.
— Volume setting

SETUP
276

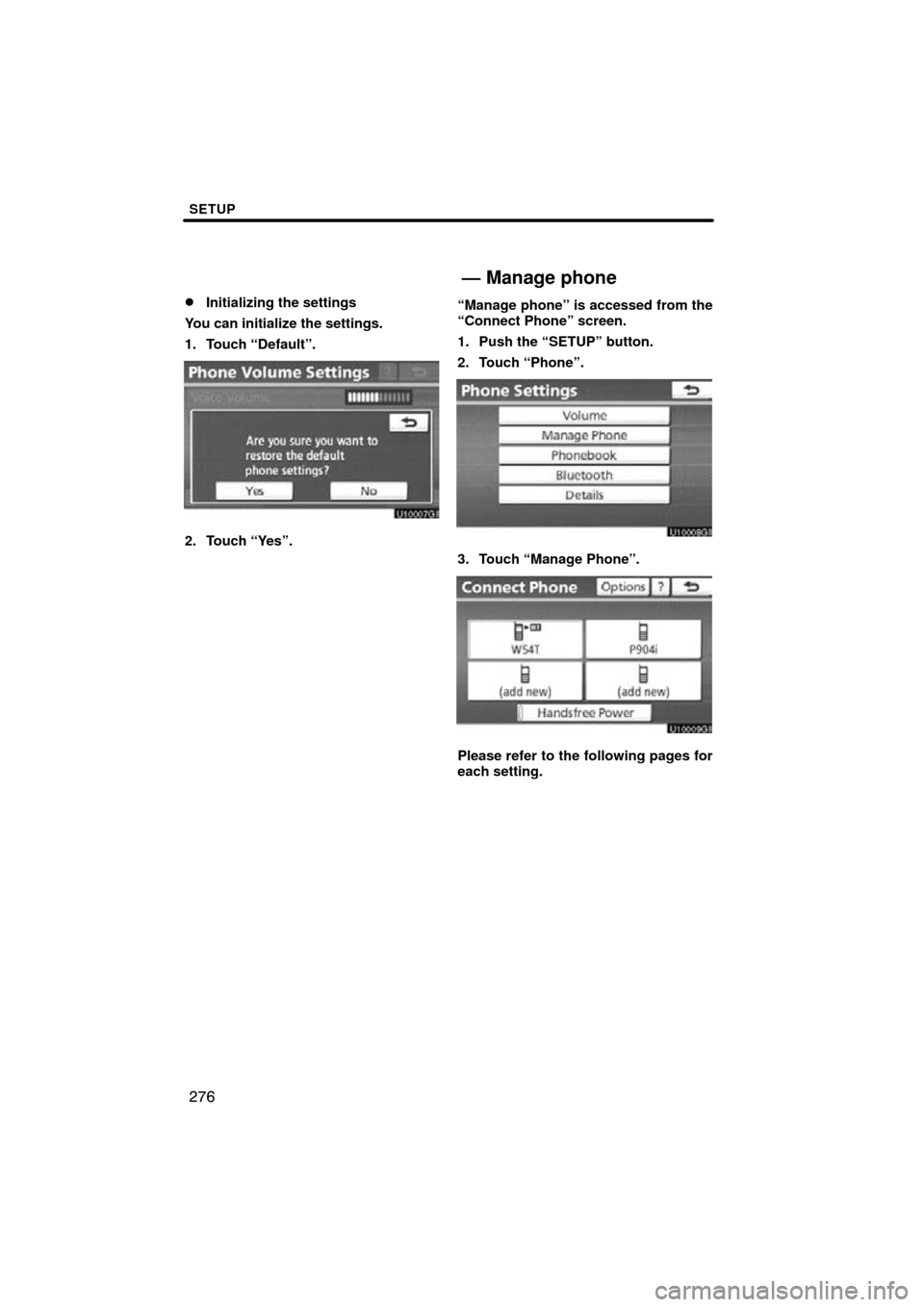

Initializing the settings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”. “Manage phone” is accessed from the
“Connect Phone” screen.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Manage Phone”.
Please refer to the following pages for
each setting.
— Manage phone

SETUP
277

Registering a Bluetooth
 phone
1. Touch “(add new)” to register your
cellular phone to the system.
2. When this screen is displayed, input
the passcode displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
3. When the connection is completed,
this screen is displayed.
You do not need to enter the phone in case
of using the same one.
When this screen is displayed, follow the
guidance on the screen to try again.

SETUP
278
When another Bluetooth device is
connected
When another Bluetooth  device is cur-
rently connected, this screen is displayed.
If you want to disconnect it, touch “Yes”.
INFORMATION
When you register your phone,
Bluetooth  audio will disconnect. It
will reconnect automatically when
you finish registration. It will not be
reconnected depending on the phone
you are using.
You can also register a new Bluetooth
phone in the following way.
1. Push the “SETUP” button.
2. Touch “Phone”.
3. Touch “Manage Phone”.
4. Touch “Options”.
5. Touch “New Phone”.

SETUP
279
6. Touch “(empty)” to register your
cellular phone to the system.
The following operations are the same
as the operation after you touch “(add
new)”.
Selecting a Bluetooth phone
In case you register more than one
Bluetooth  phone, you need to choose
a favorite one.
You can select the Bluetooth phone
from a maximum of 4 numbers.
“(add new)” is displayed when you have
not registered a Bluetooth  phone yet.
Although you can register up to 4
Bluetooth  phones in the system, only one
Bluetooth  phone can function at a time.
1. Select the phone to connect.
The Bluetooth  mark is displayed when
you connect the phone.

SETUP
280
2. The “Connect Bluetooth*” screen is
displayed.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
3. When the result message is dis-
played, you can use the Bluetooth
phone. When you connect the phone while
Bluetooth
 audio is playing
This screen is displayed, and the
Bluetooth  audio will stop temporarily.
When another Bluetooth  device is
connected
When another Bluetooth  device is cur-
rently connected, this screen is displayed.
If you want to disconnect it, touch “Yes”.
