TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual

451
3-7. Using the
storage features
3
Interior features

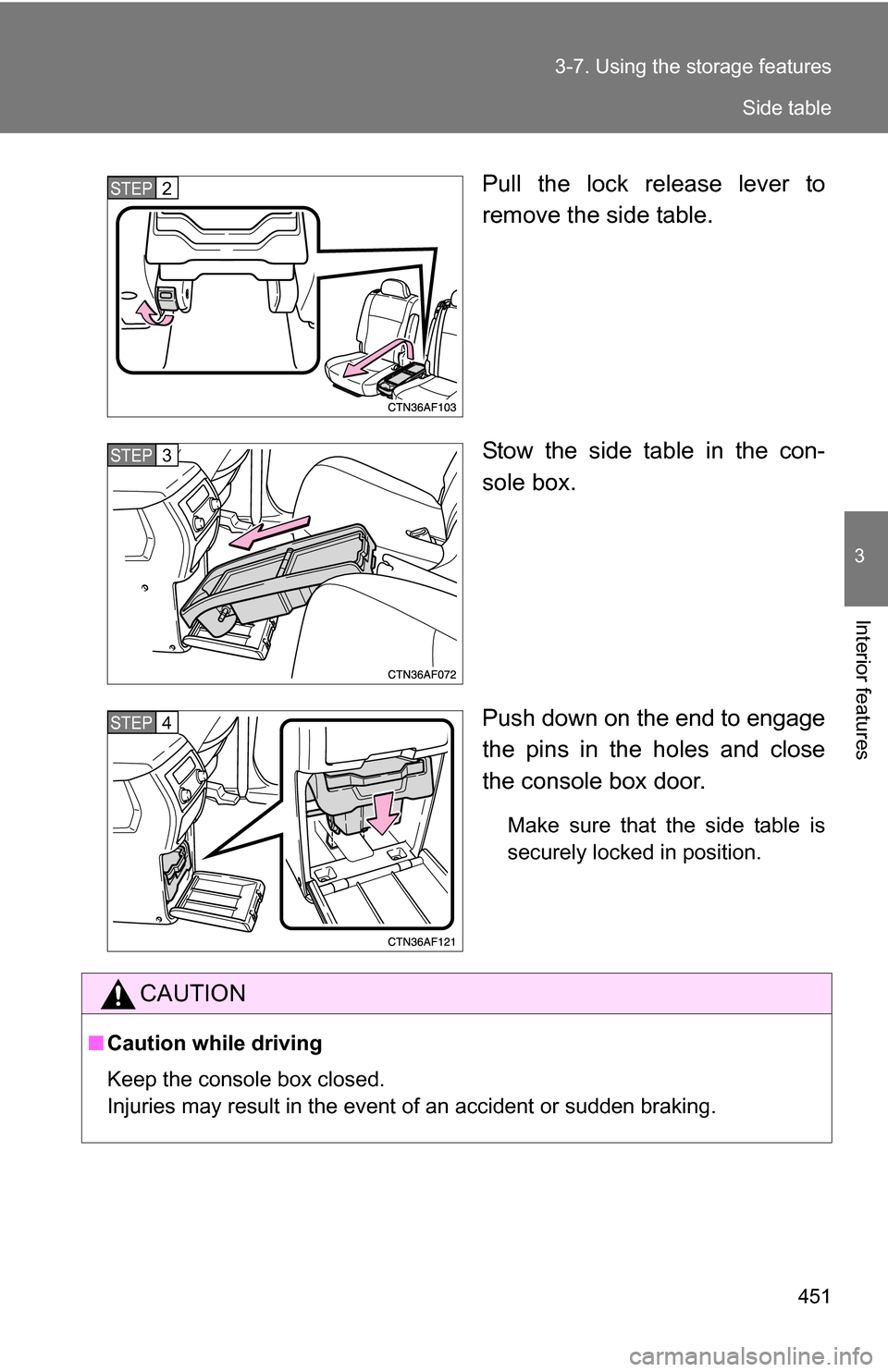

Pull the lock release lever to
remove the side table.
Stow the side table in the con-
sole box.
Push down on the end to engage
the pins in the holes and close
the console box door.
Make sure that the side table is
securely locked in position.
STEP2
STEP3
STEP4
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Side table

452
3-8. Other interior features

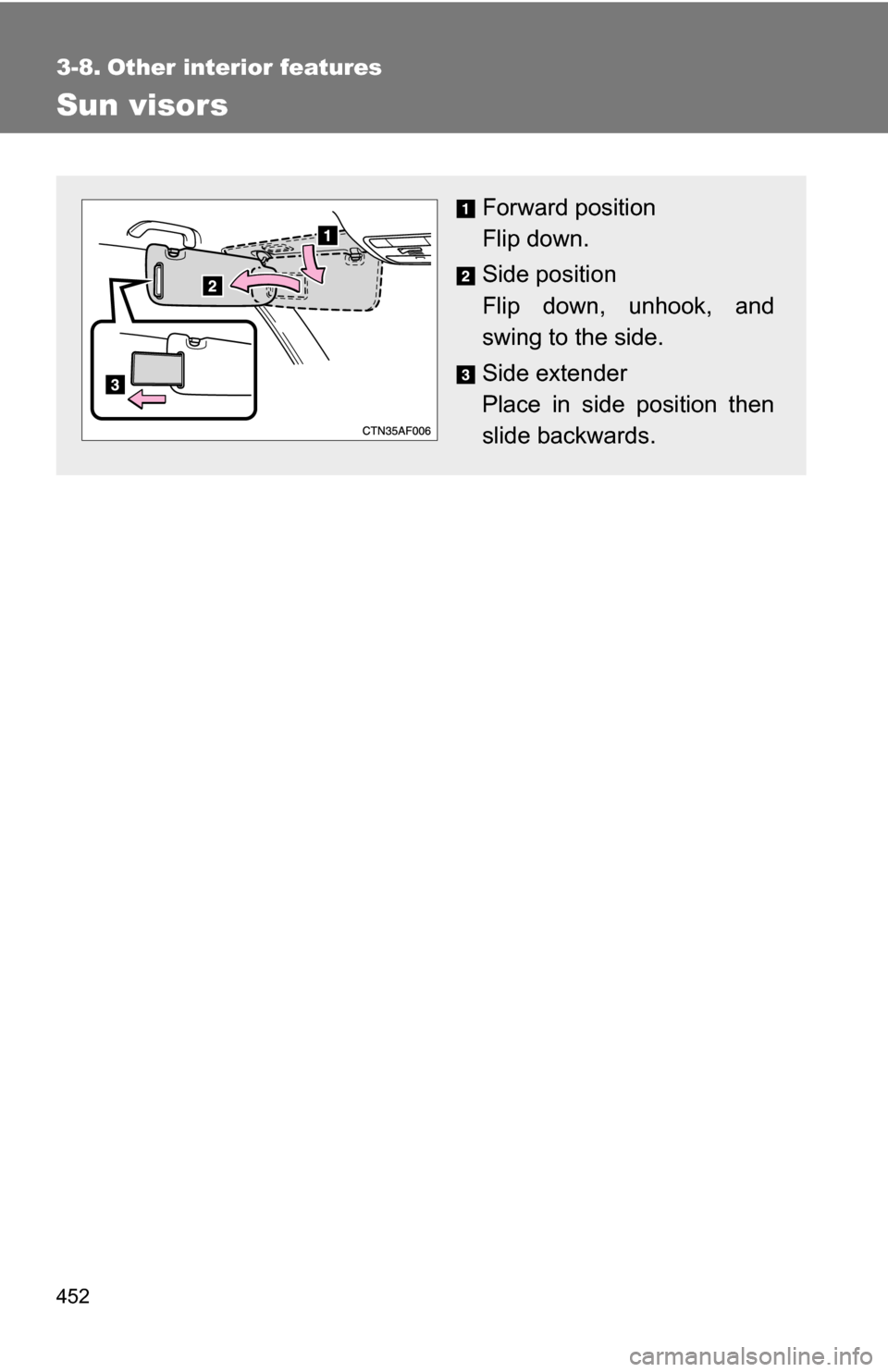

Sun visors
Forward position
Flip down.
Side position
Flip down, unhook, and
swing to the side.
Side extender
Place in side position then
slide backwards.

453
3-8. Other interior features
3
Interior features

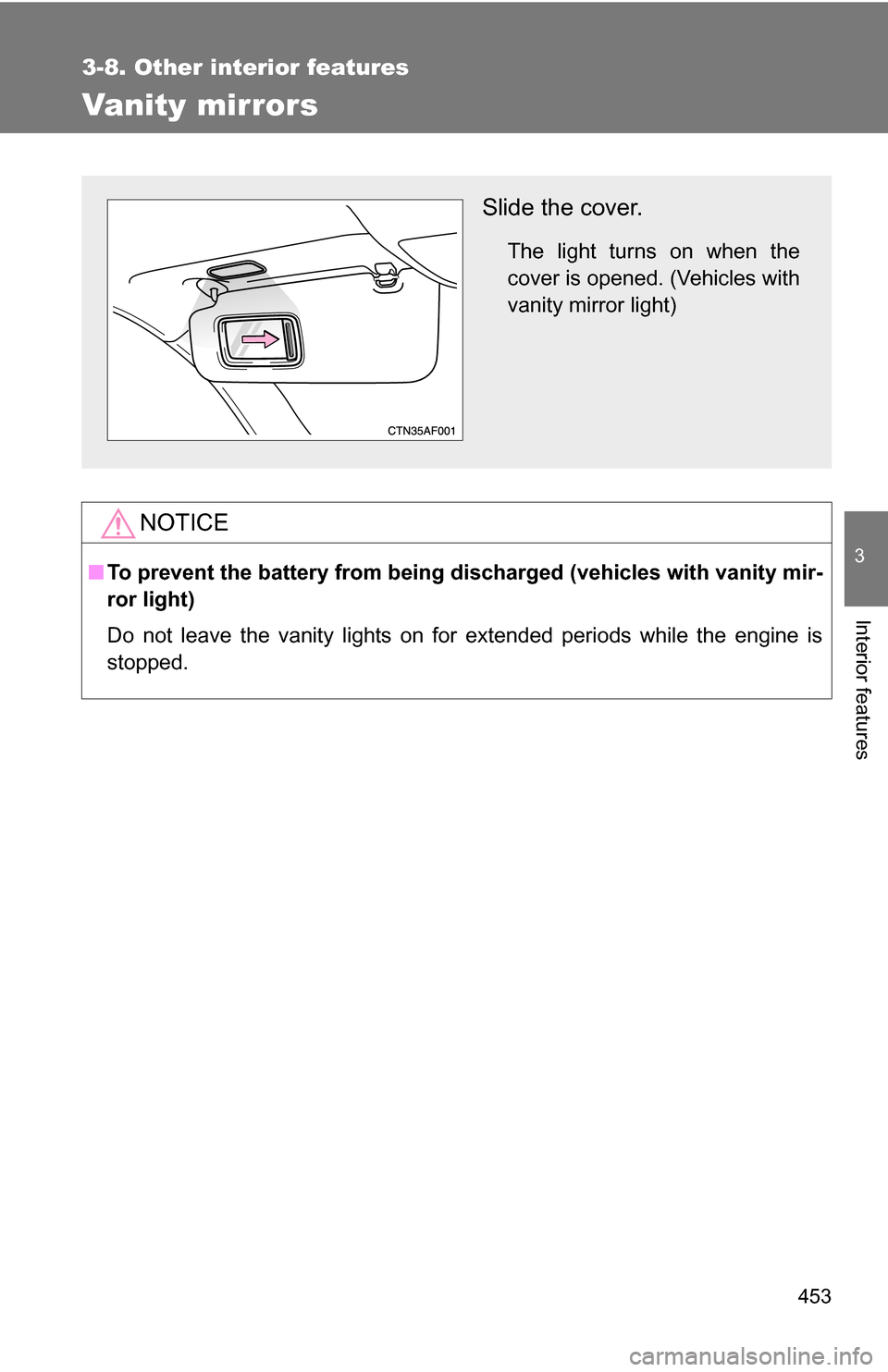

Vanity mirrors
NOTICE
■To prevent the battery from being di scharged (vehicles with vanity mir-
ror light)
Do not leave the vanity lights on for extended periods while the engine is
stopped.
Slide the cover.
The light turns on when the
cover is opened. (Vehicles with
vanity mirror light)

454
3-8. Other interior features

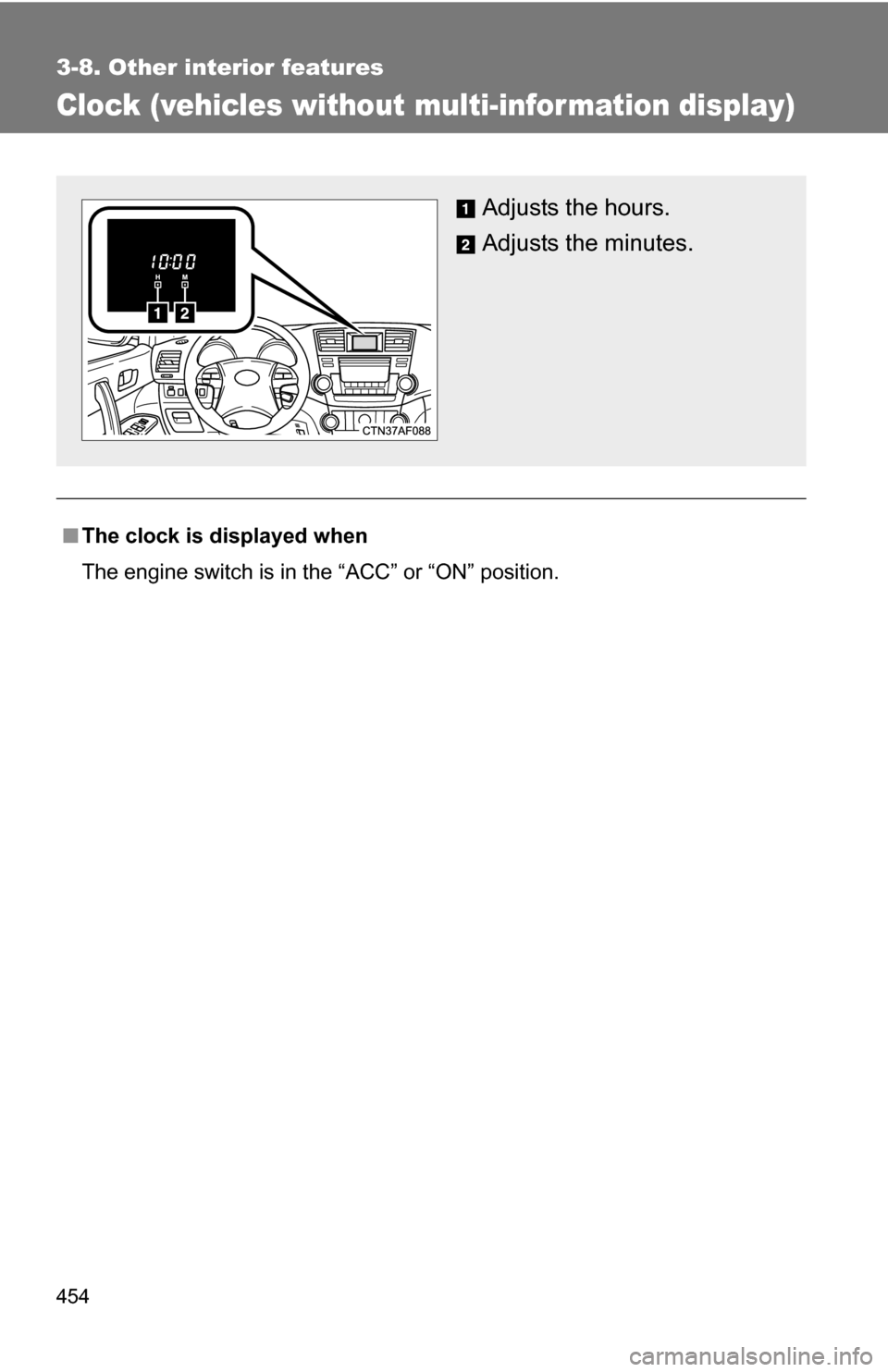

Clock (vehicles without multi-infor mation display)
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
Adjusts the hours.
Adjusts the minutes.

455
3-8. Other interior features
3
Interior features

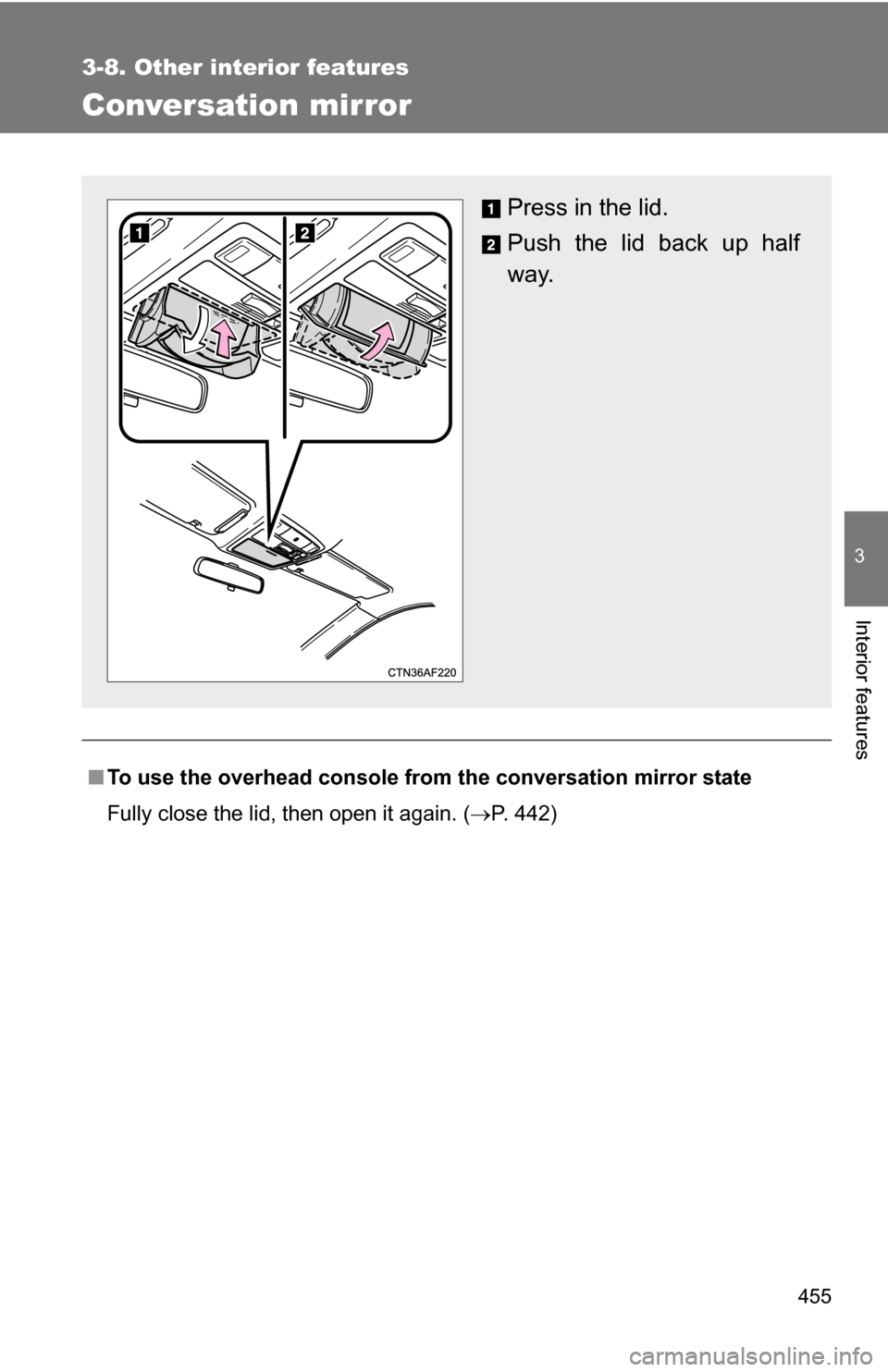

Conversation mirror
■To use the overhead console from the conversation mirror state
Fully close the lid, then open it again. ( P. 442)
Press in the lid.
Push the lid back up half
way.

456
3-8. Other interior features

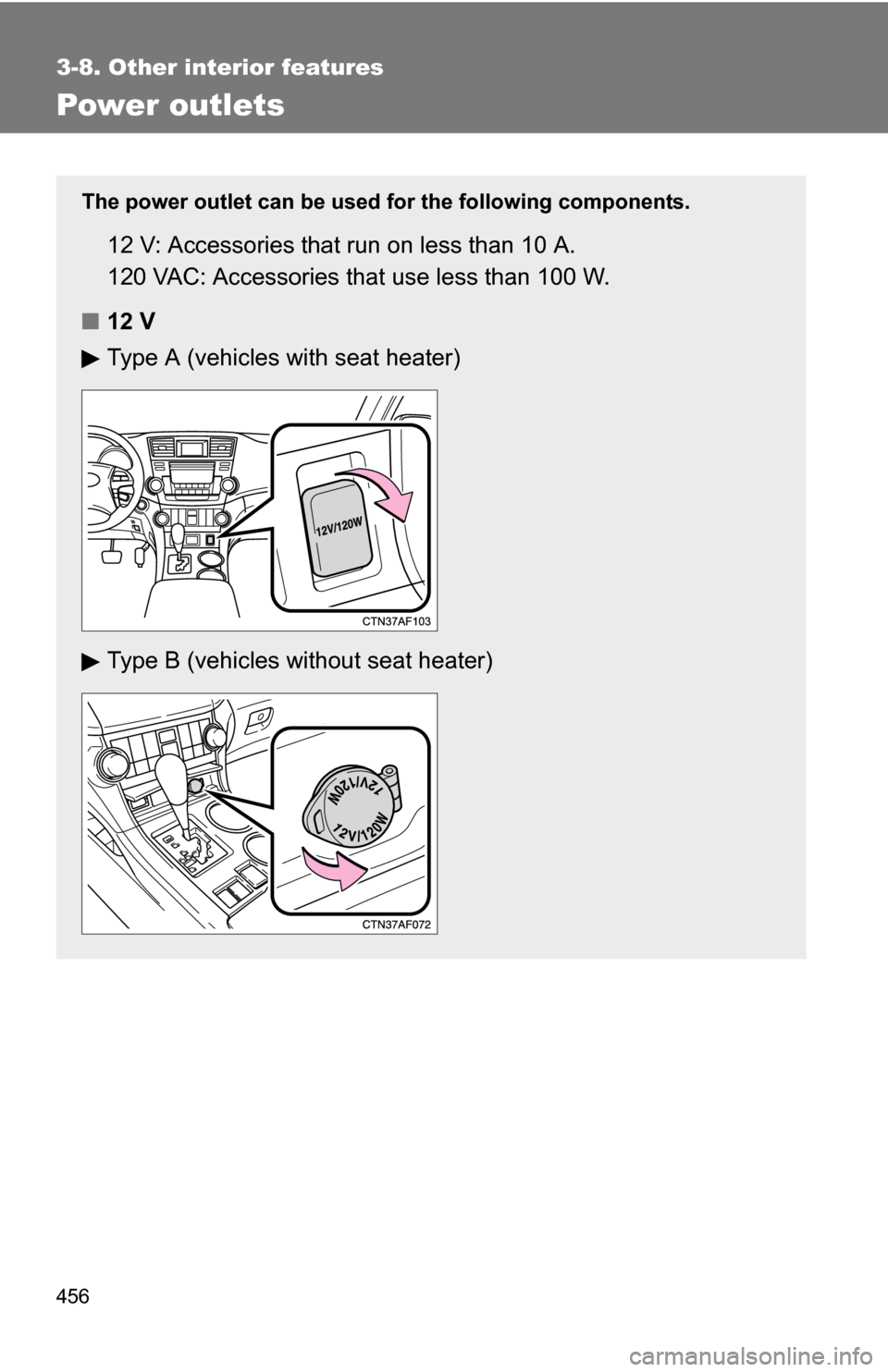

Power outlets
The power outlet can be used for the following components.
12 V: Accessories that run on less than 10 A.
120 VAC: Accessories that use less than 100 W.
■ 12 V
Type A (vehicles with seat heater)
Type B (vehicles without seat heater)

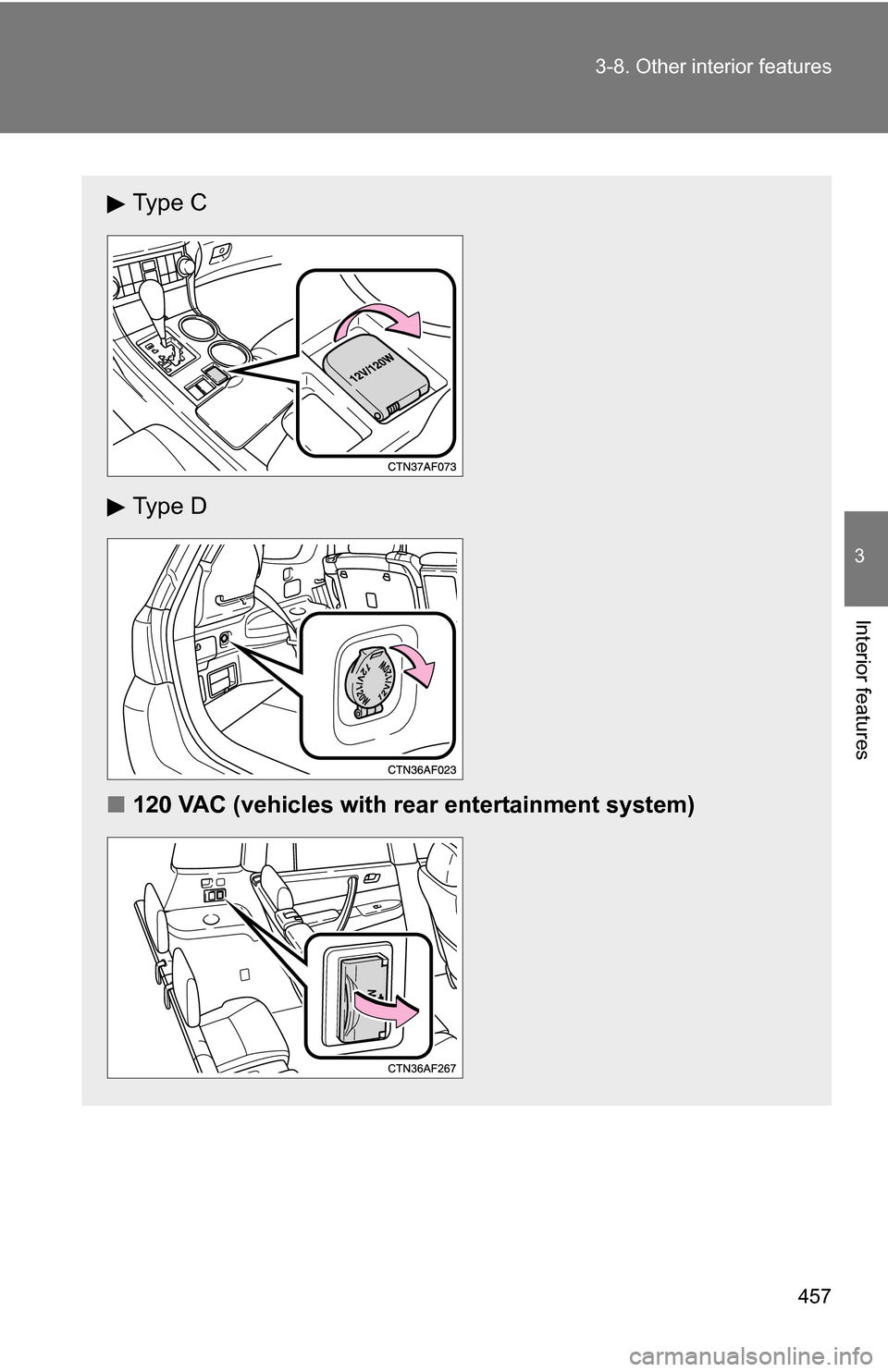

457
3-8. Other interior features
3
Interior features
Ty p e C
Ty p e D
■ 120 VAC (vehicles with rear entertainment system)

458 3-8. Other interior features

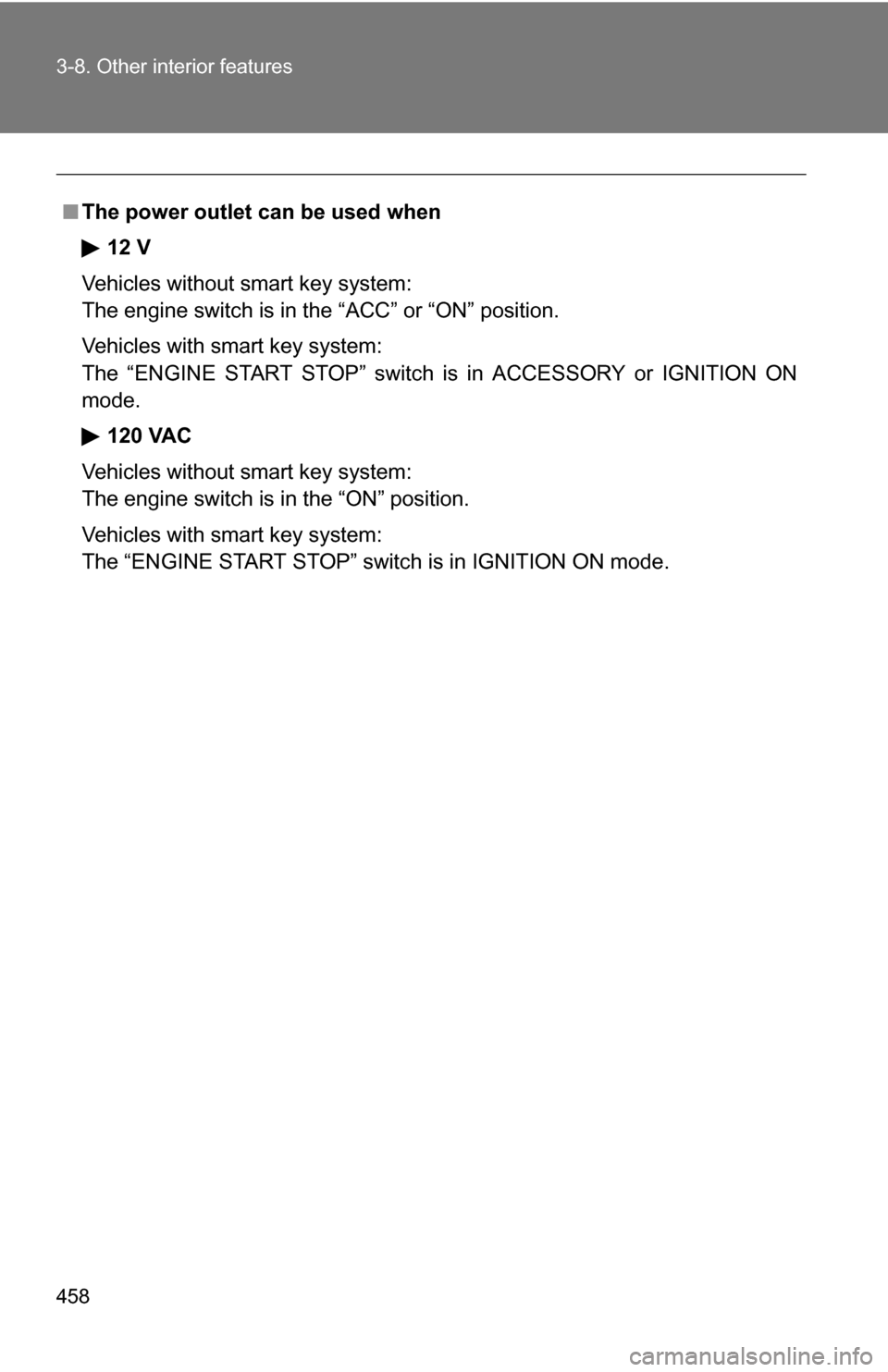

■The power outlet can be used when
12 V
Vehicles without smart key system:
The engine switch is in the “ACC” or “ON” position.
Vehicles with smart key system:
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode.
120 VAC
Vehicles without smart key system:
The engine switch is in the “ON” position.
Vehicles with smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.

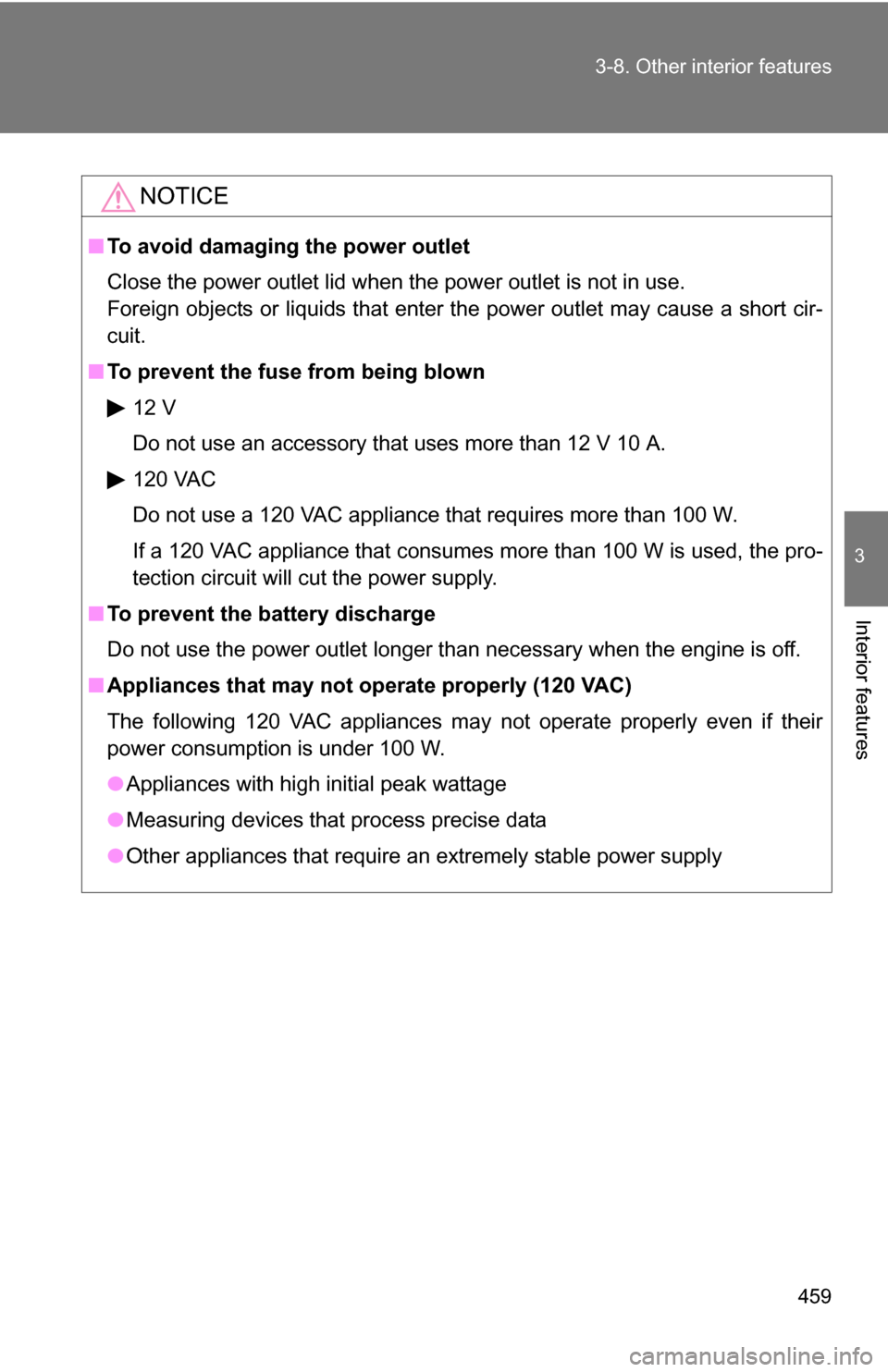

459
3-8. Other interior features
3
Interior features
NOTICE
■
To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 VAC
Do not use a 120 VAC appliance that requires more than 100 W.
If a 120 VAC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery discharge
Do not use the power outlet longer than necessary when the engine is off.
■ Appliances that may not operate properly (120 VAC)
The following 120 VAC appliances may not operate properly even if their
power consumption is under 100 W.
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

460
3-8. Other interior features

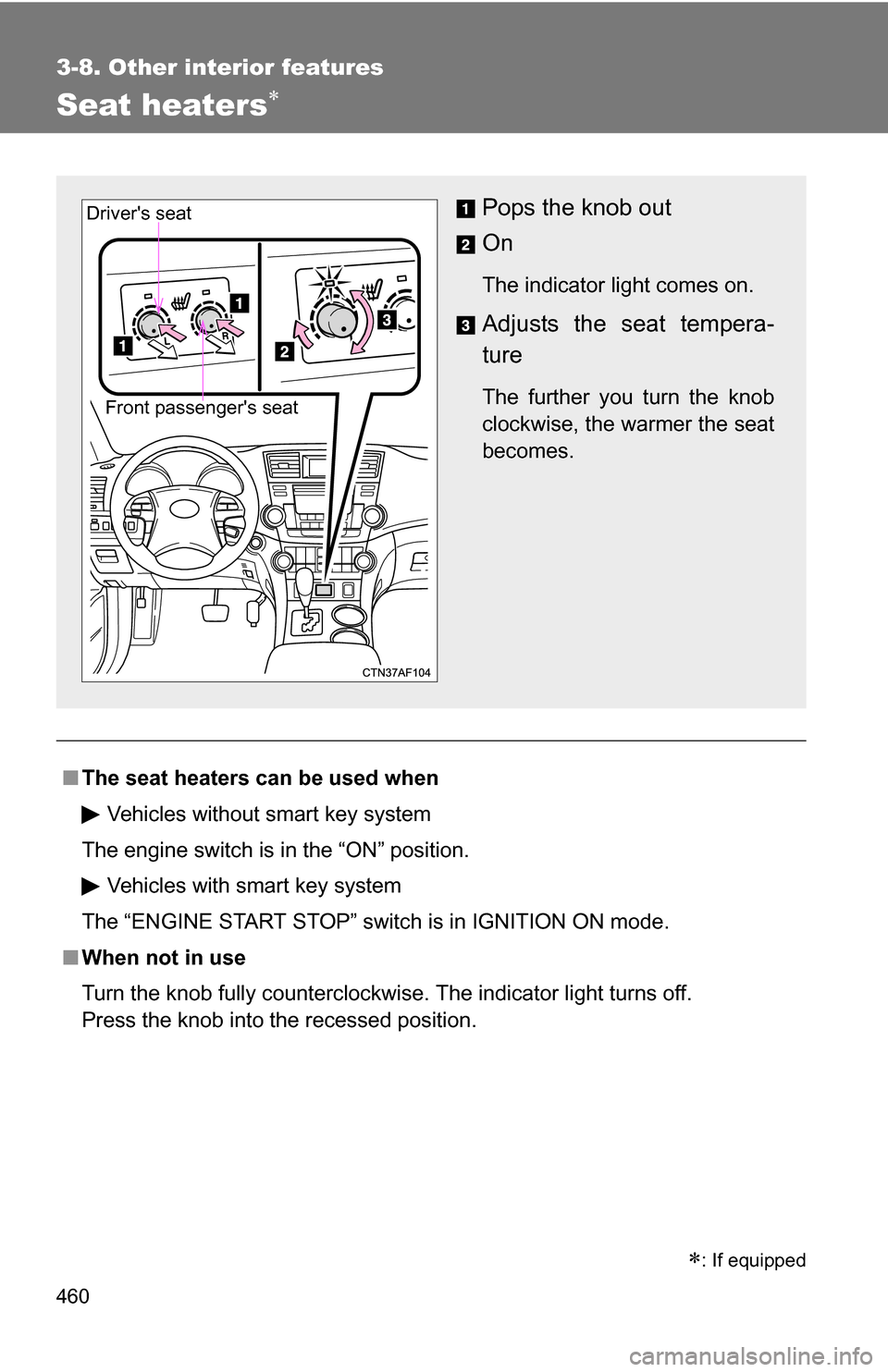

Seat heaters
■The seat heaters can be used when
Vehicles without smart key system
The engine switch is in the “ON” position. Vehicles with smart key system
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ When not in use
Turn the knob fully counterclockwise. The indicator light turns off.
Press the knob into the recessed position.
Pops the knob out
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.Front passenger's seat
Driver's seat
: If equipped
