TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual

421
3-5. Using the rear audio system
3
Interior features
■

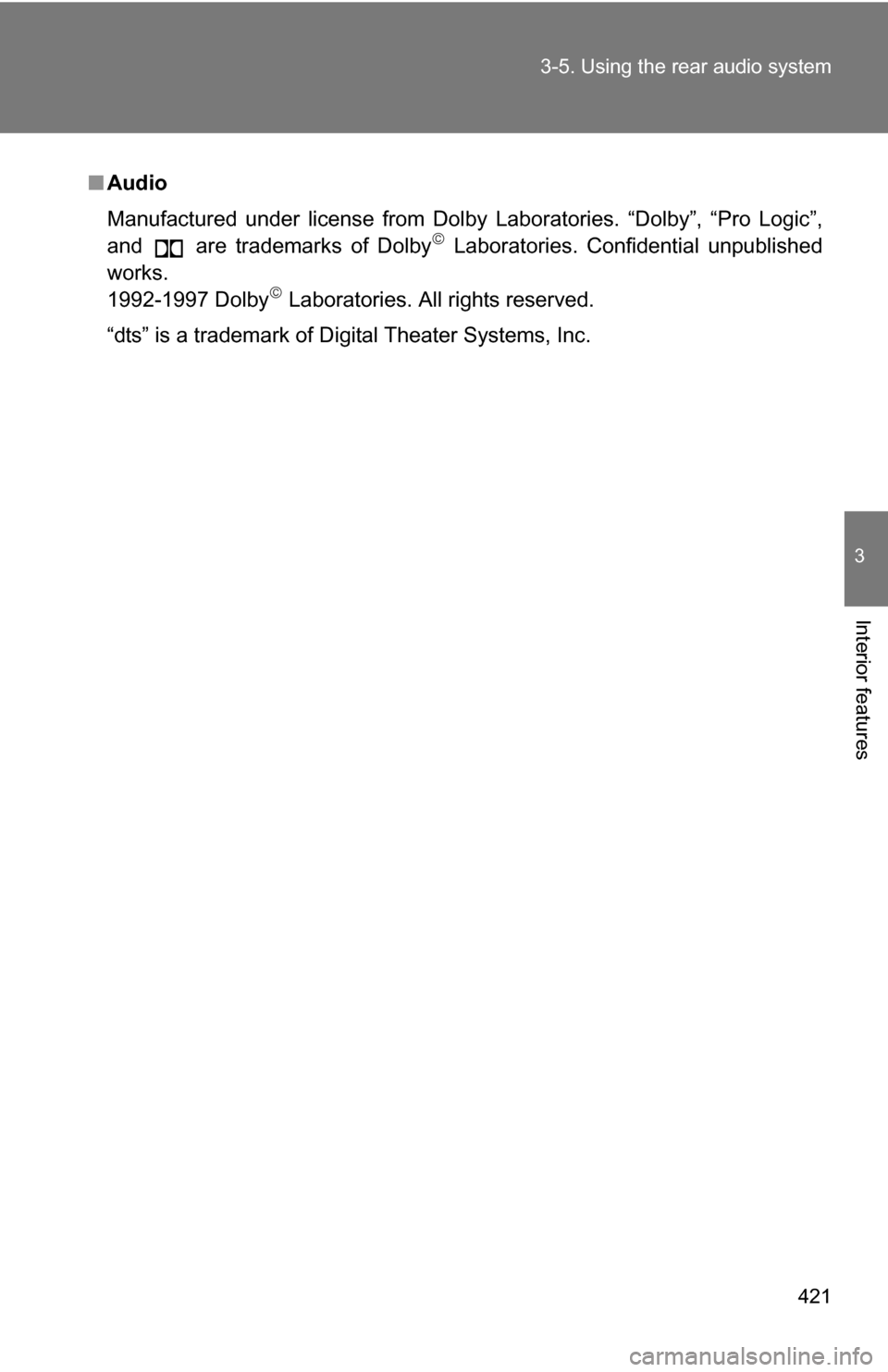

Audio
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”,
and are trademarks of Dolby
 Laboratories. Confidential unpublished
works.
1992-1997 Dolby
 Laboratories. All rights reserved.
“dts” is a trademark of Digital Theater Systems, Inc.

422
3-5. Using the rear audio system

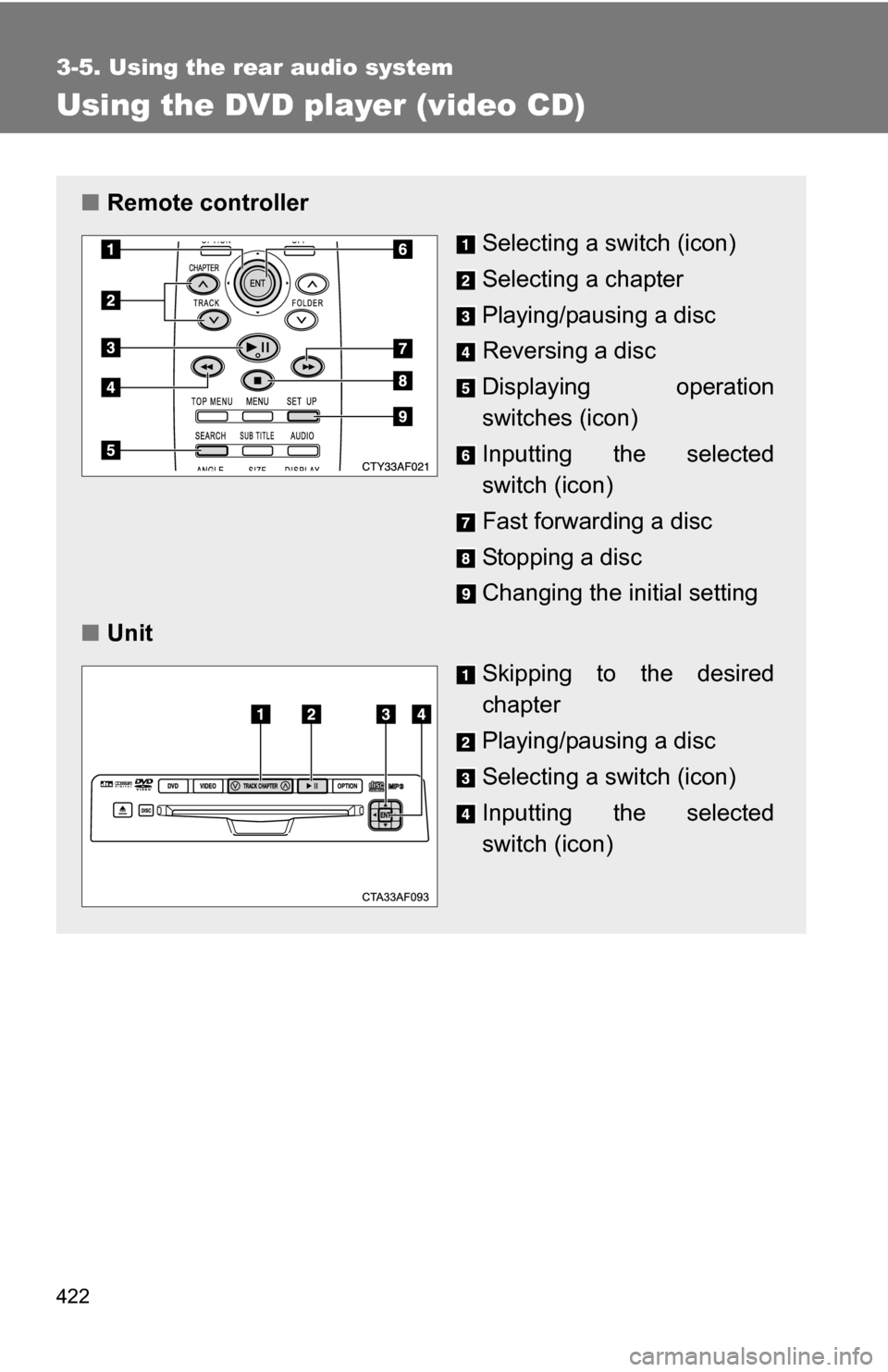

Using the DVD player (video CD)
■Remote controller
Selecting a switch (icon)
Selecting a chapter
Playing/pausing a disc
Reversing a disc
Displaying operation
switches (icon)
Inputting the selected
switch (icon)
Fast forwarding a disc
Stopping a disc
Changing the initial setting
■ Unit
Skipping to the desired
chapter
Playing/pausing a disc
Selecting a switch (icon)
Inputting the selected
switch (icon)

423
3-5. Using the rear audio system
3
Interior features
■

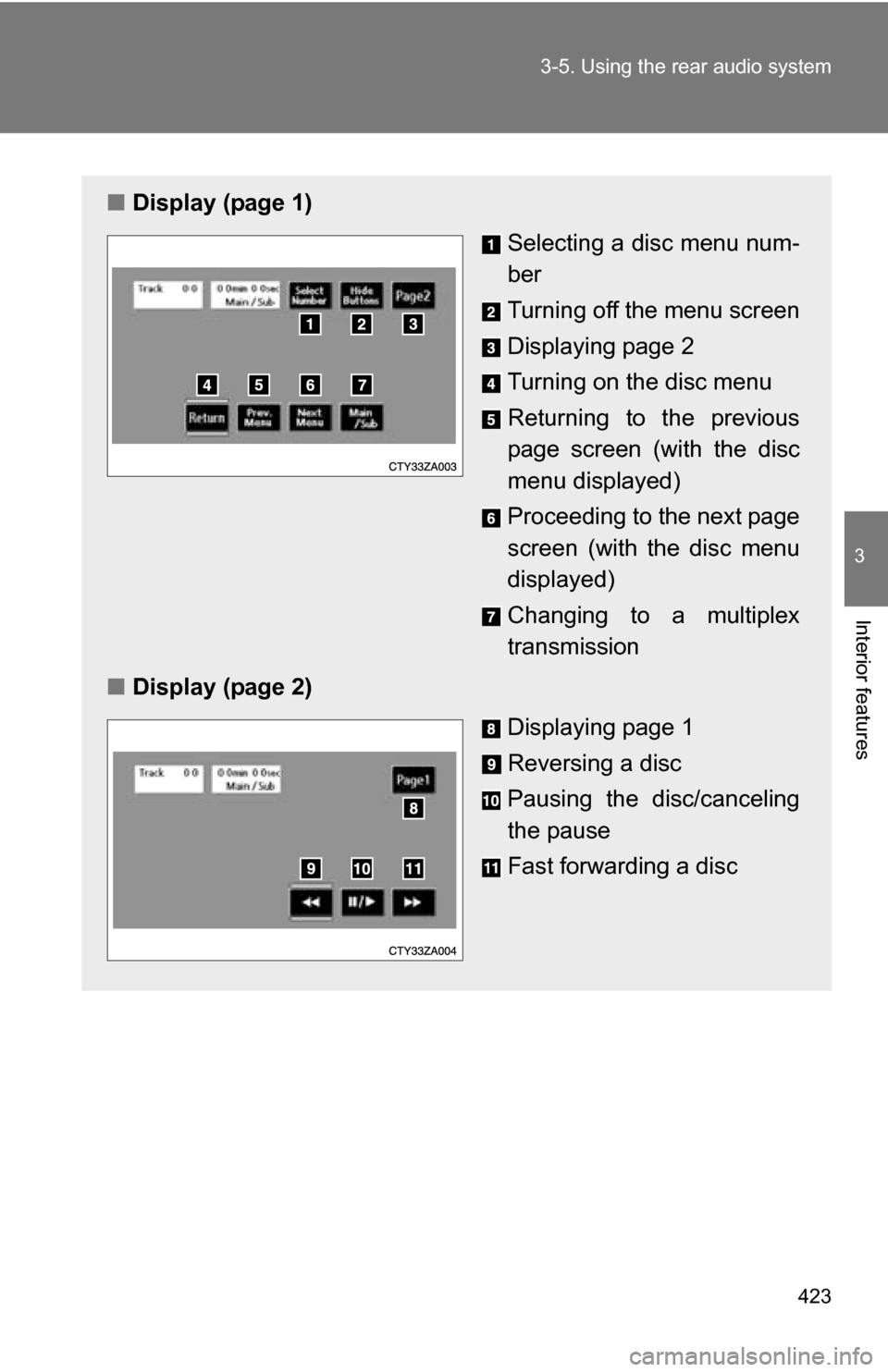

Display (page 1)
Selecting a disc menu num-
ber
Turning off the menu screen
Displaying page 2
Turning on the disc menu
Returning to the previous
page screen (with the disc
menu displayed)
Proceeding to the next page
screen (with the disc menu
displayed)
Changing to a multiplex
transmission
■ Display (page 2)
Displaying page 1
Reversing a disc
Pausing the disc/canceling
the pause
Fast forwarding a disc

424 3-5. Using the rear audio system

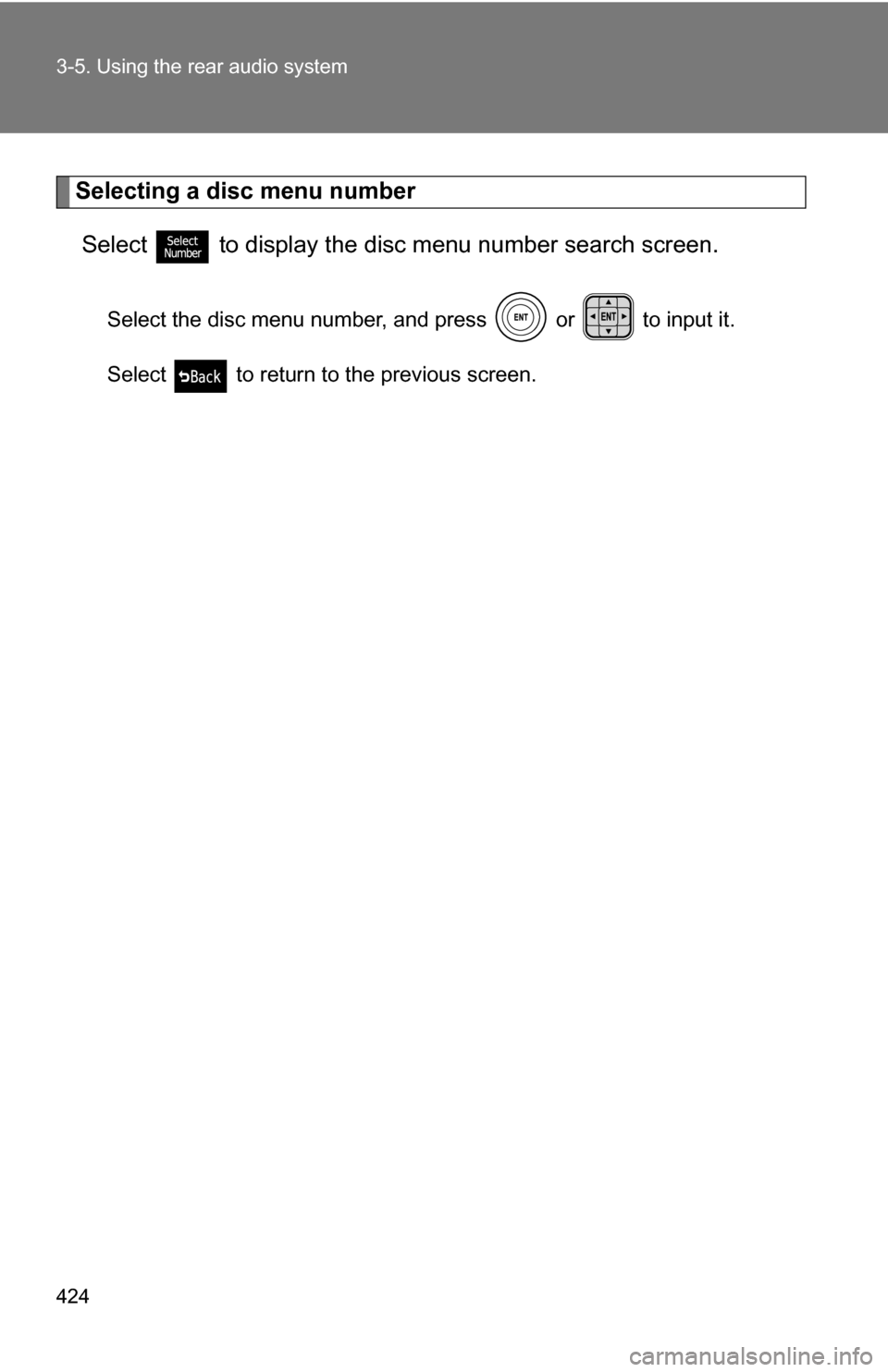

Selecting a disc menu numberSelect
to display the disc menu number search screen.
Select the disc menu number, and press or to input it.
Select to return to the previous screen.

425
3-5. Using the rear audio system
3
Interior features

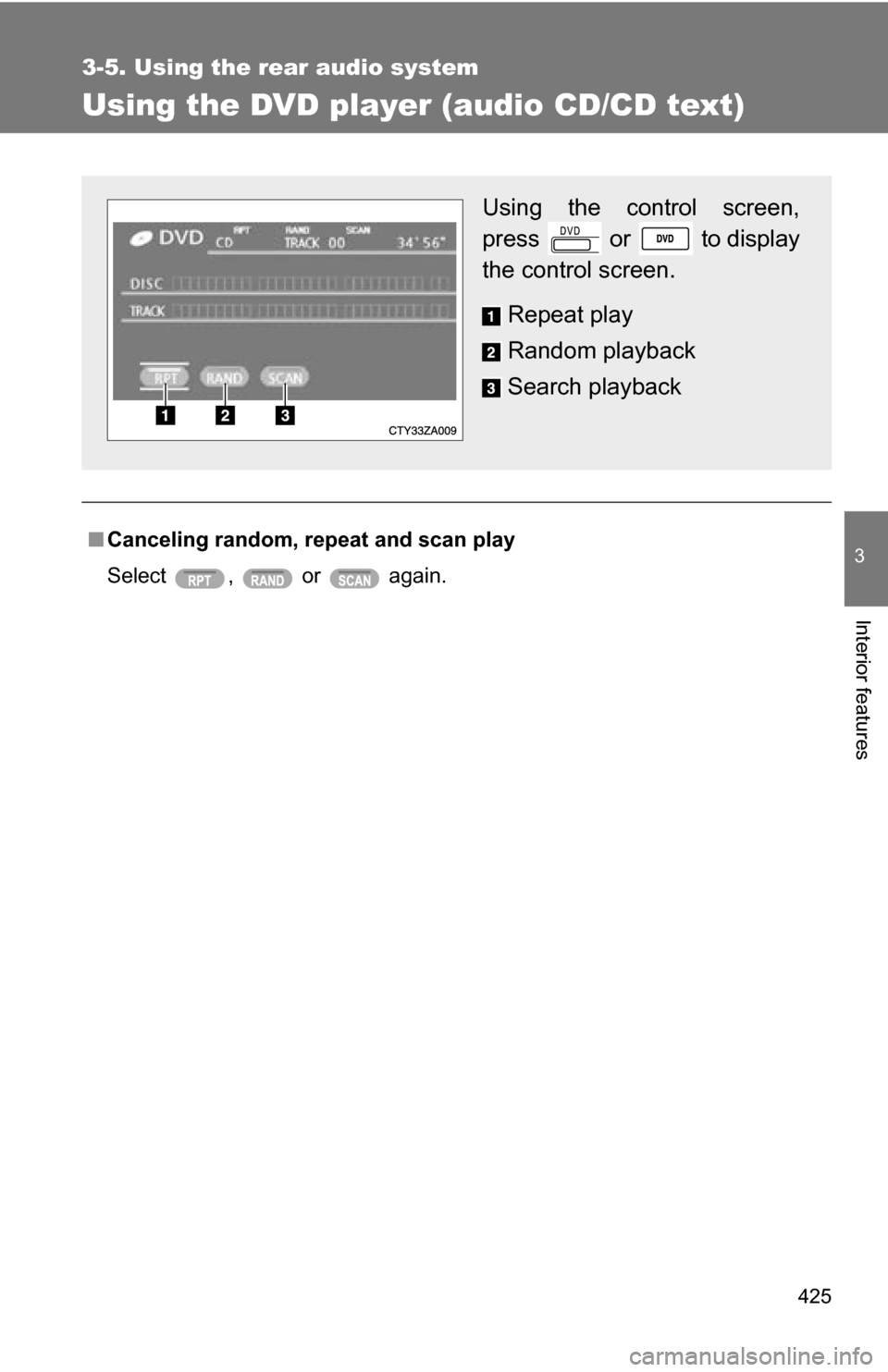

Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
Using the control screen,
press or to display
the control screen.
Repeat play
Random playback
Search playback

426
3-5. Using the rear audio system

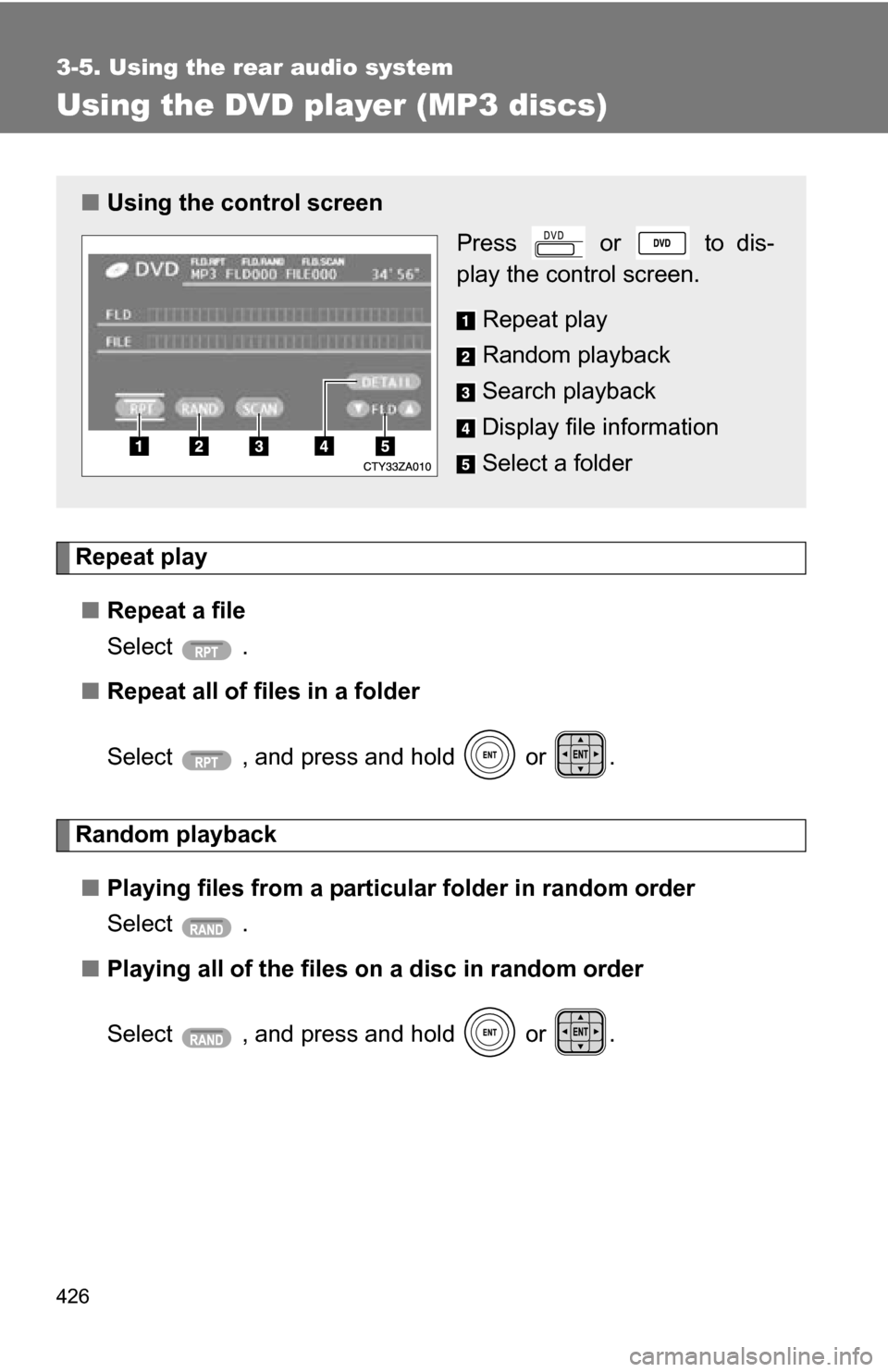

Using the DVD player (MP3 discs)
Repeat play■ Repeat a file
Select .
■ Repeat all of files in a folder
Select , and press and hold or .
Random playback
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold or .
■Using the control screen
Press or to dis-
play the control screen.
Repeat play
Random playback
Search playback
Display file information
Select a folder

427
3-5. Using the rear audio system
3
Interior features

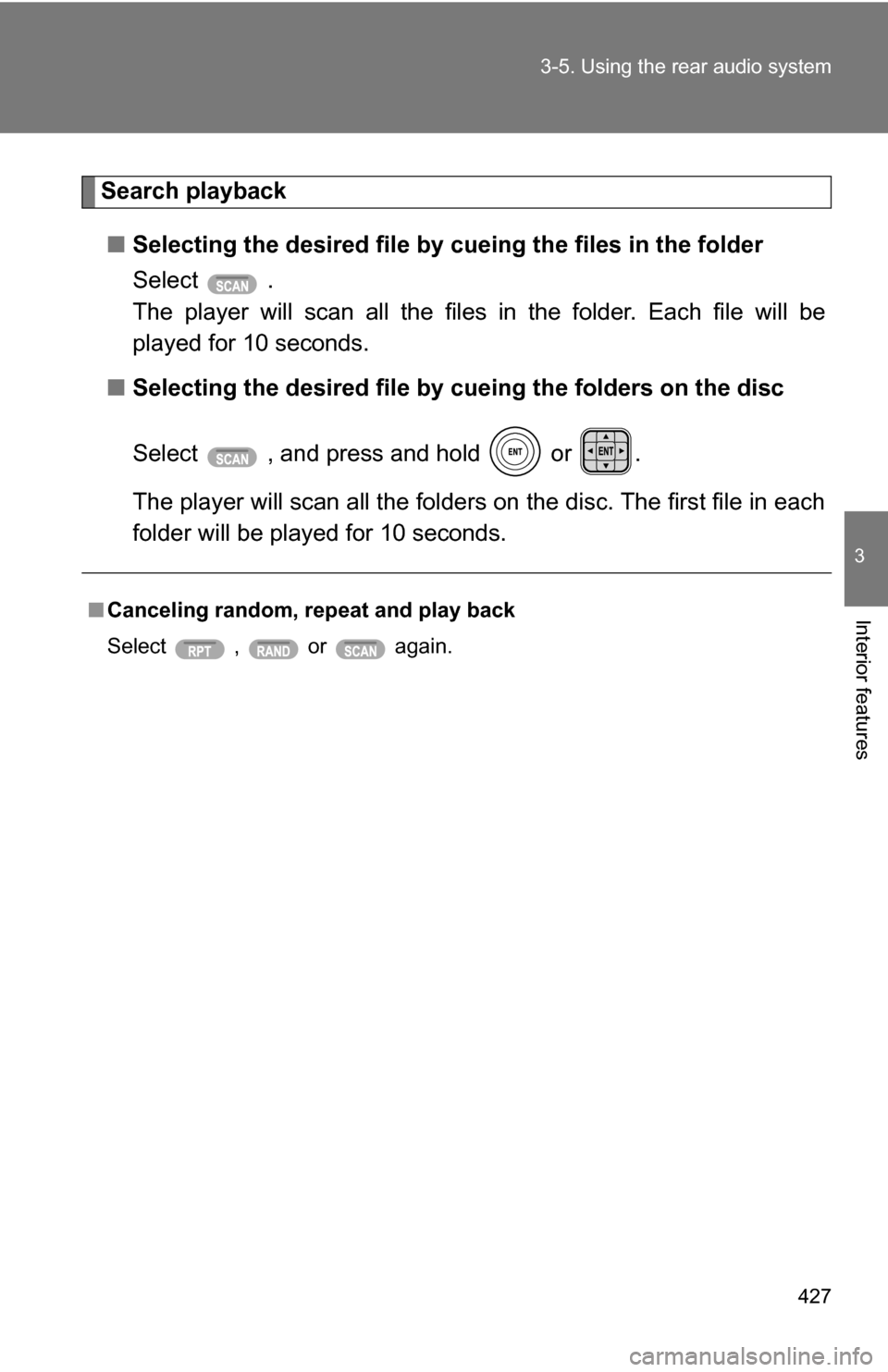

Search playback
■ Selecting the desired file by cueing the files in the folder
Select .
The player will scan all the files in the folder. Each file will be
played for 10 seconds.
■ Selecting the desired file by cueing the folders on the disc
Select , and press and hold or .
The player will scan all the folders on the disc. The first file in each
folder will be played for 10 seconds.
■ Canceling random, repeat and play back
Select , or again.

428
3-5. Using the rear audio system

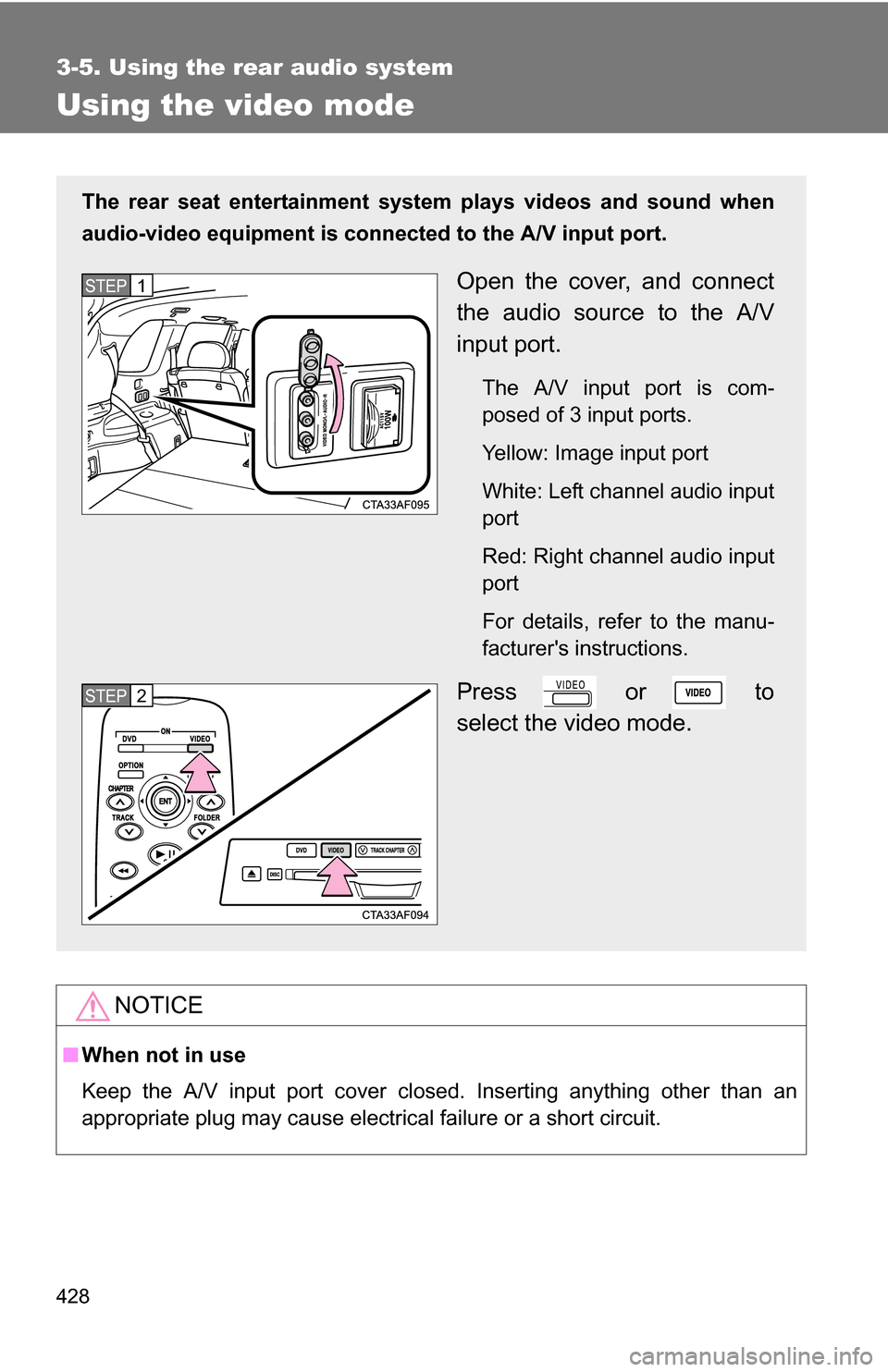

Using the video mode
NOTICE
■When not in use
Keep the A/V input port cover closed. Inserting anything other than an
appropriate plug may cause electrical failure or a short circuit.
The rear seat entertainment syst em plays videos and sound when
audio-video equipment is conn ected to the A/V input port.
Open the cover, and connect
the audio source to the A/V
input port.
The A/V input port is com-
posed of 3 input ports.
Yellow: Image input port
White: Left channel audio input
port
Red: Right channel audio input
port
For details, refer to the manu-
facturer's instructions.
Press  or  to
select the video mode.
STEP1
STEP2

429
3-5. Using the rear audio system
3
Interior features

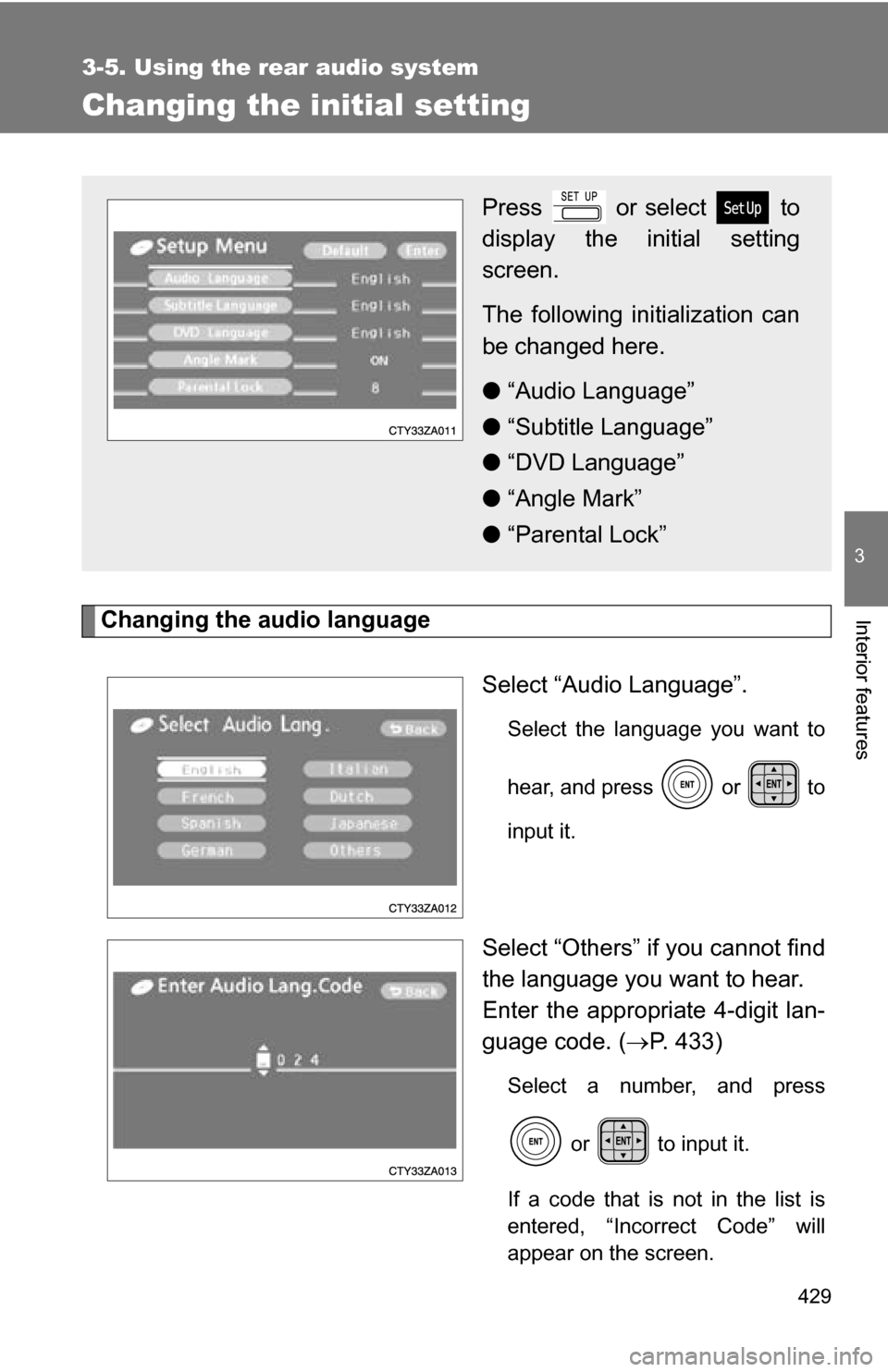

Changing the initial setting
Changing the audio languageSelect “Audio Language”.
Select the language you want to
hear, and press or to
input it.
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit lan-
guage code. (P. 433)
Select a number, and press
or to input it.
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.
Press or select to
display the initial setting
screen.
The following in itialization can
be changed here.
● “Audio Language”
● “Subtitle Language”
● “DVD Language”
● “Angle Mark”
● “Parental Lock”

430 3-5. Using the rear audio system

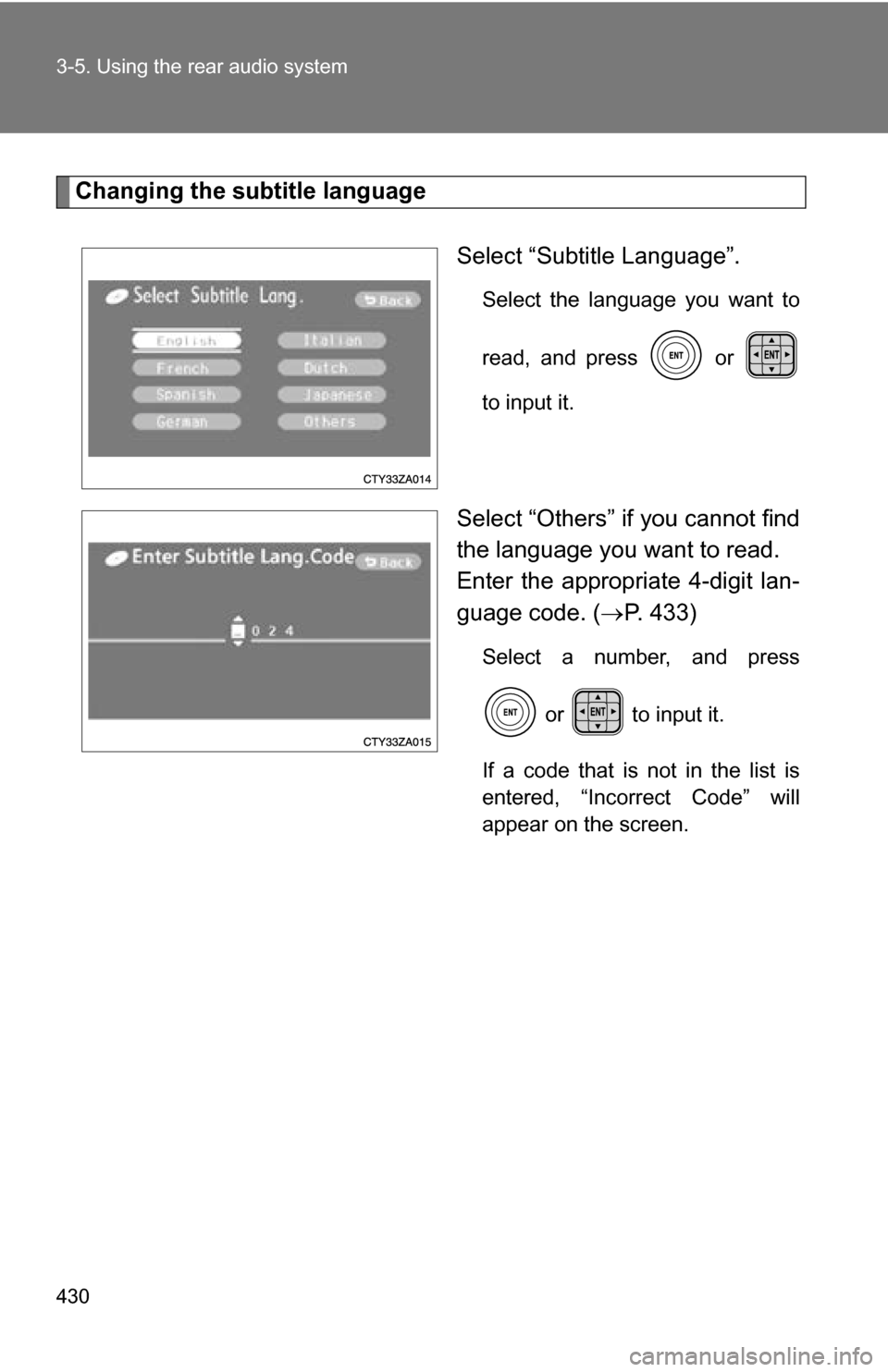

Changing the subtitle languageSelect “Subtitle Language”.
Select the language you want to
read, and press or
to input it.
Select “Others” if you cannot find
the language you want to read.
Enter the appropriate 4-digit lan-
guage code. (P. 433)
Select a number, and press
or to input it.
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.
