TOYOTA HIGHLANDER 2013 XU50 / 3.G Owners Manual

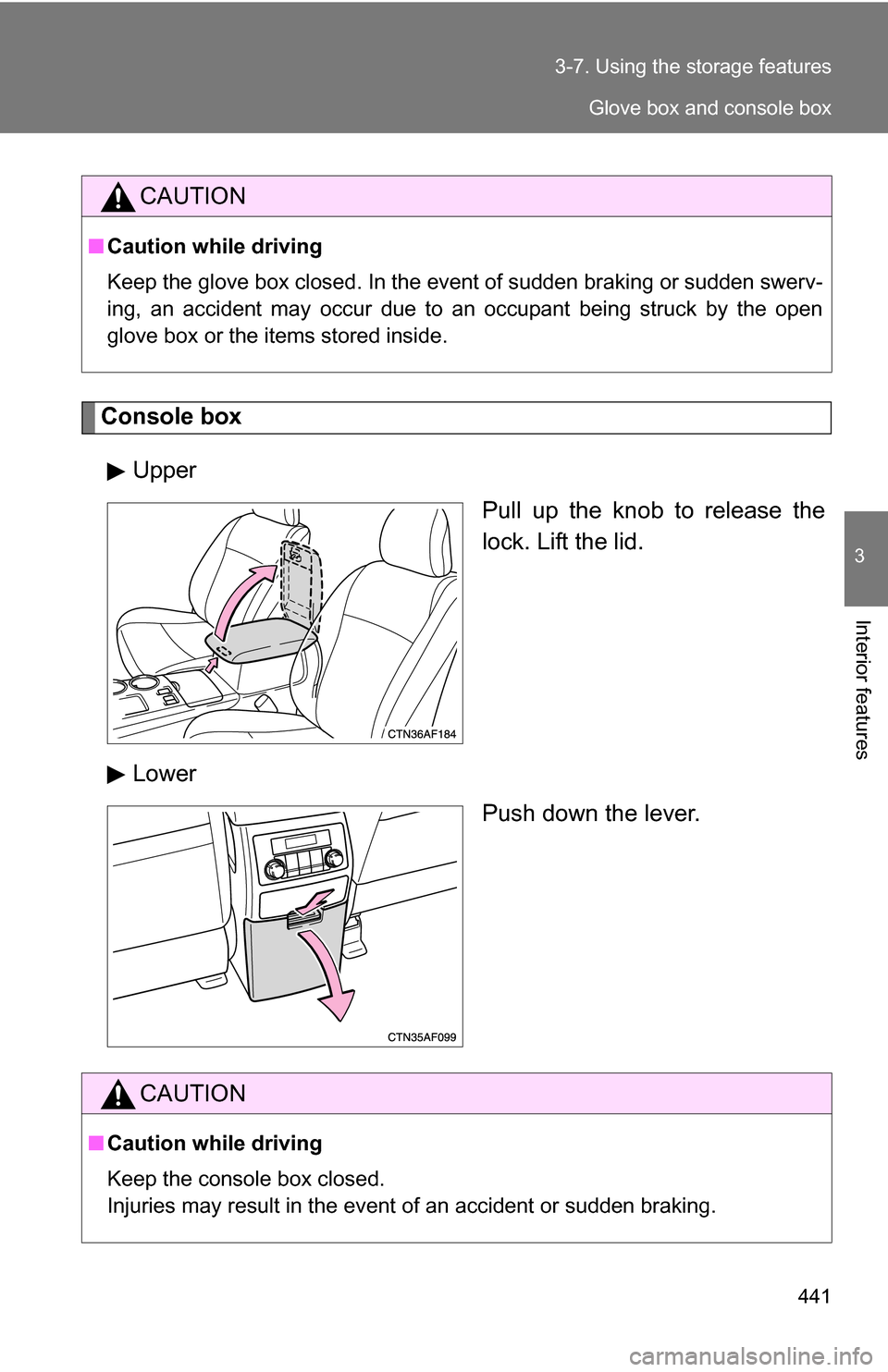

441
3-7. Using the
storage features
3
Interior features
Console box
Upper Pull up the knob to release the
lock. Lift the lid.
Lower Push down the lever.
CAUTION
■Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

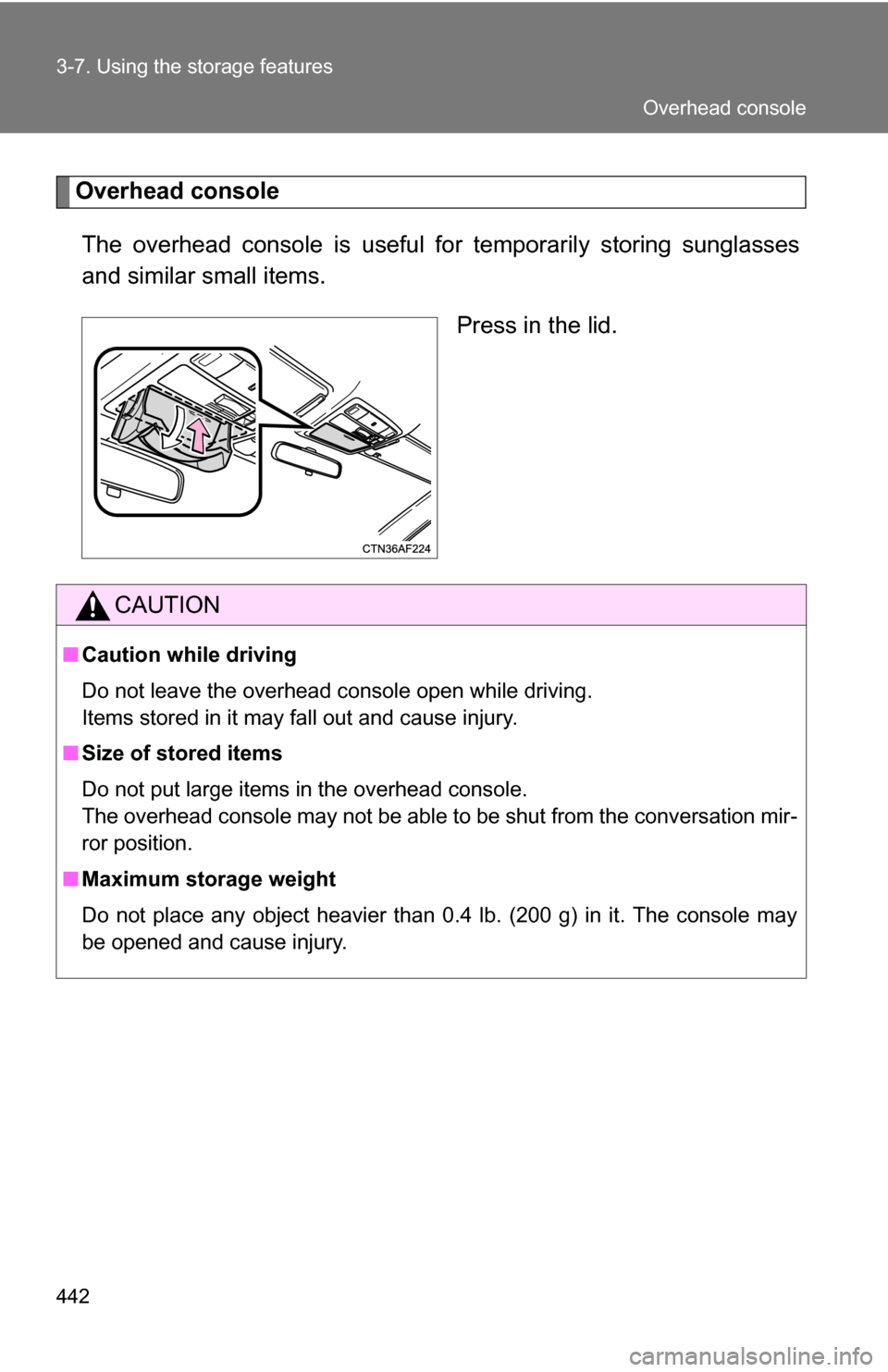

442 3-7. Using the storage features
Overhead consoleThe overhead console is useful for temporarily storing sunglasses
and similar small items.
Press in the lid.
CAUTION
■Caution while driving
Do not leave the overhead console open while driving.
Items stored in it may fall out and cause injury.
■ Size of stored items
Do not put large items in the overhead console.
The overhead console may not be able to be shut from the conversation mir-
ror position.
■ Maximum storage weight
Do not place any object heavier than 0.4 lb. (200 g) in it. The console may
be opened and cause injury.
Overhead console

443
3-7. Using the
storage features
3
Interior features

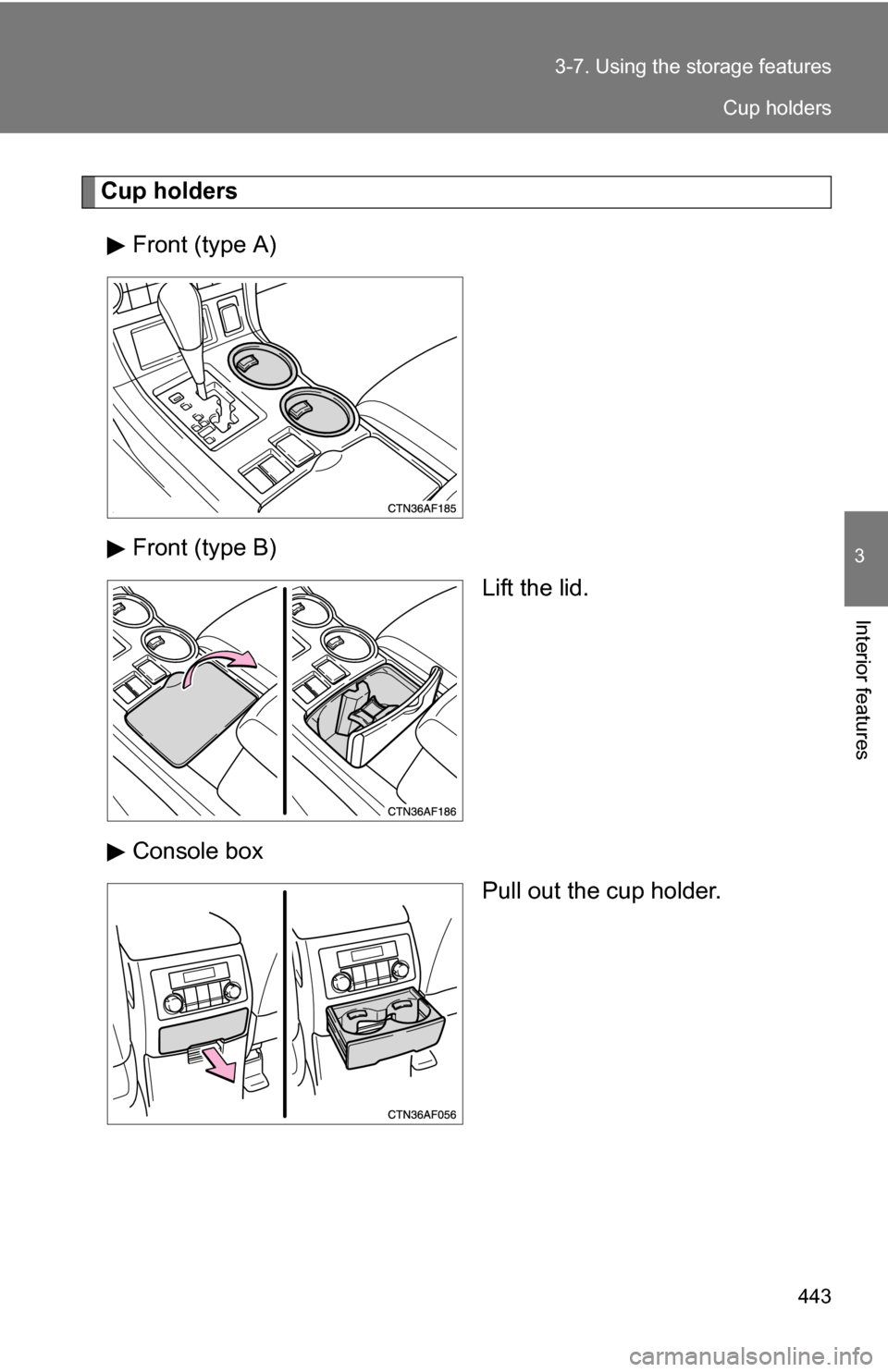

Cup holders
Front (type A)
Front (type B) Lift the lid.
Console box Pull out the cup holder.
Cup holders

444 3-7. Using the storage features
Side tableInstall the side table before using
the cup holder. (P. 450)
Removing the adapters changes
the size. ( P. 445)
Rear Removing the adapters changes
the size. (P. 445)
Cup holders

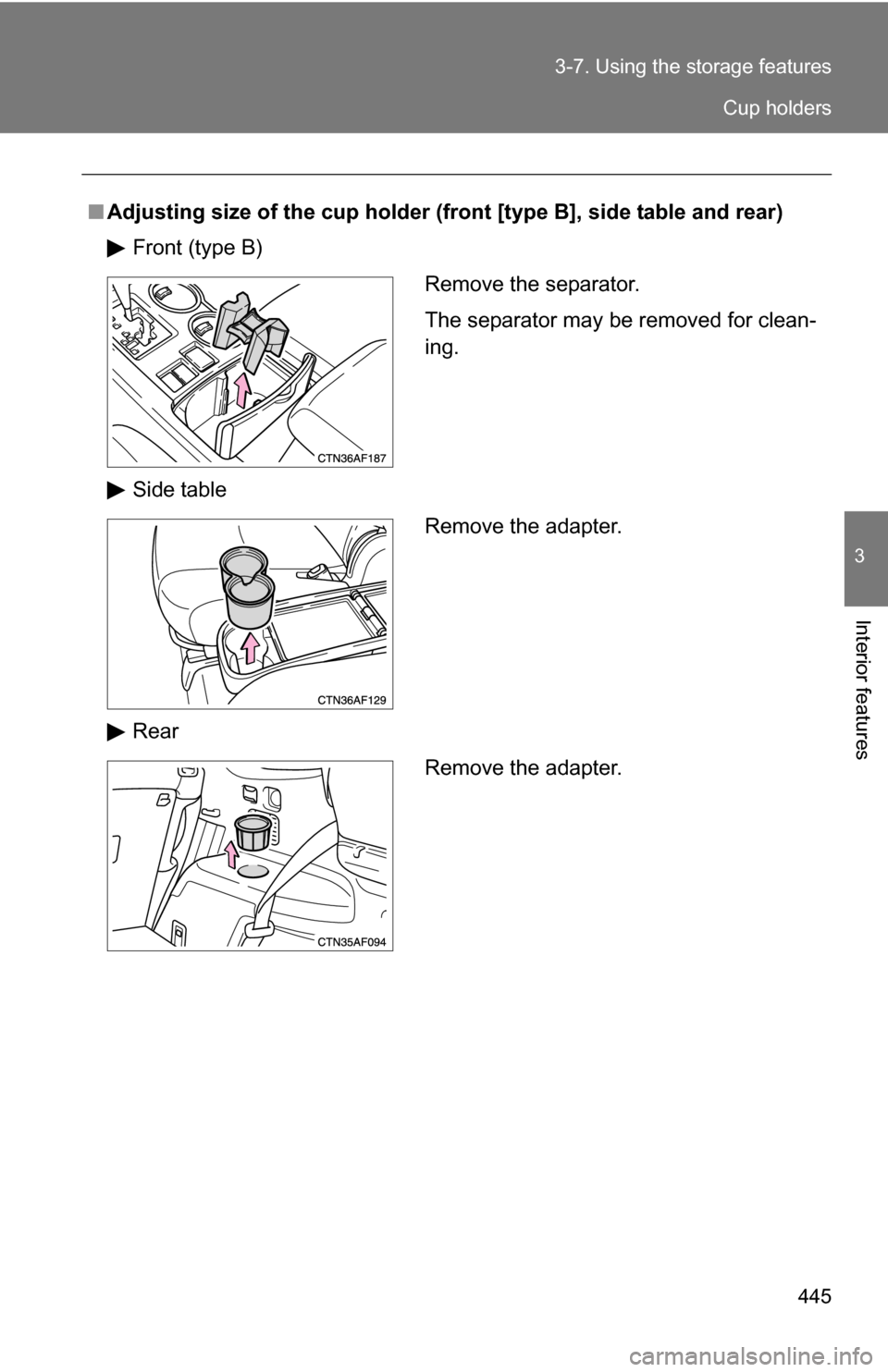

445
3-7. Using the
storage features
3
Interior features
■Adjusting size of the cup holder (fr ont [type B], side table and rear)
Front (type B)
Side table
Rear
Remove the separator.
The separator may be removed for clean-
ing.
Remove the adapter.
Remove the adapter.
Cup holders

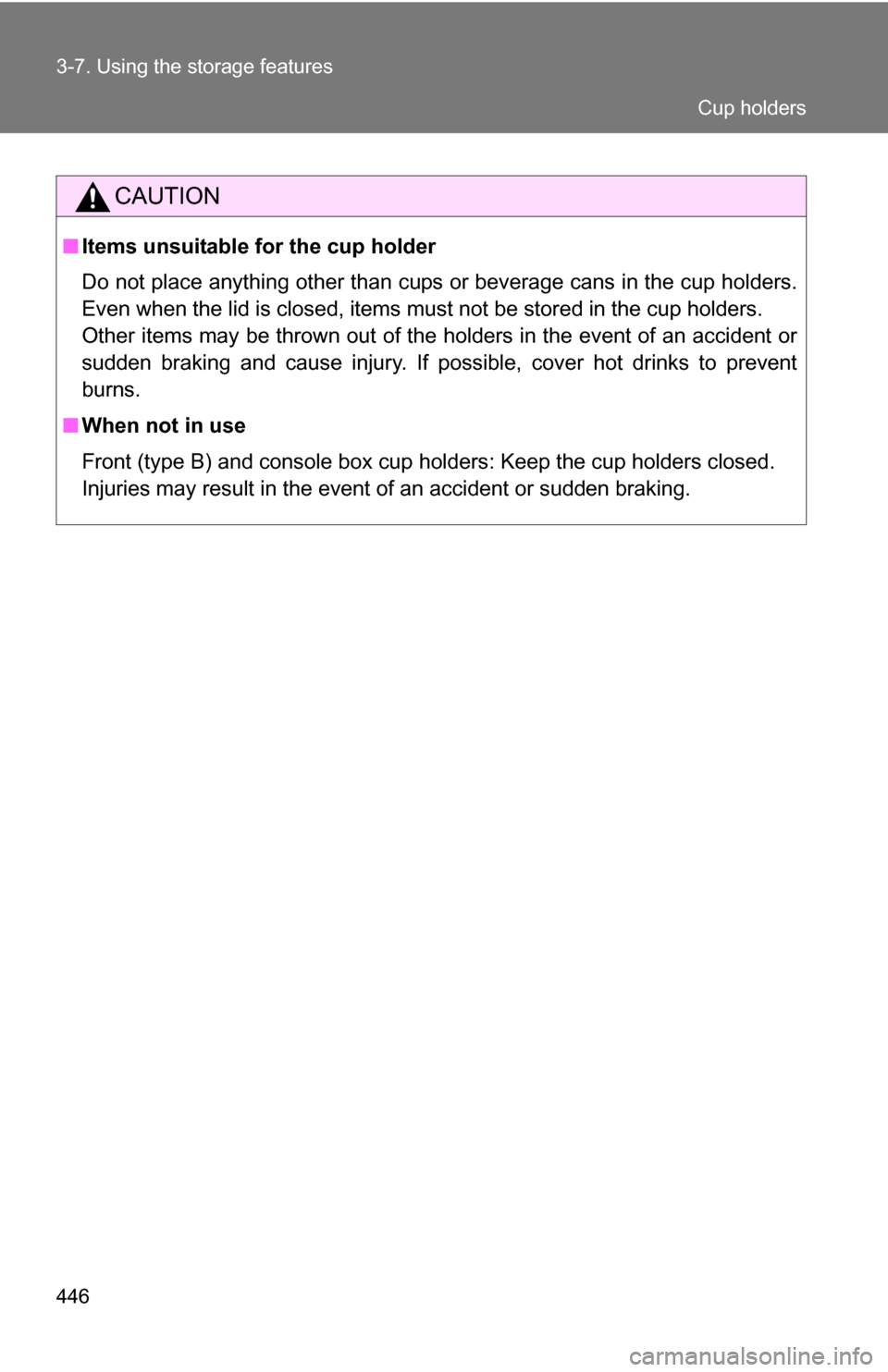

446 3-7. Using the storage features
CAUTION
■Items unsuitable for the cup holder
Do not place anything other than cups or beverage cans in the cup holders.
Even when the lid is closed, items must not be stored in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
■ When not in use
Front (type B) and console box cup holders: Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders

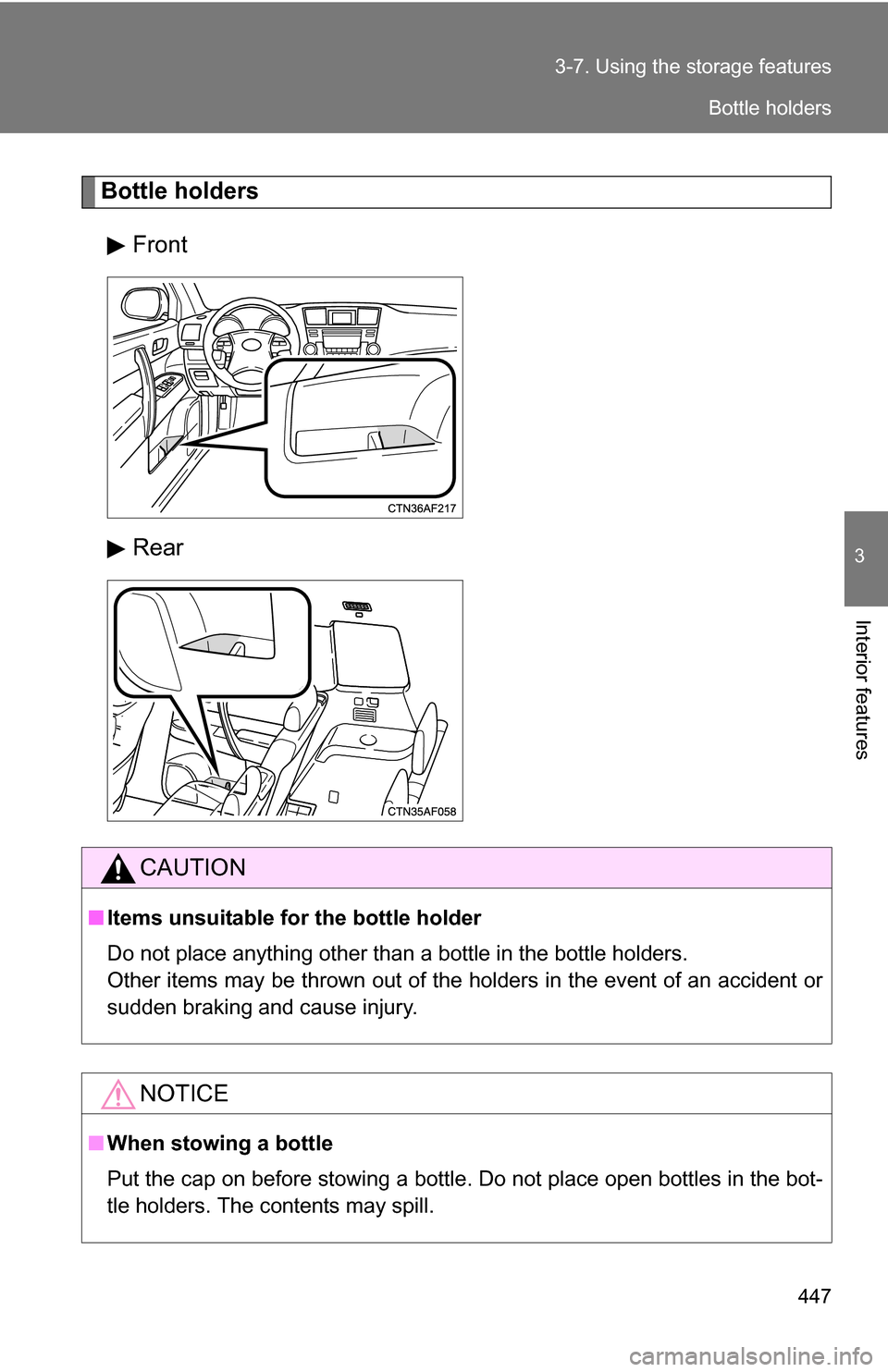

447
3-7. Using the
storage features
3
Interior features
Bottle holders
Front
Rear
CAUTION
■Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
■When stowing a bottle
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders. The contents may spill.
Bottle holders

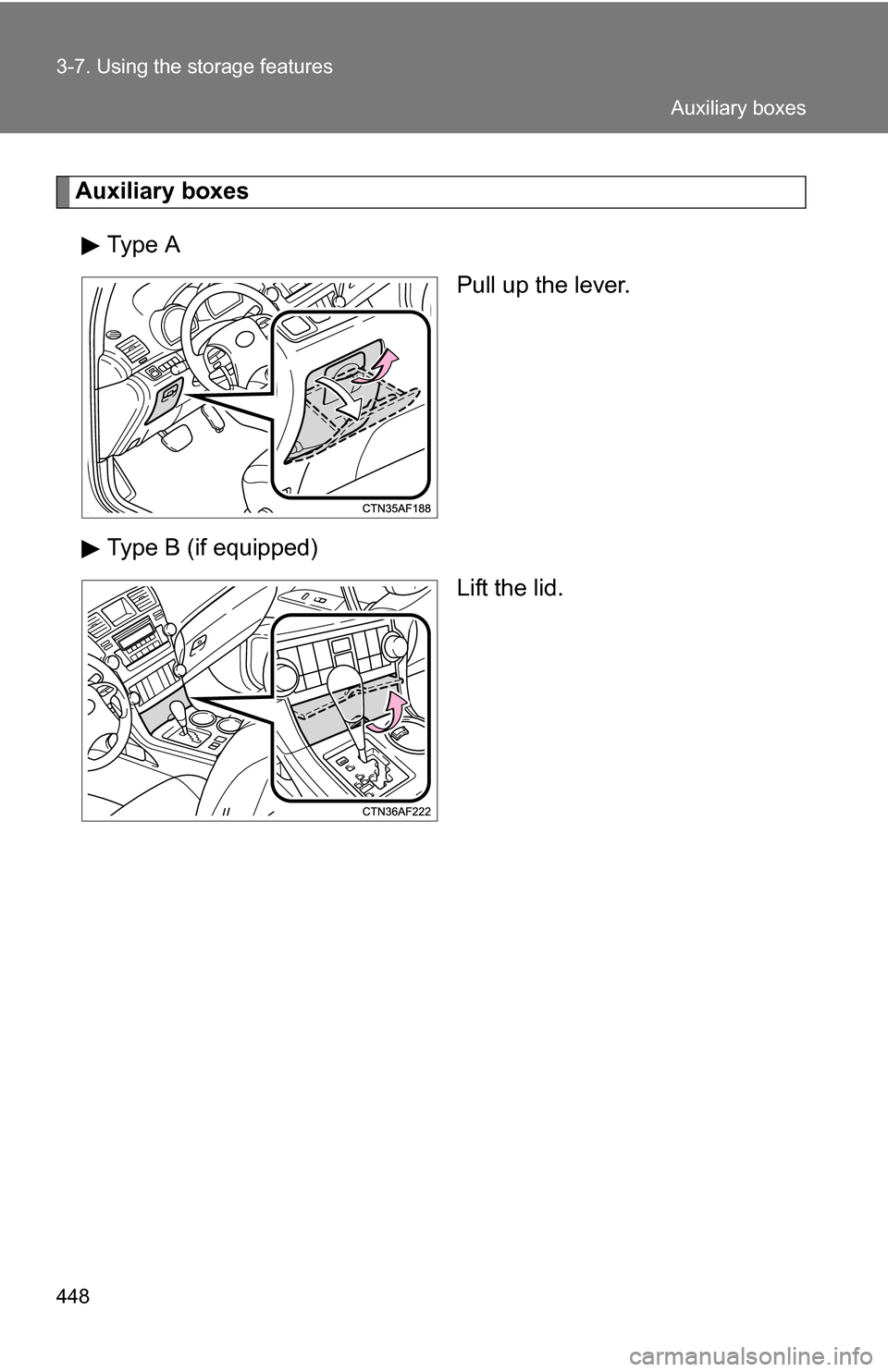

448 3-7. Using the storage features
Auxiliary boxesType A Pull up the lever.
Type B (if equipped) Lift the lid.
Auxiliary boxes

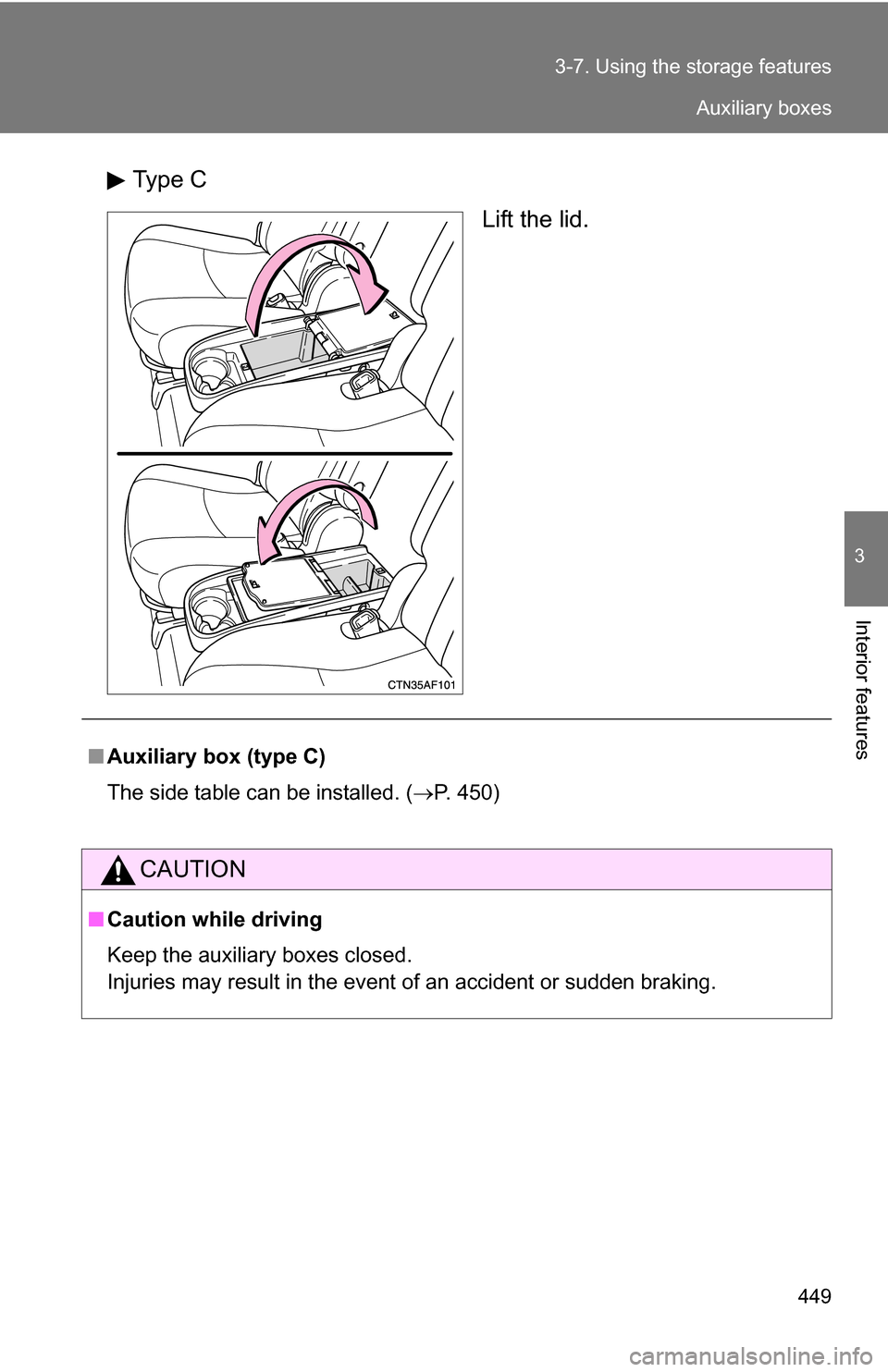

449
3-7. Using the
storage features
3
Interior features
Type C
Lift the lid.
■Auxiliary box (type C)
The side table can be installed. ( P. 450)
CAUTION
■Caution while driving
Keep the auxiliary boxes closed.
Injuries may result in the event of an accident or sudden braking.
Auxiliary boxes

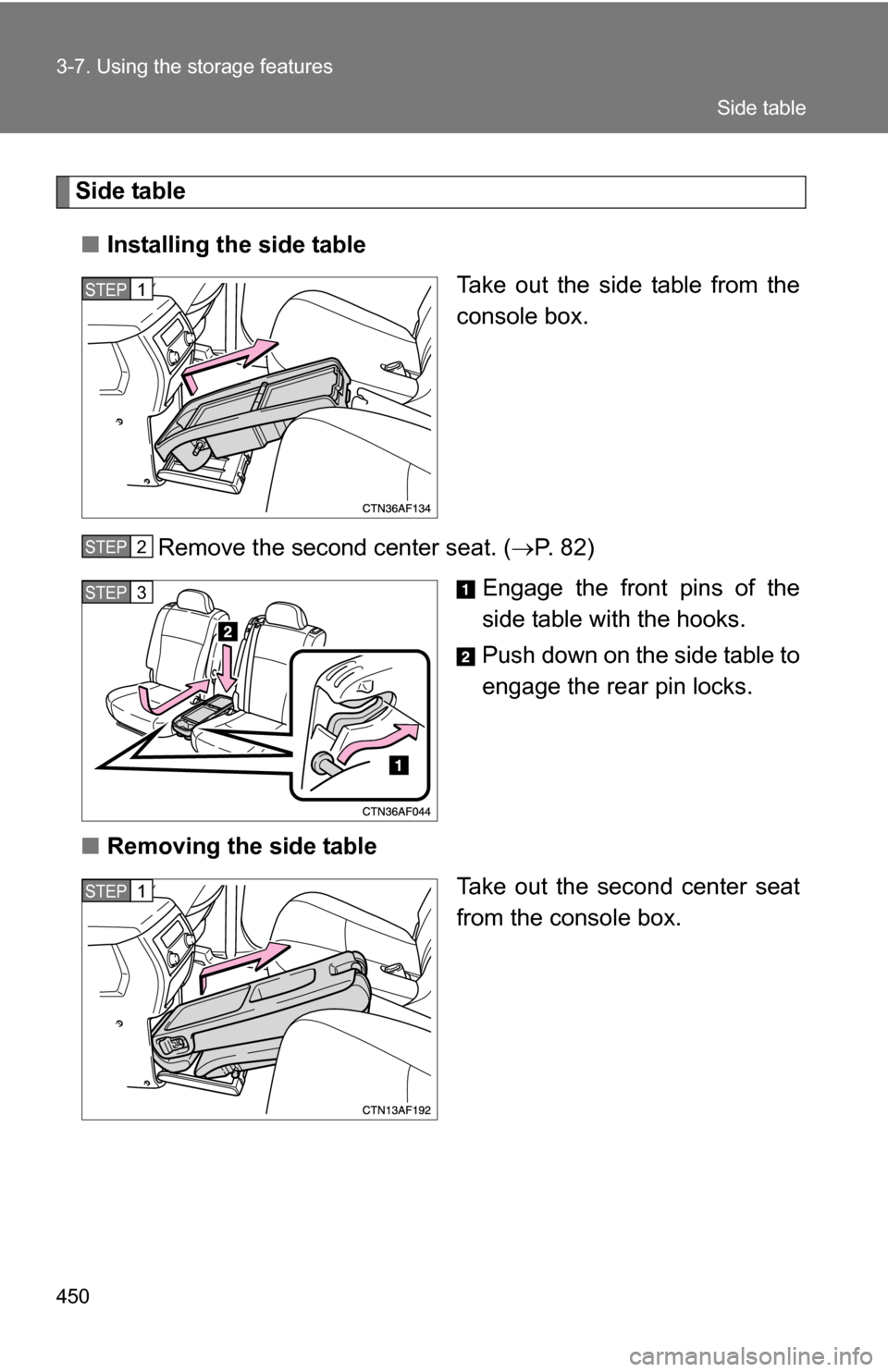

450 3-7. Using the storage features
Side table■ Installing the side table
Take out the side table from the
console box.
Remove the second center seat. ( P. 82)
Engage the front pins of the
side table with the hooks.
Push down on the side table to
engage the rear pin locks.
■ Removing the side table
Take out the second center seat
from the console box.
STEP1
STEP2
STEP3
STEP1
Side table
