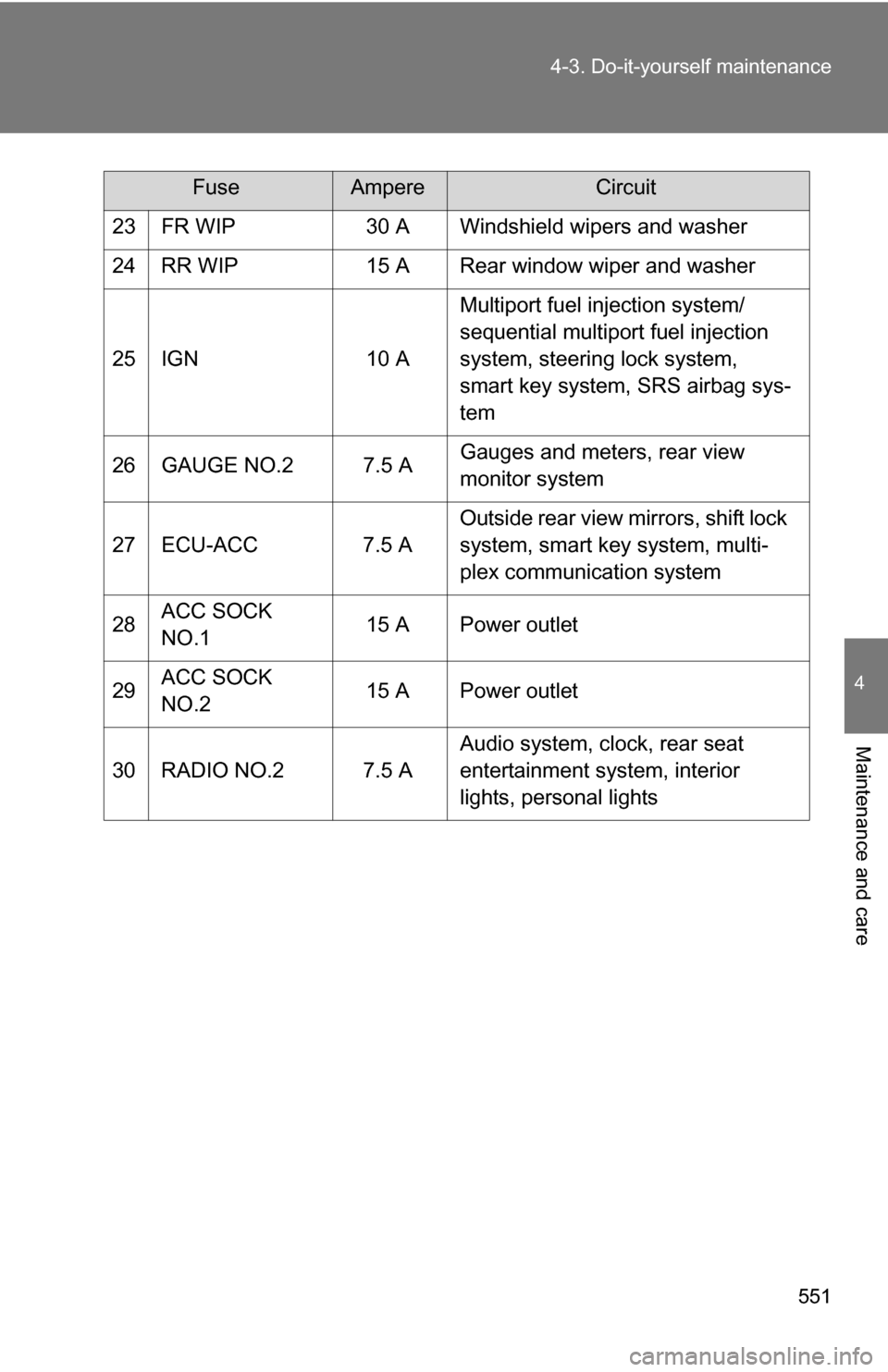

Page 551 of 684
551
4-3. Do-it-yourself maintenance
4
Maintenance and care
23 FR WIP
30 A Windshield wipers and washer
24 RR WIP 15 A Rear window wiper and washer
25 IGN 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, steering lock system,
smart key system, SRS airbag sys-
tem
26 GAUGE NO.2 7.5 A Gauges and meters, rear view
monitor system
27 ECU-ACC 7.5 A Outside rear view mirrors, shift lock
system, smart key system, multi-
plex communication system
28 ACC SOCK
NO.1 15 A Power outlet
29 ACC SOCK
NO.2 15 A Power outlet
30 RADIO NO.2 7.5 A Audio system, clock, rear seat
entertainment system, interior
lights, personal lights
FuseAmpereCircuit
Page 552 of 684

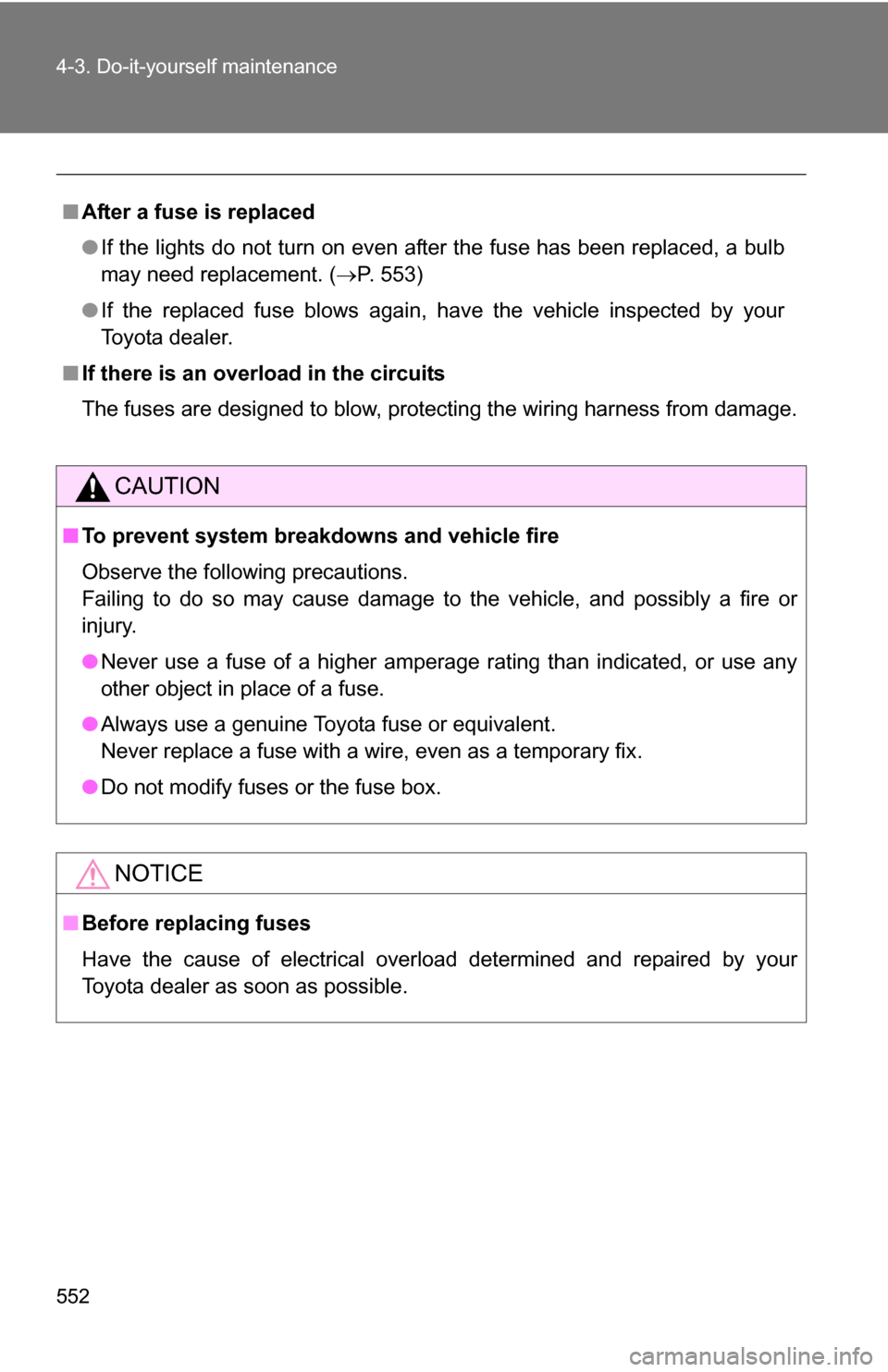

552 4-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 553)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.

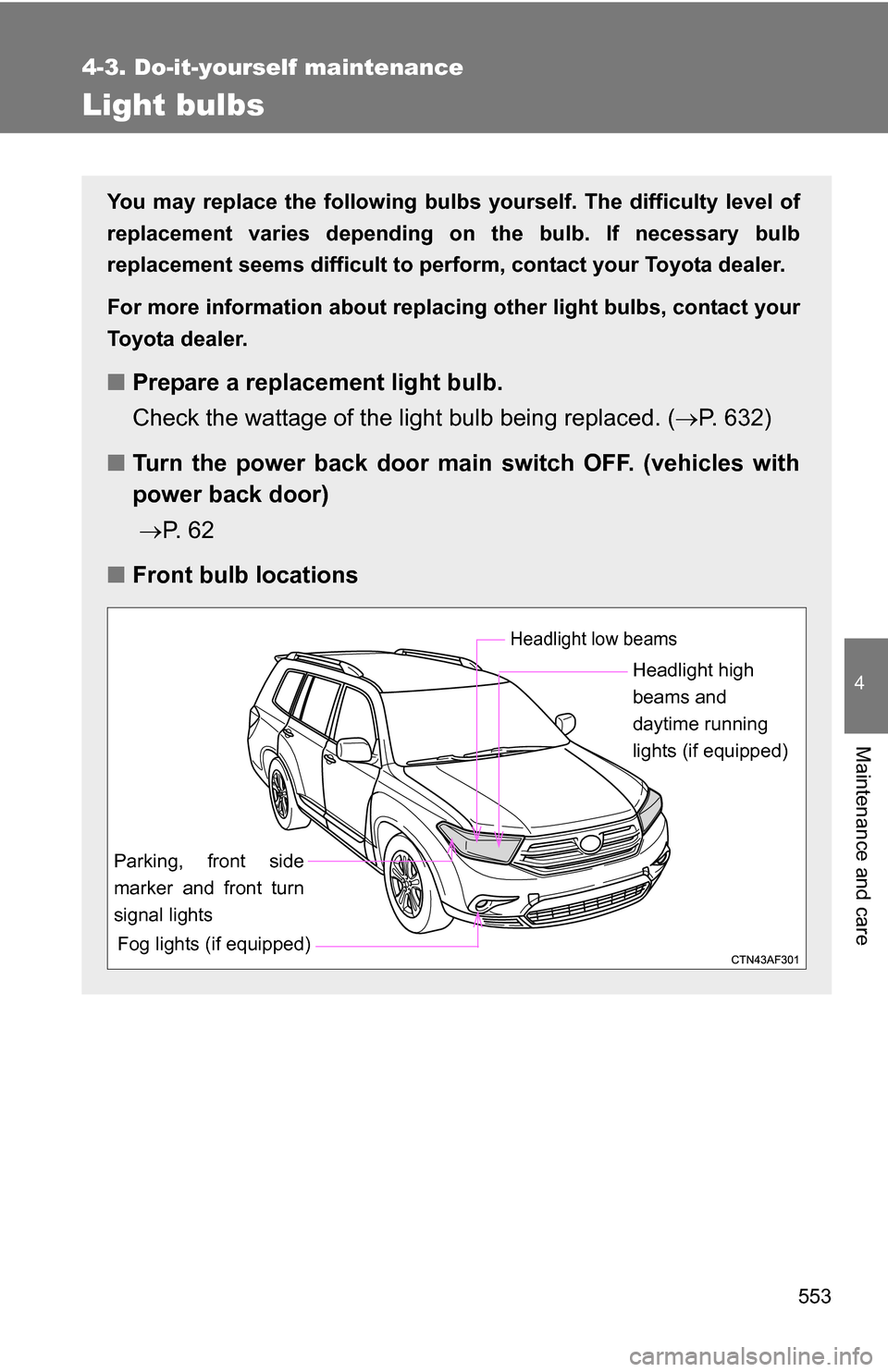

Page 553 of 684
553
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 632)
■ Turn the power back door main switch OFF. (vehicles with
power back door)
P. 6 2
■ Front bulb locations
Headlight high
beams and
daytime running
lights (if equipped)
Headlight low beams
Fog lights (if equipped)
Parking, front side
marker and front turn
signal lights

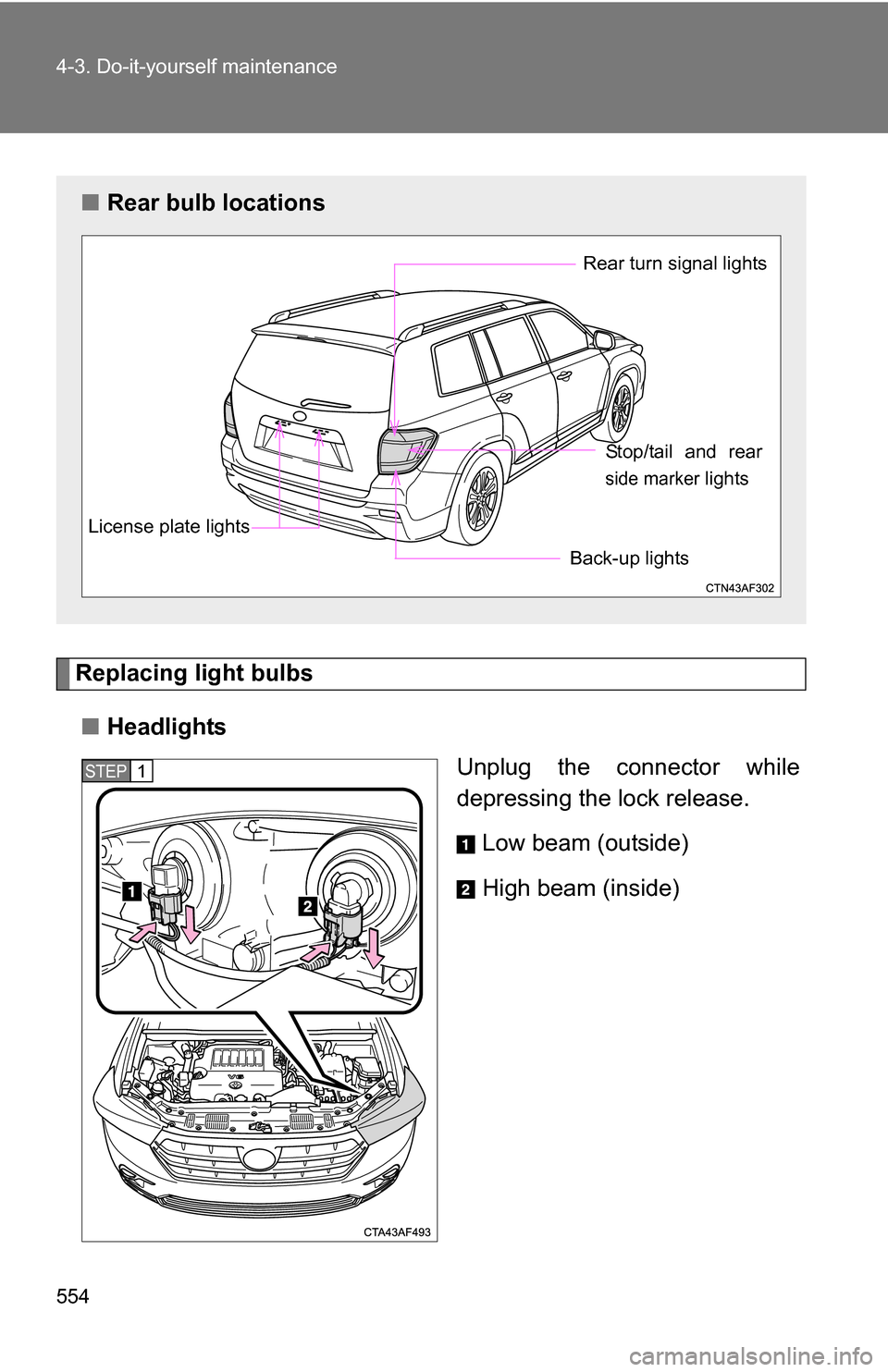

Page 554 of 684
554 4-3. Do-it-yourself maintenance
Replacing light bulbs■ Headlights
Unplug the connector while
depressing the lock release.
Low beam (outside)
High beam (inside)
■Rear bulb locations
Back-up lightsRear turn signal lights
Stop/tail and rear
side marker lights
License plate lights
STEP1

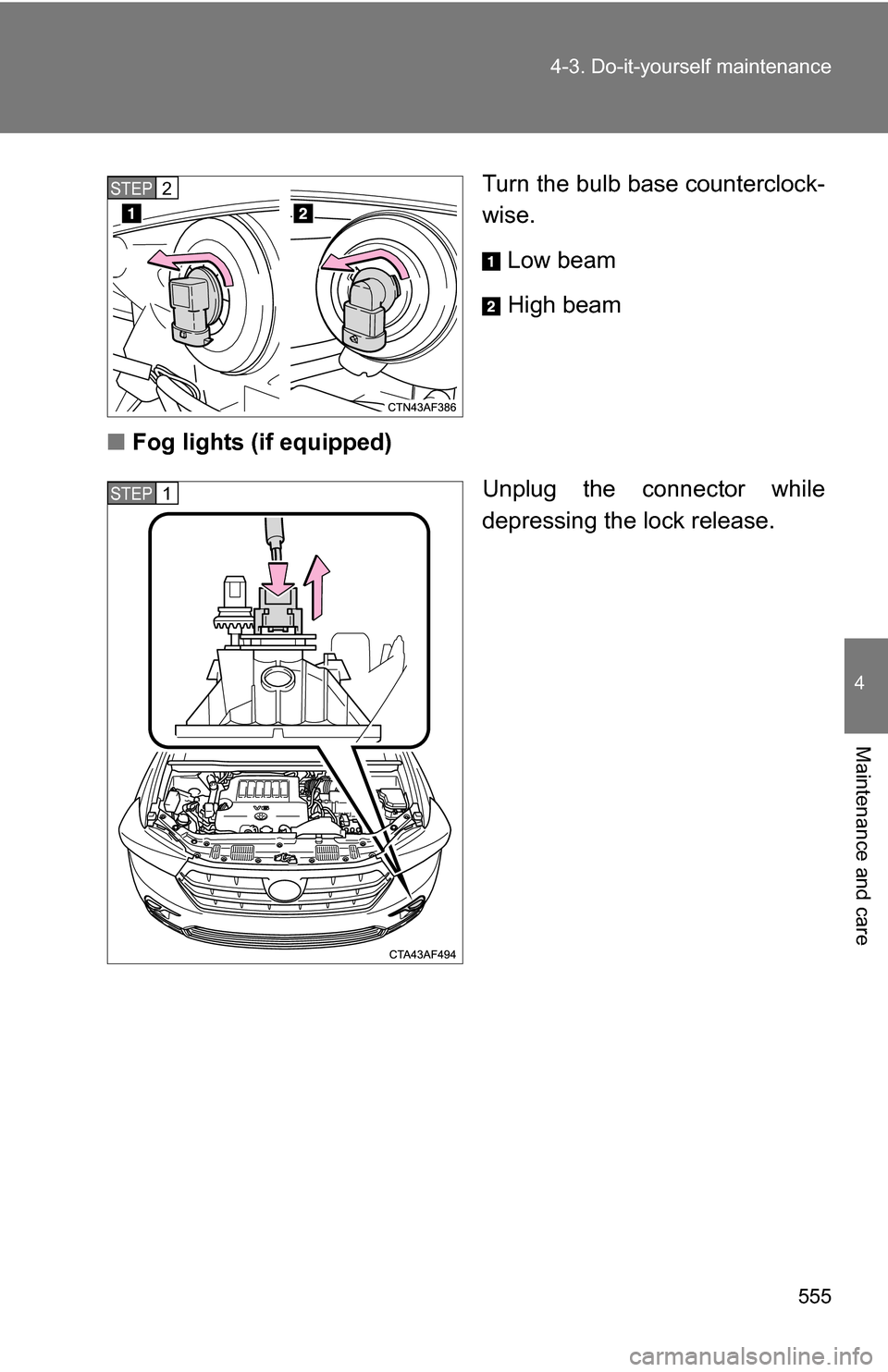

Page 555 of 684
555
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Low beam
High beam
■ Fog lights (if equipped)
Unplug the connector while
depressing the lock release.STEP2
STEP1

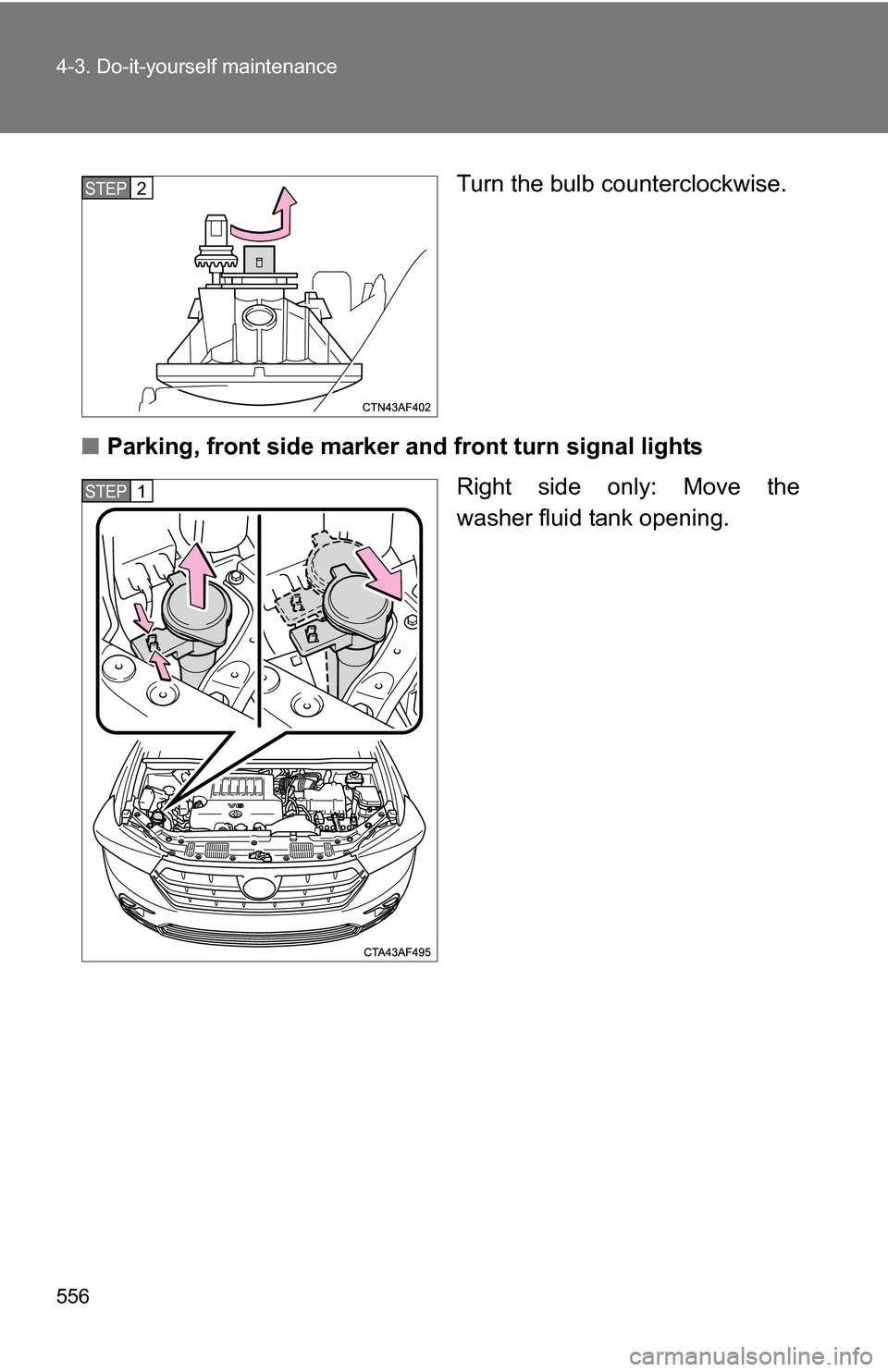

Page 556 of 684
556 4-3. Do-it-yourself maintenance
Turn the bulb counterclockwise.
■ Parking, front side marker and front turn signal lights
Right side only: Move the
washer fluid tank opening.STEP2
STEP1

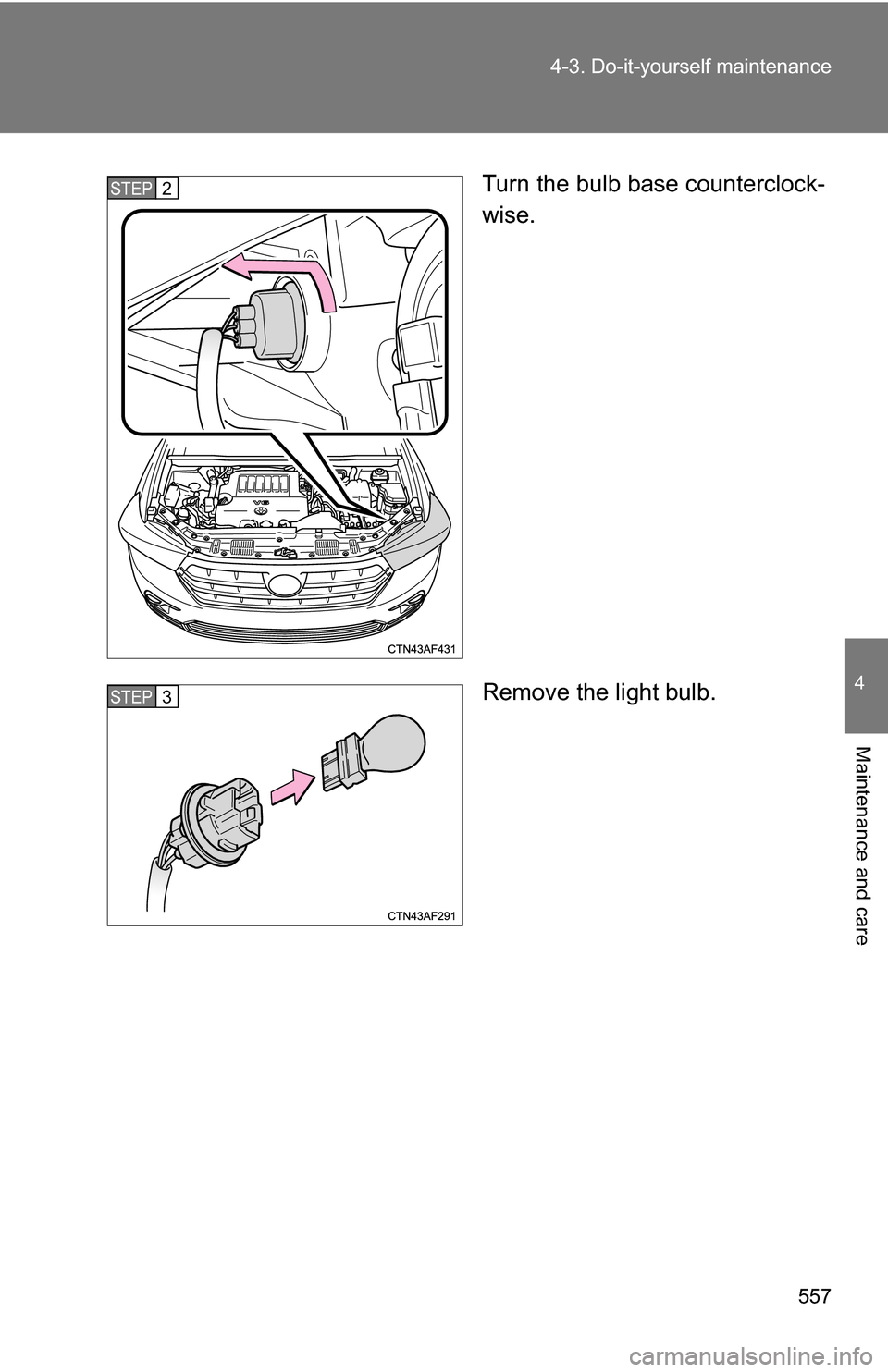

Page 557 of 684
557
4-3. Do-it-yourself maintenance
4
Maintenance and care
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP2
STEP3
Page 558 of 684

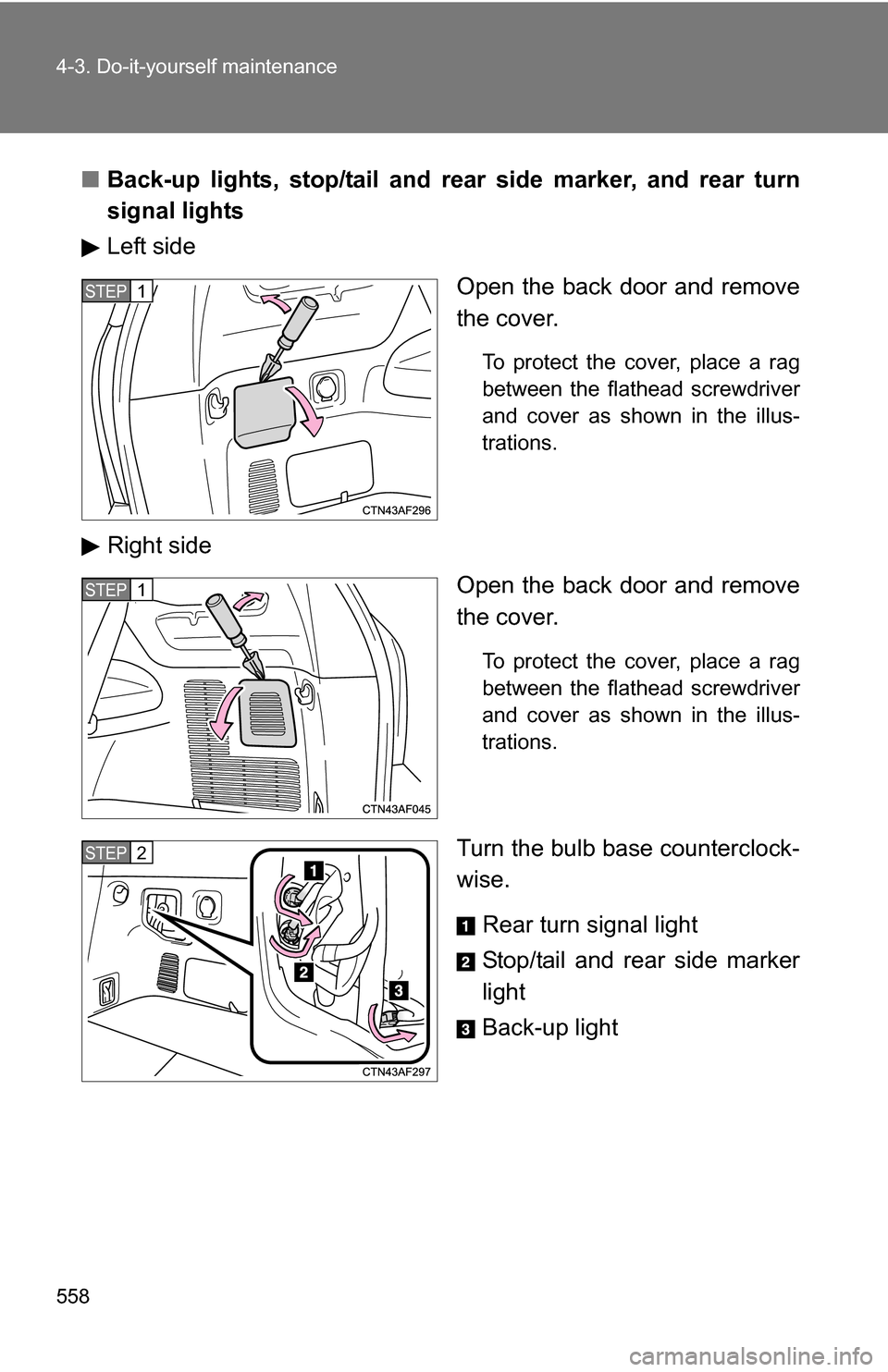

558 4-3. Do-it-yourself maintenance
■Back-up lights, stop/tail and rear side marker, and rear turn
signal lights
Left side
Open the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right sideOpen the back door and remove
the cover.
To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Stop/tail and rear side marker
light
Back-up light
STEP1
STEP1
STEP2

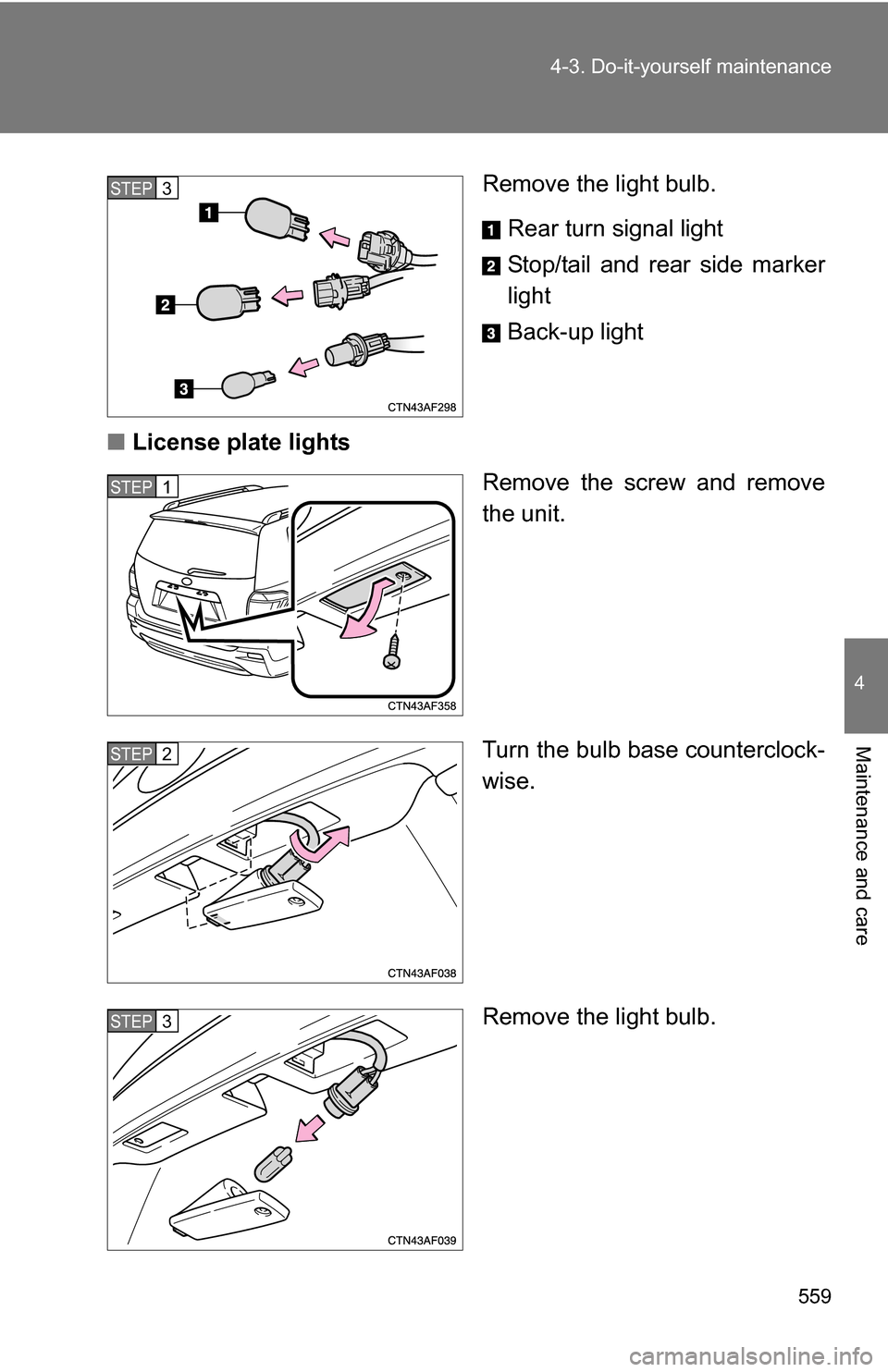

Page 559 of 684
559
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
Rear turn signal light
Stop/tail and rear side marker
light
Back-up light
■ License plate lights
Remove the screw and remove
the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

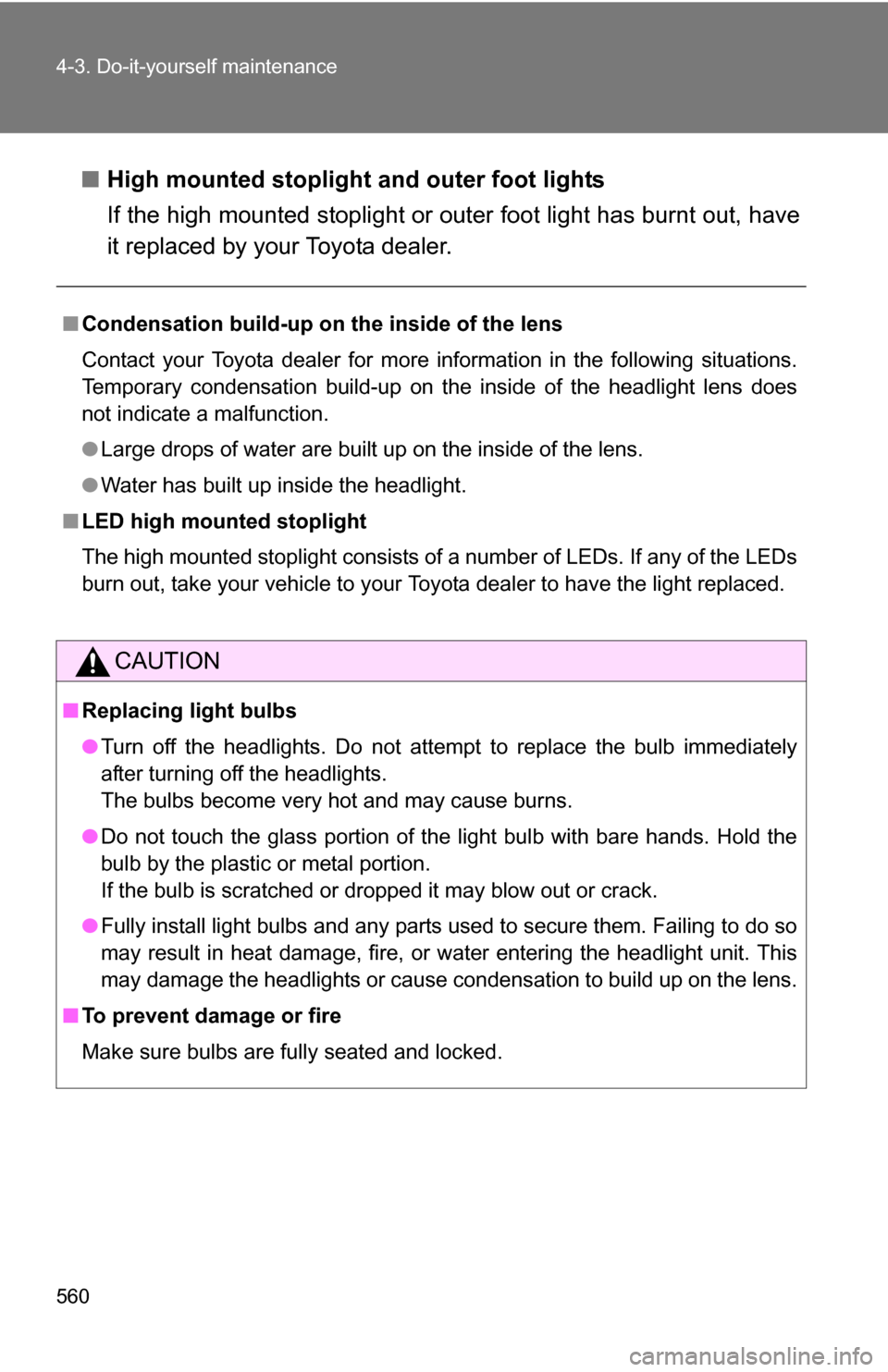

Page 560 of 684

560 4-3. Do-it-yourself maintenance
■High mounted stoplight and outer foot lights
If the high mounted stoplight or outer foot light has burnt out, have
it replaced by your Toyota dealer.
■Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
