TOYOTA HIGHLANDER 2019 Owners Manual (in English)

6218-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U
Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.
The jack point guides are located
under the rocker panel. They
indicate the jack point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
5
6

6228-2. Steps to take in an emergency
HIGHLANDER_U
■If the spare tire cannot be lowered
If the spare tire cannot be lowered, it may not have been stowed properly.
Perform the following procedure:
If the spare tire still cannot be lowered, the wire cable may be severed.
Have the vehicle inspected by your Toyota dealer. Fully tighten the spare tire clamp bolt
by turning the jack handle clockwise
until two clicks are heard and the jack
handle skips.
Turn the jack handle counterclock-
wise to lower the spare tire.
If the spare tire still cannot be low-
ered, attempt to fully tighten the spare
tire clamp bolt again by turning the
jack handle clockwise. Then turn it
counterclockwise at least 2 turns to
lower the spare tire.
1
2

6238-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehi cle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changin g a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the t ire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been spe cifi-
cally designed for that wheel.
• If there are any cracks or defo rmations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. ( P. 548)
●Observe the followi ng precautions.
Failure to do so may result in serious injury:
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Lower the spare tire completely to the ground before removing it
from under the vehicle.

6248-2. Steps to take in an emergency
HIGHLANDER_U
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, causing the tire to come
off.
Install the spare tire and loosely tighten each wheel nut by hand by
approximately the same amount.
Vehicles with a compact spare tire
Tighten the nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Vehicles with a full-size spare tire
Turn the nuts until the washers
come into contact with the
wheel.
Installing the spare tire
1
2
Disc
wheel
seat
Tapered portion
Washer
Disc wheel

6258-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U
Lower the vehicle.
Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.
Vehicles with wheel locks:
Tighten the wheel lock using
the wheel lock key after tighten-
ing other wheel nuts.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
■ Wheel locks (if equipped)
Each wheel is equipped with one wheel lock which requires a whe el lock key
for removal. The key can be found in the jack compartment of th e vehicle.
( P. 6 1 1 )
3
4
NOTICE
■When using a wheel lock key (vehicles with wheel locks)
Do not use an impact wrench to install or remove wheel locks. U se of an
impact wrench may cause permanent damage to wheel lock and key.

6268-2. Steps to take in an emergency
HIGHLANDER_U

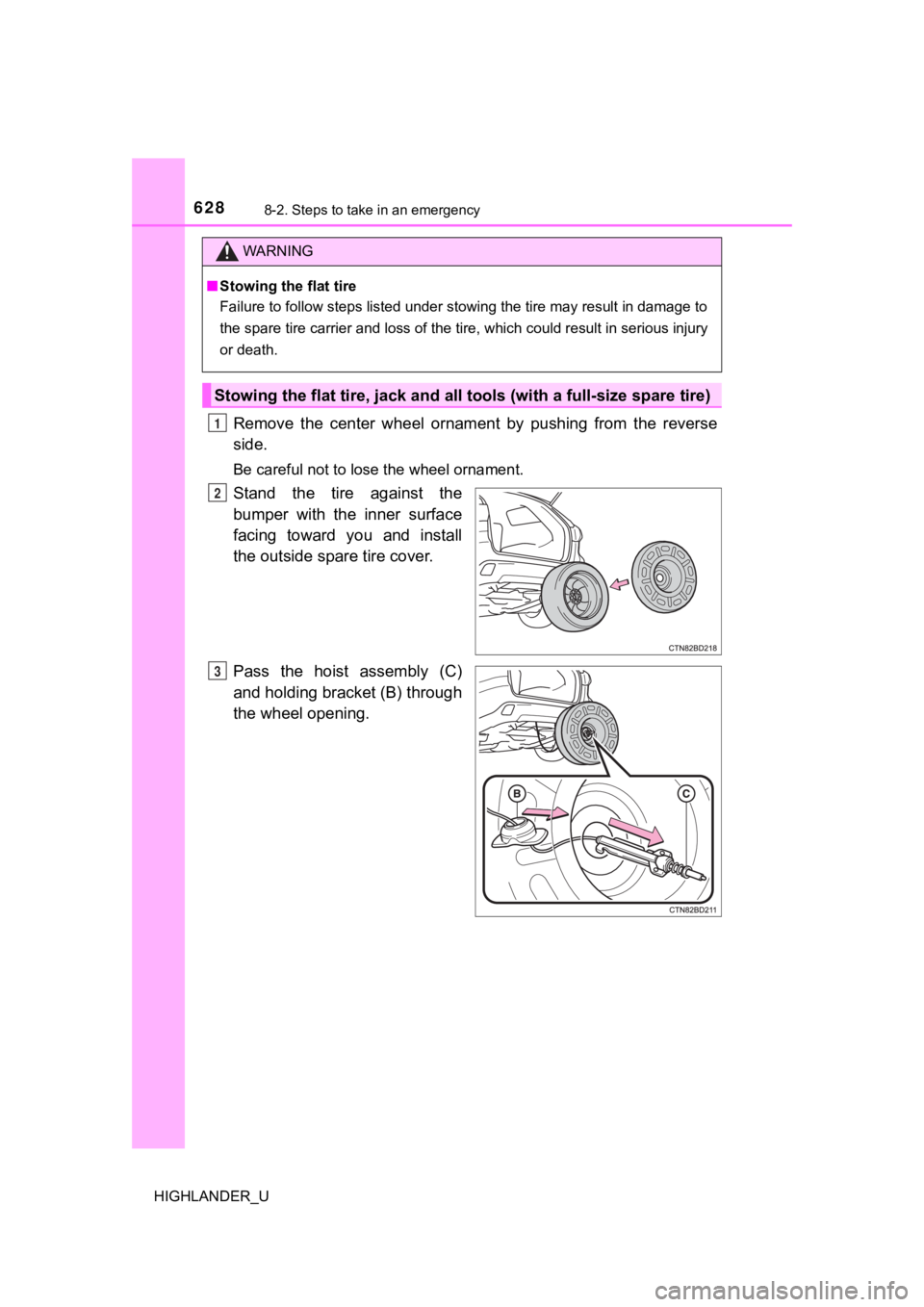

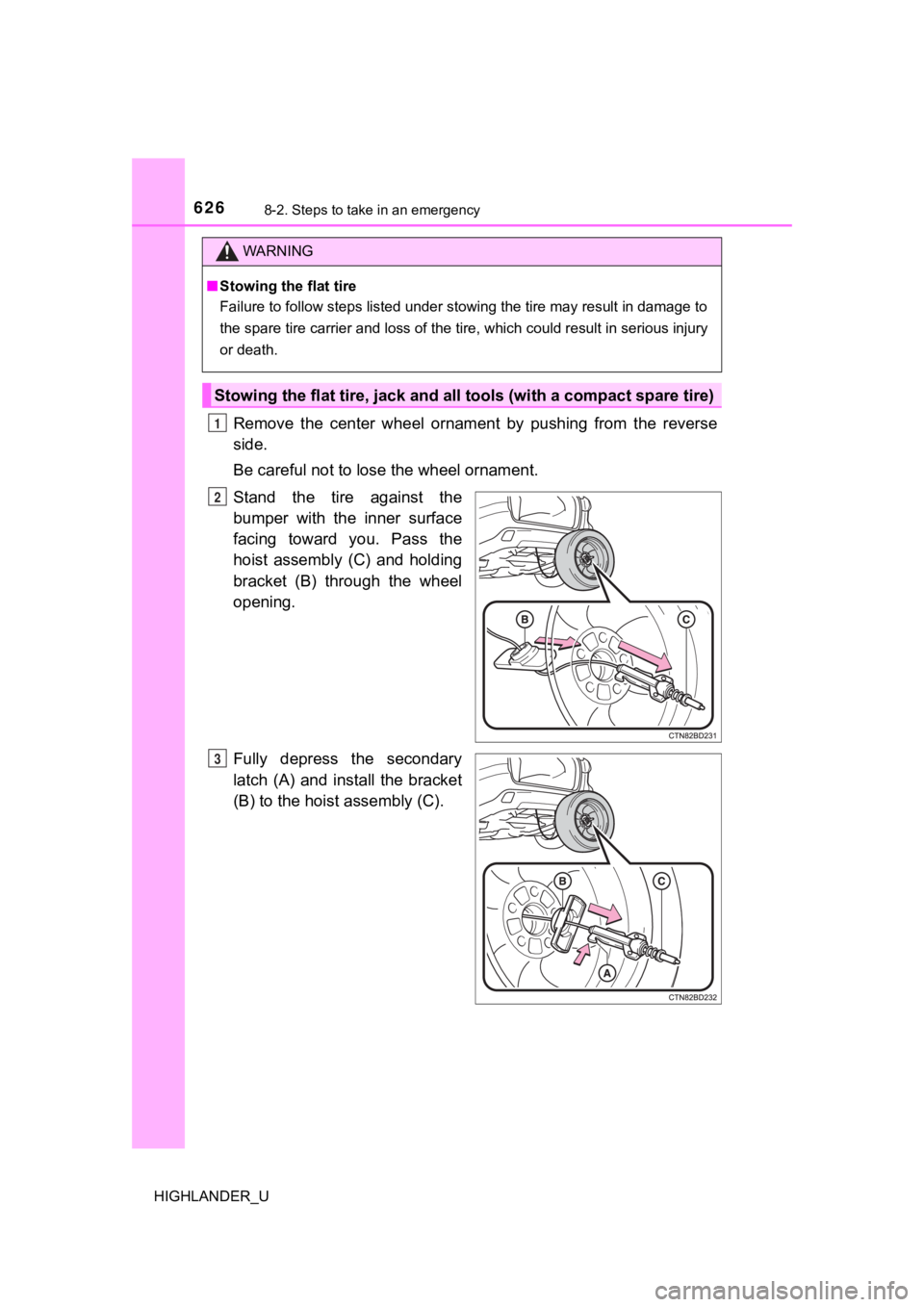

Remove the center wheel ornament by pushing from the reverse
side.
Be careful not to lo se the wheel ornament.
Stand the tire against the
bumper with the inner surface
facing toward you. Pass the
hoist assembly (C) and holding
bracket (B) through the wheel
opening.
Fully depress the secondary
latch (A) and install the bracket
(B) to the hoist assembly (C).
WARNING
■ Stowing the flat tire
Failure to follow steps listed under stowing the tire may resul t in damage to
the spare tire carrier and loss of the tire, which could result in serious injury
or death.
Stowing the flat tire, jack and all tools (with a compact spare tire)
1
2
3

6278-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U

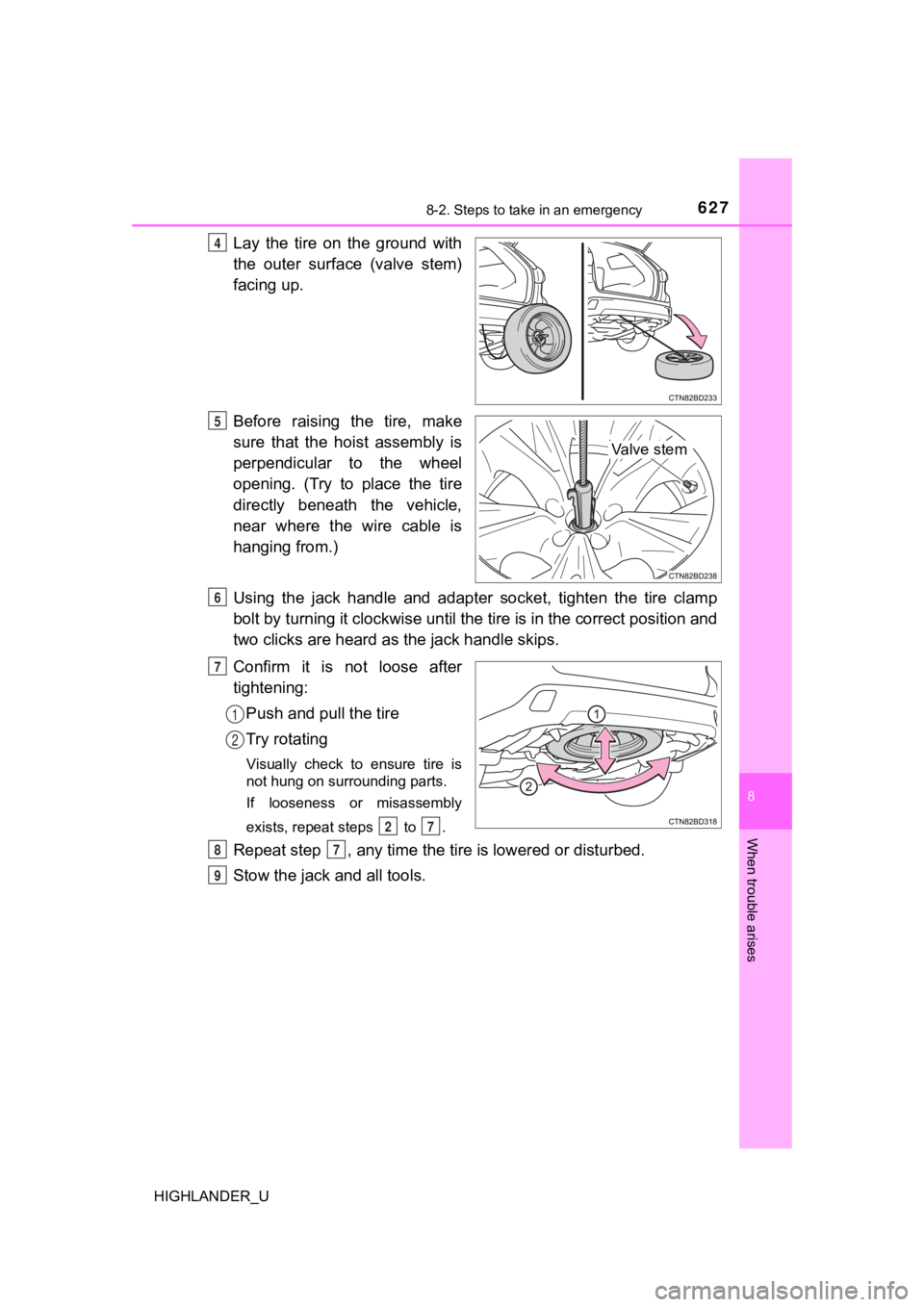

Lay the tire on the ground with
the outer surface (valve stem)
facing up.
Before raising the tire, make
sure that the hoist assembly is
perpendicular to the wheel
opening. (Try to place the tire
directly beneath the vehicle,
near where the wire cable is
hanging from.)
Using the jack handle and adapter socket, tighten the tire clamp
bolt by turning it clockwise until the tire is in the correct p osition and
two clicks are heard as the jack handle skips.
Confirm it is not loose after
tightening: Push and pull the tire
Try rotating
Visually check to ensure tire is
not hung on surrounding parts.
If looseness or misassembly
exists, repeat steps
to .
Repeat step , any t ime the tire is lowered or disturbed.
Stow the jack and all tools.
4
Valve stem
R
S
T
1
2
27
87
9

6288-2. Steps to take in an emergency
HIGHLANDER_U
Remove the center wheel ornament by pushing from the reverse
side.
Be careful not to lose the wheel ornament.
Stand the tire against the
bumper with the inner surface
facing toward you and install
the outside spare tire cover.
Pass the hoist assembly (C)
and holding bracket (B) through
the wheel opening.
WARNING
■ Stowing the flat tire
Failure to follow steps listed under stowing the tire may resul t in damage to
the spare tire carrier and loss of the tire, which could result in serious injury
or death.
Stowing the flat tire, jack and a ll tools (with a full-size spare tire)
1
2
3

6298-2. Steps to take in an emergency
8
When trouble arises
HIGHLANDER_U
Fully depress the secondary
latch (A) and install the bracket
(B) to the hoist assembly (C).
Lay the tire on the ground with
the outer surface (valve stem)
facing up.
When stowing the tire, make
sure that the hoist assembly is
placed perpendicular to the
wheel opening.
Using the jack handle and adapter socket, tighten the spare tire
clamp bolt by turning it clockwi se until the tire is in the correct posi-
tion and two clicks are hear d as the jack handle skips.4
5
Va l v e s t e m
S
T

6308-2. Steps to take in an emergency
HIGHLANDER_U

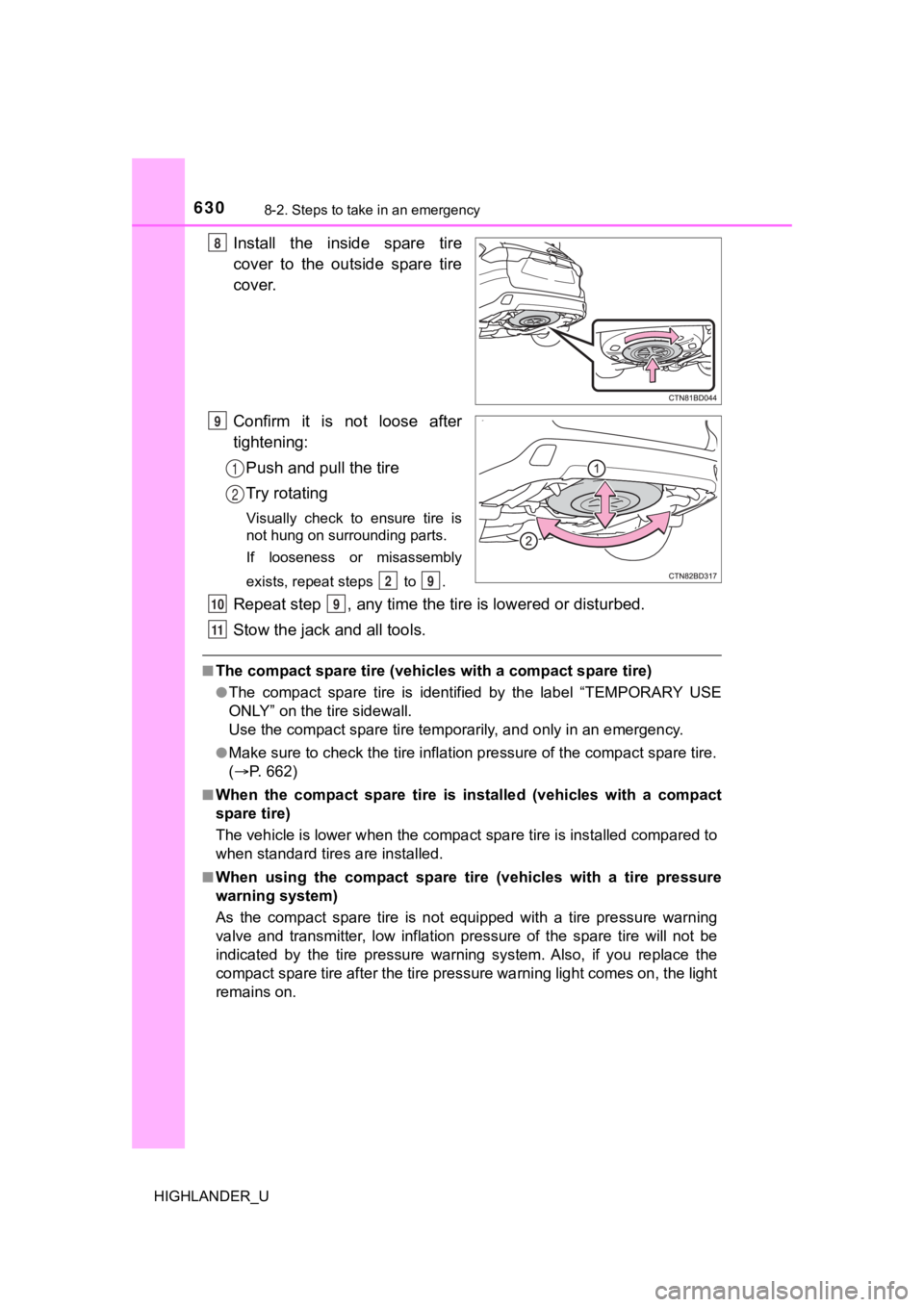

Install the inside spare tire
cover to the outside spare tire
cover.
Confirm it is not loose after
tightening:Push and pull the tire
Try rotating
Visually check to ensure tire is
not hung on surrounding parts.
If looseness or misassembly
exists, repeat steps
to .
Repeat step , any t ime the tire is lowered or disturbed.
Stow the jack and all tools.
■The compact spare tire (vehicles with a compact spare tire)
●The compact spare tire is identified by the label “TEMPORARY US E
ONLY” on the tire sidewall.
Use the compact spar e tire temporarily, and only in an emergenc y.
●Make sure to check the tire inflation pressure of the compact spare tire.
(  P. 6 6 2 )
■When the compact spare tire is installed (vehicles with a compa ct
spare tire)
The vehicle is lower when the compact spare tire is installed compared to
when standard tires are installed.
■When using the compact spare tire (vehicles with a tire pressur e
warning system)
As the compact spare tire is not equipped with a tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
indicated by the tire pressure warning system. Also, if you rep lace the
compact spare tire after the tire pressure warning light comes on, the light
remains on.
