TOYOTA HIGHLANDER 2019 Owners Manual (in English)

2019
QUICK REFERENCE GUIDE
HIGHLANDER
114709_A_18-MKG-12086_QRG_Highlander_COVER.indd 28/7/18 9:46 PM

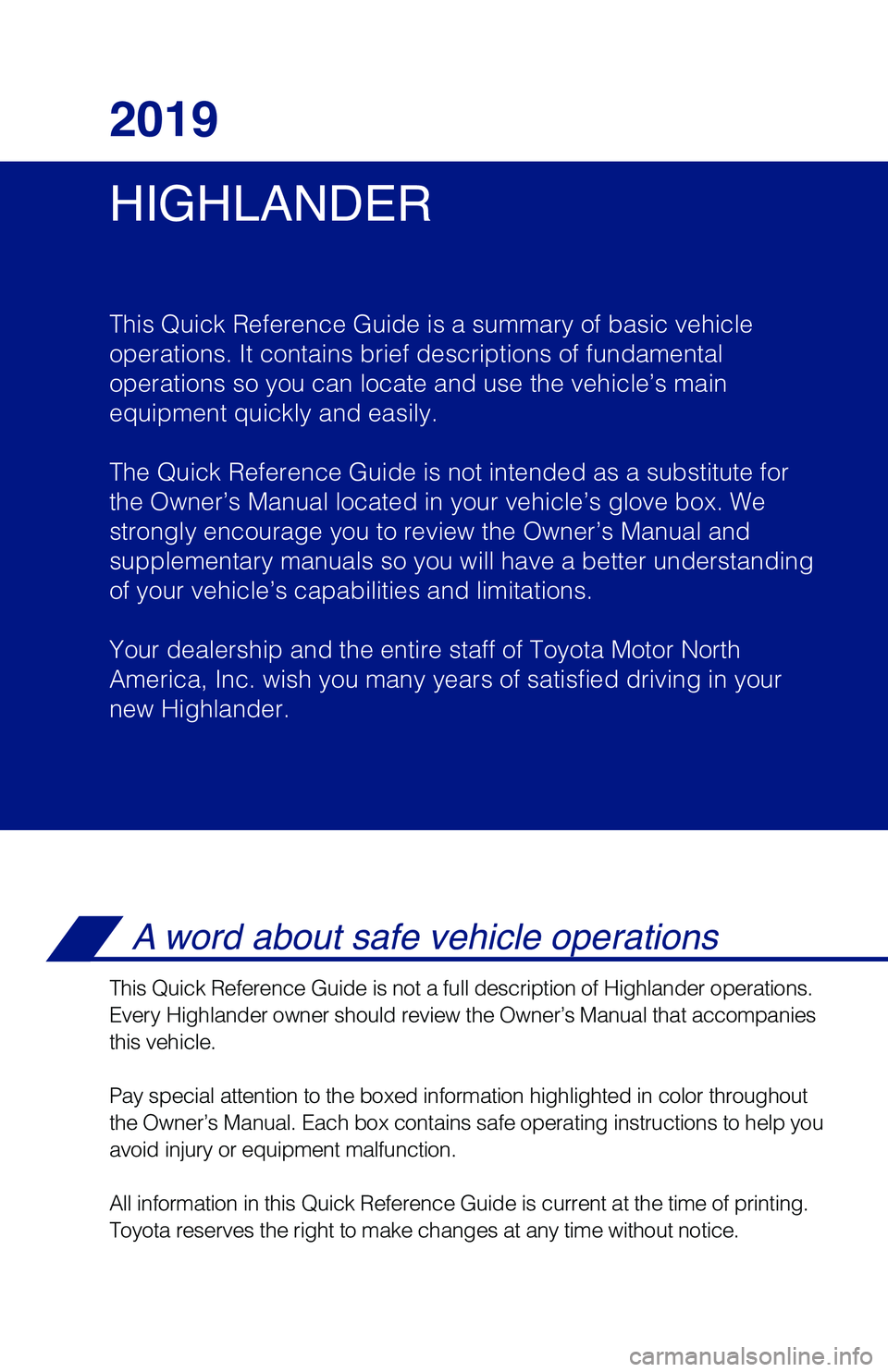

HIGHLANDER 2019
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satisfied driving in your
new Highlander.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Highlander operations.
Every Highlander owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to \�help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of \�printing.
Toyota reserves the right to make changes at any time without notice.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 28/14/18 1:22 AM

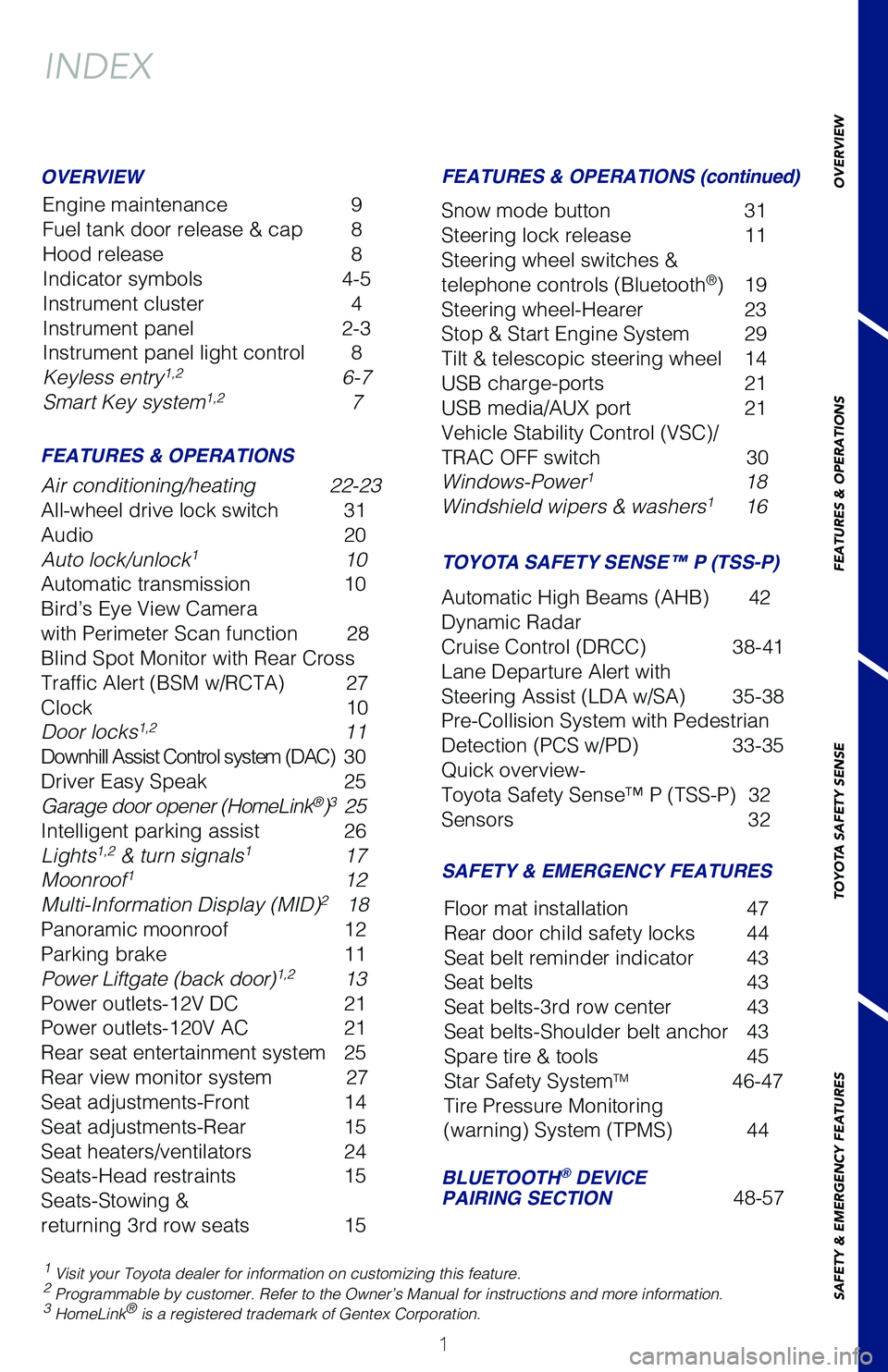

1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
INDEX
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\�ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES TOYOTA SAFETY SENSE™ P (TSS-P)
Air conditioning/heating
22-23
All-wheel drive lock switch 31
Audio 20
Auto lock/unlock
1 10
Automatic transmission 10
Bird’s Eye View Camera
with Perimeter Scan function 28
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA) 27
Clock 10
Door locks
1,2 11
Downhill Assist Control system (DAC) 3 0
Driver Easy Speak 25
Garage door opener (HomeLink
®)3 25
Intelligent parking assist 26
Lights
1,2 & turn signals1 17
Moonroof1 12
Multi-Information Display (MID)2 18
Panoramic moonroof 12
Parking brake 11
Power Liftgate (back door)
1,2 13
Power outlets-12V DC 21
Power outlets-120V AC 21
Rear seat entertainment system 25
Rear view monitor system 27
Seat adjustments-Front 14
Seat adjustments-Rear 15
Seat heaters/ventilators 24
Seats-Head restraints 15
Seats-Stowing &
returning 3rd row seats 15Snow mode button
31
Steering lock release 11
Steering wheel switches &
telephone controls (Bluetooth
®) 19
Steering wheel-Hearer 23
Stop & Start Engine System 29
Tilt & telescopic steering wheel 14
USB charge-ports 21
USB media/AUX port 21
Vehicle Stability Control (VSC)/
TRAC OFF switch 30
Windows-Power
1 18
Windshield wipers & washers1 16
Automatic High Beams (AHB) 42
Dynamic Radar
Cruise Control (DRCC) 38-41
Lane Departure Alert with
Steering Assist (LDA w/SA) 35-38
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 33-35
Quick overview-
Toyota Safety Sense™ P (TSS-P) 32
Sensors 32
BLUETOOTH® DEVICE
PAIRING SECTION 48-57
Floor mat installation
47
Rear door child safety locks 44
Seat belt reminder indicator 43
Seat belts 43
Seat belts-3rd row center 43
Seat belts-Shoulder belt anchor 43
Spare tire & tools 45
Star Safety System
TM 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 44
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 18/14/18 1:22 AM

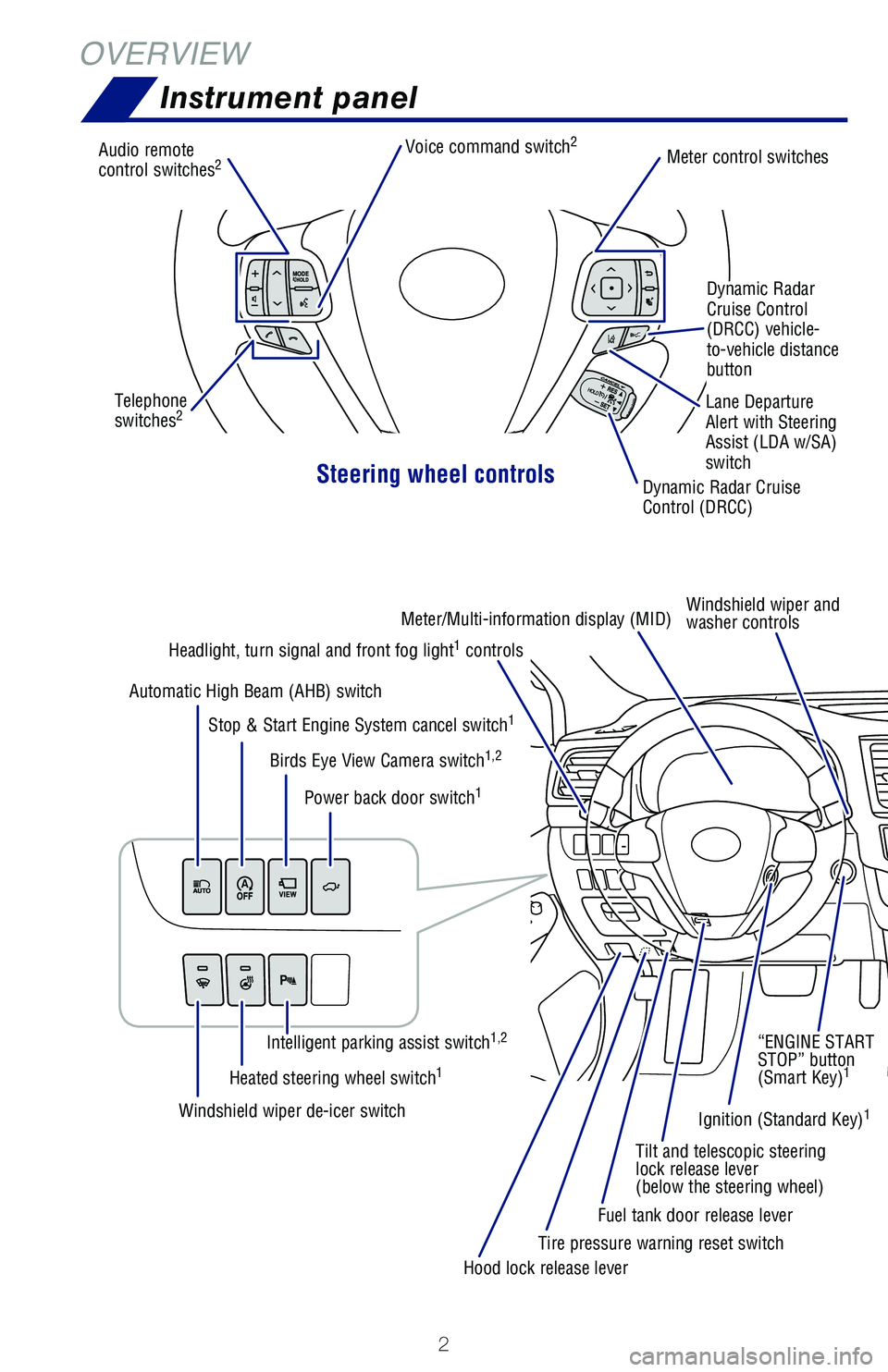

2
Steering wheel controls
Audio remote
control switches2Meter control switches
Dynamic Radar Cruise
Control
(DRCC)
Dynamic Radar
Cruise Control
(DRCC) vehicle-
to-vehicle distance
button
Lane Departure
Alert with Steering
Assist (LDA w/SA)
switch
Tilt and telescopic steering
lock release lever
(below the steering wheel)
Headlight, turn signal and front fog light
1 controls
Windshield wiper and
washer controls
Meter/Multi-information display (MID)
“ENGINE START
STOP” button
(Smart Key)
1
Ignition (Standard Key)1
Hood lock release leverFuel tank door release lever
Tire pressure warning reset switch
Windshield wiper de-icer switch
Heated steering wheel switch
1
Intelligent parking assist switch1,2
Automatic High Beam (AHB) switch
Stop & Start Engine System cancel switch
1
Birds Eye View Camera switch1,2
Power back door switch1
Voice command switch2
Telephone
switches2
OVERVIEWInstrument panel
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 28/14/18 1:22 AM

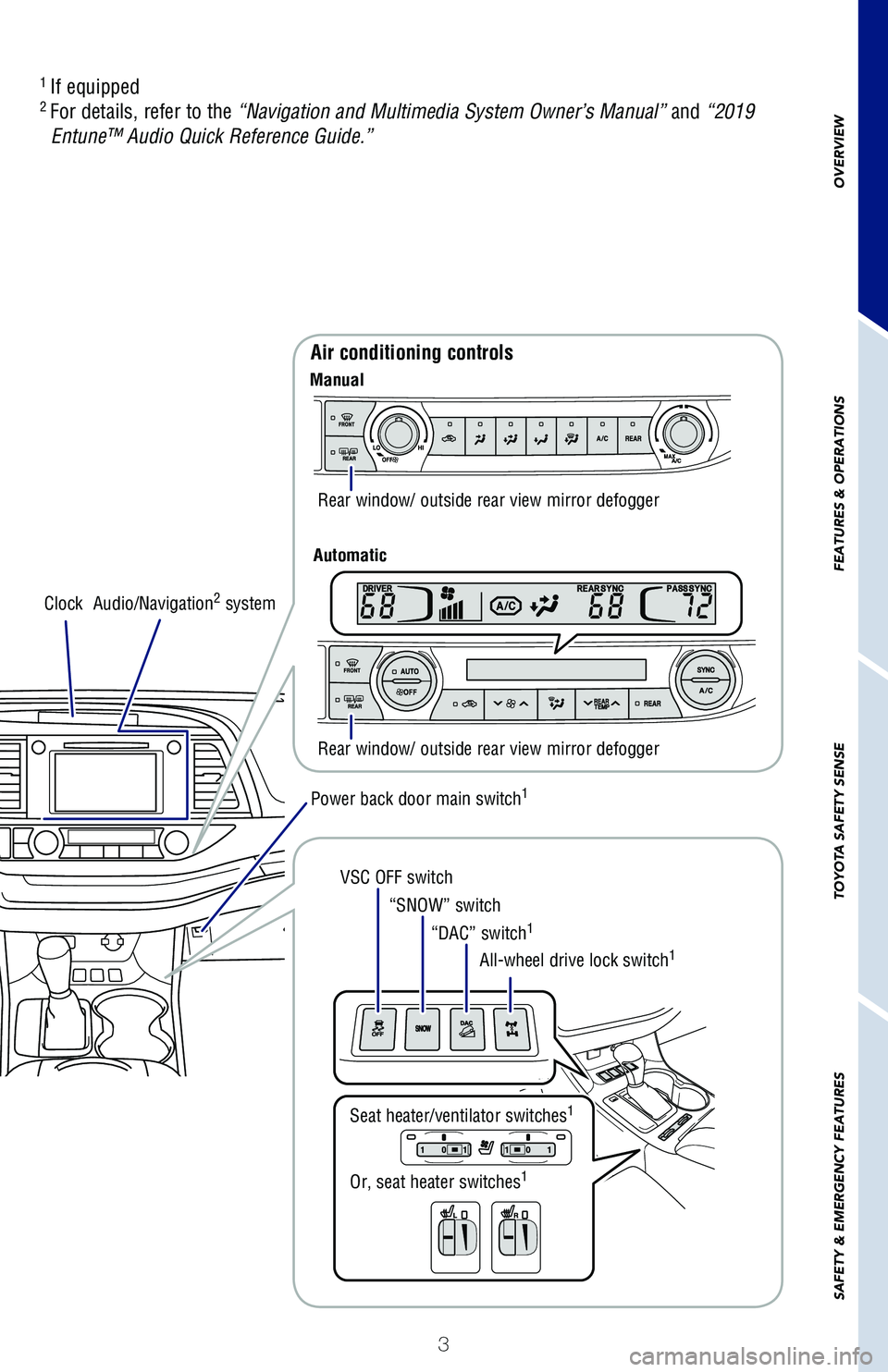

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Clock
“ENGINE START
STOP” button
(Smart Key)
1
Ignition (Standard Key)1
Audio/Navigation2 system Rear window/ outside rear view mirror defogger
Rear window/ outside rear view mirror defogger
Air conditioning controls
Power back door main switch1
VSC OFF switch
“SNOW” switch
“DAC” switch
1
All-wheel drive lock switch1
Seat heater/ventilator switches1
Or, seat heater switches1
1

If equipped2 For details, refer to the “Navigation and Multimedia System Owner’s Manual” and “2019
Entune™ Audio Quick Reference Guide.”
Manual
Automatic
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 38/14/18 1:22 AM

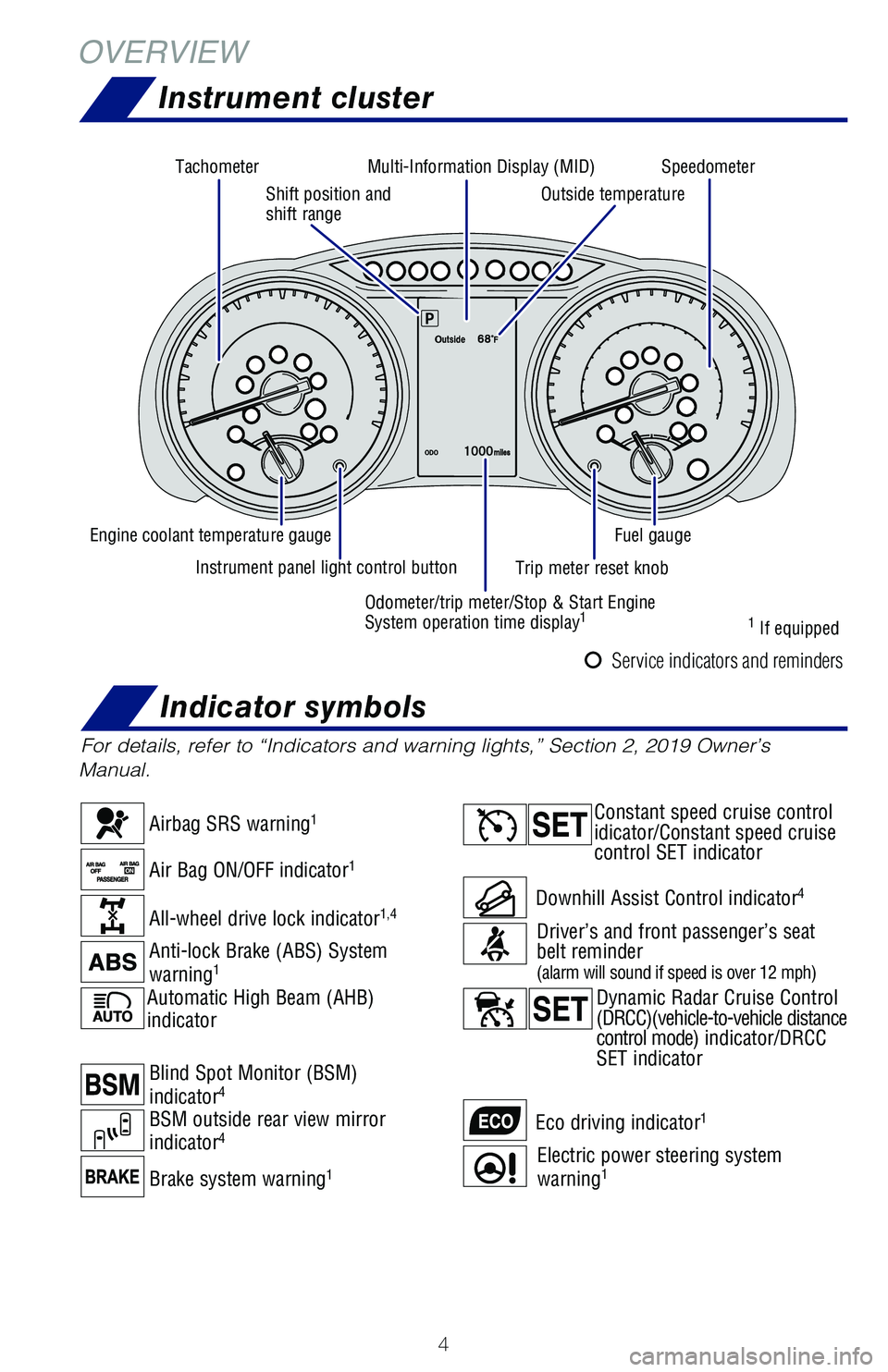

4
Automatic High Beam (AHB)
indicator
For details, refer to “Indicators and warning lights,” Section 2, \�2019 Owner’s
Manual.
Constant speed cruise control
idicator/Constant speed cruise
control SET indicator
Electric power steering system
warning1
Downhill Assist Control indicator4
Anti-lock Brake (ABS) System
warning1
Airbag SRS warning1
Air Bag ON/OFF indicator1
All-wheel drive lock indicator1,4
Brake system warning1
BSM outside rear view mirror
indicator4
Blind Spot Monitor (BSM)
indicator4
Eco driving indicator1
Driver’s and front passenger’s seat
belt reminder
(alarm will sound if speed is over 12 mph)
Dynamic Radar Cruise Control
(DRCC)(vehicle-to-vehicle distance
control mode) indicator/DRCC
SET indicator
Engine coolant temperature gauge Shift position and
shift range
Tachometer
Multi-Information Display (MID) Speedometer
Fuel gauge
Outside temperature
Trip meter reset knob
Odometer/trip meter/Stop & Start Engine
System operation time display
1
Instrument panel light control button
Service indicators and reminders
1 If equipped
OVERVIEW
Instrument cluster
Indicator symbols
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 48/14/18 1:22 AM

5
Front Fog light indicator4
Fuel tank door position
Vehicle Stability Control (VSC) OFF
indicator1
2nd and 3rd row seat belt reminder
indicator (warning buzzer)
Malfunction/Check Engine indicator1
Master warning1,2
Tire Pressure Warning1
Turn signal indicator
Intelligent parking assist indicator4
Slip indicator1,3
SNOW mode indicator
Stop & Start Engine System
indicator2,4
Stop & Start Engine System cancel
indicator4
Security indicator
Headlight low/high beam
indicator
Low fuel level warning
Parking brake warning
1
“PWR MODE” indicator4
Land Departure Alert with Steering
Assist (LDA w/SA) indicator
[white/green/amber
3 indicator]
Pre-Collison System (PCS) warning1,2
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \�engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\�’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 58/14/18 1:22 AM

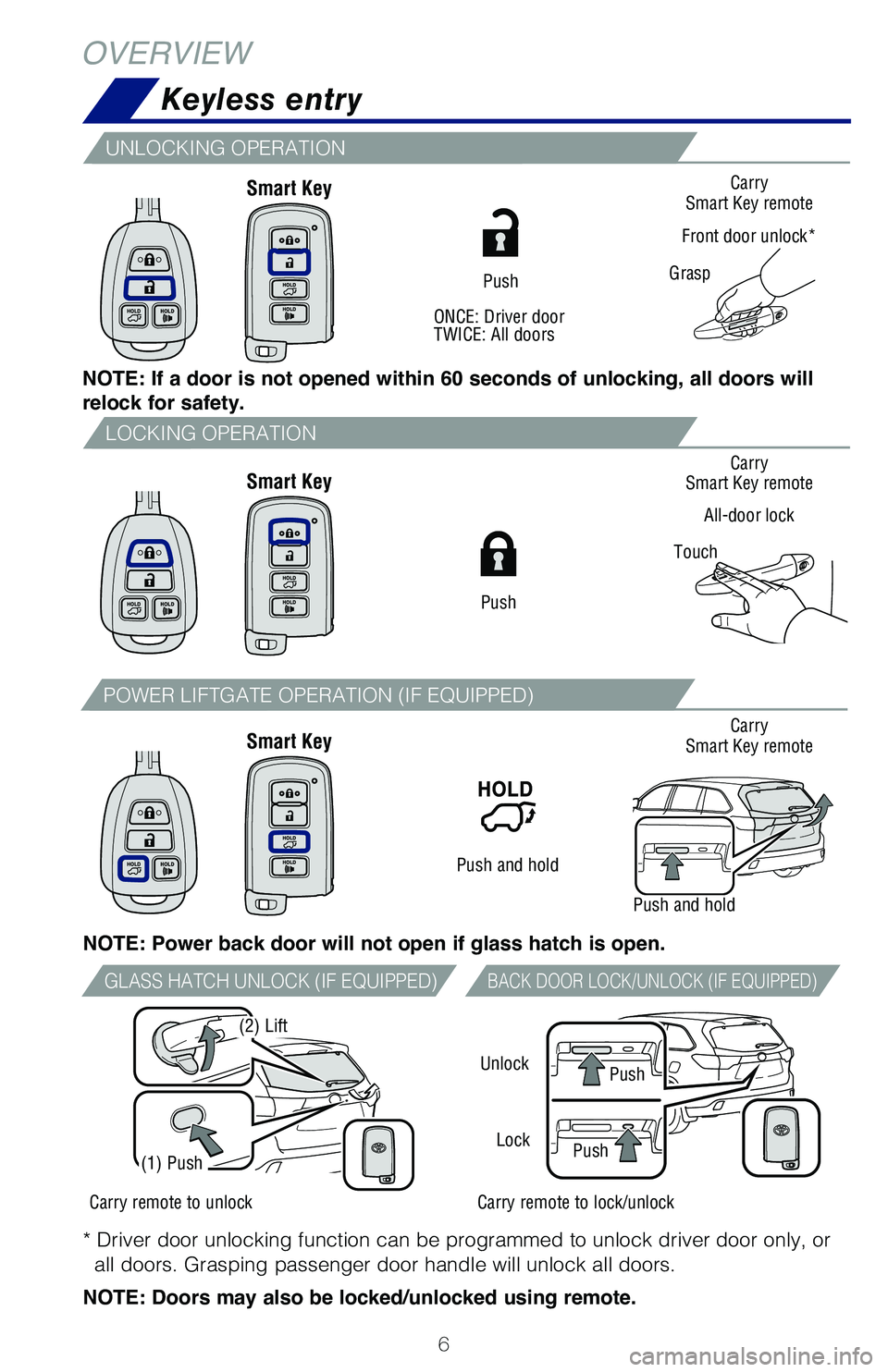

6
Carry
Smart Key remote
Front door unlock*
Carry
Smart Key remote
All-door lock
Carry
Smart Key remote
Touch
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
NOTE: Power back door will not open if glass hatch is open.
* Driver door unlocking function can be programmed to unlock driver door only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
(1) Push
Push
Lock
Push
Unlock
Carry remote to unlock Carry remote to lock/unlock
(2) Lift
GLASS HATCH UNLOCK (IF EQUIPPED)BACK DOOR LOCK/UNLOCK (IF EQUIPPED)
Smart Key
Smart Key
Smart Key
Push
Push and holdPush
ONCE: Driver door
TWICE: All doors
Grasp
LOCKING OPERATION
UNLOCKING OPERATION
POWER LIFTGATE OPERATION (IF EQUIPPED)
Keyless entry
OVERVIEW
Push and hold
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 68/14/18 1:22 AM

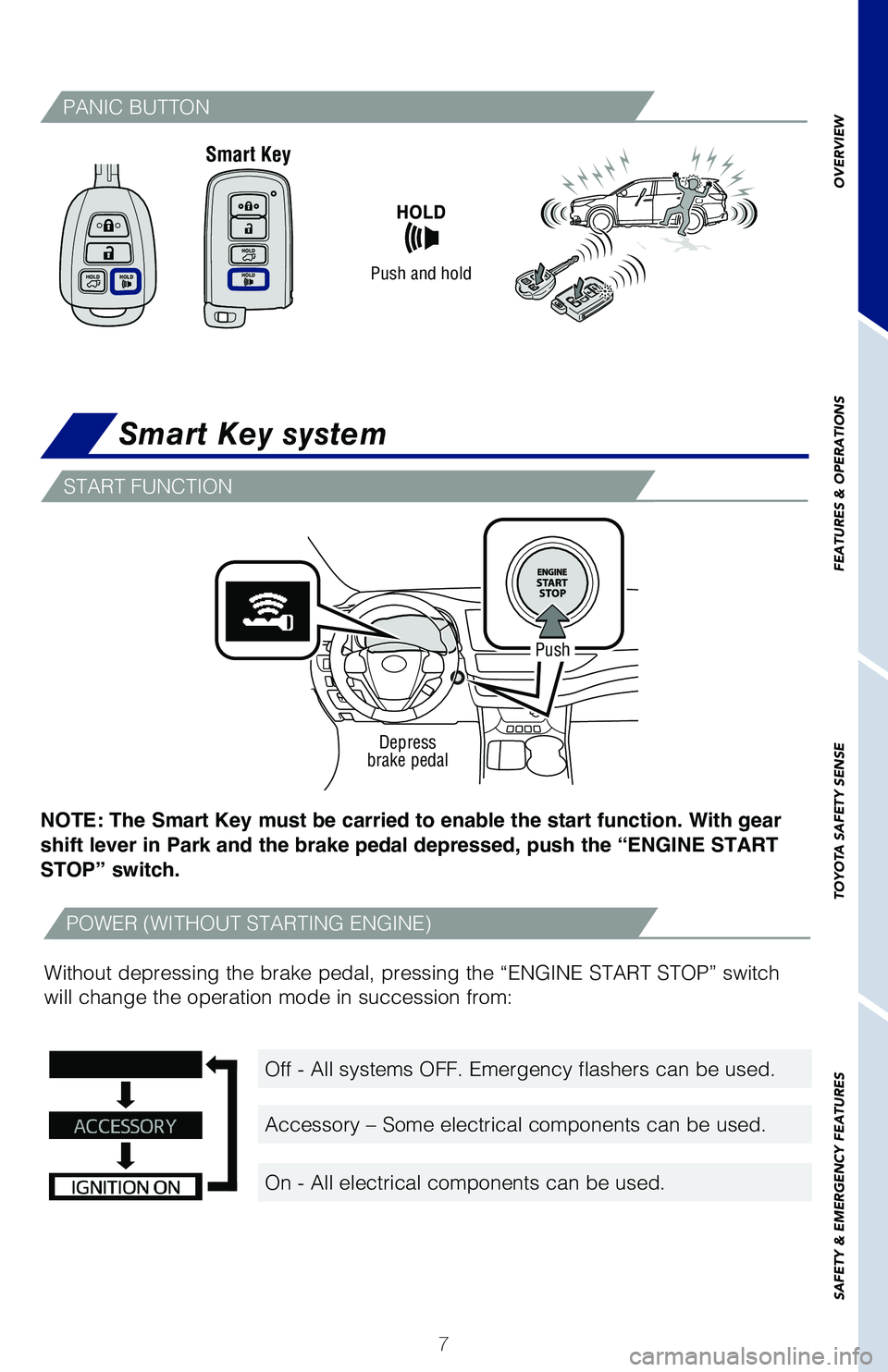

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “ENGINE START
STOP” switch.
Push
Depress
brake pedal
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
Smart Key
Push and hold
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
PANIC BUTTON
Smart Key system
114709_MY19_Highlander_QRG_V3_ML_0809_R1.indd 78/14/18 1:22 AM

8

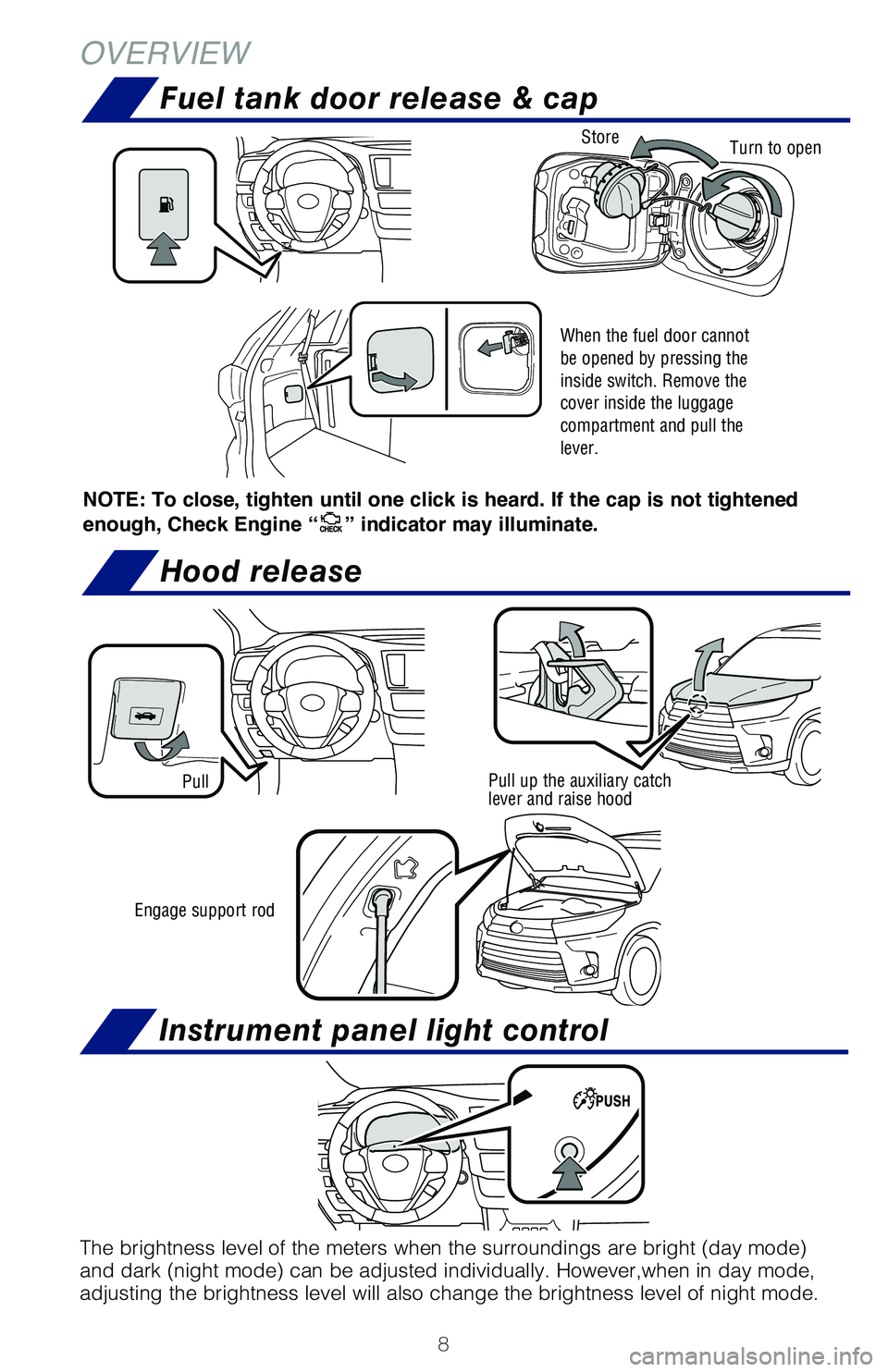

NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Turn to openStore
Engage support rod
Pull When the fuel door cannot
be opened by pressing the
inside switch. Remove the
cover inside the luggage
compartment and pull the
lever.Pull up the auxiliary catch
lever and raise hood
The brightness level of the meters when the surroundings are bright (day mode)
and dark (night mode) can be adjusted individually. However,when in day mode,
adjusting the brightness level will also change the brightness level of \�night mode.
Fuel tank door release & cap
Hood release
Instrument panel light control
OVERVIEW
