1714-6. Tips for operating the audio/visual system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
4
Audio/visual system
 The play order of the USB
memory with the structure
shown above is as follows:
 The order changes depending
on the personal computer and
MP3/WMA/AAC encoding

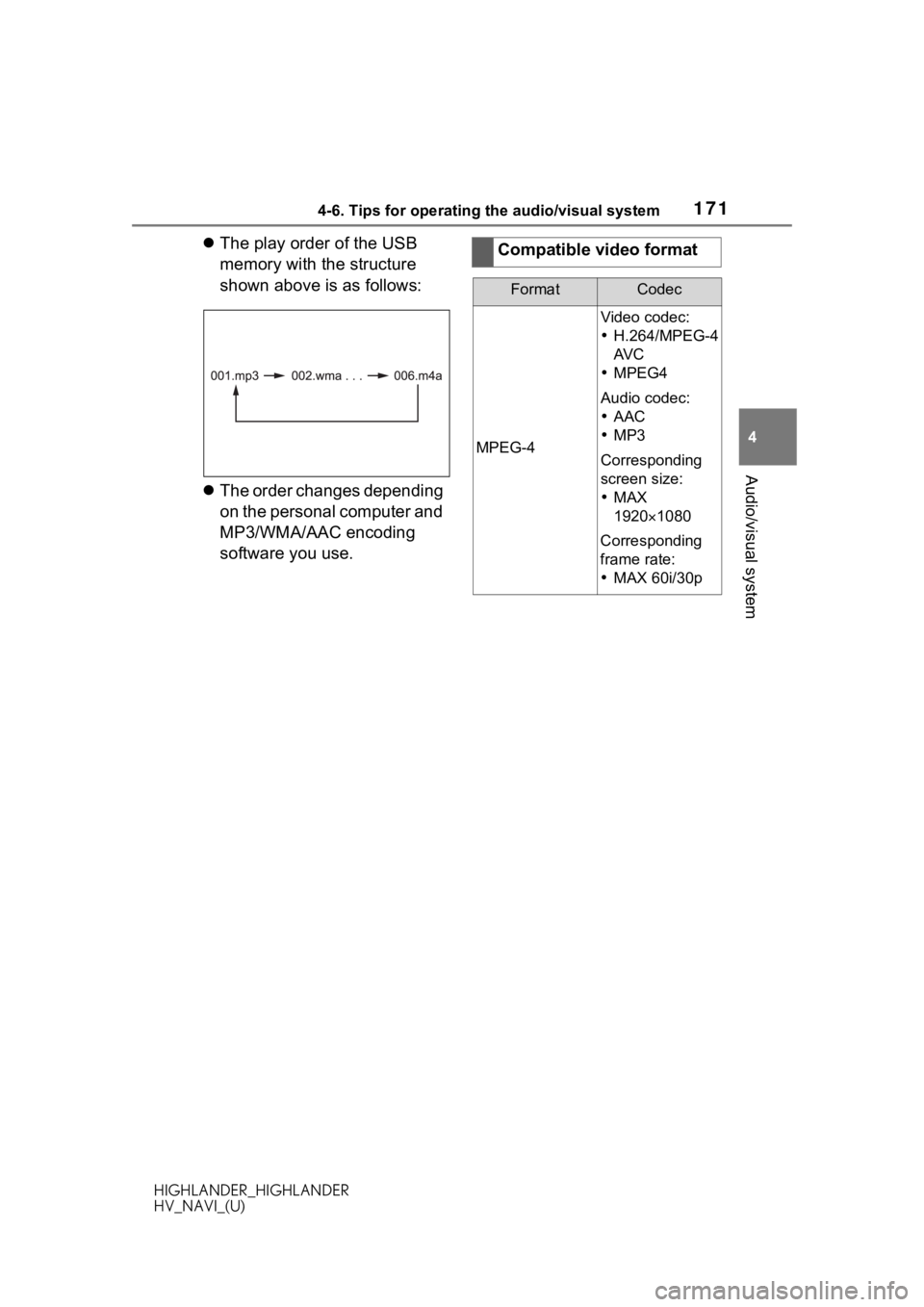

software you use.Compatible video format
FormatCodec
MPEG-4
Video codec:
H.264/MPEG-4
AV C
 MPEG4
Audio codec:
 AAC
 MP3
Corresponding
screen size:
 MAX
1920 1080
Corresponding
frame rate:
 MAX 60i/30p

1724-6. Tips for operating the audio/visual system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
■ID3 tag
 This is a method of embed-
ding track-related information
in an MP3 file. This embed-
ded information can include
the track number, track title,
the artist’s name, the album
title, the music genre, the year
of production, comments,
cover art and other data. The
contents can be freely edited
using software with ID3 tag
editing functions. Although
the tags are restricted to a
number of characters, the
information can be viewed
when the track is played back.
■WMA tag
 WMA files can contain a
WMA tag that is used in the
same way as an ID3 tag.
WMA tags carry information
such as track title and artist
name.
■MP3
 MP3 is an audio compression
standard determined by a
working group (MPEG) of the
ISO (International Standard
Organization). MP3 com-
presses audio data to about
1/10 the size of that on con-
ventional discs.
■WMA
 WMA (Windows Media Audio)
is an audio compression for-

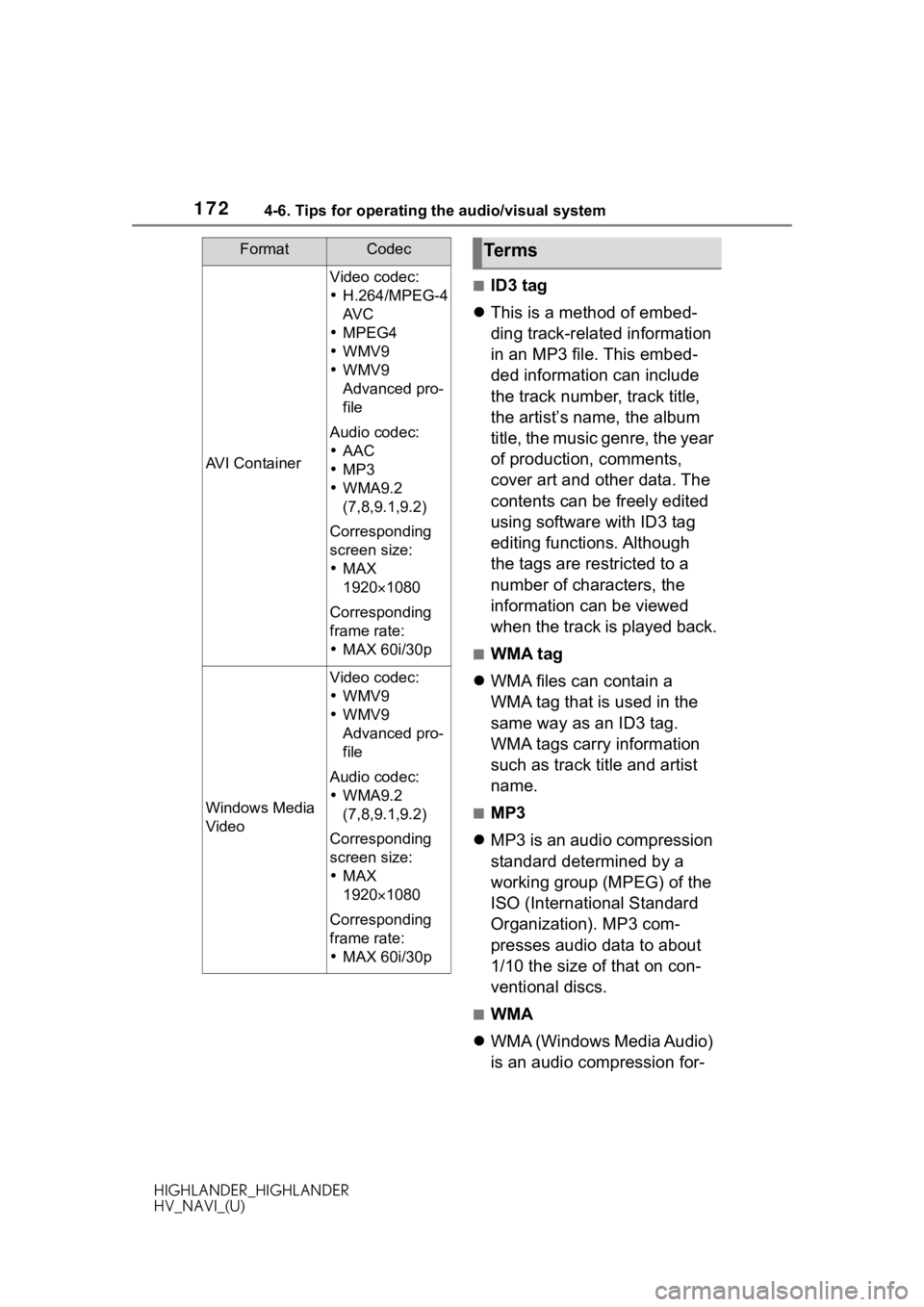

AVI Container
Video codec:
H.264/MPEG-4
AV C
 MPEG4
 WMV9
 WMV9
Advanced pro-
file
Audio codec:
 AAC
 MP3
 WMA9.2
(7,8,9.1,9.2)
Corresponding
screen size:
 MAX
19201080
Corresponding
frame rate:
 MAX 60i/30p
Windows Media
Video
Video codec:
WMV9
 WMV9
Advanced pro-
file
Audio codec:
 WMA9.2
(7,8,9.1,9.2)
Corresponding
screen size:
 MAX
19201080
Corresponding
frame rate:
 MAX 60i/30p
FormatCodecTerms

1734-6. Tips for operating the audio/visual system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
4
Audio/visual system
mat developed by Microsoft®.
It compresses files into a size
smaller than that of MP3 files.
The decoding formats for
WMA files are Ver. 7, 8 and 9.
 Windows Media is either a
registered trademark or trade-
mark of Microsoft Corpora-
tion in the United States
and/or other countries.
This product is protected by
certain intellectual property
rights of Microsoft.
Use or distribution of such
technology outside of this
product is prohibited without a
license from Microsoft.
 This product includes technol-
ogy owned by Microsoft Cor-
poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.
■AAC
 AAC is short for Advanced
Audio Coding and refers to an
audio compression technol-
ogy standard used with
MPEG2 and MPEG4.
■USB
■iPod
Error messages
MessageExplanation
“USB Error”
This indicates a
problem in the
USB memory or
its connection.
“No music files
found.”
This indicates
that no compati-
ble files are
included in the
USB memory.
“No video files
found.”
This indicates
that no video
files are included
in the USB mem-
ory.
MessageExplanation
“iPod Error”
This indicates a
problem in the
iPod or its con-
nection.
“No music files
found.”
This indicates
that there is no
music data in the
iPod.

1744-6. Tips for operating the audio/visual system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
■Bluetooth® audio
●If the malfunction is not rectified,
take your vehicle to your Toyota
dealer.
“Please check
the iPod firm-
ware version.”
This indicates
that the firm-
ware version is
not compatible.
Perform the iPod
firmware
updates and try
again.
“Unable to
authorize the
iPod.”
This indicates
that it failed to
authorize the
iPod.
Please check
your iPod.
MessageExplanation
“Music tracks not
supported.
Please check
your portable
player.”This indicates a
problem in the
Bluetooth
®
device.
MessageExplanation

1754-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
4
Audio/visual system
4-7.Rear seat entertainment system
*: If equipped
Rear seat entertainment system
Remote controller
HDMI input port
Front audio/visual system
●This system can use infrared wireless headphones. ( P.182)
Rear seat enter tainment system features*
The rear seat entertainment system is designed for the rear
passengers to enjoy audio/visual system.
The video played by the rear seat entertainment system is not
displayed on the front audio/visual system’s screen.
The system can be used when the engine switch switch> is in ACC or ON.

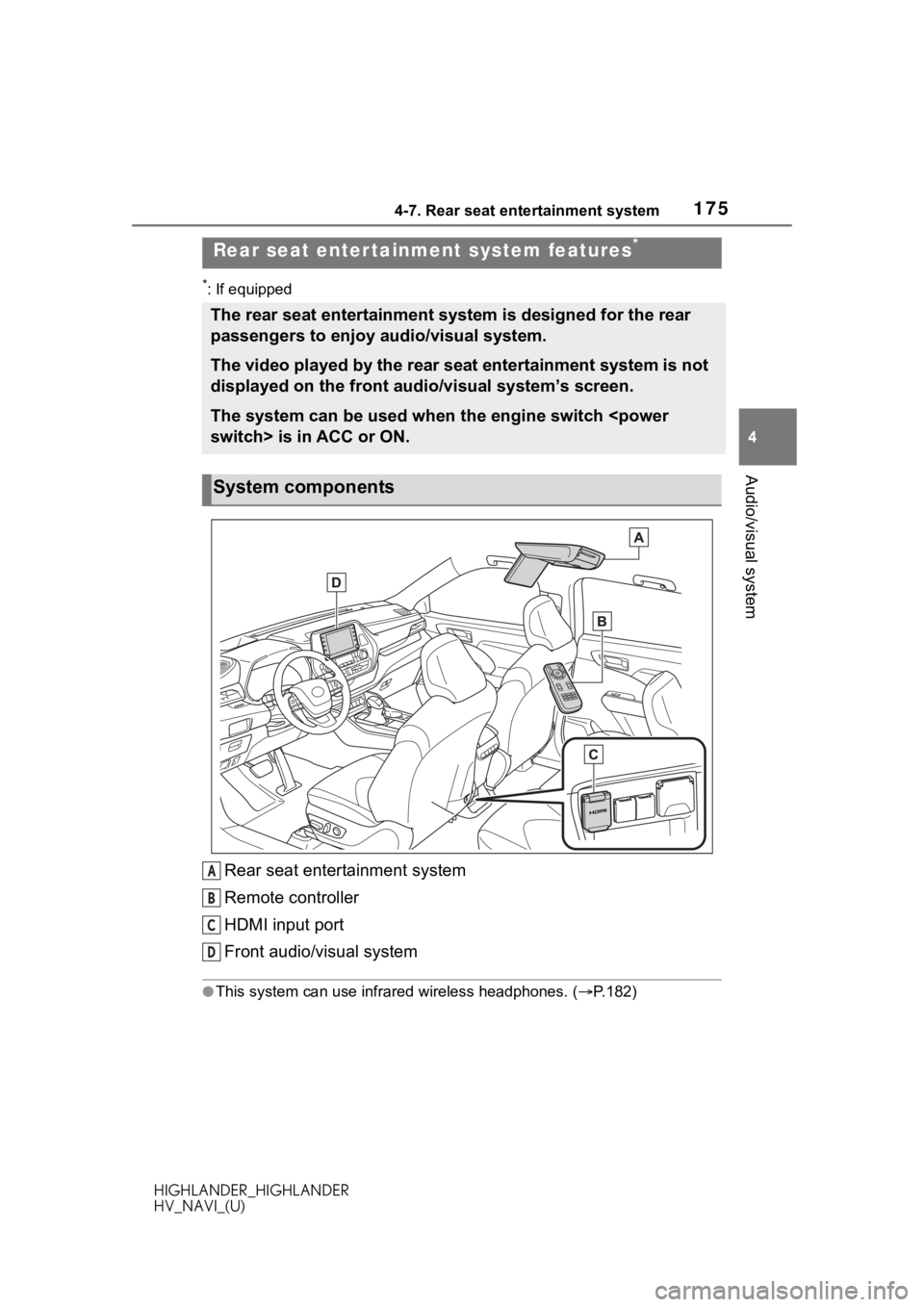

System components
A
B
C
D

1764-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)

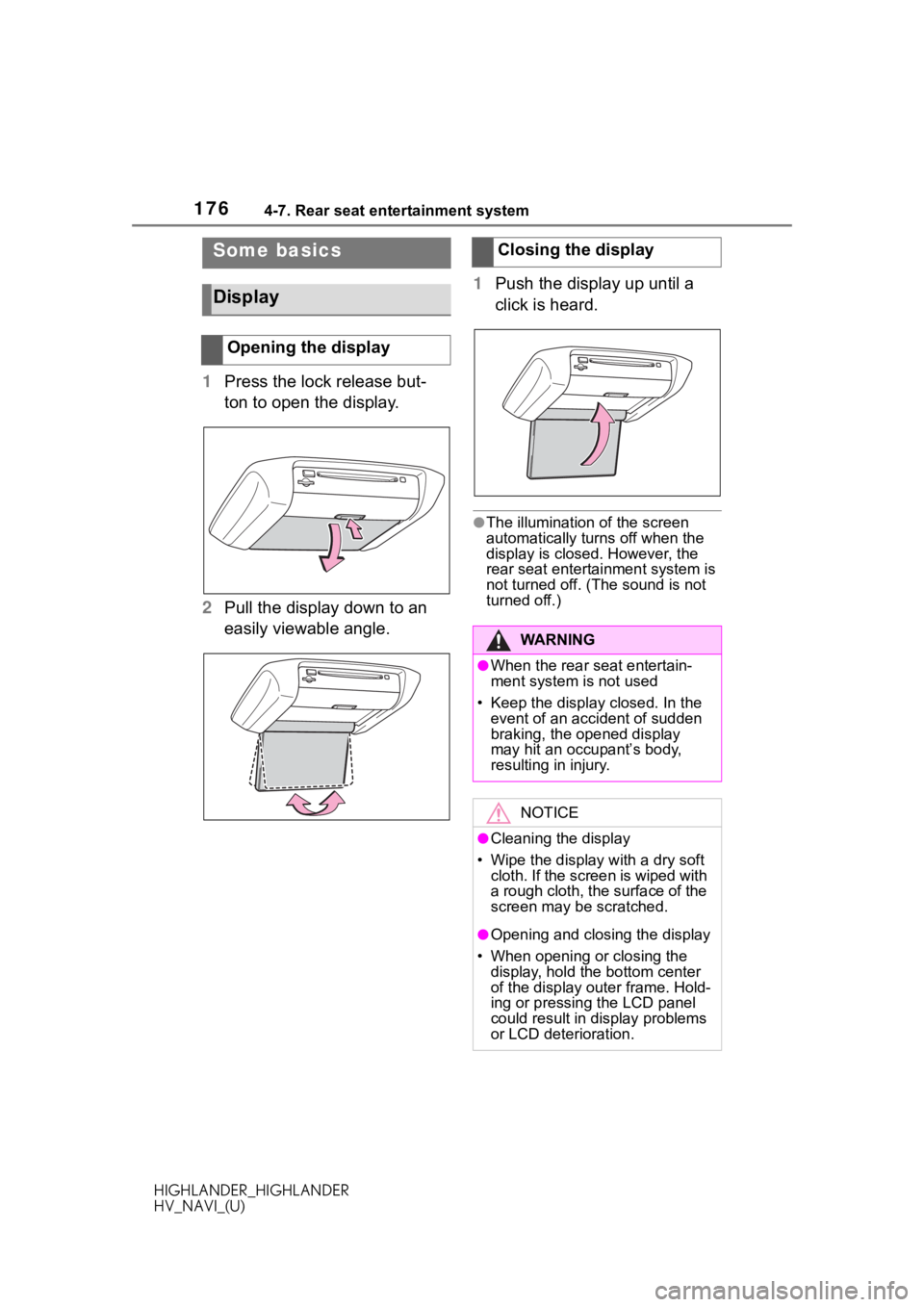

1Press the lock release but-
ton to open the display.
2 Pull the display down to an
easily viewable angle. 1
Push the display up until a
click is heard.
●The illumination of the screen
automatically turn s off when the
display is closed. However, the
rear seat entertainment system is
not turned off. (The sound is not
turned off.)
Some basics
Display
Opening the display
Closing the display
WA R N I N G
●When the rear seat entertain-
ment system is not used
• Keep the display closed. In the event of an accident of sudden
braking, the opened display
may hit an occupant’s body,
resulting in injury.
NOTICE
●Cleaning the display
• Wipe the display with a dry soft cloth. If the screen is wiped with
a rough cloth, the surface of the
screen may be scratched.
●Opening and closing the display
• When opening or closing the display, hold th e bottom center
of the display outer frame. Hold-
ing or pressing the LCD panel
could result in display problems
or LCD deterioration.

1774-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
4
Audio/visual system
1 Insert the disc into the slot
with the label side up.
 The “DISC” indicator light
turns on while the disc is
loaded.
 The player will start to play
the disc automatically.
1 Press the button and
remove the disc.
●If a disc cannot be ejected, do not
forcibly take out the disc. Keep
pressing the button for
approximately 10 seconds and
release it.
●If the ejected disc remains in the slot for 15 seconds, the player will
automatically reload the disc.
1
Insert the SD card with the
label side up, positioning the
cut off corner to the right.
 To eject the SD card, push on
the center of the SD card.
When it ejects slightly, pull it
straight out.
Disc slot
Loading a disc
Ejecting a discSD card slot

1784-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)

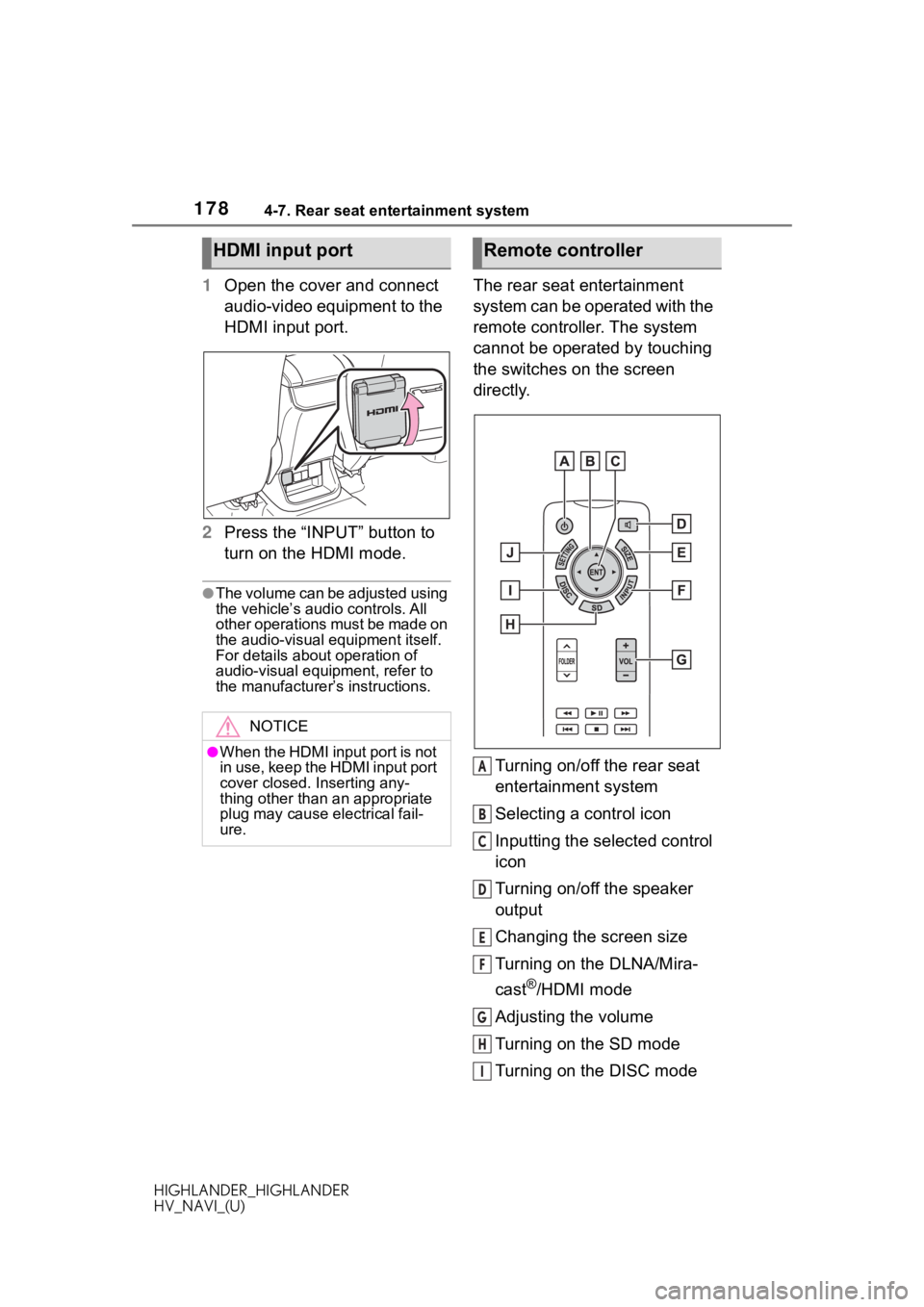

1Open the cover and connect
audio-video equipment to the
HDMI input port.
2 Press the “INPUT” button to
turn on the HDMI mode.
●The volume can be adjusted using
the vehicle’s audio controls. All
other operations must be made on
the audio-visual equipment itself.
For details about operation of
audio-visual equipment, refer to
the manufacturer’ s instructions.
The rear seat entertainment
system can be operated with the
remote controller. The system
cannot be operated by touching
the switches on the screen
directly.
Turning on/off the rear seat
entertainment system
Selecting a control icon
Inputting the selected control
icon
Turning on/off the speaker
output
Changing the screen size
Turning on the DLNA/Mira-
cast
®/HDMI mode
Adjusting the volume
Turning on the SD mode
Turning on the DISC mode
HDMI input port
NOTICE
●When the HDMI input port is not
i n u s e , k e e p t h e H D M I i n p u t p o r t
cover closed. Inserting any-
thing other than an appropriate
plug may cause electrical fail-
ure.
Remote controller
A
B
C
D
E
F
G
H
I

1794-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
4
Audio/visual system
Adjusting the screen settings

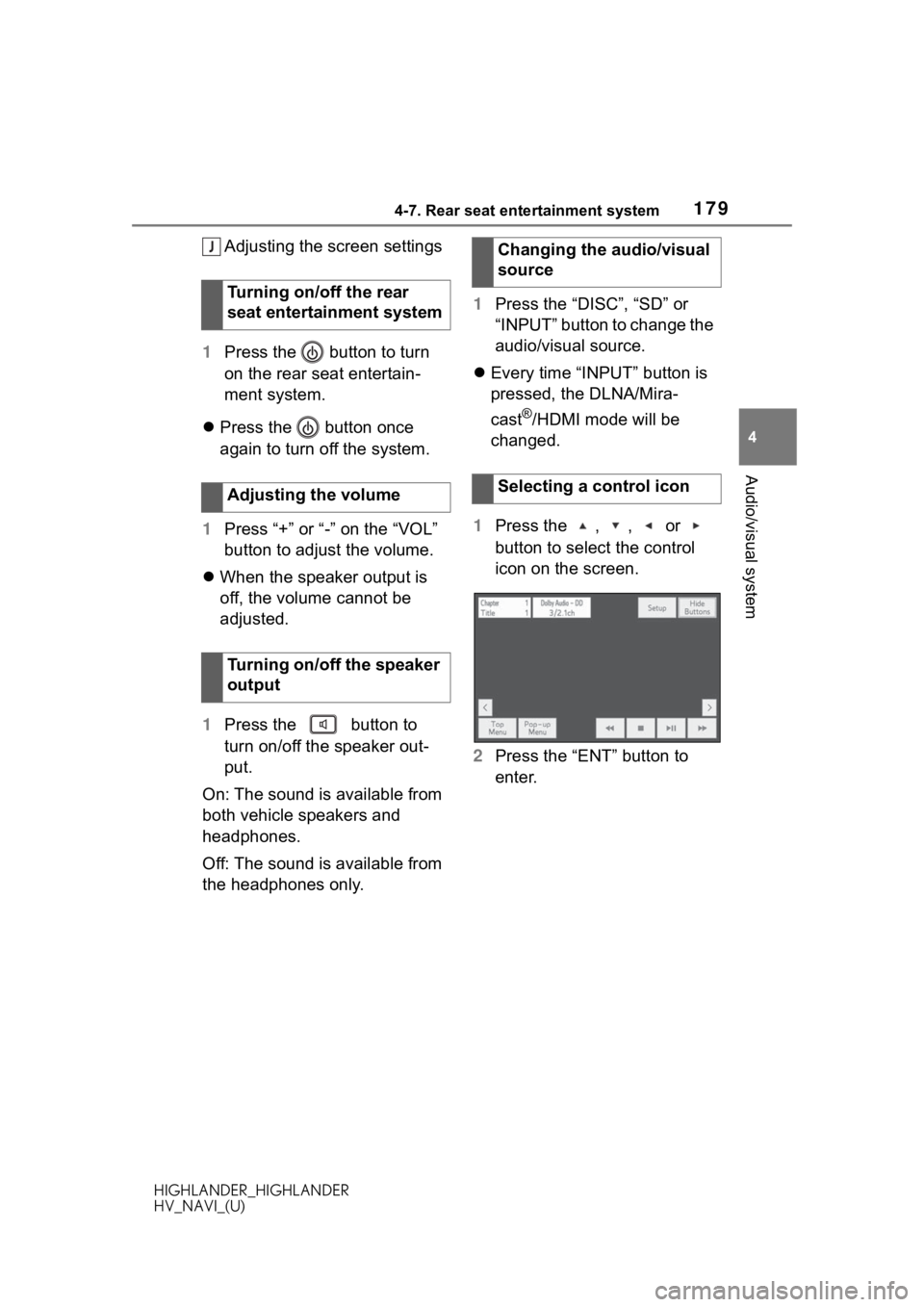

1 Press the button to turn
on the rear seat entertain-
ment system.
 Press the button once
again to turn off the system.
1 Press “+” or “-” on the “VOL”
button to adjust the volume.
 When the speaker output is
off, the volume cannot be
adjusted.
1 Press the button to
turn on/off the speaker out-
put.
On: The sound is available from
both vehicle speakers and
headphones.
Off: The sound is available from
the headphones only. 1
Press the “DISC”, “SD” or
“INPUT” button to change the
audio/visual source.
 Every time “INPUT” button is
pressed, the DLNA/Mira-
cast
®/HDMI mode will be
changed.
1 Press the , , or
button to select the control
icon on the screen.
2 Press the “ENT” button to
enter.
Turning on/off the rear
seat entertainment system
Adjusting the volume
Turning on/off the speaker
output
J&KDQJLQJWKHDXGLRYLVXDO
VRXUFH
6HOHFWLQJDFRQWUROLFRQ

1804-7. Rear seat entertainment system
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
1Press the “SIZE” button to
change the screen size.
DISC/SD/DLNA/Miracast®
mode
“Normal”: Displays the screen at
the original ratio (16:9)
“Full”: Displays the screen in full
screen mode
HDMI mode
“Normal 1”: Displays the screen
at the original ratio (4:3)
“Normal 2”: Displays the screen
in wide screen aspect (16:9)
“Full”: Displays the screen in full
screen mode
●The screen size can be changed
for each media mode individually.

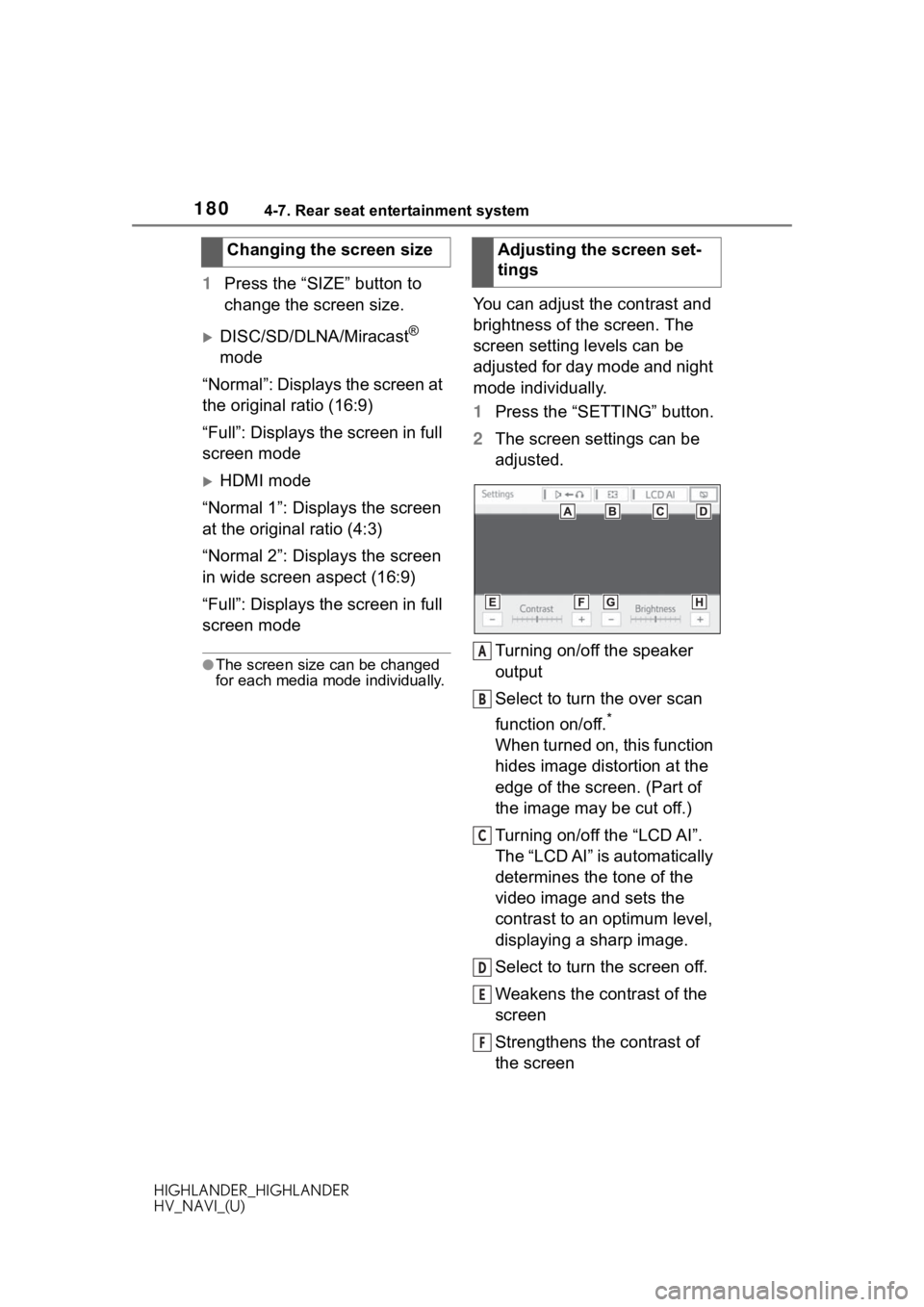

You can adjust the contrast and
brightness of the screen. The
screen setting levels can be
adjusted for day mode and night
mode individually.
1 Press the “SETTING” button.
2 The screen settings can be
adjusted.
Turning on/off the speaker
output
Select to turn the over scan
function on/off.
*
When turned on, this function
hides image distortion at the
edge of the screen. (Part of
the image may be cut off.)
Turning on/off the “LCD AI”.
The “LCD AI” is automatically
determines the tone of the
video image and sets the
contrast to an optimum level,
displaying a sharp image.
Select to turn the screen off.
Weakens the contrast of the
screen
Strengthens the contrast of
the screen
Changing the screen size
Adjusting the screen set-
tings
A
B
C
D
E
F
