Navigation system
Navigation system
.3-1. Basic operationNavigation ...................... 78
Map screen operation .... 80
Map screen information . 82
Traffic information .......... 88
3-2. Destination search Destination search opera-tion ............................... 91
Starting route guidance .. 99
3-3. Route guidance Route guidance screen.................................. 103
Typical voice guidance prompts ..................... 108
Editing route ................ 108
3-4. Setup Navigation settings...... 112
Detailed navigation settings .................................. 117
Traffic settings ............. 121
Use of information accumu- lated by navigation system.................................. 126
3-5. Tips for the navigation system
GPS (Global Positioning System) ..................... 127
Map database version and covered area ............. 129

783-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3-1.Basic operation
*: Premium Audio/12.3-inch display model
2D north up, 2D heading up or 3D heading up symbol (P. 8 1 )
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this symbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P. 9 1 )
Select to display the destination screen.
Map options button ( P.82)
Select to display the map options screen.
Route options button ( P.108)
Select to display the route options screen.
Mute button
Select to mute the voice guidance. When set to on, the indicato r
Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.
Map screen overview
A
B
C
D
E

793-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
will illuminate.
Zoom in/out button ( P. 8 0 )
Select to magnify or reduce the map scale. When either button i s
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button ( P. 8 1 )
Select to display the micro city map screen.
Route information bar ( P.103)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to r ight as
the vehicle progresses on the route.
Delete destination button ( P.24)
Select to delete destinations.
Speed limit icon ( P.82)
Indicates the speed limit on the current road. The display of t he
speed limit icon can be set to on/off.
●When the vehicle i s not receiving
GPS signals, such as when driv-
ing in a tunnel, will be
displayed at the bottom left corner
of the screen.
●Press the “MAP” button to display
the address of the current position
on the map screen or repeat voice
guidance.
F
G
H
I
J

803-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
1Press the “MAP” button.
8-inch display model
12.3-inch display model
2 Check that the current posi-
tion map is displayed.
 To correct the current posi-
tion manually:  P. 1 1 9
●While driving, the cu rrent position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the 12-volt battery discon-
nection, or on a new vehicle, the current position may not be cor-
rect. As soon as the navigation
system receives s
ignals from the
GPS, the correct c urrent position
is displayed.
1 Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
Map screen operation
Current position display
Map scale

813-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to and can be selected to dis-
play the micro city map.
1 Select on the map
screen.
2 Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the c urrent position
is moved to the are a which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D
north-up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always
up.
: Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
 The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
Micro city map
Orientation of the map

833-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
mation.* (  P.88)
Select to display the predic-
tive efficient drive icons.
( P. 8 5 )
Select to display route trace.
( P. 8 5 )
Select to display the map
version and coverage area.
( P.129)
*: This function is not made avail-
able in some countries or areas.
1 Select on the map
screen. ( P.78)
2 Select “Map Mode”.
3 Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. ( P.83)
Select to display the com-
pass mode screen. ( P. 8 4 )
Select to display the turn list
screen. ( P.107)
Select to display the freeway
exit list screen. ( P.104) Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. (
P.106)
Select to display the
turn-by-turn arrow screen.
( P.107)
 Depending on the conditions,
certain screen configuration
buttons cannot be selected.
The map on the left is the main
map. The right side map can be
edited.
1 Select any point on the right
side map.
2 Select the desired item.
Select to change the orienta-
tion of the map. ( P. 8 1 )
Select to display POI icons.
( P.84)
Switching the map mode
E
F
G
A
B
C
D
E
'XDOPDS
F
G
A
B

853-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
1 Select “Other POIs”.
2 Select the desired POI cate-
gories and select “OK”.
“List All Categories”: Select to
display all POI categories.
POIs that are within 20 miles (32
km) of the current position will
be listed from among the
selected categories.
1 Select “Around Me”.
2 Select the desired POI.
“Sort/Search Area”: Select to
sort (distance, name, category)
POIs or search area.
 Select “Near Here” to search
for POIs near the current
position.
 Select “Along My Route” to
search for POIs along the
route.
3 Check that the selected POI
is displayed on the map
screen. The icon for the predictive
deceleration support point can
be displayed on the map.
1
Select “Predictive Efficient
Drive”.
 The “Predictive Efficient
Drive” indicator illuminates.
 The icon is displayed on
the map for the predictive
deceleration support points.
Also, when the position of the
vehicle approaches the pre-
dictive deceleration support
point, the icon changes to an
emphasized icon.
●Up to 100 icons can be displayed
on one screen.
●When the maximum number of
icons that can be displayed is
exceeded, the predictive deceler-
ation support points near the posi-
tion of the vehicle are displayed.
●Icons for the predictive decelera-
tion support points can be dis-
played on maps more detailed
than 0.75 miles. (excluding the
city map)
●When a destinati on is set, predic-
tive deceleration support points
not along the guided route are not
emphasized.
Selecting other POI icons to
be displayed
Displaying the local POI listDisplaying predictive effi-
cient drive information

873-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
1 Select on the map
screen. ( P.78)
2 Select “Route Trace” again.
3 A confirmation screen will be
displayed.
“Yes”: Select to keep the recorded
route trace.
“No”: Select to era se the recorded
route trace.
●The traveled rou te can be stored
up to approximately 621 miles
(1000 km).
When the cursor is placed over
an icon on the map screen, the
name is displayed at the top of
the screen. If is shown to the
right of the name, detailed infor-
mation can be displayed.
1 Place the cursor over an
icon.
2 Select . 3
Check that the information
screen is displayed.
“ Save”: Select to register as a
memory point. To change the icon,
name, etc.: P. 1 1 2
“Go” / “Enter”: Select to set as a
destination.
: Select to call the registered
number.
“Delete”: Select to delete destina-
tion or memory point.
“Edit”: Select to display the edit
memory point screen.
●Even when traffi c information is
not currently being received, traffic
information and will be dis-
played for a while after traffic infor-
mation has been received.
●In some situations, calls to a POI
may automatically change to an
international ca ll or may not be
possible as a domestic call.
Stop recording the route
trace
Displaying information
about the icon where the
cursor is set

893-1. Basic operation
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
When the route has not been
set Select to display traffic infor-
mation for the current road.
( P. 8 9 )
Select to display nearby traf-
fic information. ( P.89)
Select to display a map with
predictive traffic data.
( P. 9 0 )
Select to display traffic along
the saved routes. ( P.90)
When the route has been set
Select to display traffic infor-
mation for the set route.
( P. 8 9 )
Select to display nearby traf-
fic information. ( P.89)
Select to display a map with
predictive traffic data.
( P. 9 0 )
Select to display traffic along the saved routes. (
P.90)
●If a large amount of information is
being received, it may take longer
than normal for th e information to
be displayed on the screen.
●If traffic information cannot be
received because the vehicle is
outside of HD Radio coverage
area, it may still be able to be
received using DCM. ( P.258)
A list of current traffic informa-
tion can be displayed along with
information on the location of
each incident.
1 Display the traffic incidents
screen. ( P. 8 8 )
2 Select “Traffic Events on Cur-
rent Road”, “Traffic Events on
Current Route” or “Traffic
Events Nearby”.
3 Select the desired traffic
information.
When “Traffic Events Nearby”
is selected, depending on
whether the traffic flow infor-
mation is enabled/disabled,
the following will be displayed:
When enabled: Traffic event and
congestion information
When disabled: Traffic event infor-
mation only
4Check that the traffic informa-
tion is displayed.
“Detail”: Select to display detailed
traffic information.
A
B
C
D
A
B
C
D
Displaying traffic informa-
tion

913-2. Destination search
HIGHLANDER_HIGHLANDER
HV_NAVI_(U)
3
Navigation system
3-2.Destination search

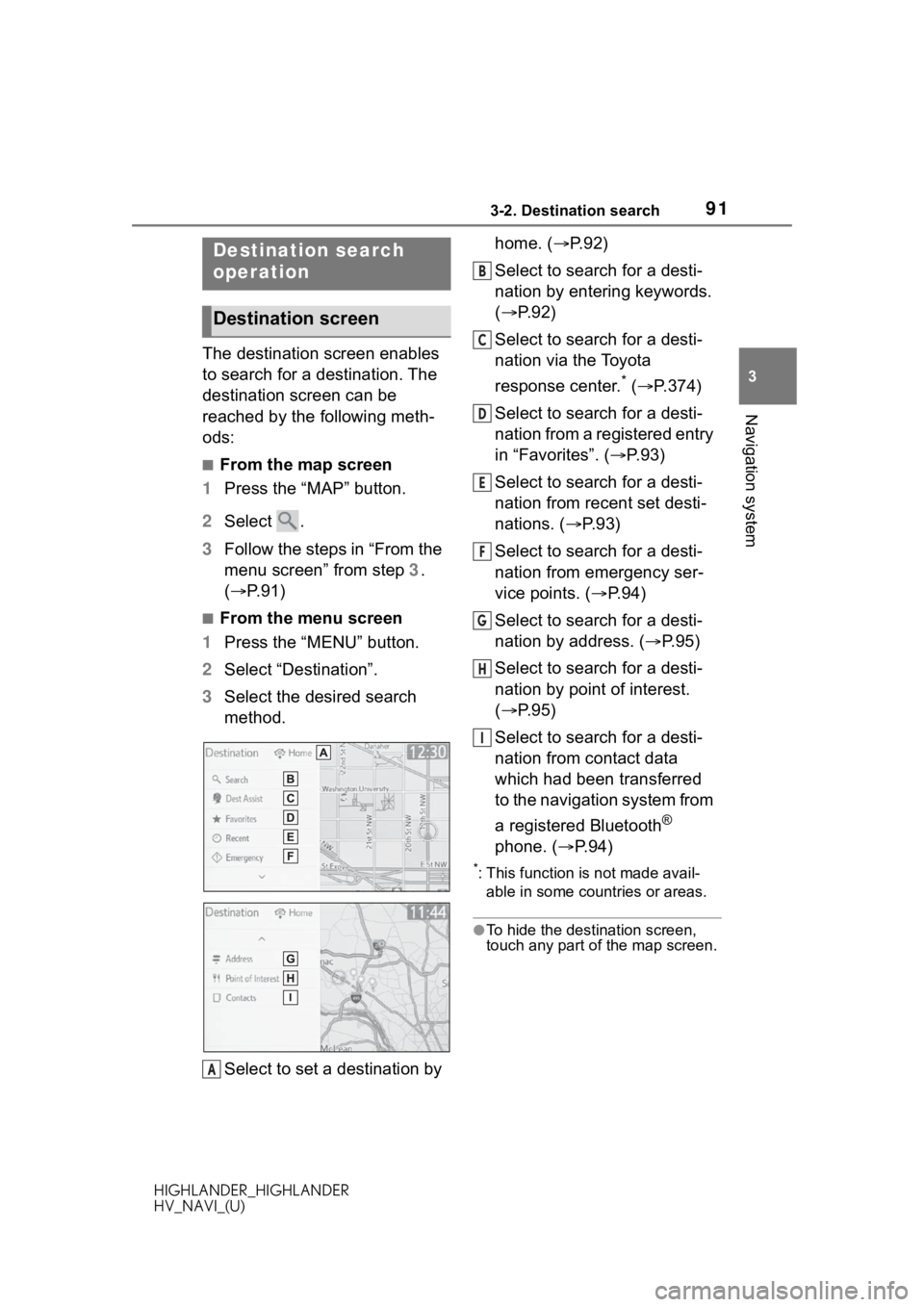

The destination screen enables
to search for a destination. The
destination screen can be
reached by the following meth-
ods:
■From the map screen
1 Press the “MAP” button.
2 Select .
3 Follow the steps in “From the
menu screen” from step 3.
( P. 9 1 )
■From the menu screen
1 Press the “MENU” button.
2 Select “Destination”.
3 Select the desired search
method.
Select to set a destination by home. (
P.92)
Select to search for a desti-
nation by entering keywords.
( P.92)
Select to search for a desti-
nation via the Toyota
response center.
* (  P.374)
Select to search for a desti-
nation from a registered entry
in “Favorites”. ( P. 9 3 )
Select to search for a desti-
nation from recent set desti-
nations. ( P. 9 3 )
Select to search for a desti-
nation from emergency ser-
vice points. ( P.94)
Select to search for a desti-
nation by address. ( P. 9 5 )
Select to search for a desti-
nation by point of interest.
( P.95)
Select to search for a desti-
nation from contact data
which had been transferred
to the navigation system from
a registered Bluetooth
®
phone. ( P.94)
*: This function is not made avail-
able in some countries or areas.
●To hide the destination screen,
touch any part of the map screen.
Destination search
operation
Destination screen
A
B
C
D
E
F
G
H
I
