TOYOTA HIGHLANDER 2020 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

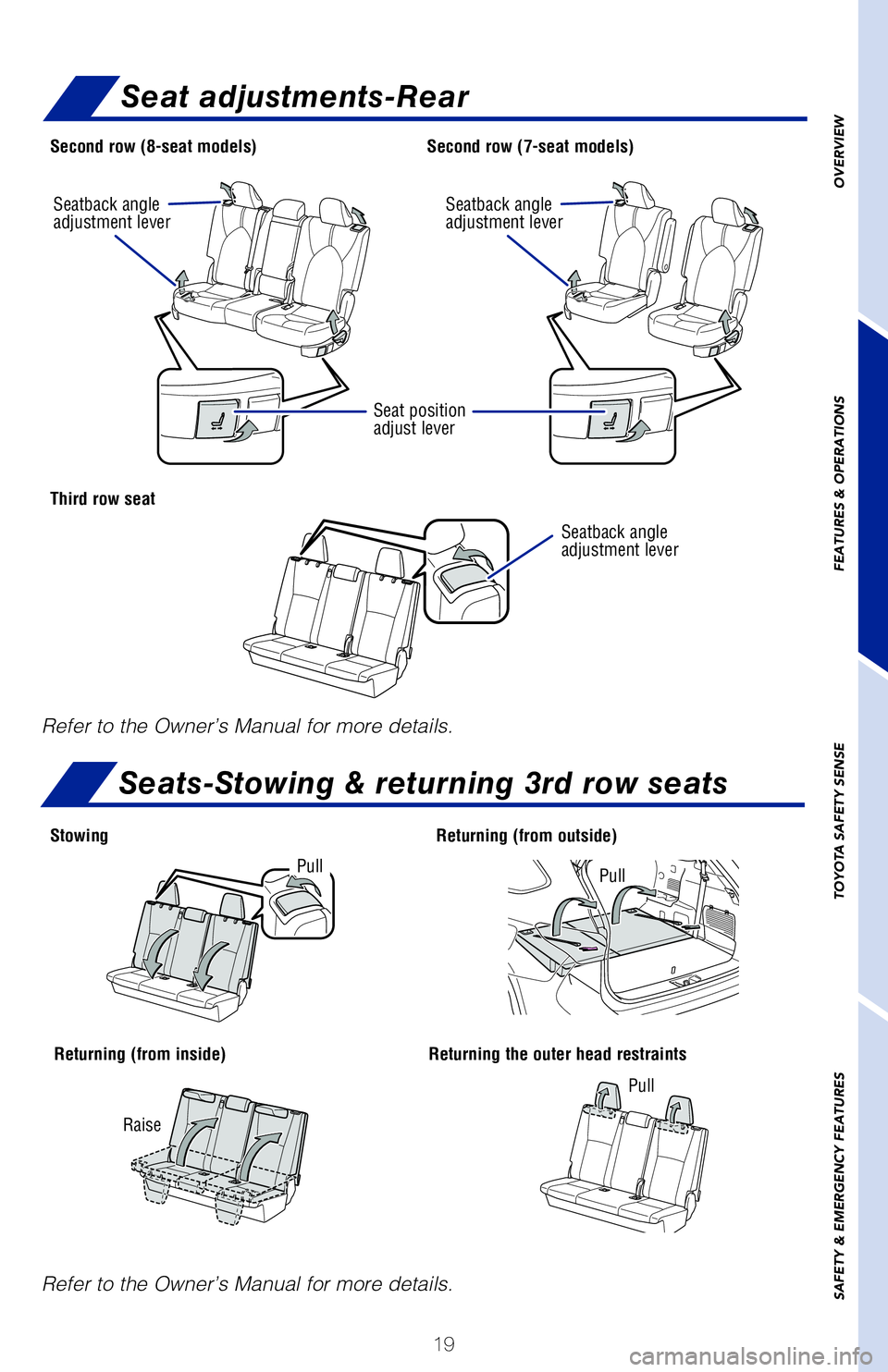

Second row (8-seat models)
Third row seat
Stowing Returning (from outside)
Returning (from inside) Returning the outer head restraints
Second row (7-seat models)
Refer to the Owner’s Manual for more details.
Refer to the Owner’s Manual for more details.
PullPull Pull
Raise
Seatback angle
adjustment lever
Seatback angle
adjustment leverSeatback angle
adjustment lever
Seat position
adjust lever
Seat adjustments-Rear
Seats-Stowing & returning 3rd row seats
63195a_MY20 Highlander.indd 1911/18/19 8:12 AM

20

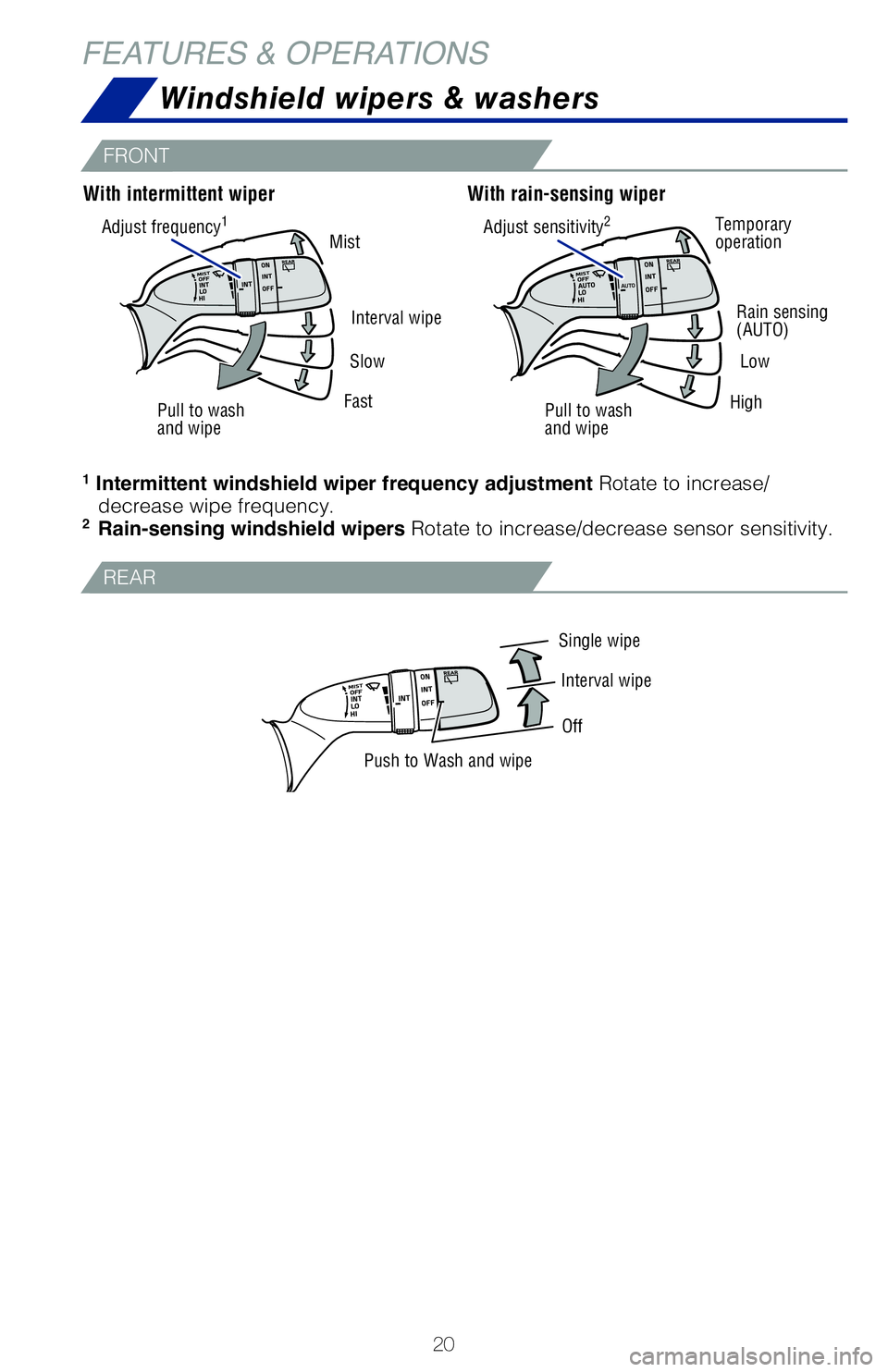

Single wipeInterval wipe
Off
Push to Wash and wipe
1 Intermittent windshield wiper frequency adjustment Rotate to increase/ decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Temporary
operation
Rain sensing
(AUTO)
Low
HighAdjust sensitivity2
Interval wipe
Mist
Slow
Fast
Adjust frequency
1
Pull to wash
and wipe Pull to wash
and wipe
With intermittent wiper With rain-sensing wiper
FEATURES & OPERATIONS
Windshield wipers & washers
FRONT
REAR
63195a_MY20 Highlander.indd 2011/18/19 8:12 AM

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Front fog lights come on only when the headlights are on low beam.
1 The right hand signals will flash three times.
2 The left hand signals will flash three times.
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night. Automatic light cut off system Lights automatically turn off after 30 second delay,
or when lock switch on remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high and
low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ 2.0 (TSS 2.0) in this guide or the Owner’s Manual
for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for details.
Low beam
Parking lights
Auto
DRL OFFHigh beam
or
Automatic High Beam*
High beam
flasherHeadlights
Turn
Right turn
Lane change
1
Lane change2
Left turn
Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
63195a_MY20 Highlander.indd 2111/18/19 8:12 AM

22
Refer to the Owner’s Manual for more details.

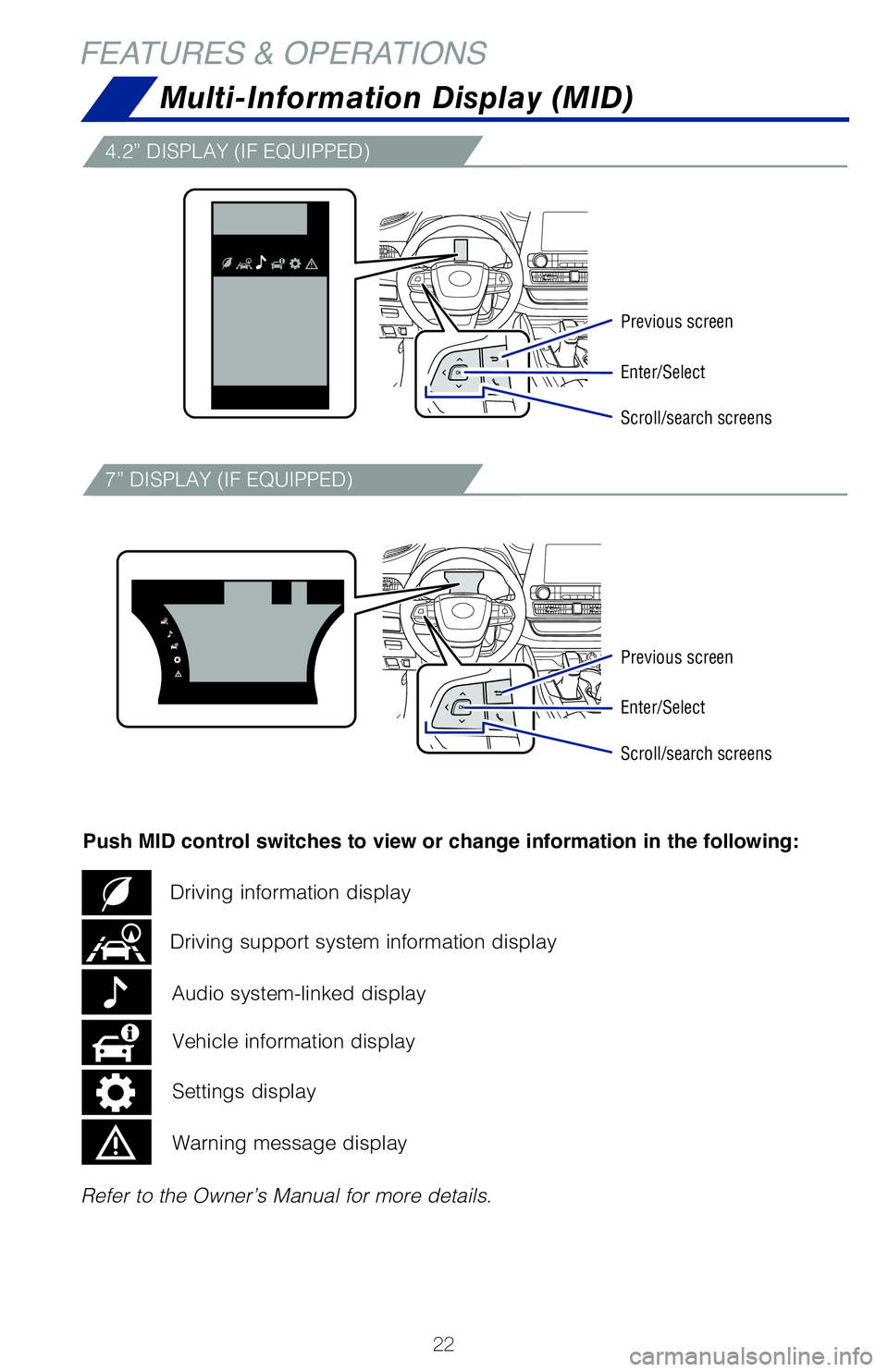

Multi-Information Display (MID)
FEATURES & OPERATIONS
Push MID control switches to view or change information in the following:
4.2” DISPLAY (IF EQUIPPED)
7” DISPLAY (IF EQUIPPED)
Previous screen
Previous screen
Enter/Select
Enter/Select
Scroll/search screens
Scroll/search screens
Driving support system information display
Driving information display
Vehicle information display
Audio system-linked display
Settings display
Warning message display
63195a_MY20 Highlander.indd 2211/18/19 8:12 AM

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Head-up display (HUD) (if equipped)
- Navigation system-linked display area (if equipped)
- Driving assist system status display Speed limit/RSA (Road
Sign Assist) display
Shift position display
ECO driving indicator/
Tachometer/
Outside temperature
Message display Vehicle speed display
The head-up display can display the current vehicle speed and ECO driving
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
Select “
” and then “” in the Multi-Information Display (MID) to access Head-
up display settings. And push “
,” to enter selection.
Refer to the Owner’s Manual for more details.
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touch screen to access the general settings
screen.
3) Select “Clock.”
4) Then select desired items to be reset.

Refer to the “Navigation and Multimedia System Owner’s Manual” for more details.
* Premium Audio/12.3-inch display model only
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO*.
Select to set to automatic
GPS adjustment of clock.
Select to set hour display
to 12 or 24 hour time.
63195a_MY20 Highlander.indd 2311/18/19 8:13 AM

24

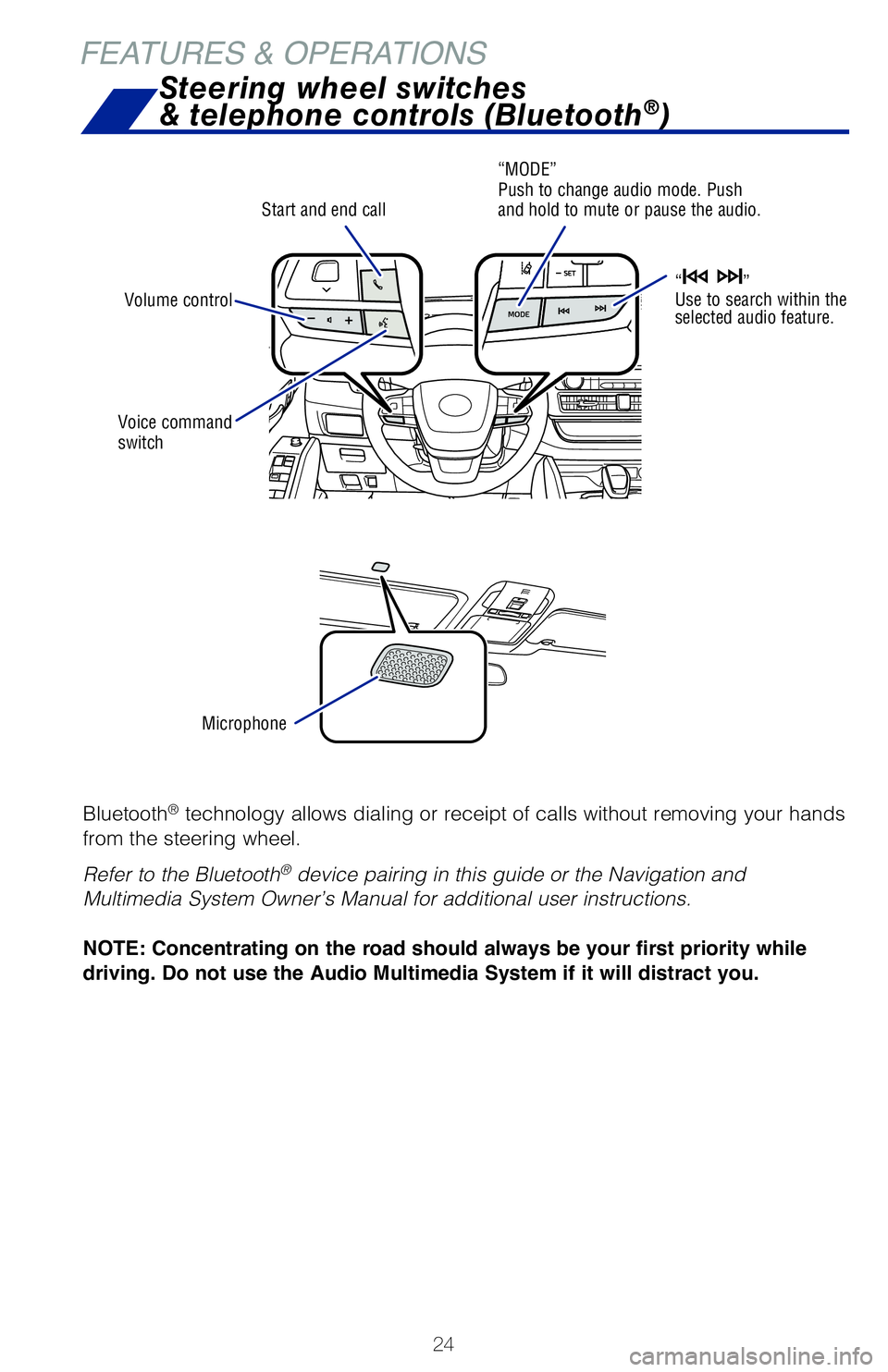

Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Microphone
Voice command
switch Start and end call
Steering wheel switches
& telephone
controls (Bluetooth®)
“MODE”
Push to change audio mode. Push
and hold to mute or pause the audio.
“
”
Use to search within the
selected audio feature.
FEATURES & OPERATIONS
Volume control
63195a_MY20 Highlander.indd 2411/18/19 8:13 AM

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
“”
Use to search within the
selected audio feature.
Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.

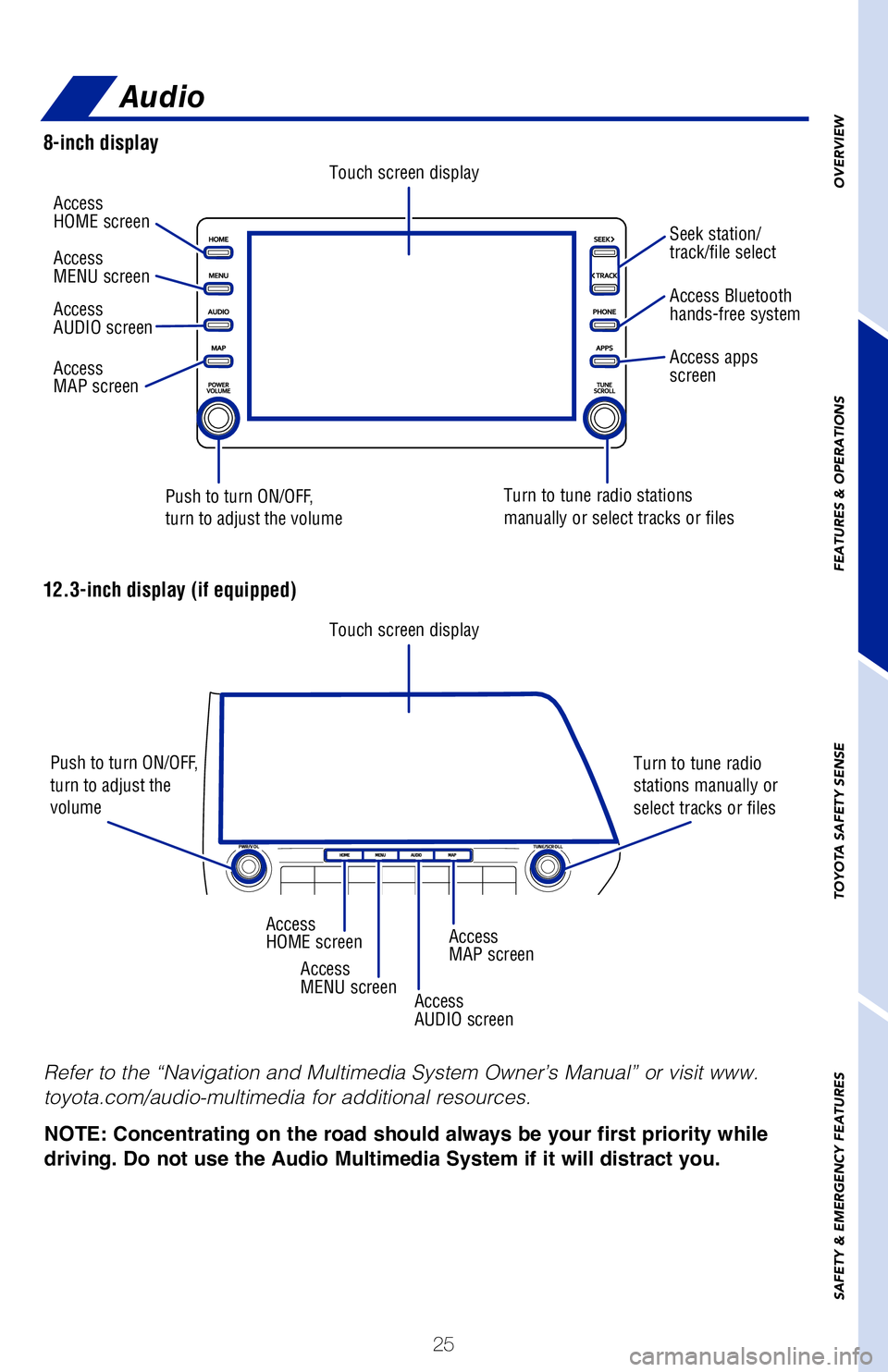

Audio
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
8-inch display
12.3-inch display (if equipped)
Touch screen display
Touch screen display
Push to turn ON/OFF,
turn to adjust the volume
Push to turn ON/OFF,
turn to adjust the
volume
Turn to tune radio stations
manually or select tracks or files
Turn to tune radio
stations manually or
select tracks or files
Access
HOME screen
Access
HOME screen
Access

MENU screen
Access
MENU screen
Access

AUDIO screen
Access
AUDIO screen
Access

MAP screen
Access
MAP screen
Seek station/
track/file select
Access Bluetooth
hands-free system
Access apps
screen
63195a_MY20 Highlander.indd 2511/18/19 8:13 AM

26

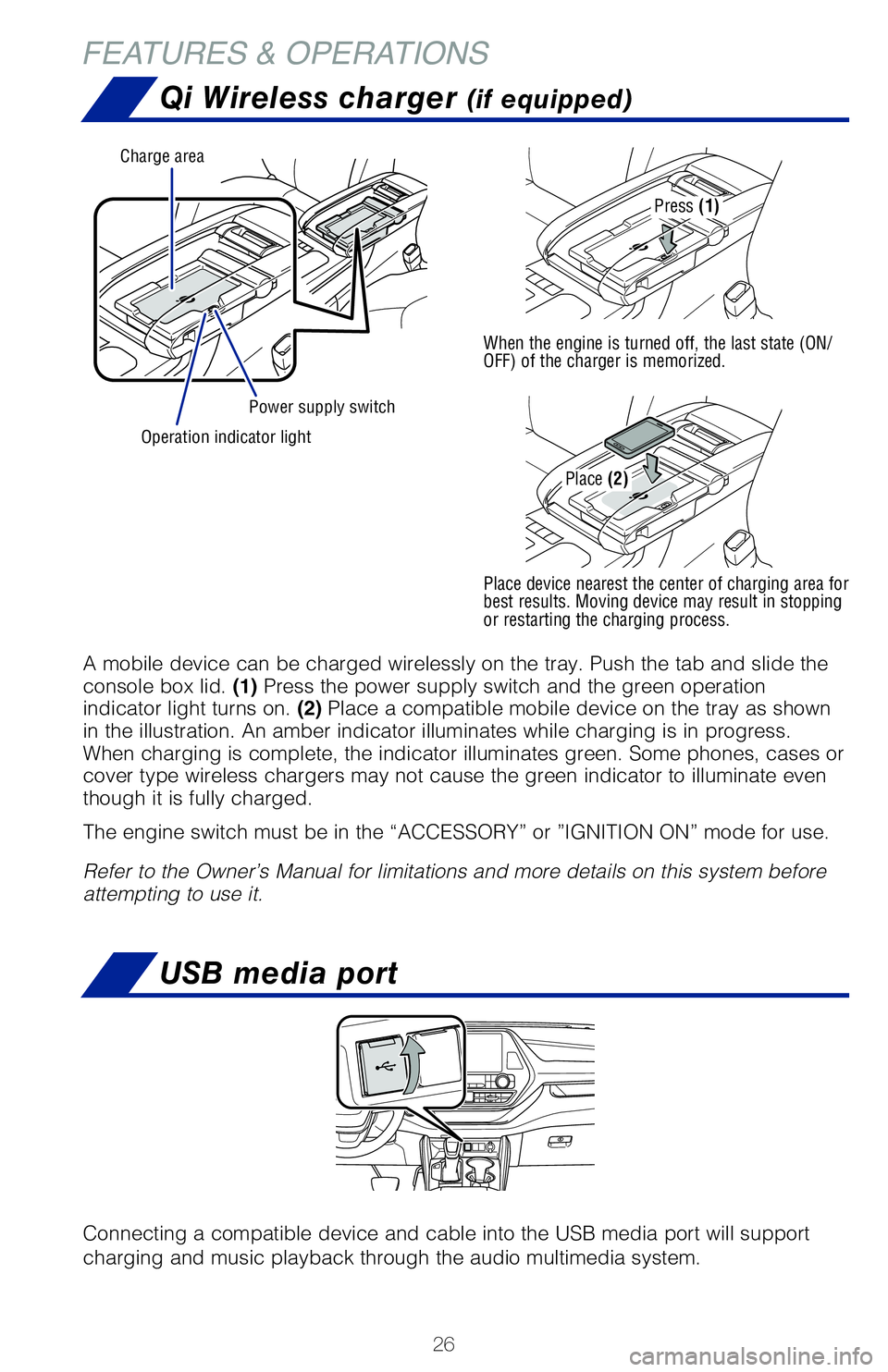

USB media port
Connecting a compatible device and cable into the USB media port will support
charging and music playback through the audio multimedia system.
Power supply switch
Charge area
Operation indicator light
Qi Wireless charger (if equipped)
A mobile device can be charged wirelessly on the tray. Push the tab and slide the
console box lid. (1) Press the power supply switch and the green operation
indicator light turns on. (2) Place a compatible mobile device on the tray as shown
in the illustration. An amber indicator illuminates while charging is in progress.
When charging is complete, the indicator illuminates green. Some phones, cases or
cover type wireless chargers may not cause the green indicator to illuminate even
though it is fully charged.
The engine switch must be in the “ACCESSORY” or ”IGNITION ON” mode for use.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)
FEATURES & OPERATIONS
63195a_MY20 Highlander.indd 2611/18/19 8:13 AM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Power outlets- 12V DC
Power outlets- 120V AC (if equipped)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” mode for use.
The engine switch must be in the “ACCESSORY” or “IGNITION ON” mode for use.
The engine switch must be in the “IGNITION ON” mode for use.
FrontCenter console
RearFront
USB charge-ports
(Charge only)
(Charge only)
63195a_MY20 Highlander.indd 2711/18/19 8:13 AM

28

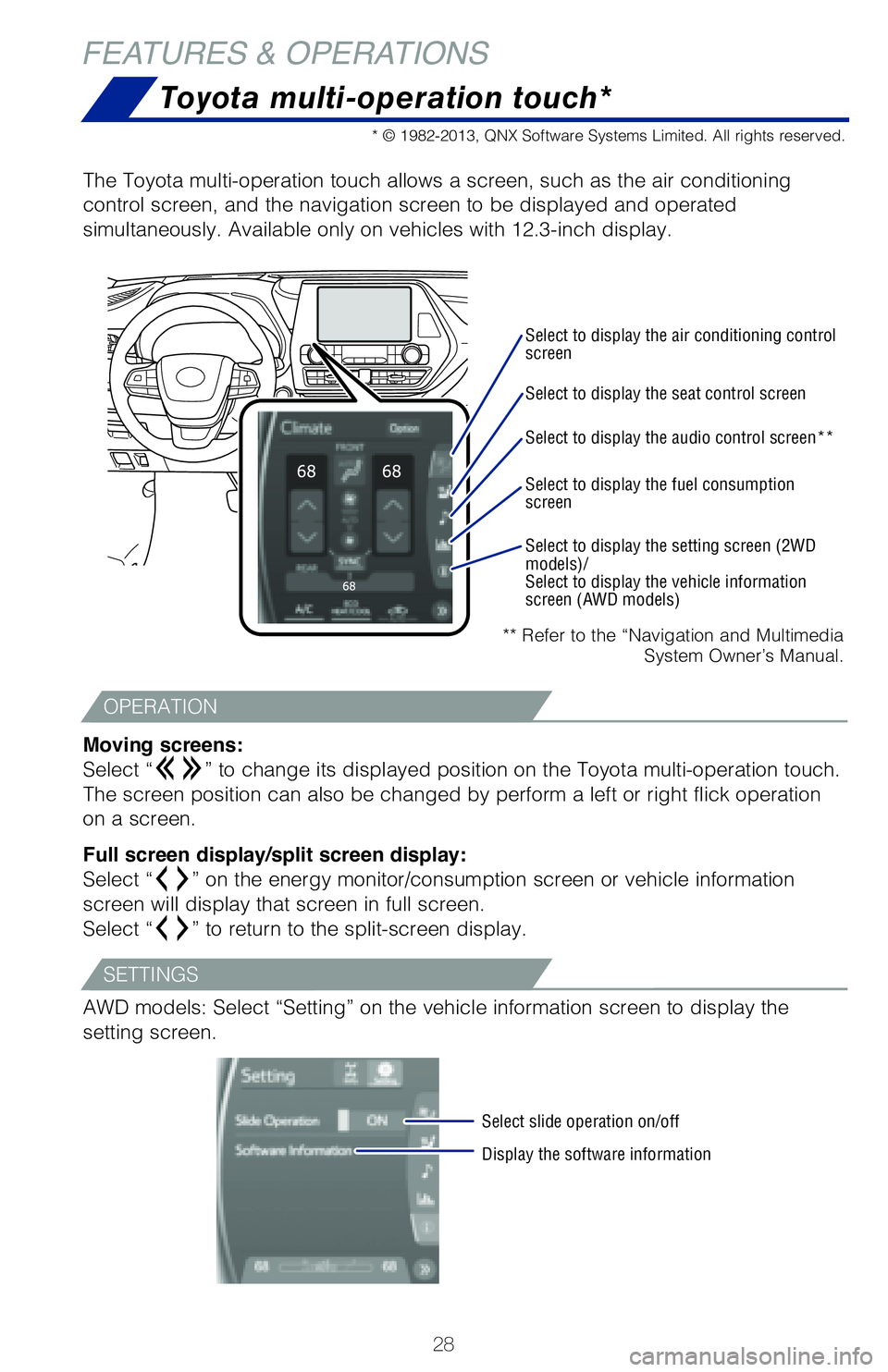

Toyota multi-operation touch*
** Refer to the “Navigation and Multimedia System Owner’s Manual.
The Toyota multi-operation touch allows a screen, such as the air conditioning
control screen, and the navigation screen to be displayed and operated
simultaneously. Available only on vehicles with 12.3-inch display.
Moving screens:
Select “
” to change its displayed position on the Toyota multi-operation touch.
The screen position can also be changed by perform a left or right flick operation
on a screen.
Full screen display/split screen display:
Select “
” on the energy monitor/consumption screen or vehicle information
screen will display that screen in full screen.
Select “
” to return to the split-screen display.
AWD models: Select “Setting” on the vehicle information screen to display the
setting screen.
Select to display the air conditioning control
screen
Select slide operation on/off
Display the software information
Select to display the seat control screen
Select to display the audio control screen**
Select to display the fuel consumption
screen
Select to display the setting screen (2WD
models)/
Select to display the vehicle information
screen (AWD models)
* © 1982-2013, QNX Software Systems Limited. All rights reserved.
FEATURES & OPERATIONS
OPERATION
SETTINGS
