TOYOTA HIGHLANDER 2020 Warranties & Maintenance Guides (in English)

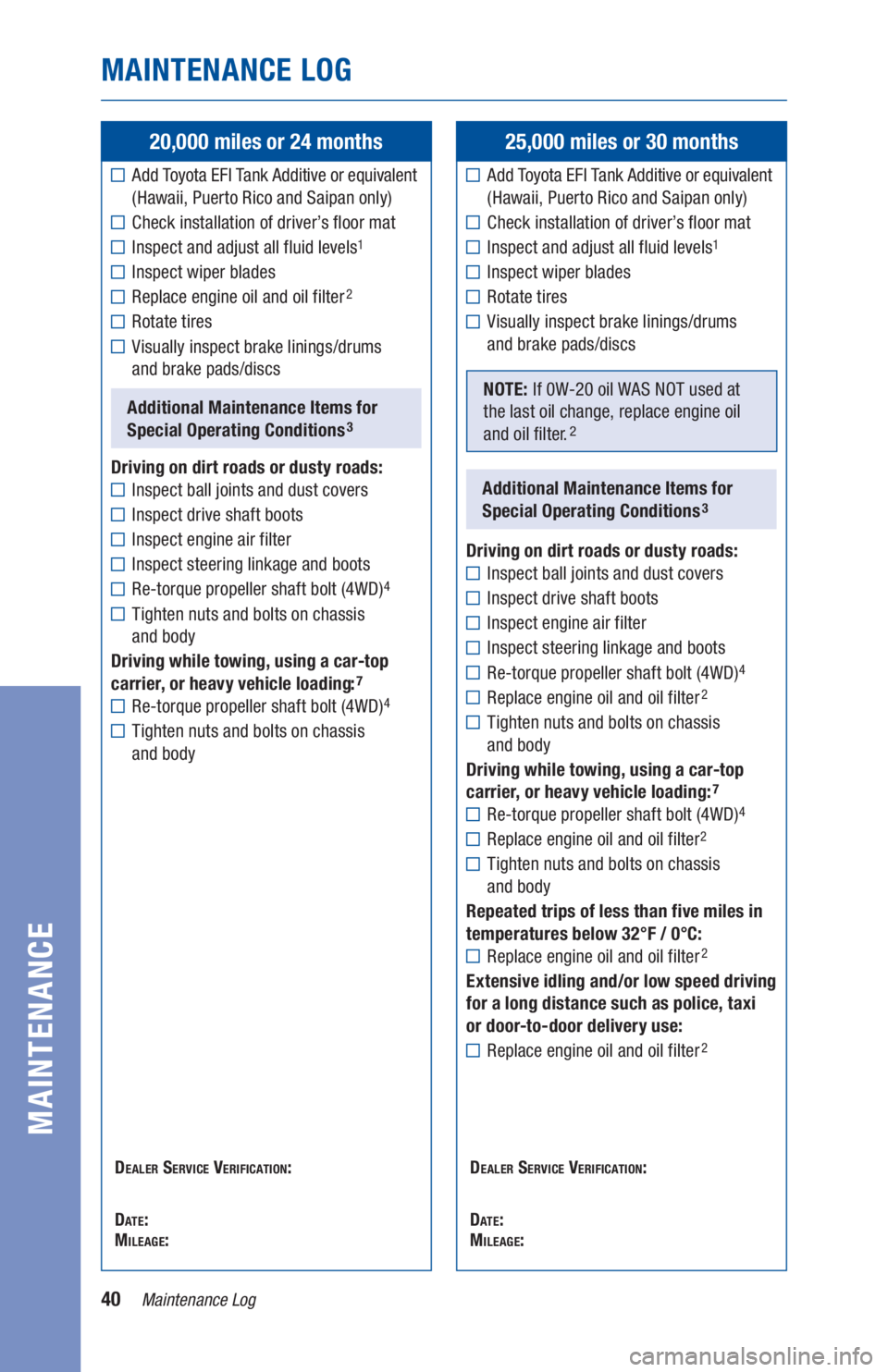

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body



25,000 miles or 30 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

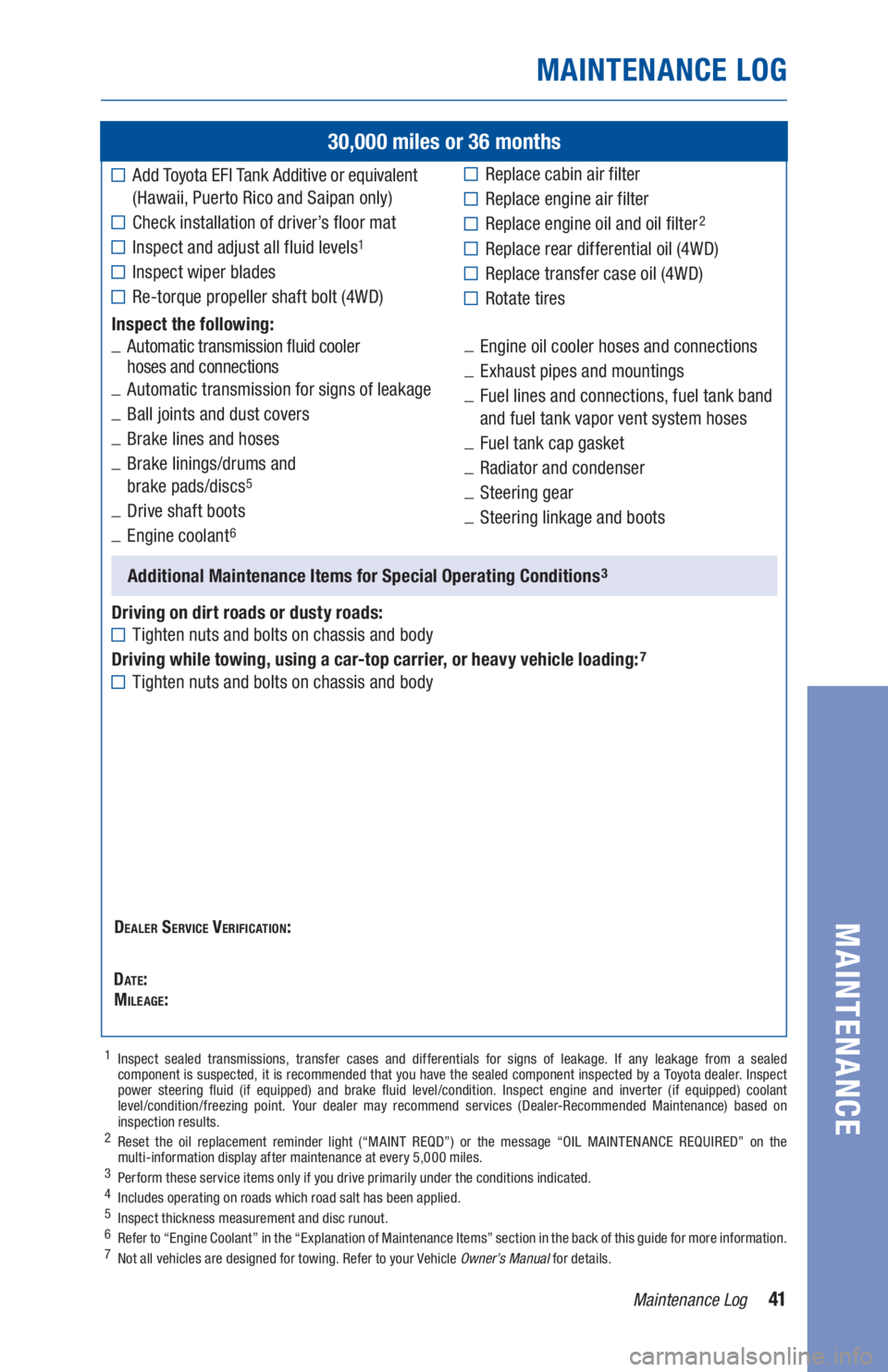

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
5
_
Drive shaft boots
_
Engine coolant
6
_
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Tighten nuts and bolts on chassis and body


_
Engine oil cooler hoses and connections
_
Exhaust pipes and mountings
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator and condenser
_
Steering gear
_
Steering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace rear differential oil (4WD)
Replace transfer case oil (4WD)
Rotate tires
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

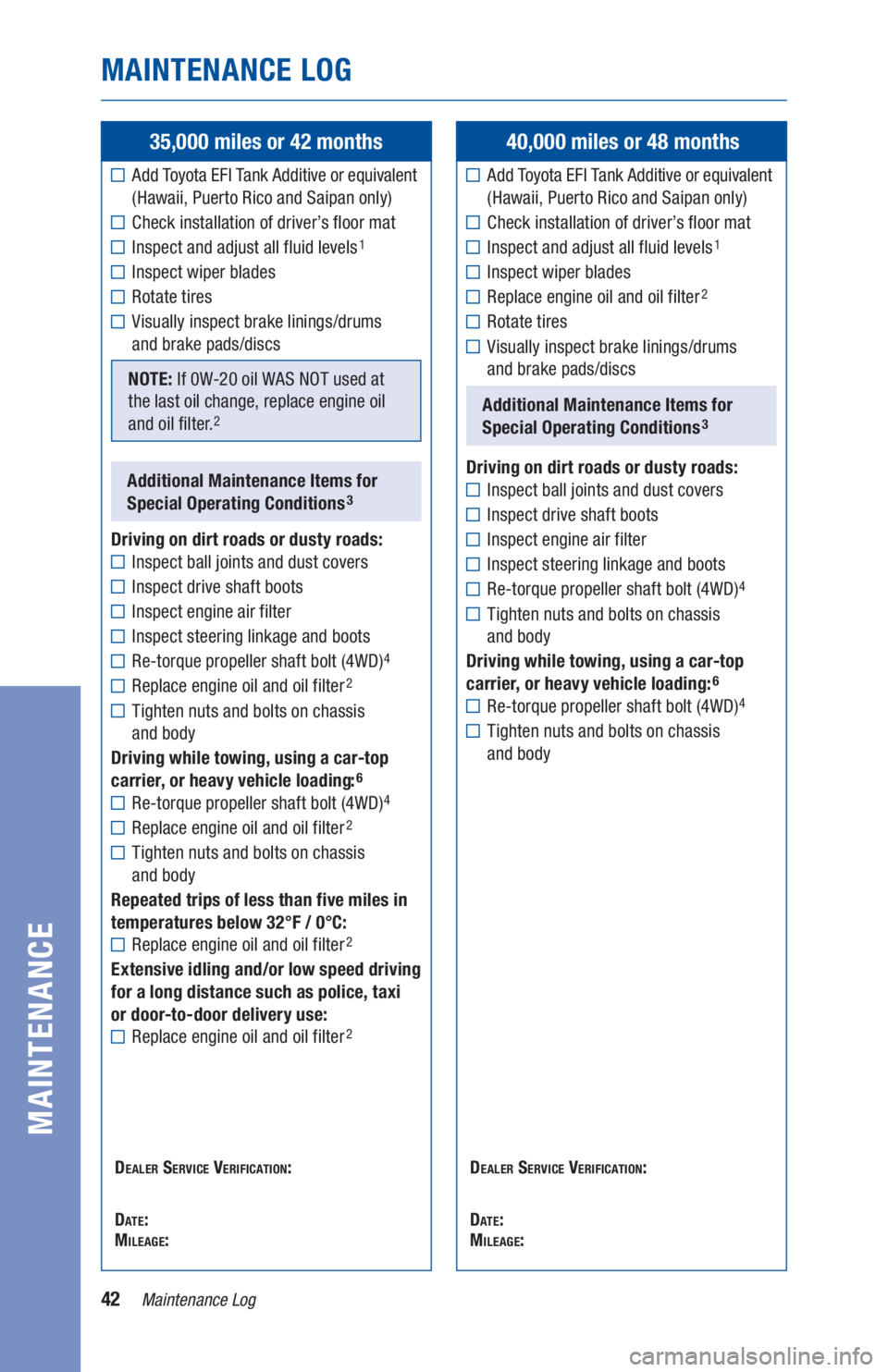

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE
35,000 miles or 42 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
40,000 miles or 48 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

43Maintenance Log
z
MAINTENANCE LOG
MAINTENANCE
Re-torque propeller shaft bolt (4WD)
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
45,000 miles or 54 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers
_
Brake lines and hoses
_
Cabin air filter
_
Drive shaft boots
_
Engine coolant
5
_
Engine oil cooler hoses and connections



NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced airflow from the air conditioner and heater or if the windows fog easily when
you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3

Driving on dirt roads or dusty roads:
Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace rear differential oil (4WD)
Replace transfer case oil (4WD)
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
_
Exhaust pipes and mountings
_
Radiator and condenser
_
Rear differential oil (4WD)
_
Steering gear
_
Steering linkage and boots
_
Transfer case oil (4WD)

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
50,000 miles or 60 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
9
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
55,000 miles or 66 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
9
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE

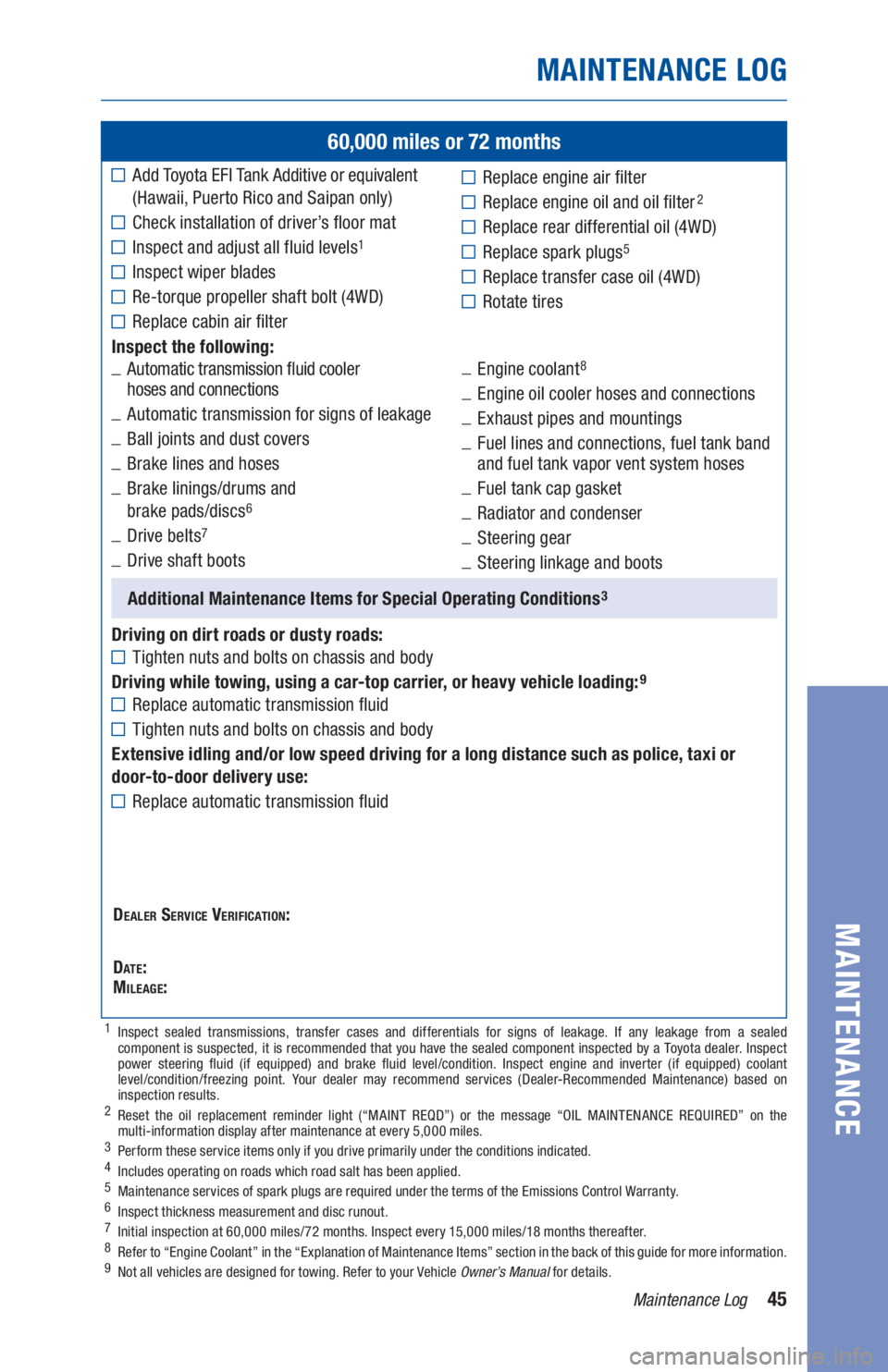

60,000 miles or 72 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and
brake pads/discs
6
_
Drive belts7
_
Drive shaft boots
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:9
Replace automatic transmission fluid
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace automatic transmission fluid

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty. 6 Inspect thickness measurement and disc runout.7 Initial inspection at 60,000 miles/ 72 months. Inspect every 15,000 miles/18 months thereafter. 8
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.9
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Engine coolant8
_
Engine oil cooler hoses and connections
_
Exhaust pipes and mountings
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator and condenser
_
Steering gear
_
Steering linkage and boots
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
Replace engine air filter
Replace engine oil and oil filter2
Replace rear differential oil (4WD)
Replace spark plugs5
Replace transfer case oil (4WD)
Rotate tires

46Maintenance Log
MAINTENANCE LOG
MAINTENANCE
65,000 miles or 78 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
70,000 miles or 84 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

47Maintenance Log
Re-torque propeller shaft bolt (4WD) Rotate tires Visually inspect brake linings/drums
and brake pads/discs

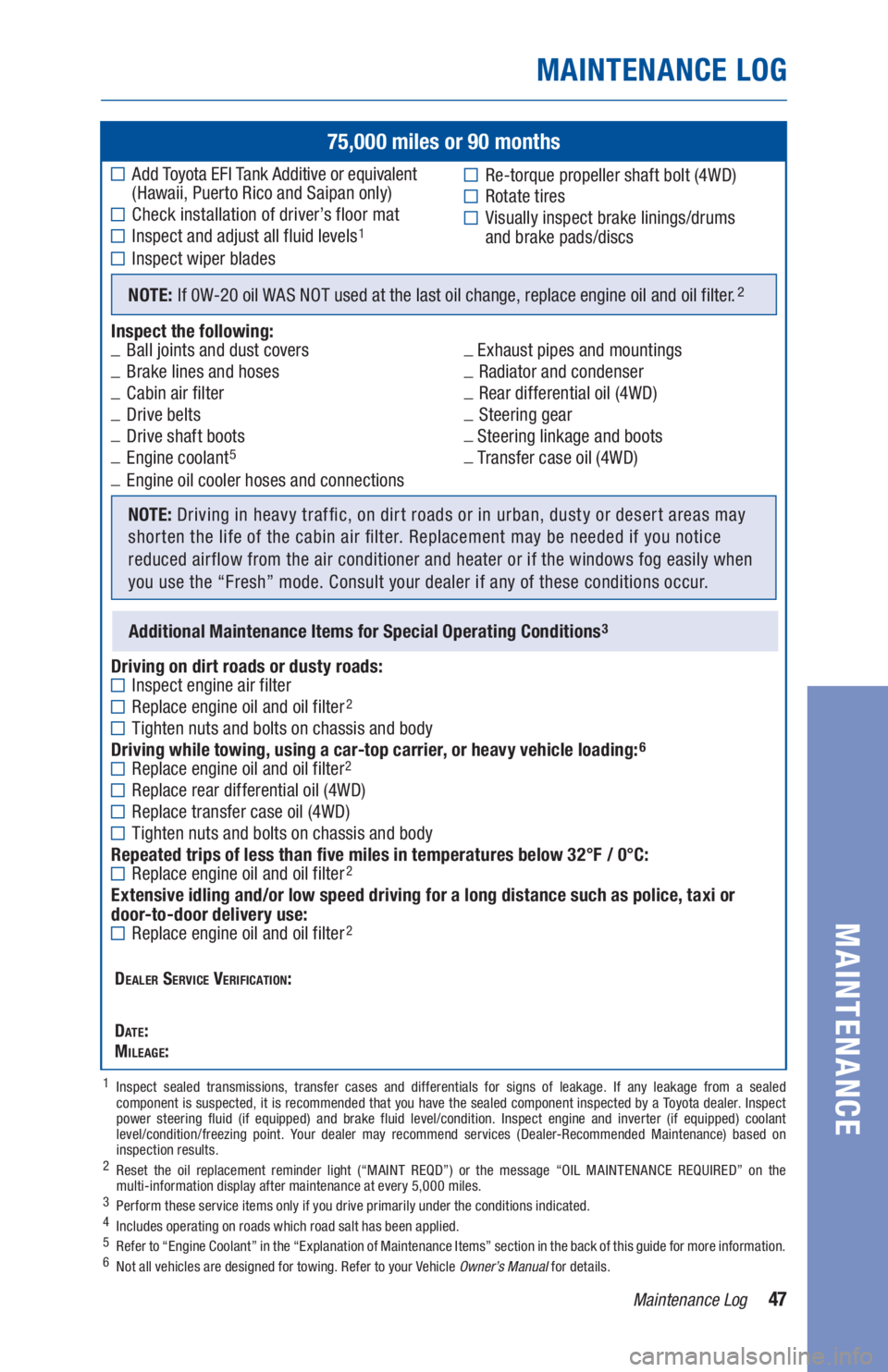

75,000 miles or 90 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor matInspect and adjust all fluid levels1
Inspect wiper blades
NOTE: If 0W-20 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_
Ball joints and dust covers _
Exhaust pipes and mountings
_
Brake lines and hoses _
Radiator and condenser
_
Cabin air filter _
Rear differential oil (4WD)
_
Drive belts _
Steering gear
_
Drive shaft boots _
Steering linkage and boots
_
Engine coolant
5 _
Transfer case oil (4WD)
_
Engine oil cooler hoses and connections
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced airflow from the air conditioner and heater or if the windows fog easily when
you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Driving on dirt roads or dusty roads:Inspect engine air filterReplace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2
Replace rear differential oil (4WD)Replace transfer case oil (4WD) Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Replace engine oil and oil filter2
MAINTENANCE LOG
MAINTENANCE
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
Additional Maintenance Items for Special Operating Conditions3

48Maintenance Log
MAINTENANCE LOG
MAINTENANCE

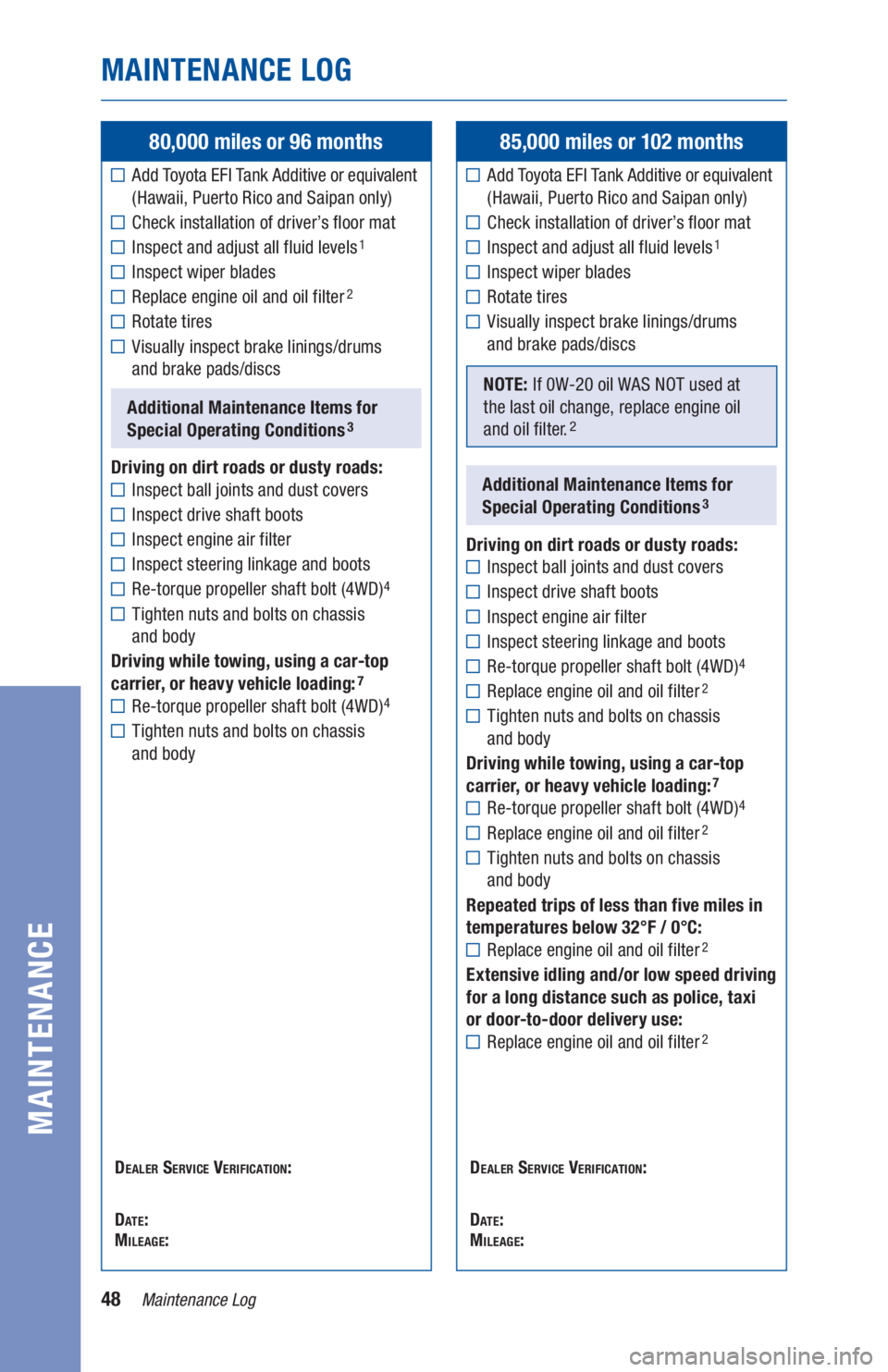

80,000 miles or 96 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt (4WD)4
Tighten nuts and bolts on chassis
and body
85,000 miles or 102 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0W-20 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
7
Re-torque propeller shaft bolt (4WD)4
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

49Maintenance Log
MAINTENANCE LOG
MAINTENANCE

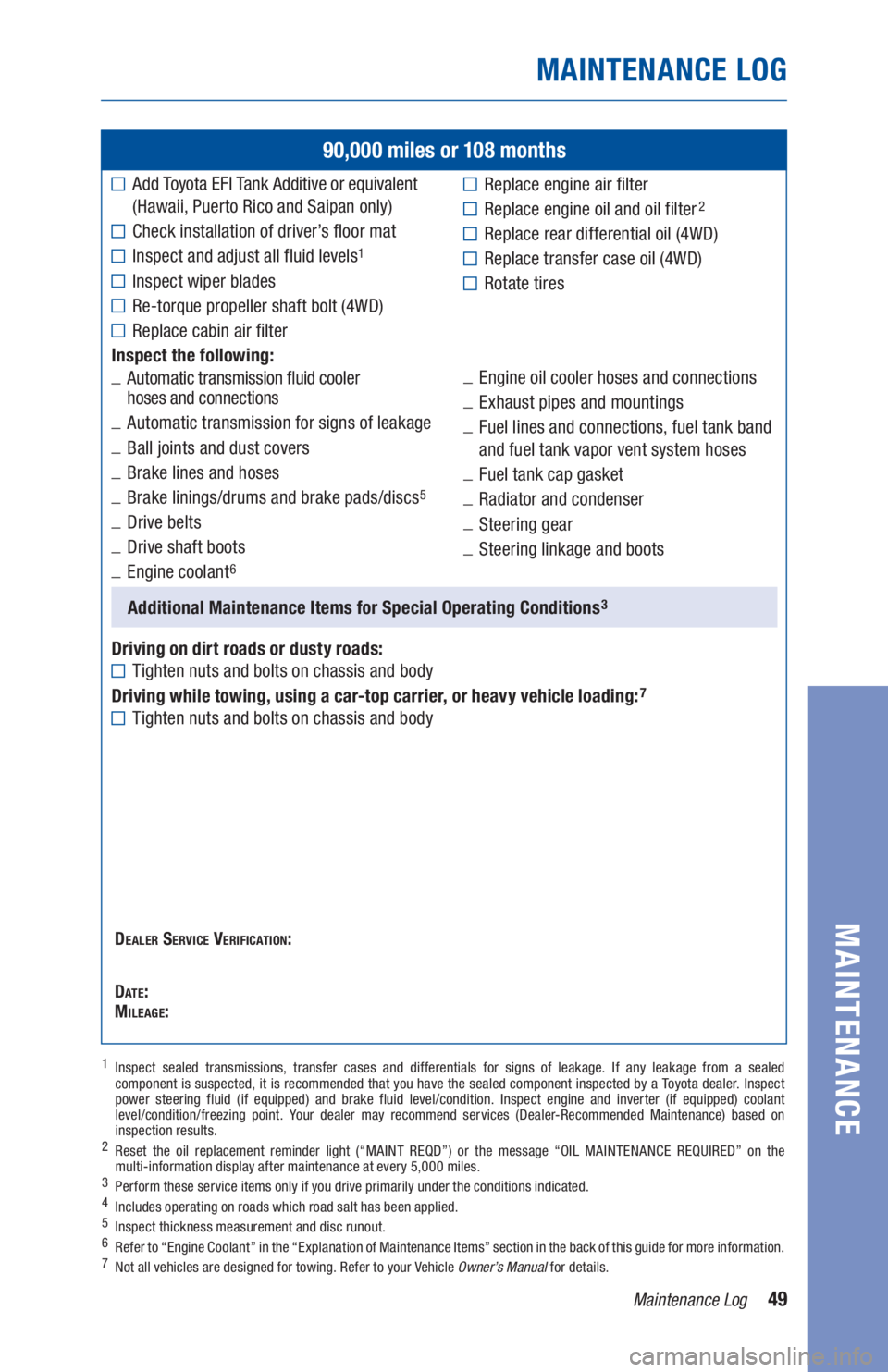

90,000 miles or 108 months
Add Toyota EFI Tank Additive or equivalent
(Hawaii, Puerto Rico and Saipan only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Re-torque propeller shaft bolt (4WD)
Replace cabin air filter
Inspect the following:
_
Automatic transmission fluid cooler
hoses and connections
_
Automatic transmission for signs of leakage
_
Ball joints and dust covers
_
Brake lines and hoses
_
Brake linings/drums and brake pads/discs
5
_
Drive belts
_
Drive shaft boots
_
Engine coolant
6
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:7
Tighten nuts and bolts on chassis and body


_
Engine oil cooler hoses and connections
_
Exhaust pipes and mountings
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_
Fuel tank cap gasket
_
Radiator and condenser
_
Steering gear
_
Steering linkage and boots
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyota dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Includes operating on roads which road salt has been applied.5 Inspect thickness measurement and disc runout.6
Refer to “Engine Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for more information.7
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
Replace engine air filter
Replace engine oil and oil filter2
Replace rear differential oil (4WD)
Replace transfer case oil (4WD)
Rotate tires
